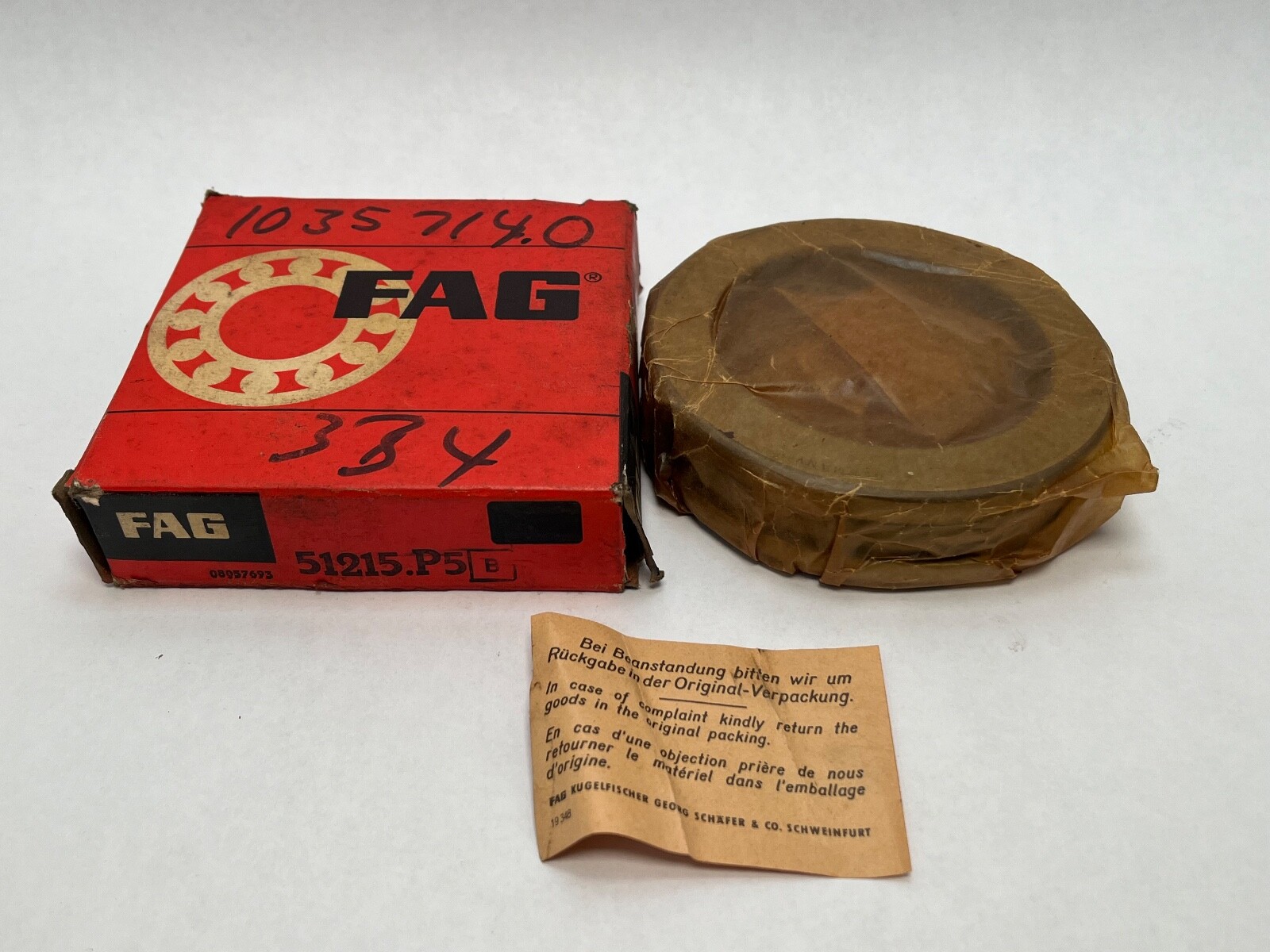

FAG51215.P5Thrust Ball Bearing – 75 mm ID, 110 mm OD, 27 mm Height, Single Direction, P5 / ABEC 5

Product Description

What this part is:

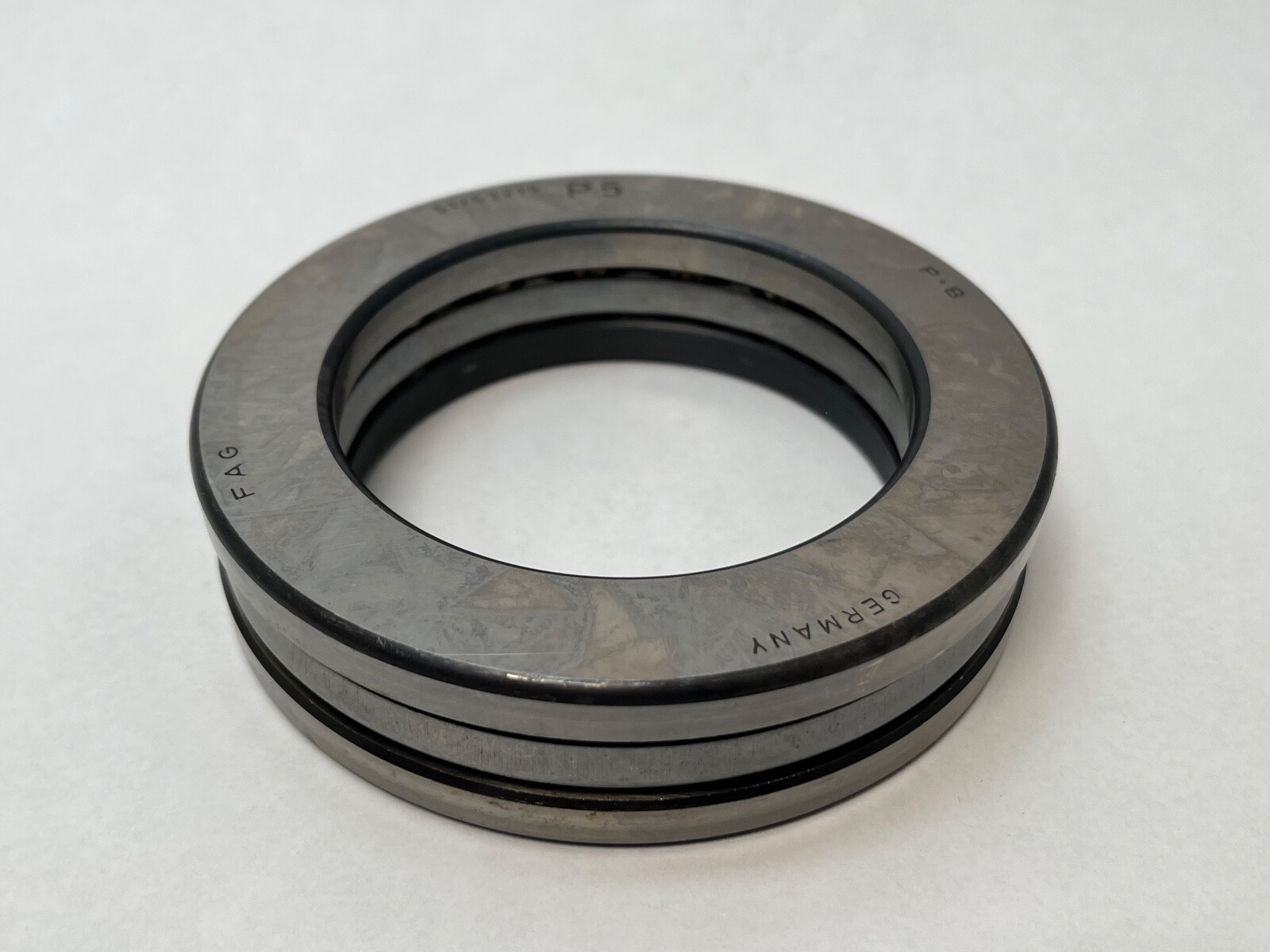

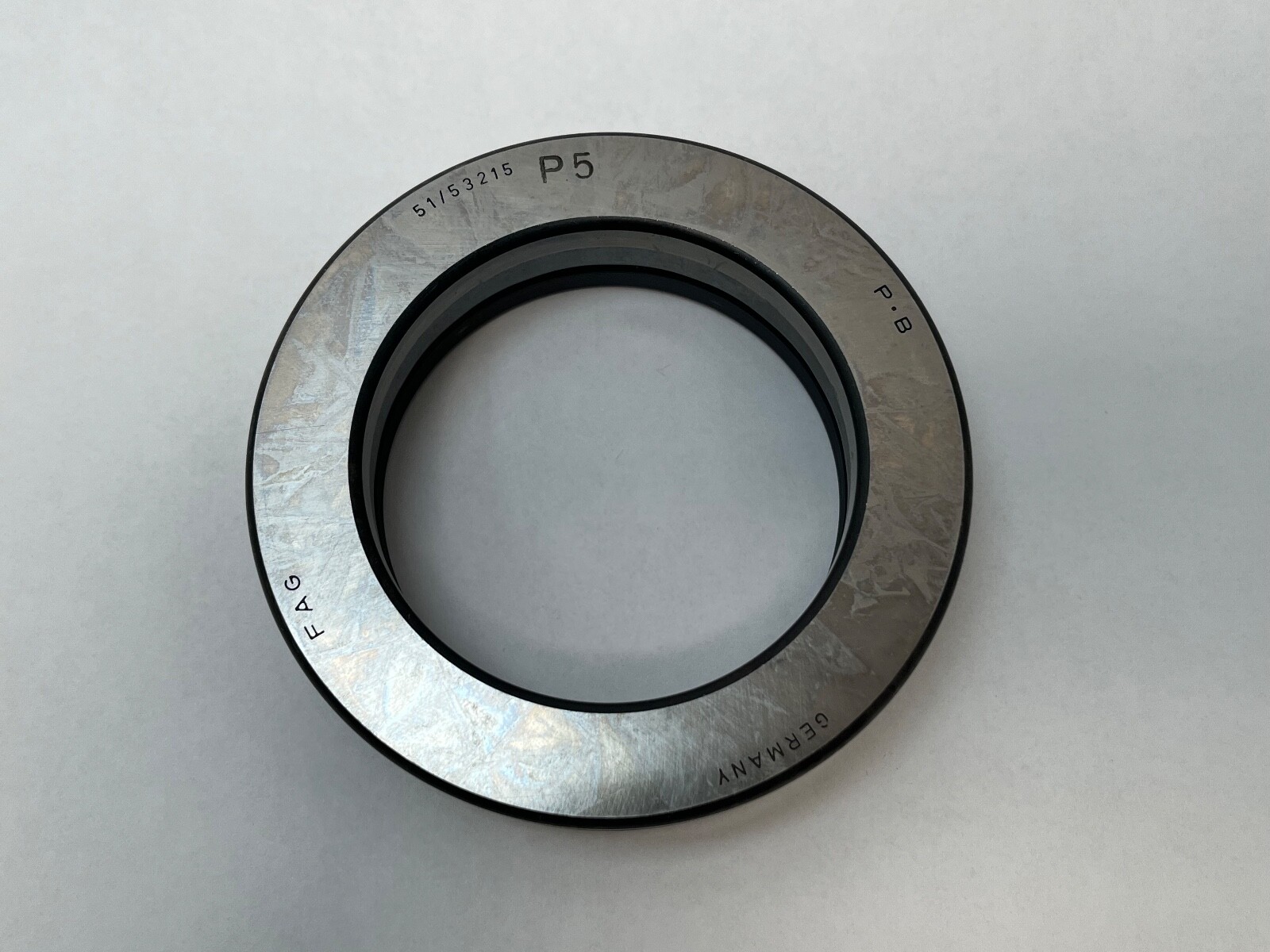

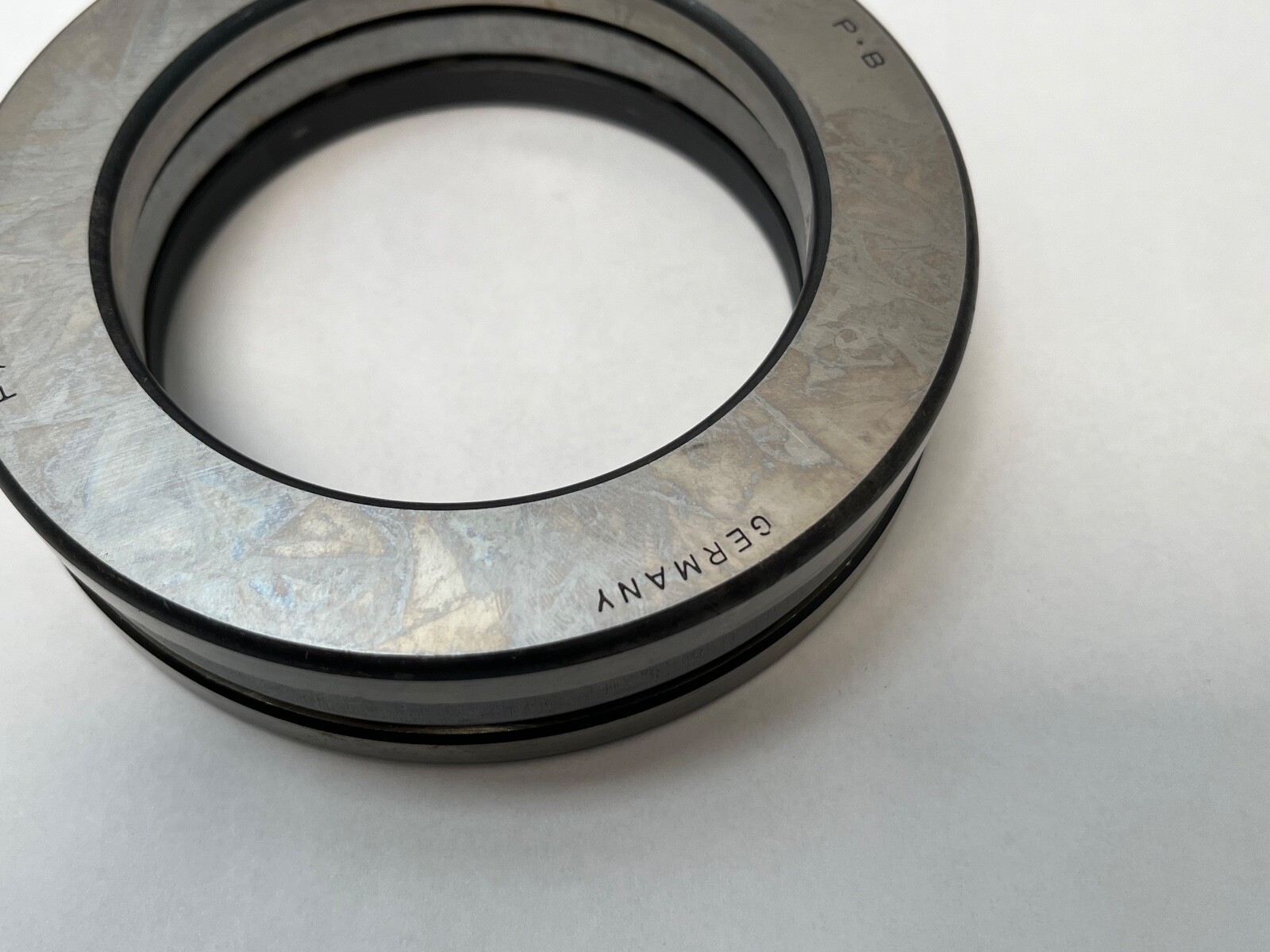

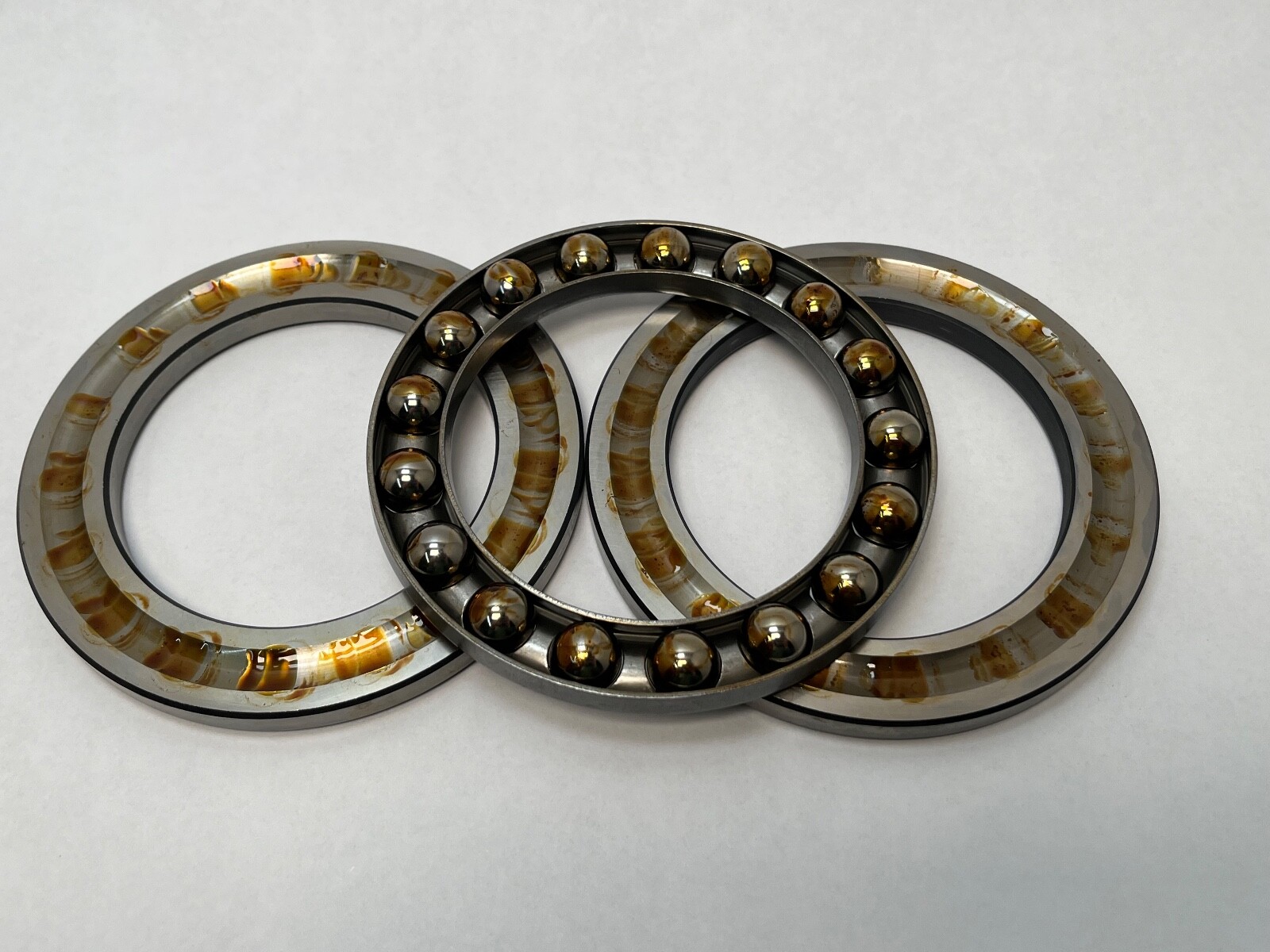

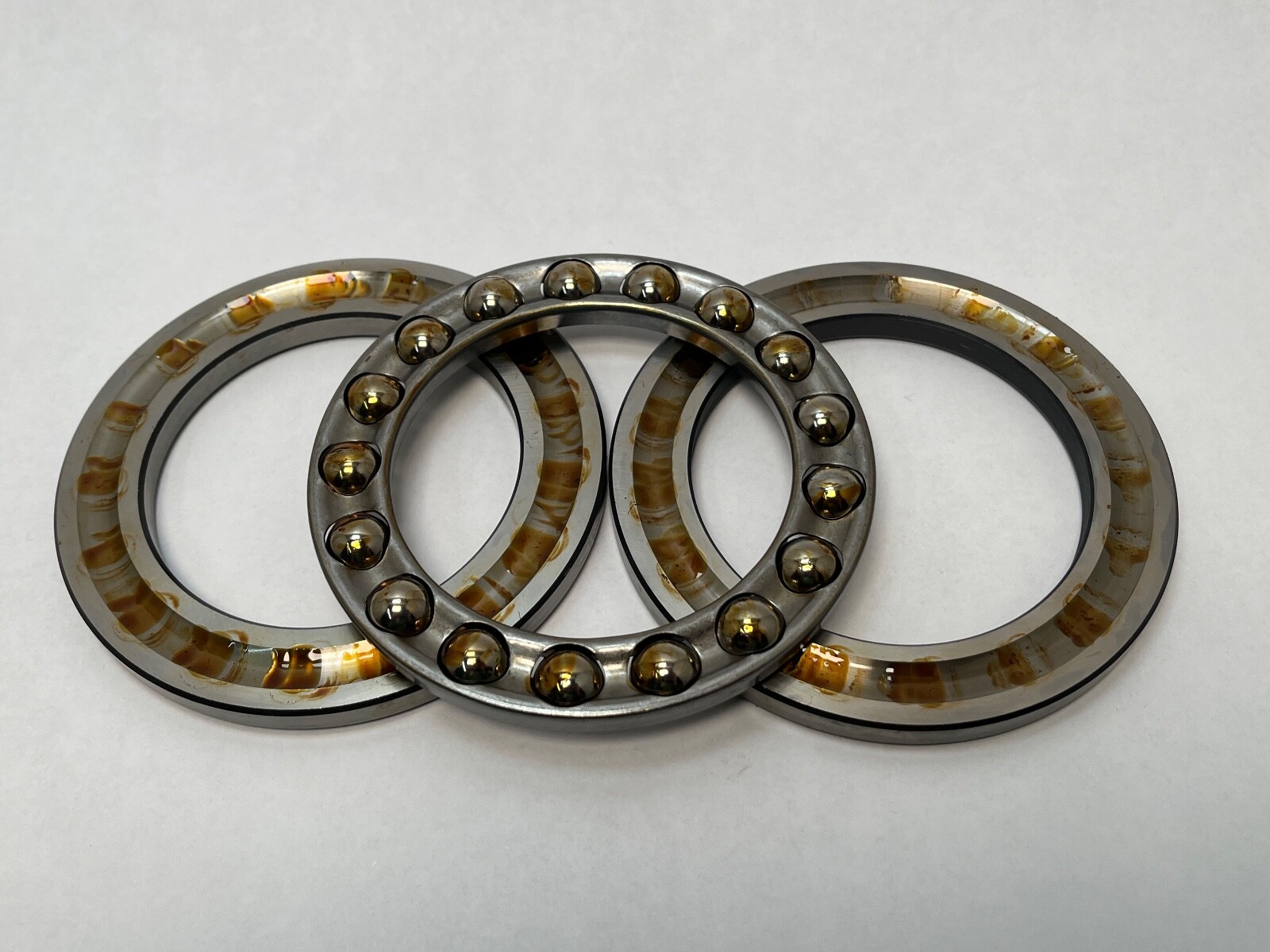

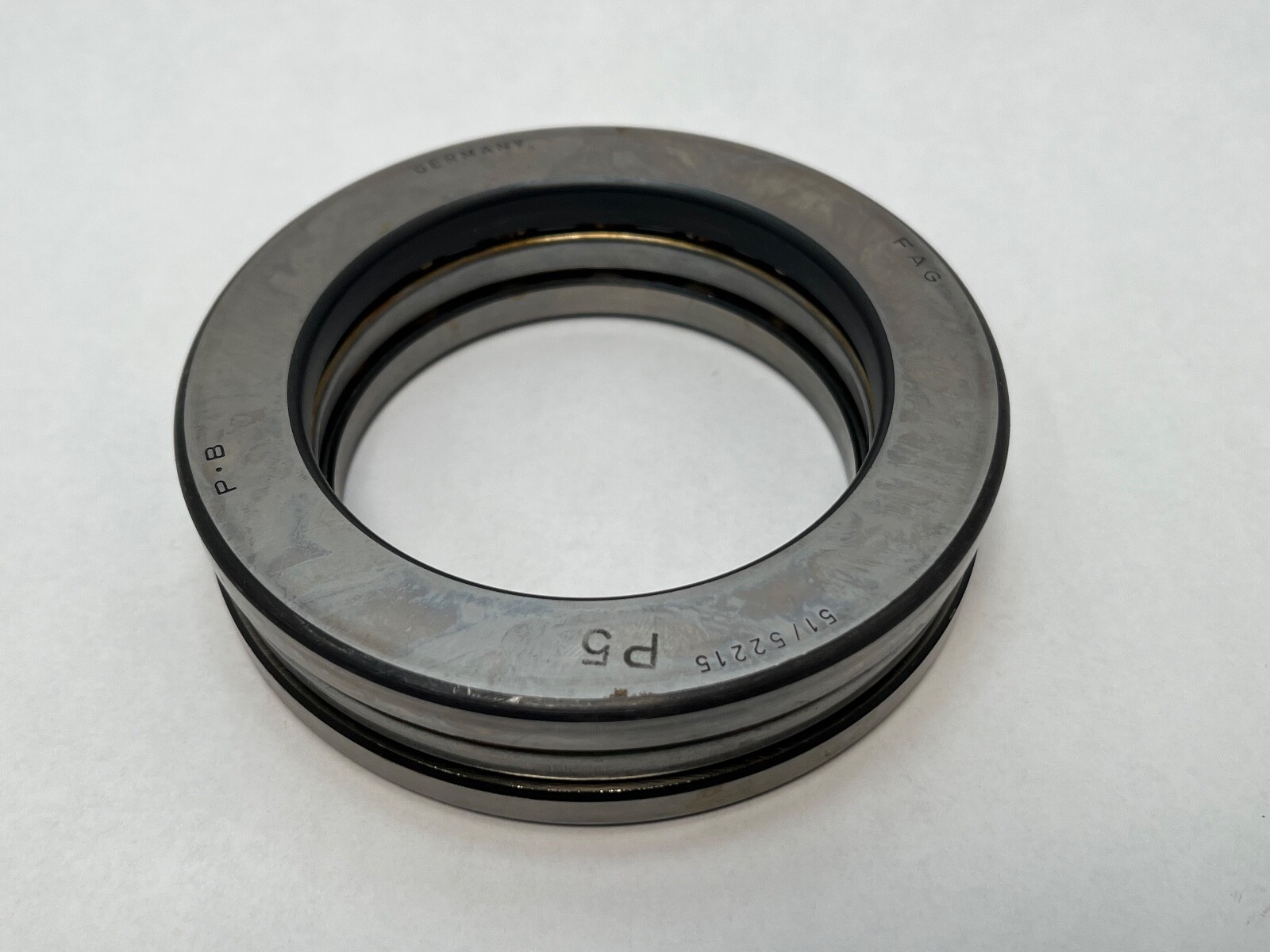

FAG 51215.P5 is a single-direction axial deep groove ball bearing supplied as a complete three-piece set: shaft washer, housing washer and ball-and-cage assembly. It carries axial load in one direction. Unit Quantity: 1 Pc.

Decoding the designation:

512 — single-direction thrust ball bearing, 12 dimension series.

15 — bore code, 15 x 5 = 75 mm bore.

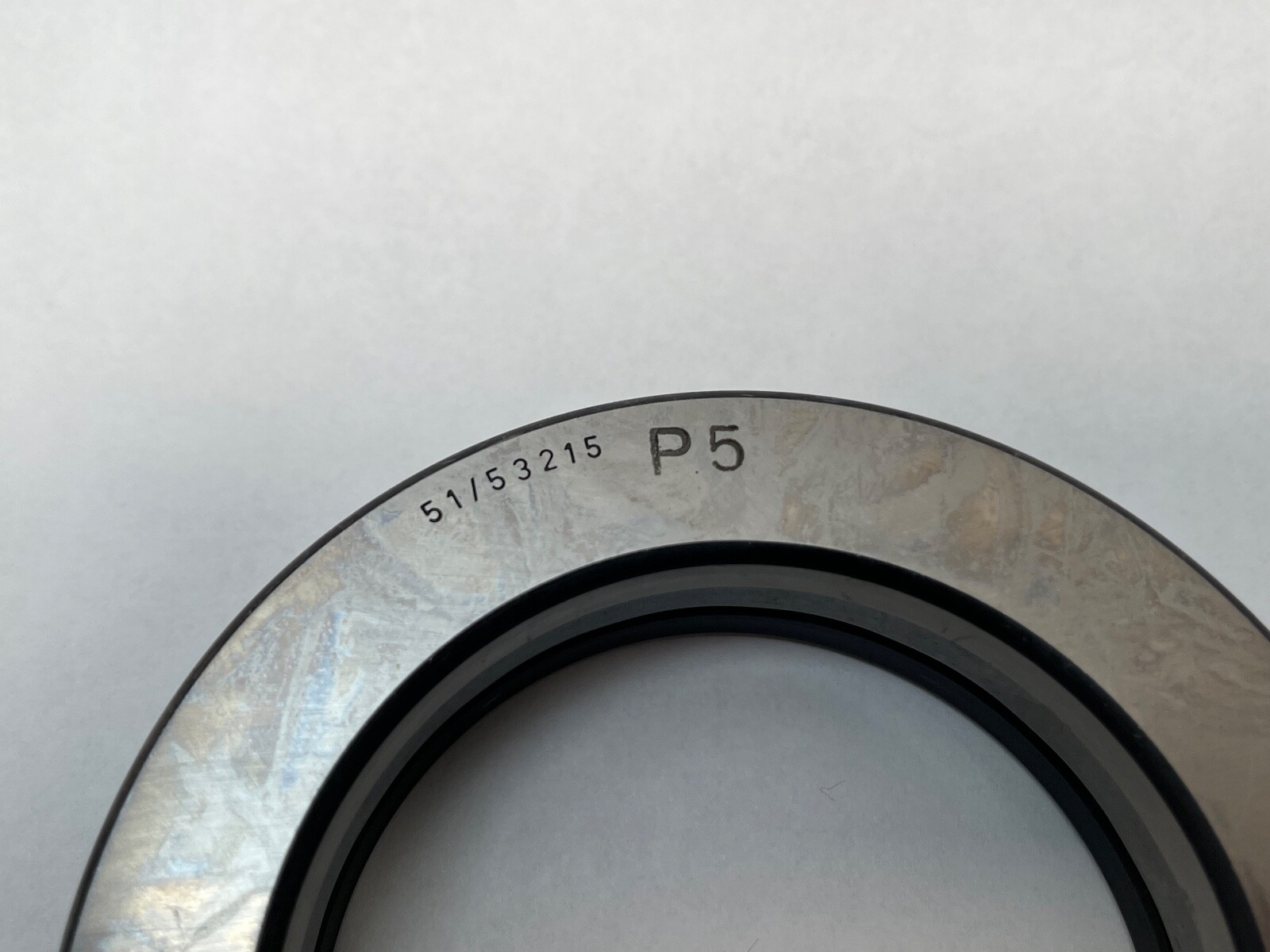

P5 — ISO tolerance class P5, equivalent to ABEC 5.

Specifications:

Bore Diameter: 75 mm. Outside Diameter: 110 mm. Height: 27 mm. Precision Class: ABEC 5 / P5. Dynamic Load Rating: 67,000 N axial. Static Load Rating: 169,000 N axial. Fatigue load limit: 7,700 N axial. Cage Material: Pressed steel. Rolling Elements: Ball. Item Weight: 0.795 kg (1.75 lb).

Dimensions and mounting:

Shaft washer outside diameter: 110 mm. Housing washer bore: 77 mm. Minimum shaft shoulder diameter: 96 mm. Maximum housing shoulder diameter: 89 mm. Maximum fillet radius: 1 mm. Minimum chamfer: 1 mm. Minimum load factor A: 0.18.

Compatibility and replacement:

Same 75 x 110 x 27 mm single-direction envelope in normal tolerance, not P5: SKF 51215, NSK 51215, NTN 51215, Koyo 51215, Timken 51215. MPN Variants: 51215.P5, 51215-P5, 51215P5.

Frequently asked questions:

What are the dimensions of the FAG 51215.P5?

Bore Diameter: 75 mm. Outside Diameter: 110 mm. Height: 27 mm.

What load ratings does it have?

Dynamic Load Rating: 67,000 N axial. Static Load Rating: 169,000 N axial.

What does P5 mean in the designation?

P5 is ISO tolerance class P5, equivalent to ABEC 5.
