Availability:
2 in stock
TDO double-row tapered roller bearing assembly, 1.3750 in bore, 2.7170 in OD. Double cup, two cones and a cone spacer, K factor 1.53, e factor 0.38. 4 Pcs.
List Price
$49.77
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| Model | 14138-A / 14276-D / X2S14137 |
| Bearing Type | Tapered Roller Bearing |
| ID | 1.3750 in (34.925 mm) |
| OD | 2.7170 in (69.012 mm) |
| Series | 14000 |
|---|---|
| Harmonization Code | 8482.20.00 |
| Cup Part Number | 14276D |
| Design Units | Imperial |
| Bearing Material | Case-Carburized Steel |
| Cup Width | 1.5000 in (38.1 mm) |
| Cup Backface To Clear Radius | 0.03" |
| Cone Part Number | 14138A |
| Cone Width | 0.7710 in (19.583 mm) |
| Cone Backface To Clear Radius | 0.14" |
| Base Number | 14138A-90104 |
| Mpn Variants | 14138A-90104, 14138A 90104, 14138-A-90104, 14138A/14276D/X2S14137, 14276-D, X2S-14137 |
| Compatible With Replaces | Timken 14138A cone, Timken 14276D double cup, Timken X2S14137 cone spacer |
| Arrangement Configuration | TDO double-row assembly: one double cup, two single cones and one cone spacer |
| Precision Class | Not specified |
| Dynamic Load Rating C1 | 54,600 N (12,300 lbf) |
| Dynamic Axial Rating Ca90 | 9,260 N (2,080 lbf) |
| K Factor | 1.53 |
| E Factor | 0.38 |
| Dynamic Load Rating | 54,600 N |
| Static Load Rating | 61,700 N (13,900 lbf) |
| Precision Rating | Not specified |
| Rolling Elements | Tapered Roller |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Effective Center Location | -0.17 in (-4.3 mm) |

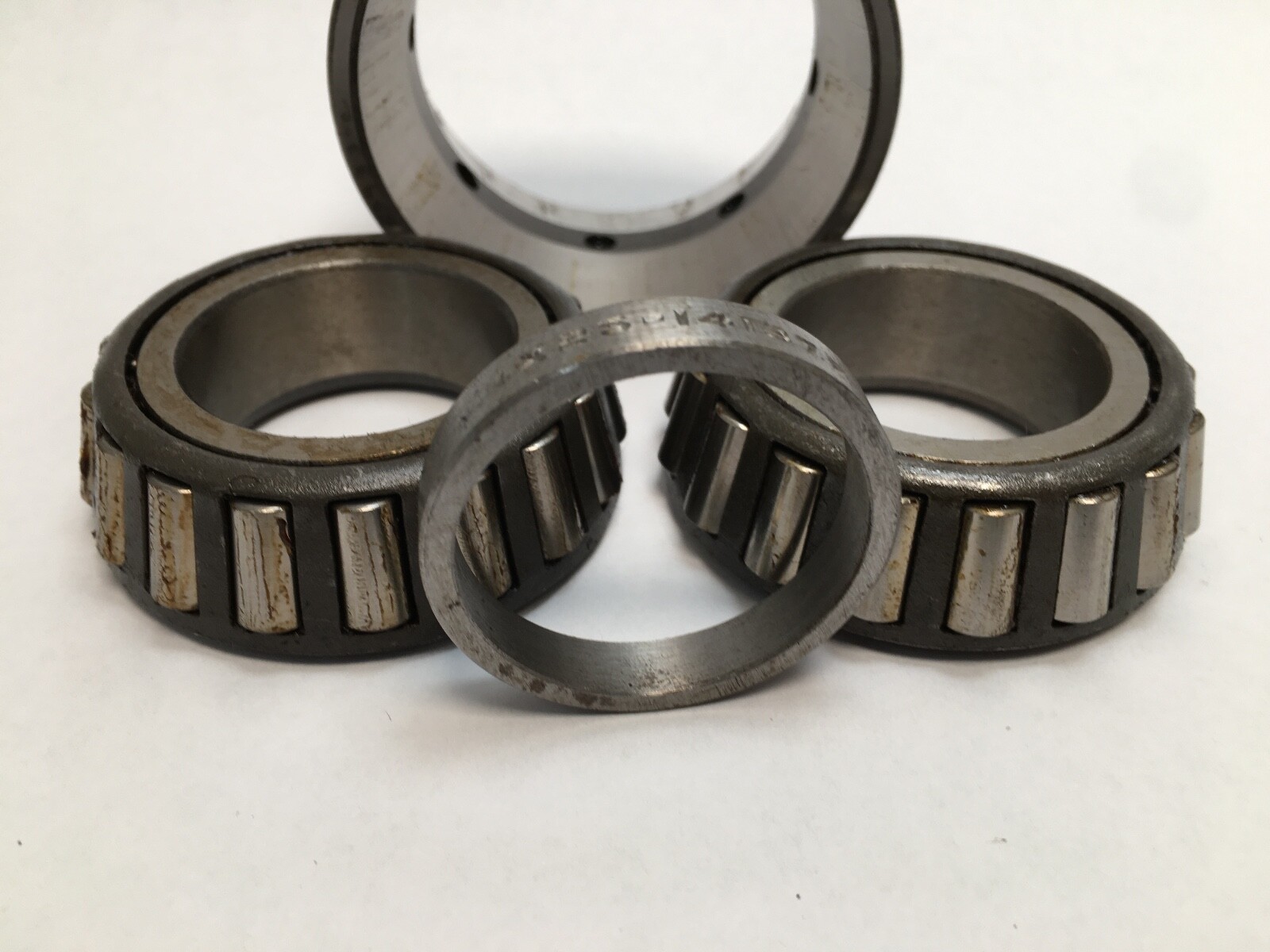

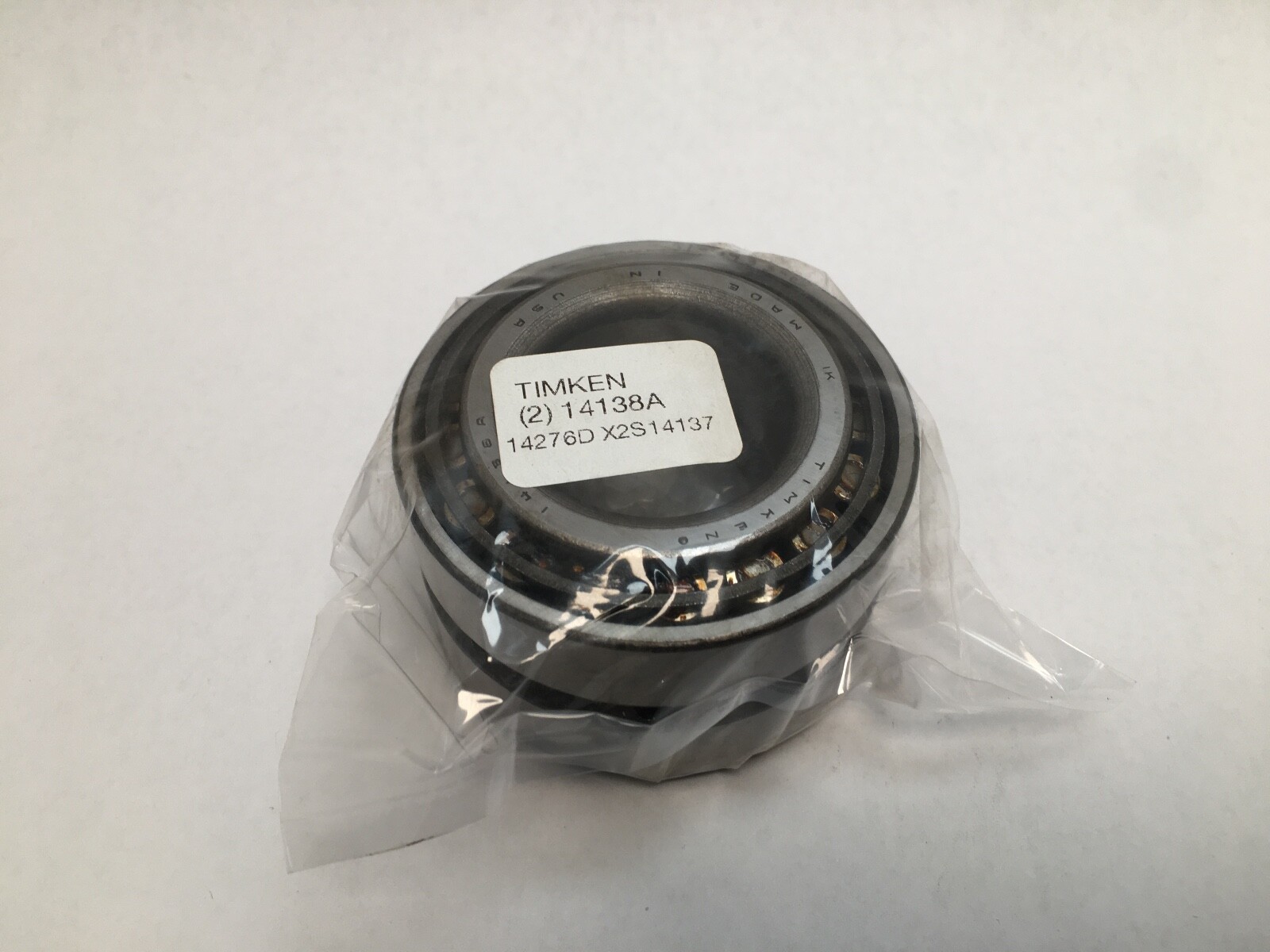

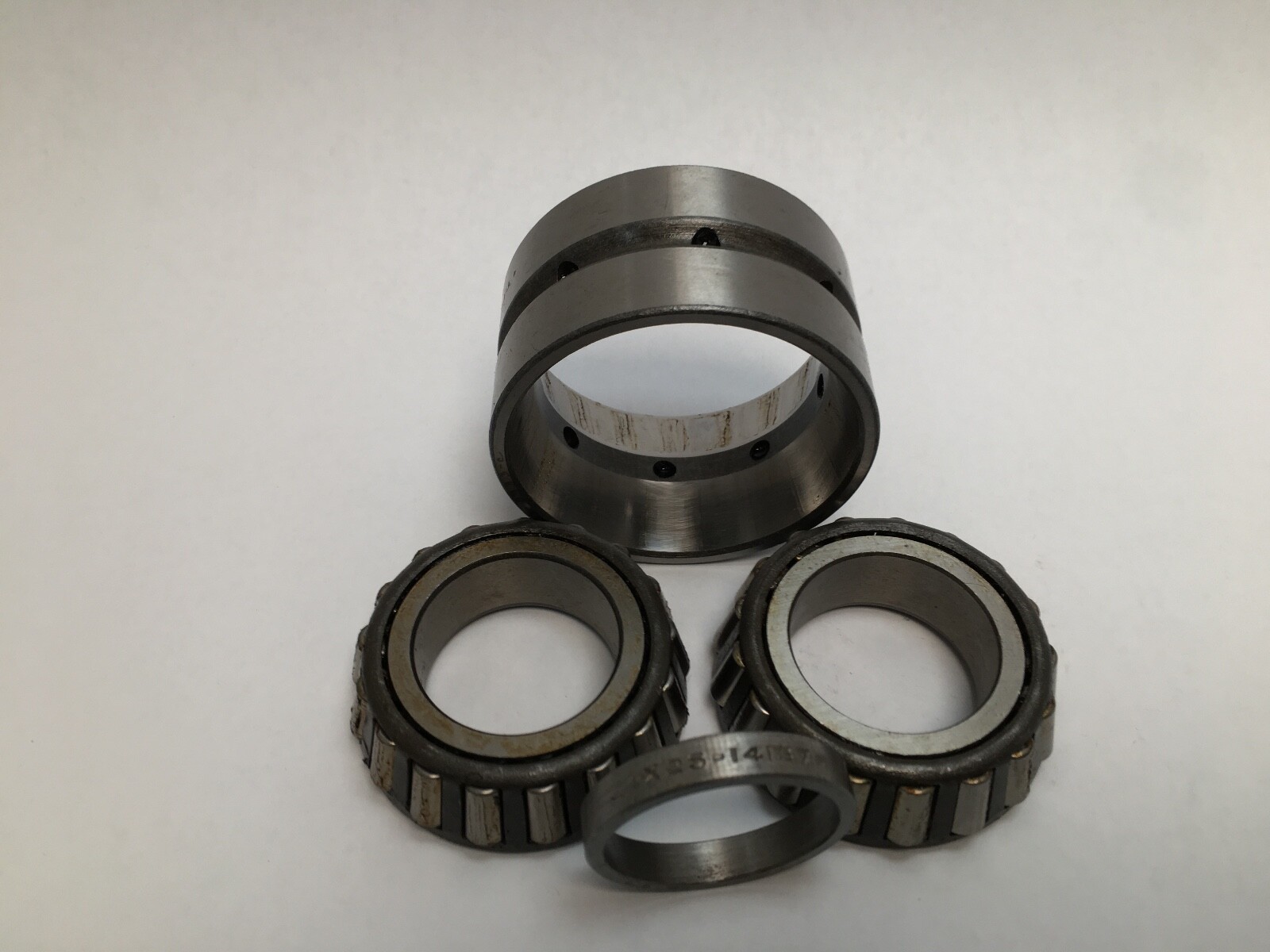

Timken 14138A-90104 double-row tapered roller bearing assembly, TDO type (Tapered Double Outer): two 14138A cones, one 14276D double cup and one X2S14137 cone spacer. Unit Quantity: 4 Pcs.

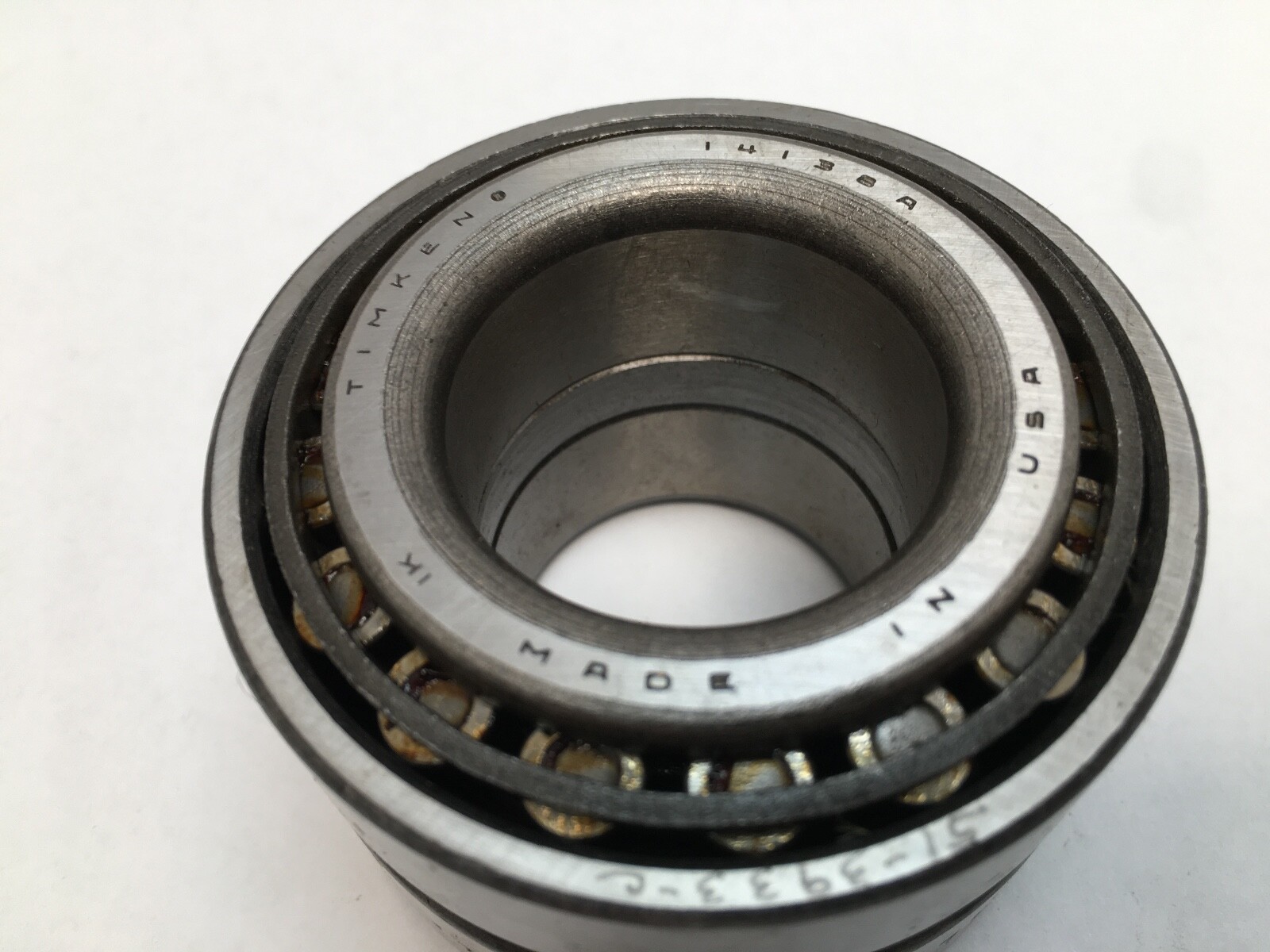

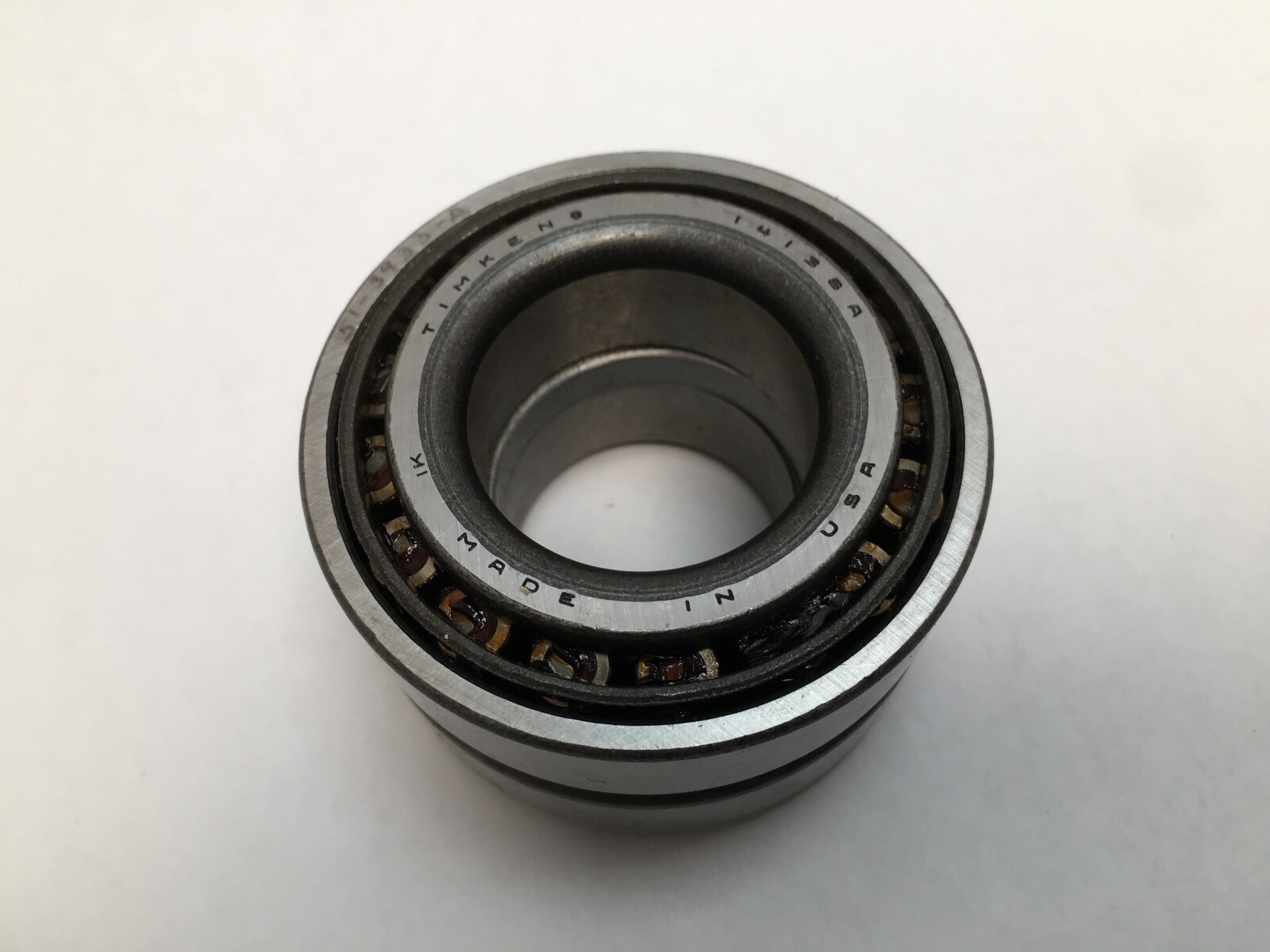

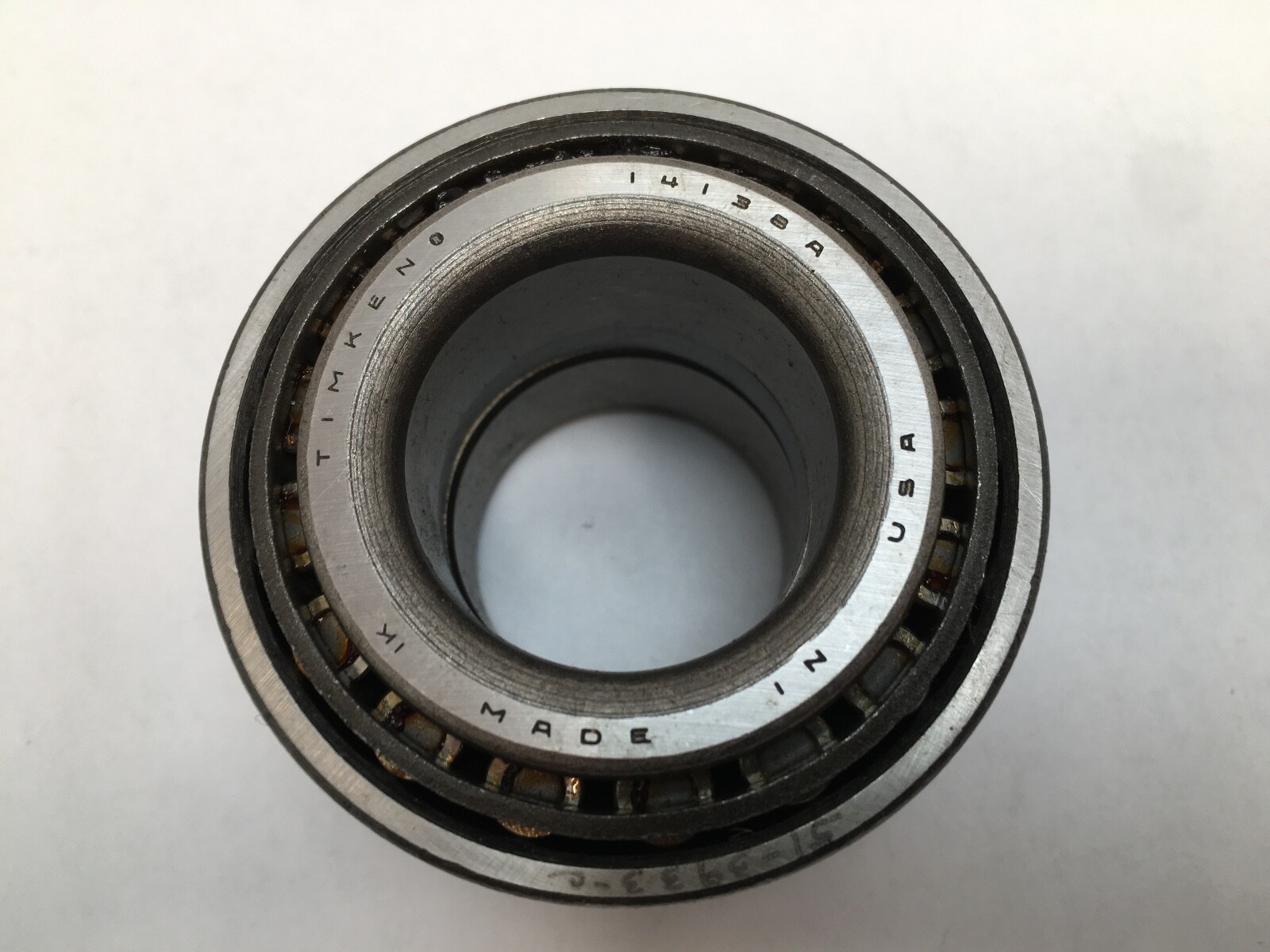

14138 — the cone base number, a 14000-series inch tapered roller cone on a 1.3750 in bore.
A — the cone execution suffix.
-90104 — a Timken assembly number: a built set of listed components.

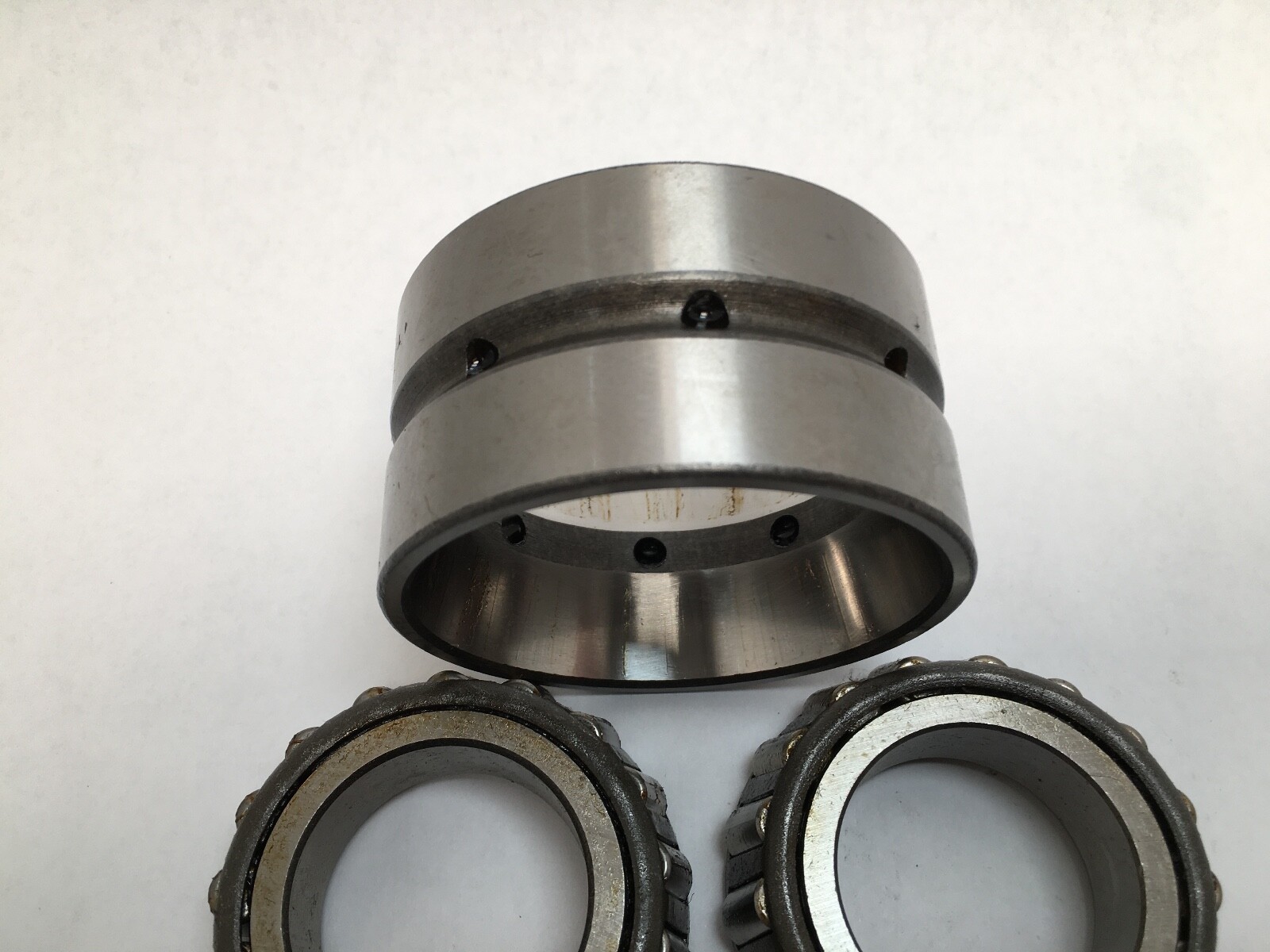

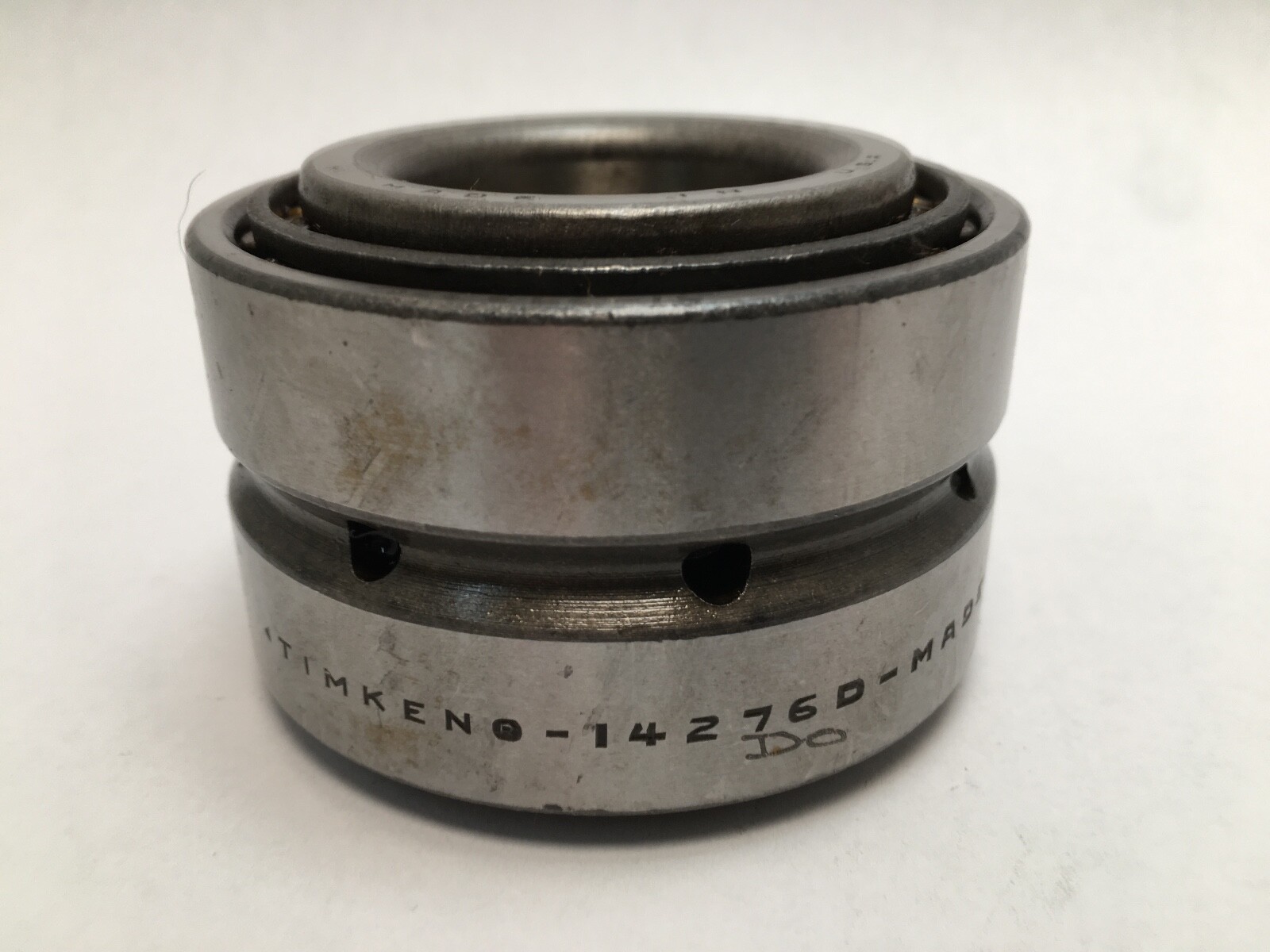

14276D — the double cup, one outer ring carrying two raceways for two cones set back to back.
X2S14137 — the cone spacer that sets the distance between the two cone backfaces.
Cone Part Number: 14138A. Cup Part Number: 14276D. Cone Spacer Part Number: X2S14137. Rolling Elements: Tapered Roller. Number Of Rows: 2. Bore Type: Straight. Design Units: Imperial. Series: 14000. Bearing Material: Case-Carburized Steel. Per-row figures from the 14138A cone: Dynamic Load Rating (C1): 54,600 N (12,300 lbf). Dynamic Radial Load Rating (C90): 14,200 N (3,180 lbf). Dynamic Axial Rating (Ca90): 9,260 N (2,080 lbf). Static Load Rating (C0): 61,700 N (13,900 lbf). K Factor: 1.53. e Factor: 0.38. Y1 Factor: 1.77. Y2 Factor: 2.63. Cone Weight: 0.687 kg (1.52 lb) each. Cup Weight: 0.843 kg (1.86 lb). Harmonization Code: 8482.20.00. Unit Quantity: 4 Pcs.
Bore Diameter: 1.3750 in (34.925 mm). Outside Diameter: 2.7170 in (69.012 mm). Cone Width: 0.7710 in (19.583 mm). Outer Ring Width (C): 1.5000 in (38.1 mm). Effective Center Location, single cone: -0.17 in (-4.3 mm). Max Shaft Fillet Radius: 0.140 in (3.600 mm). Max Housing Fillet Radius: 0.03 in (0.8 mm). Shaft Backing Shoulder Diameter, frontface (da): 1.63 in (41.5 mm). Shaft Backing Shoulder Diameter, backface (db): 1.89 in (48 mm). Housing Backing Shoulder Diameter, frontface (Da): 2.52 in (64 mm).
Timken catalogue items: 14138A cone, 14276D double cup, X2S14137 cone spacer. Part number variants: 14138A-90104, 14138A 90104, 14138-A-90104, 14138A/14276D/X2S14137, 14276-D, X2S-14137.
What does the Timken 14138A-90104 include?Two 14138A cones, one 14276D double cup and one X2S14137 cone spacer, 4 Pcs.
What are the bore and outside diameter?Bore Diameter: 1.3750 in (34.925 mm). Outside Diameter: 2.7170 in (69.012 mm).
What are the K and e factors?K Factor: 1.53. e Factor: 0.38. Y1 Factor: 1.77. Y2 Factor: 2.63.
