Availability:
1 in stock

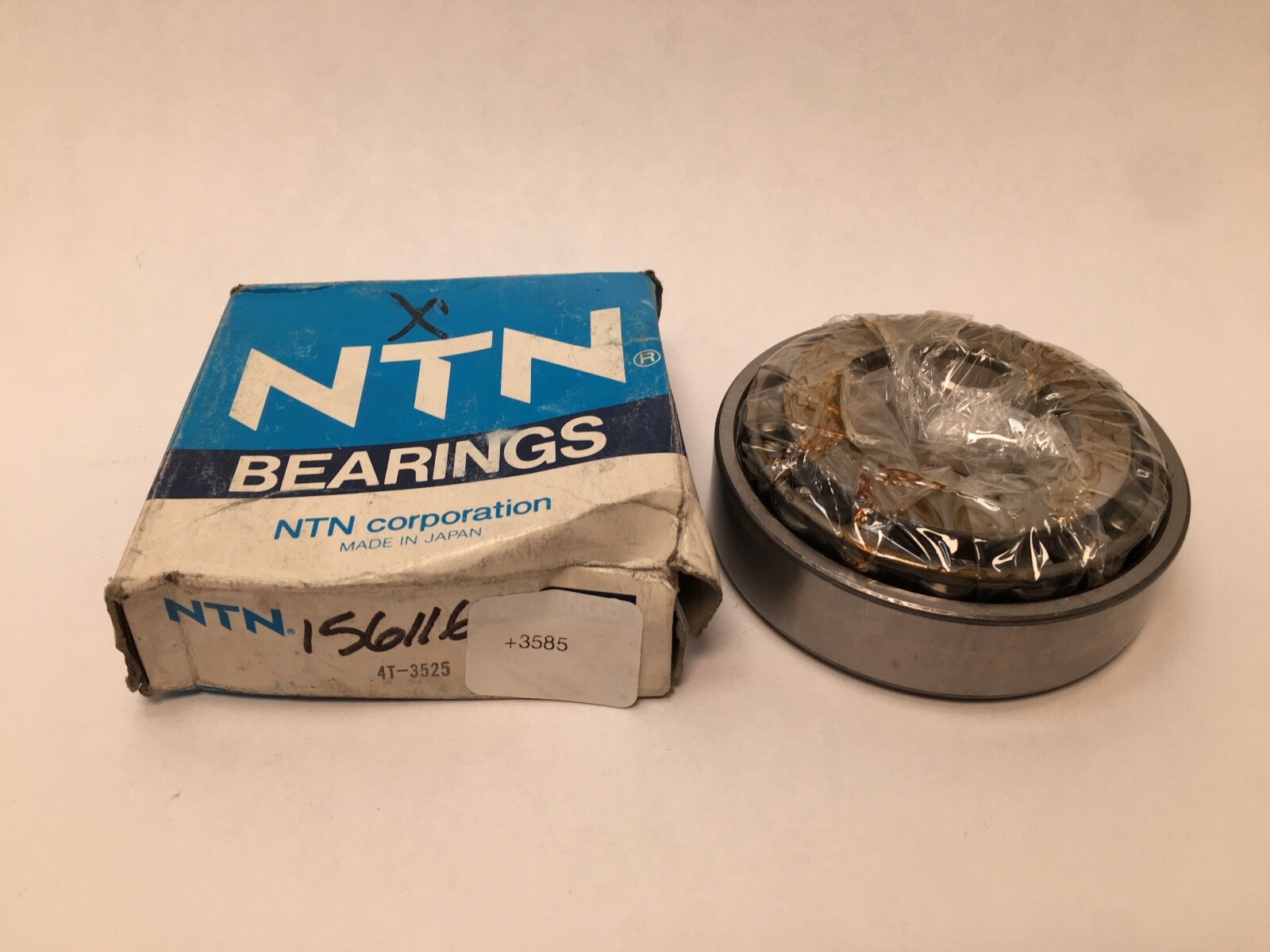

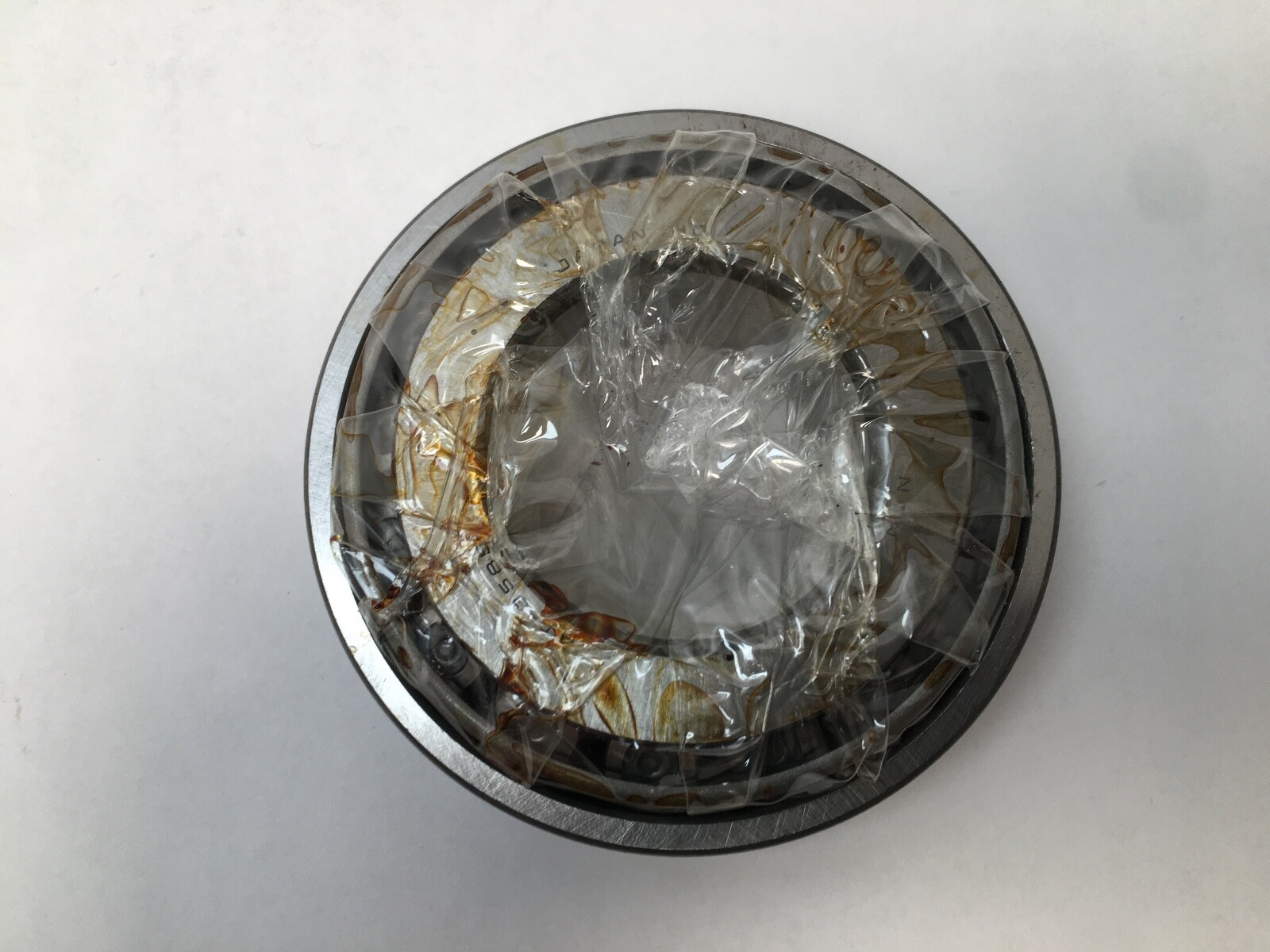

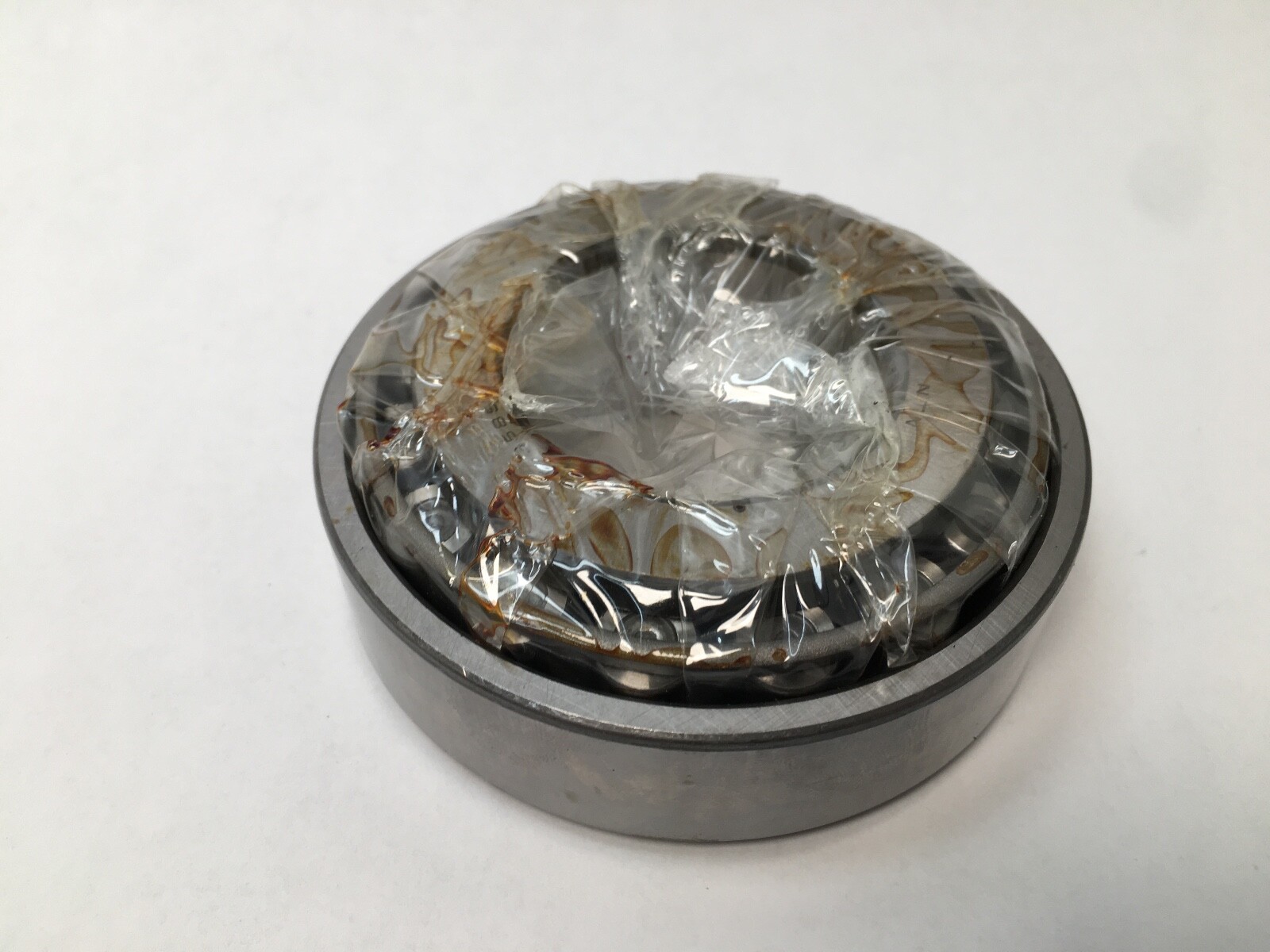

Tapered roller bearing cone and cup set, 1.6250 in bore, 3.4375 in OD, 1.1875 in width, 94,000 N dynamic rating. NTN 3585/3525, Class 4 precision.
List Price
$46.76
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| Model | 3585-3525 |
| Bearing Type | Tapered Roller Bearing Set (Cone and Cup), Open |
| ID | 1.6250 in (41.275 mm) |
| OD | 3.4375 in (87.313 mm) |
| Width | 1.1875 in (30.162 mm) |
| Total Width | 1.1875 in (30.162 mm) |
|---|---|
| Mpn Variants | 3585/3525, 3585-3525, 3585 3525, 3585, 3525 |
| Precision Class | Class 4 |
| Min Temp | -40 °C |
| Dynamic Load Rating | 94,000 N |
| Static Load Rating | 117,000 N |
| Series | 3500 |
| Rolling Elements | Tapered Roller |
| Max Temp | 120 °C |
| Number Of Rows | 1 |
| Bore Type | Cylindrical |
| Cross Reference 1 | Timken 3585/3525 |
|---|
NTN 3585/3525 is a single-row inch-series tapered roller bearing set: one 3585 cone (inner ring, rollers and cage) with one 3525 cup (outer ring). Unit Quantity: 1 Set (cone and cup).
3585 — ABMA inch-series cone number in the 3500 series.

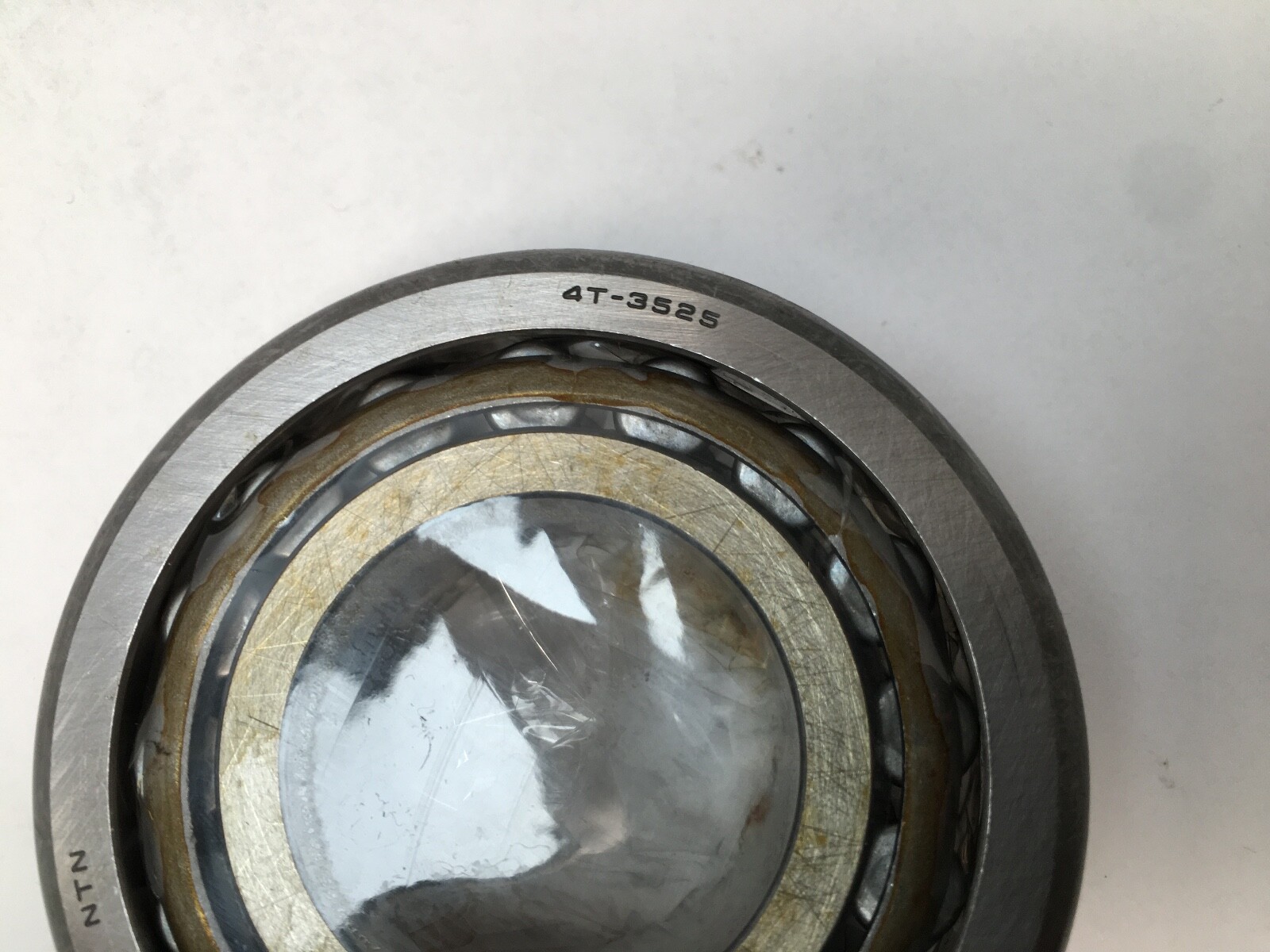

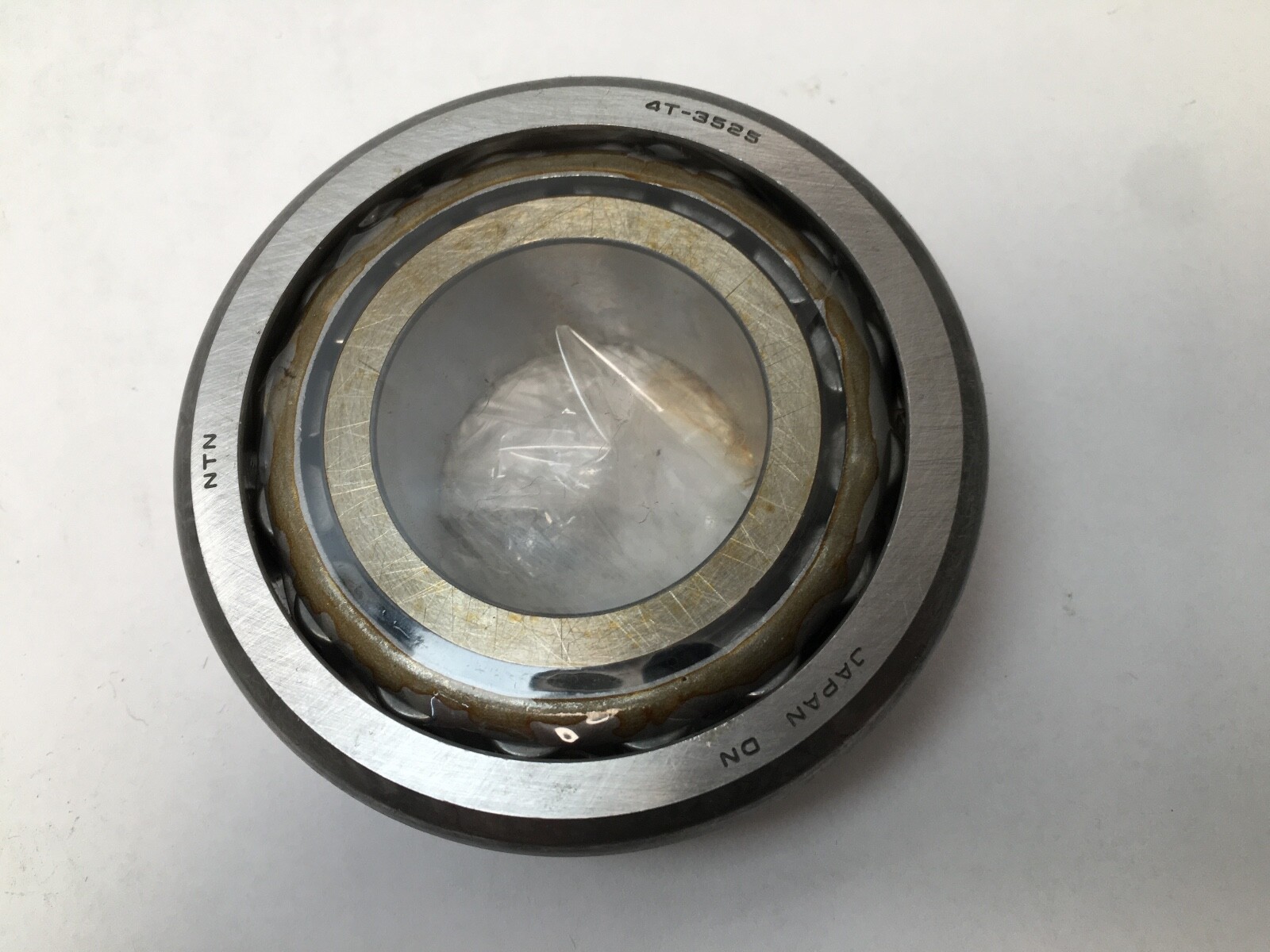

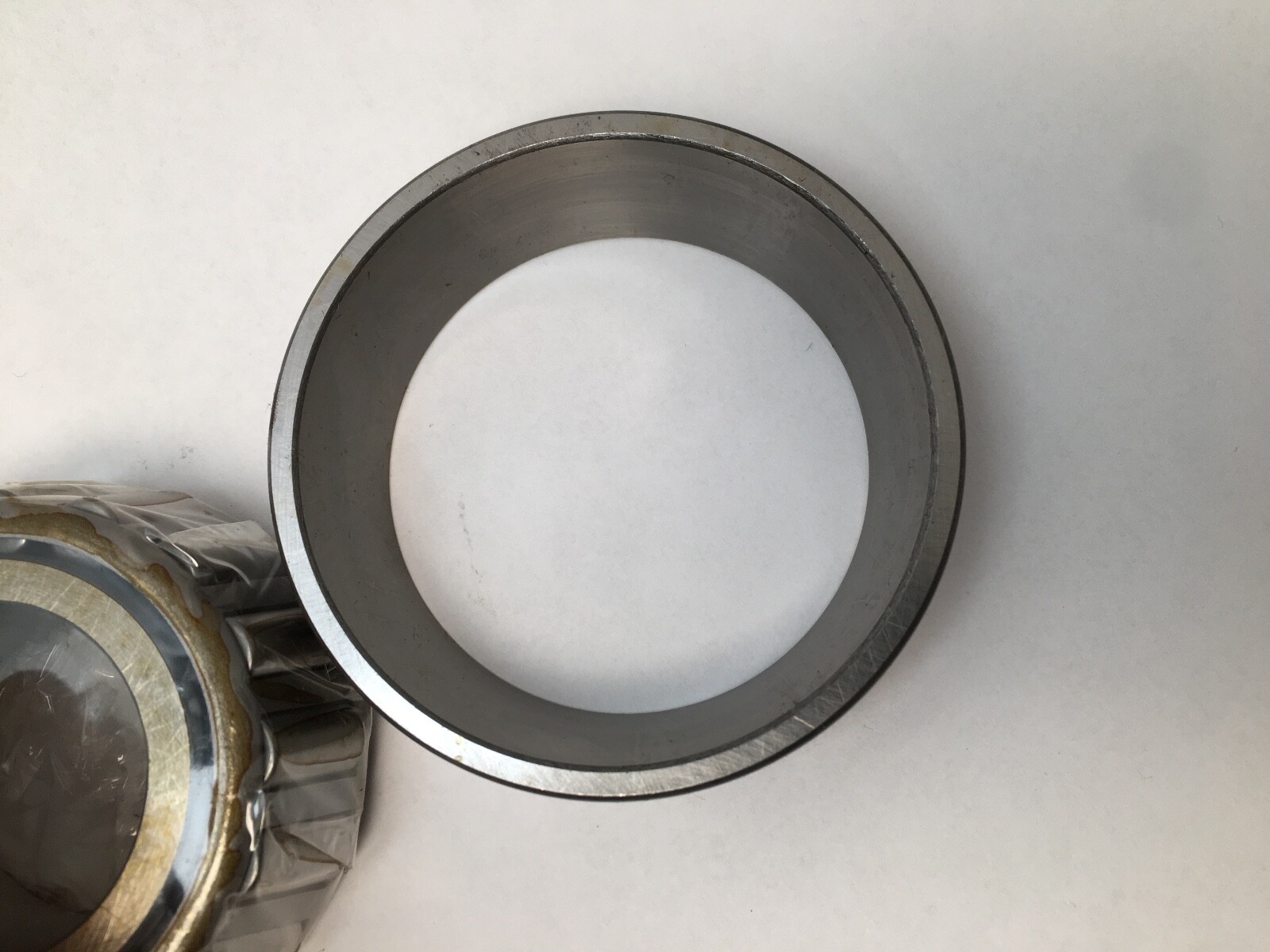

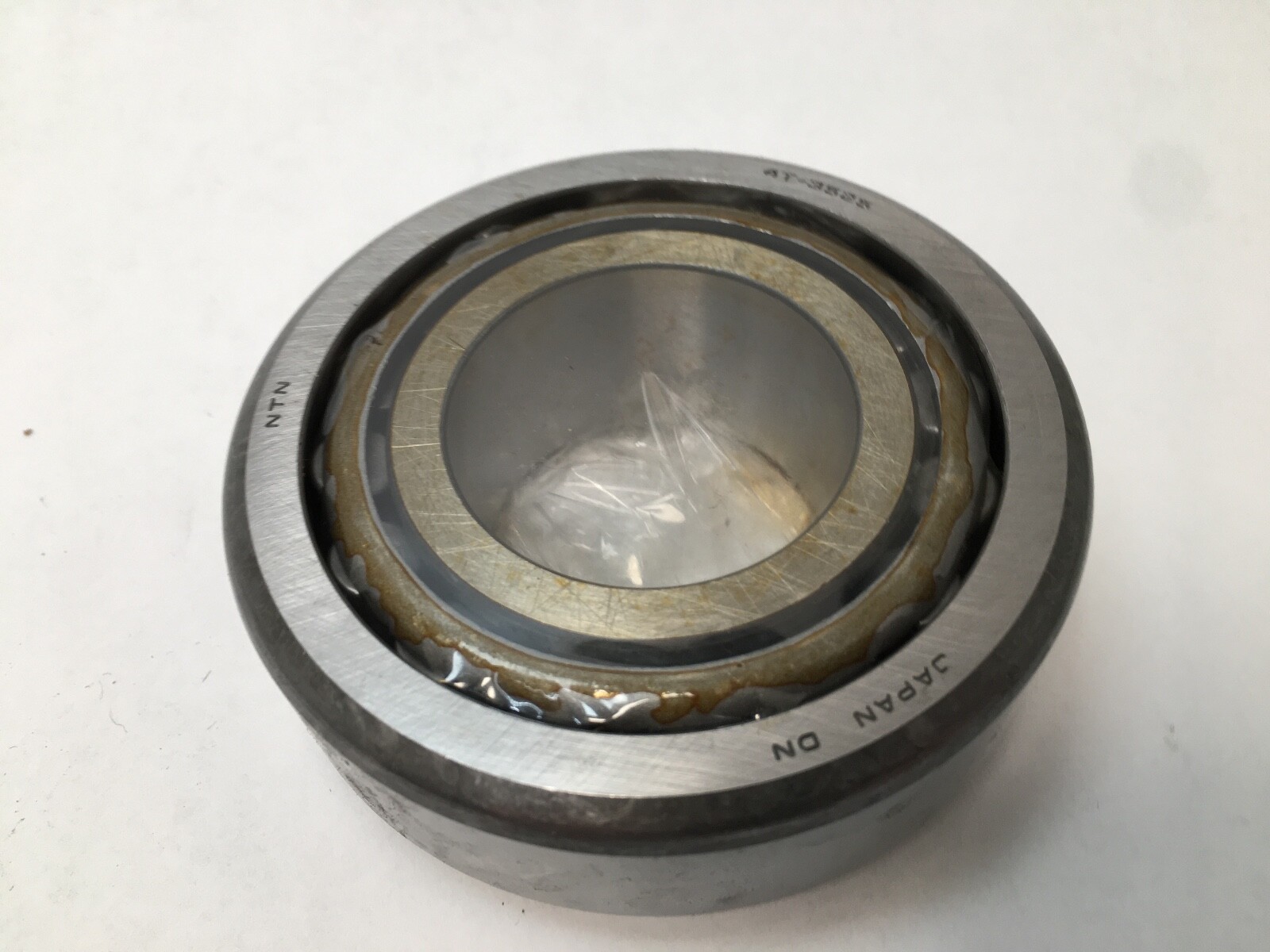

3525 — ABMA inch-series cup number, the mating outer ring for the 3585 cone.
Bore Diameter: 1.6250 in (41.275 mm). Outside Diameter: 3.4375 in (87.313 mm). Total Width: 1.1875 in (30.162 mm). Cone Width: 1.2160 in (30.886 mm). Cup Width: 0.9375 in (23.813 mm). Precision Class: Class 4. Dynamic Load Rating: 94,000 N. Static Load Rating: 117,000 N. Axial load factors: e 0.31, Y2 1.96. Operating Temperature Range: -40 to 120 °C. Rolling Elements: Tapered Roller. Number Of Rows: 1. Series: 3500.
Cone Back Face Fillet Radius: 0.1300 in (3.300 mm). Cup Back Face Fillet Radius: 0.06 in (1.5 mm). Effective Load Center: -0.3900 in (-10.0 mm). Cone Weight: 0.530 kg (1.164 lb).
Cross-Reference: Timken 3585/3525. The 3585 cone matches Timken 3585 and the 3525 cup matches Timken 3525.

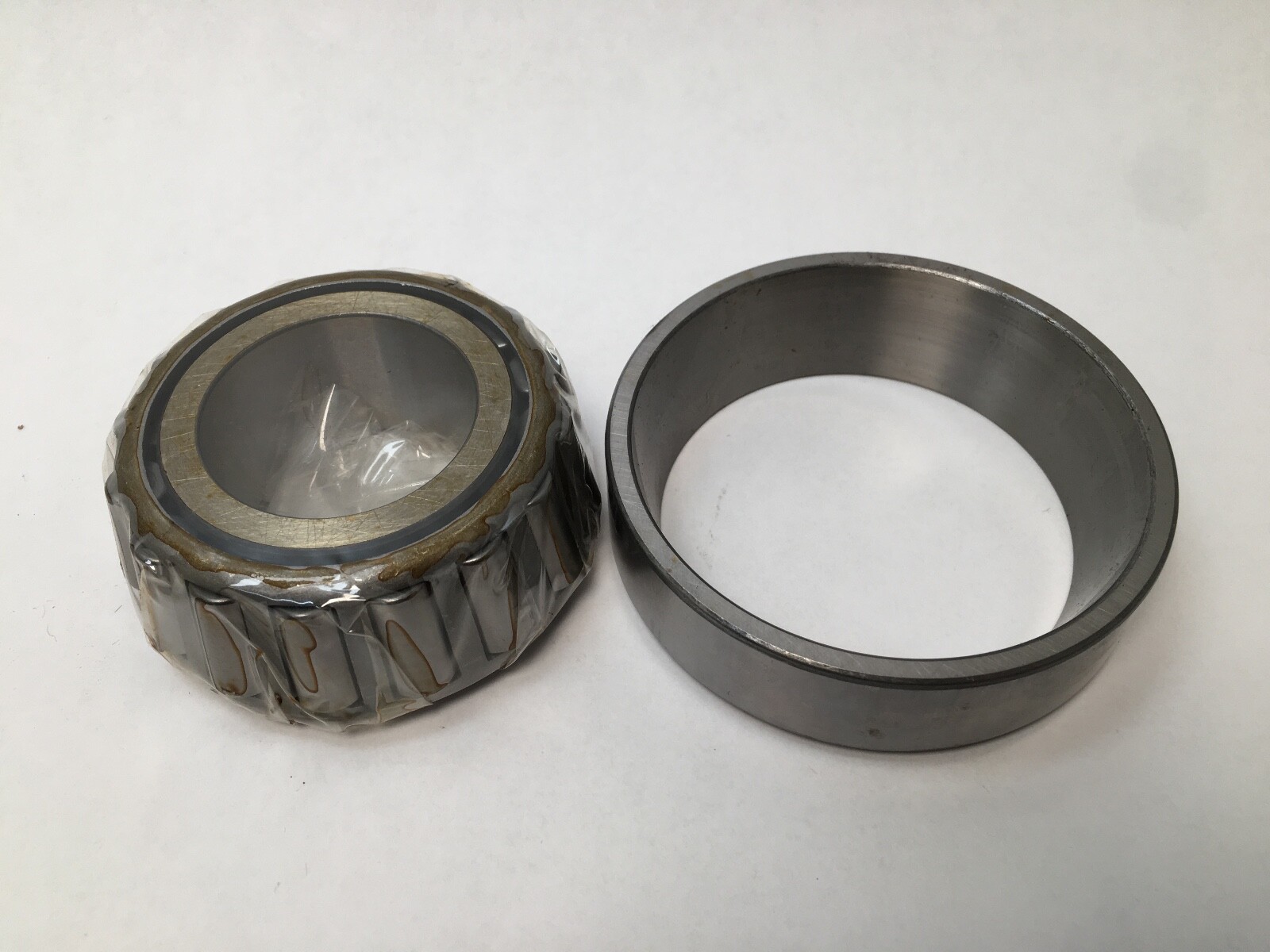

What is included in this set?One 3585 cone and one 3525 cup.
What are the bore and outside diameter?Bore Diameter: 1.6250 in (41.275 mm). Outside Diameter: 3.4375 in (87.313 mm).
What are the load ratings?Dynamic Load Rating: 94,000 N. Static Load Rating: 117,000 N.
