Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
One-piece double cone for a two-row tapered roller bearing, 5 in bore, 5.5 in width, inch design, cone only. 1 Pc.
List Price
$581.33
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 95499D |
| Model | 95499-D |
| Bearing Type | Tapered Roller Bearing Double Cone, Open |
| ID | 5.0000 in |
| Width | 5.5000 in |
| Material | Case Carburized Steel |
|---|---|
| Series | 95000 |
| Base Number | 95499 |
| Industry Terms | Double cone, TDI bearing, two-row taper inner, double row cone, taper roller bearing inner assembly |
| Common Misspellings | Timkin 95499D, Timpken 95499 D, 95449D, 95499DD |
| Application Types | Rolling mill roll necks, heavy gearbox shafts, crane sheaves, industrial pinion shafts |
| Bore Shaft Size | 5.0000 in (127.000 mm) |
| Mpn Variants | 95499D, 95499-D, 95499 D, 95499D-95905, 95499D-95962 |
| Rolling Elements | Tapered Rollers |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.20.00 |
| Part Number | 95499D |
| Cross Reference 1 | Koyo 95499D |
|---|---|
| Cross Reference 2 | SKF 95499D |
| Cross Reference 3 | FAG 95499D |

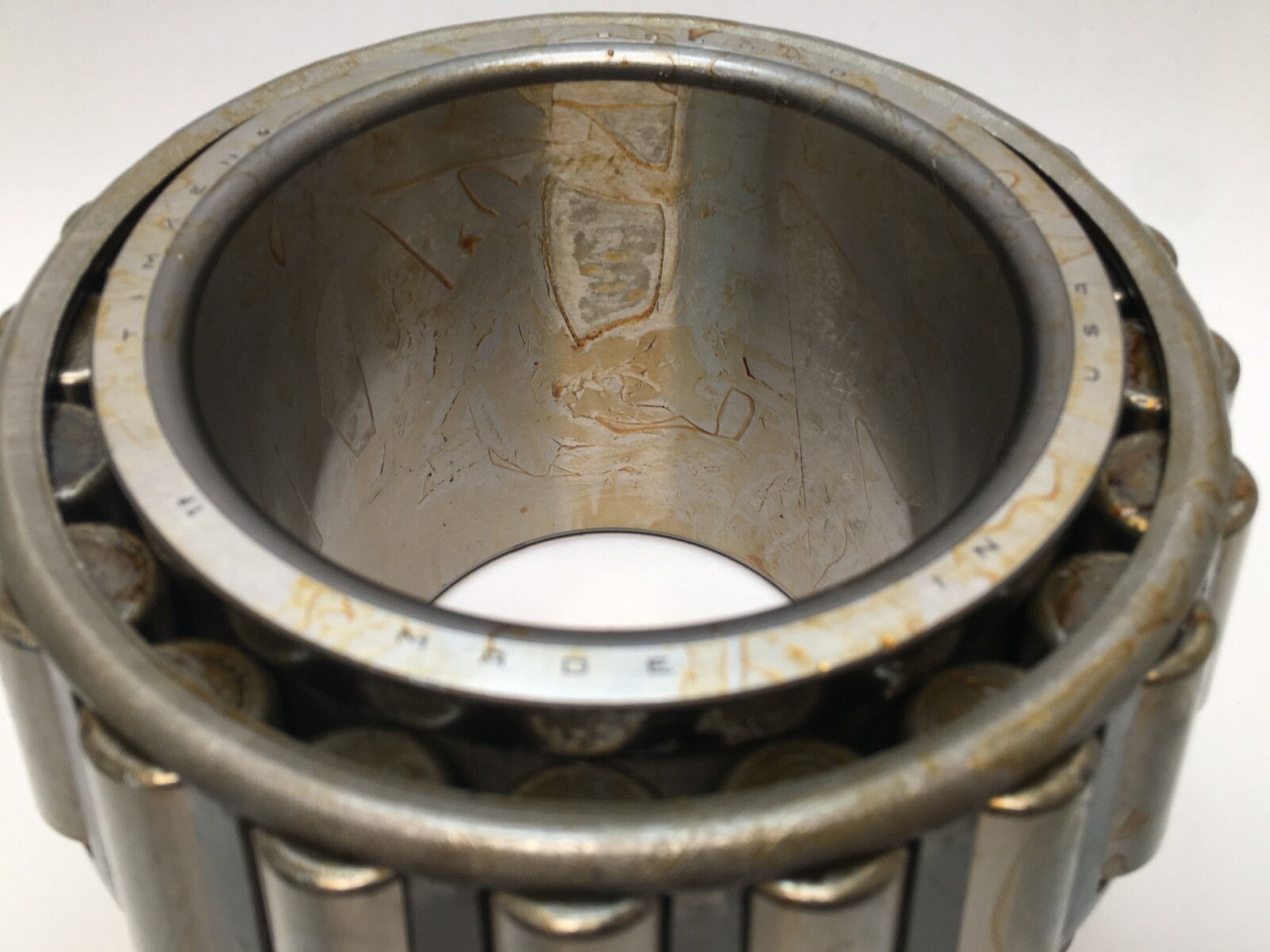

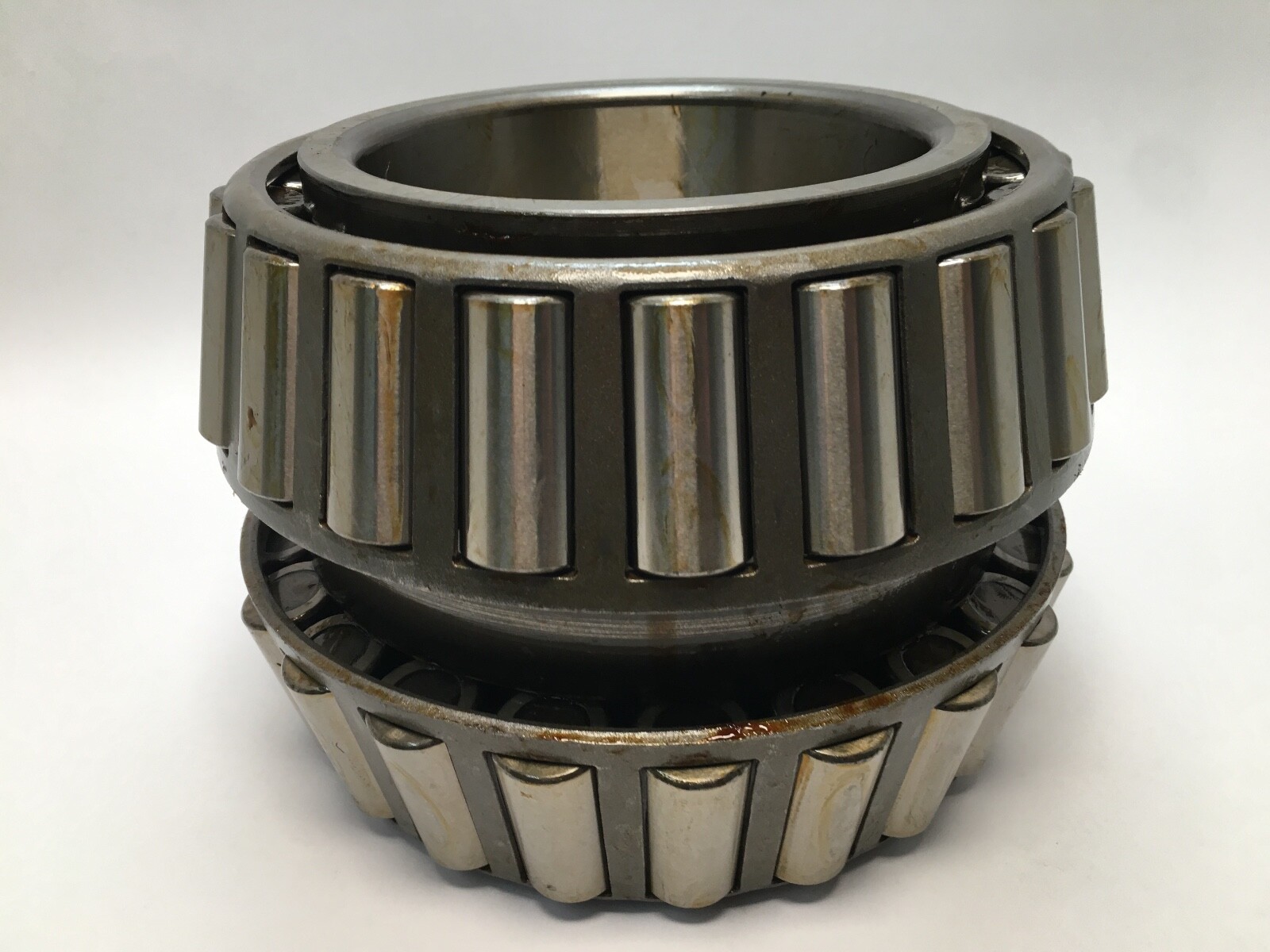

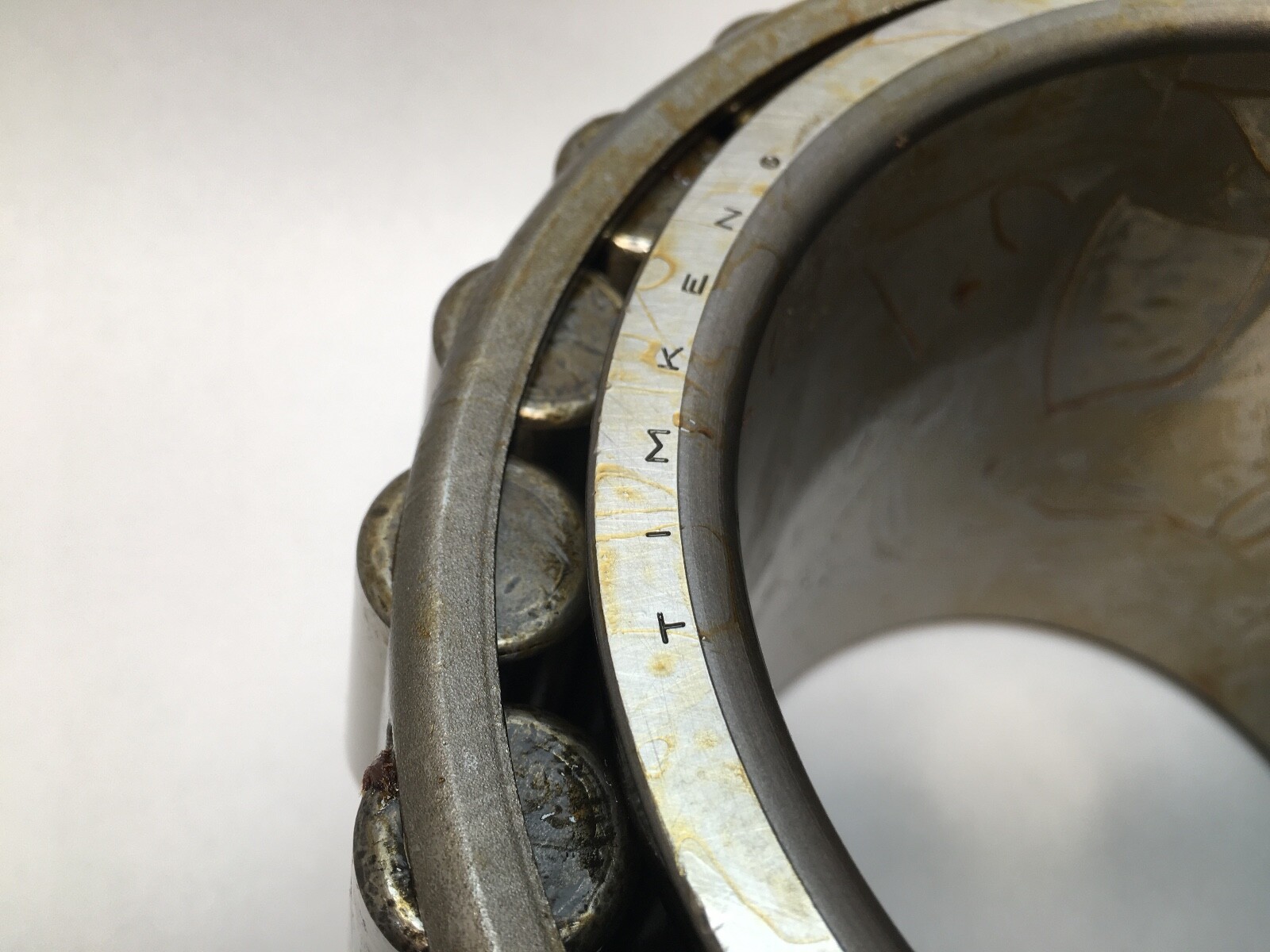

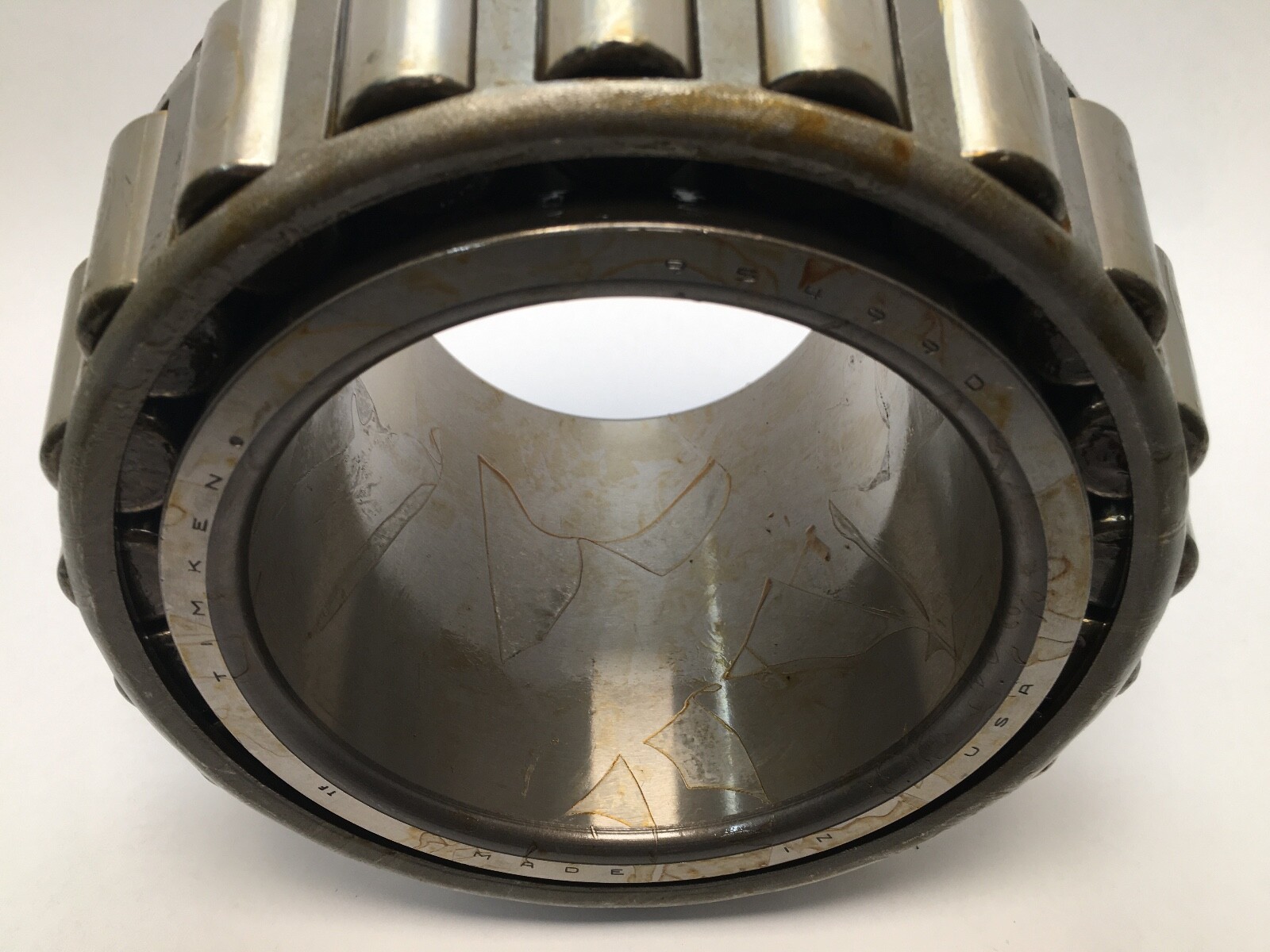

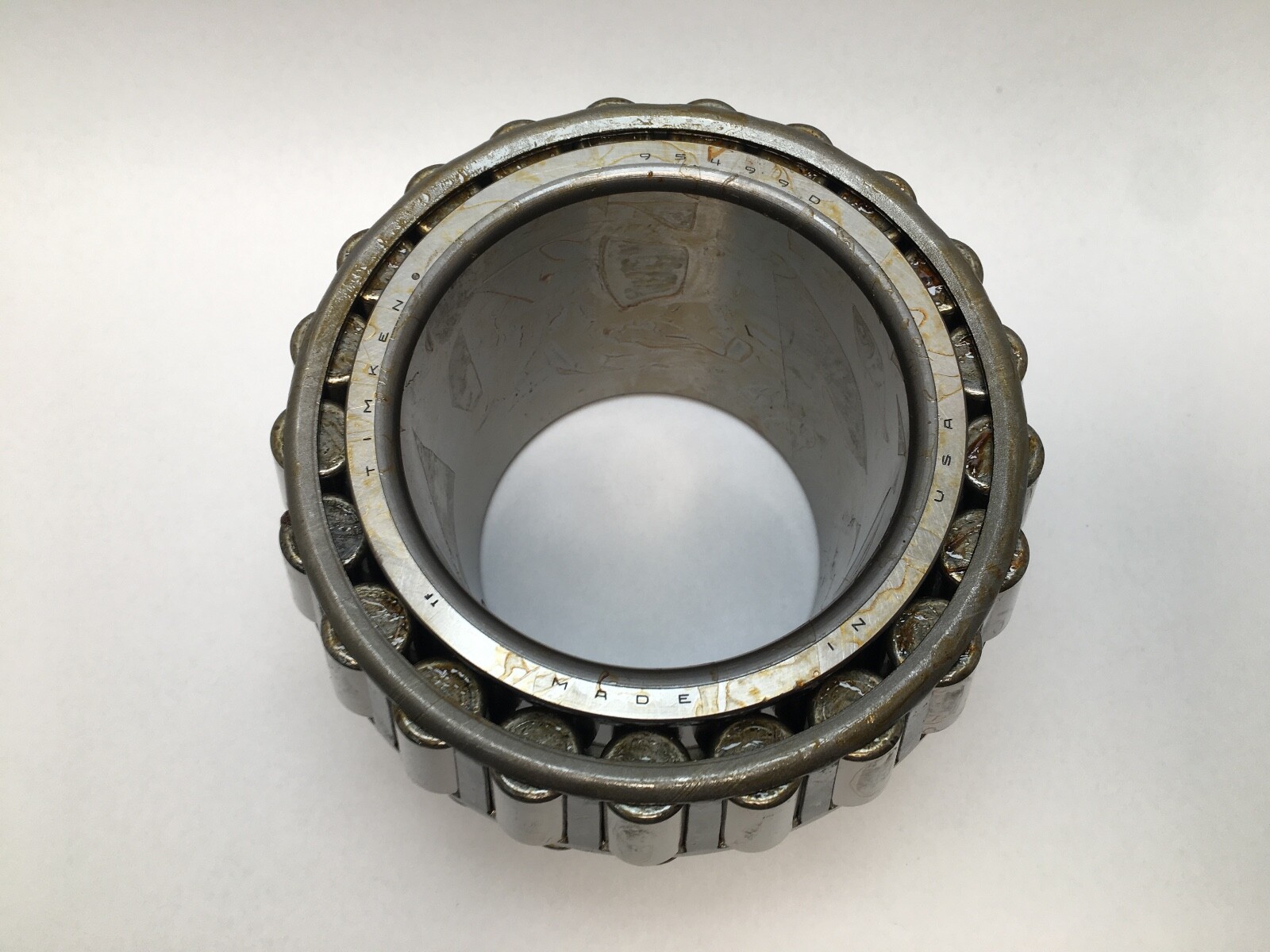

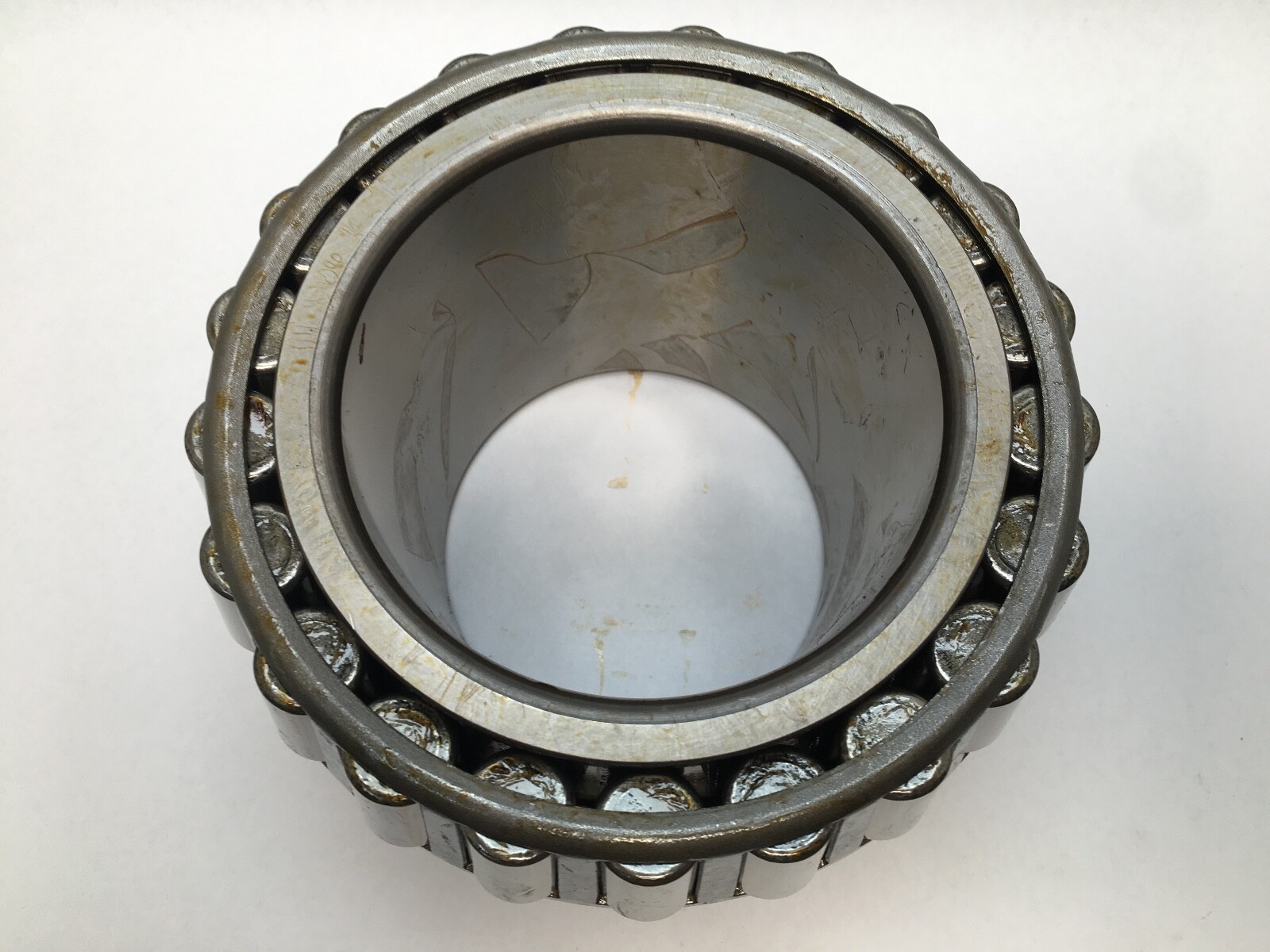

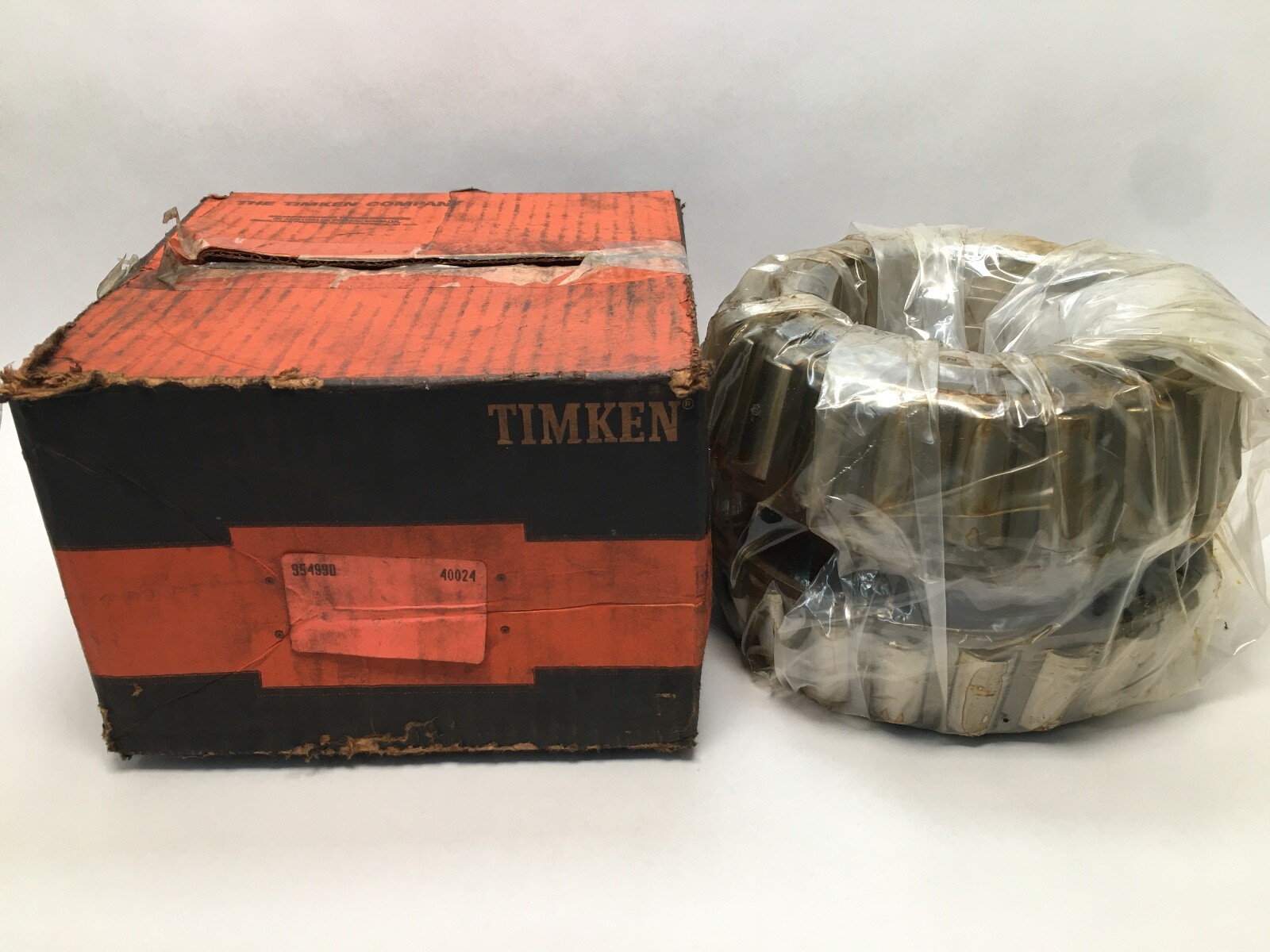

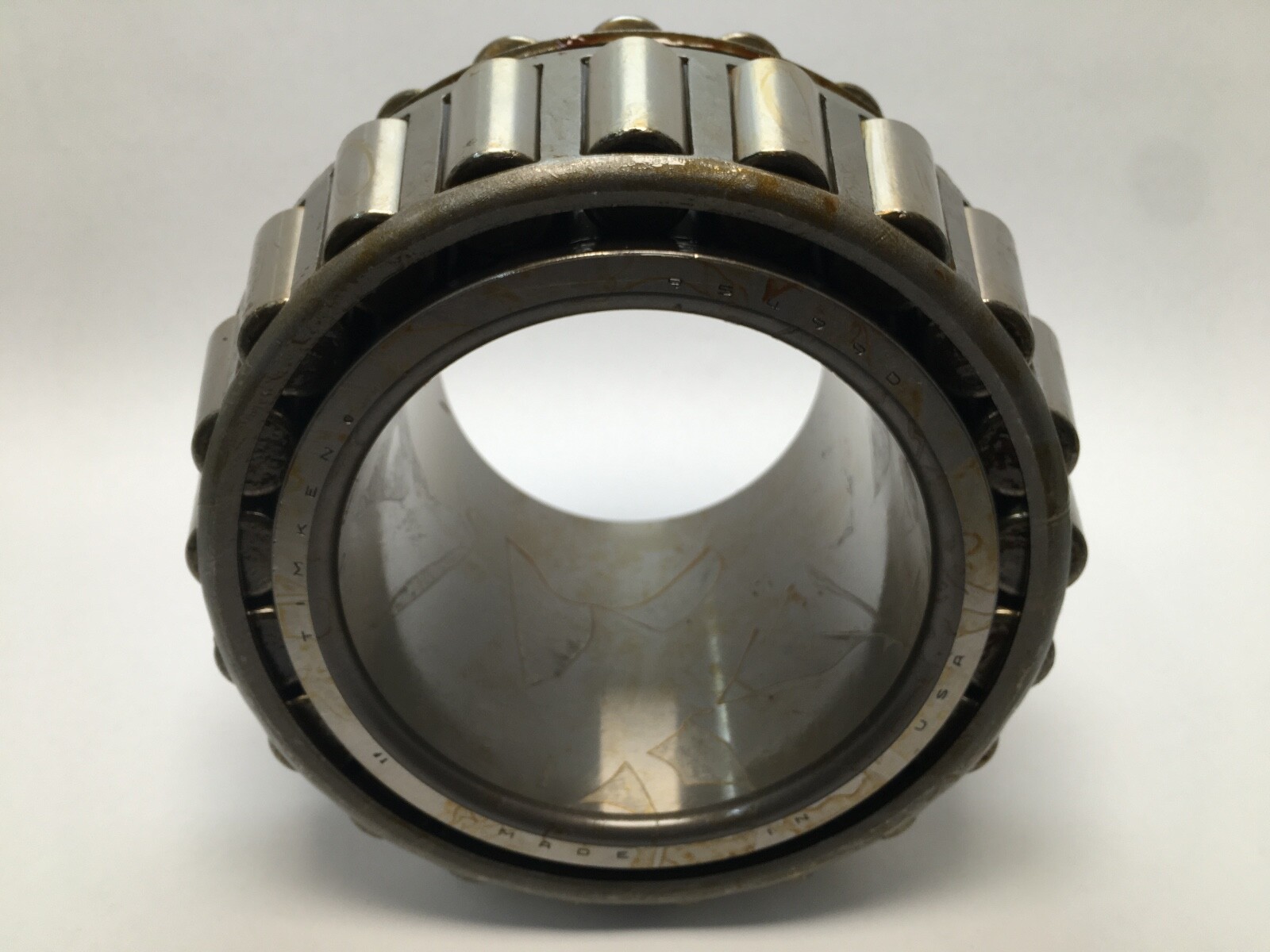

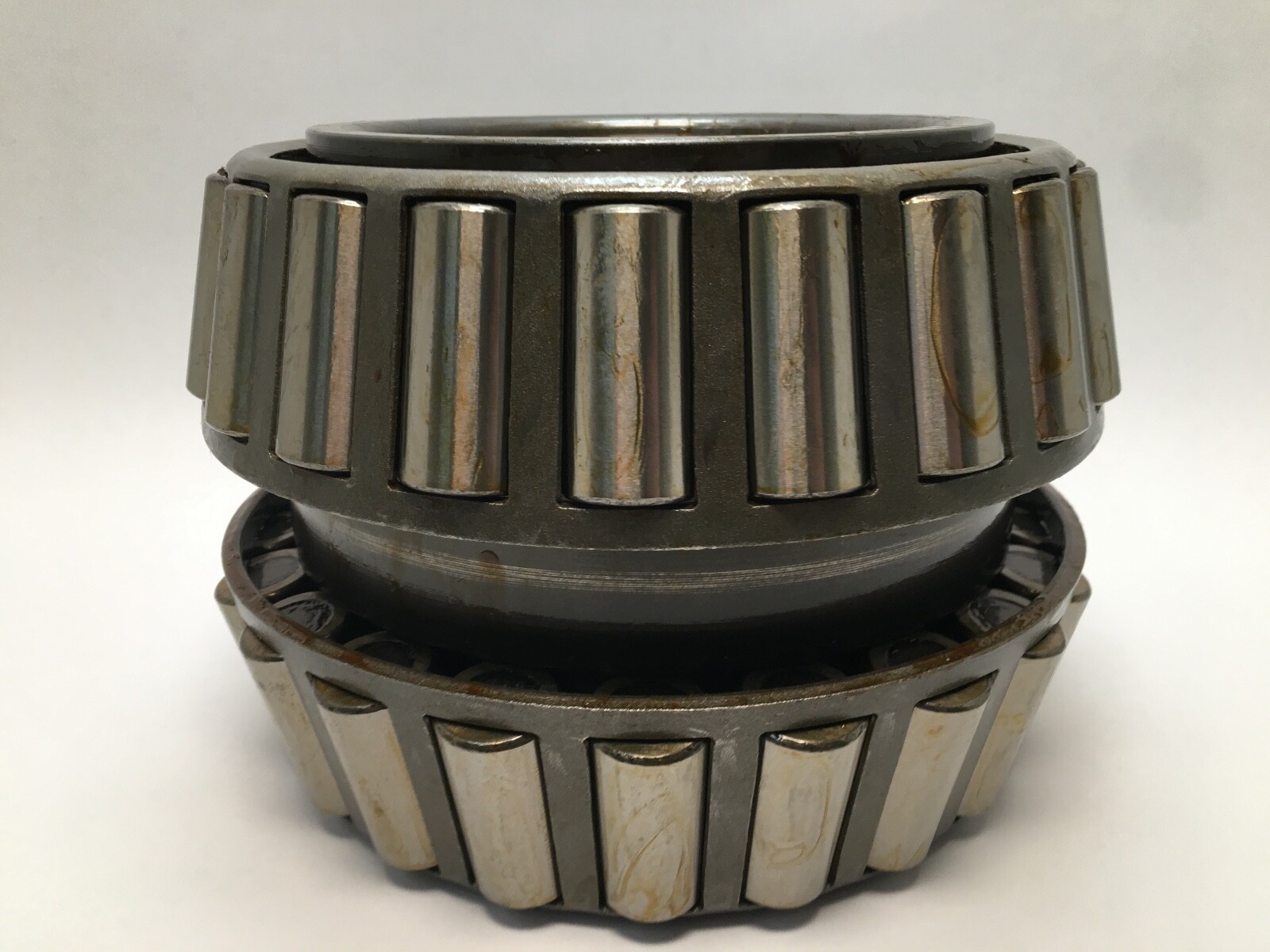

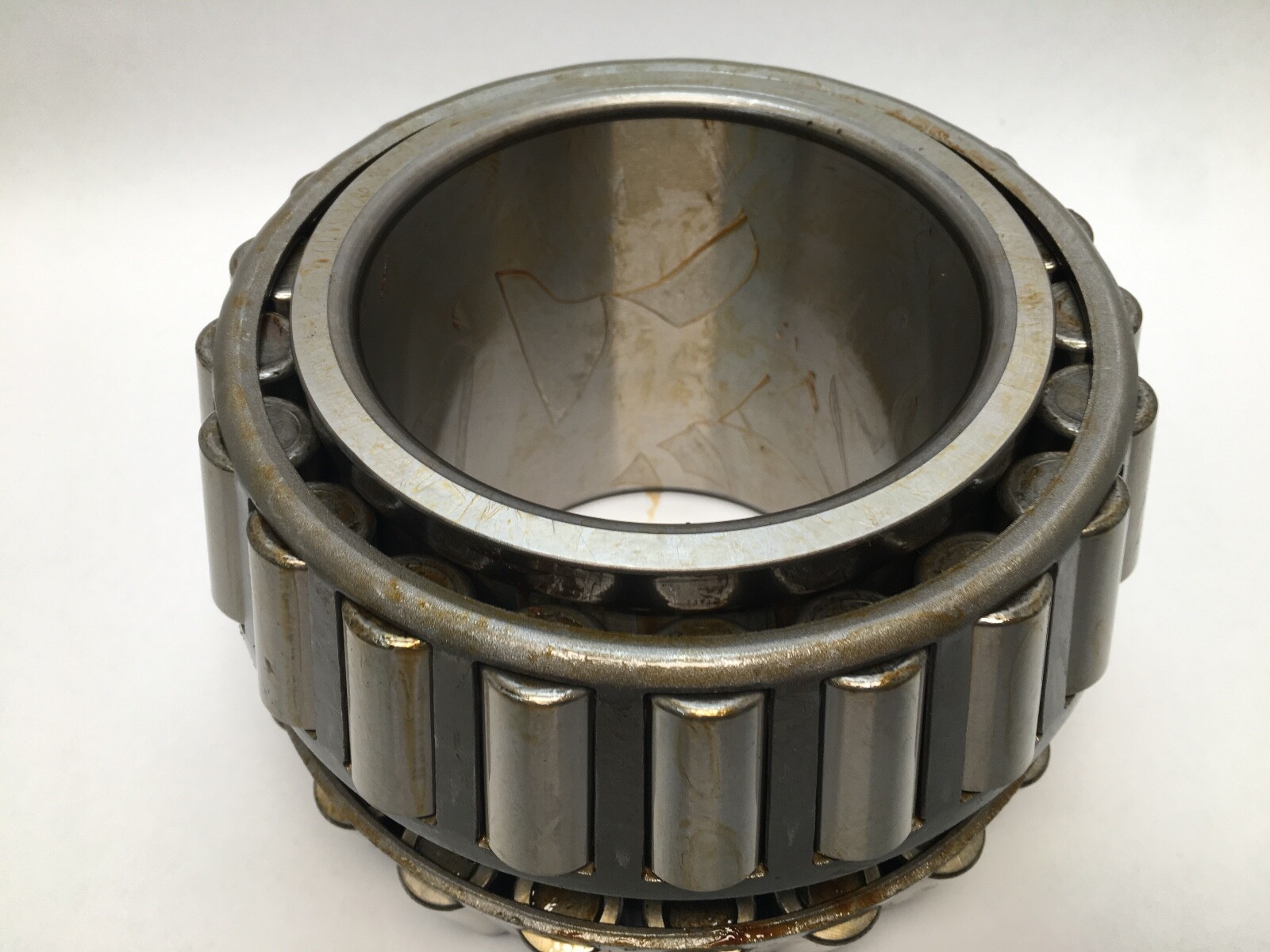

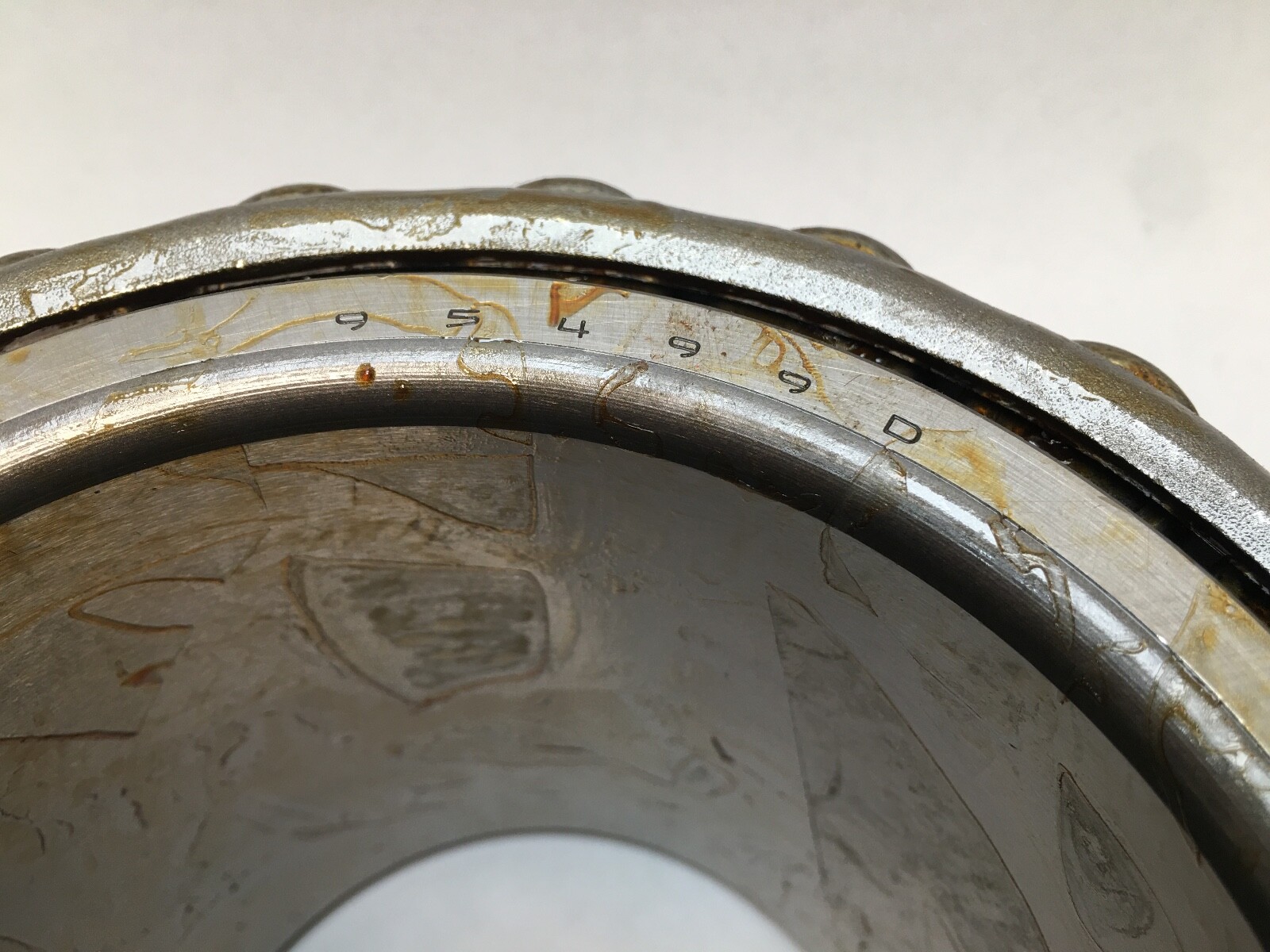

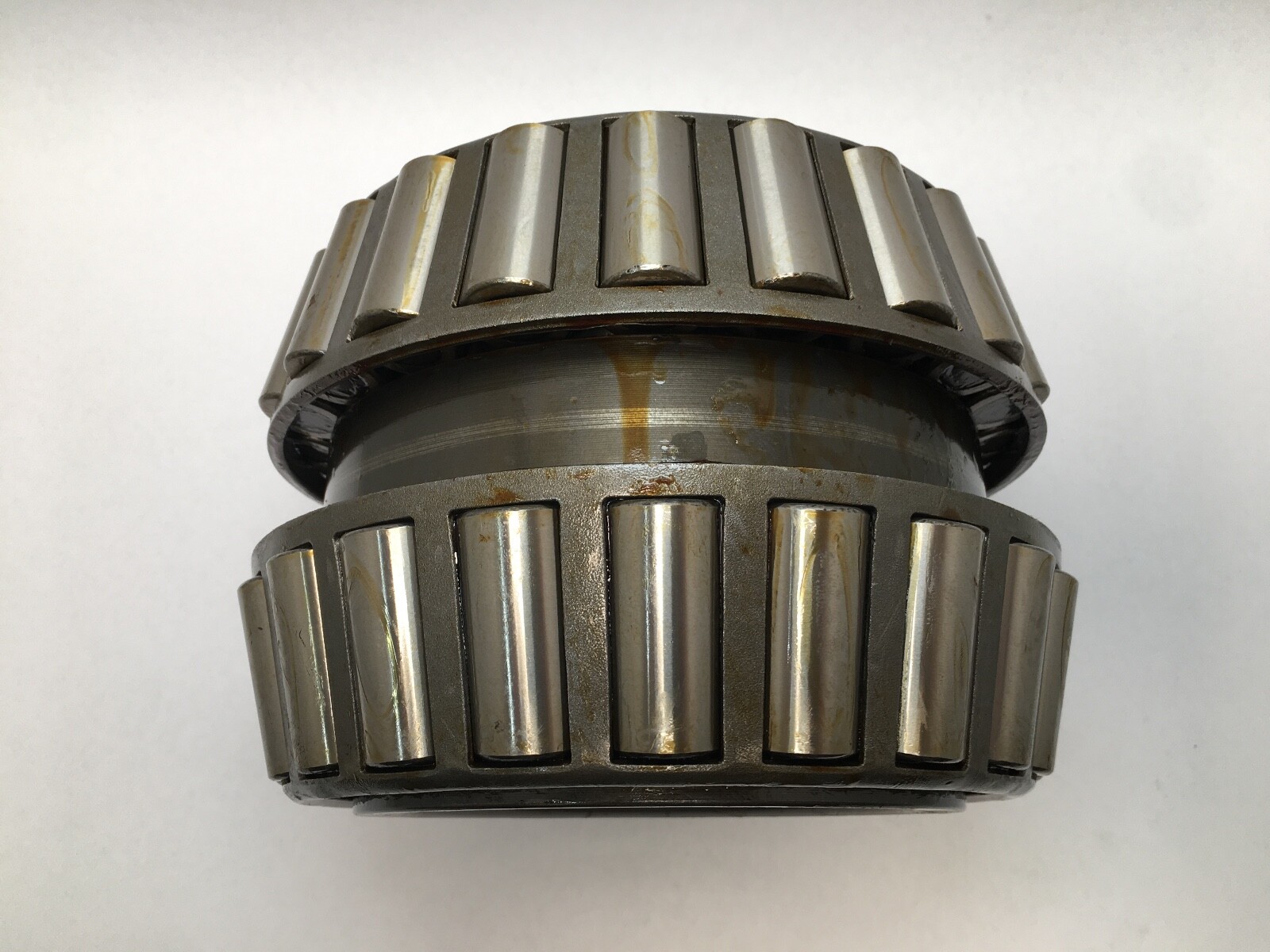

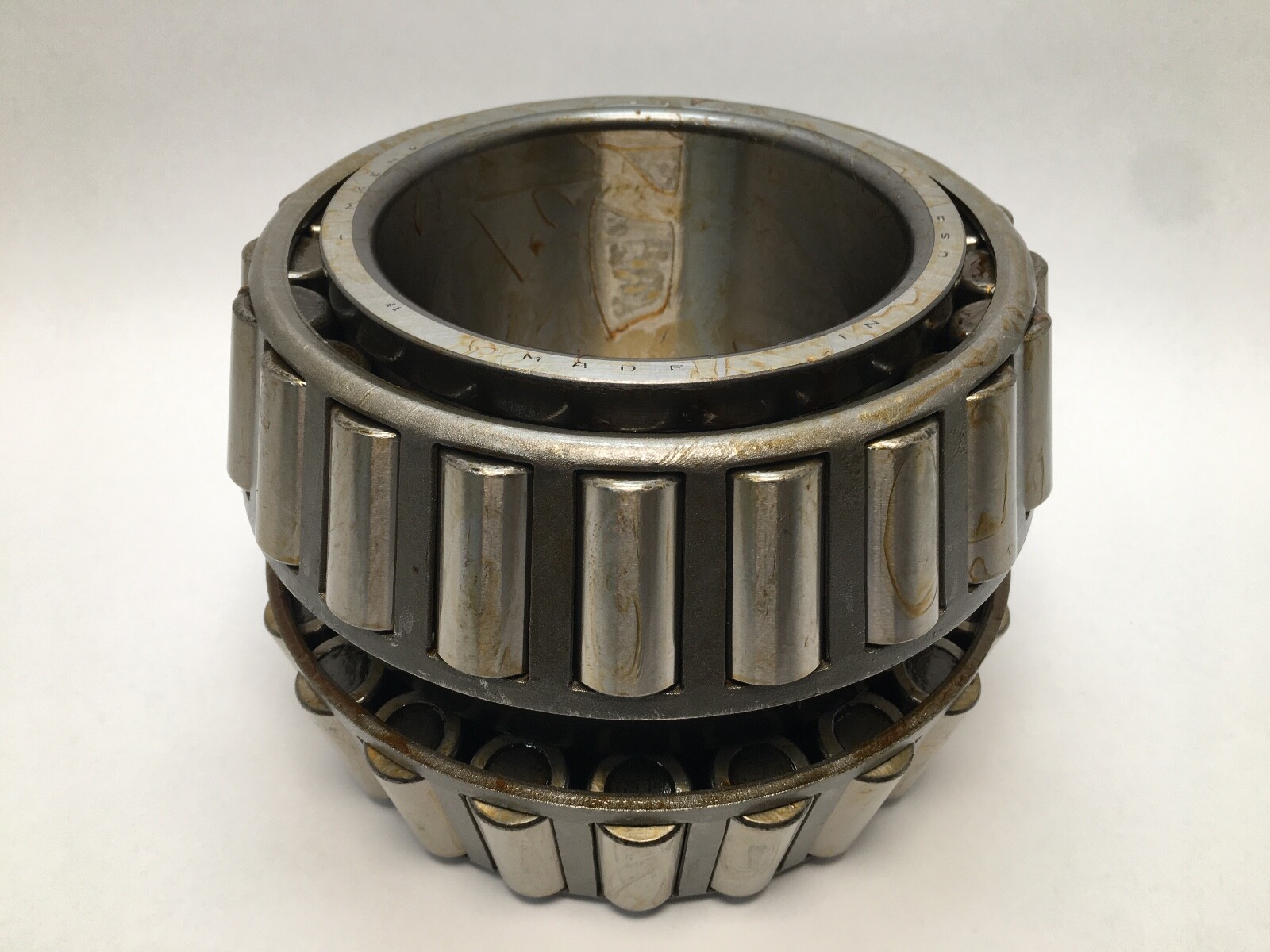

A Timken one-piece double cone for a two-row tapered roller bearing, part number 95499D. The part is a single inner member carrying two tapered raceways, two roller rows and their cages. Bore is 5.0000 in (127.000 mm) and overall width is 5.5000 in. Cone only. The mating cups are two Timken single cups, 95905 or 95962 depending on the assembly.
In the Timken inch scheme a D suffix denotes a doubled member, and which member is doubled depends on which half carries the suffix. On a cup, D marks a one-piece double cup that accepts two cones. On a cone, as here, D marks a one-piece double cone that runs against two single cups. Timken catalogues the resulting arrangement as TDI, Tapered Double Inner, and the base number 95499 fixes the bore, the raceway angle and the roller path.
A TDI arrangement puts the two-row member on the shaft and the located races in the housing, which is the reverse of a TDO. The two rows share the radial load and take thrust in both directions, and because the raceway spacing is machined into one piece the row-to-row geometry is fixed at manufacture. With the double member on the shaft the cups can be adjusted axially in the housing, so the internal setting is established by the cup positions or by a cup spacer at assembly.
1 Pc. Double cone only, comprising the one-piece inner member with both roller rows and cages. Supplied without cups and without a cup spacer.
The double cone is an interference fit on the shaft seat and mounting force is applied to the cone backface, not through the rollers. The two cups are fitted into the housing bore against their own shoulders or against a cup spacer, and the endplay or preload is set by their axial positions once the cone is seated.
The same inch number is carried by Koyo 95499D, SKF 95499D and FAG 95499D. The published TDI assemblies on this cone are 95499D-95905 and 95499D-95962, so those are the mating single cups. A Timken 95500 is the single-row cone in the same 5 in bore family and is a related part, not a replacement, because it carries one row. A 95499 without the D suffix is a single cone and takes one cup.
