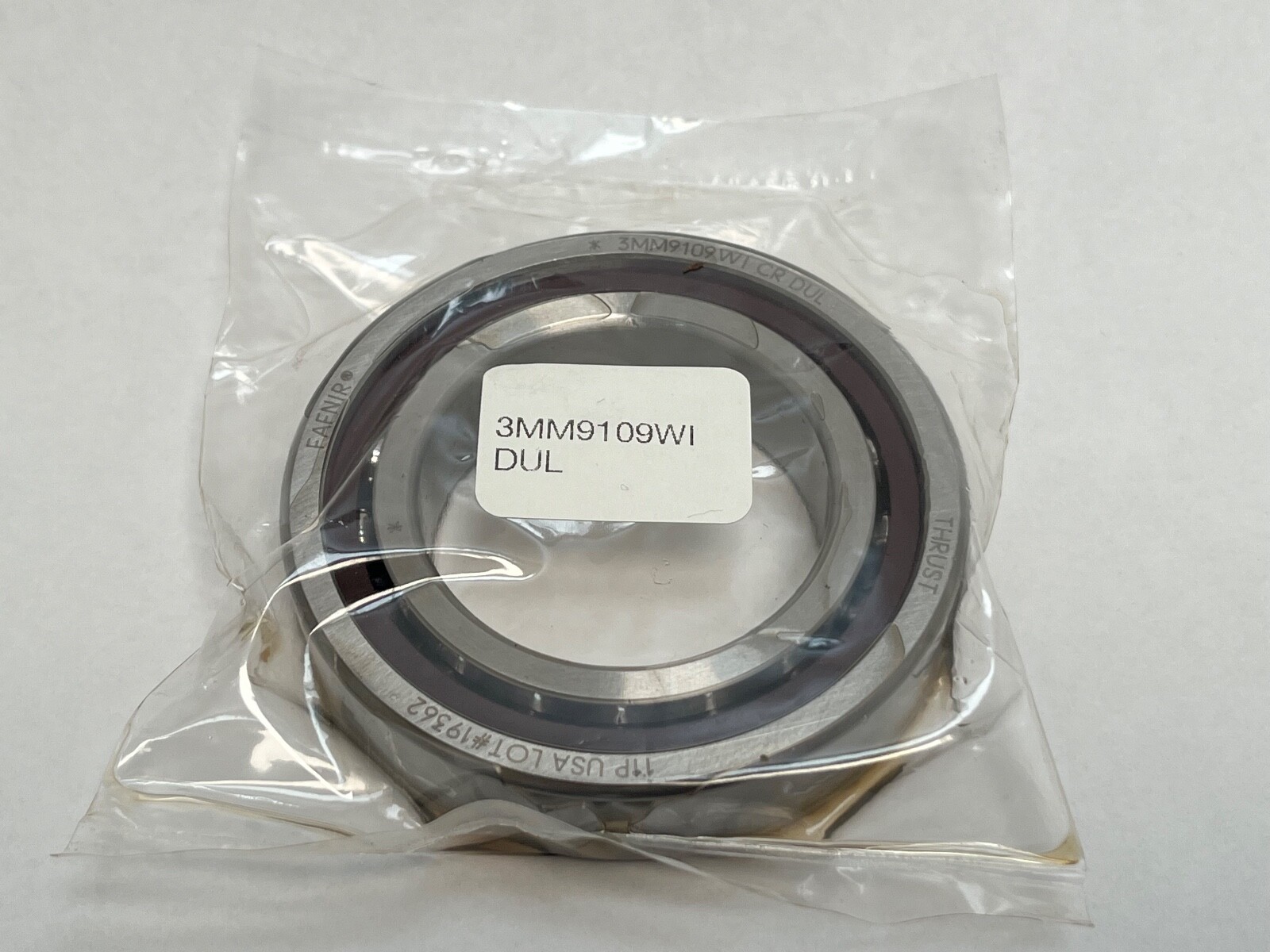

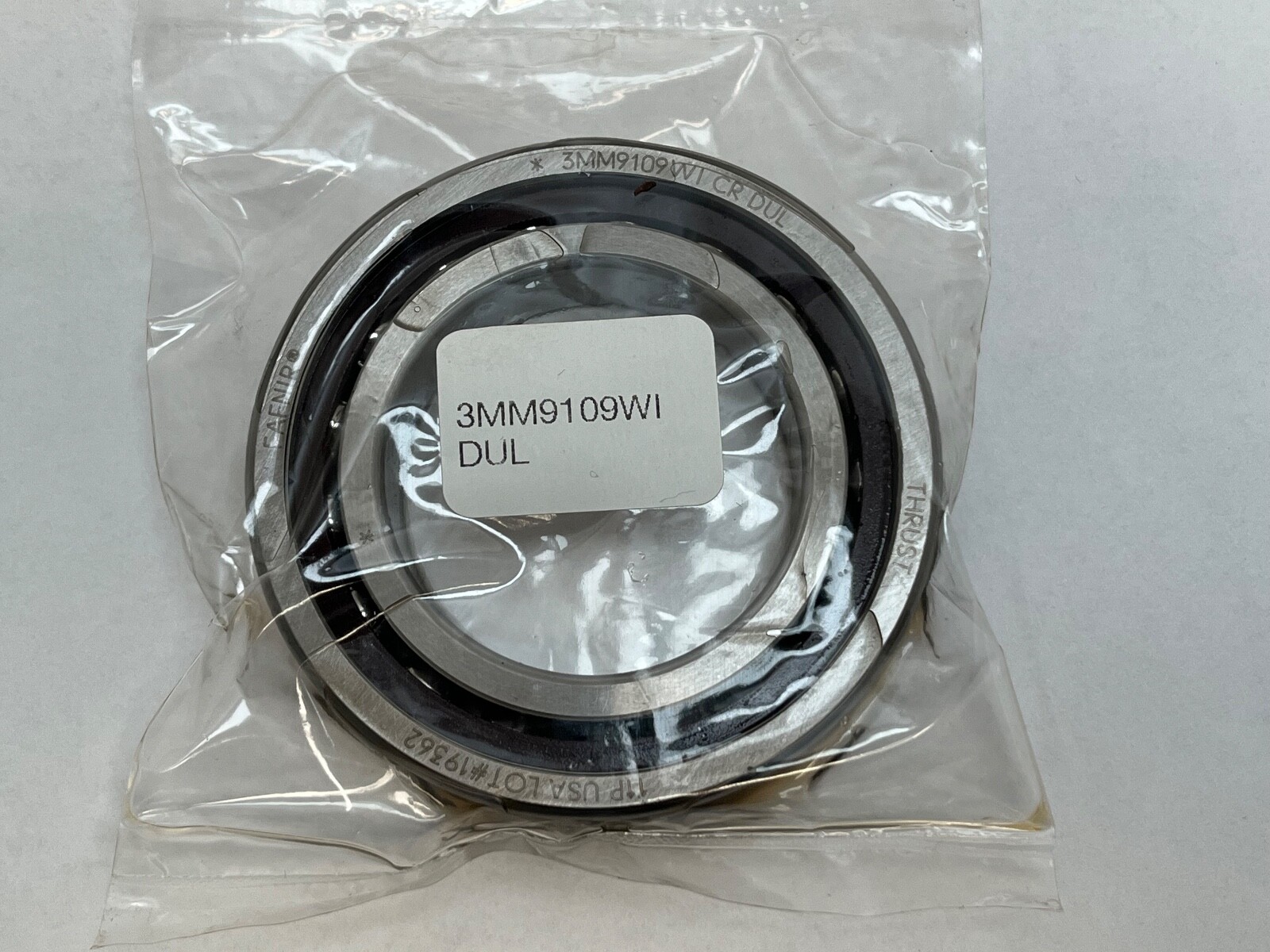

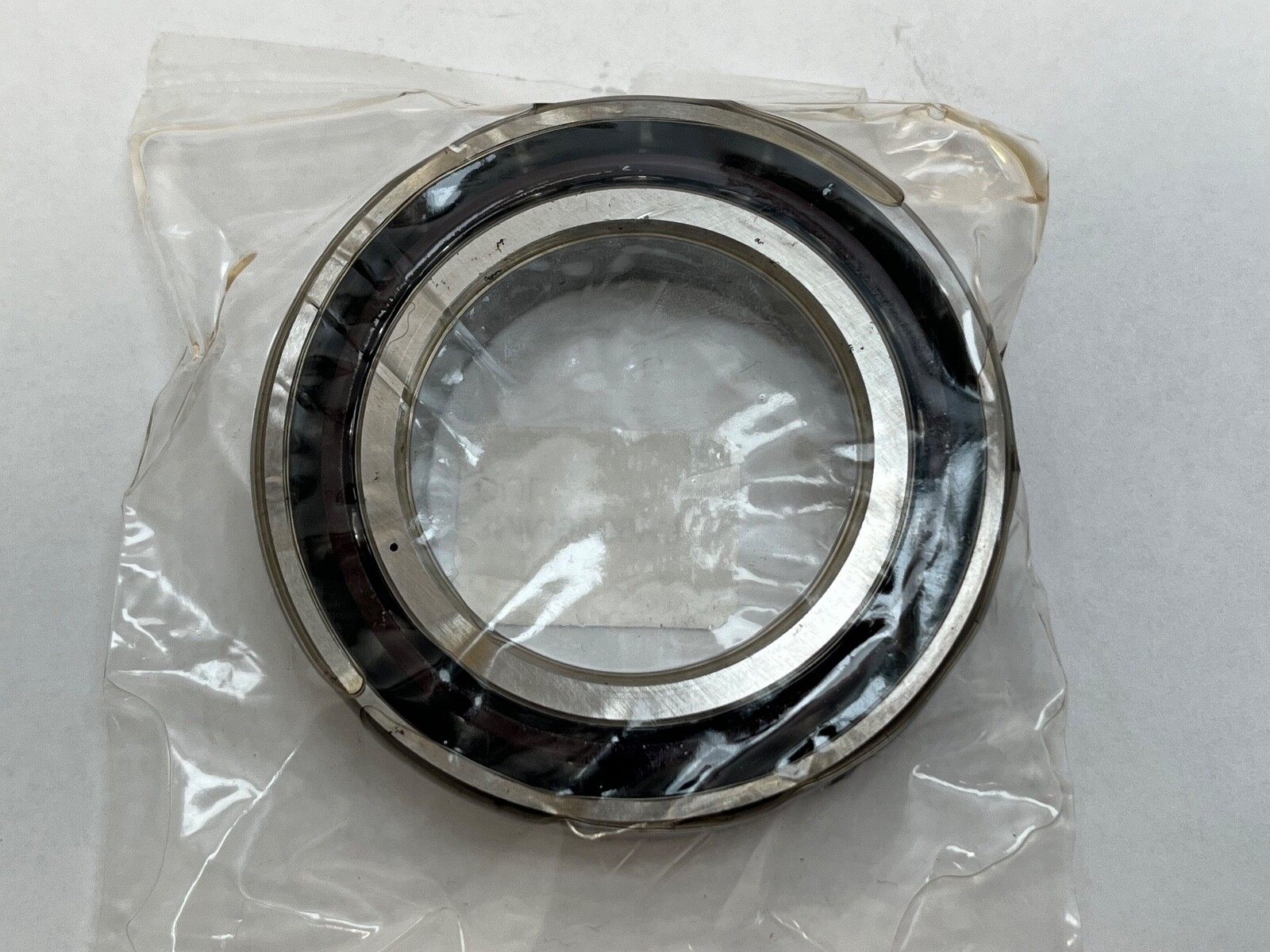

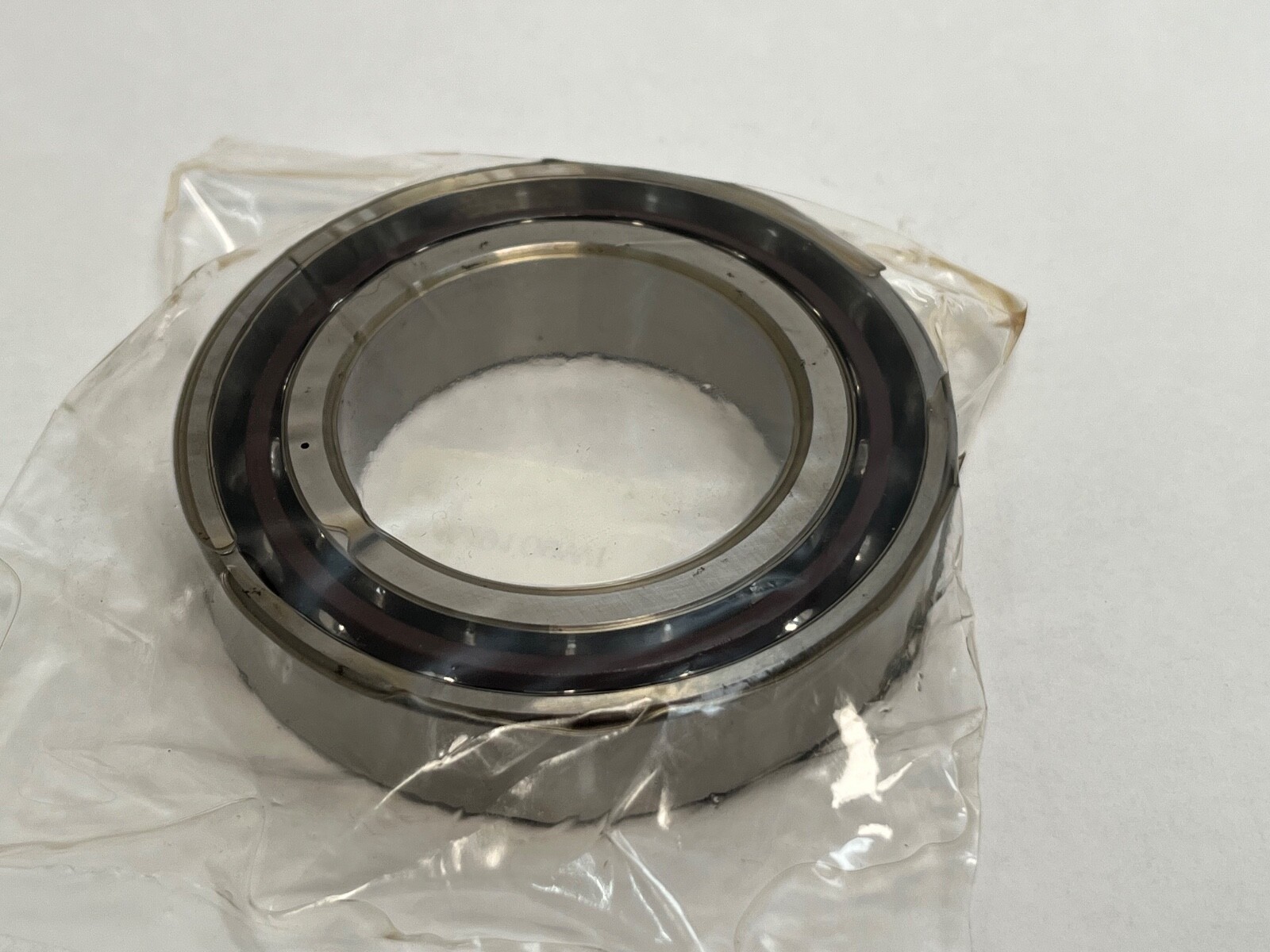

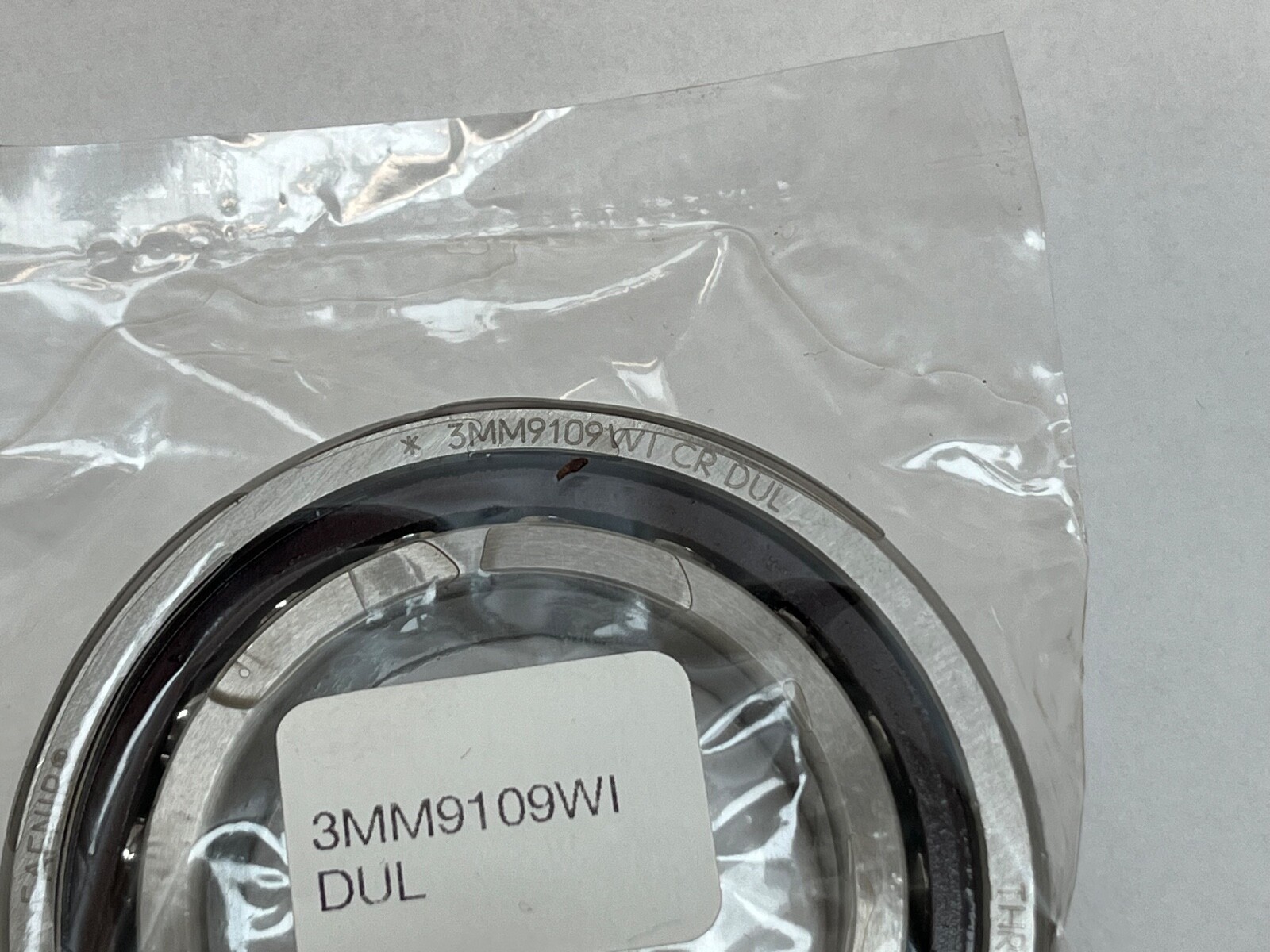

Fafnir3MM9109WISULAngular Contact Ball Bearing – Straight Bore, 45 mm ID, 75 mm OD, 16 mm Width, Open, 25° Contact Angle, Light Preload.

Name: Angular Contact Ball Bearing - Straight Bore, 45 mm ID, 75 mm OD, 16 mm Width, Open, 25° Contact Angle, Light Preload.
Brand: Fafnir
SKU: B-AA5B3#IQO9P9
Price: 109.32 USD
Availability: InStock

Condition: New – Open box

Condition Note: Made In USA, New, No Box

Availability:

1 in stock

Categories: Bearings, Angular Contact Ball Bearing

List Price

$109.32

1 in stock

Also Available From:

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	Fafnir
MPN	3MM9109WISUL
Model	3MM 9109 WI CR DUL / 7009ECR DUL P4S / 7009 ACD P4A DGB / 7009-A5
Bearing Type	Angular Contact Ball Bearing, Open
ID	45 mm
OD	75 mm
Width	16 mm

Technical Specifications

Material	Bearing Steel
Series	9100
Condition	New – Open box
Preload	Light
Condition Note	Made In USA, New, No Box
Min Temp	-30°C
Cage Type	Phenolic
Dynamic Load Rating	24.5 kN
Static Load Rating	19.3 kN
Precision Rating	ABEC 7 / P4
Rolling Elements	Ball
Max Temp	120°C
Item Weight	0.55 lbs
Cage Material	Phenolic
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Harmonization Code	8482.10.50.68
Contact Angle	25°
Mounting Arrangement	Universal

Cross-References

Cross Reference 1	SKF 7009 ACDGA/P4A
Cross Reference 2	FAG B7009-E-T-P4S-UL
Cross Reference 3	NSK 7009CTYNSULP4

Seller Part Number: B-AA5B3#IQO9P9

Product Description

Introducing the Fafnir 3MM9109WI-SUL Bearing – your ultimate solution for precision bearing needs. Crafted by the renowned FAFNIR brand, this Angular Contact Ball Bearing is designed to deliver unparalleled reliability and strength. It is an essential component for a wide range of industrial applications, offering superior performance that lasts. Key Features: Model Numbers: 3MM 9109 WI CR DUL, 7009ECR DUL P4S, 7009 ACD P4A DGB, 7009-A5 Bore Diameter: 45 mm Outside Diameter: 75 mm Width: 16 mm Material: High-quality Steel for exceptional durability Condition: New – Open box, guaranteeing top performance Manufactured in: United States With the Fafnir 3MM9109WI-SUL, you will experience precise engineering that enhances operational efficiency while minimizing downtime. Our competitive pricing ensures that you receive a high-quality product at an affordable cost. We also offer flexible shipping options, including next-day and expedited services, so you can get your bearings when you need them most. International shipping is available too! If you require additional parts, do not hesitate to reach out. We specialize in sourcing any components you need. Contact us today for more information!
