SNR7010CDUJ74Angular Contact Ball Bearing – Straight Bore, 50 mm ID, 80 mm OD, 16 mm Width, Open, 15° Contact Angle, Light Preload.

Product Description

What this part is:

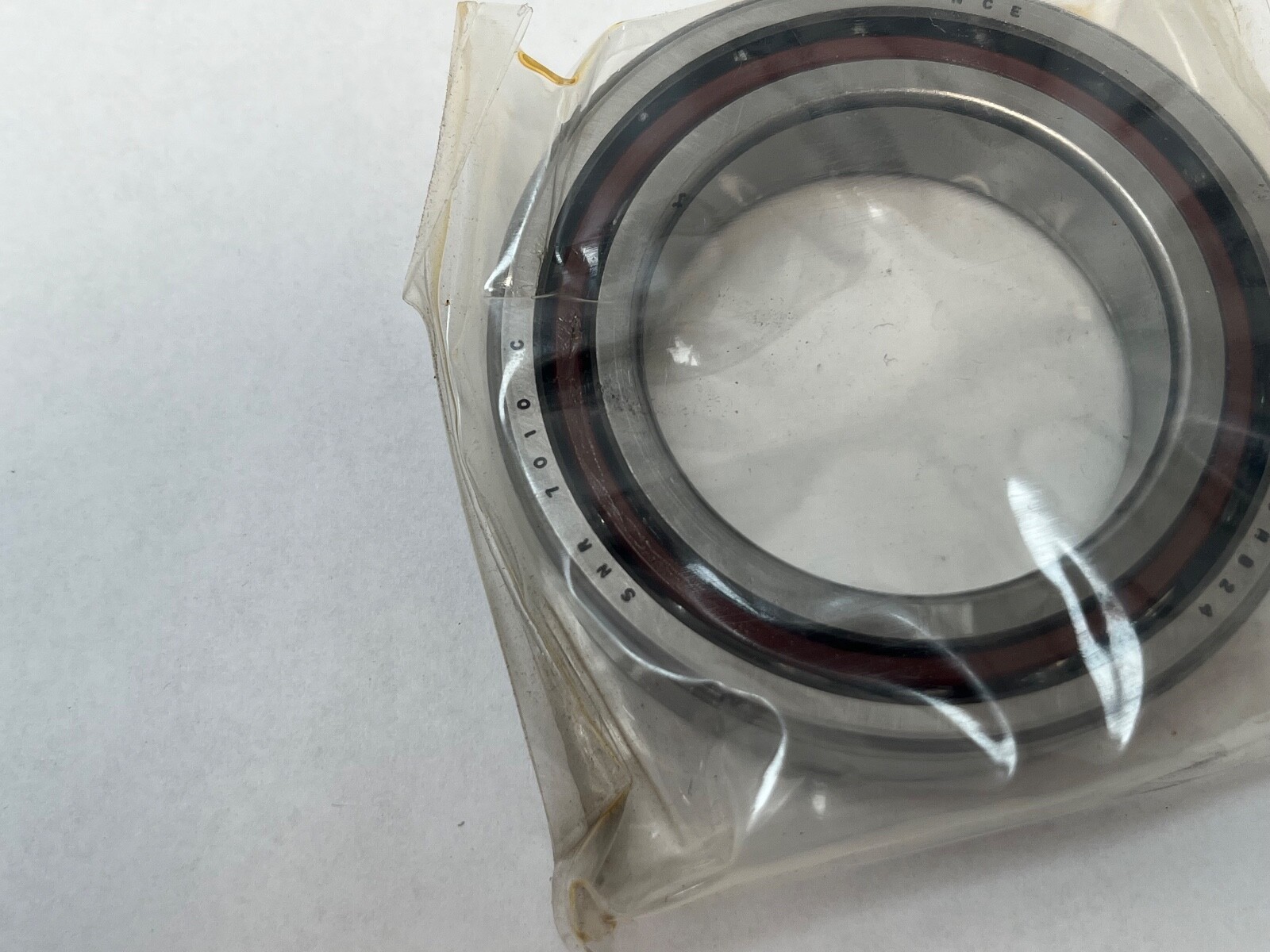

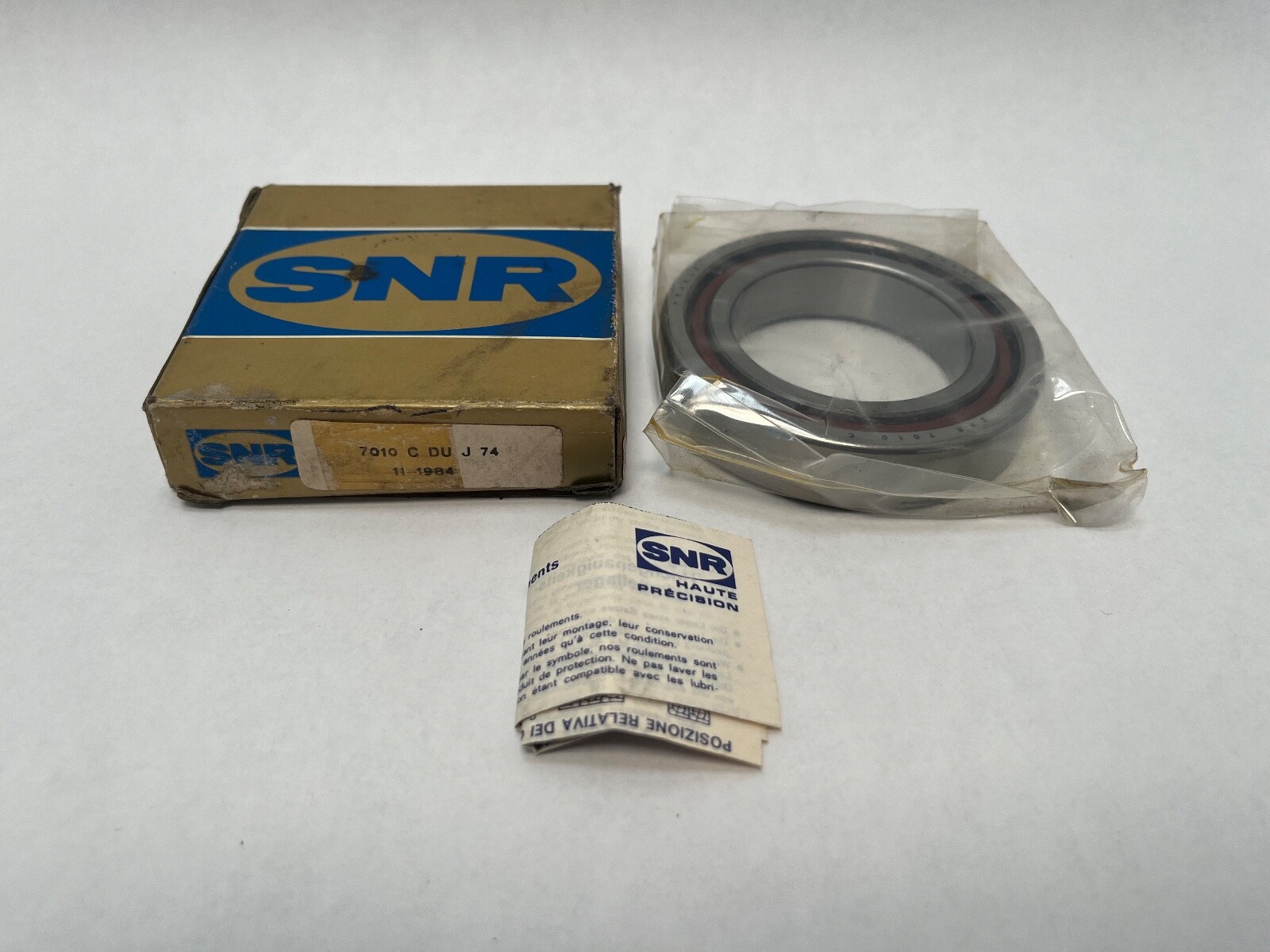

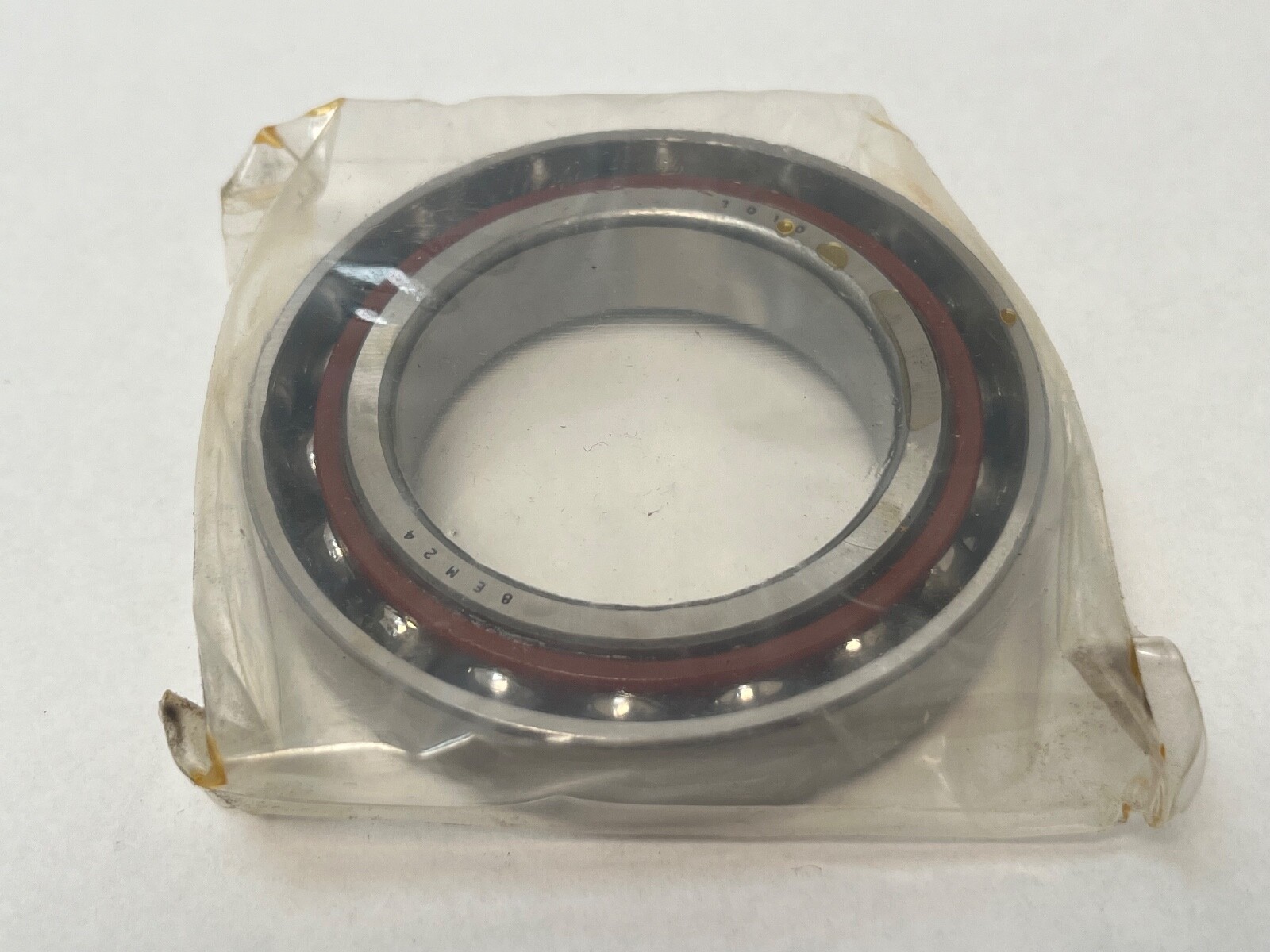

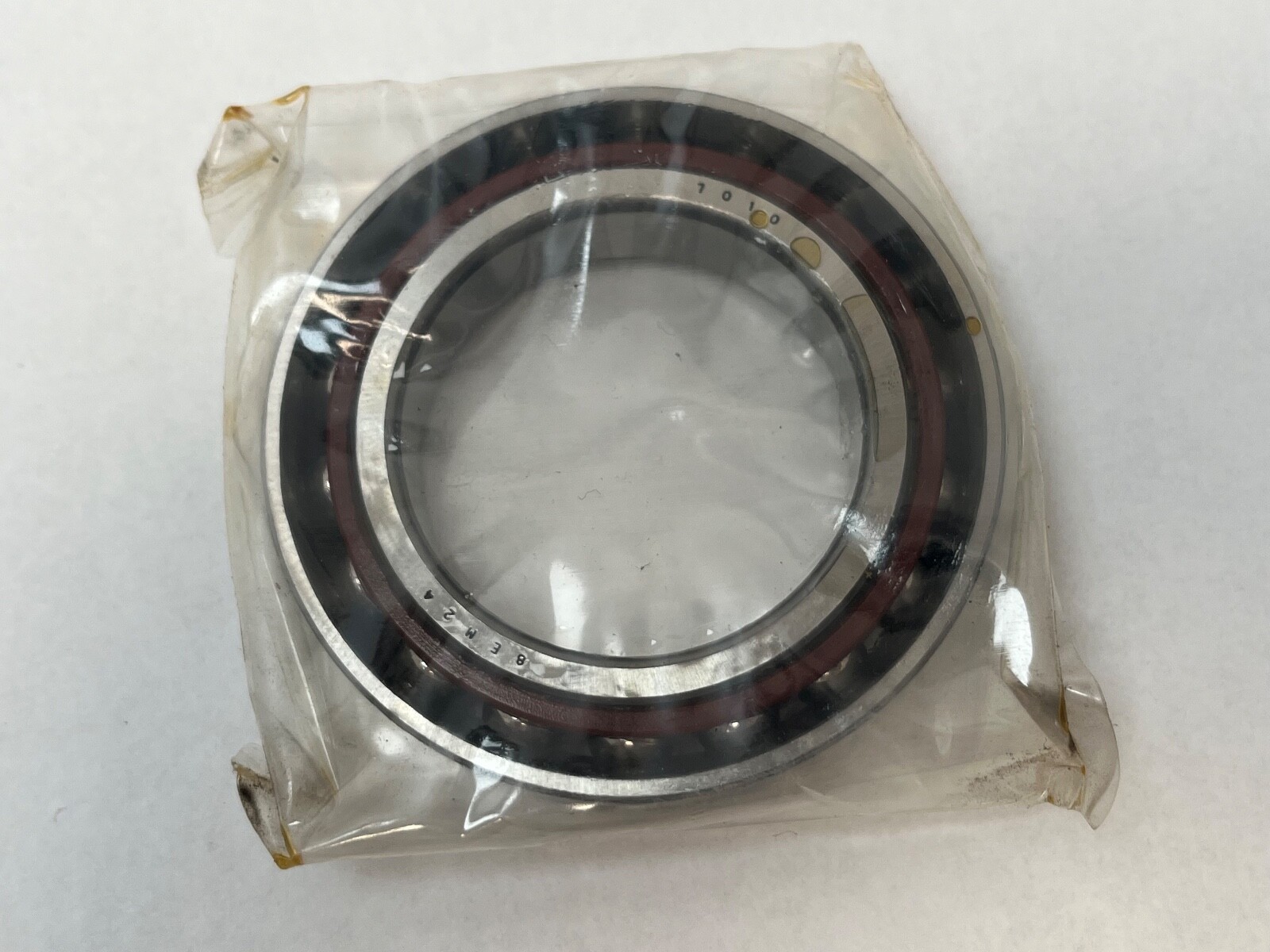

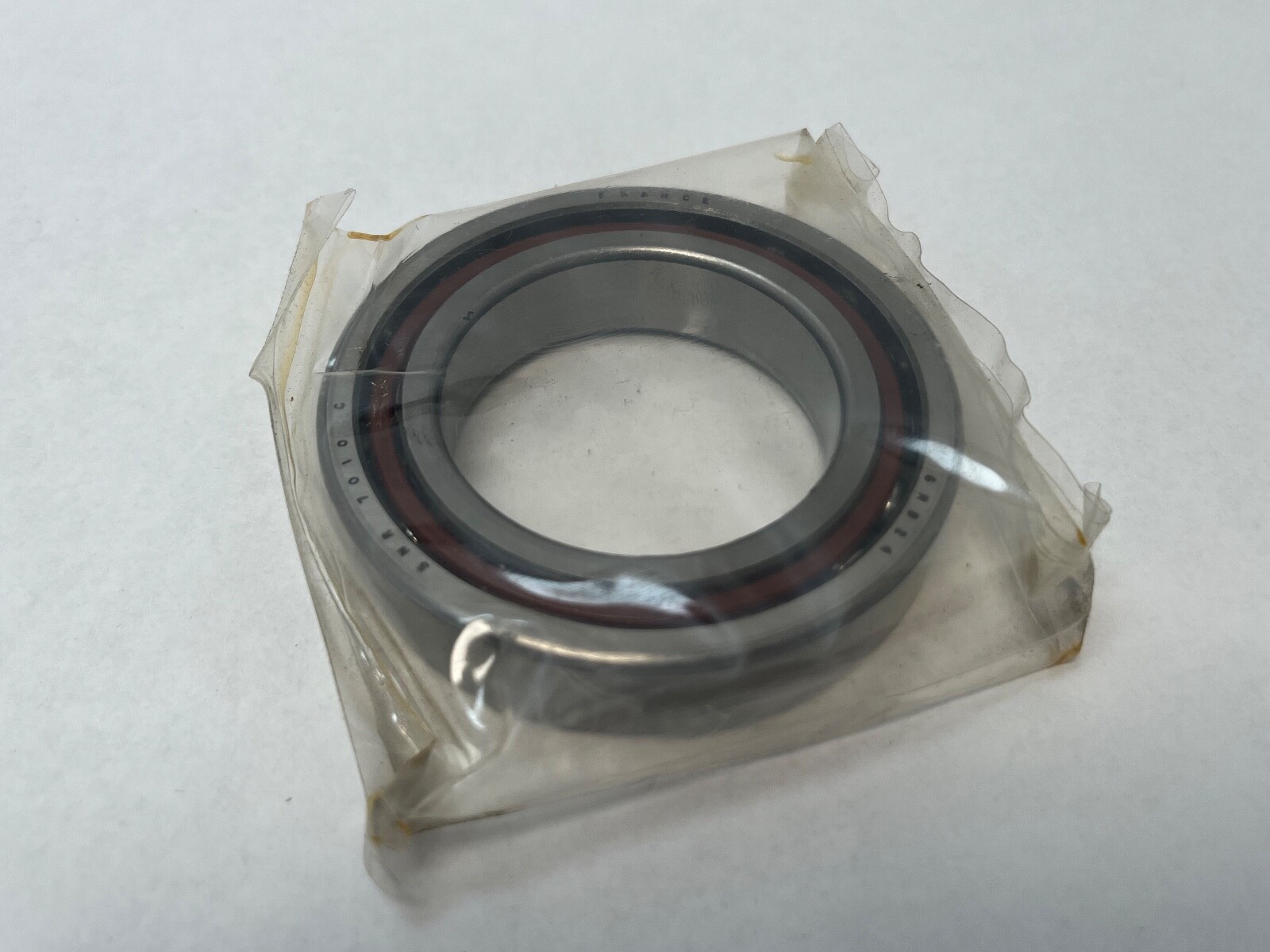

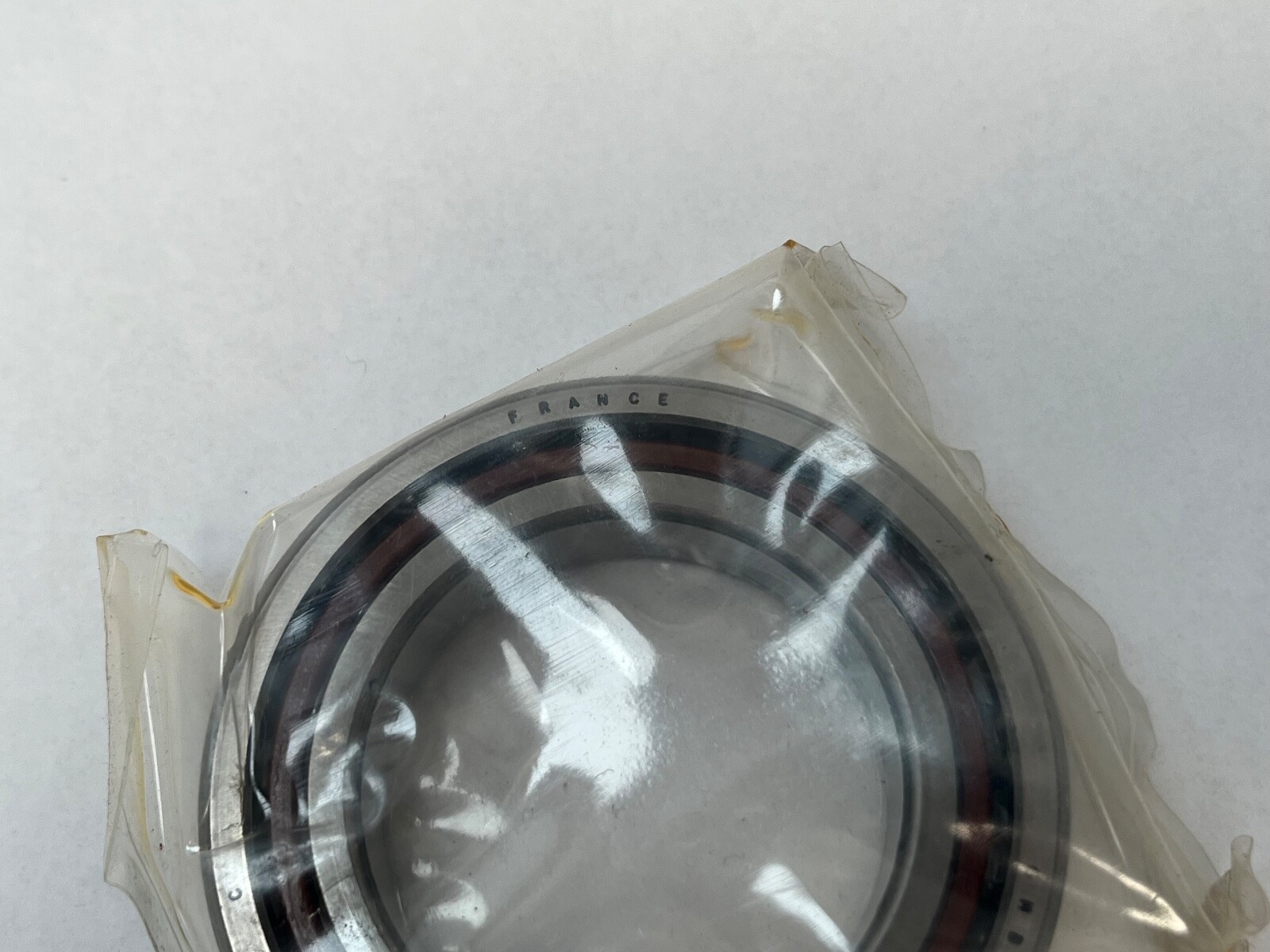

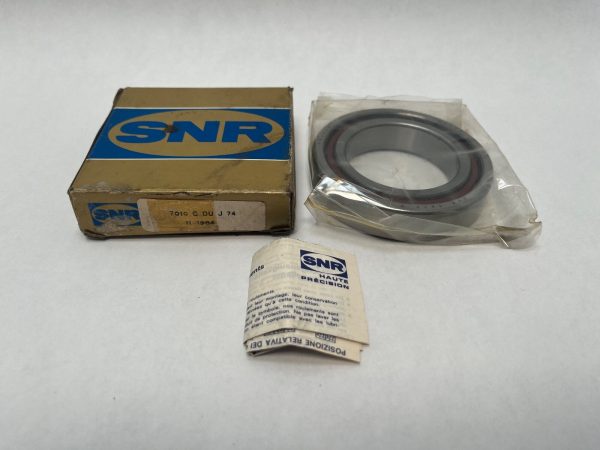

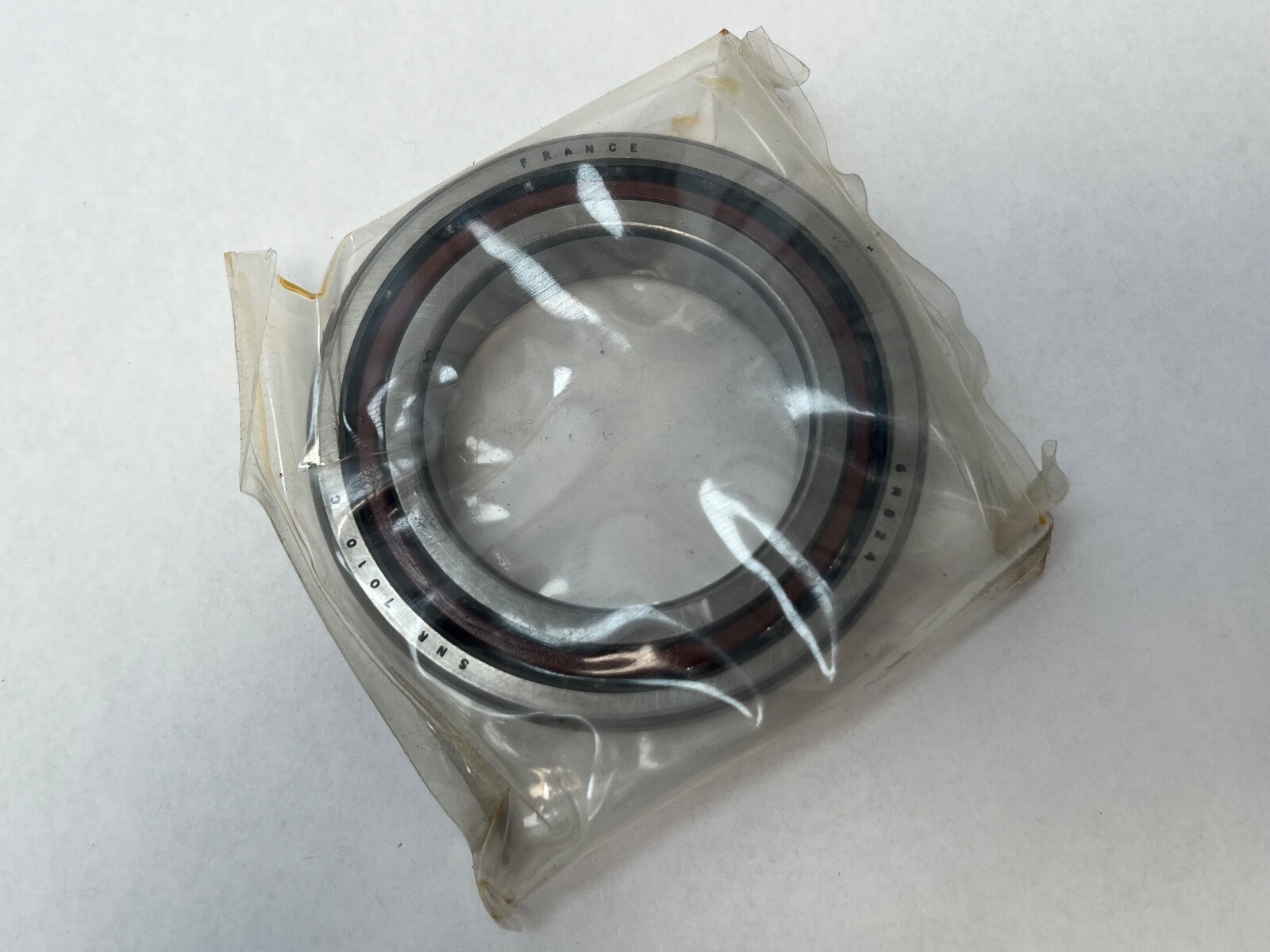

SNR 7010CDUJ74 super-precision angular contact ball bearing, ISO 70 series, 50 x 80 x 16 mm. One bearing from a factory matched pair, universally ground. Unit Quantity: 1 Pc.

Decoding the designation:

7010 — ISO 70 series at a 50 mm bore.

C — 15° contact angle.

J74 — light preload; the second digit of the J code is the ISO precision class 4.

Specifications:

Bore Diameter: 50 mm. Outside Diameter: 80 mm. Overall Width: 16 mm. Contact Angle: 15°. Preload: Light. Precision Class: ISO P4 (ABEC 7). Cage Material: Phenolic. Bore Type: Straight. Number Of Rows: 1. Rolling Elements: Ball. Closure Type: Open. Series: 7000. Base Number: 7010. Unit Quantity: 1 Pc.

Dimensions and mounting:

Bore Diameter: 50 mm. Outside Diameter: 80 mm. Overall Width: 16 mm. Envelope matches ISO 7010.

Compatibility and replacement:

Cross-Reference 1: SKF 7010 CDGA/P4A, extra light preload. Cross-Reference 2: FAG B7010-C-T-P4S-UL, light preload. Cross-Reference 3: NSK 7010CTYNSULP4, light preload. Cross-Reference 4: Fafnir 2MM9110WI CR DUL, light preload. Searchable forms: 7010CDUJ74, 7010CVDUJ74, 7010-C-DU-J74, 7010 C DU J74, 7010C.

Frequently asked questions:

What are the dimensions of the SNR 7010CDUJ74?

Bore Diameter: 50 mm. Outside Diameter: 80 mm. Overall Width: 16 mm.

What contact angle and preload does it have?

Contact Angle: 15°. Preload: Light.

What precision class is it?

Precision Class: ISO P4 (ABEC 7).
