Availability:
6 in stock

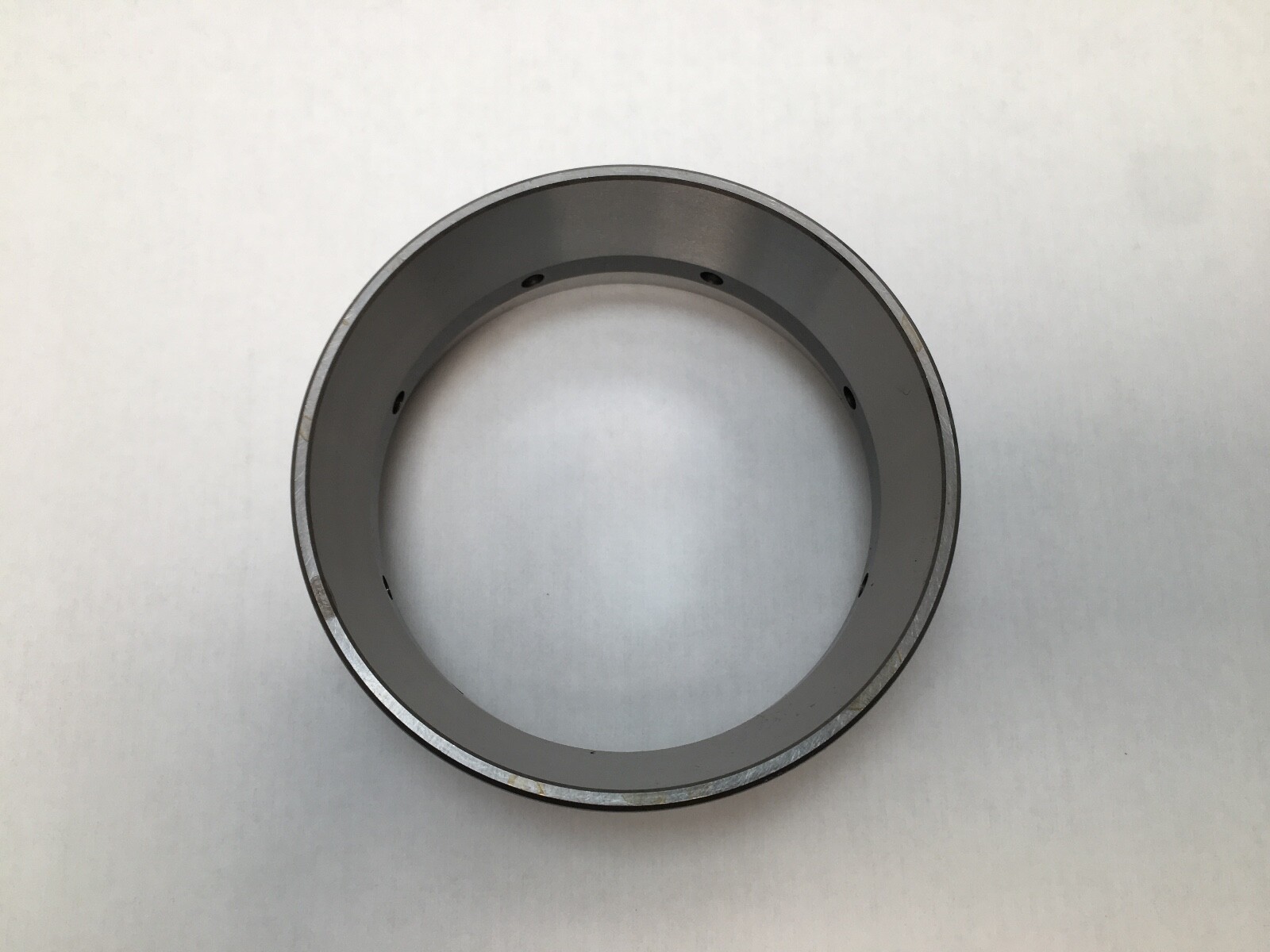

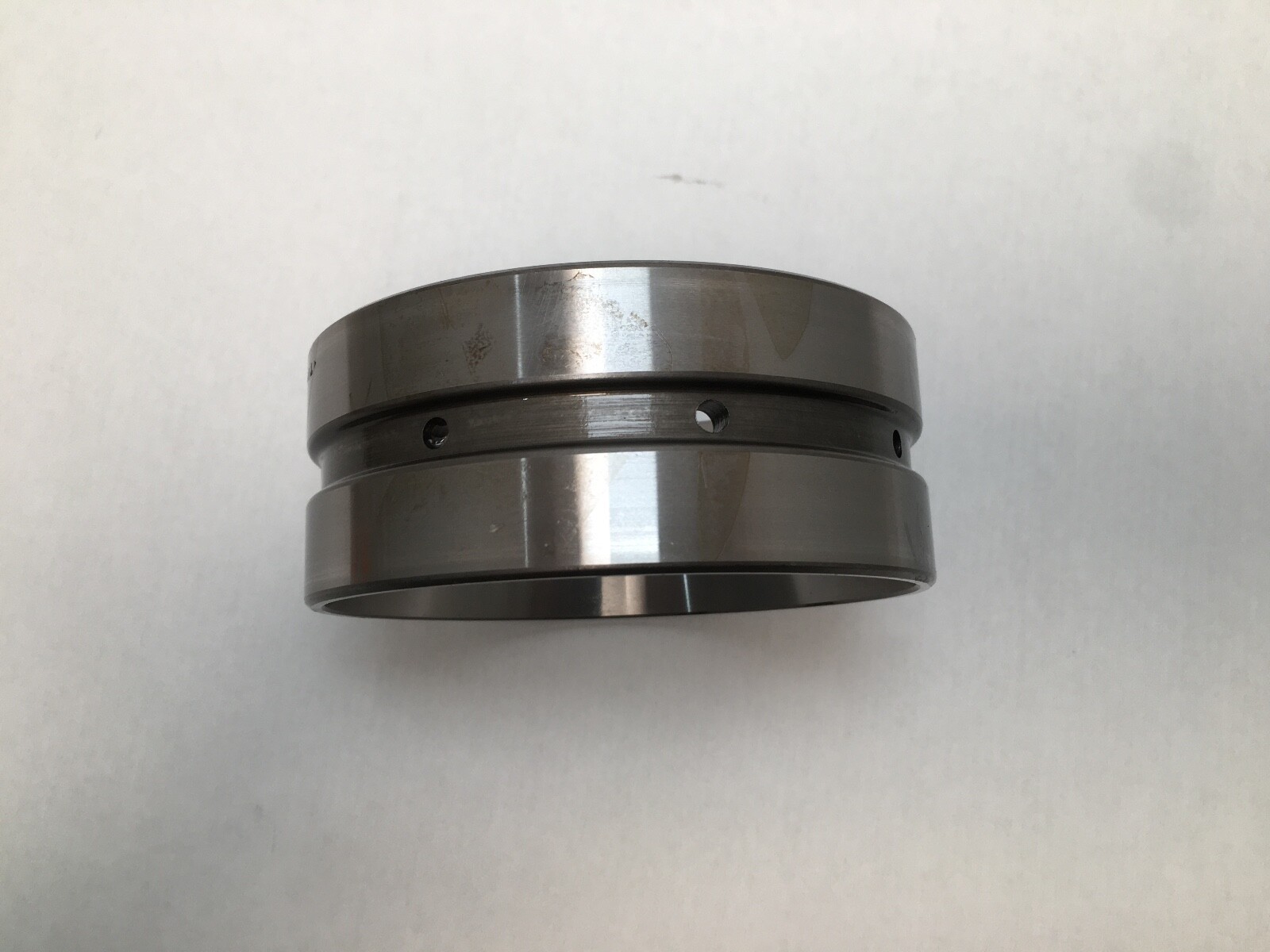

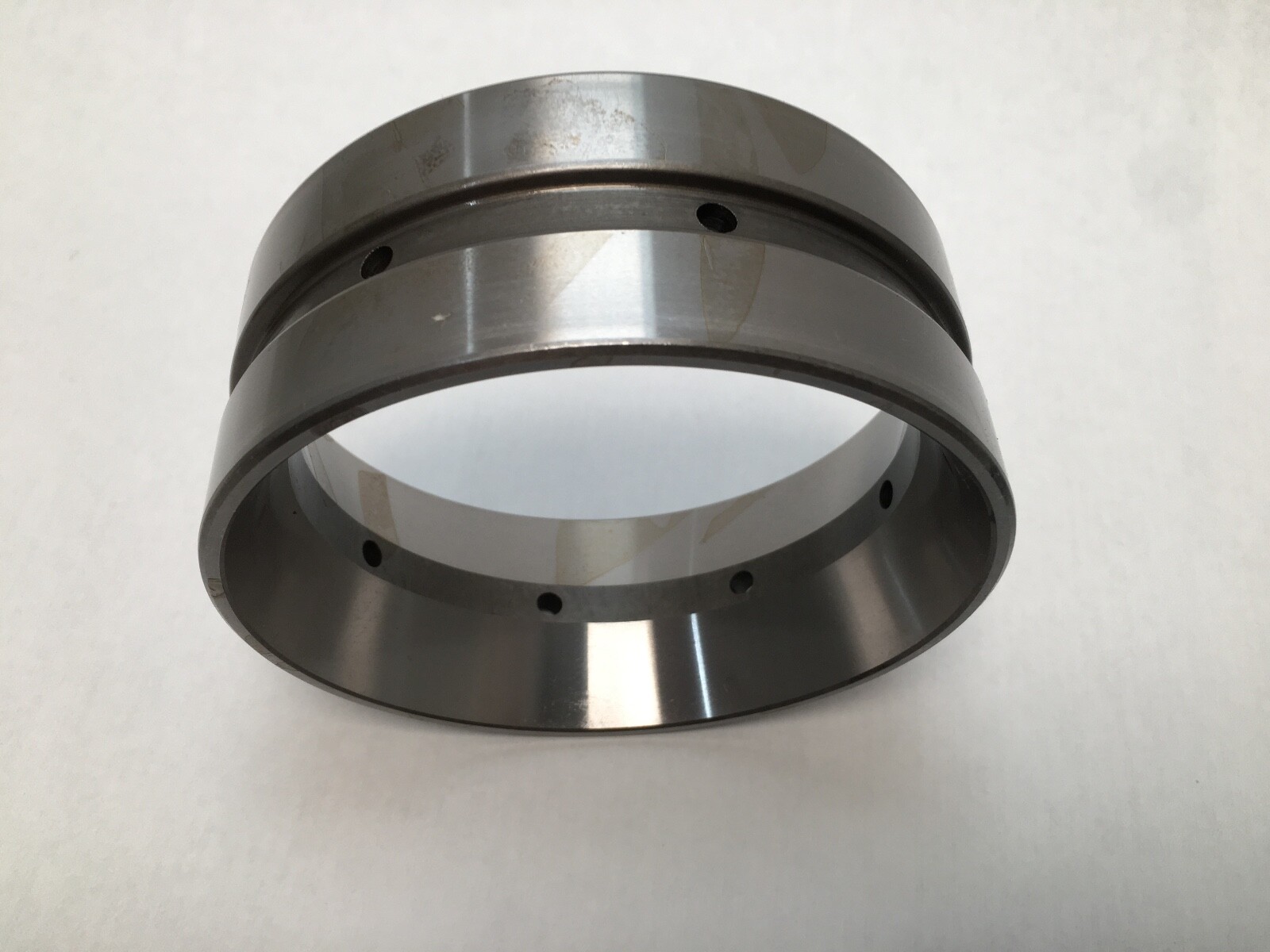

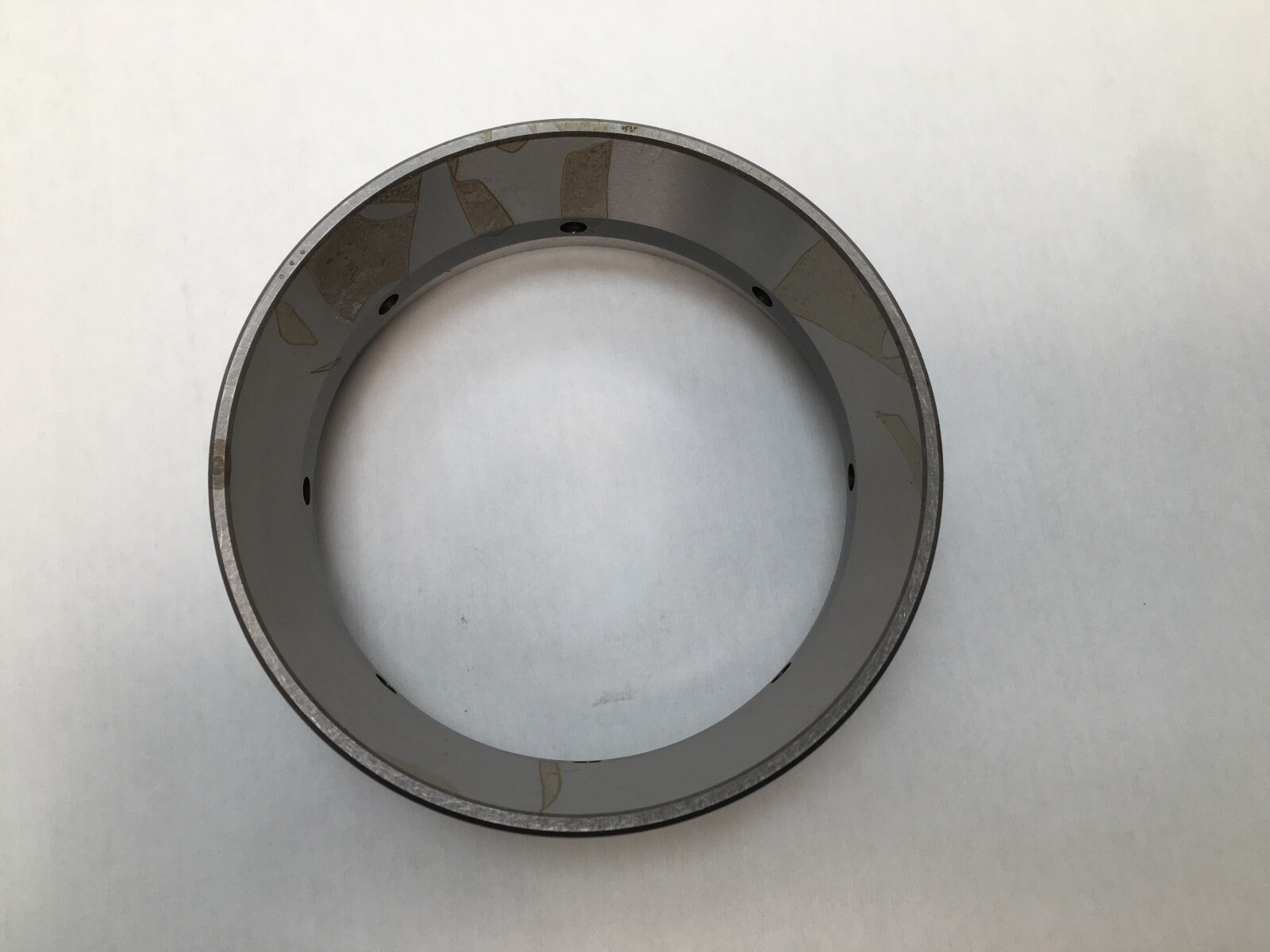

Double tapered roller bearing cup, 4.4995 in outside diameter, 1.8125 in width, Class 3. One outer ring carrying two opposed raceways.
List Price
$217.83
6 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 29622D-3 |

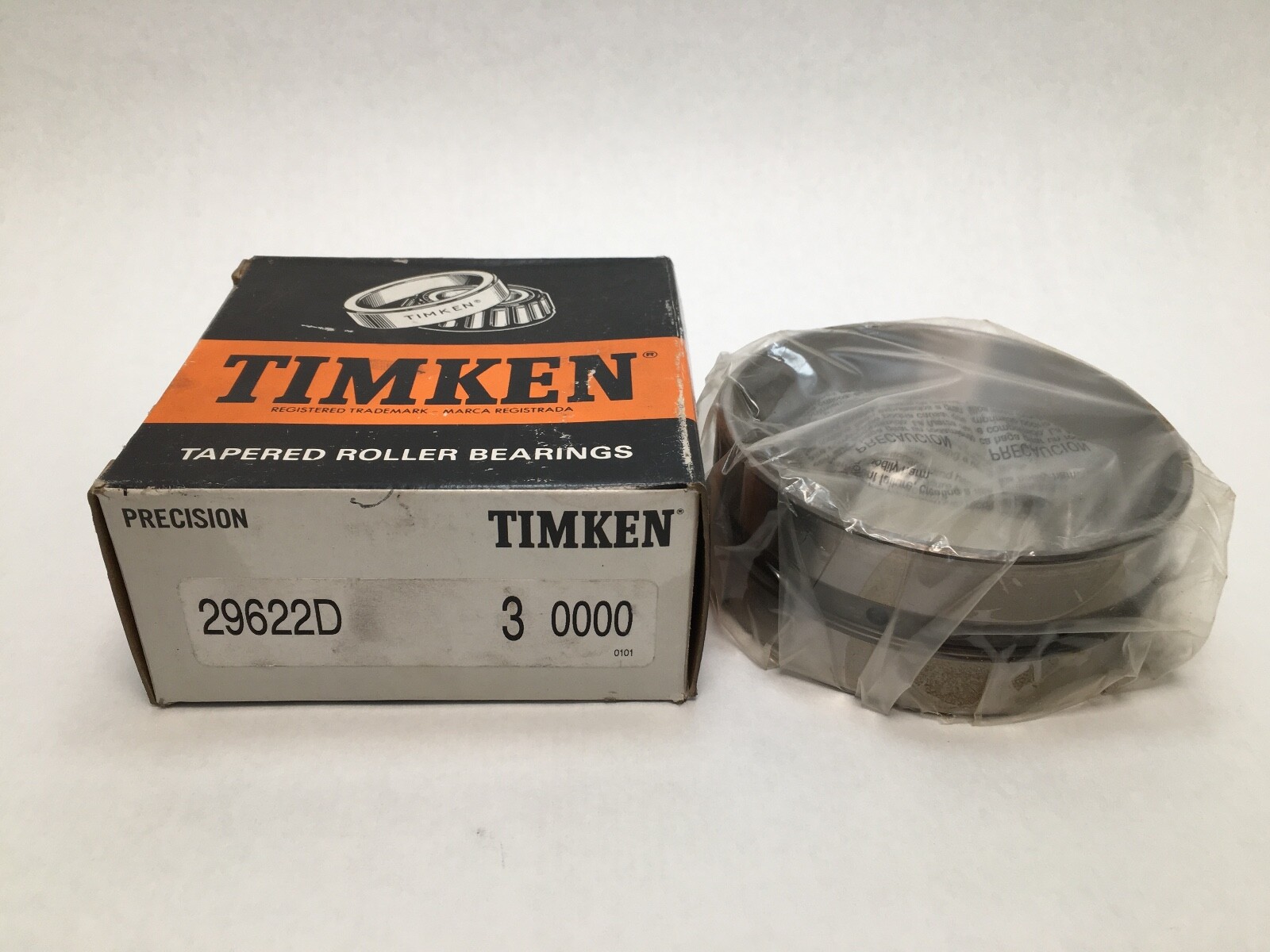

| Model | 29622 D 3 0000 |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 4.4995 in (114.287 mm) |
| Series | 296 |
|---|---|
| Base Number | 29622D |
| Cone In Separate Listing | https://www.ebay.com/itm/334773753321 (29685 3) |
| Overall Width | 1.8125 in (46.038 mm) |
| Mpn Variants | 29622D-3; 29622-D *3; 29622D #3; 29622D3; 29622-D-3 |
| Compatible With Replaces | Takes two Timken 29685 cones |
| Precision Class | Class 3 |
| Additional Attributes | e Factor 0.49; K Factor 1.20; Y1 Factor 1.38; Y2 Factor 2.06; Cg 0.117; Max housing fillet radius 0.8 mm; Da 109.98 mm |
| Rolling Elements | Tapered Roller |
| Item Weight | 2.15 kg (4.74 lb) |
| Number Of Rows | 2 |
| Harmonization Code | 8482.2 |
| Cup Part Number | 29622D-3 |
| Cup Width | 1.8125 in |
| Cup Backface To Clear Radius | 0.03 in |
| Part Number | 29622D-3 |
| Cup Frontface Backing Diameter | 4.33 in |
| Cross Reference 1 | Timken 29622 – related size, single cup on the same 4.4995 in outside diameter |
|---|

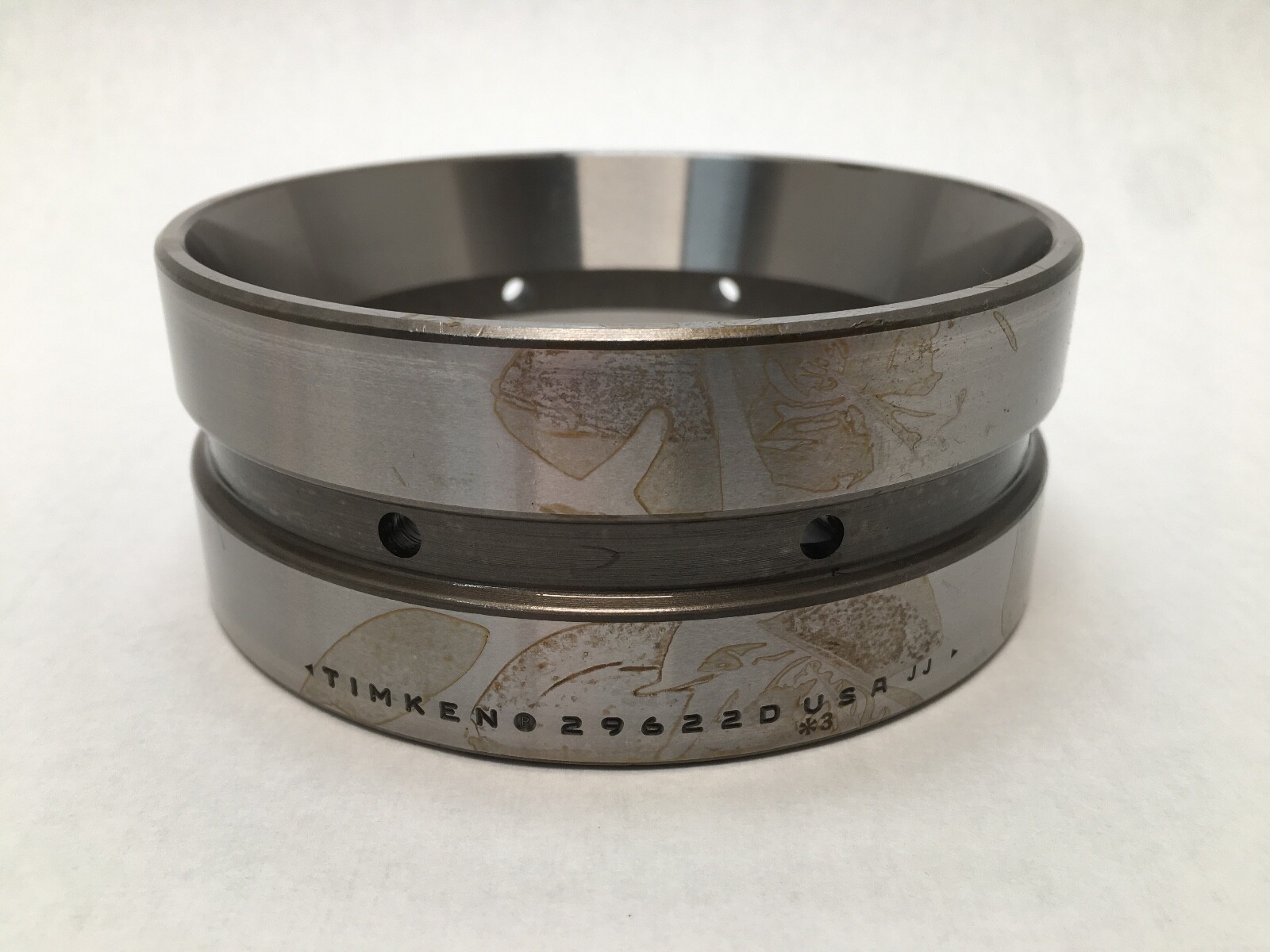

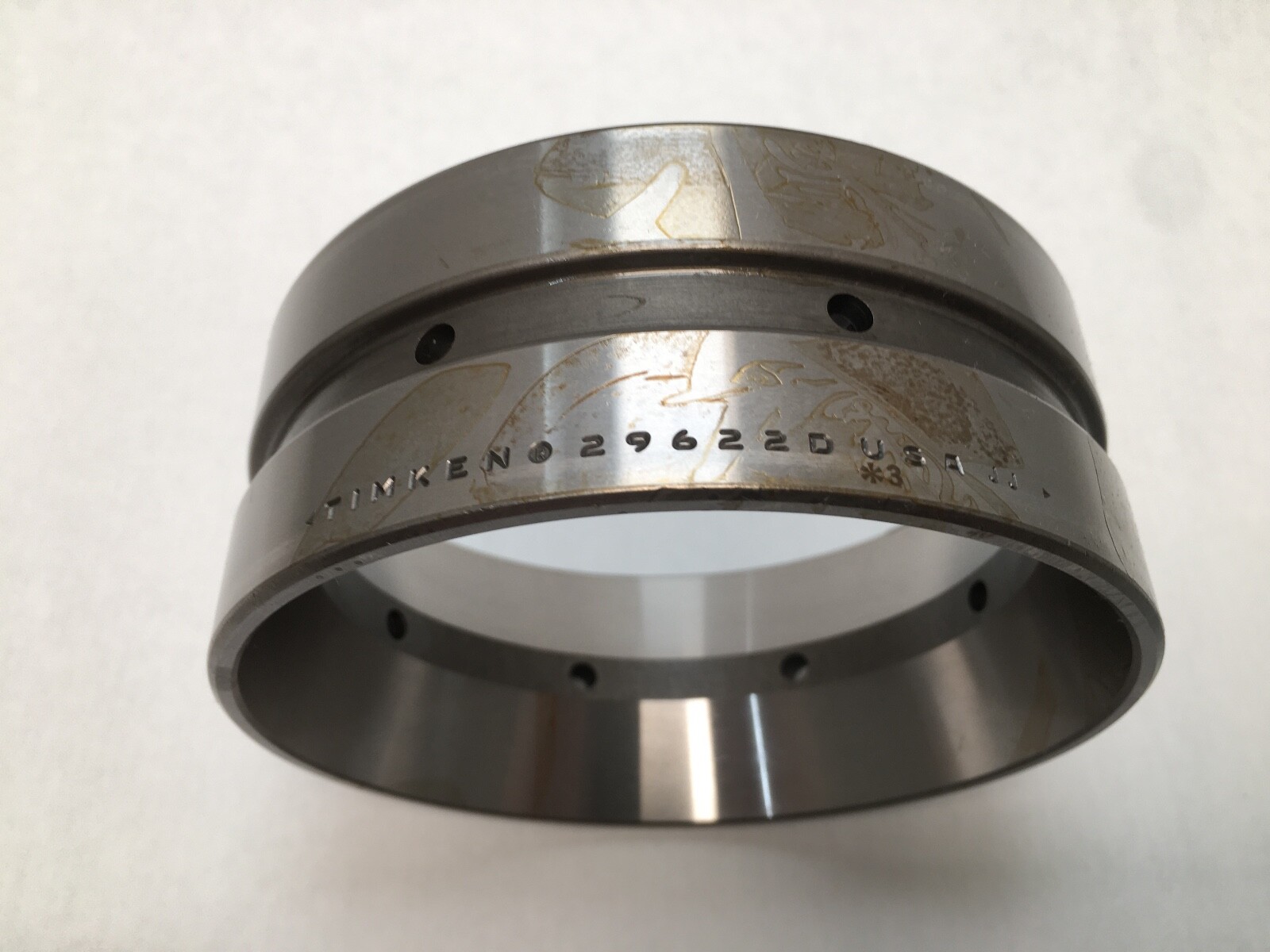

Timken 29622D-3 double tapered roller bearing cup. Bearing Type: Double cup — one outer ring machined with two opposed tapered raceways, taking two cones back to back in a single housing bore. Series: 296. Base Number: 29622D. Outside Diameter: 4.4995 in (114.287 mm). Overall Width: 1.8125 in (46.038 mm). Rolling Elements: Tapered Roller. Number Of Rows: 2. Item Weight: 2.15 kg (4.74 lb).
29622 — Timken base cup number in the 296 inch series, 4.4995 in outside diameter.
D — double cup. Two raceways in one ring, so the pair of rows is located by a single bore and the shaft is held in both axial directions by one part.
*3 — Timken Precision Class 3. Tighter running and mounting tolerance than standard class, giving lower running vibration and closer location in the housing bore. The same class is written 29622D-3, 29622D *3 and 29622D #3.
e Factor: 0.49. K Factor: 1.20. Y1 Factor: 1.38. Y2 Factor: 2.06. Geometry Factor (Cg): 0.117. A double cup publishes two Y factors because the two rows share the load differently depending on direction: Y1 applies to the loaded row and Y2 to the unloaded row in the two-row rating calculation.
Maximum fillet radius on the mating housing: 0.8 mm (0.03 in). Housing Backing Shoulder Diameter, frontface (Da): 109.98 mm (4.33 in). Both rows sit in one bore, so the two rows are held in relative alignment by the cup itself rather than by the housing.
Unit Quantity: 1 Pc. Double cup only. It takes two Timken 29685 cones, one at each end.
The 29622D double cup is a Timken execution built to Timken’s own two-row geometry. The single 29622 cup shares the 4.4995 in outside diameter and one raceway, but it carries a single row and a different width, so it is a related size rather than an interchange. For a 29622D two-row seat, Timken is the source.
