Availability:
1 in stock
Tapered roller bearing cone, 4.0000 in bore, 2.8750 in width, Class 3 precision. Stamped steel cage, 215000 series inch design, oil or grease lubrication.
List Price
$409.50
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | EE215040-3 |
| Model | EE 215040 #3 |
| Bearing Type | Tapered Roller Bearing Cone, N/A - open component, no seal or shield |
| ID | 4.0000 in |
| Width | 2.8750 in |
| Material | Bearing Steel |
|---|---|
| Series | 215000 (EE prefix, inch design) |
| Lubricant | Oil or grease |
| Base Number | EE215040 |
| Industry Terms | Tapered roller cone; taper bearing inner race; TS cone; single cone; inner ring and roller assembly; Class 3 taper cone |
| Common Misspellings | Timkin; Timkem; Timpken; EE21504; EE-215-040; E215040 |
| Application Types | Heavy industrial gearboxes; steel mill and rolling mill equipment; mining and crushing machinery; large pumps and fans; heavy truck and off-highway drivelines |
| Overall Width | 2.8750 in (73.03 mm) - cone width |
| Bore Shaft Size | 4.0000 in (101.600 mm) |
| Mpn Variants | EE215040-3; EE215040; EE-215040; EE 215040 #3; EE215040*3; 215040 |
| Rolling Elements | Tapered rollers |
| Number Of Rows | 1 |
| Snap Ring Included | Without snap ring |
| Harmonization Code | 8482.20.00.00 |
| Part Number | EE215040-3 |
| Cross Reference 1 | Timken EE215040 – standard Class 2, not Class 3 |
|---|---|
| Cross Reference 2 | SKF EE215040 – standard precision, not Class 3 |
| Cross Reference 3 | Koyo EE215040 – standard precision, not Class 3 |
| Cross Reference 4 | NSK EE215040 – standard precision, not Class 3 |
| Cross Reference 5 | Bower EE215040 – standard precision, not Class 3 |
| Cross Reference 6 | NTN EE215040 – standard precision, not Class 3 |
| Cross Reference 7 | Timken NA215040 – two-row/TDO cone, related only |

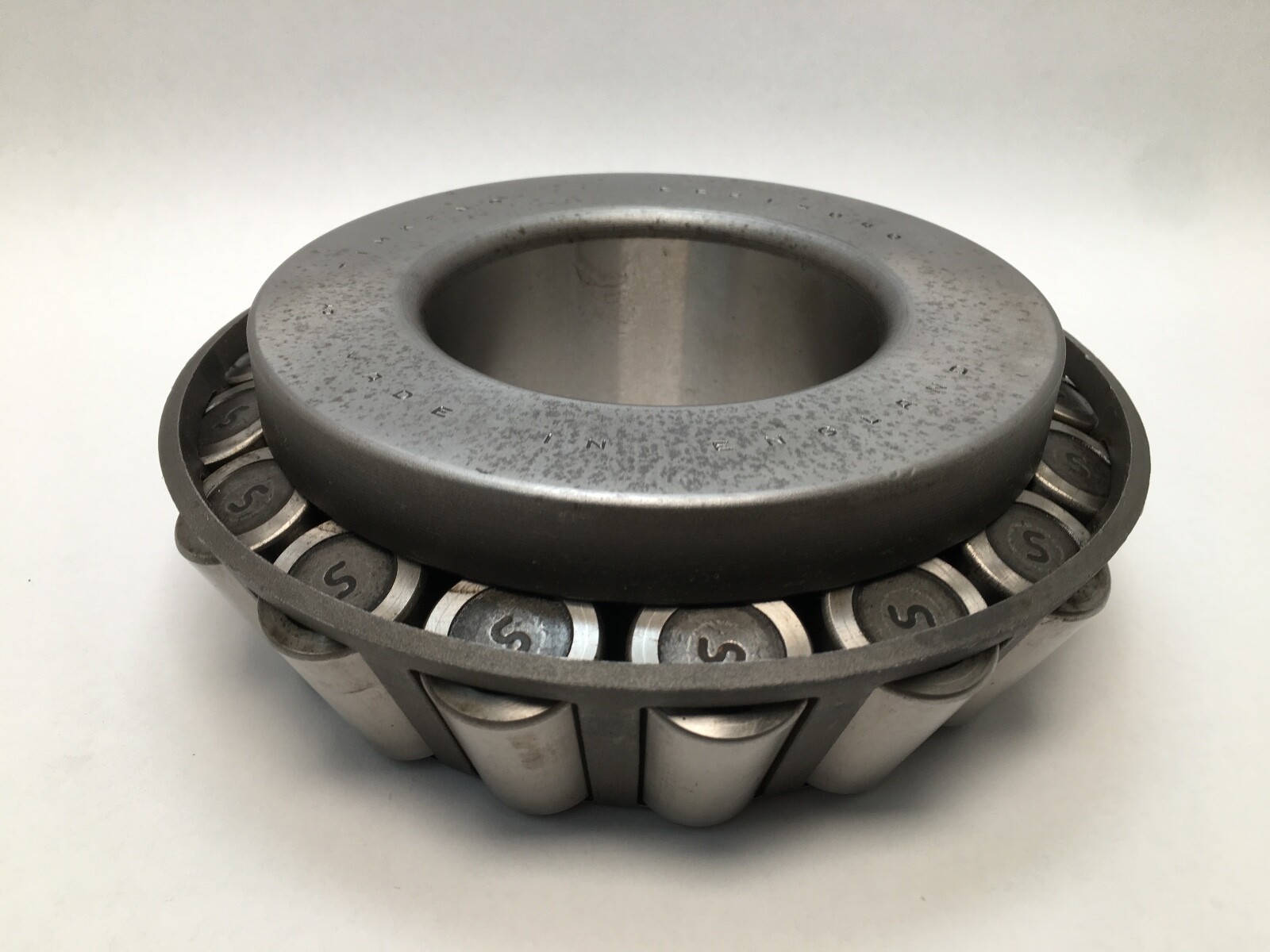

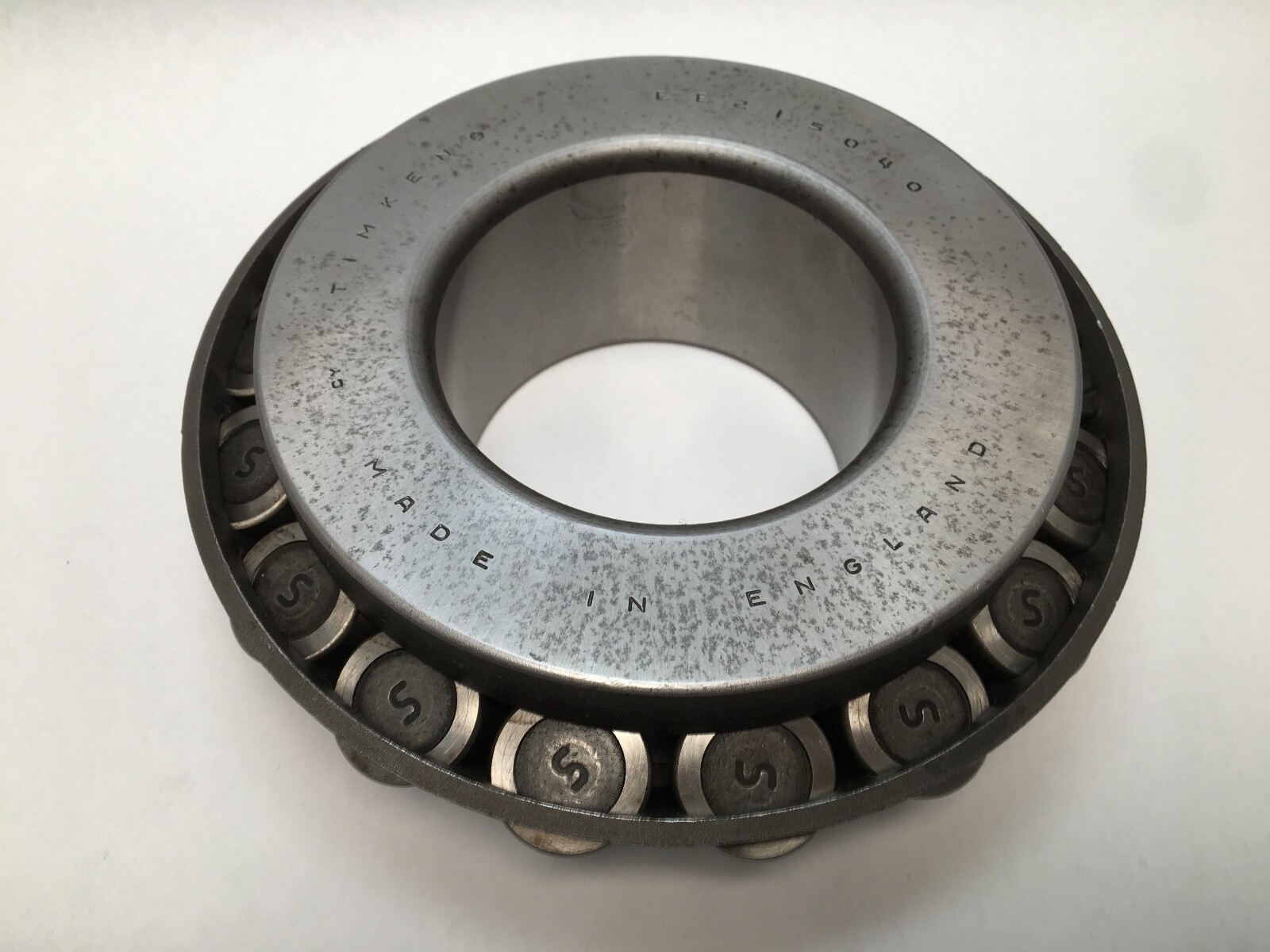

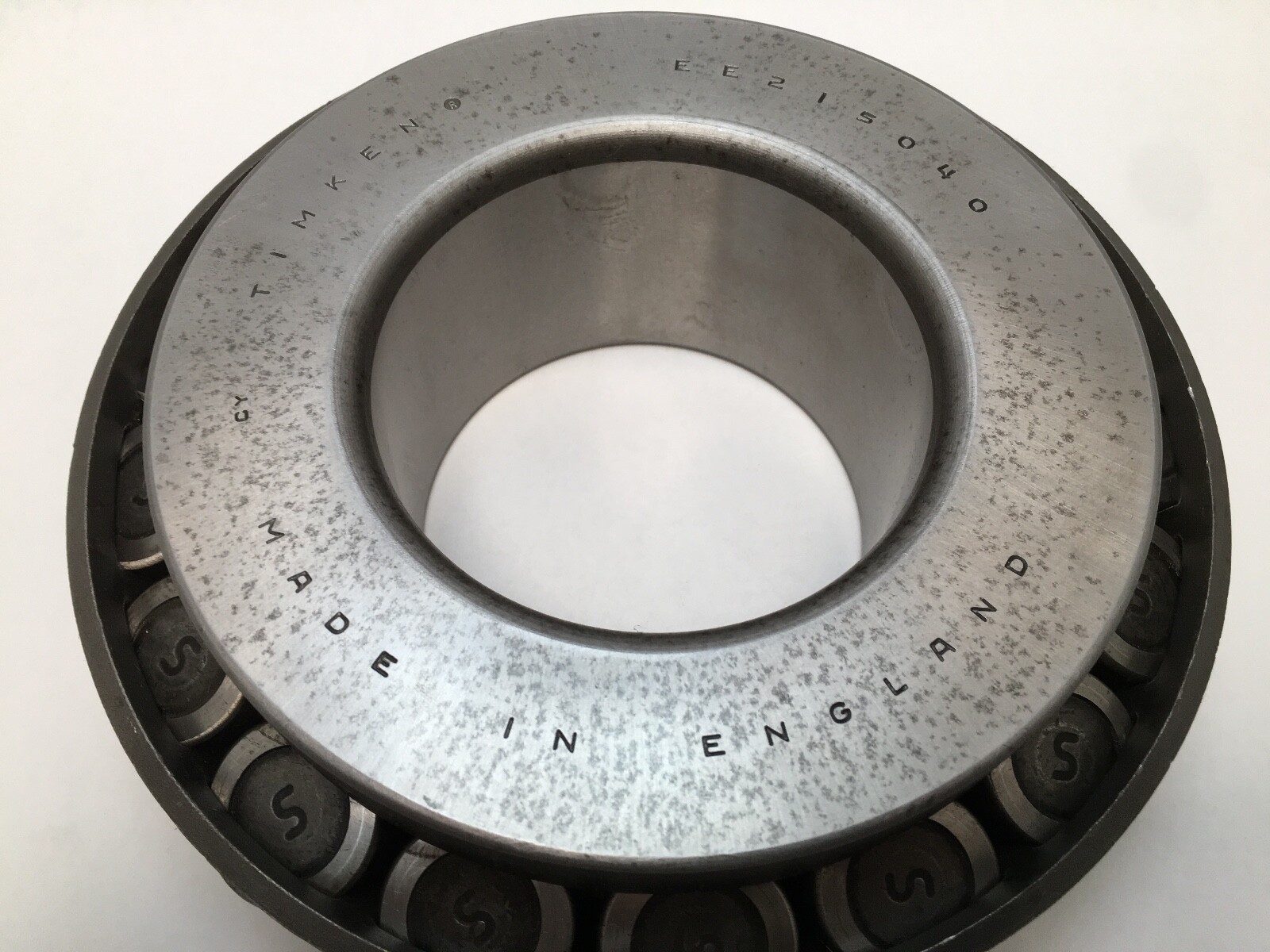

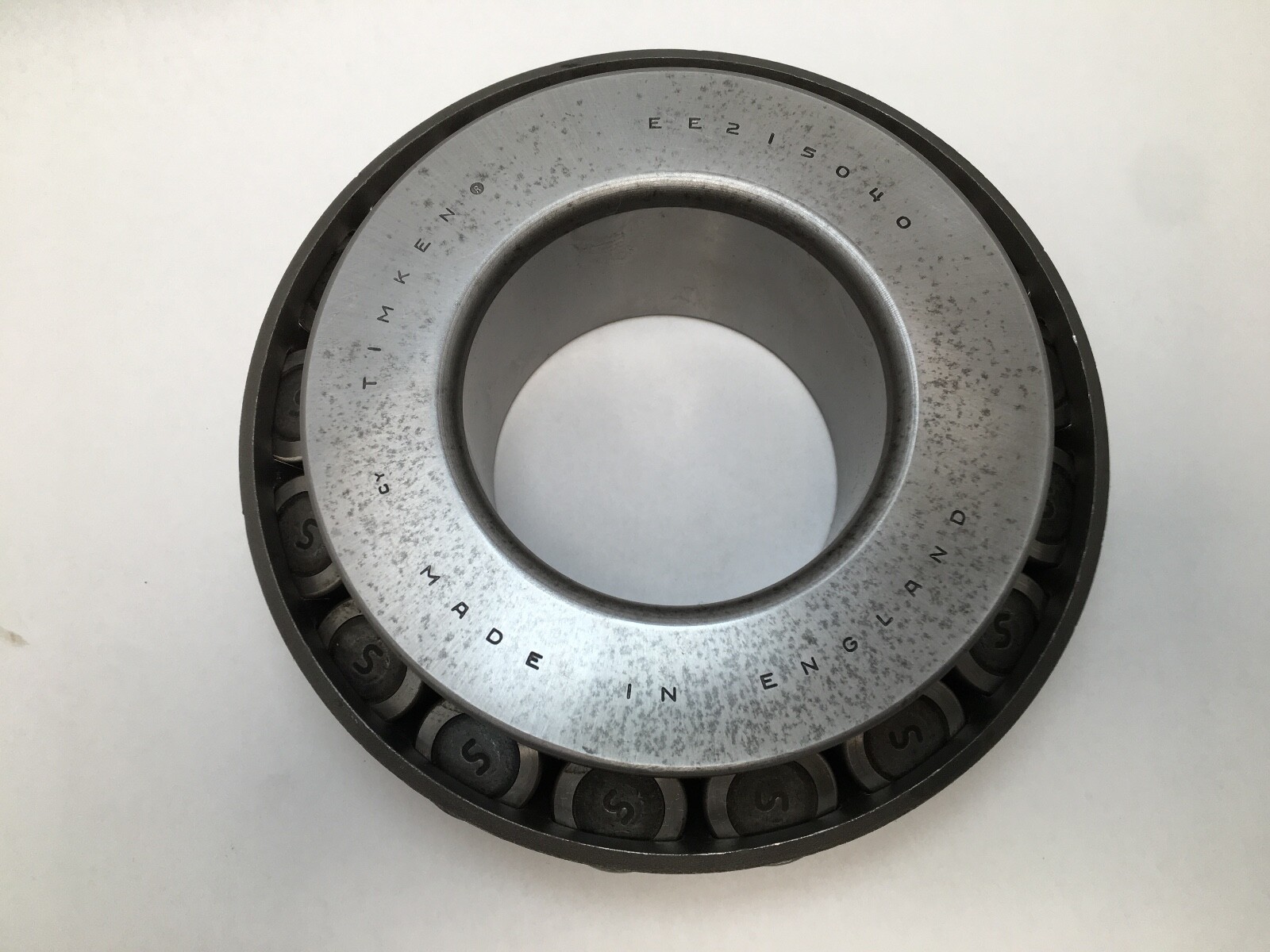

A Timken single cone for the 215000 inch tapered roller series: one tapered inner ring carrying its full complement of tapered rollers in a stamped steel cage. Bore is 4.0000 in and cone width is 2.8750 in. The rollers and cage are retained on the cone, and the raceway they run against is the separate cup that completes the bearing.

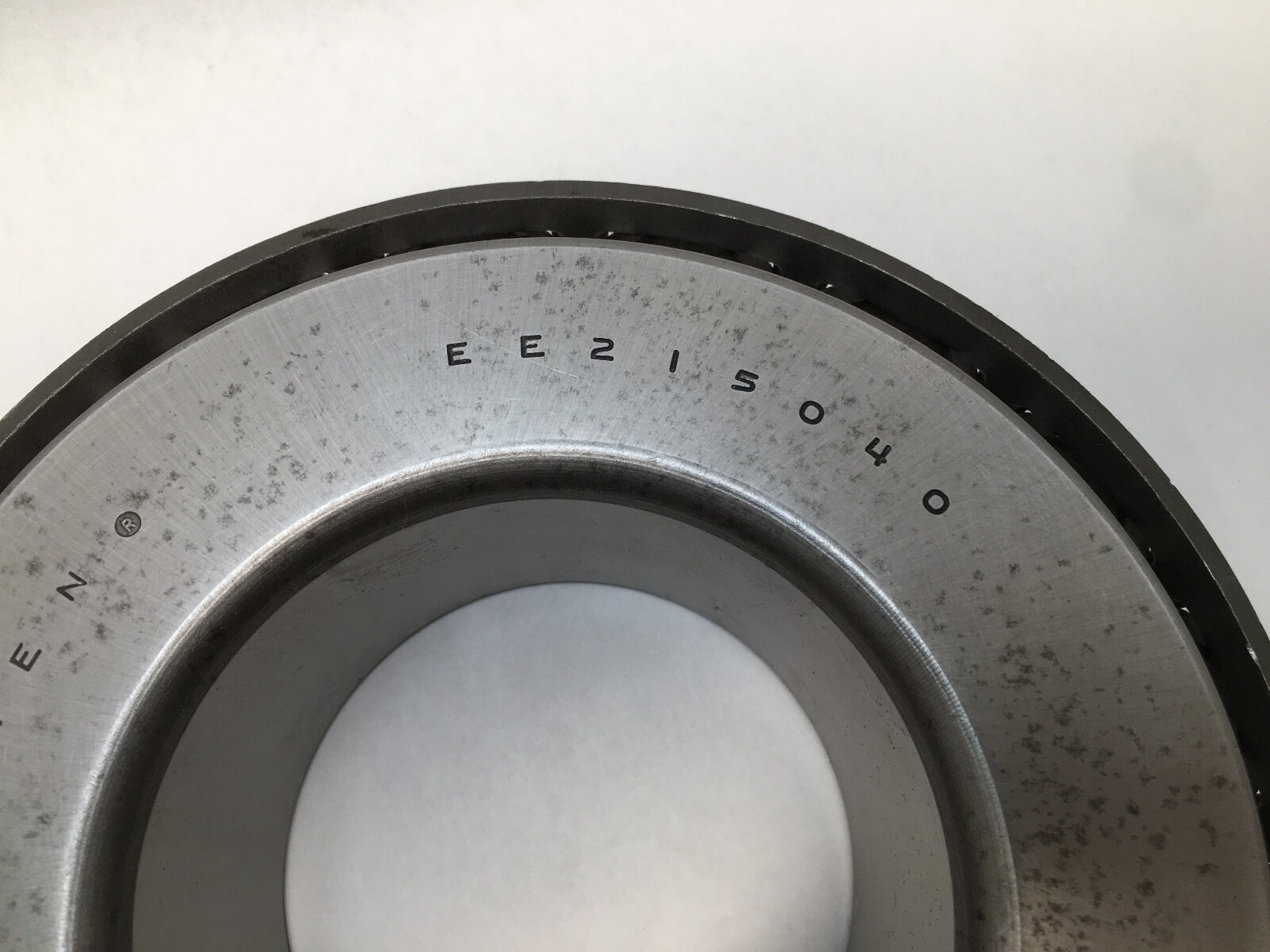

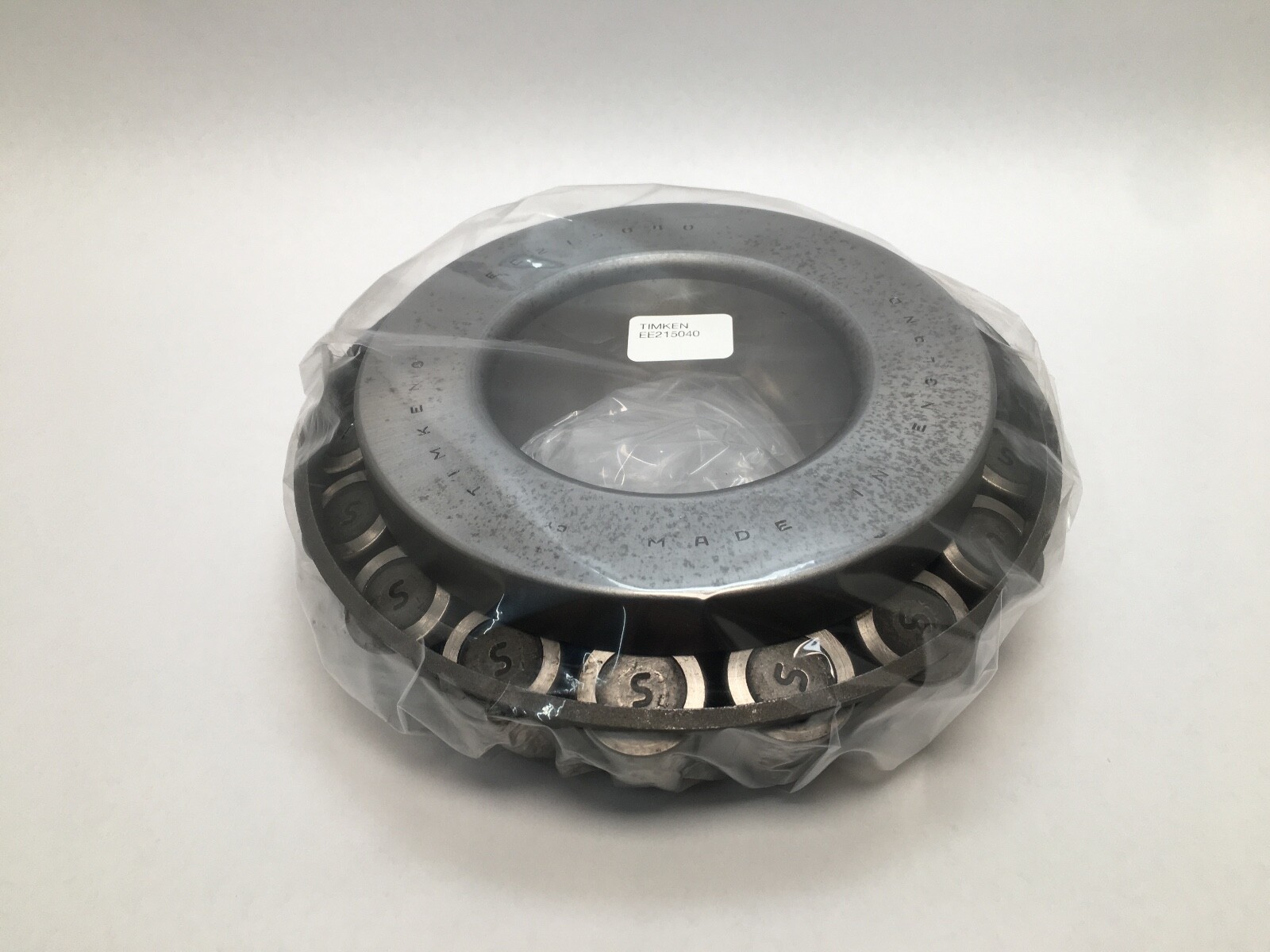

EE is a Timken series prefix within the inch tapered roller programme and 215040 is the cone number. The trailing -3, marked on the carton as an asterisked 3 and on the record as #3, is Timken precision Class 3 — a tighter bore, outside diameter and width tolerance band than the standard Class 2 used across the general inch range.

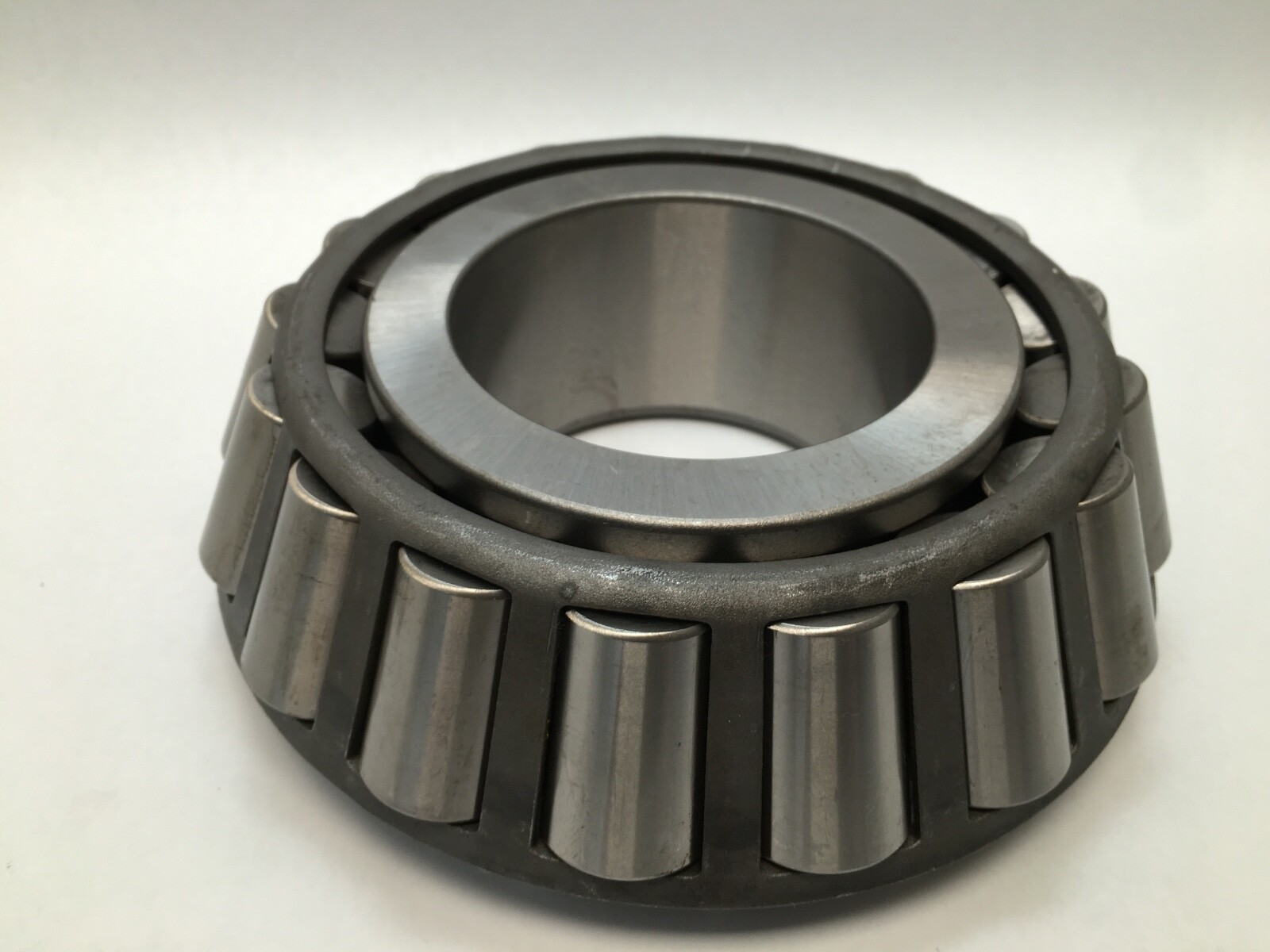

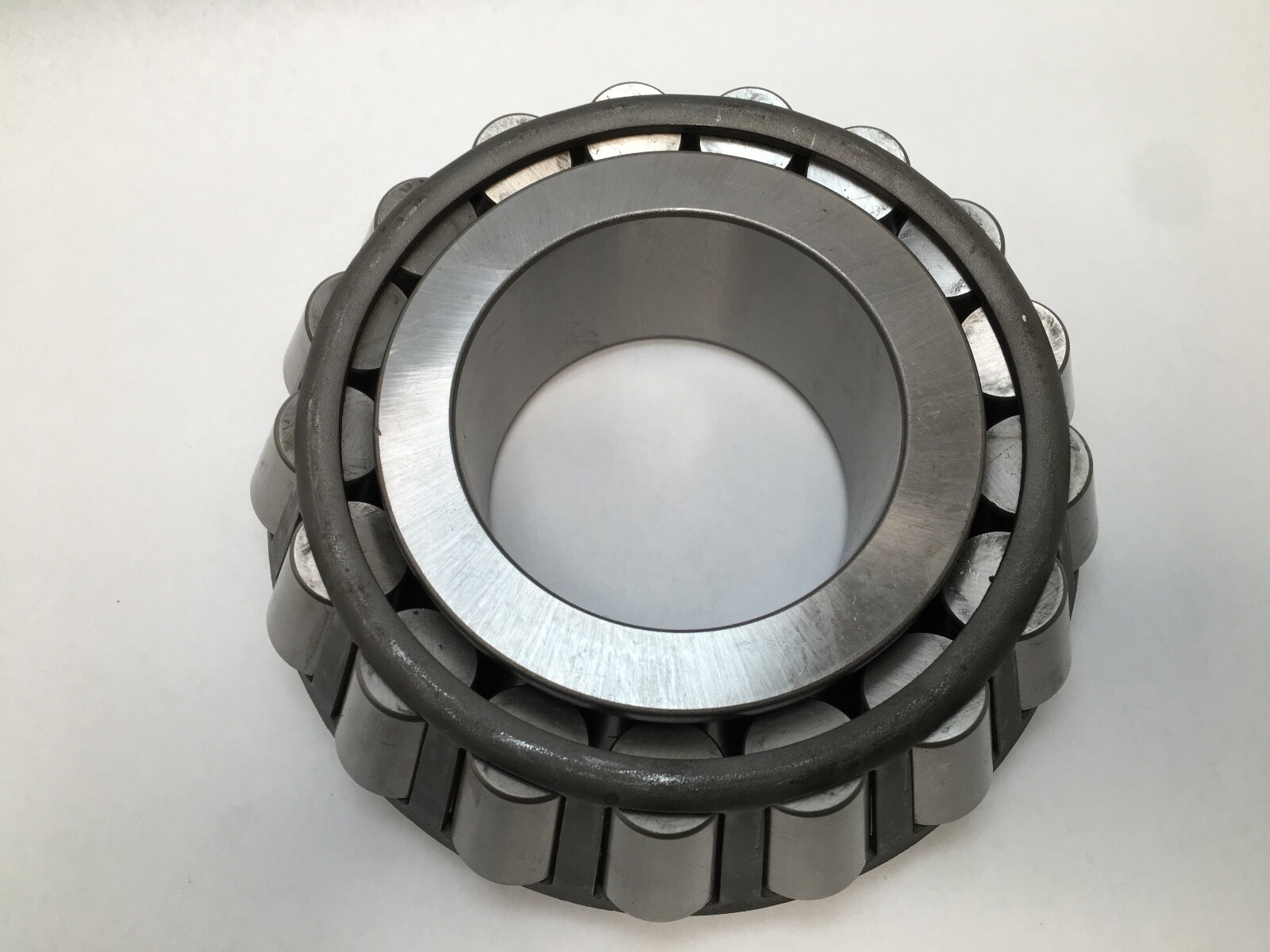

Tapered roller geometry puts the roller, cone raceway and cup raceway on lines that converge at a common apex, so a single row carries heavy radial load together with thrust in one direction. Class 3 tolerances tighten the mounted running accuracy, which matters where the shaft position has to be held closely or where two rows are set against each other and the endplay window is narrow. The pressed steel cage keeps the rollers spaced and holds them on the cone as a unit for handling and installation.
Cone only. One piece, supplied as the cone with its roller and cage assembly. Single row.
The cone is a press fit on the shaft journal and the cup is a fit in the housing bore, so the two halves are set to their working endplay or preload after both are seated. The cone back face abuts the shaft shoulder, and the shoulder diameter has to clear the cone back rib for the ring to seat square. Lubrication is by oil or grease.
The 215040 cone number is used across the industry, and NTN, SKF, Koyo, NSK and Bower list an EE215040 cone to the same envelope. Those cones are supplied to standard precision, so the Class 3 build is a tighter part than a plain EE215040. The NA215040 designation is a cone furnished for two-row and TDO service, which makes it a related part rather than a substitution.
