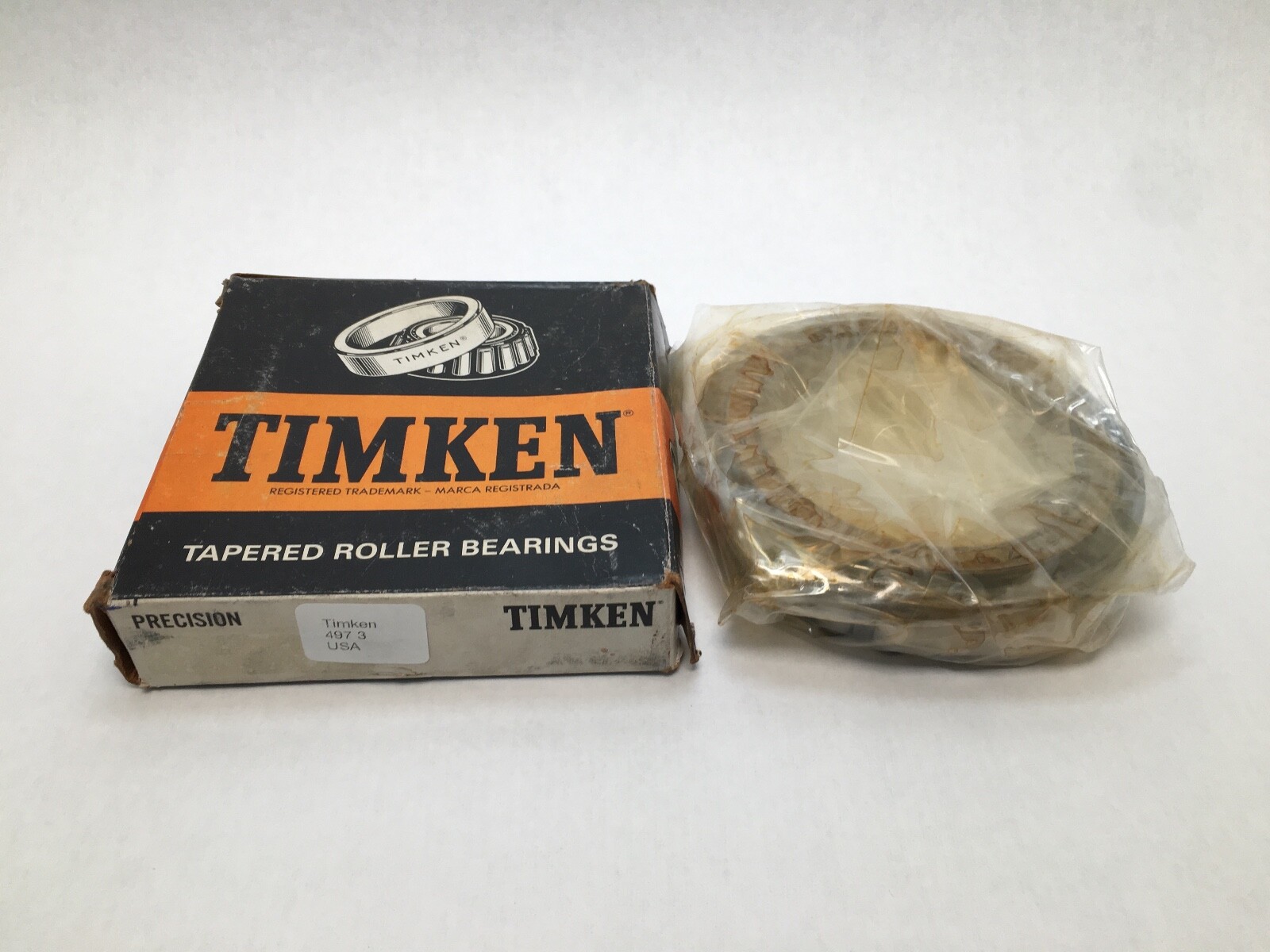

Single-row tapered roller bearing cone, 3.3750 in bore, 1.1720 in cone width, Timken Class 3 precision, pressed steel cage, mating cups 493 and 492A.
List Price
$90.95
3 in stock
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Timken |
|---|---|
| MPN | 497-3 |
| GTIN | 053893047218 |
| Model | 497-3 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 3-3/8 in |
| Condition | New – Open box |
|---|---|
| Series | 495 |
| Base Number | 497 |
| Industry Terms | taper roller cone; tapered bearing inner race; Class 3 taper cone; TS single row cone; precision taper cone; 3-3/8 bore taper cone |
| Common Misspellings | 497; 4-97; 479-3; 4973; 497-33; taper rolller cone; tapered roler bearing cone |
| Application Types | Pinion and gearbox shafts; machine tool spindles; heavy wheel ends; industrial reducers; conveyor head shafts |
| Condition Note | Made In USA, Class 3 / C Precision, Grease Stains |
| Overall Width | 1.1720 in / 29.769 mm (cone width) |
| Bore Shaft Size | 3.3750 in / 85.725 mm (3-3/8 in) |
| Mpn Variants | 497-3; 497 3; 4973; 497*3; 497 #3; 497 |
| Distributor Stock Numbers | Not specified |
| Compatible With Replaces | Matching cups: Timken 493, Timken 492A. Assemblies: 497/493 (3.375 x 5.375 x 1.1875 in), 497/492A (3.375 x 5.250 x 1.1875 in). Related size: 497A cone |
| Arrangement Configuration | Cone only (inner ring, rollers and cage). Cup supplied separately. |
| Precision Class | Timken Class 3 |
| Dynamic Load Rating C1 | 34,700 lbf (154.4 kN) for the assembled single-row bearing |
| Cage Type | Pressed, one-piece |
| Dynamic Load Rating | 34,700 lbf (154.4 kN) for the assembled single-row bearing |
| Static Load Rating | 48,600 lbf (216.2 kN) for the assembled single-row bearing |
| Rolling Elements | Tapered roller |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Harmonization Code | 8482.20.00 |
| Design Units | Inch (Imperial) |
| Bearing Class | Class 3 |
| Bearing Material | Case-carburized alloy steel |
| Part Number | 497-3 |
| Cone Part Number | 497 |
| Cone Width | 1.1720 in |
| Cone Backface To Clear Radius | 0.14 in |
| Cone Frontface Backing Diameter | 3.54 in |
| Cage Cone Frontface Clearance | 0.12 in |
| Cage Cone Backface Clearance | 0.07 in |
| Effective Center Location | -0.03 in |
| Cross Reference 1 | 497/493 |
|---|---|
| Cross Reference 2 | 497/492A |
| Cross Reference 3 | 497 |

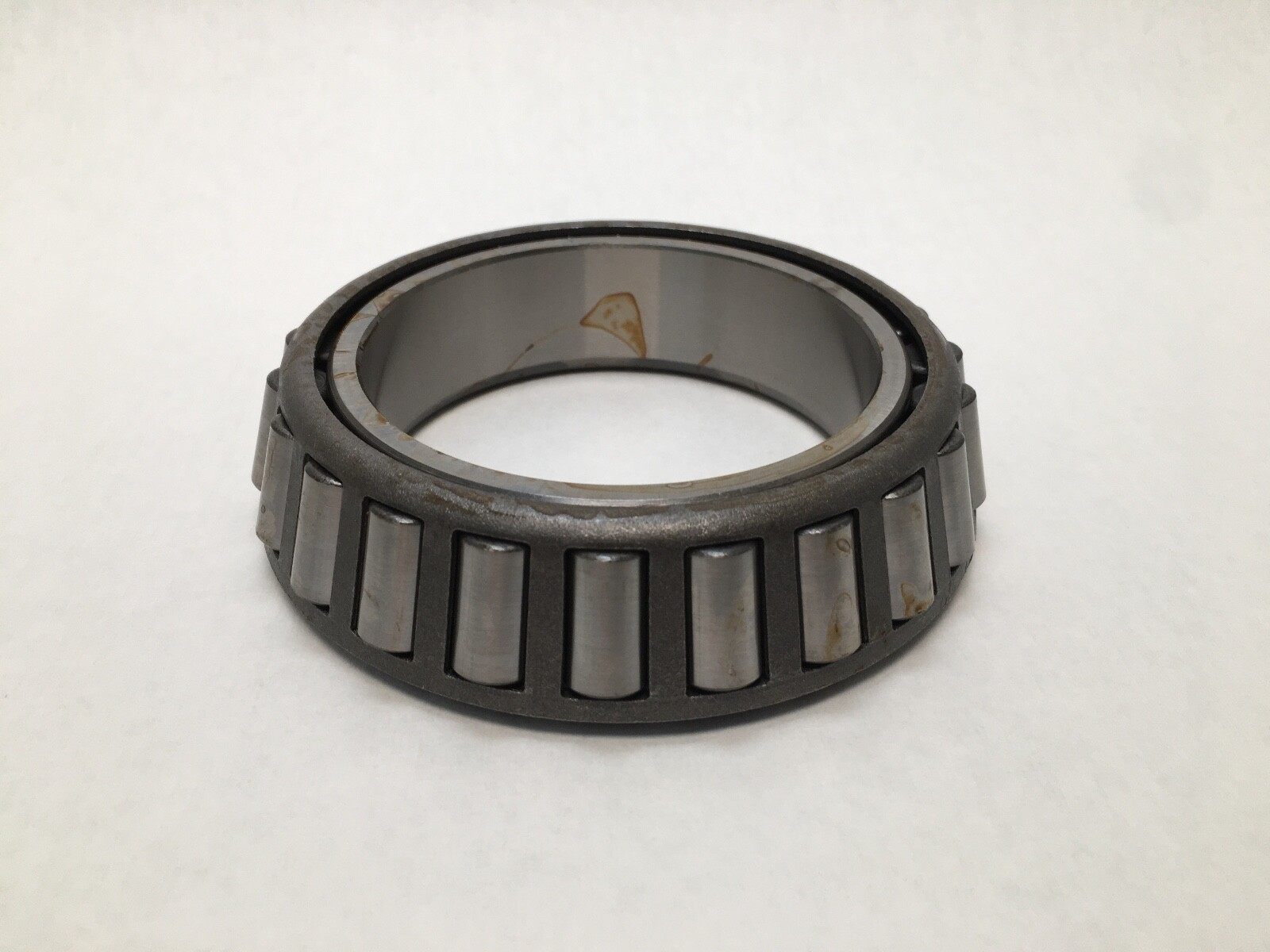

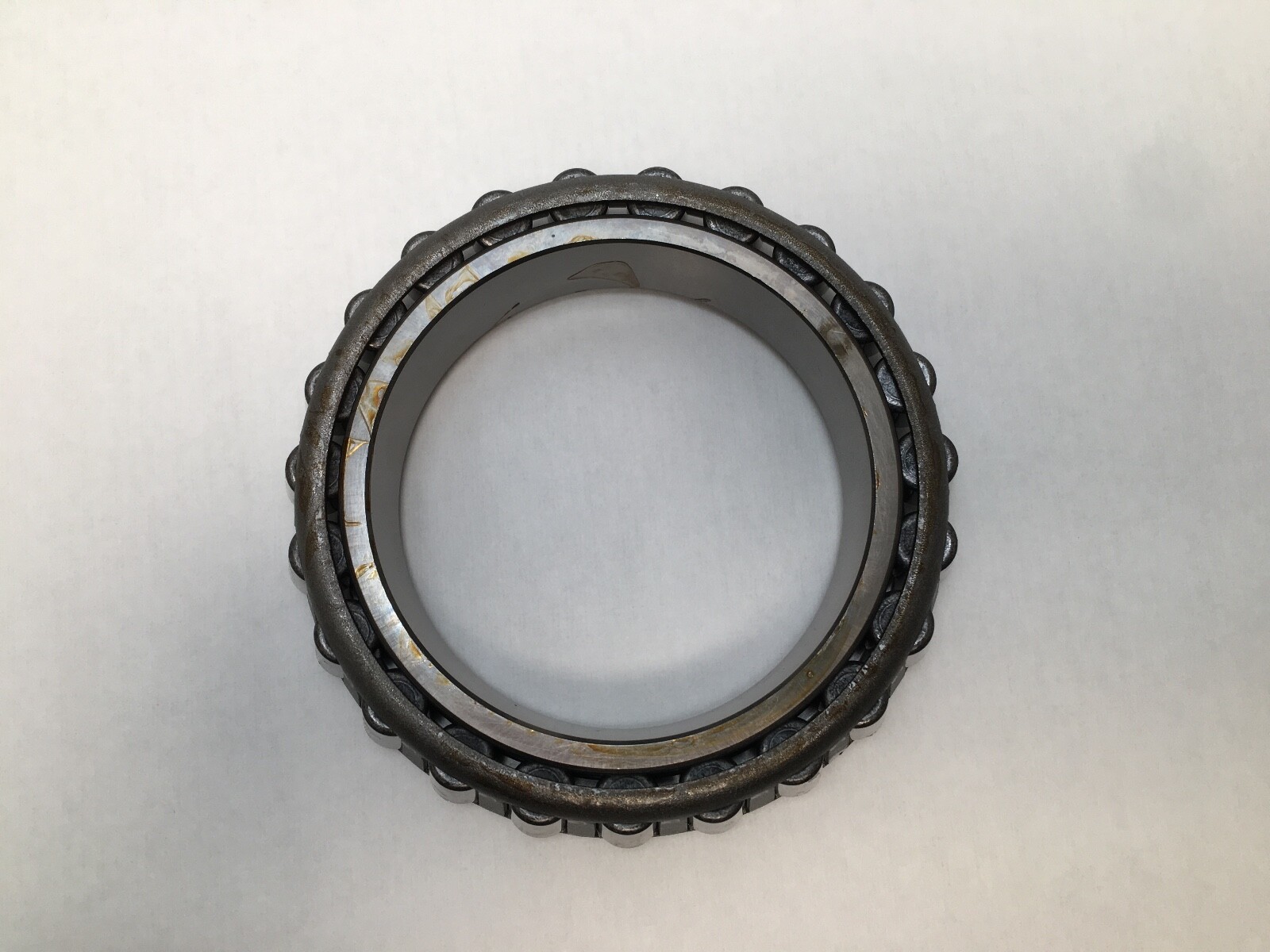

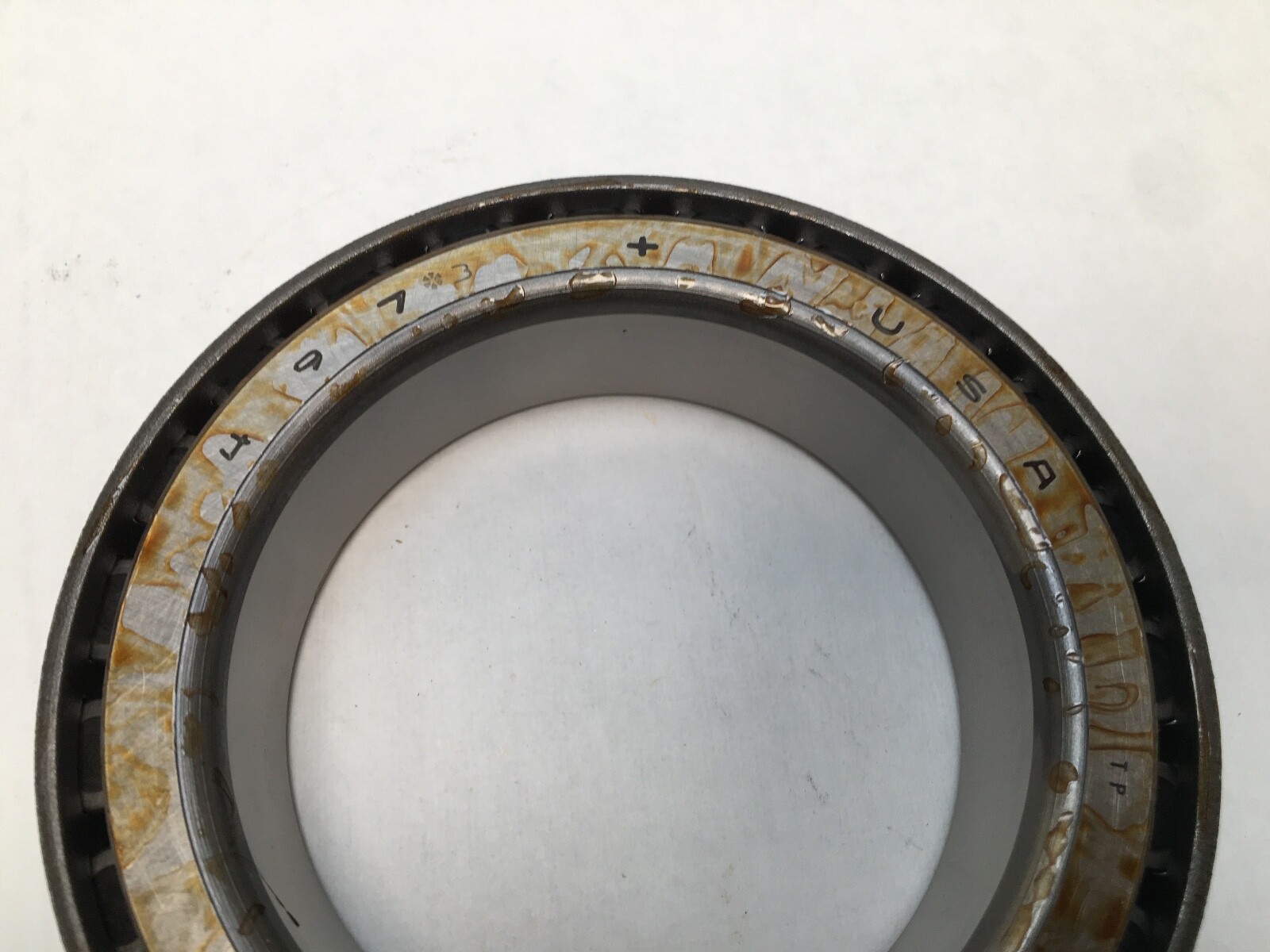

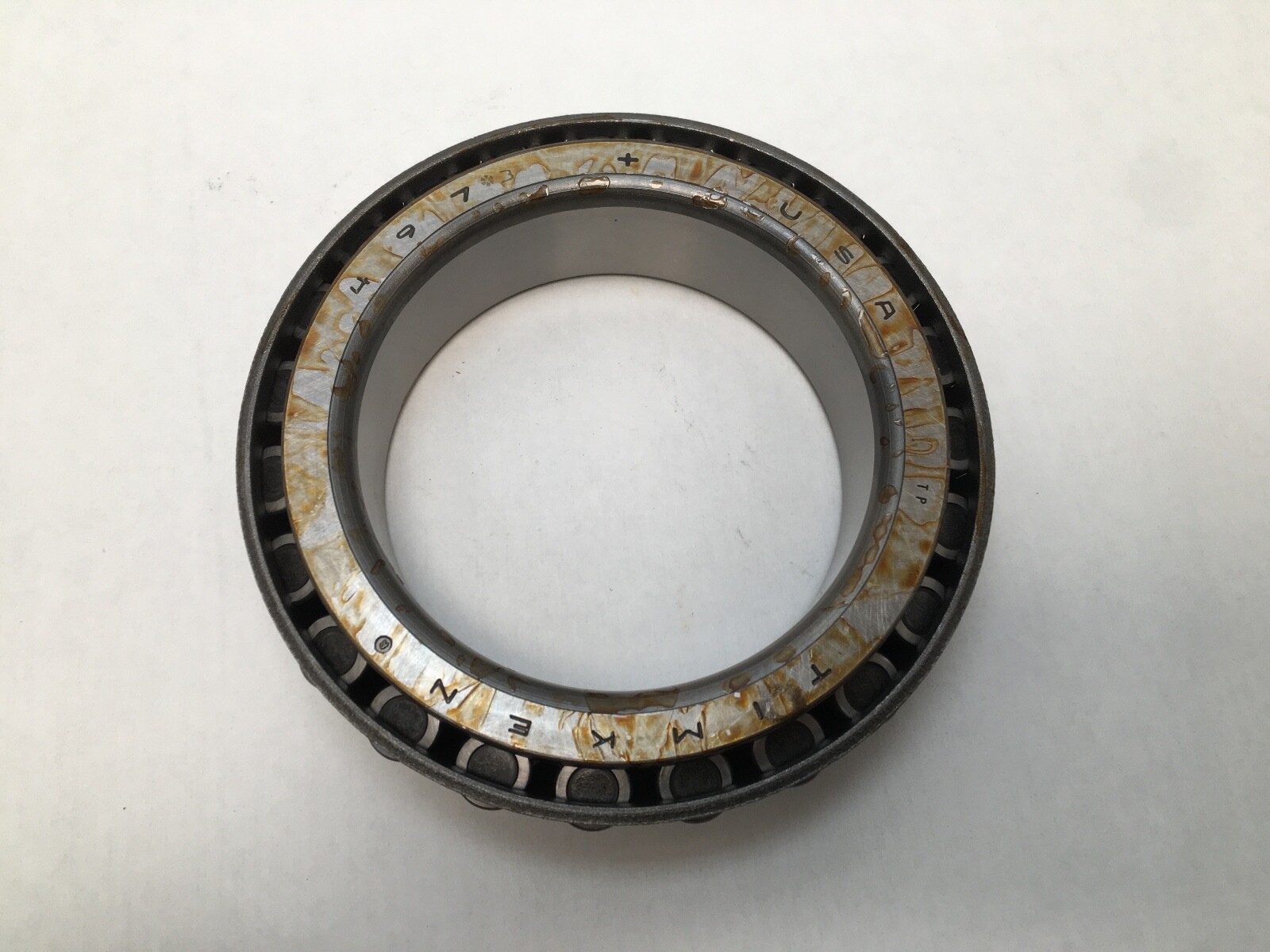

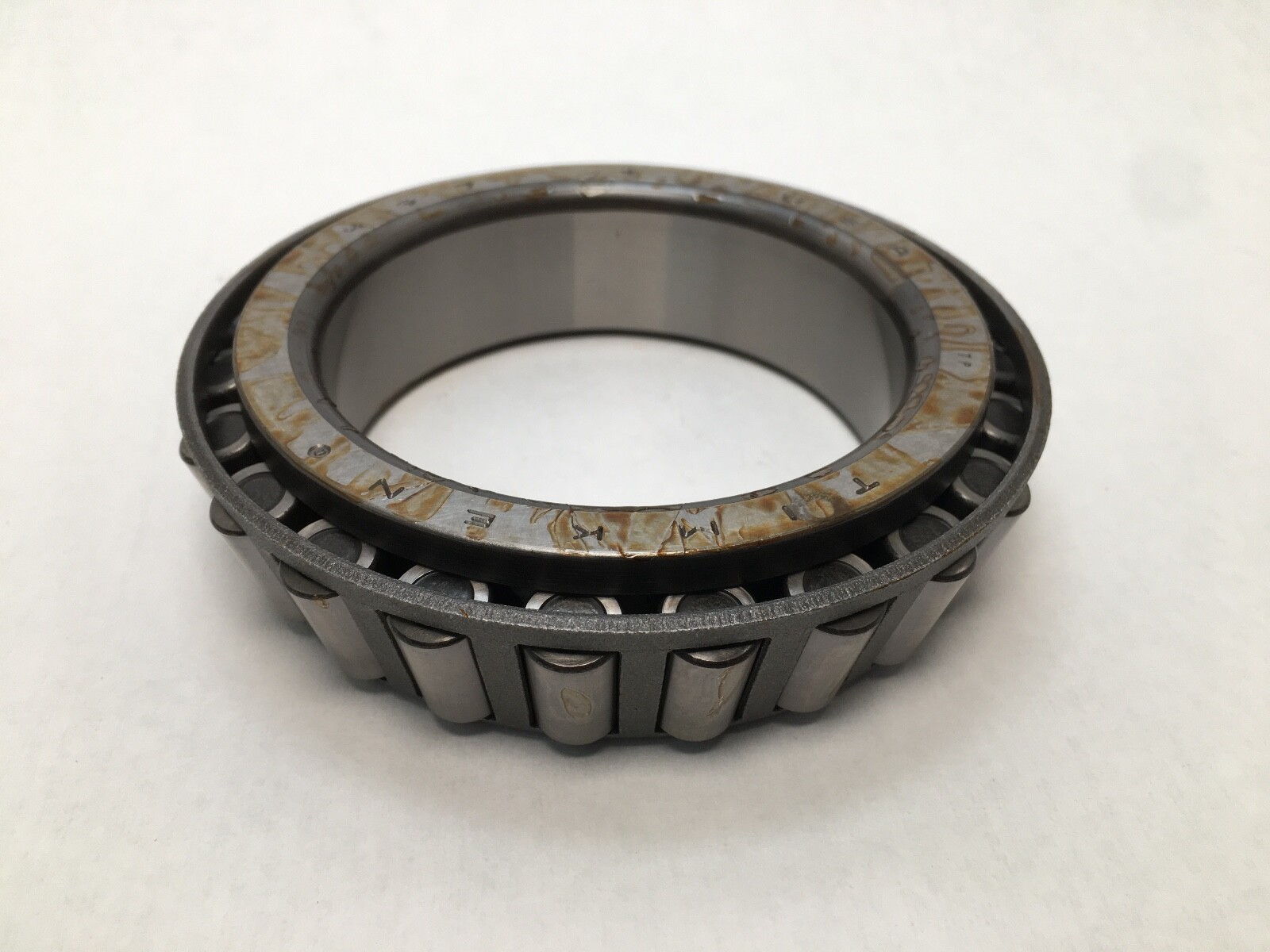

Timken 497-3 single-row tapered roller bearing cone — the inner ring with its tapered rollers and cage retained as one unit. Cone only. The matching cups are the Timken 493 and the Timken 492A. Design Units: Inch (Imperial). Series: 495 type, TS single row. Base Number: 497. Number Of Rows: 1. Rolling Elements: Tapered roller. Bearing Material: case-carburized alloy steel. Manufactured in the United States. GTIN: 053893047218.
Precision Class: Timken Class 3, from the trailing -3. Class 3 is a tighter bore and outside-diameter tolerance grade than the standard Class 4 / Class K used on general-purpose inch tapered bearings. 497 is the cone number; the cup carries its own number, so the assembly is written 497/493 or 497/492A according to which cup is fitted.
Class 3 narrows the tolerance band on the cone bore and raceway, giving more repeatable shaft position once the set is adjusted. Both cups accept the same 3.3750 in bore cone and give the same 1.1875 in assembly width, while the 493 is a 5.3750 in outside diameter and the 492A a 5.2500 in, so the housing bore sets the choice between them.
Bore: 3.3750 in / 85.725 mm. Cone Width: 1.1720 in / 29.769 mm. Cone Backface To Clear Radius: 0.14 in. Cone Frontface Backing Diameter: 3.54 in. Cage-Cone Frontface Clearance: 0.12 in. Cage-Cone Backface Clearance: 0.07 in. Effective Center Location: -0.03 in. Cage Type: pressed, one-piece. Cage Material: pressed steel. Dynamic Load Rating (C1): 34,700 lbf / 154.4 kN for the assembled single-row bearing. Static Load Rating (C0): 48,600 lbf / 216.2 kN for the assembled single-row bearing. Assembly envelope with the 493 cup: 3.3750 × 5.3750 × 1.1875 in. Assembly envelope with the 492A cup: 3.3750 × 5.2500 × 1.1875 in.
Unit Quantity: 1 Pc — one cone assembly comprising inner ring, rollers and cage. The outer race is a separate component.
497 is the industry cone number and carries across the inch tapered interchange unchanged. Assemblies: 497/493 and 497/492A. The 497A is a related cone in the same cup family, with its own raceway geometry, running against the 493 and 492A cups as 497A/493 and 497A/492A. Carton and search variants: 497-3, 497 3, 4973, 497*3, 497 #3, 497.
