Availability:
1 in stock
Inch tapered roller bearing cone, 1.5740 in bore, 0.6844 in inner ring width, K factor 1.2, Class 3 precision, mates with 11300 and 11315 cups.
List Price
$65.81
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| Model | 11157 #3 |
| Bearing Type | Tapered Roller Bearing Cone, Open |
| ID | 1.5740 in |
| Width | 0.6844 in |
| Series | 11100 |
|---|---|
| Material | Case Carburized Steel |
| Base Number | 11157 |
| Overall Width | 0.6844 in |
| Mpn Variants | 11157, 11157-3, 11157 *3, 11157 #3, 11157*3, 11157#3 |
| Compatible With Replaces | Mating cups Timken 11300, Timken 11315 |
| Precision Class | Class 3 |
| Dynamic Load Rating | 48,100 N |
| Static Load Rating | 55,100 N |
| Rolling Elements | Tapered Roller |
| Item Weight | 0.50 kg (1.00 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.20.00 |
| Cross Reference 1 | SKF 11157 |
|---|---|
| Cross Reference 2 | FAG K-11157 |
| Cross Reference 3 | NSK 11157 |
| Cross Reference 4 | NTN 4T-11157 |
| Cross Reference 5 | Koyo 11157 |
| Cross Reference 6 | Fersa 11157 |
| Cross Reference 7 | BCA/Bower 11157 |
| Cross Reference 8 | PEER 11157 |

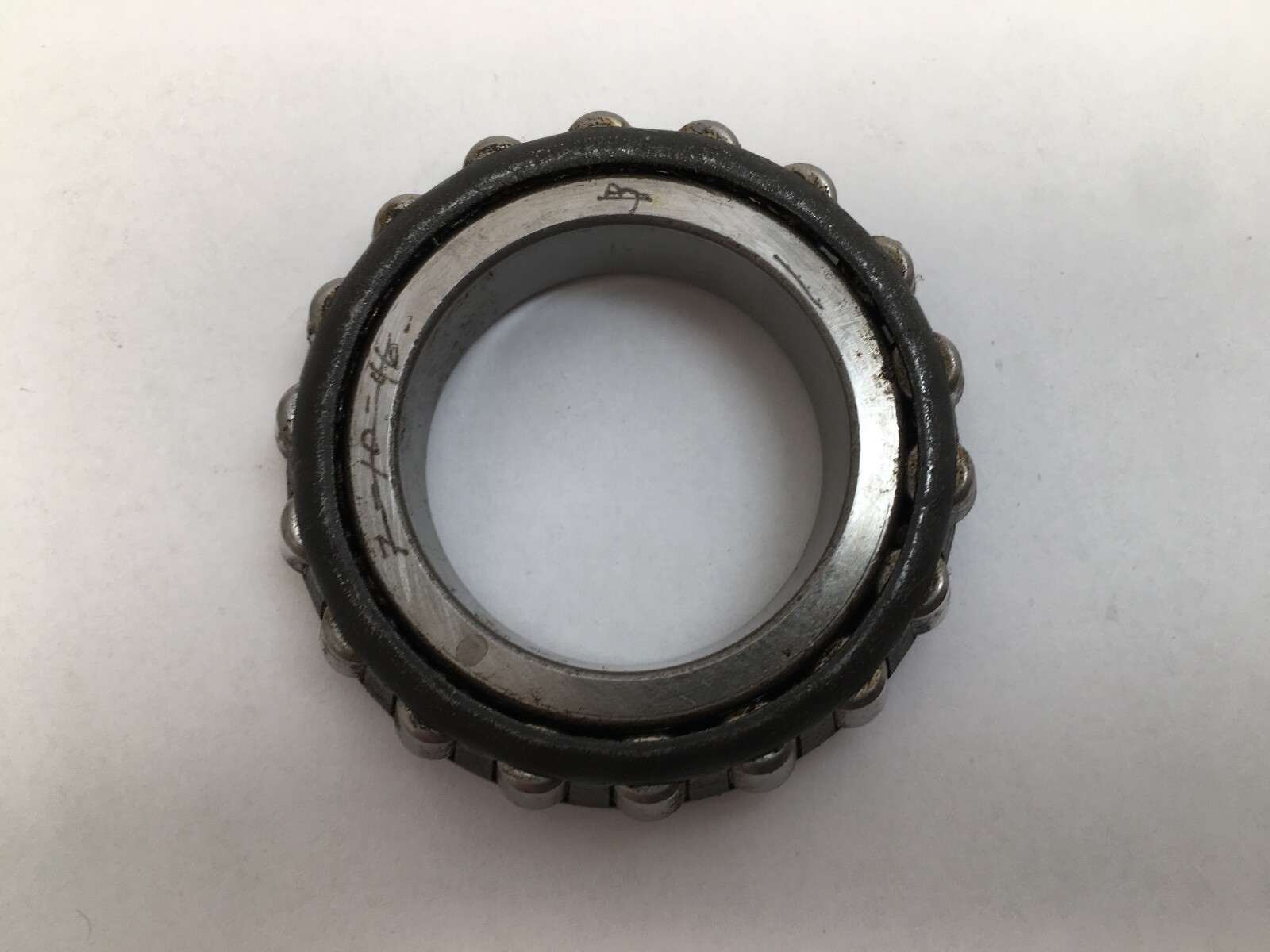

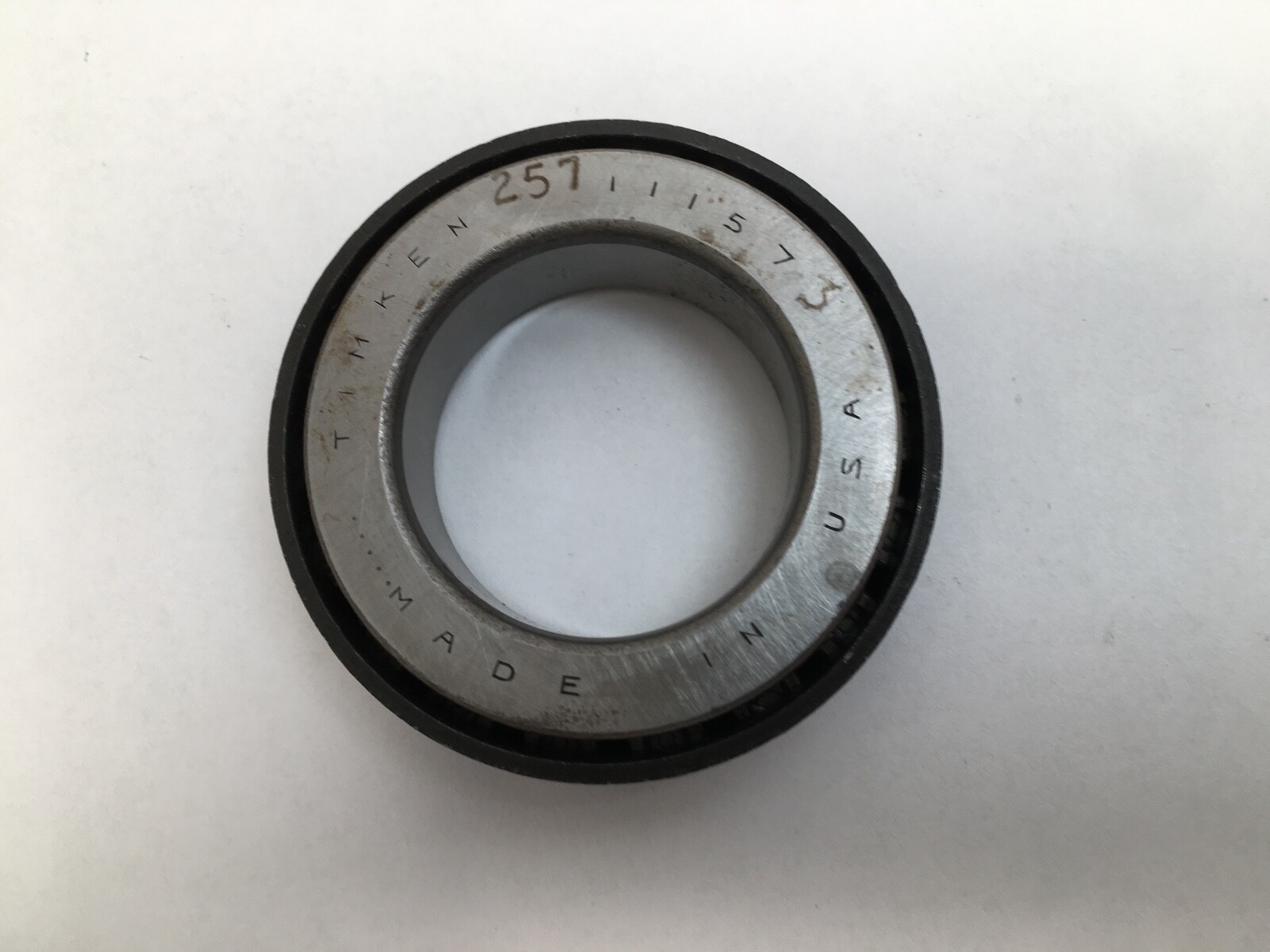

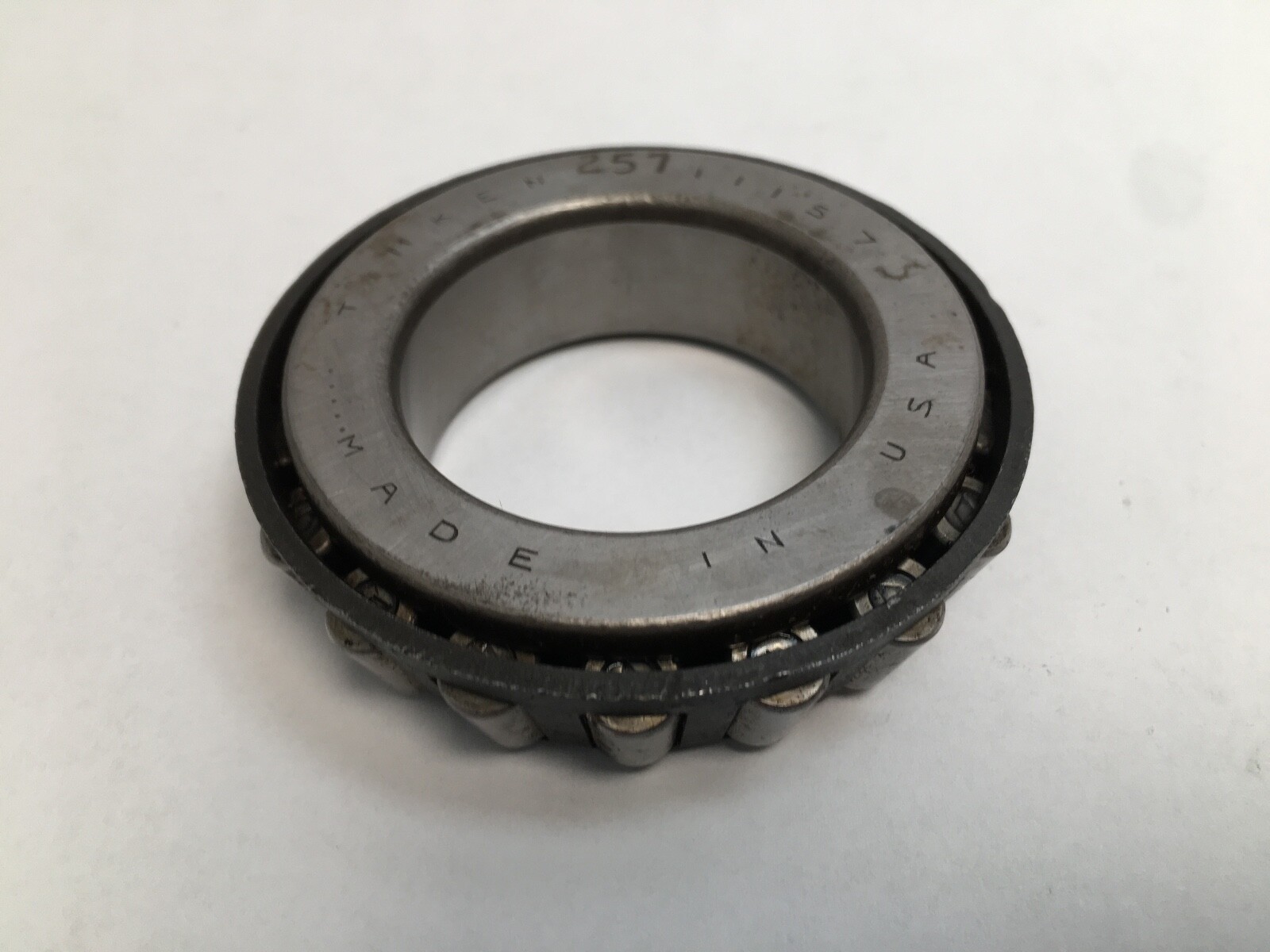

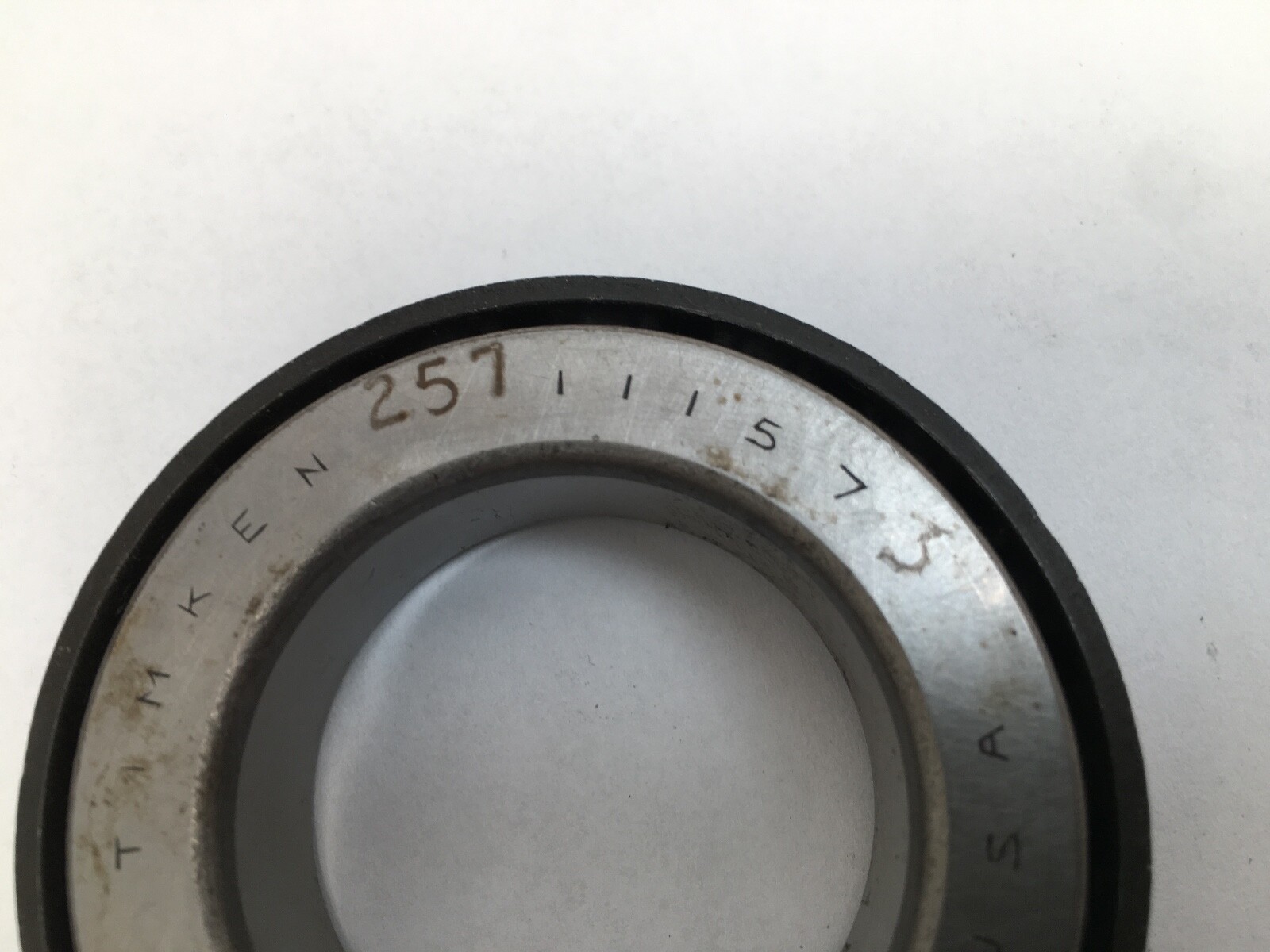

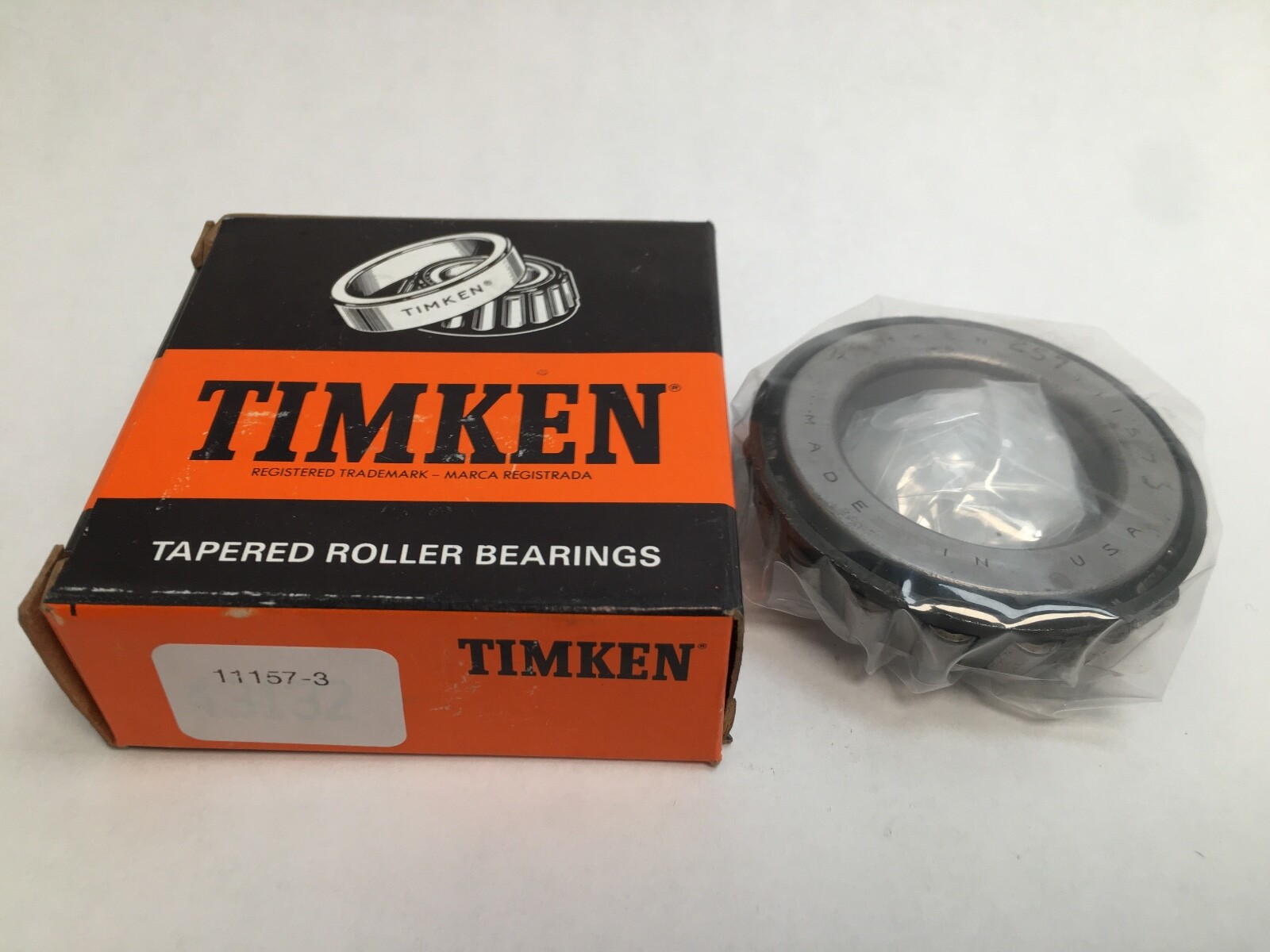

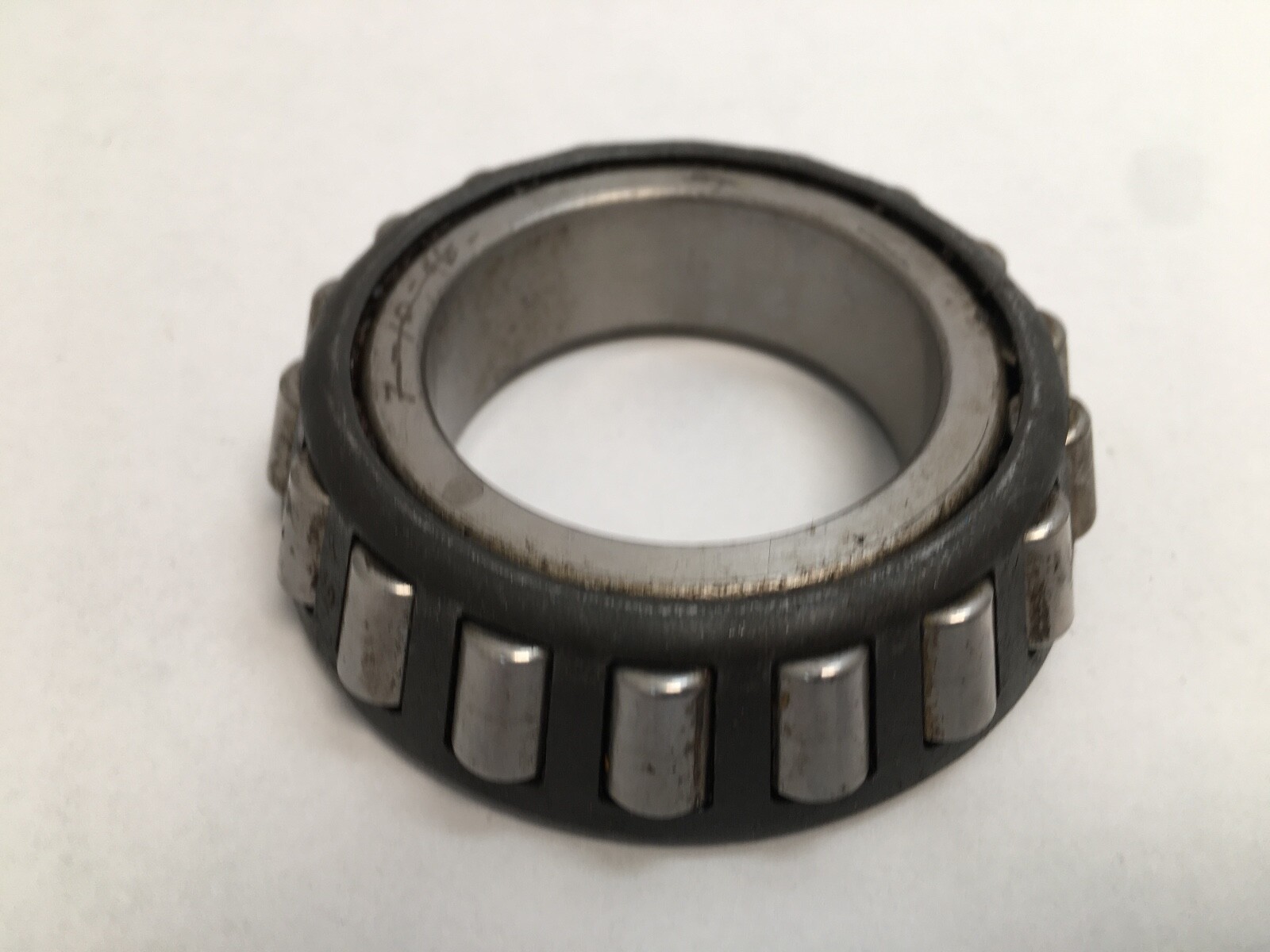

Timken 11157-3 inch tapered roller bearing cone. The cone is the inner ring with its tapered roller and cage assembly. Bore Diameter: 1.5740 in (39.980 mm). Overall Width: 0.6844 in (17.384 mm). Series: 11100. Base Number: 11157. Number Of Rows: 1. Rolling Elements: Tapered Roller. Bore Type: Straight. Precision Class: Class 3. Item Weight: 0.50 kg (1.00 lb).
11157 — the cone base number in the Timken 11100 inch tapered series, fixing the bore, the roller path and the cup pairing.
-3 — precision Class 3, written interchangeably as -3, *3 or #3. Class 3 holds tighter bore and running tolerances than standard, which gives lower running vibration and closer shaft location.
Dynamic Load Rating: 48,100 N (10,800 lbf) at 1 million revolutions. Static Load Rating: 55,100 N (12,400 lbf). Dynamic Radial Load Rating C90: 12,500 N (2,800 lbf). Dynamic Axial Rating Ca90: 10,400 N (2,340 lbf). K Factor: 1.2. A K factor of 1.2 describes a steep roller angle, so this cone carries a high share of thrust alongside its radial load. Geometry Factor Cg: 0.0735.
Effective Center Location: -0.03 in (-0.8 mm), inside the cone backface. Max Shaft Fillet Radius: 0.060 in (1.5 mm) on the mating shaft. Shaft Backing Shoulder Diameter Frontface da: 1.79 in (45.5 mm). Shaft Backing Shoulder Diameter Backface db: 1.89 in (48 mm). Cage Location Relative To Backface Aa: 0.04 in (1 mm). Cage Location Relative To Frontface Ab: 0.09 in (2.3 mm).
Unit Quantity: 1 Pc. Cone only. The matching cups are the Timken 11300 and 11315.
The 11157 cone number is carried across the inch tapered roller programme by SKF, FAG, NSK, NTN, Koyo, Fersa, BCA/Bower and PEER on the same envelope. MPN Variants: 11157, 11157-3, 11157 *3, 11157 #3, 11157-3.
