Inch tapered roller bearing cone, 2.6250 in bore, 1.1875 in width, Class 3 precision. K factor 1.34, 138,000 N dynamic. Mates the 33462 cup.
List Price
$52.98
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| Model | 33262 *3 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 2.6250 in |
| Series | 33200 |
|---|---|
| Harmonization Code | 8482.20.00 |
| Design Units | Imperial |
| Bearing Material | Case-carburized steel |
| Cone Part Number | 33262 |
| Cone Width | 1.1875 in |
| Cone Backface To Clear Radius | 0.14" |
| Base Number | 33262 |
| Overall Width | 1.1875 in |
| Mpn Variants | 33262-3, 33262 *3, 33262 #3, 332623, 33262 |
| Compatible With Replaces | Mates Timken cup 33462 |
| Precision Class | Class 3 |
| Dynamic Load Rating C1 | 138,000 N |
| Dynamic Load Rating | 138,000 N |
| Static Load Rating | 197,000 N |
| Precision Rating | Class 3 |
| Rolling Elements | Tapered Roller |
| Item Weight | 3.53 kg (7.78 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Effective Center Location | -0.11 in |
| Cross Reference 1 | SKF 33262 - standard class |
|---|---|
| Cross Reference 2 | FAG K33262 - standard class |
| Cross Reference 3 | NSK 33262 - standard class |
| Cross Reference 4 | NTN 4T-33262 - standard class |
| Cross Reference 5 | Koyo 33262 - standard class |
| Cross Reference 6 | Fersa 33262 - standard class |
| Cross Reference 7 | BCA / Bower 33262 - standard class |
| Cross Reference 8 | PEER 33262 - standard class |

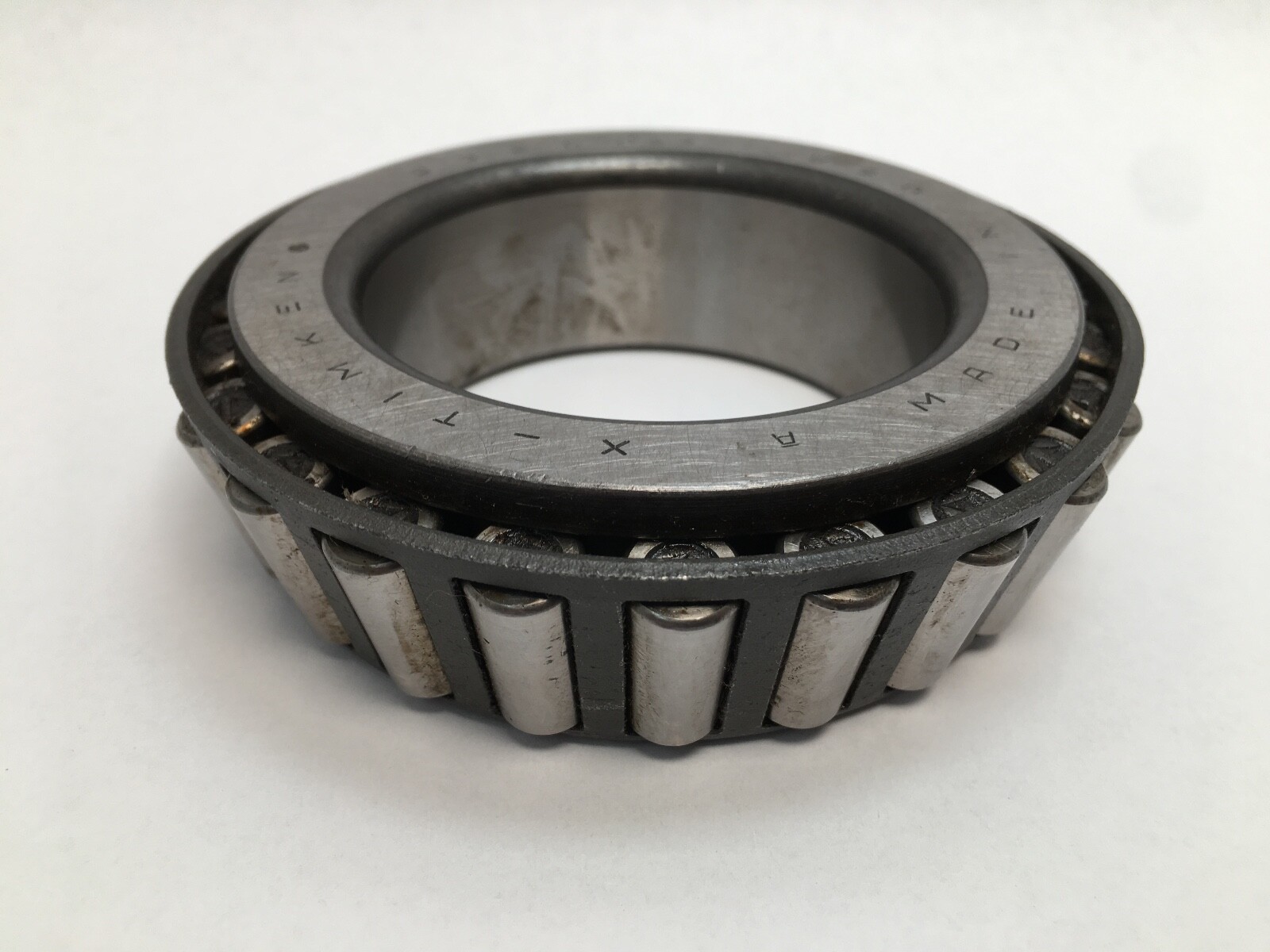

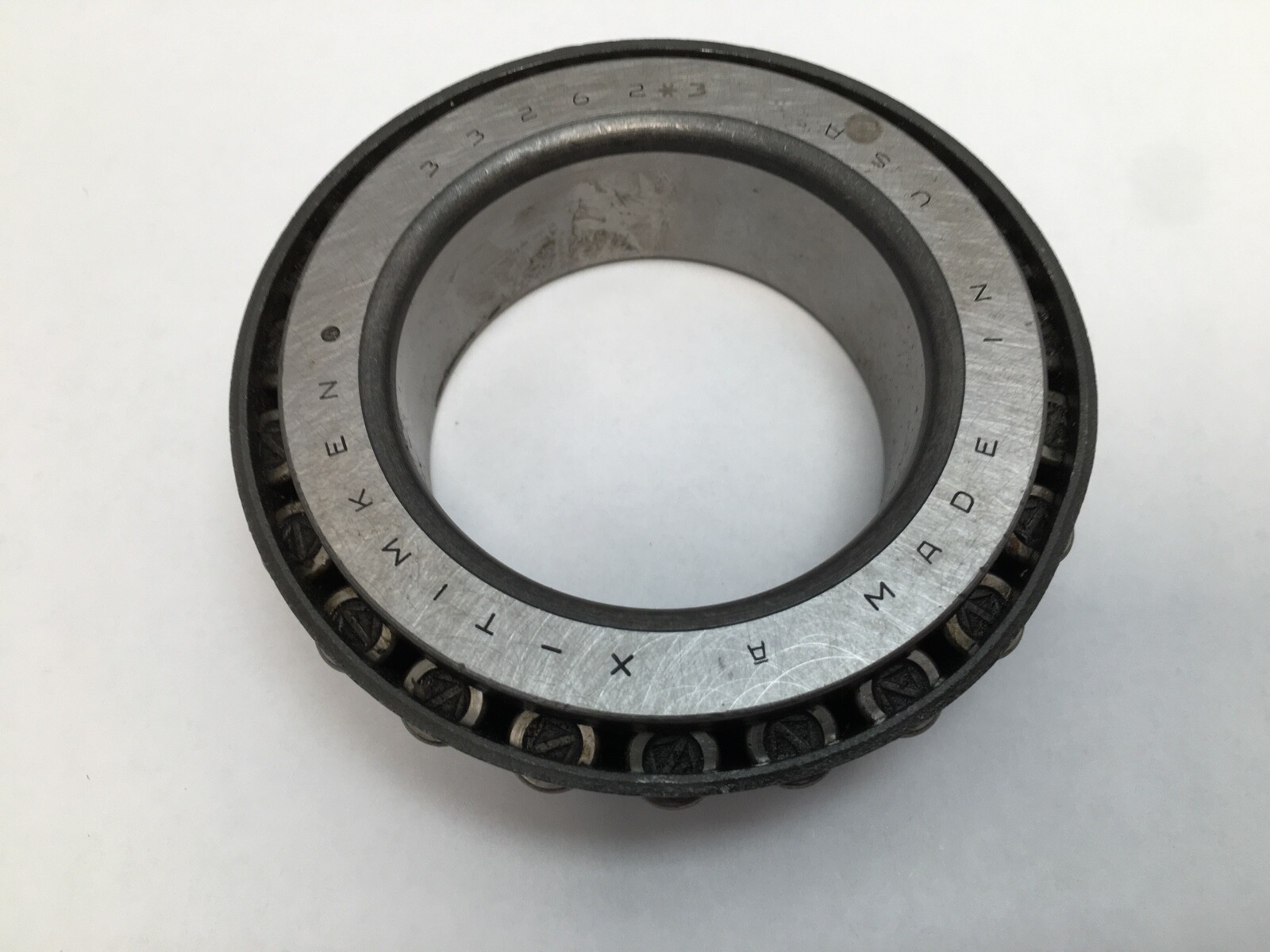

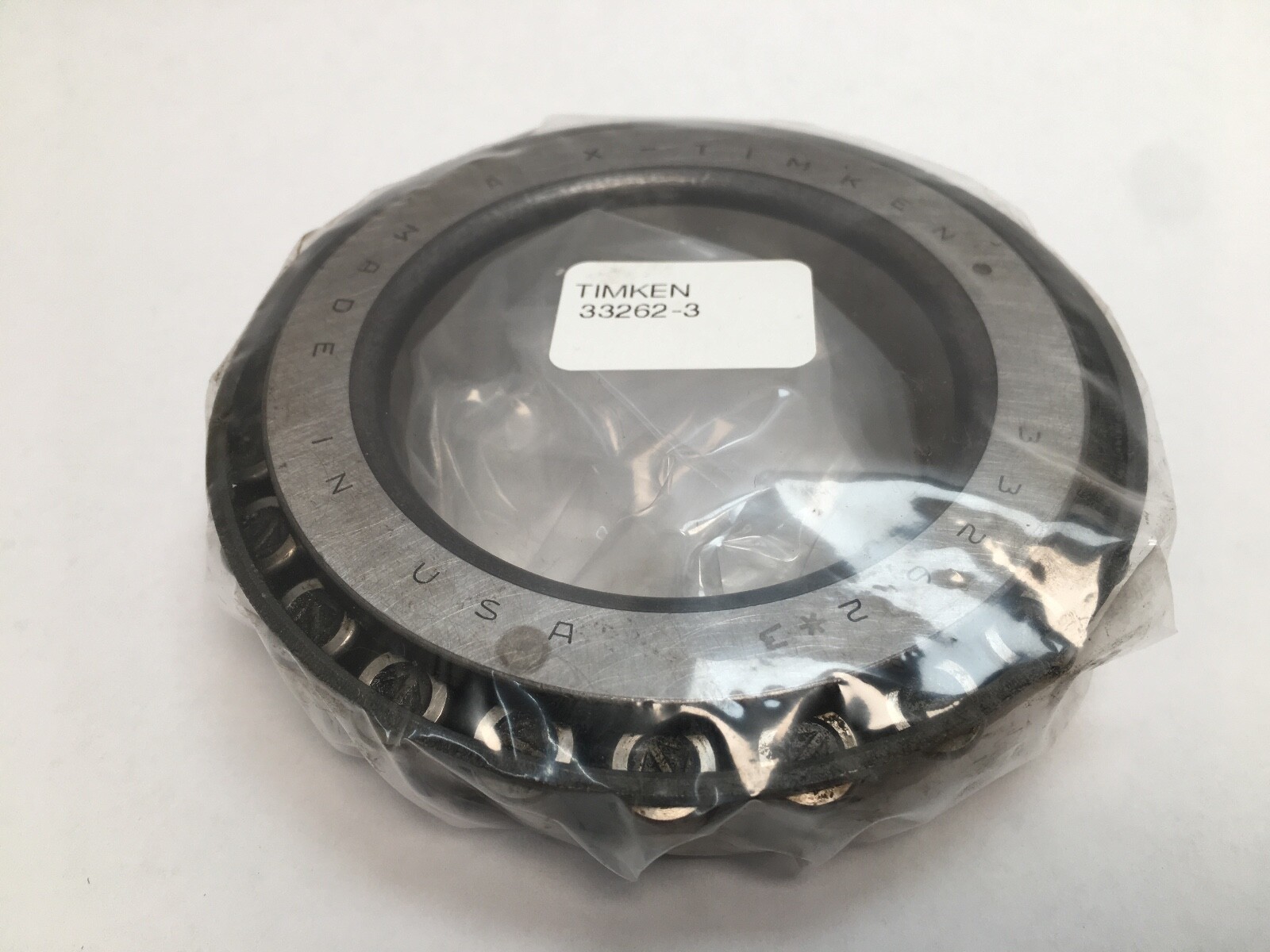

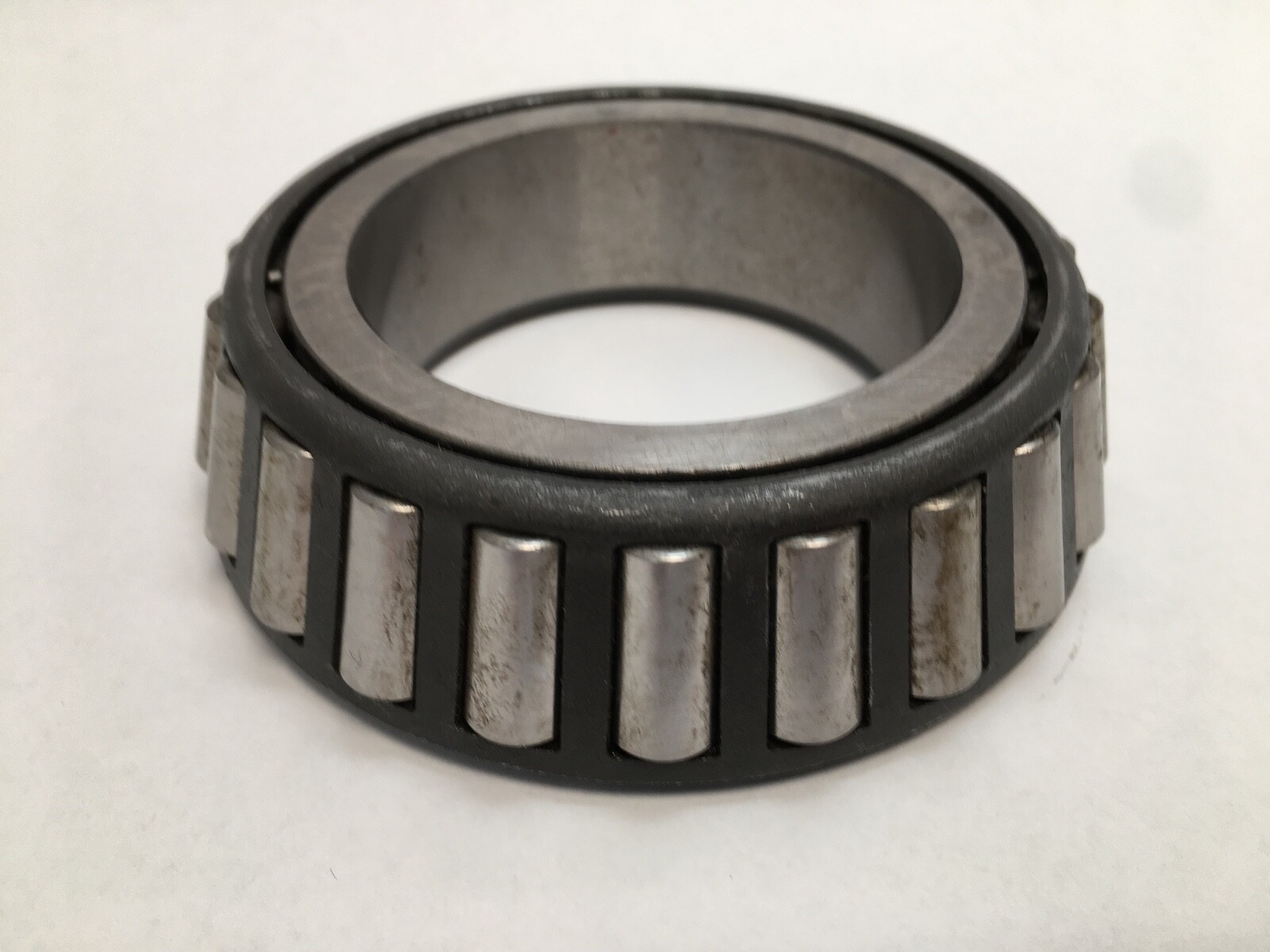

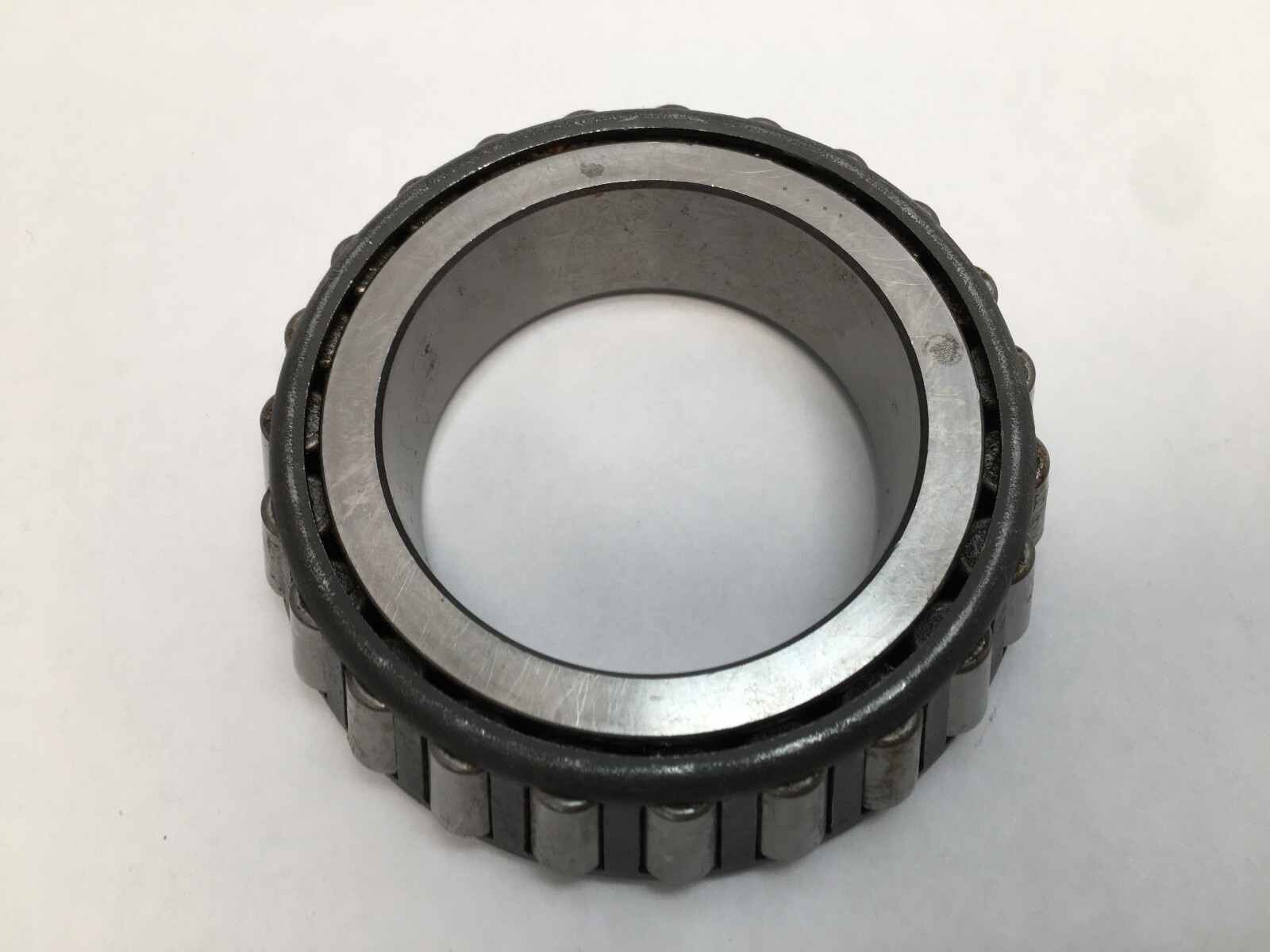

Timken 33262-3 inch tapered roller bearing cone: the inner ring complete with its tapered roller set and cage. Cone only. Bore Diameter: 2.6250 in (66.675 mm). Overall Width: 1.1875 in (30.163 mm). Precision Class: Class 3. Unit Quantity: 1 Pc. The matching cup is the Timken 33462.
33262 — the cone number in Timken’s 33200 inch series. Bore 2.6250 in.

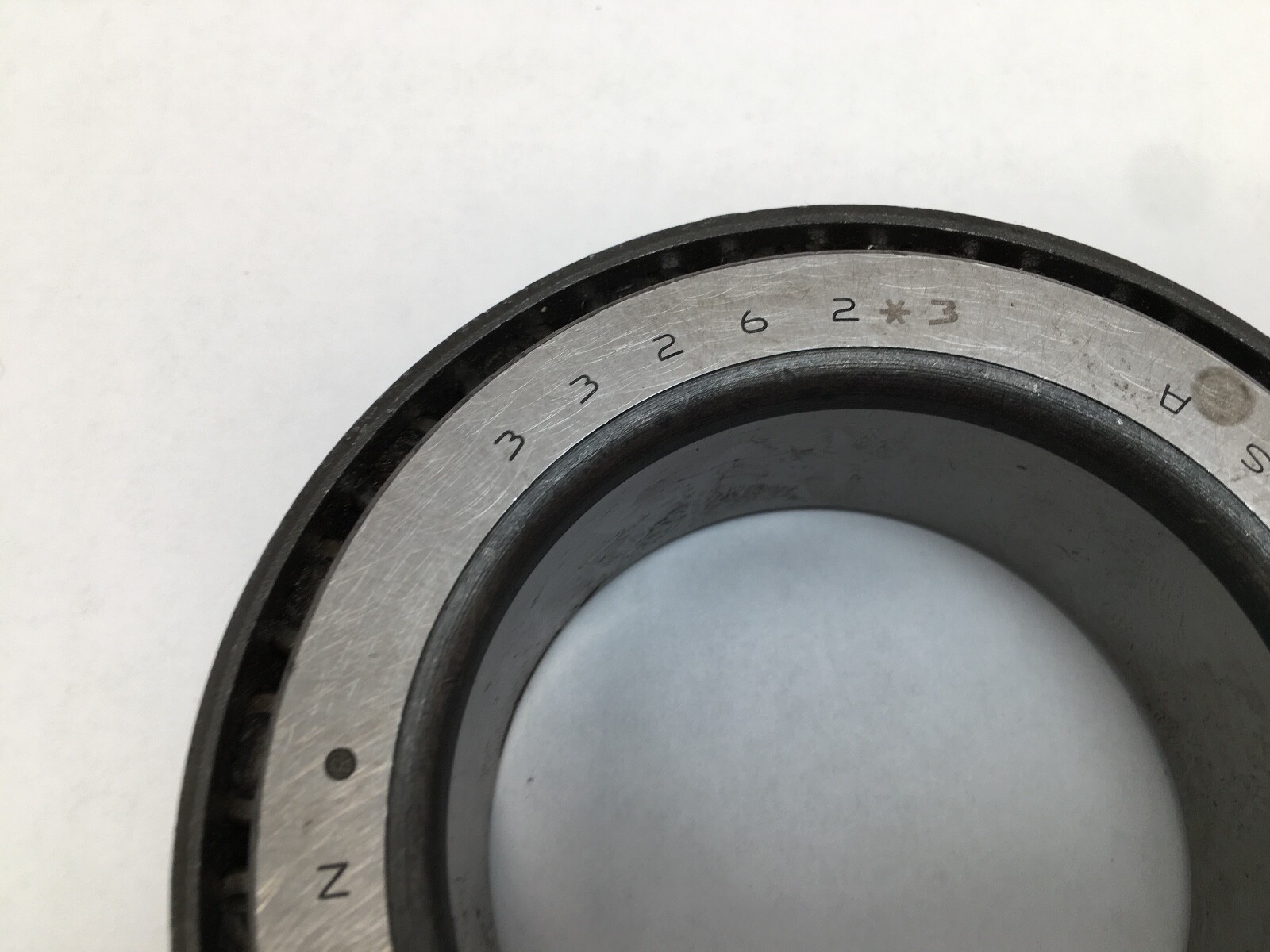

-3, also written *3 or #3 — Class 3 precision: tighter tolerance than standard, giving lower running vibration and closer shaft location.
Bore Diameter: 2.6250 in (66.675 mm). Overall Width: 1.1875 in (30.163 mm), the inner ring width B. Rolling Elements: Tapered Roller. Number Of Rows: 1. Bore Type: Straight. Bearing Material: Case-carburized steel. Item Weight: 3.53 kg (7.78 lb). Series: 33200. Design Units: Imperial. Precision Class: Class 3. Dynamic Load Rating: 138,000 N (31,100 lbf) at one million revolutions. Static Load Rating: 197,000 N (44,300 lbf). C90: 35,900 N (8,060 lbf) radial. Ca90: 26,800 N (6,020 lbf) thrust. K Factor: 1.34. G1 Factor: 84.2. G2 Factor: 25.9. Geometry Factor (Cg): 0.116.
Effective Center Location: -0.11 in (-2.8 mm). Max Shaft Fillet Radius: 0.14 in (3.600 mm). Shaft Backing Shoulder Diameter, frontface (da): 2.95 in (75 mm). Shaft Backing Shoulder Diameter, backface (db): 3.19 in (81 mm). Cage Location relative to backface (Aa): 0.07 in (1.8 mm). Cage Location relative to frontface (Ab): 0.07 in (1.8 mm).
33262 is an industry-standard inch cone number: SKF 33262, FAG K33262, NSK 33262, NTN 4T-33262, Koyo 33262, Fersa 33262, BCA / Bower 33262 and PEER 33262 share the boundary dimensions. Those are standard-tolerance cones; the -3 here is Class 3. Matching cup: Timken 33462.
What cup mates with the Timken 33262-3 cone?
The Timken 33462 cup.
What are the bore and width of a 33262-3 cone?
Bore Diameter: 2.6250 in (66.675 mm). Overall Width: 1.1875 in (30.163 mm).
What does the -3 suffix mean?
Class 3 precision: tighter tolerance than standard.
