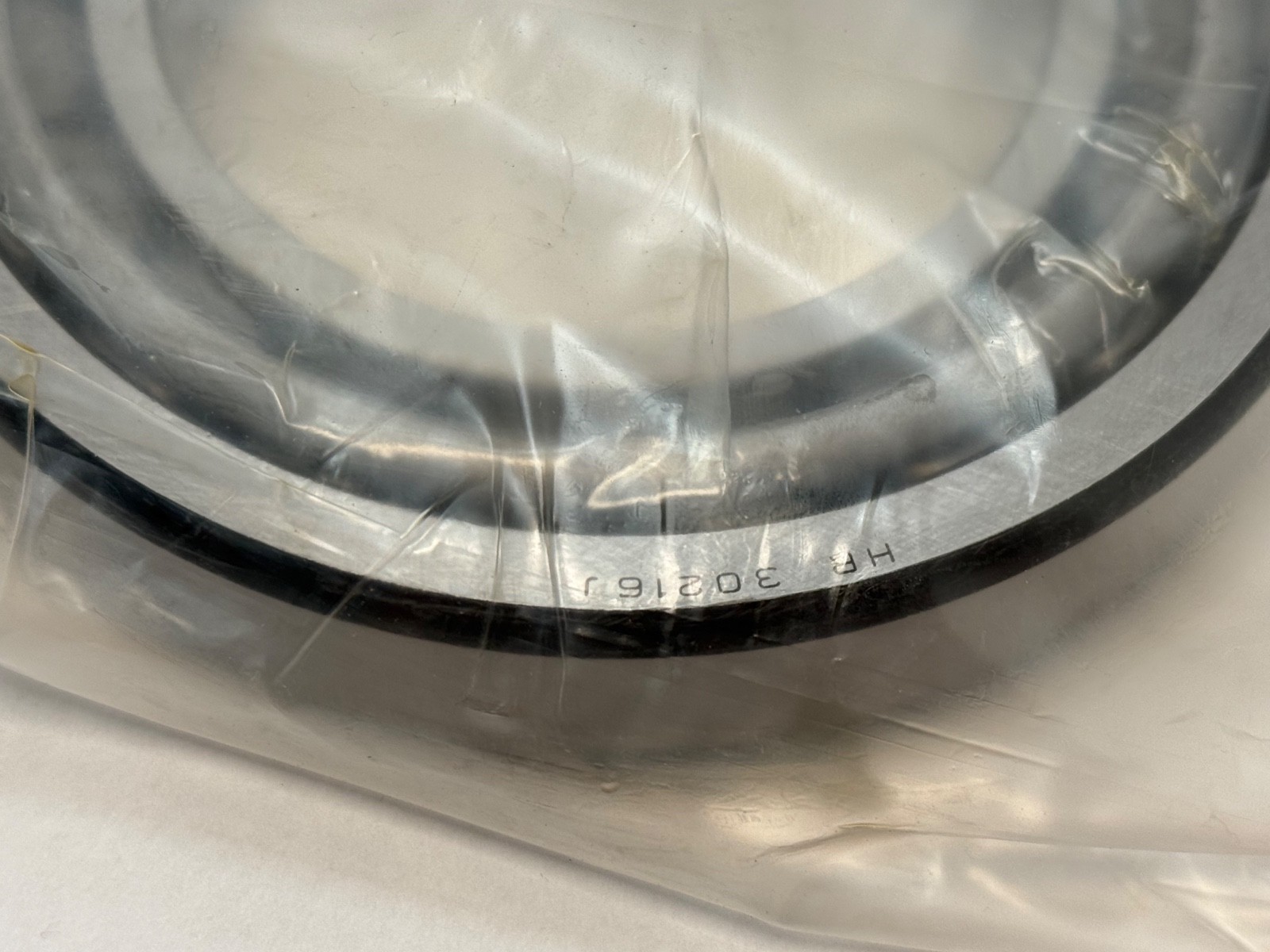

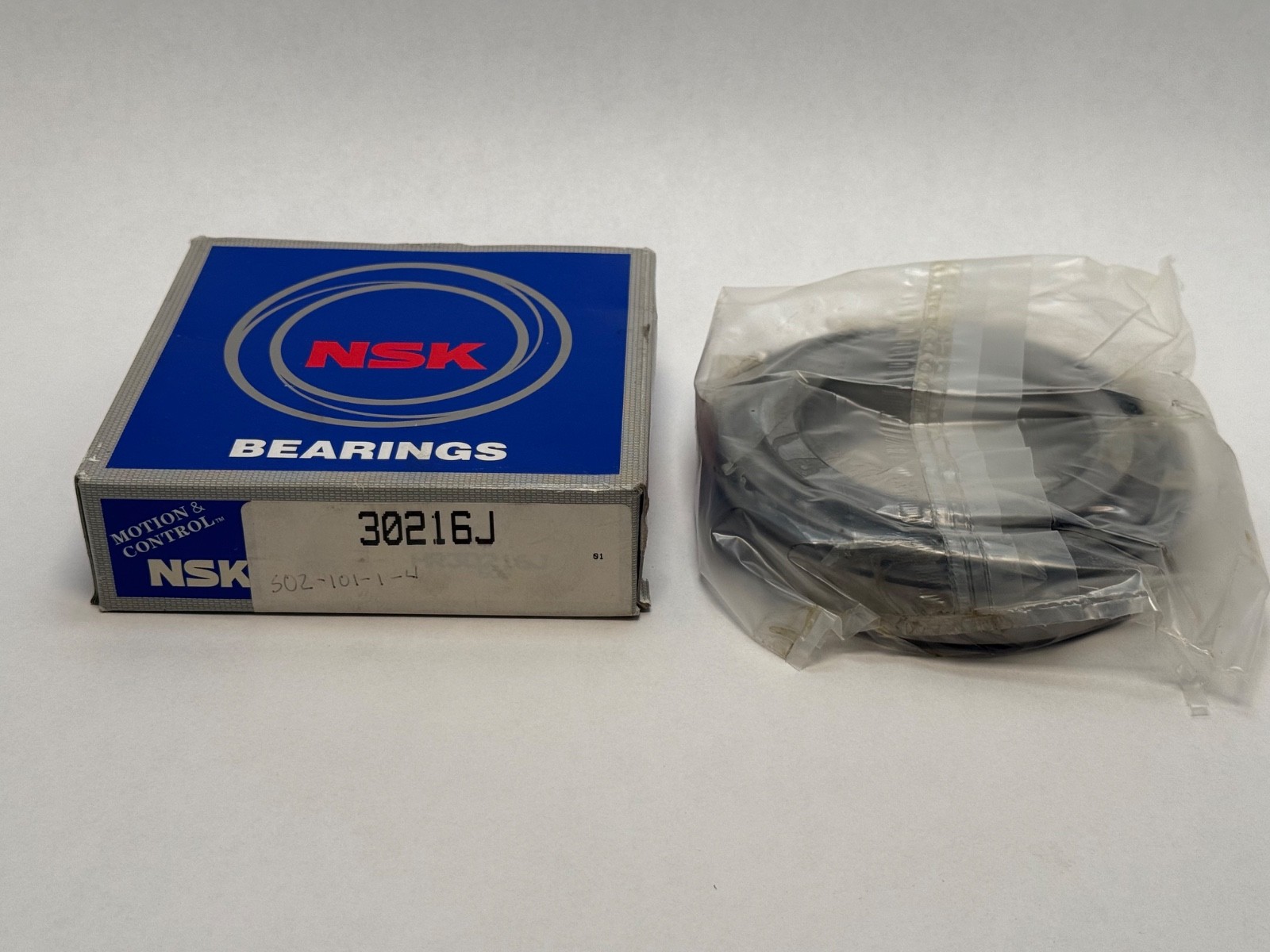

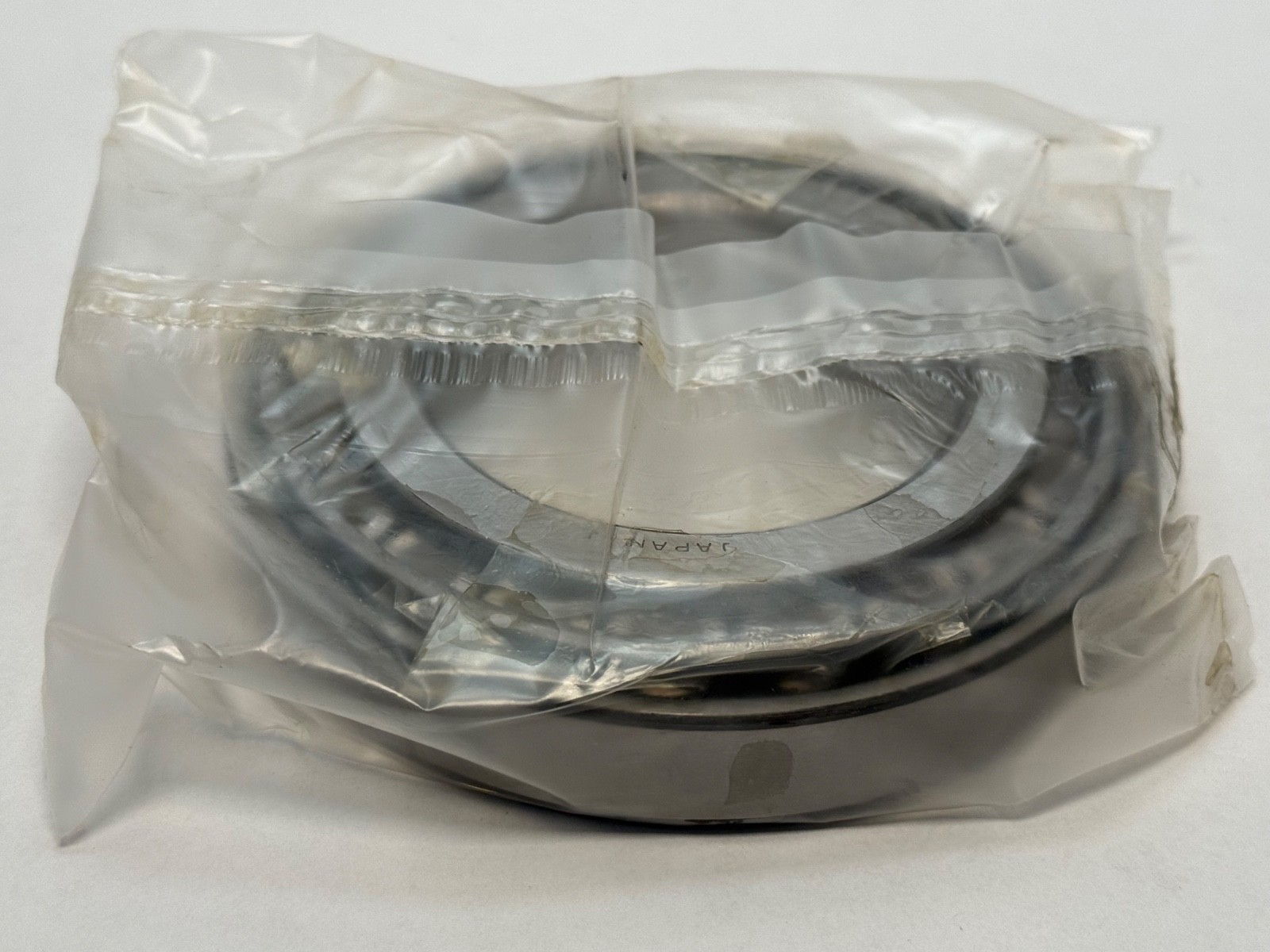

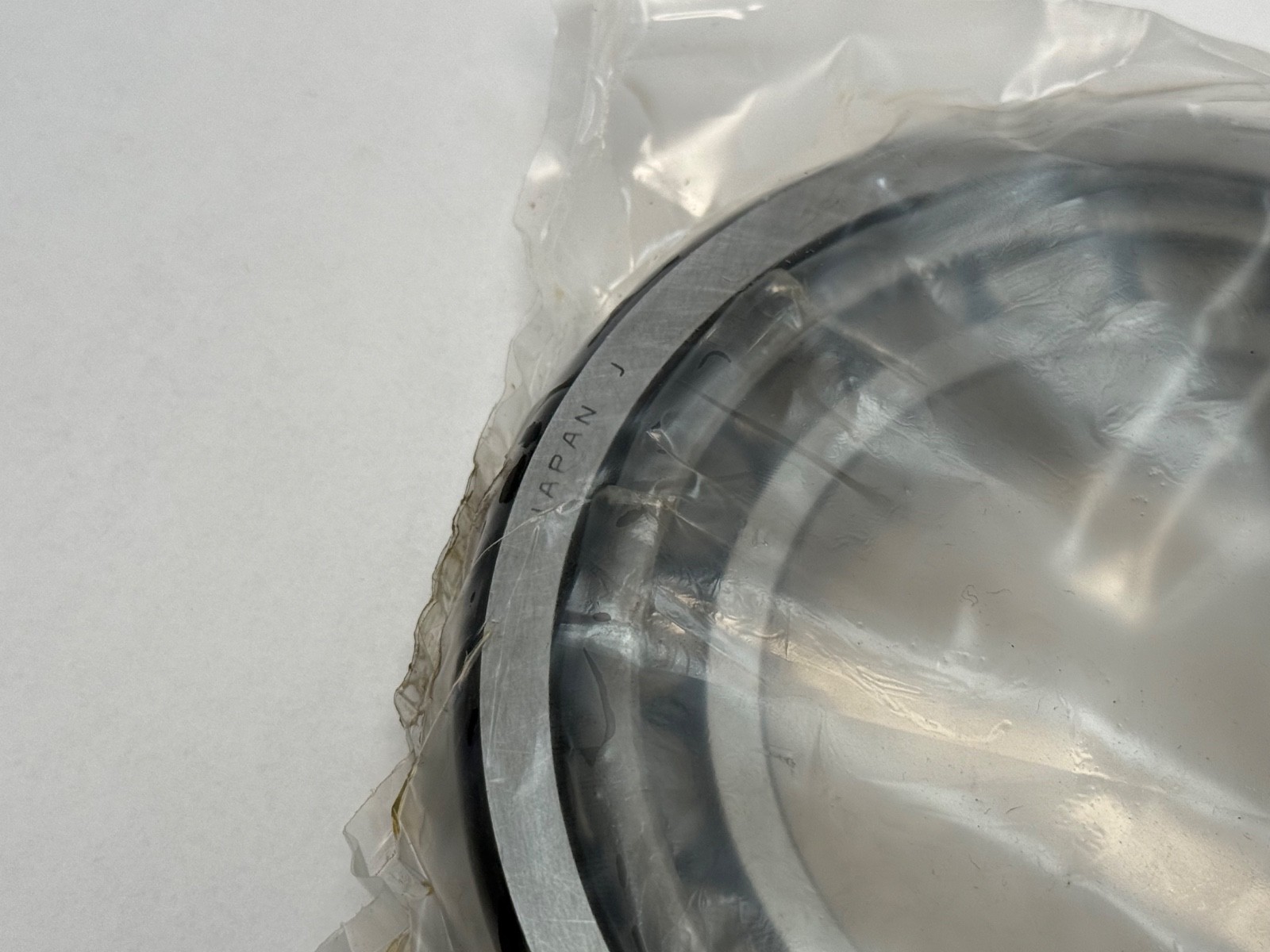

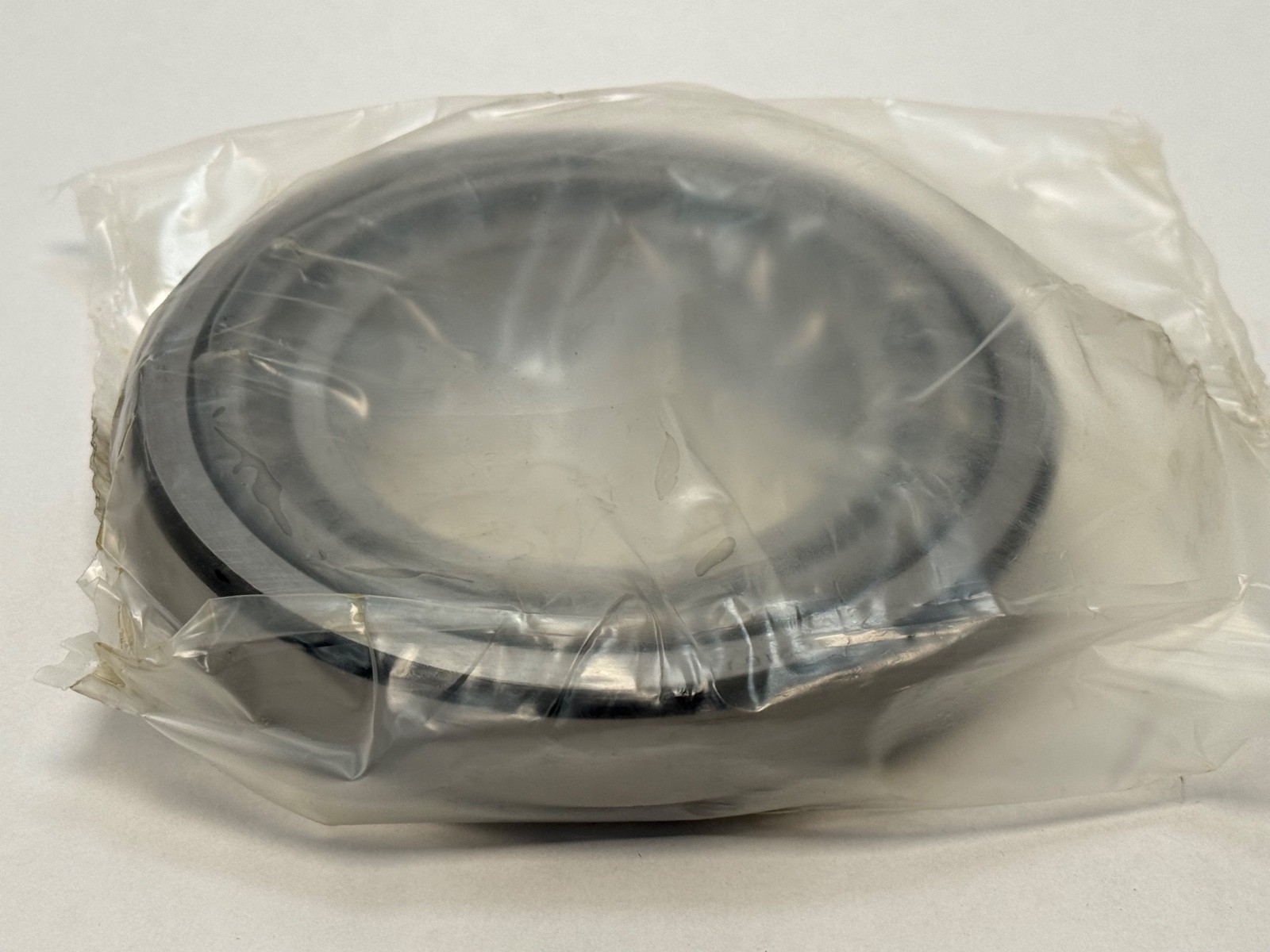

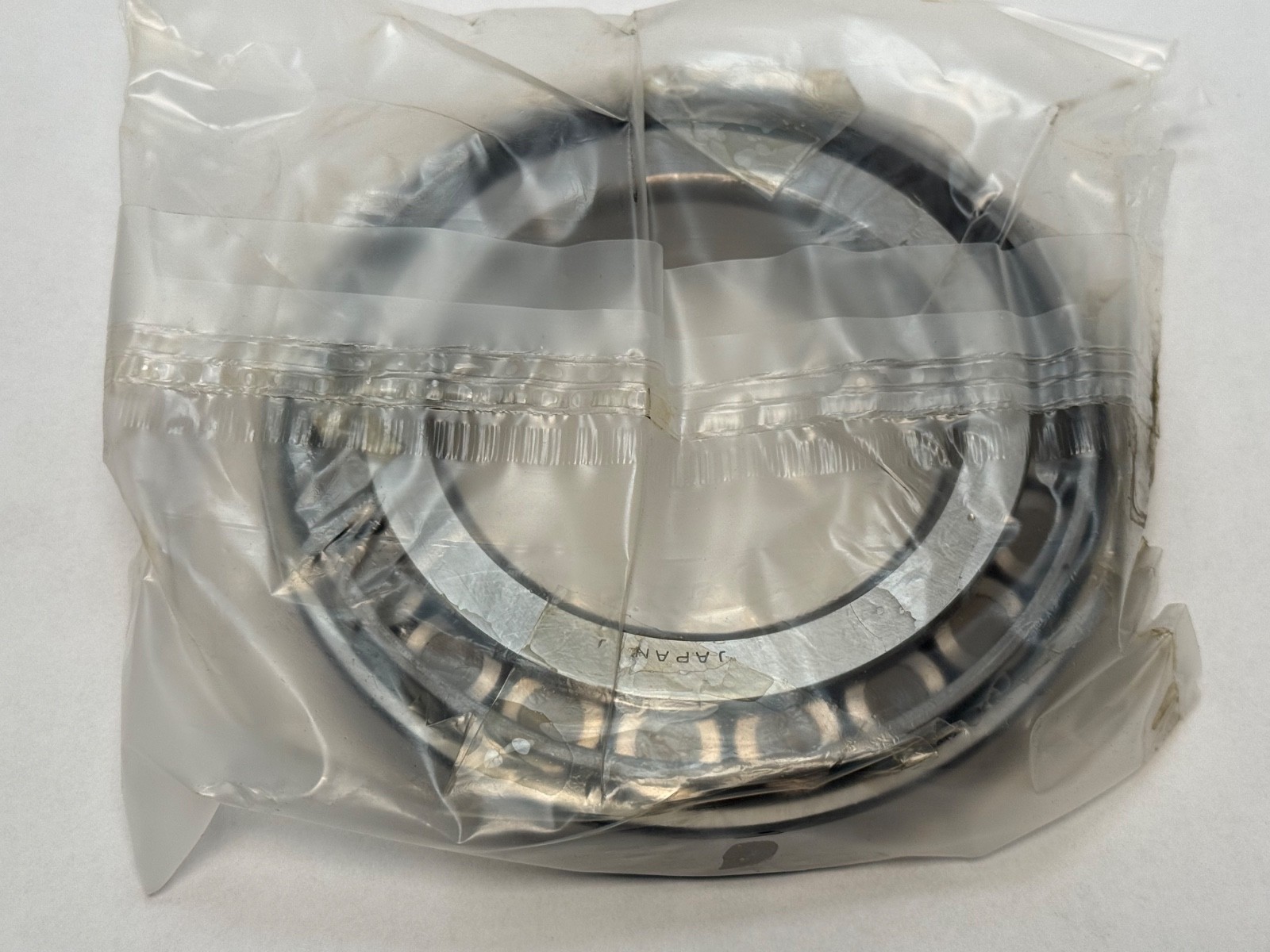

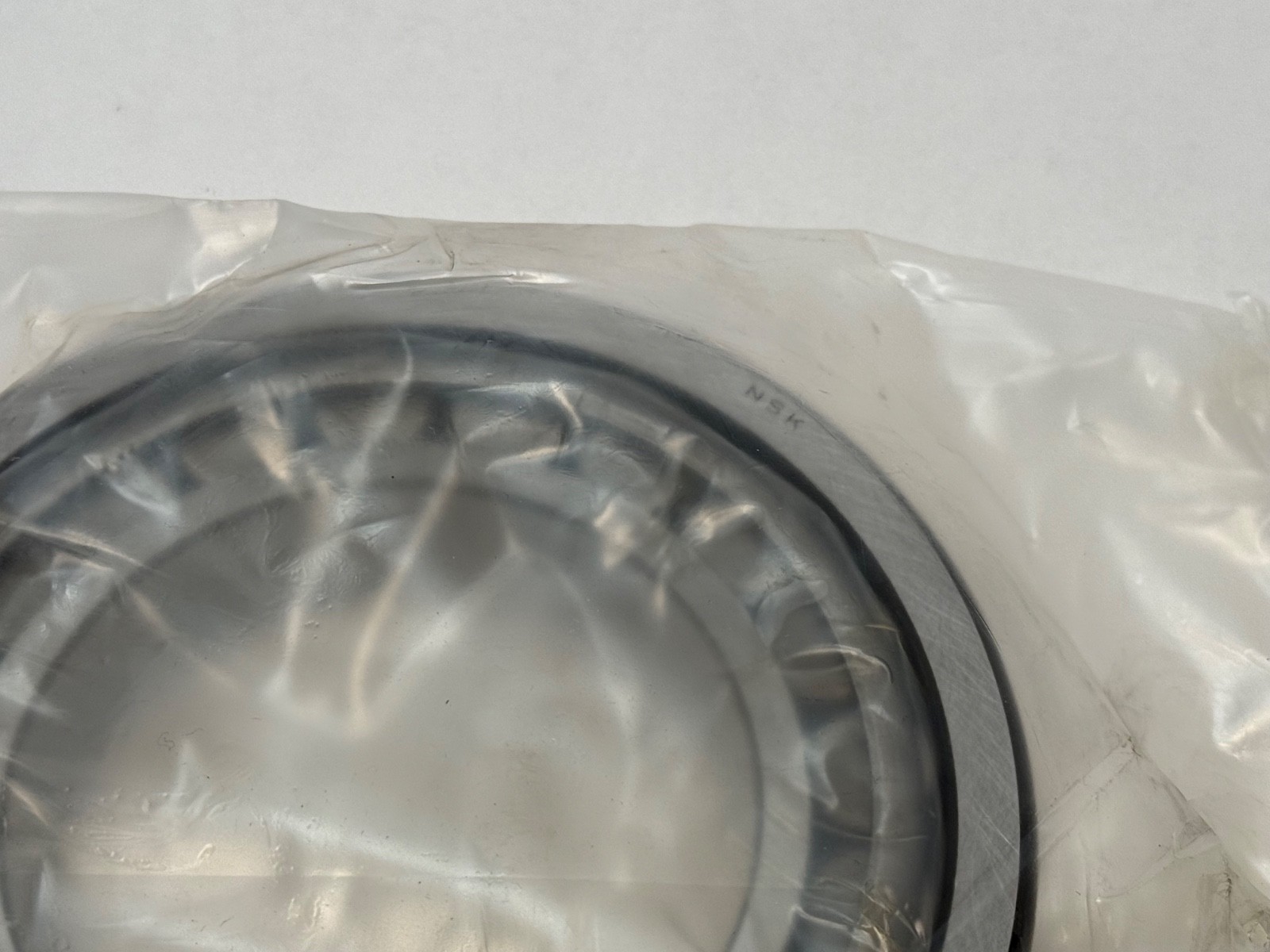

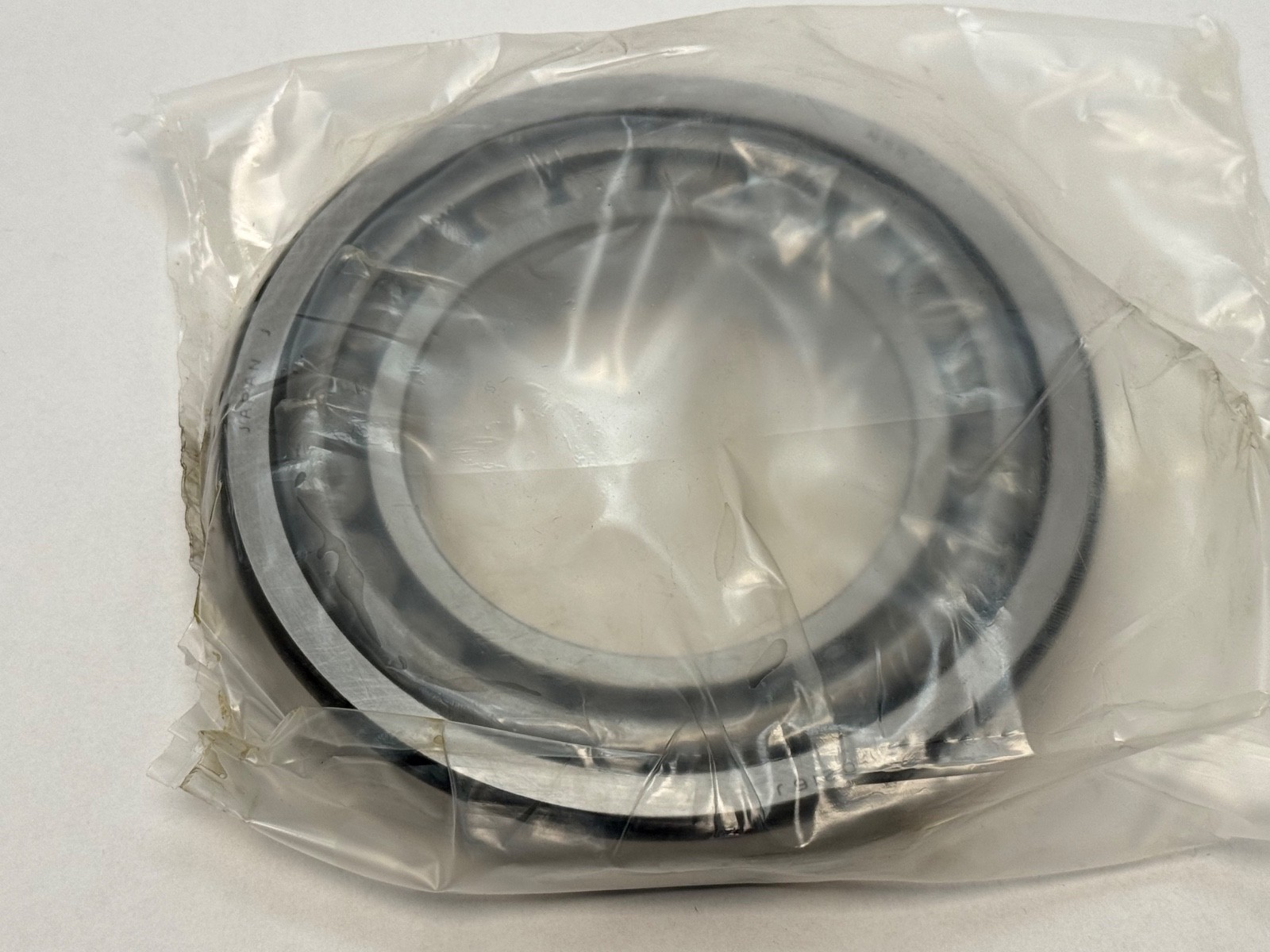

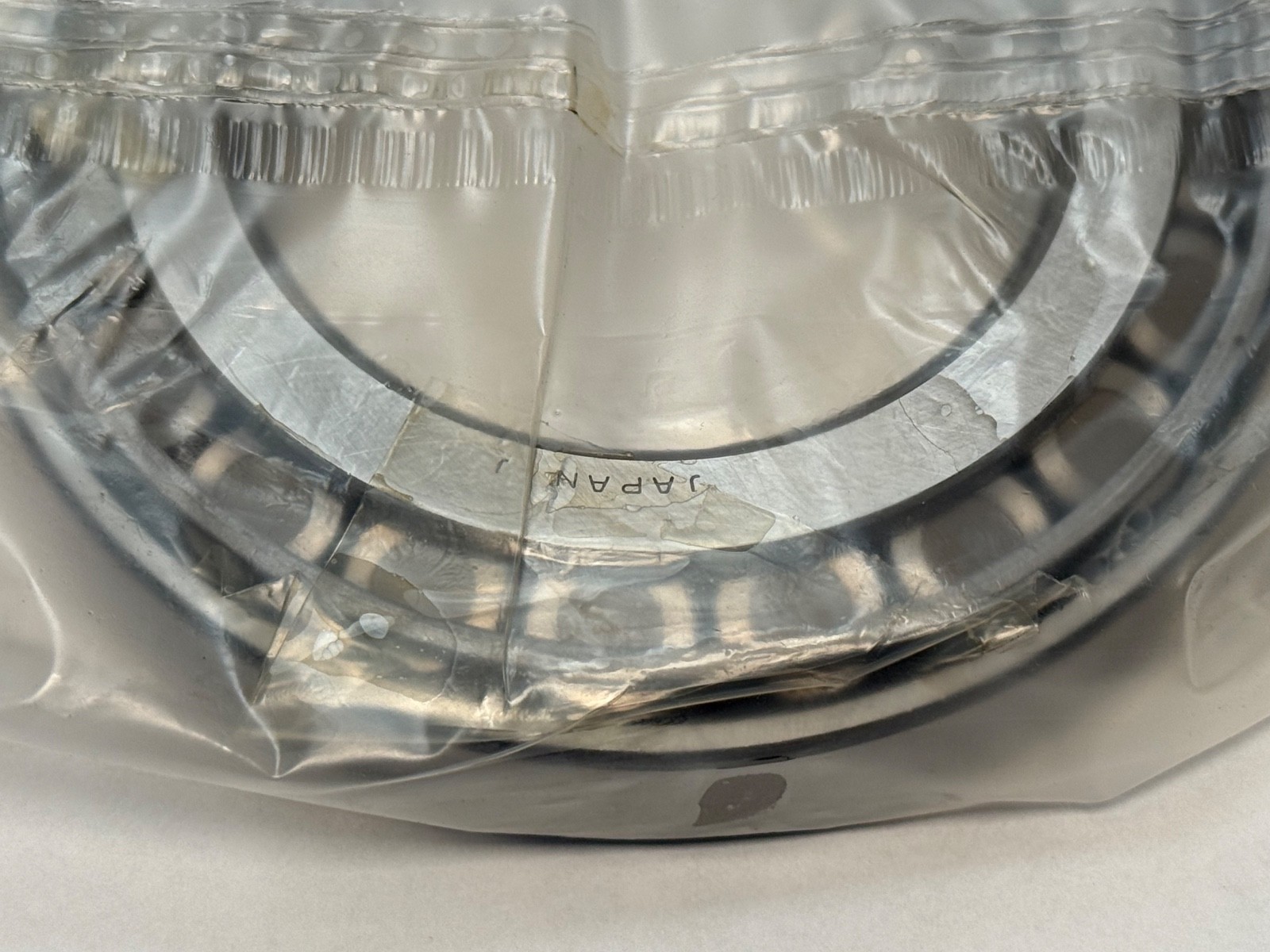

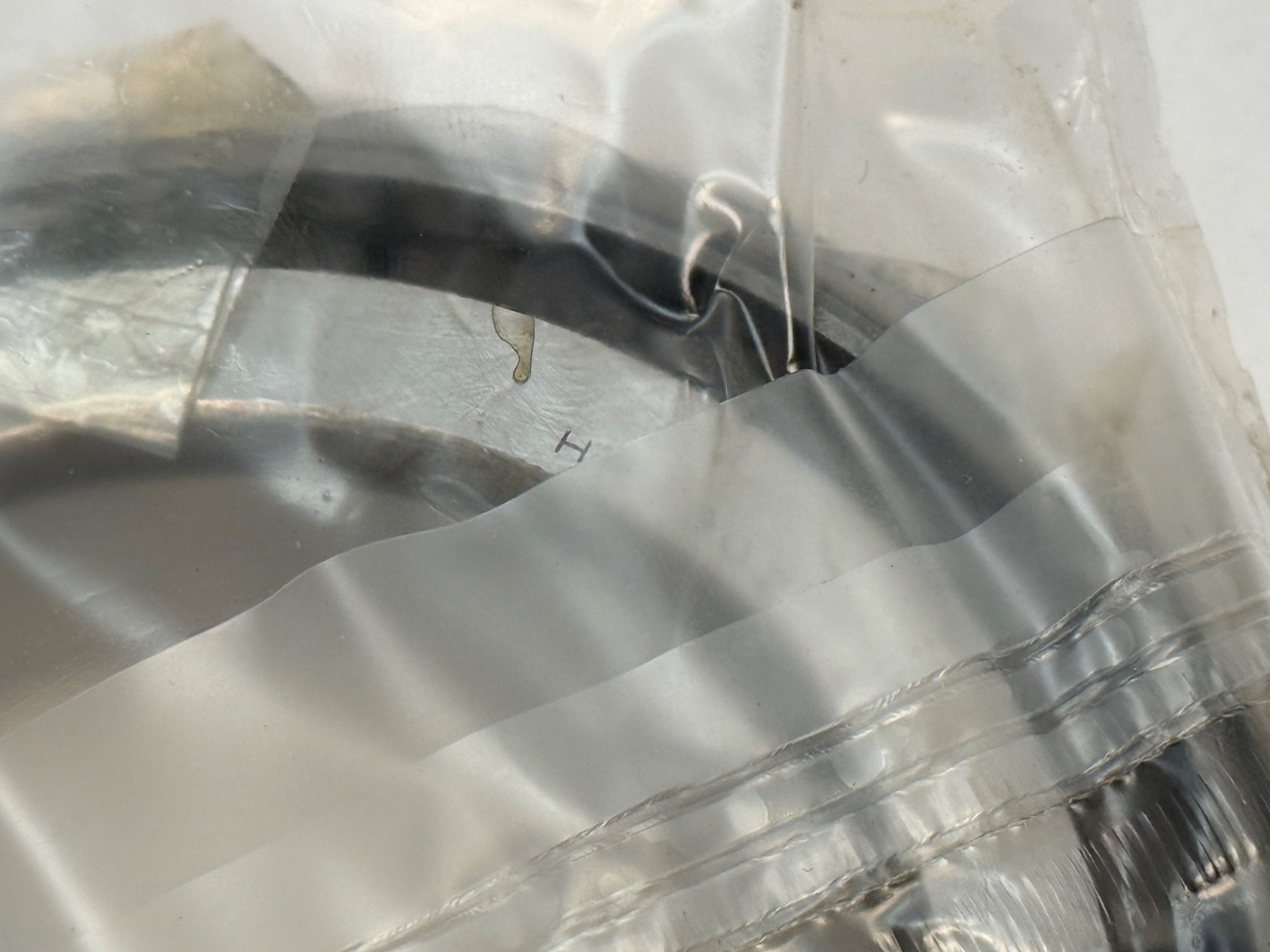

NSK 30216J single-row tapered roller bearing, 80 mm bore, 140 mm OD, pressed steel cage. Separable cone and cup, straight bore, open.
List Price
$46.99
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 30216J |
| GTIN | 029176022111 |
| Model | 30216 J |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 80 mm |
| OD | 140 mm |
| Material | Steel |
|---|---|
| Condition | New |
| Series | 302 |
| Base Number | 30216 |
| Industry Terms | tapered roller bearing; taper roller bearing; cone and cup; single row taper; metric taper bearing |
| Common Misspellings | 3216J; 30126J; 302016J; 30216 JJ |
| Application Types | Gearboxes; industrial gear drives; conveyor head shafts; pump and fan shafts; wheel hubs |
| Mpn Variants | 30216J; 30216-J; 30216 J; 30216JP5; 30216J NSK |
| Additional Attributes | Separable cone and cup; ISO 302 metric tapered series |
| Rolling Elements | Tapered Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.20.00 |
| Bearing Material | Bearing steel |
| Cross Reference 1 | SKF 30216 J2/Q |
|---|---|
| Cross Reference 2 | FAG 30216-A |
| Cross Reference 3 | Timken 30216 |
| Cross Reference 4 | NTN 4T-30216 |
| Cross Reference 5 | Koyo 30216JR |
A single-row metric tapered roller bearing in the ISO 302 dimension series, supplied as a cone and its matching cup. Bore Diameter: 80 mm. Outside Diameter: 140 mm. Rolling Elements: Tapered Roller. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Bearing Material: Bearing steel.
30216 — NSK’s number for the ISO 302 series size, 80 mm bore on a 140 mm outside diameter.
J — pressed steel cage. Cage Material: Pressed steel.
Tapered rollers carry radial and axial load together, in one direction. The raceway taper turns part of the radial load into a thrust component, which is why tapered rollers are set in opposed pairs. Series: 302. Base Number: 30216.
A pressed steel cage keeps roller mass and cage inertia low and tolerates the roller skew that a tapered raceway produces.
Bore Diameter: 3.1496 in. Outside Diameter: 5.5118 in. Bore Type: Straight, so the cone mounts directly on a cylindrical shaft seat with an interference fit; the cup is a separate ring located in the housing bore.
Unit Quantity: 1 Pc. The cone and its matching cup together make one bearing.
The 80 mm bore on 140 mm outside diameter envelope is an ISO 355 metric tapered size carried by every major maker, so the equivalents listed cross on boundary dimensions and single-row tapered form.
