Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
2 in stock
Tapered roller bearing cone, 2.6875 in (2-11/16 in) bore, 2.0350 in inner ring width, 5500 series. Mates with the 5535 cup. Cone only. 1 Pc.
List Price
$51.34
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| Model | K 5557 |
| Bearing Type | Tapered Roller Bearing Cone |
| Base Number | 5557 |
|---|---|
| Industry Terms | taper roller cone, inch series taper bearing, inner ring assembly, cone and rollers, K-prefix cone |
| Common Misspellings | K5575, K-55-57, 5575, K5557A, KS557 |
| Application Types | Wheel ends, gear drives, roll necks, heavy machinery, industrial maintenance |
| Bore Shaft Size | 2.6875 in / 2-11/16 in (68.26 mm), straight bore |
| Mpn Variants | K5557, K-5557, K 5557, 5557, 5557-2, FAG K5557 |
| Compatible With Replaces | Single-row inch tapered roller assemblies built on the 5557 cone with a 5535 cup |
| Number Of Rows | 1 |
| Snap Ring Included | No |
| Part Number | K5557 |
| Cross Reference 1 | Timken 5557 |
|---|---|
| Cross Reference 2 | Bower 5557 |
| Cross Reference 3 | NTN 4T-5557 |

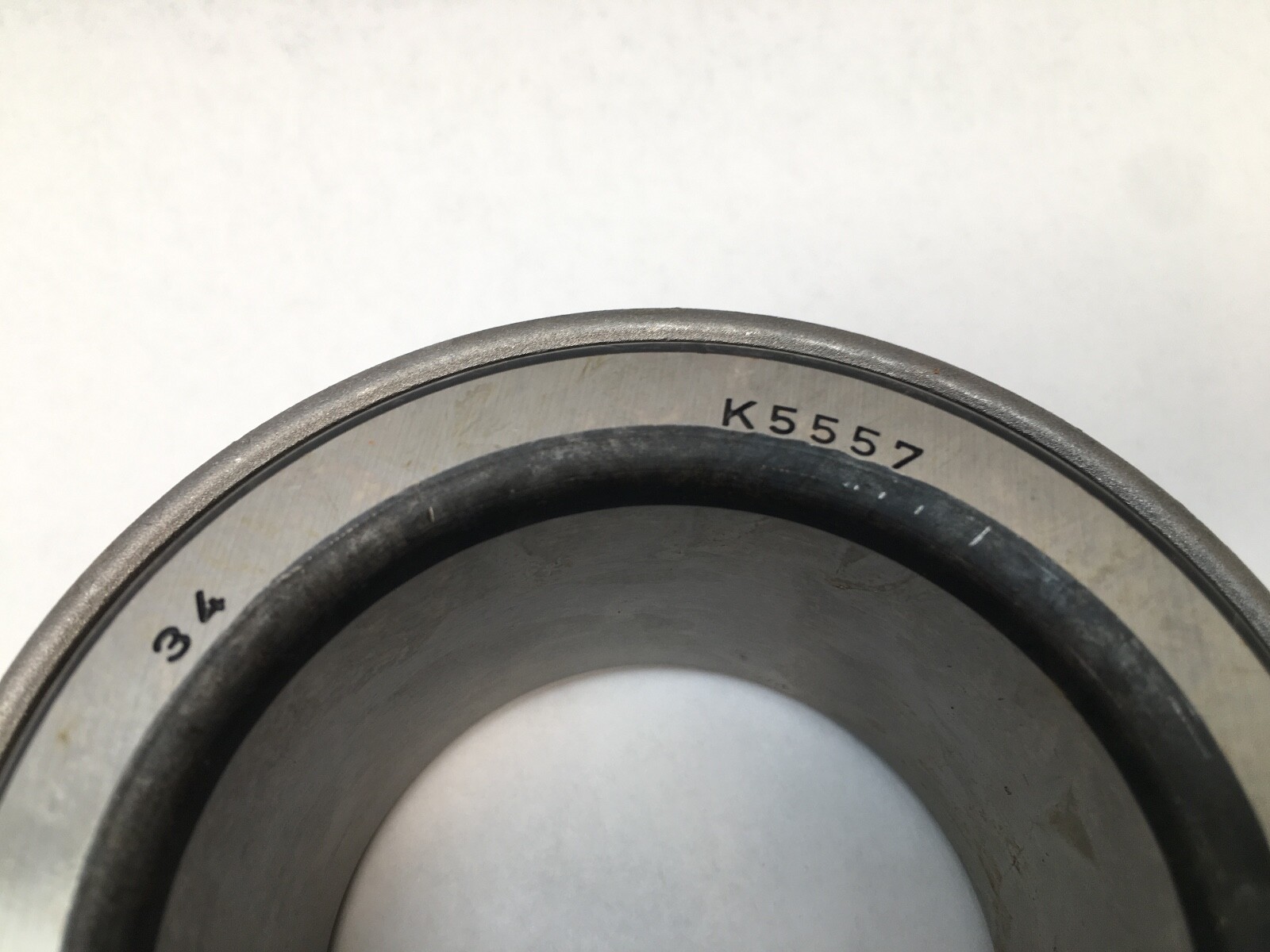

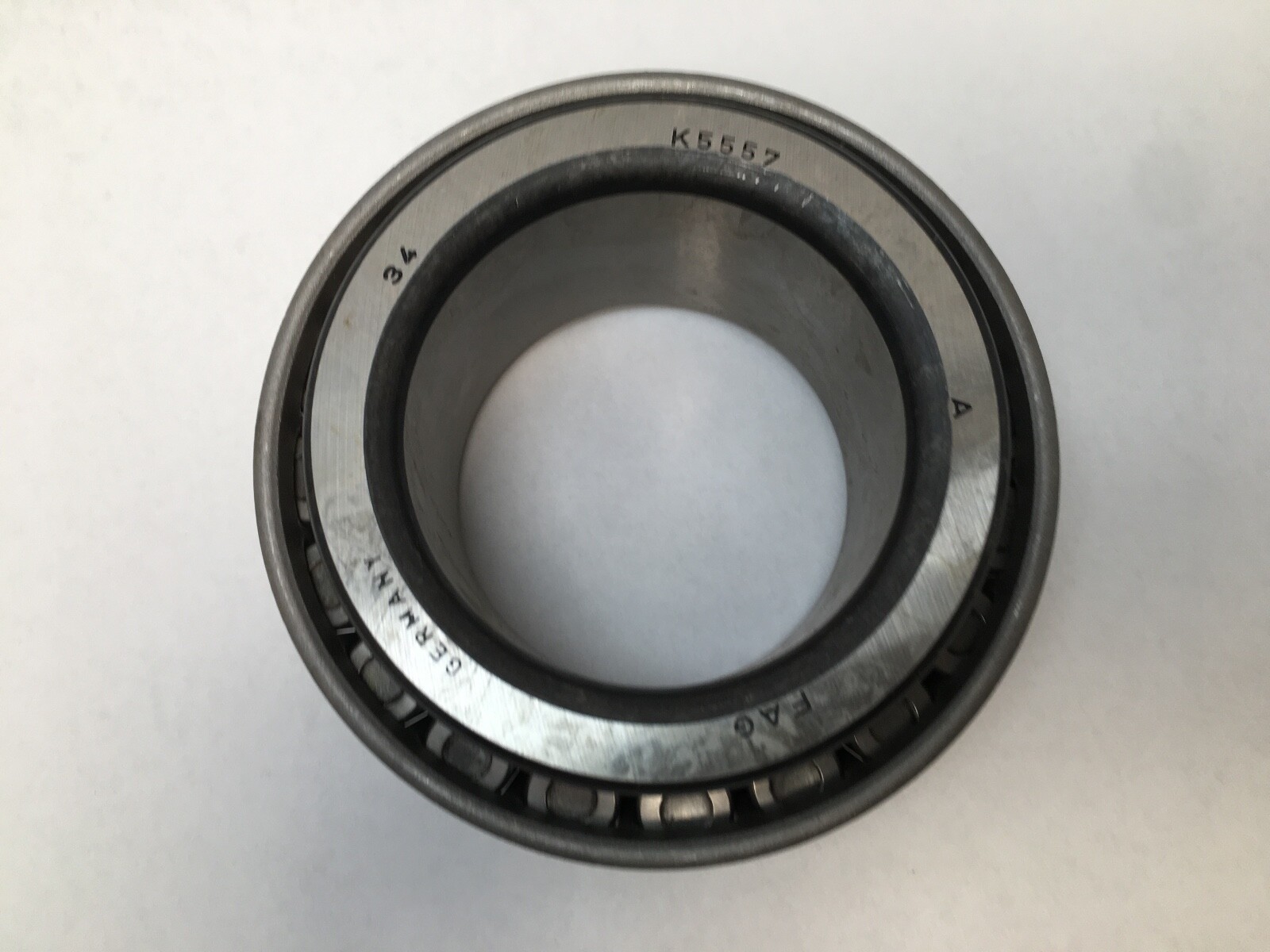

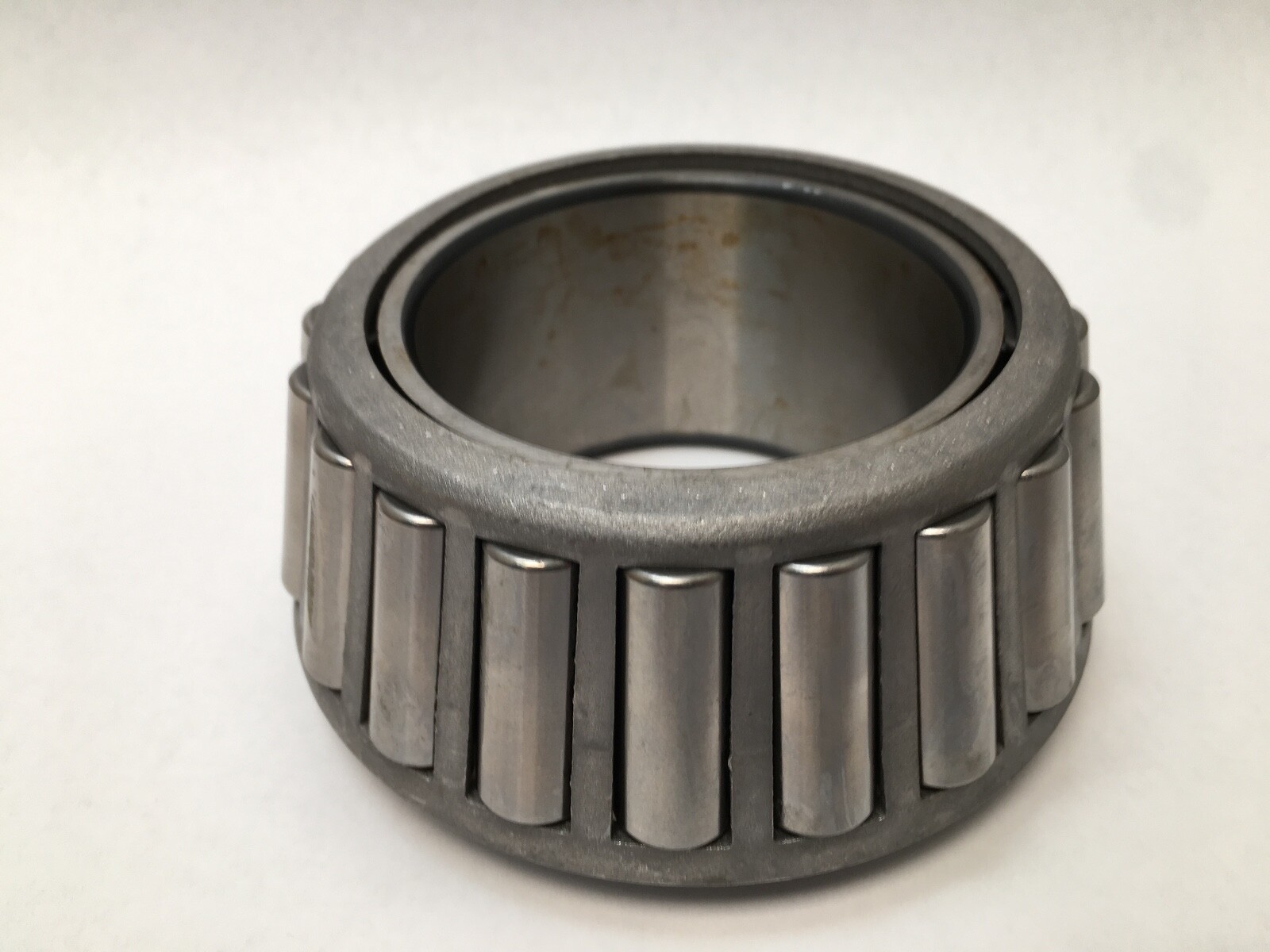

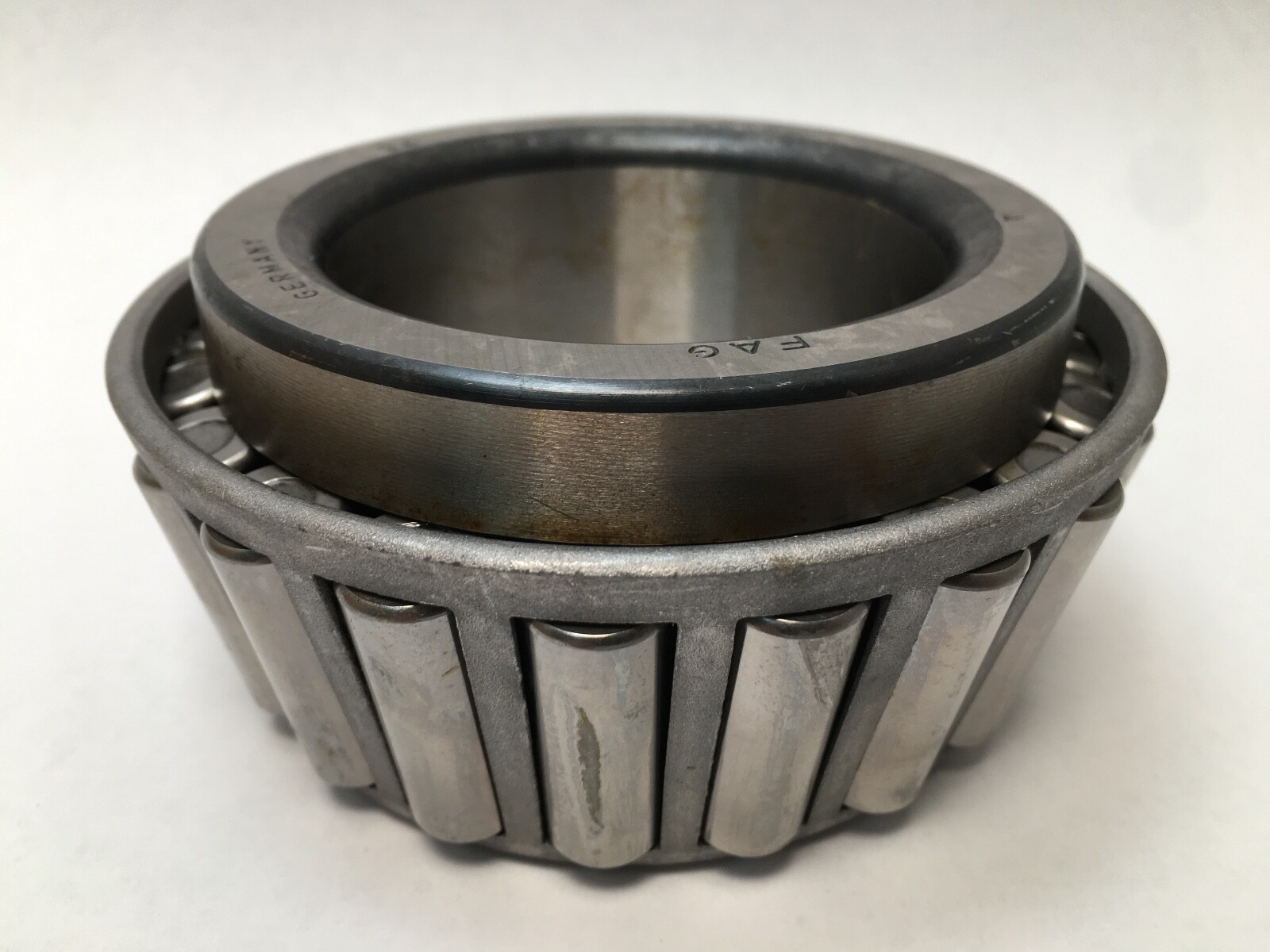

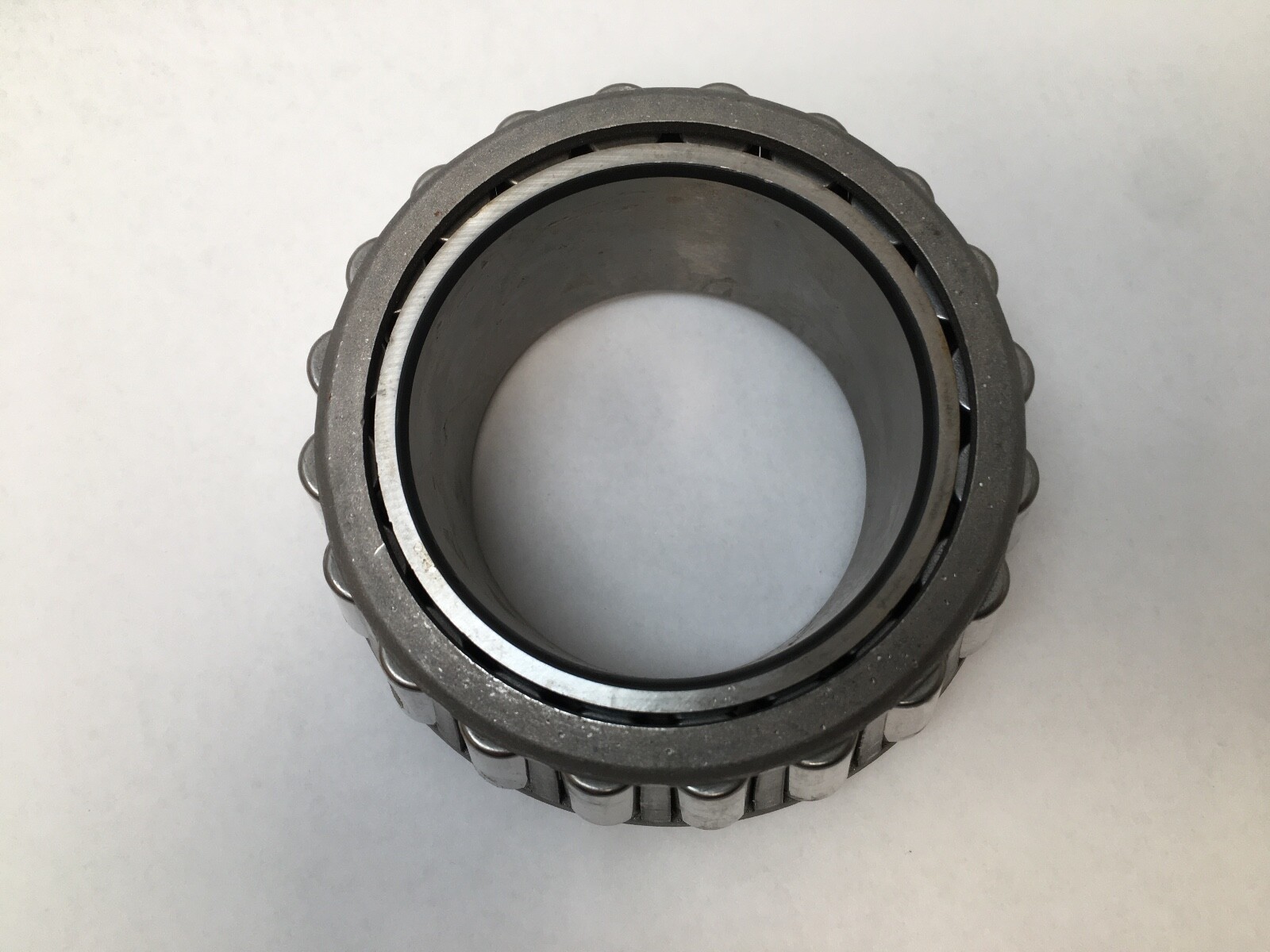

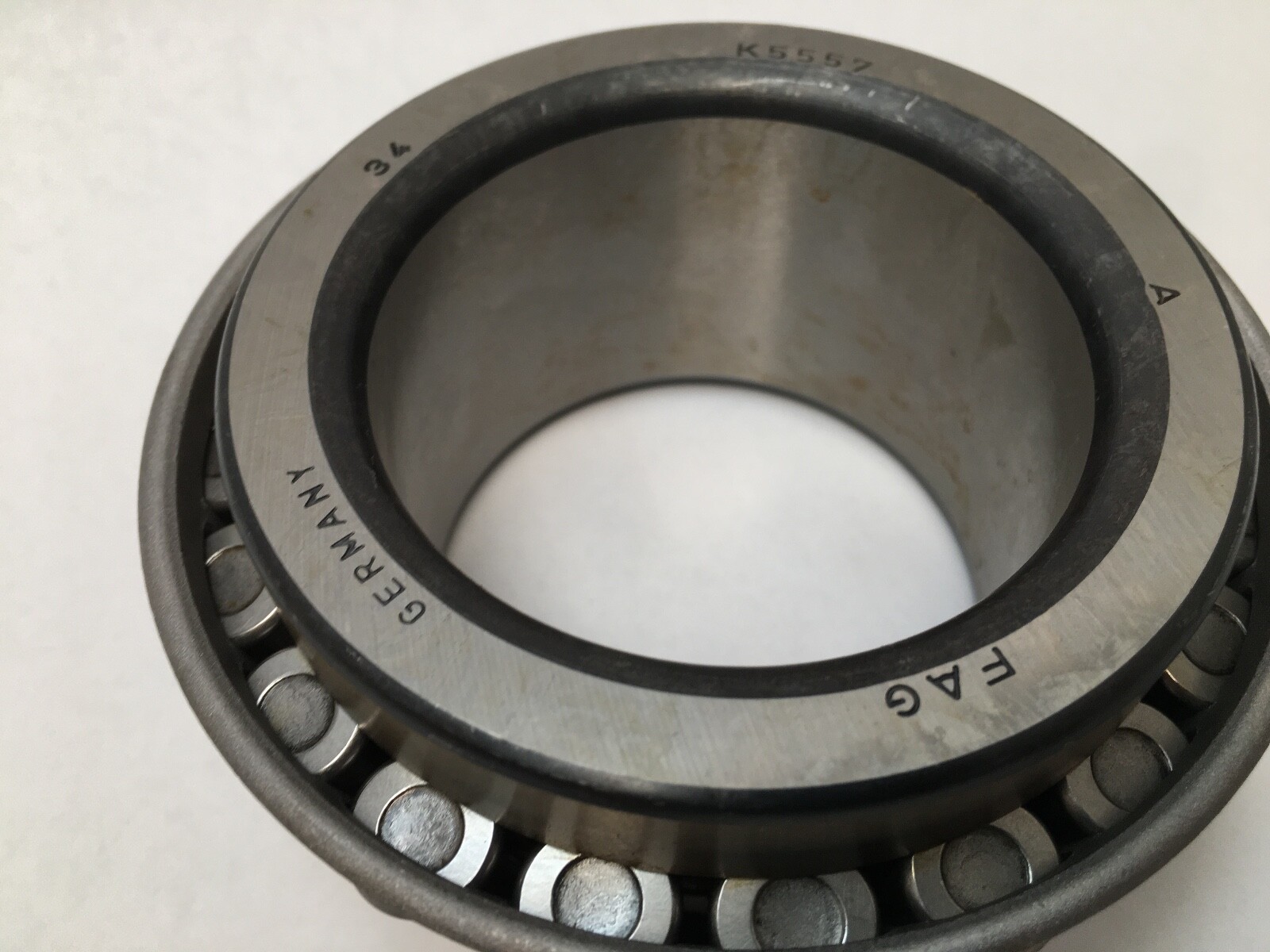

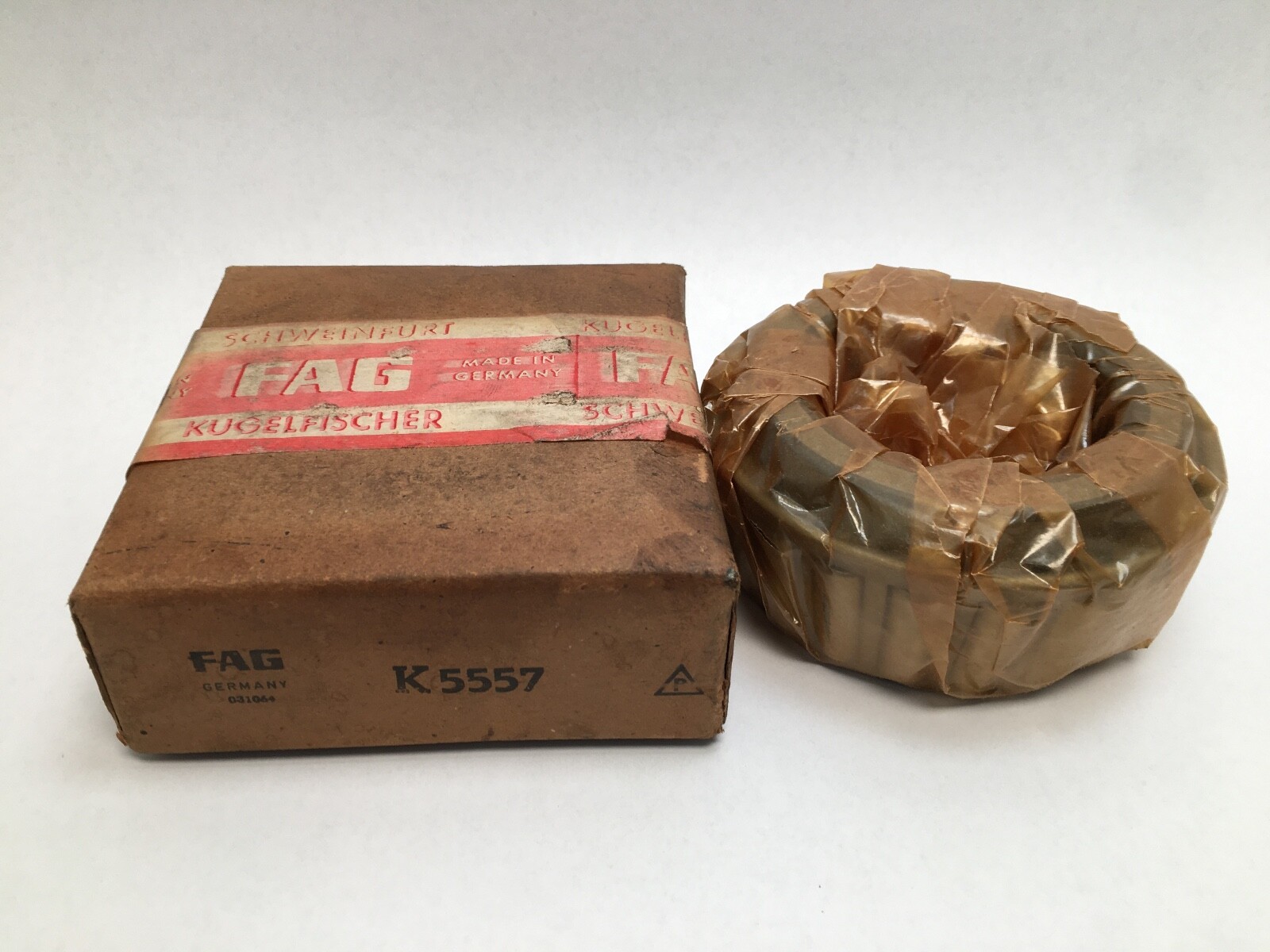

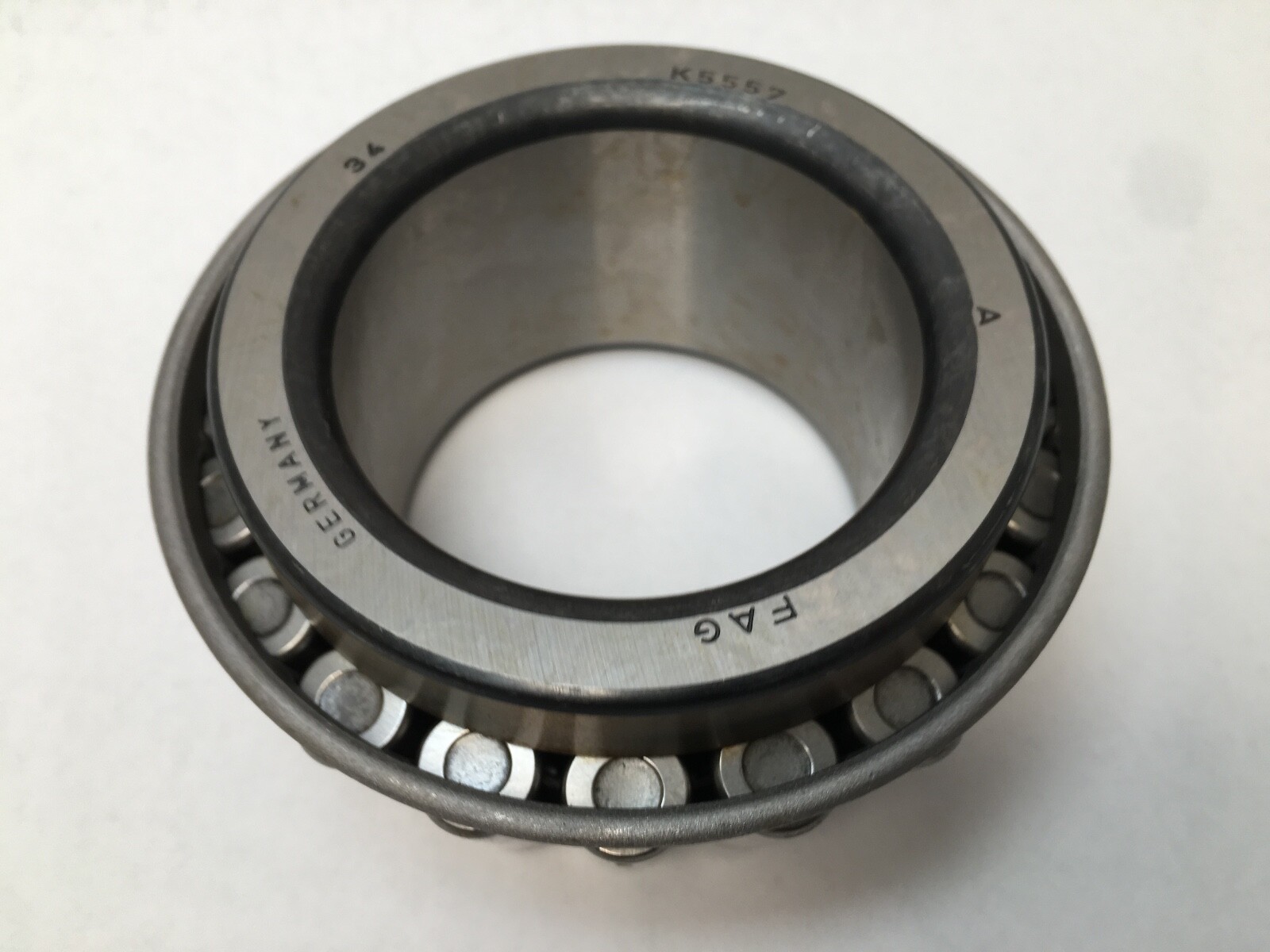

FAG K5557 tapered roller bearing single cone, the inner ring complete with tapered rollers and cage. Cone only; the matching cup is a separate part, 5535. Unit Quantity: 1 Pc.
K — FAG prefix on inch-series tapered roller cones, so K5557 is FAG’s build of the industry 5557 cone.
5557 — industry base number, the same cone in Timken and general nomenclature.
5557-2 — packaging variant.
Bore / Shaft Size: 2.6875 in (2-11/16 in) / 68.26 mm, straight bore. Inner ring width (B): 2.0350 in / 51.7 mm. Cone large-end outside diameter: 93.73 mm. Rolling Elements: Tapered rollers. Number Of Rows: 1. Series: Imperial 5500 series. Base Number: 5557. Configuration: single row, open, no seal, no snap ring. Unit Quantity: 1 Pc.
Matching cup: 5535, 4.8125 in outside diameter, 1.4375 in wide. Complete cone-and-cup set designation: 5557/5535.
Cross-Reference 1: Timken 5557. Cross-Reference 2: Bower 5557. Cross-Reference 3: NTN 4T-5557. The mating cup is 5535 in all of these schemes. Searchable forms: K5557, K-5557, K 5557, 5557, 5557-2, FAG K5557.
What are the dimensions of the FAG K5557 cone?
Bore: 2.6875 in (68.26 mm). Inner ring width: 2.0350 in (51.7 mm).
Which cup mates with the K5557 cone?
The mating cup is 5535, 4.8125 in outside diameter and 1.4375 in wide.
Is the cup included?
Cone only. The cup is a separate part number, 5535.
