Availability:
1 in stock

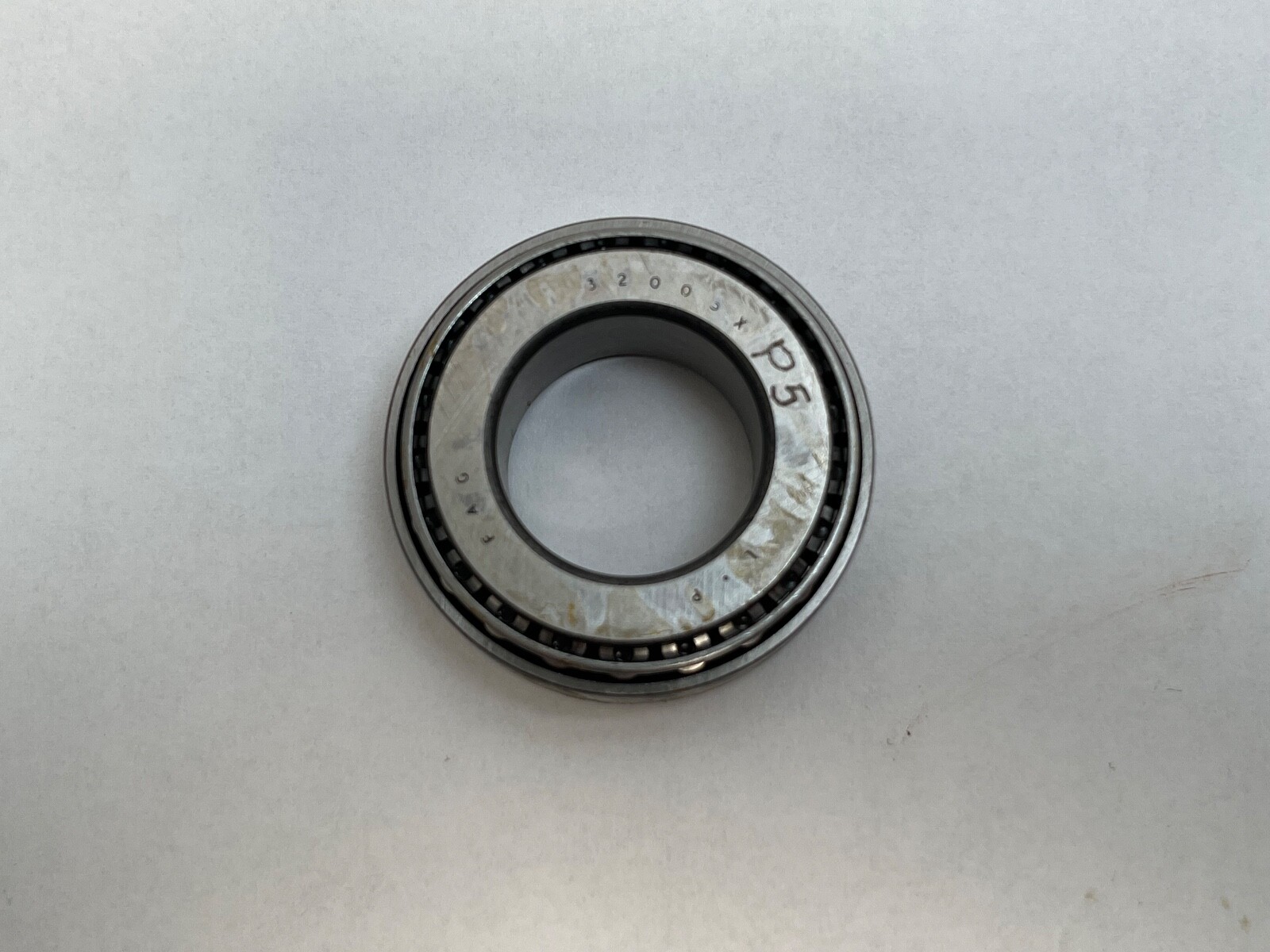

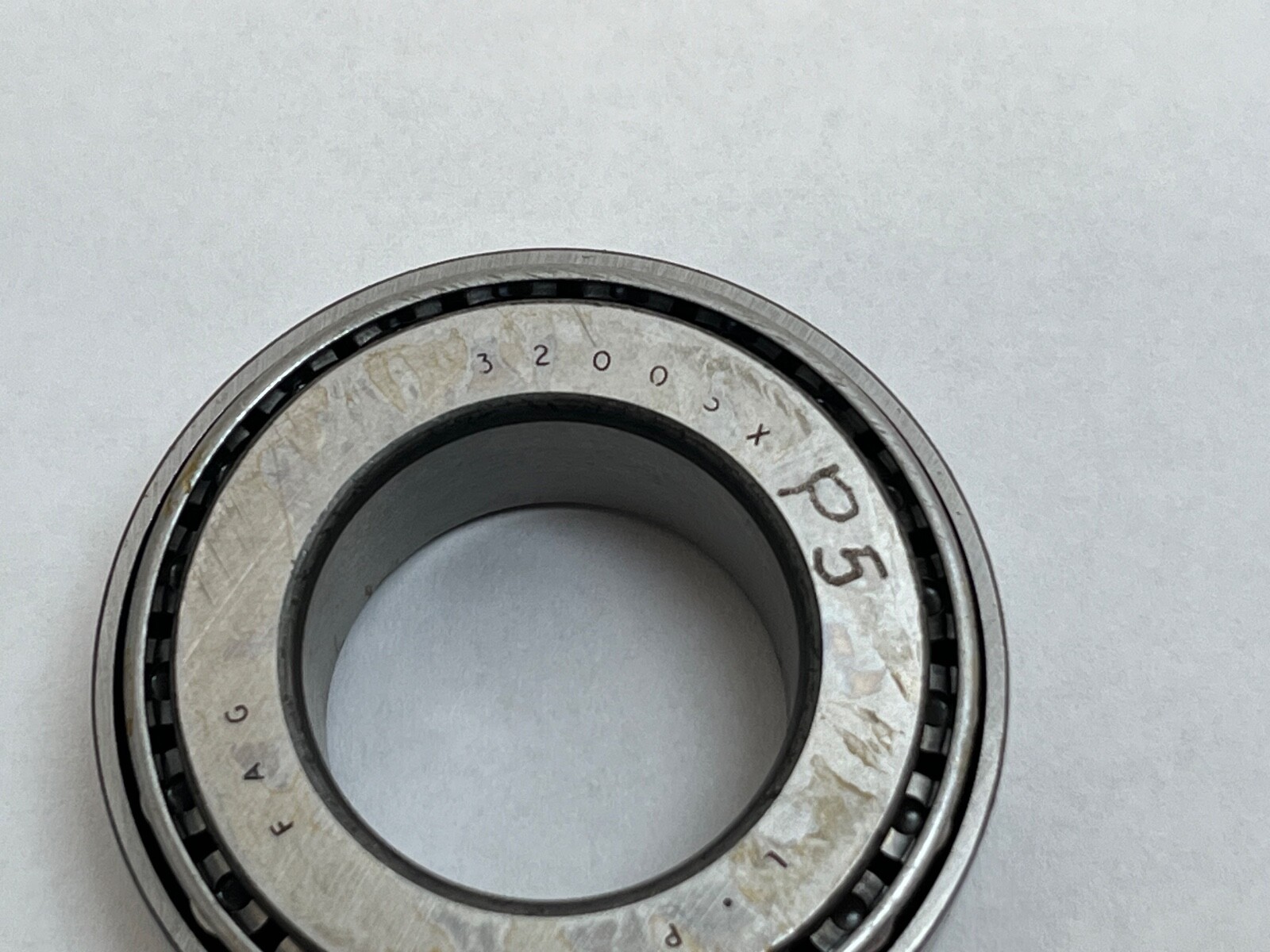

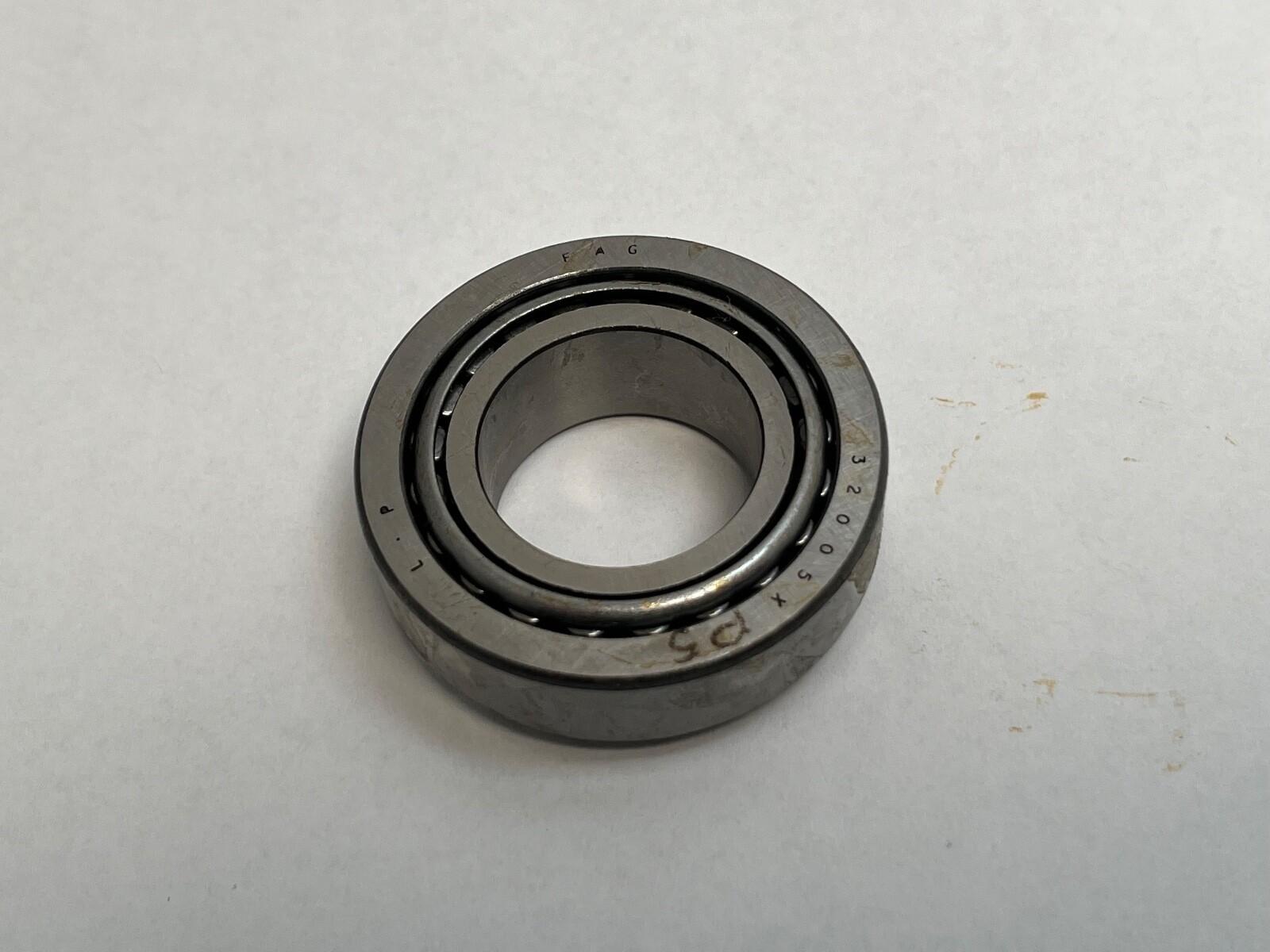

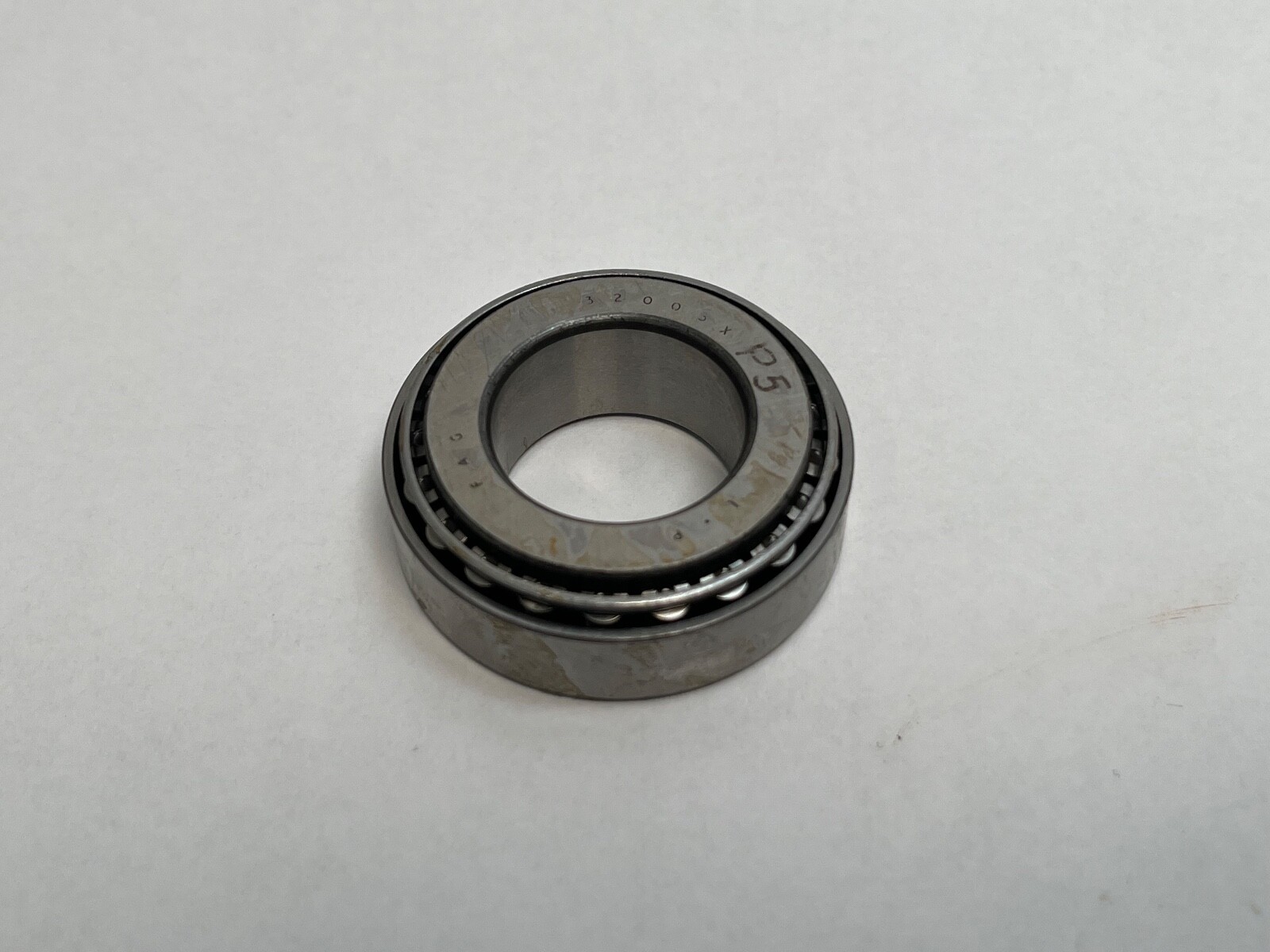

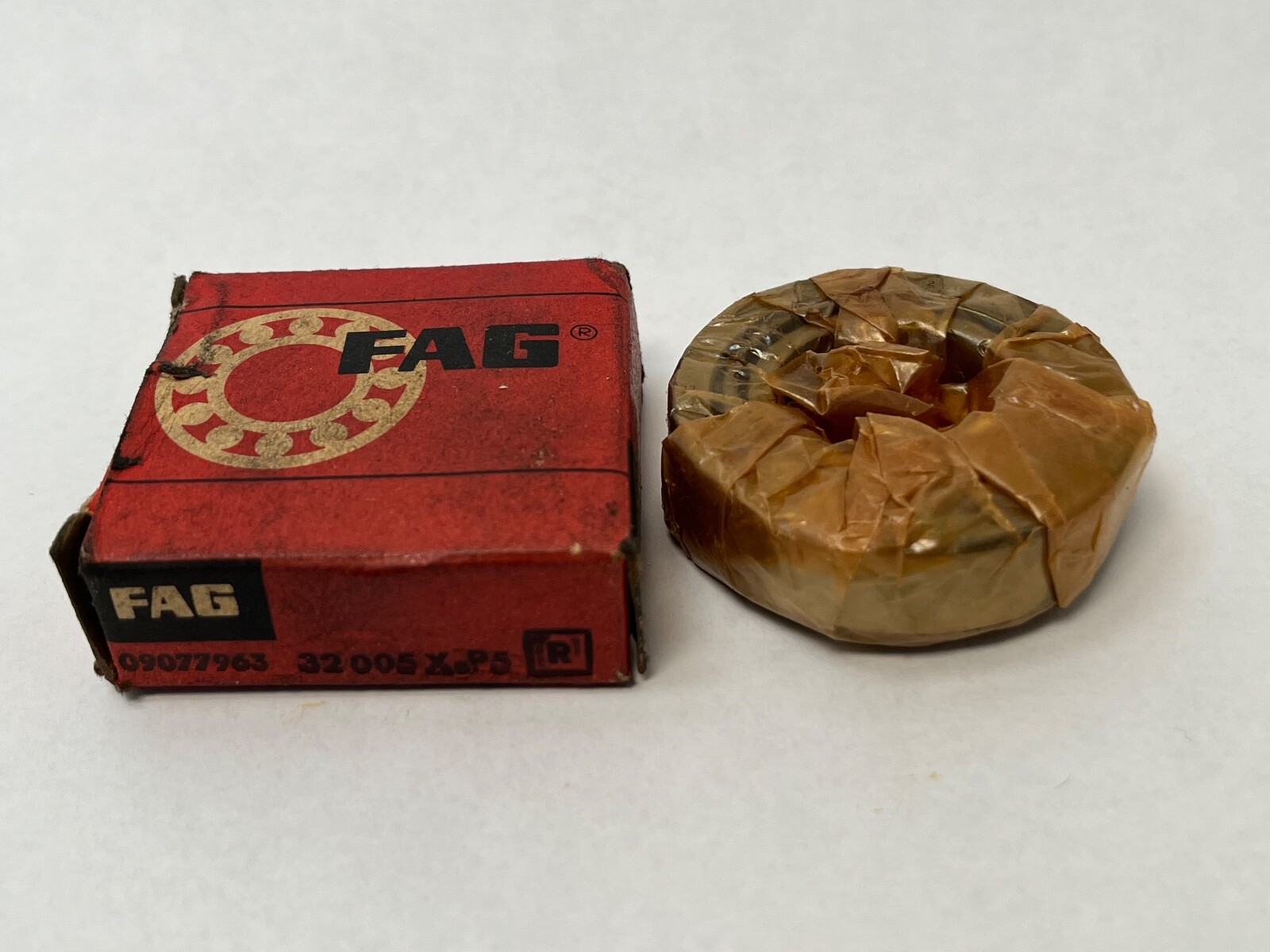

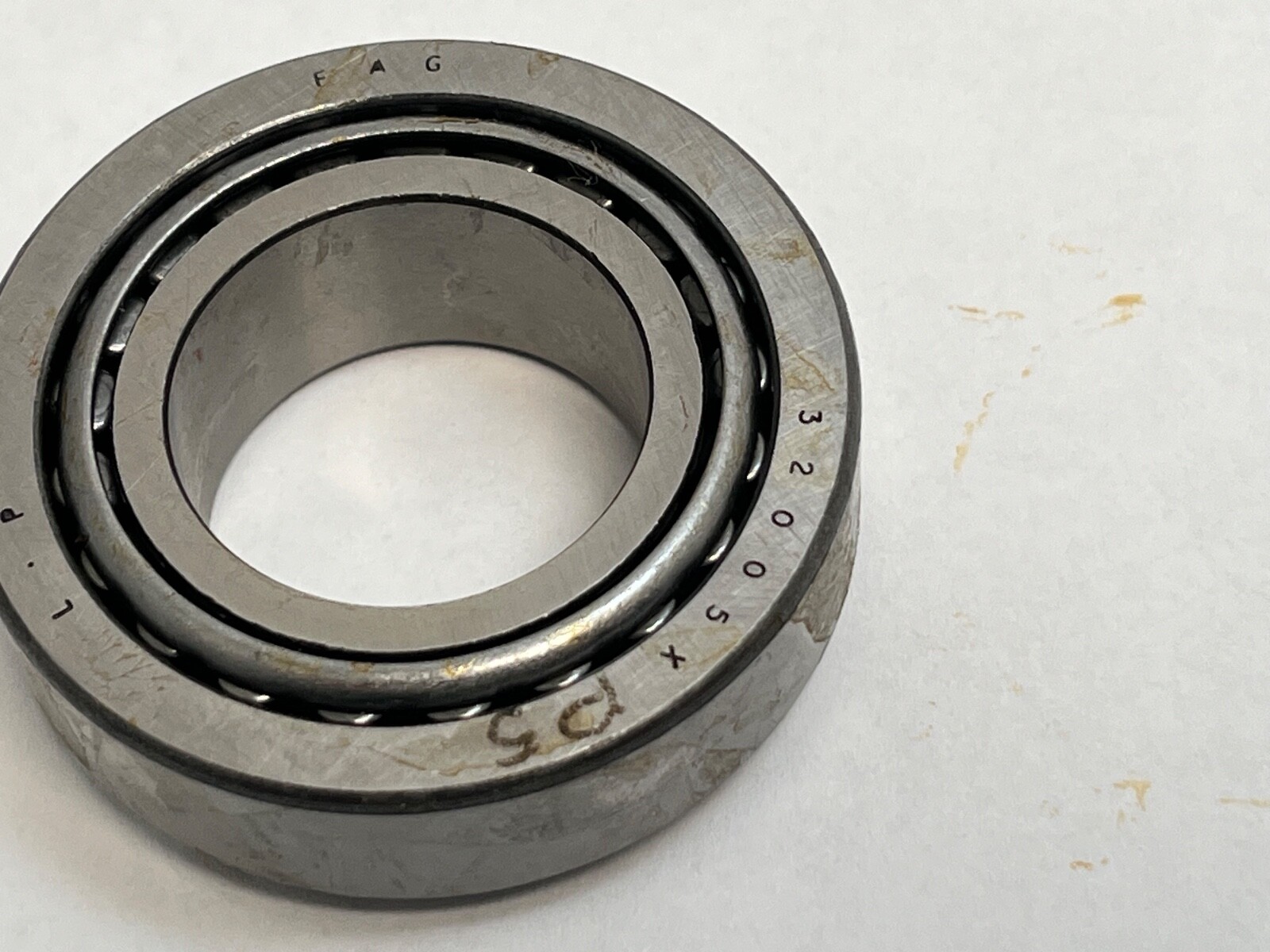

FAG 32005X.P5 tapered roller bearing, cone and cup, 25 mm bore x 47 mm OD x 15 mm wide, P5 precision class. Metric 320 series, ISO 355 T4CC025.
List Price
$24.61
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 32005XP5 |
| Model | 32005-X-P5 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 25 mm |
| OD | 47 mm |
| Width | 15 mm |
| Base Number | 32005 |
|---|---|
| Industry Terms | tapered roller bearing, metric taper bearing, precision tapered roller bearing, 320 series, T4CC025 |
| Common Misspellings | 32005XP5 FAG, 32005-XP5, 3205X P5 |
| Application Types | machine tool spindles, gearboxes, precision drives |
| Total Width | 15 mm |
| Mpn Variants | 32005X.P5, 32005-X-P5, 32005XP5, 32005 X P5, 32005-X-XL-P5 |
| Compatible With Replaces | Current designation FAG 32005-X-XL-P5 |
| Precision Class | RBEC 5 / P5 |
| Additional Attributes | Successor 32005-X-XL-P5 data: Dynamic Load Rating, Static Load Rating, Limiting Speed and Item Weight rows carry Schaeffler figures for 32005-X-XL-P5. Cone width 15 mm; cup width 11.5 mm; ISO 355 T4CC025. |
| Dynamic Load Rating | 33,000 N |
| Static Load Rating | 34,000 N |
| Item Weight | 0.116 kg (0.25 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 18,900 rpm |
| Cross Reference 1 | SKF 32005 X/Q (standard precision) |
|---|---|
| Cross Reference 2 | Timken 32005X (standard precision) |
| Cross Reference 3 | NSK HR32005XJ (standard precision) |

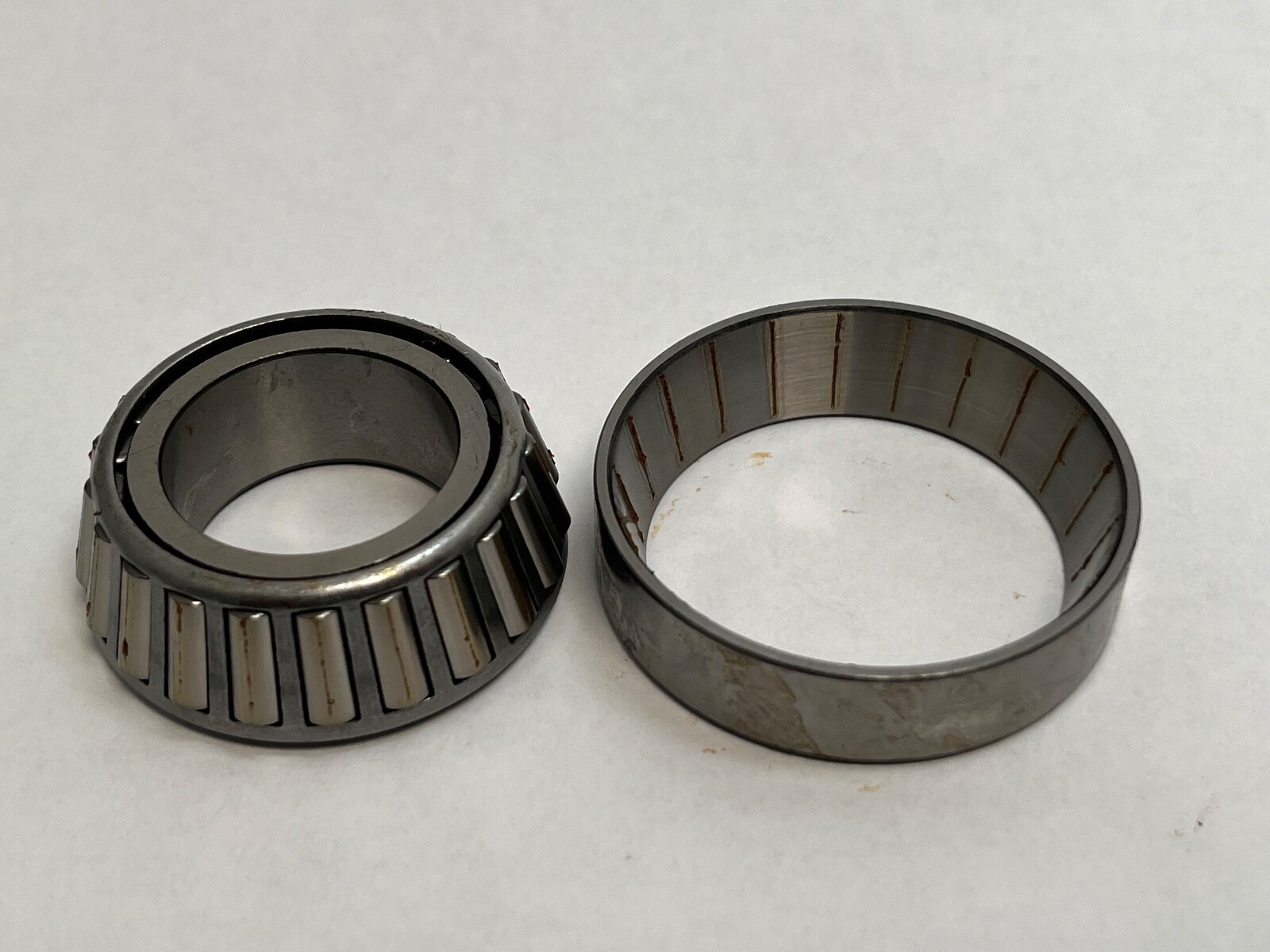

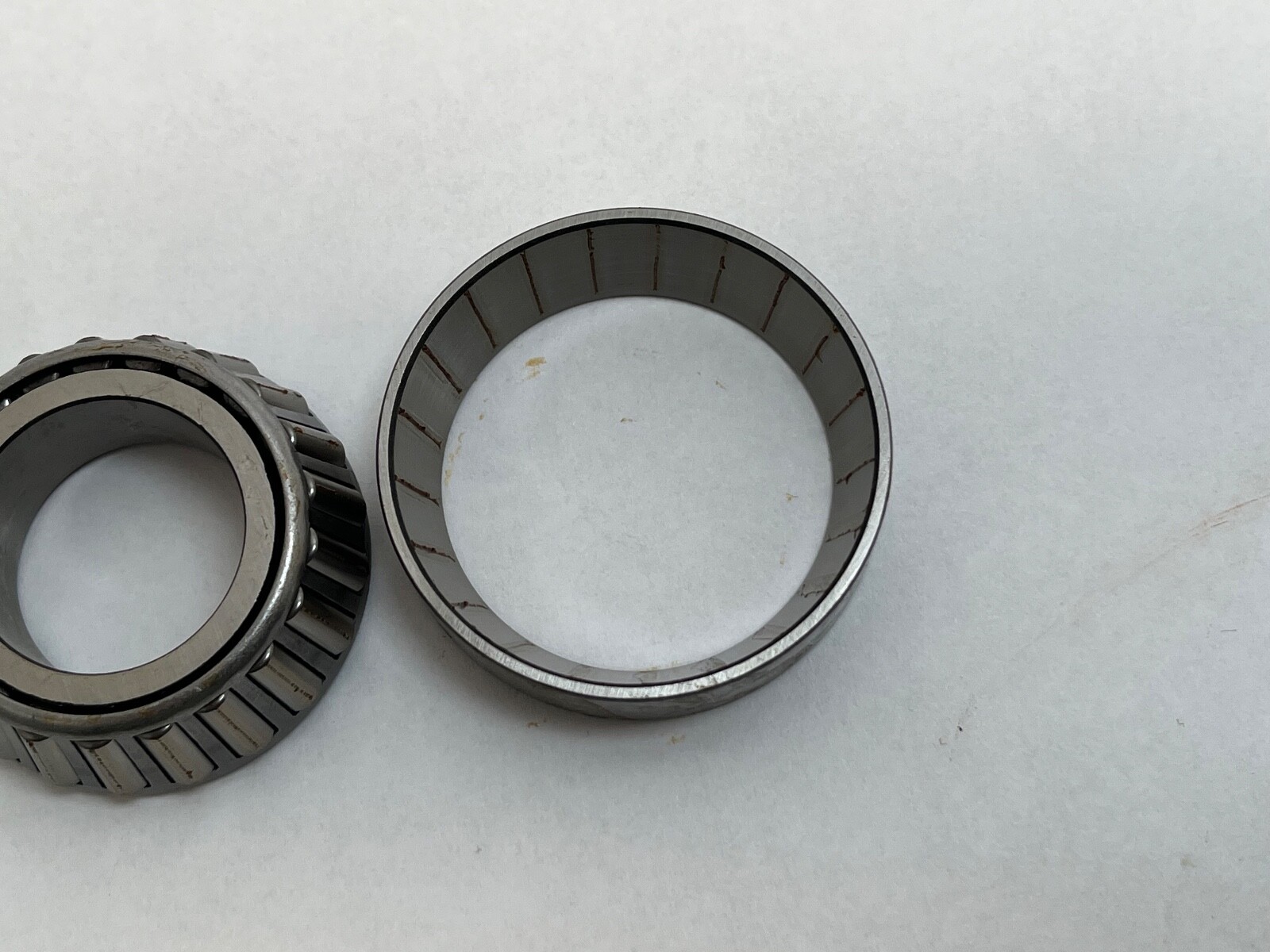

FAG 32005X.P5 single-row metric tapered roller bearing, cone and cup, P5 tolerance class. Bore Diameter: 25 mm. Outside Diameter: 47 mm. Total Width: 15 mm. Cone width: 15 mm. Cup width: 11.5 mm. Separable: cone (inner ring with rollers and cage) and cup mount independently.
320 — tapered roller bearing series 320, main dimensions to DIN 720 (ISO 355 designation T4CC025).
05 — bore code; 05 × 5 = 25 mm bore.
X — ISO-conforming boundary dimensions.
P5 — ISO tolerance class 5, tighter dimensional and running accuracy than normal class.
The current Schaeffler designation is 32005-X-XL-P5 (X-life).
Successor 32005-X-XL-P5 data: Dynamic Load Rating: 33,000 N. Static Load Rating: 34,000 N. Limiting Speed: 18,900 rpm. Item Weight: 0.116 kg (0.25 lb). Precision Class: RBEC 5 / P5. Rolling Elements: Tapered Roller.
Successor 32005-X-XL-P5 data: Maximum shaft shoulder diameter: 30 mm. Housing shoulder diameter: 40–44 mm. Maximum fillet radius, shaft and housing: 0.6 mm. Effective load centre distance a: 12 mm.
Unit Quantity: 1 Set (one cone and one cup).
Same 25 x 47 x 15 mm envelope (standard-precision equivalents): SKF 32005 X/Q, Timken 32005X, NSK HR32005XJ. Schaeffler current designation: FAG 32005-X-XL-P5.
