SKF7212CDP4ADGCSuper-Precision Angular Contact Ball Bearing – 60 mm ID, 110 mm OD, 22 mm Width, 15° Contact Angle, Medium Preload, Open, P4A

Product Description

What this part is

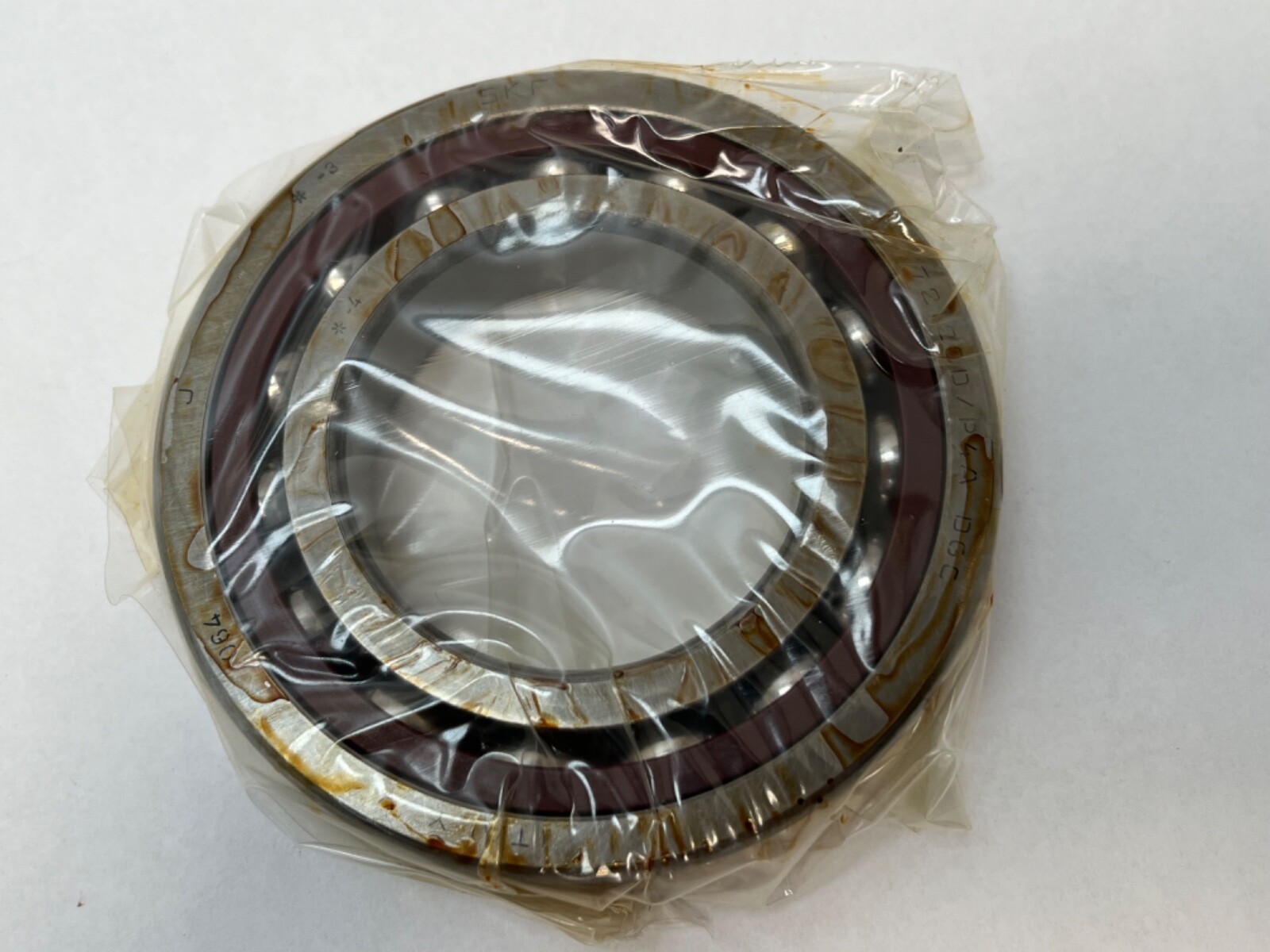

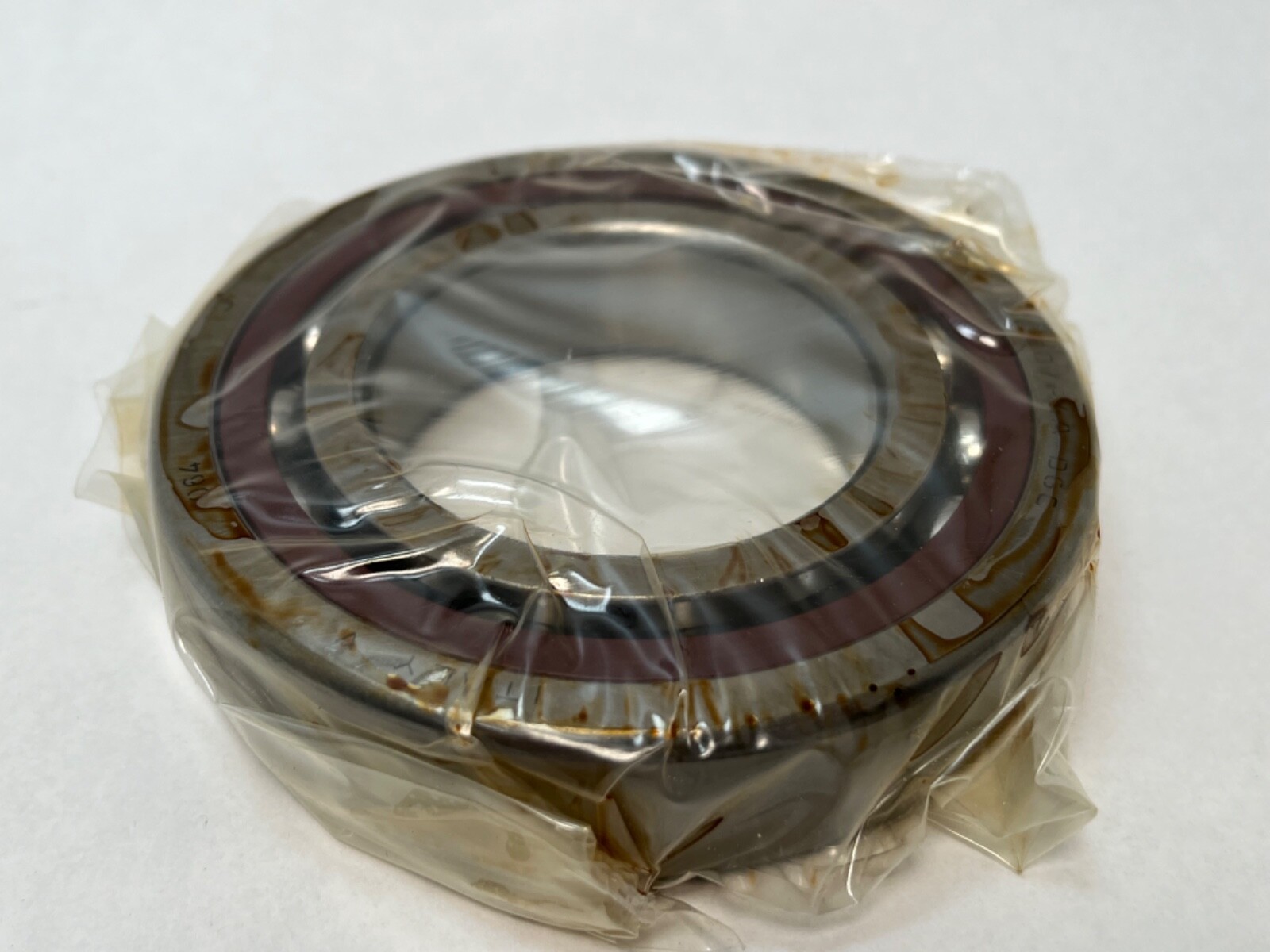

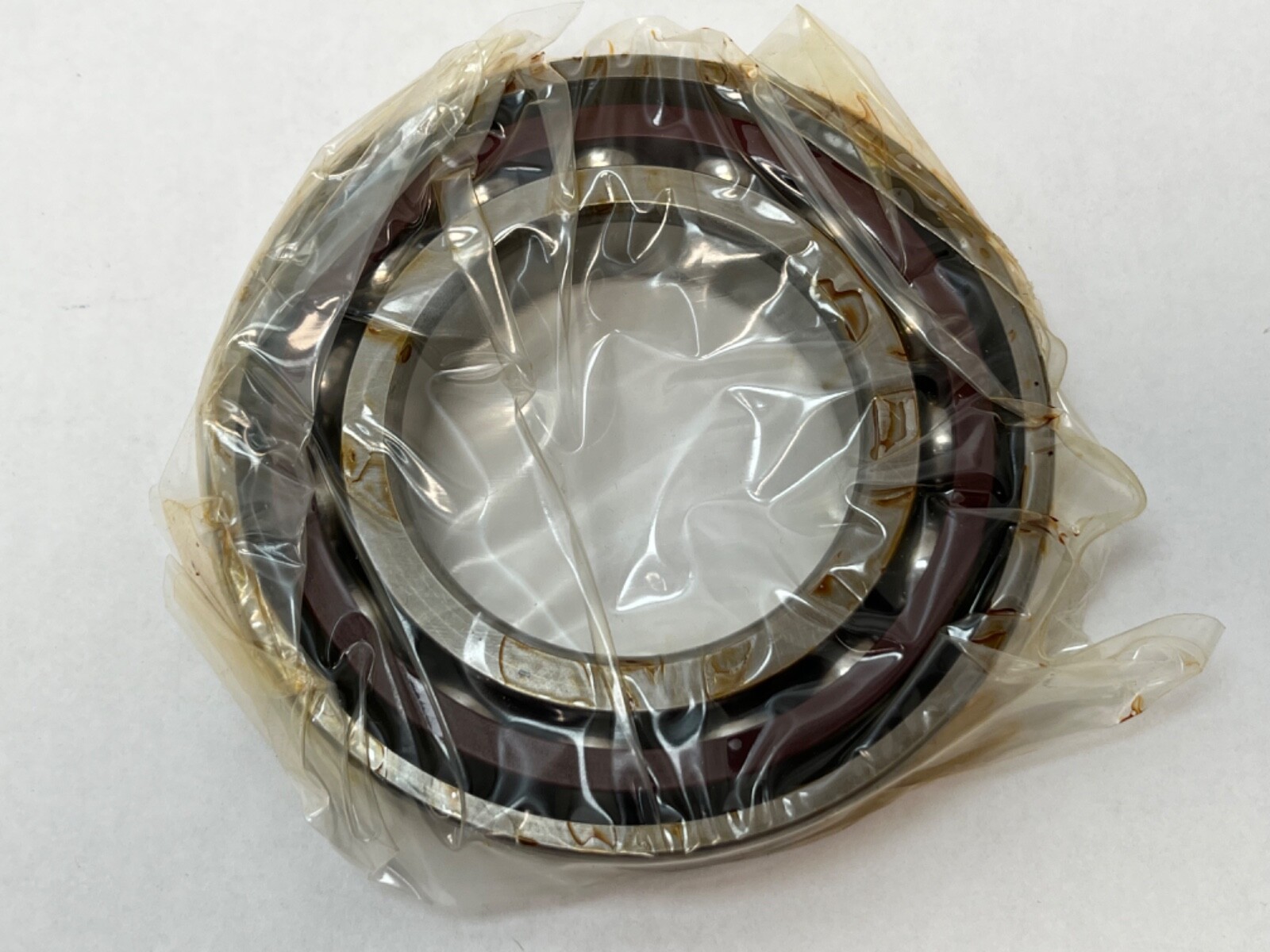

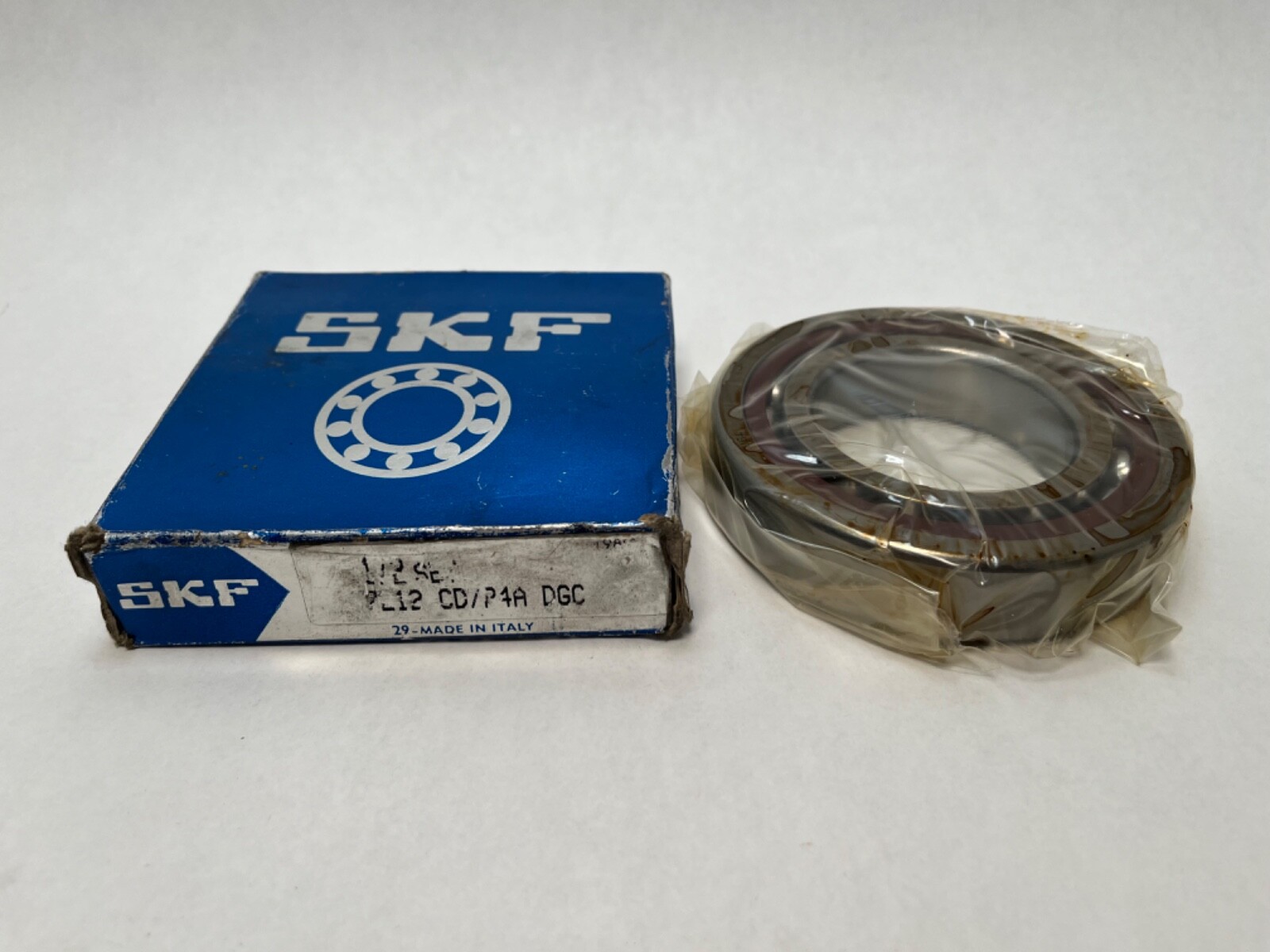

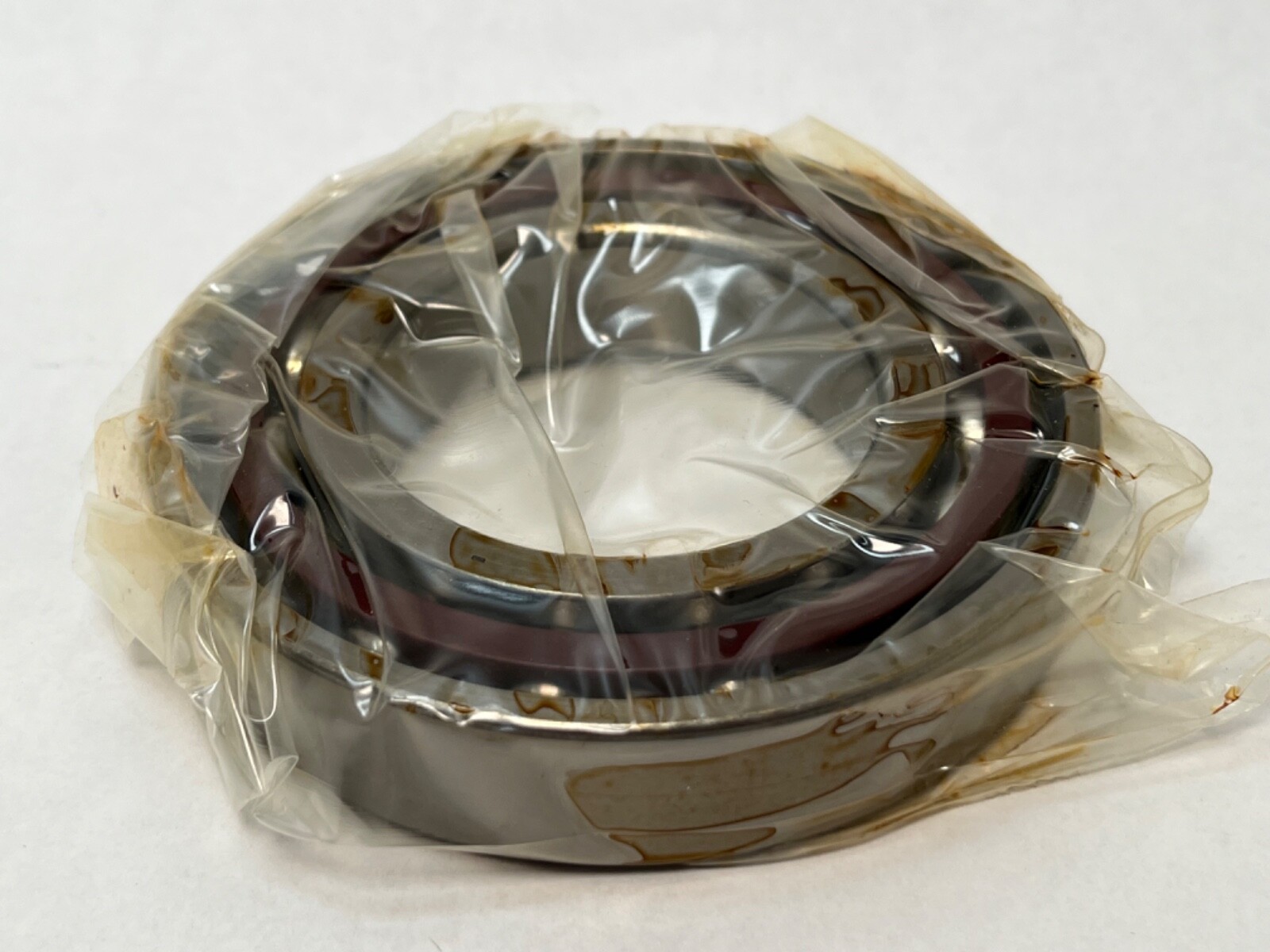

SKF 7212 CDGC/P4A super-precision angular contact ball bearing. Bore 60 mm, outside diameter 110 mm, width 22 mm. Single row, open on both faces, universally matchable, supplied to P4A precision.

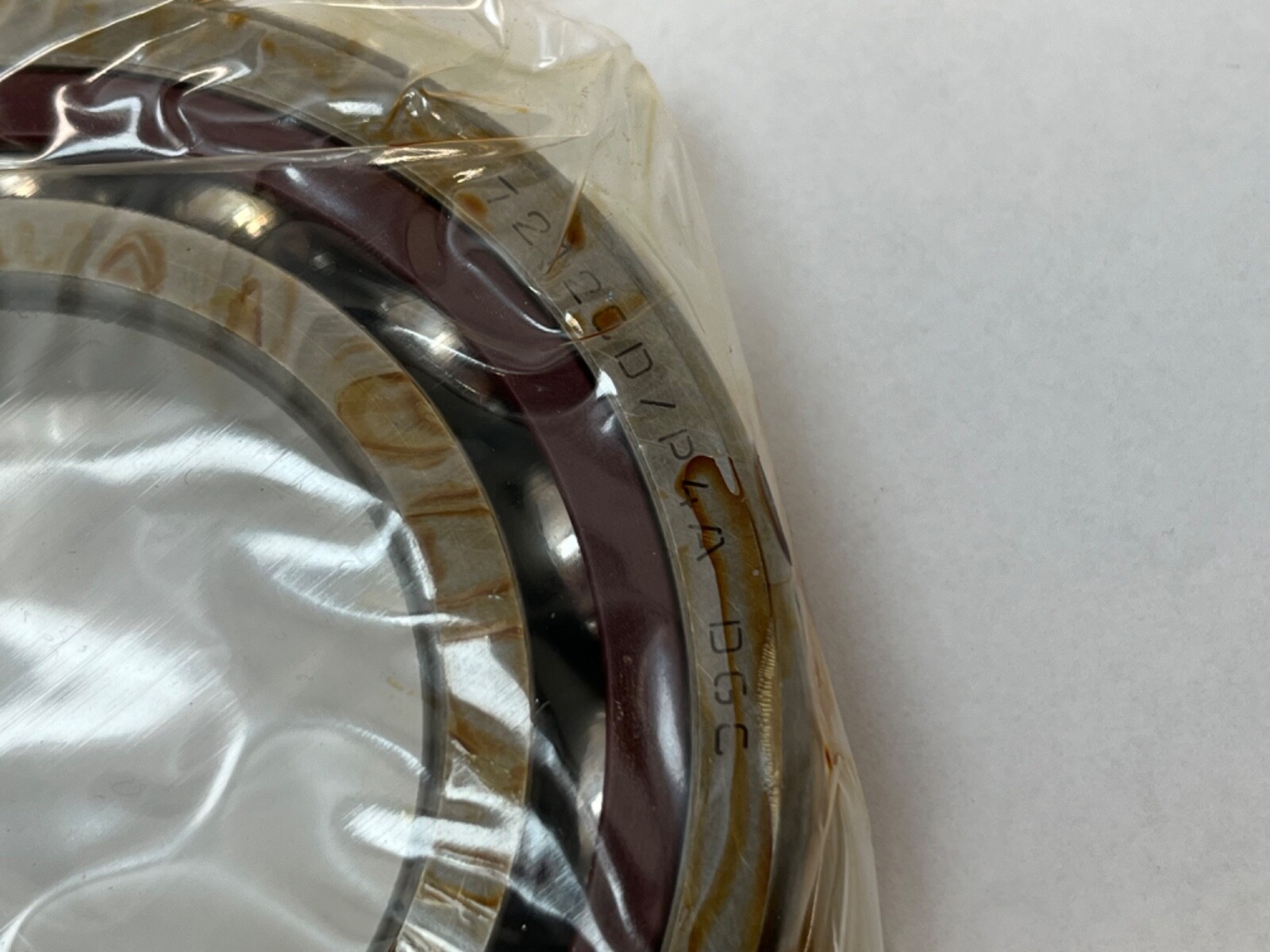

Decoding the designation

In SKF’s super-precision scheme 7212 is the ISO 72 series size code. CD is the D-design 15° contact angle execution with a machined cage. GC — universally matchable, medium preload. P4A is SKF’s super-precision tolerance class, equivalent to ABEC 7.

What these specs mean in practice

A 15° contact angle favours speed and radial stiffness over thrust capacity; the 25° ACD execution of the same envelope carries more axial load and runs slower. Medium preload raises system stiffness and running accuracy over the extra light and light classes and lowers the permissible speed accordingly.

Quantity and configuration

1 Pc. Universally matchable, so any number of these bearings can be set adjacent in the same arrangement and will produce the published preload without shims or grinding.

Fitting notes

Preloaded bearings are supplied without radial internal clearance, so a clearance class does not apply. Mounting arrangement is set by the spindle design and by how the rings are clamped, not by the GC code.

Interchange guidance

Same-envelope 15° super-precision executions from other makers are listed in the cross-reference attributes. A 25° execution in the same 60 x 110 x 22 mm envelope is a related size, not an interchange, because the contact angle changes the load split.
