Availability:
1 in stock

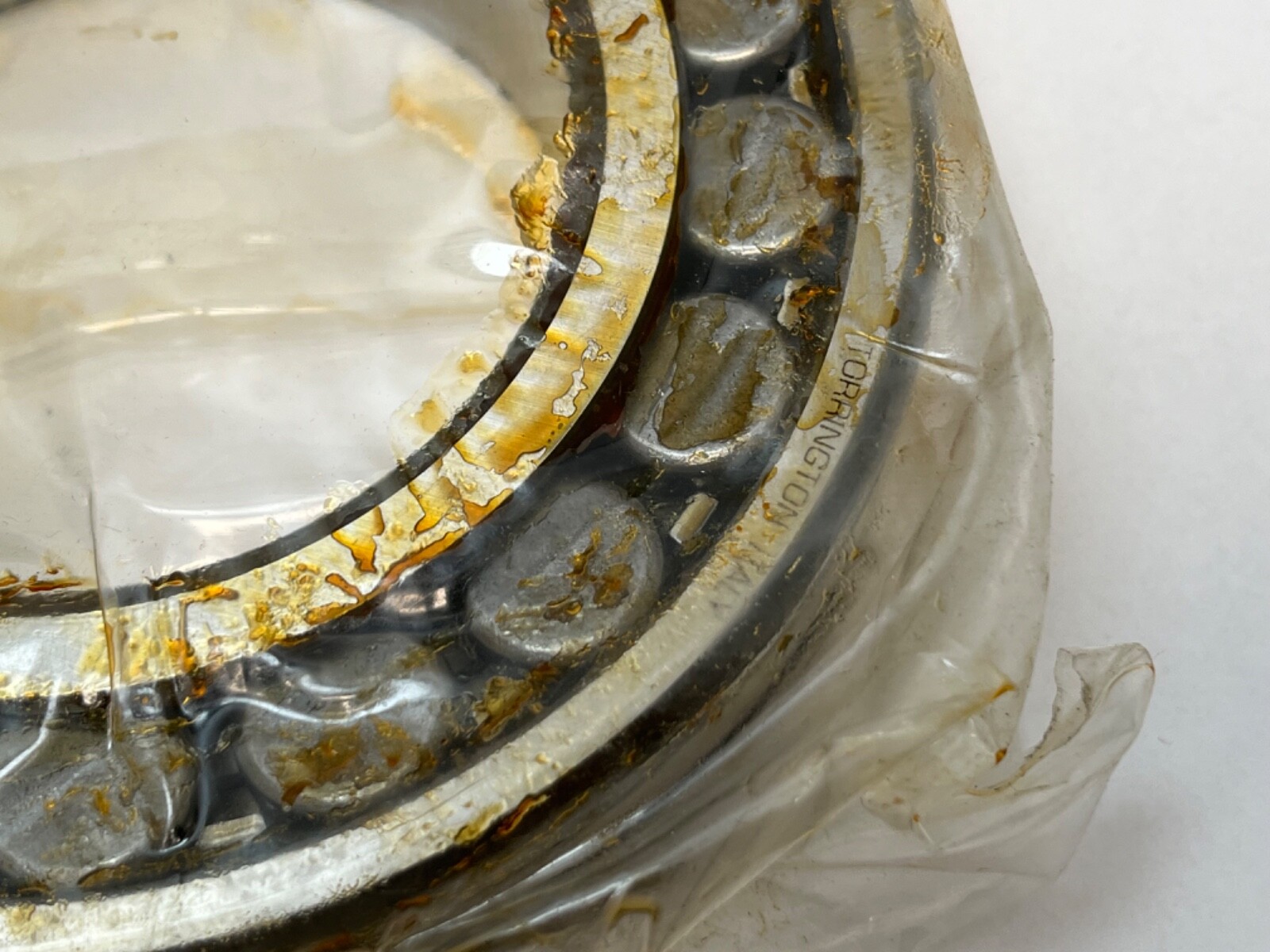

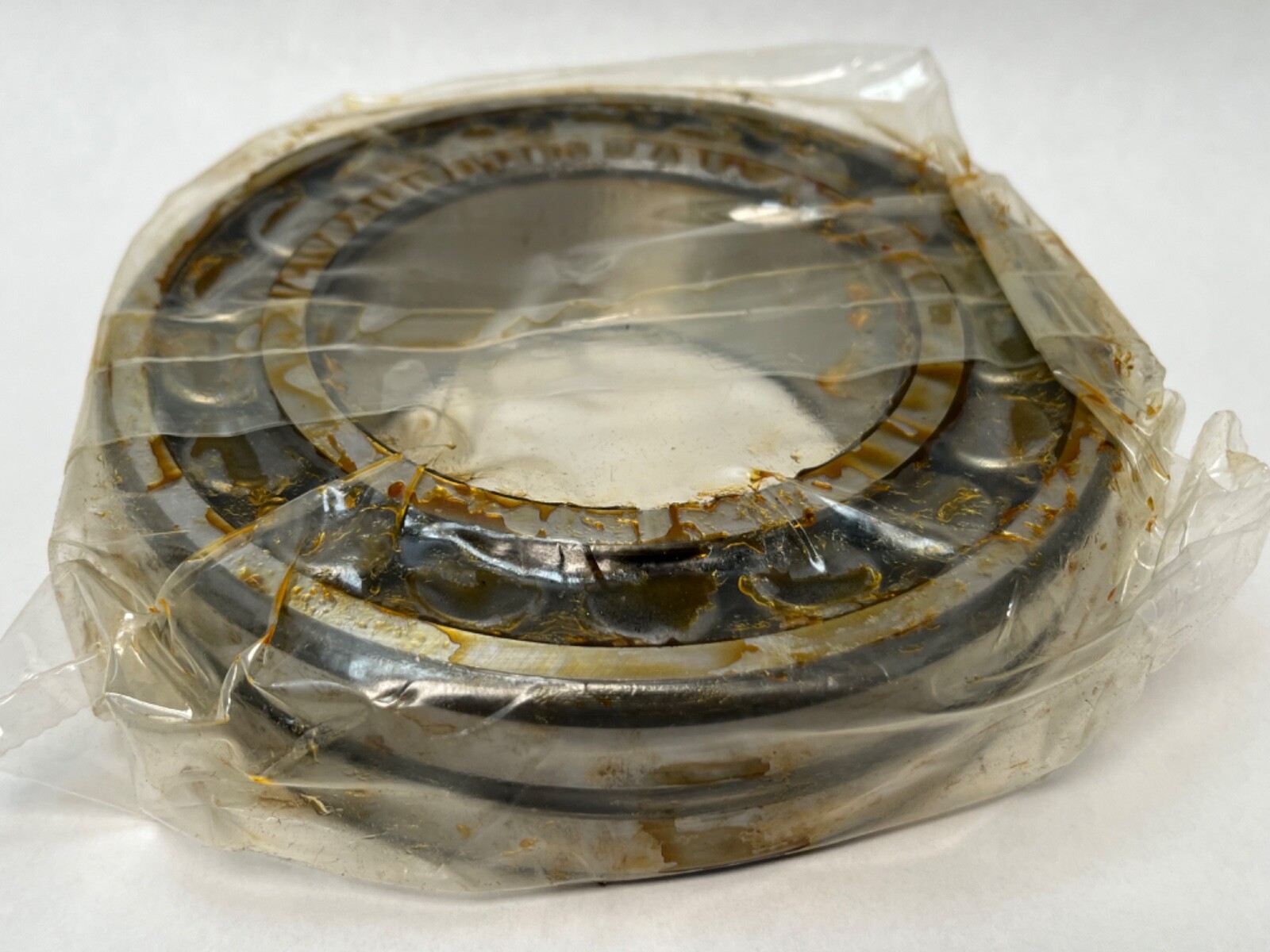

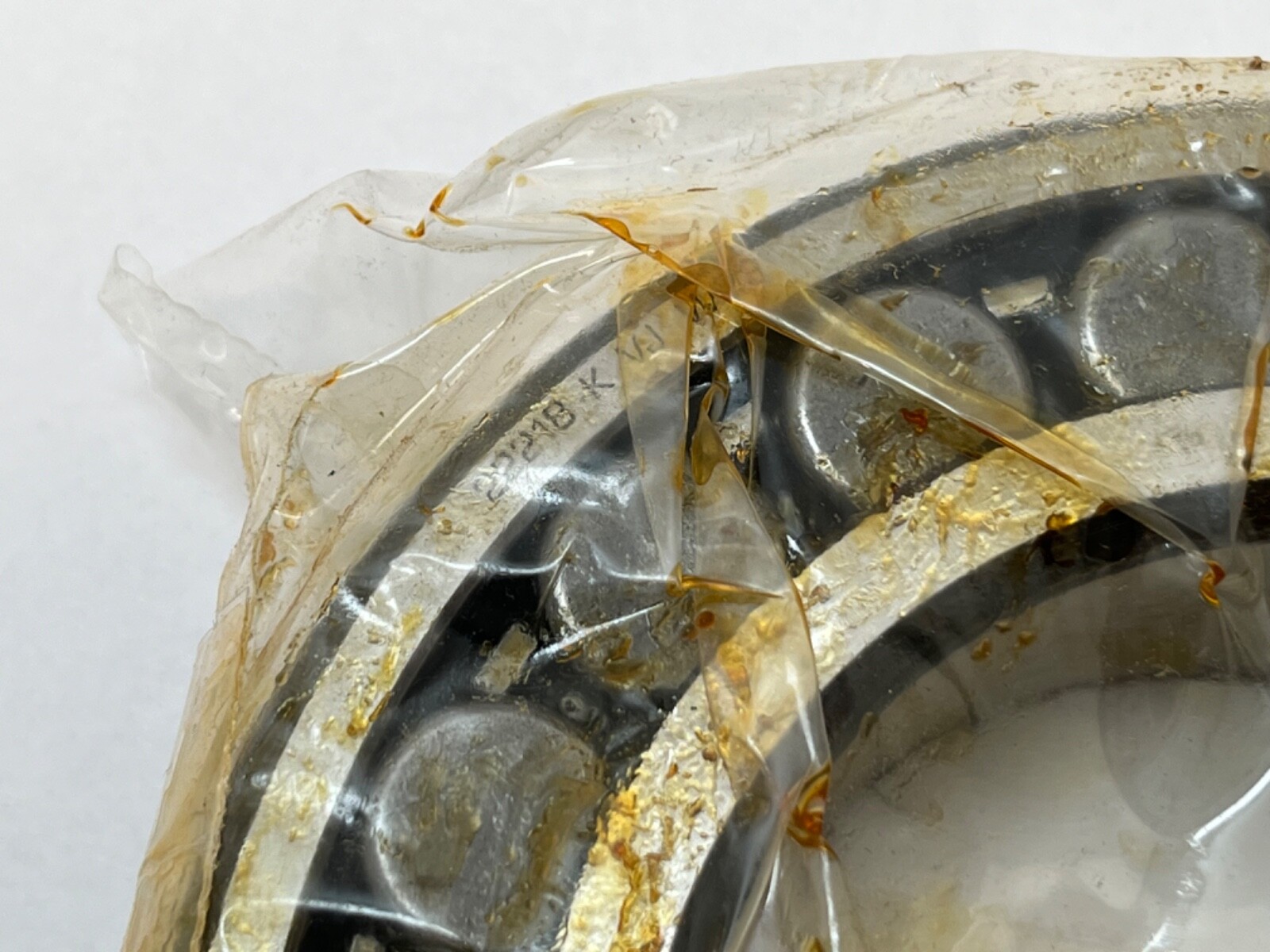

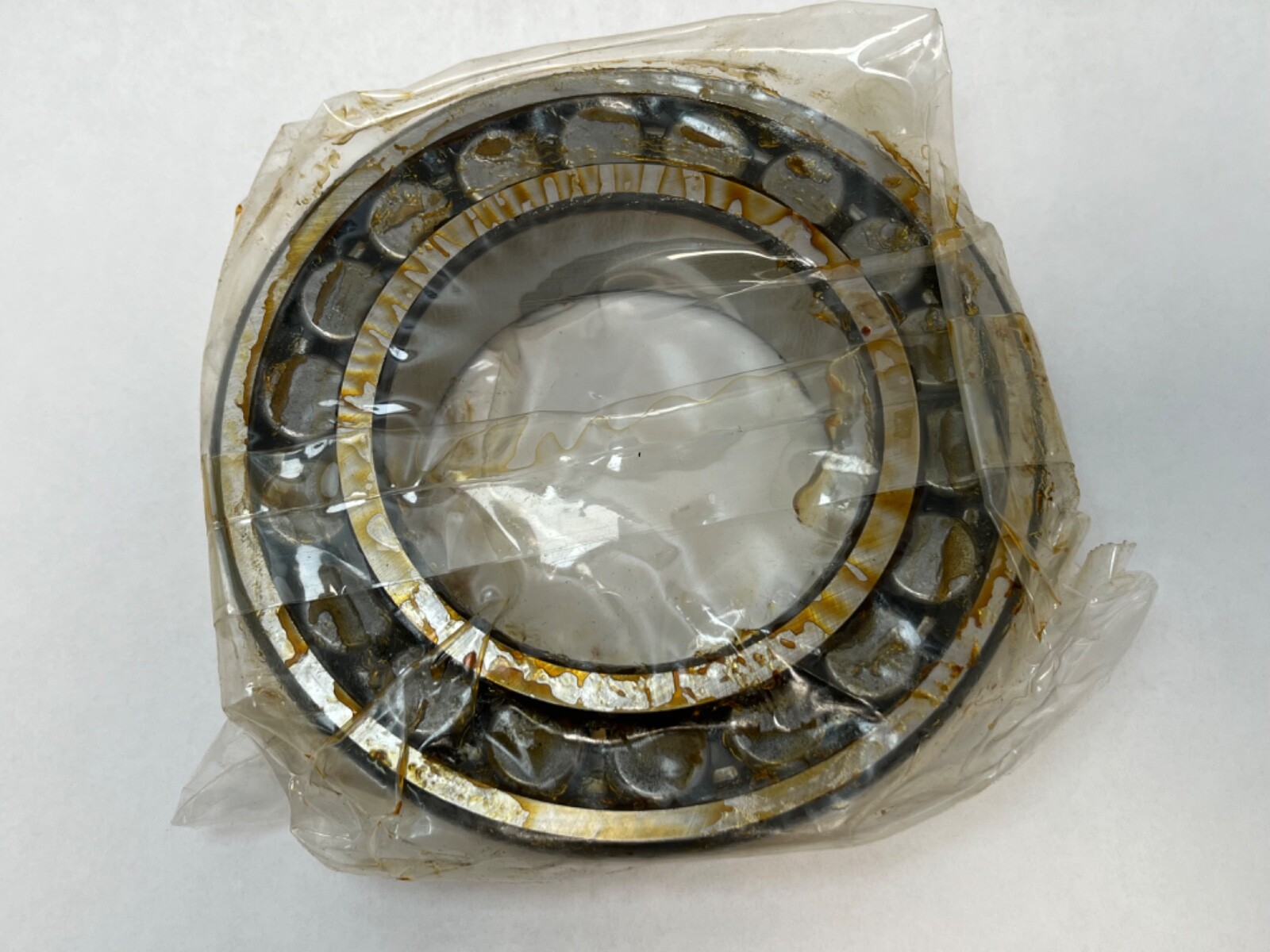

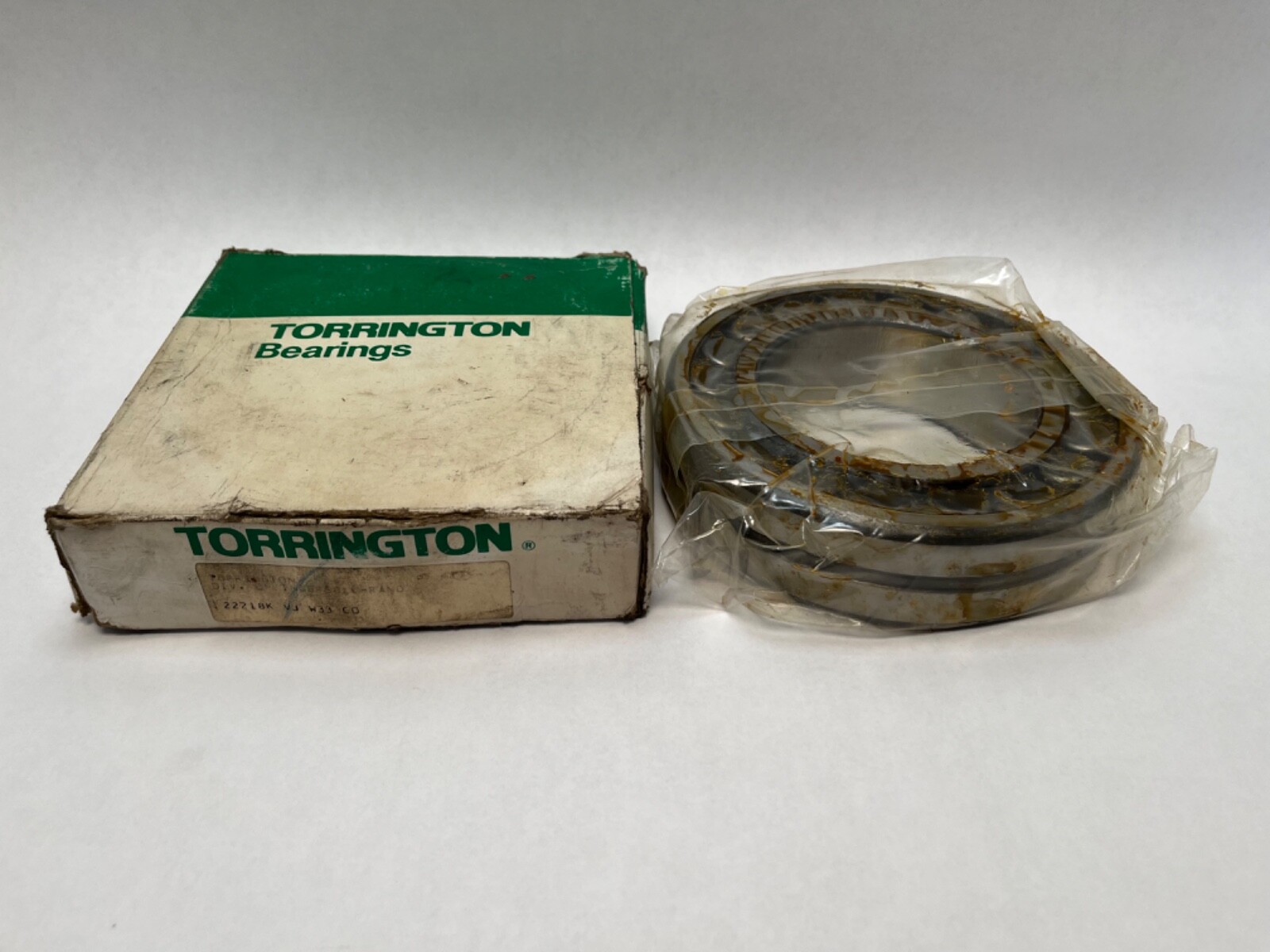

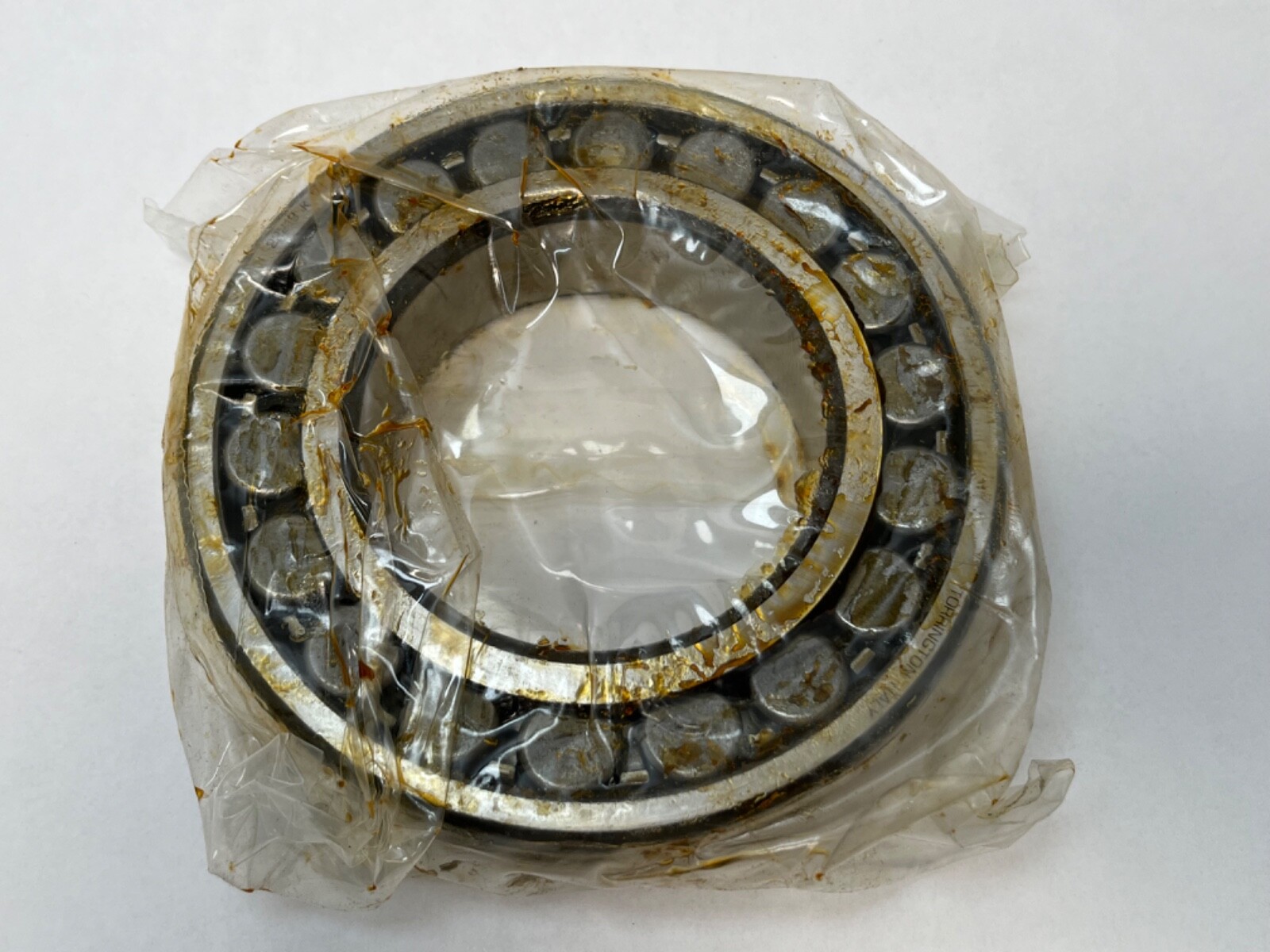

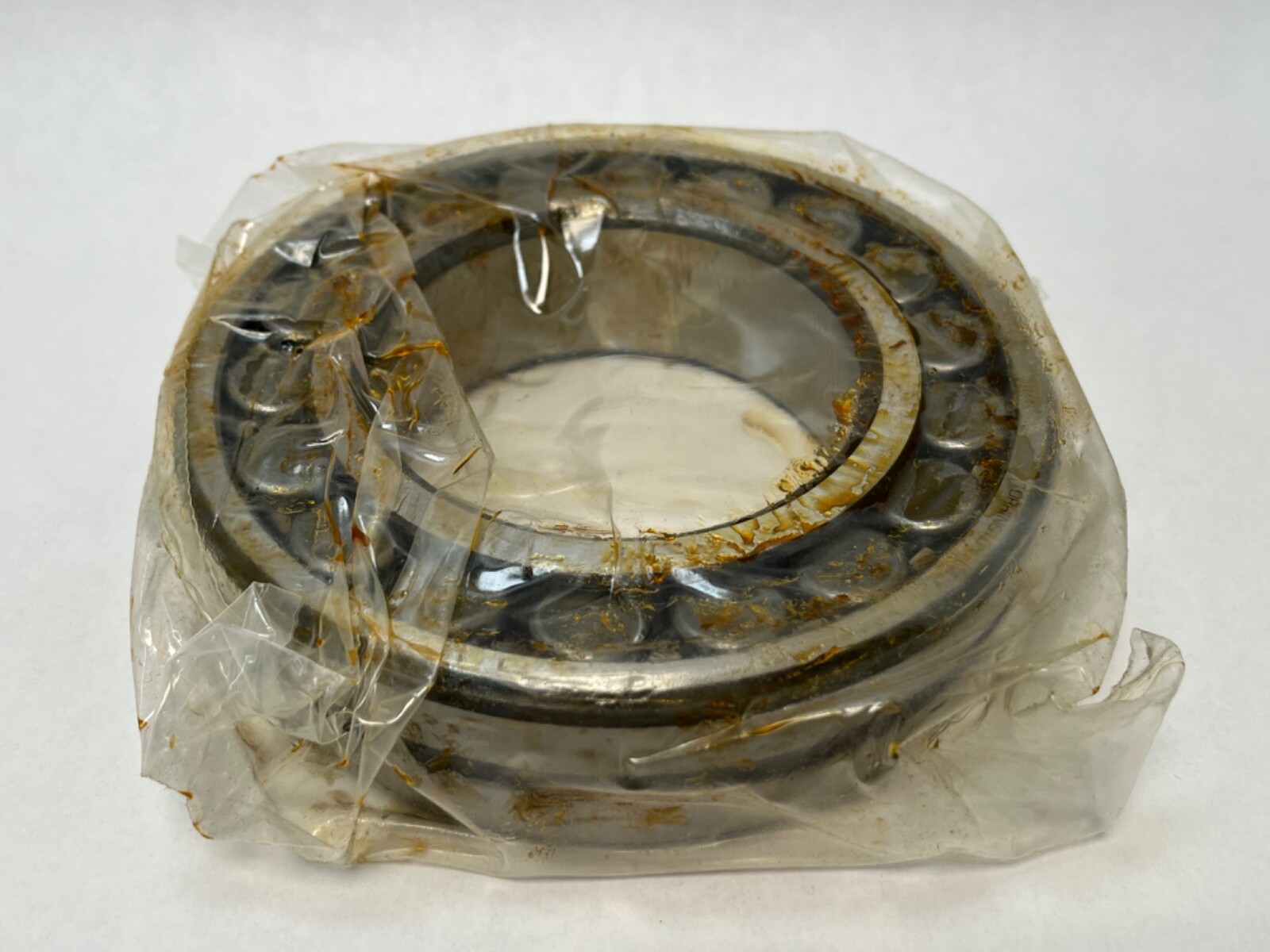

Torrington 22218VJW33C0 spherical roller bearing, 90 mm bore x 160 mm OD x 40 mm wide, straight bore, steel cage, W33 lube groove, normal clearance. Successor: 22218EJW33.
List Price
$102.79
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| Model | 22218VJW33C0 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 90 mm |
| OD | 160 mm |
| Width | 40 mm |
| Series | 22200 |
|---|---|
| Dynamic Load Rating | 355,000 N (Successor 22218EJW33 data) |
| Static Load Rating | 388,000 N (Successor 22218EJW33 data) |
| Rolling Elements | Spherical Roller |
| Cage Material | Steel |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00.80 |
| Internal Clearance | CN |
| Mpn Variants | 22218VJW33C0, 22218-VJ-W33-C0, 22218VJW33 |
| Compatible With Replaces | Timken 22218EJW33 (current successor design) |
| Additional Attributes | Successor 22218EJW33 data: e factor 0.23; Y0 2.83; Y1 2.9; Y2 4.31; shaft backing shoulder 105 mm; housing backing shoulder 146 mm; max fillet radius 2 mm |
| Design Units | Metric |
| Cross Reference 1 | Timken 22218EJW33 |
|---|---|
| Cross Reference 2 | SKF 22218 E |
| Cross Reference 3 | FAG 22218-E1 |
| Cross Reference 4 | NSK 22218EAE4 |
Torrington 22218VJW33C0 double-row spherical roller bearing: 90 mm straight bore, 160 mm outside diameter, 40 mm width, steel cage, W33 lubrication groove, normal clearance. Torrington is a Timken brand; the current Timken design is 22218EJW33.
222 — spherical roller bearing, ISO dimension series 22.
18 — bore code. 18 × 5 = 90 mm bore.
VJ — Torrington internal design with steel cage.
W33 — lubrication groove with three radial holes in the outer ring.
C0 — normal radial internal clearance (CN).
Bore Diameter: 90 mm. Outside Diameter: 160 mm. Overall Width: 40 mm. Bore Type: Straight. Rolling Elements: Spherical Roller. Number Of Rows: 2. Cage Material: Steel. Internal Clearance: CN. Closure Type: Open. Lubricant: grease or oil.
Successor 22218EJW33 data: Dynamic Load Rating: 355,000 N. Static Load Rating: 388,000 N. Reference Speed: 3,400 rpm grease; 4,100 rpm oil. e factor: 0.23. Y1: 2.9. Y2: 4.31. Y0: 2.83.
The spherical outer raceway lets the bearing self-align under shaft deflection while carrying heavy radial load and axial load in both directions. The W33 groove feeds grease or oil to the centre of both roller rows.
Successor 22218EJW33 data: Shaft Backing Shoulder Diameter: 105 mm. Housing Backing Shoulder Diameter: 146 mm. Maximum Fillet Radius: 2 mm.
Unit Quantity: 1 Pc. One complete bearing.
Same 90 × 160 × 40 mm straight-bore, normal-clearance envelope: Timken 22218EJW33, SKF 22218 E, FAG 22218-E1, NSK 22218EAE4, NTN 22218EAW33.
