This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Spherical Roller Bearing — 150 mm ID Tapered Bore, 270 mm OD, 73 mm Width, Brass Cage, C3 Clearance, Lubrication Groove$363.34
Double-Row Spherical Roller Bearing 150 x 270 x 73 mm Tapered 1:12 Bore Polyamide Cage C3 Clearance W33$368.52
Spherical Roller Bearing - 150 mm ID, 270 mm OD, 73 mm Width, 1:12 Tapered Bore, W33 Lubrication Groove, CN Clearance$374.82

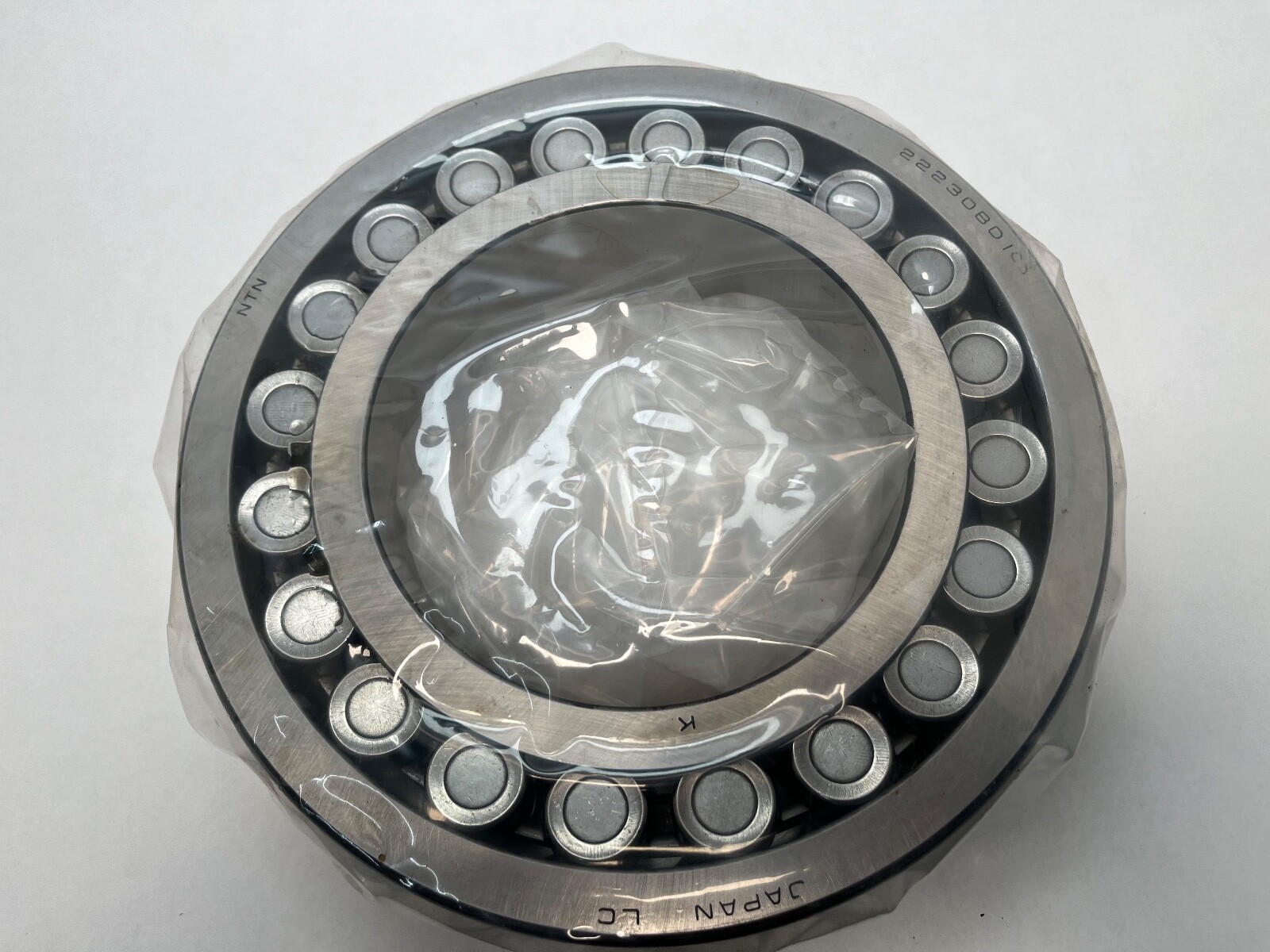

Spherical Roller Bearing - 150 mm ID, 270 mm OD, 73 mm Width, Straight Bore, Lubrication Groove, C3$374.82| MFR / Brand | NTN |
|---|---|
| MPN | 22230BKD1C3 |
| Model | 22230 B/J K D1/W33 C3 / 22230 CKJ/CCKJ C3 W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 150 mm |
| OD | 270 mm |
| Width | 73 mm |
| Material | Bearing Steel |
|---|---|
| Series | 222 |
| Lubricant | Oil/Grease |
| Min Temp | -40°C |
| Cage Type | Machined |
| Dynamic Load Rating | 1080 kN / 242796 lbf |
| Static Load Rating | 1220 kN / 274268 lbf |
| Precision Rating | P0 / ABEC 1 |
| Rolling Elements | Spherical Rollers |
| Max Temp | 200°C |
| Item Weight | 39.60 lbs |
| Cage Material | Steel |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | Without Snap Ring |
| Relubrication Feature | Yes |
| Harmonization Code | 8482.30.00.80 |
| Internal Clearance | C3 |
| Limiting Speed | 2200 rpm |
| Maximum Permissible Misalignment | 0.5° |
| Cross Reference 1 | SKF 22230 EK/C3 |
|---|---|
| Cross Reference 2 | FAG 22230-E1-K-C3 |
| Cross Reference 3 | Timken 22230KEMBW33C3 |
| Cross Reference 4 | NSK 22230EAKE4C3 |
| Cross Reference 5 | KOYO 22230RZKC3 |
