SNR22210KDouble-Row Spherical Roller Bearing – 50 mm Tapered Bore, 90 mm OD, 23 mm Width, CN Clearance, H310 Sleeve Mounting, 2 Pcs

Product Description

What this part is

SNR 22210K double-row spherical roller bearing. Series: 22200. Base Number: 22210. Bore: 50 mm. Outside Diameter: 90 mm. Overall Width: 23 mm. Bore Type: Tapered 1:12. Closure Type: Open. Number Of Rows: 2. Rolling Elements: Spherical Roller. Cage Type: Pressed. Cage Material: Pressed steel. Internal Clearance: CN. Precision Class: P0 / ABEC 1. Bearing Material: Chrome bearing steel. Item Weight: 0.602 kg (1.33 lb). Operating Temperature Range: −40 °C to 200 °C. Harmonization Code: 8482.30.00.80. Searchable variants of the number: 22210K, 22210 K, 22210-K, 22210VK, 22210 V K, 22210-V-K, SNR22210K.

Decoding the designation

Series: 222 — the wide double-row spherical roller dimension series. Bore code 10: 50 mm bore. K: 1:12 tapered bore. V: internal design modification. No clearance suffix, so the clearance is CN, the normal radial class.

Bore form and mounting hardware

The bore is tapered 1:12 and the 50 mm figure is the small-end bore diameter. The matching adapter sleeve is an SNR H310 — its tapered outside diameter is 50 mm and its cylindrical shaft seat is 45 mm, so the bearing mounts on a 45 mm plain shaft. The matching lock nut is a KM10 and the matching lock washer is an MB10. The taper also seats directly on a 1:12 machined shaft seat.

What these specs mean in practice

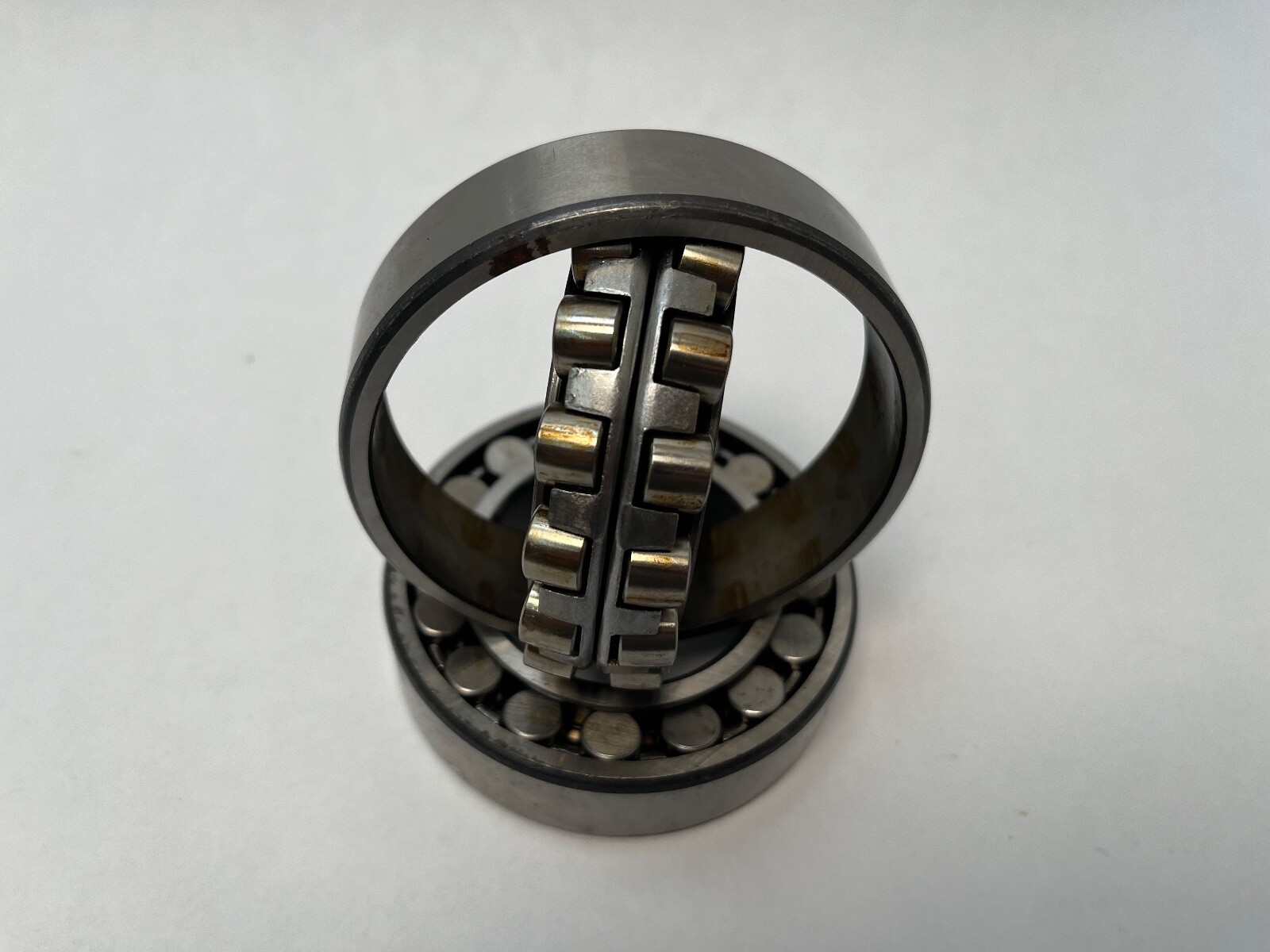

Two rows of barrel rollers run on a common spherical raceway in the outer ring, so the inner ring and roller set swivel inside the outer ring. Permissible Misalignment: 0.5° at normal load, which absorbs shaft deflection and housing bore misalignment. The large roller-to-raceway contact area carries heavy shock and dead load, and the double-row arrangement takes axial load in both directions alongside the radial load. CN clearance suits a shaft-mounted fit at ambient running temperature.

Quantity and configuration

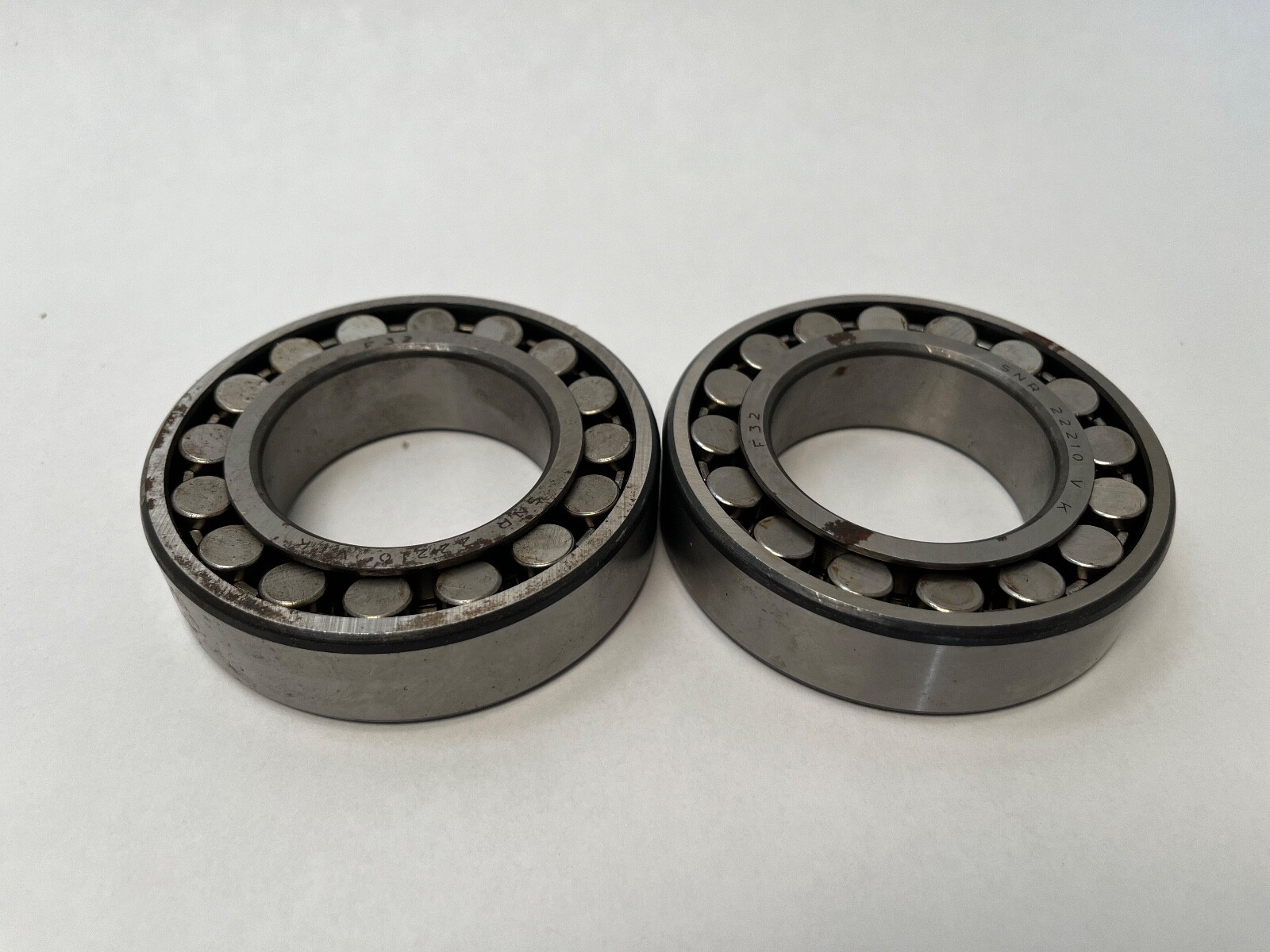

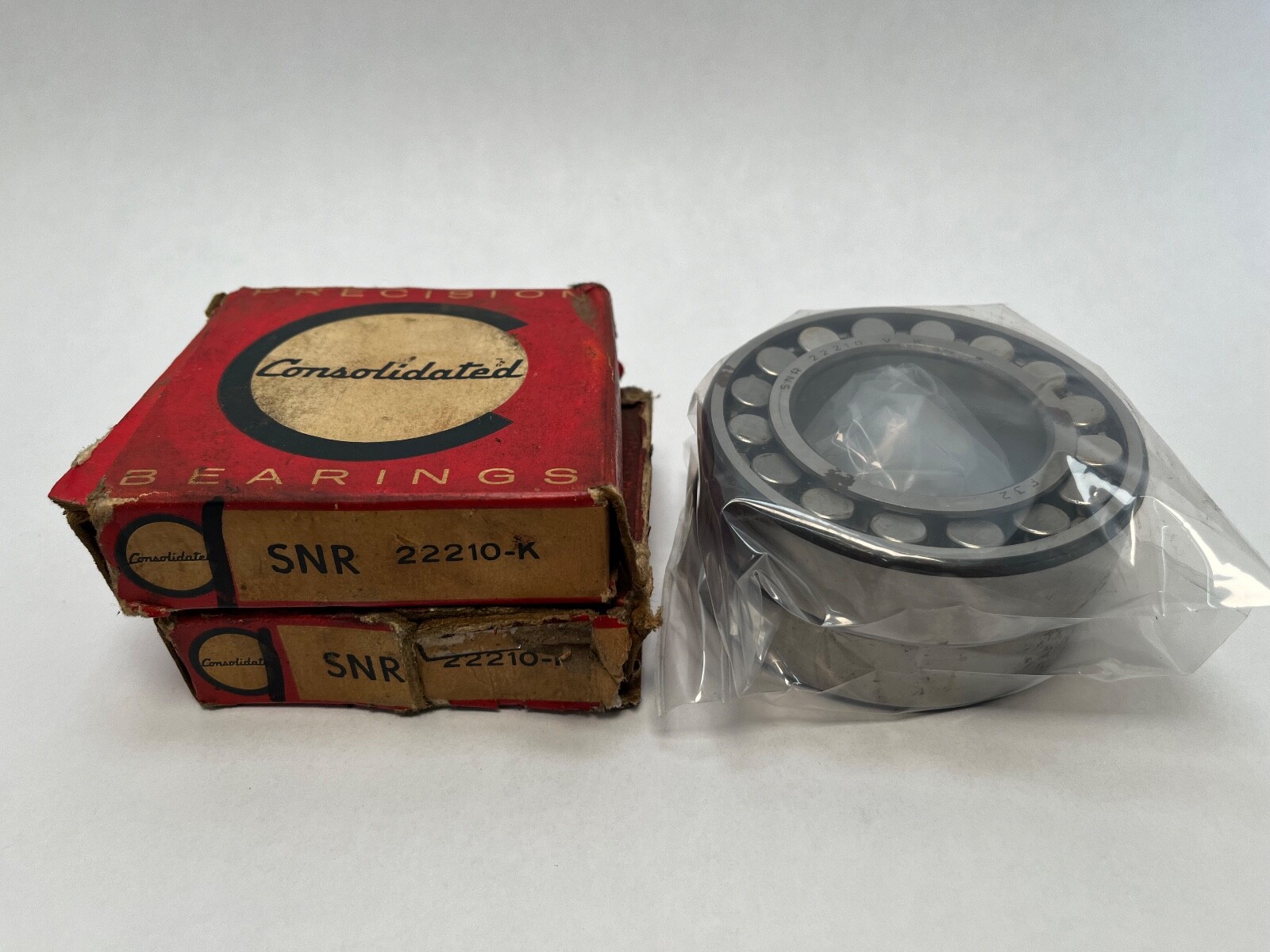

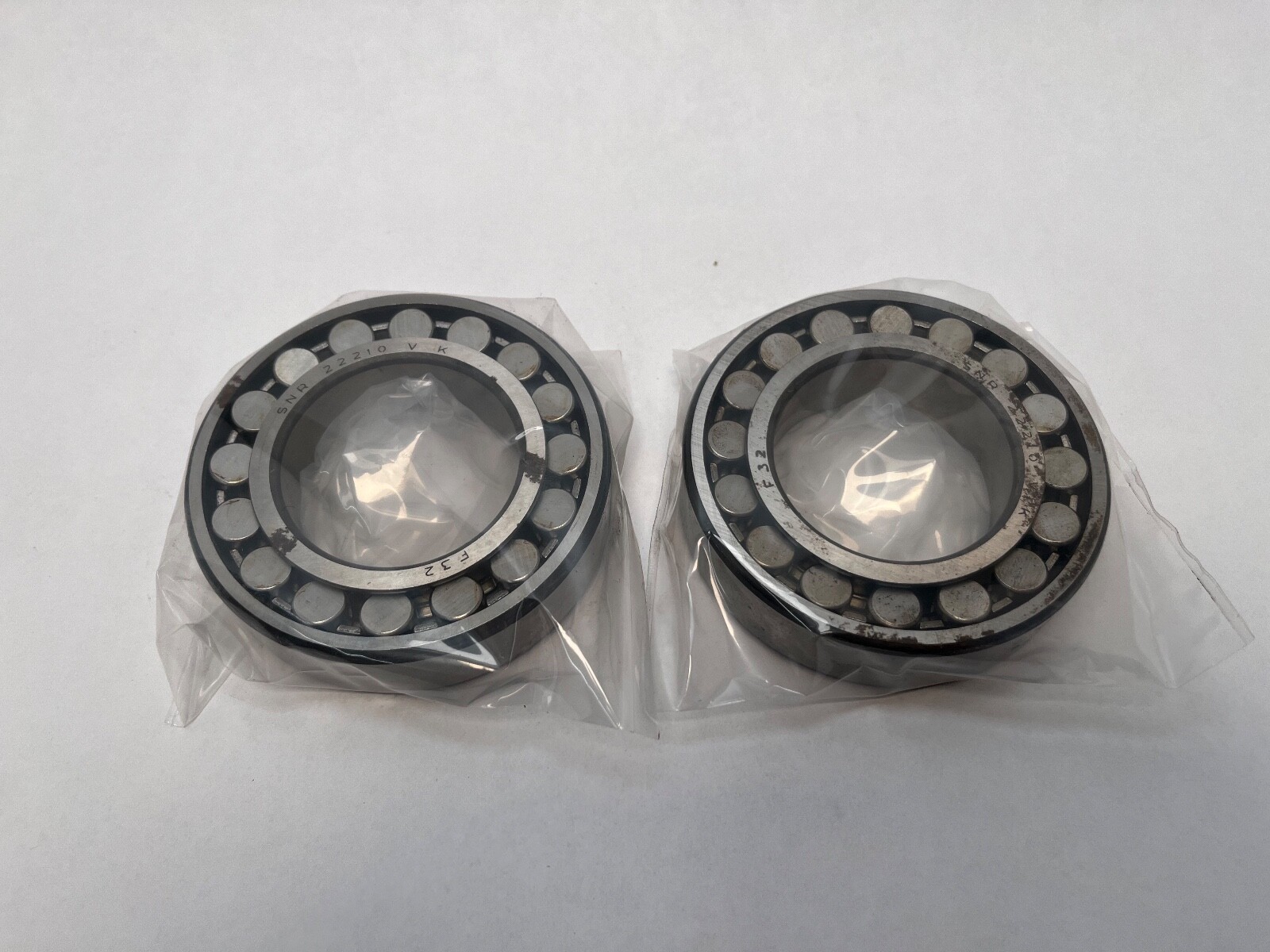

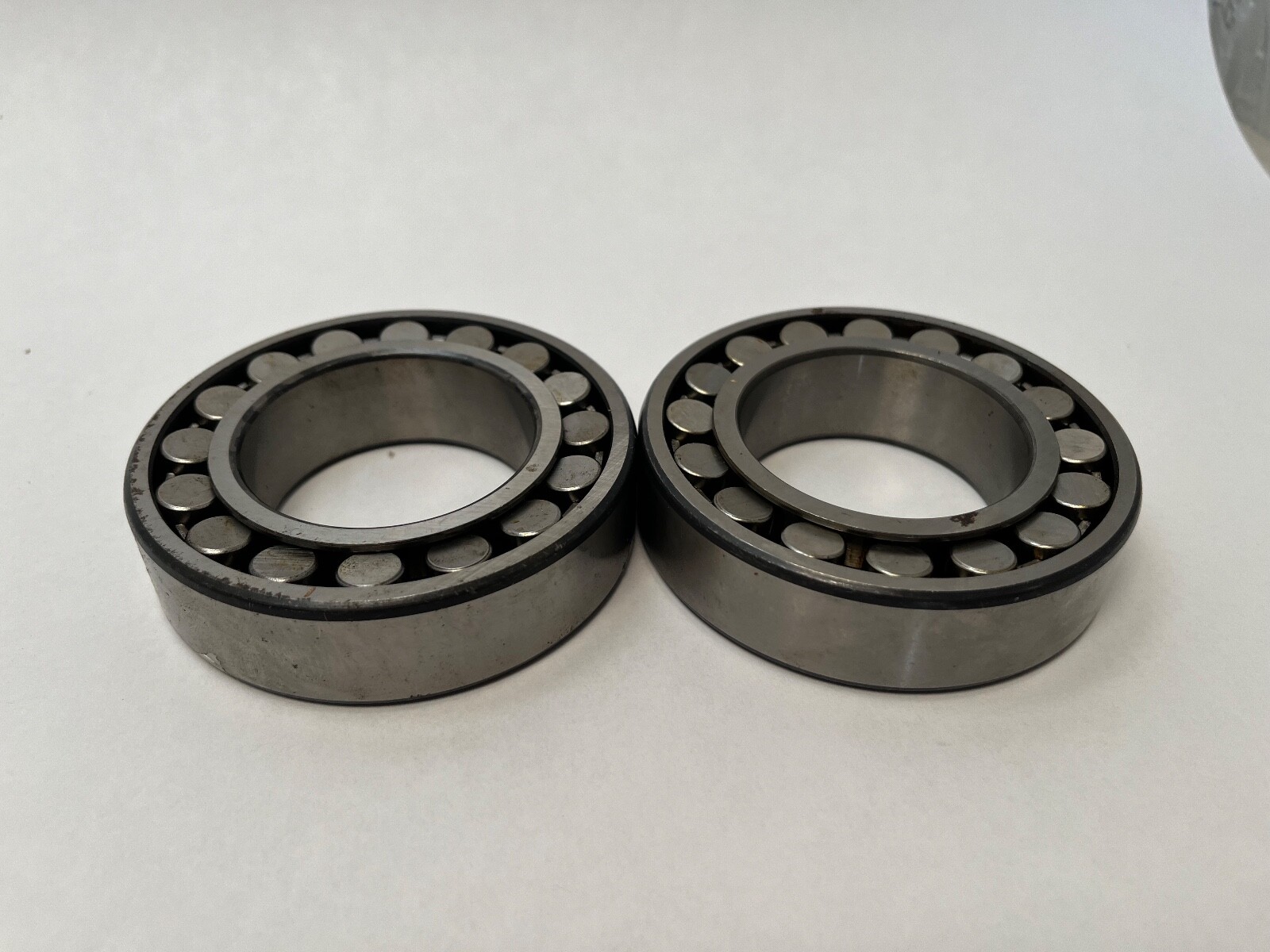

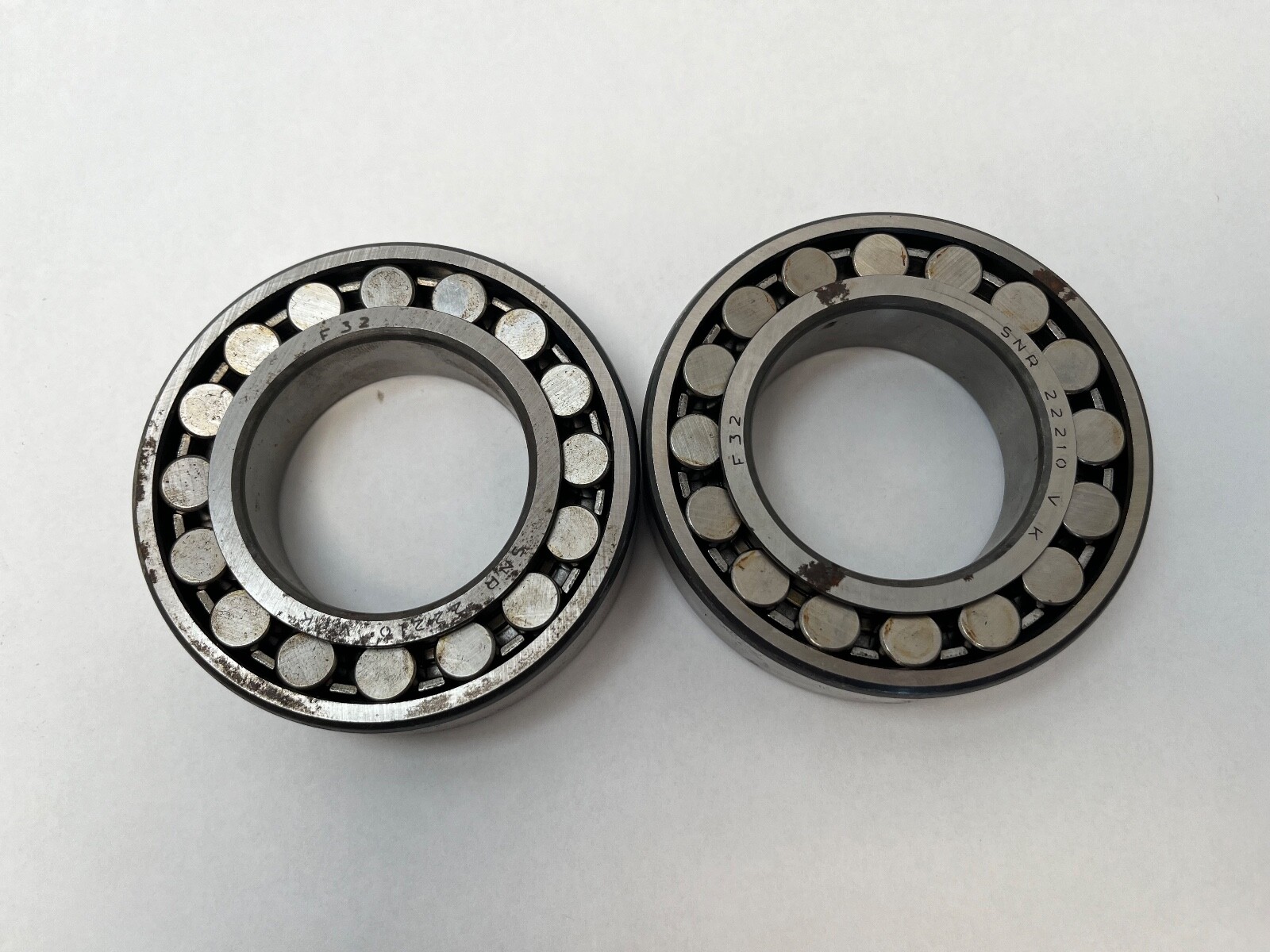

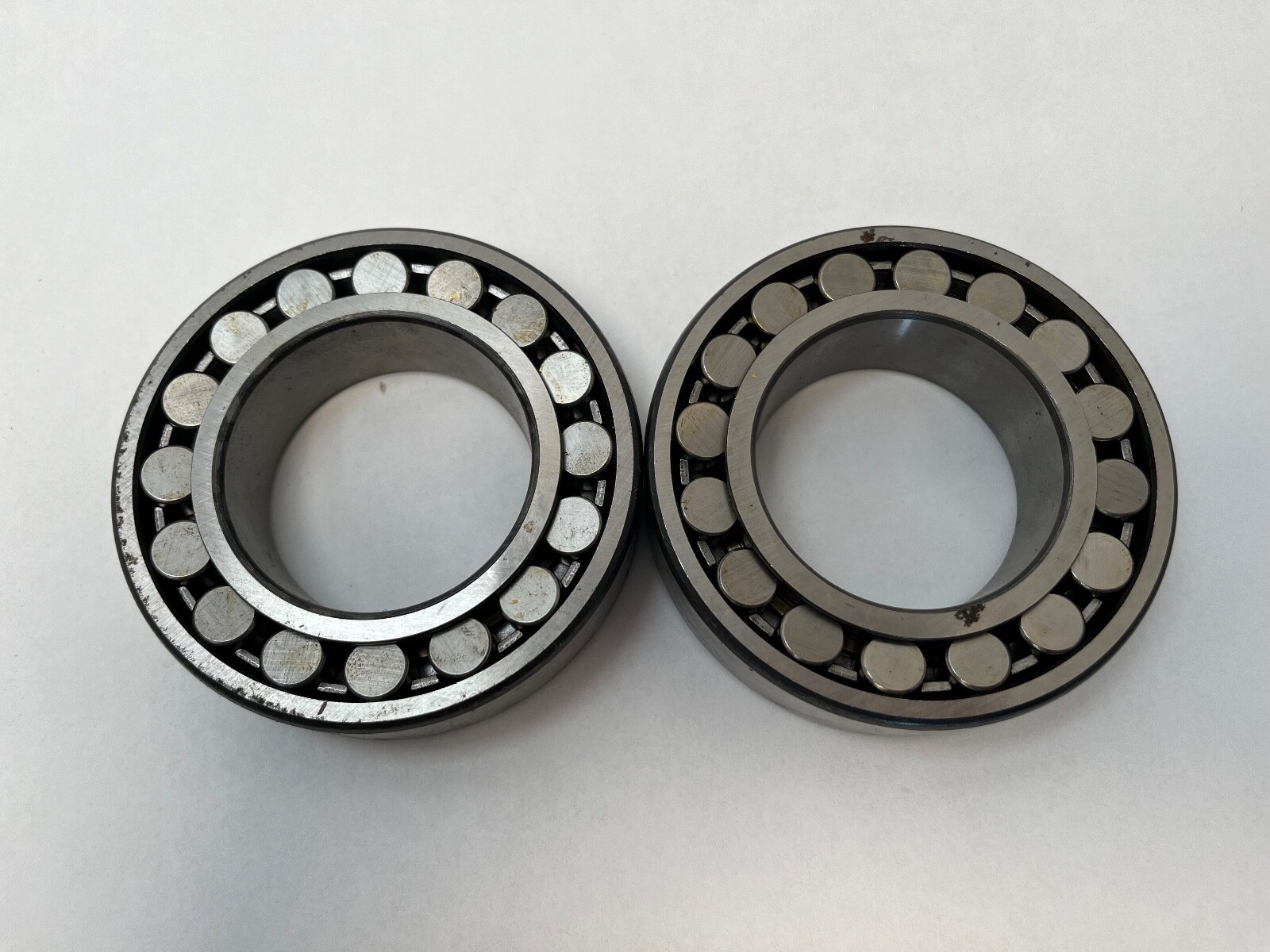

Unit Quantity: 2 Pcs. Two complete bearings, each one outer ring, two roller rows, cage and inner ring, assembled and open on both faces. New old stock, stained.

Interchange guidance

Same 50 x 90 x 23 mm envelope with a 1:12 tapered bore: SKF 22210 EK, FAG 22210-E1-K, NTN 22210EAKD1, NSK 22210EAKE4, Koyo 22210RHRK, Timken 22210KJ. Load ratings and cage execution differ between makers. Related part: SNR H310 adapter sleeve.
