SNR22206.EAK.W33.C3Double-Row Spherical Roller Bearing – 1:12 Tapered Bore, 30 mm ID x 62 mm OD x 20 mm Width, Open, C3 Internal Clearance, W33 Lubrication Groove

Product Description

What this part is:

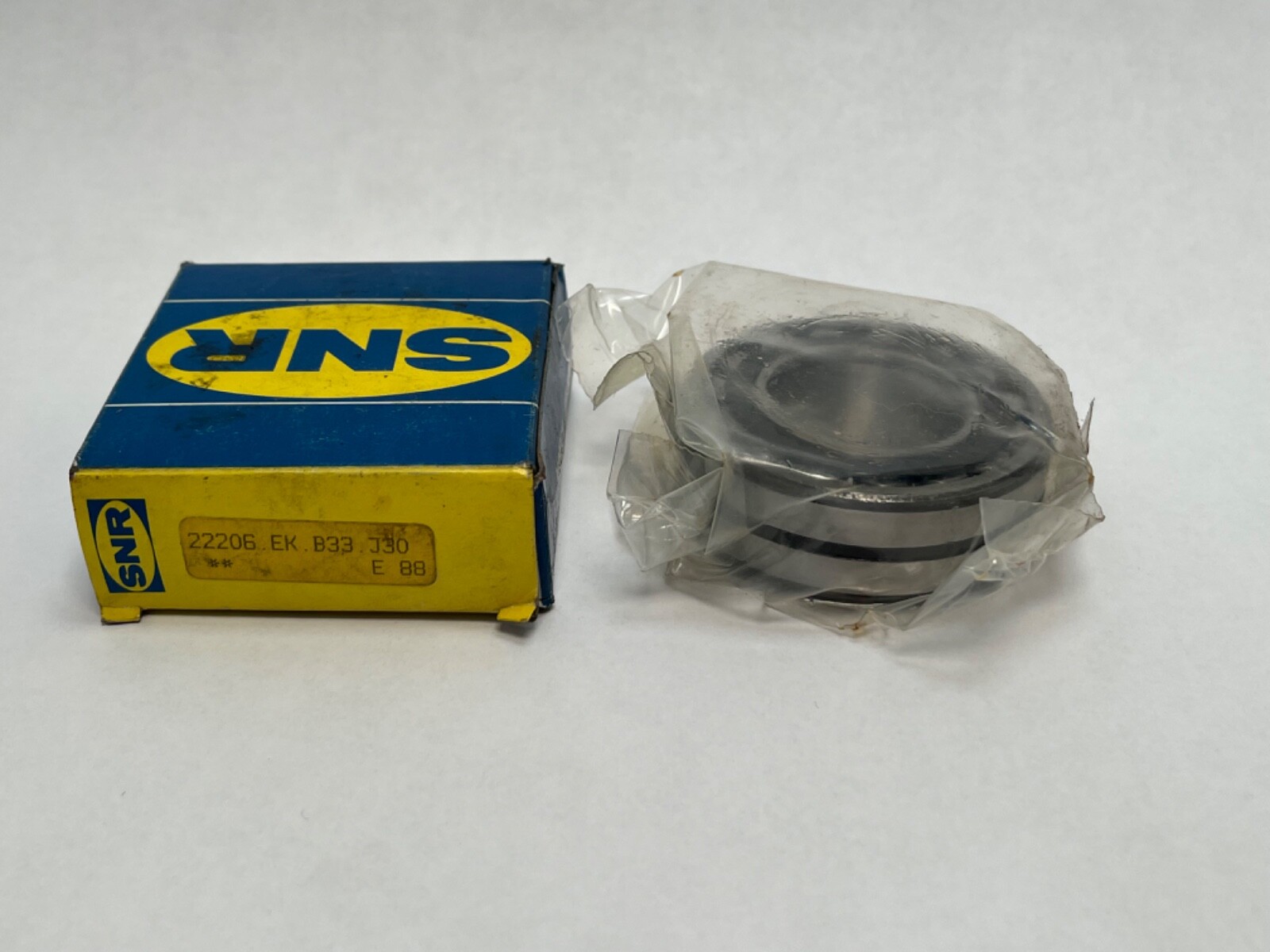

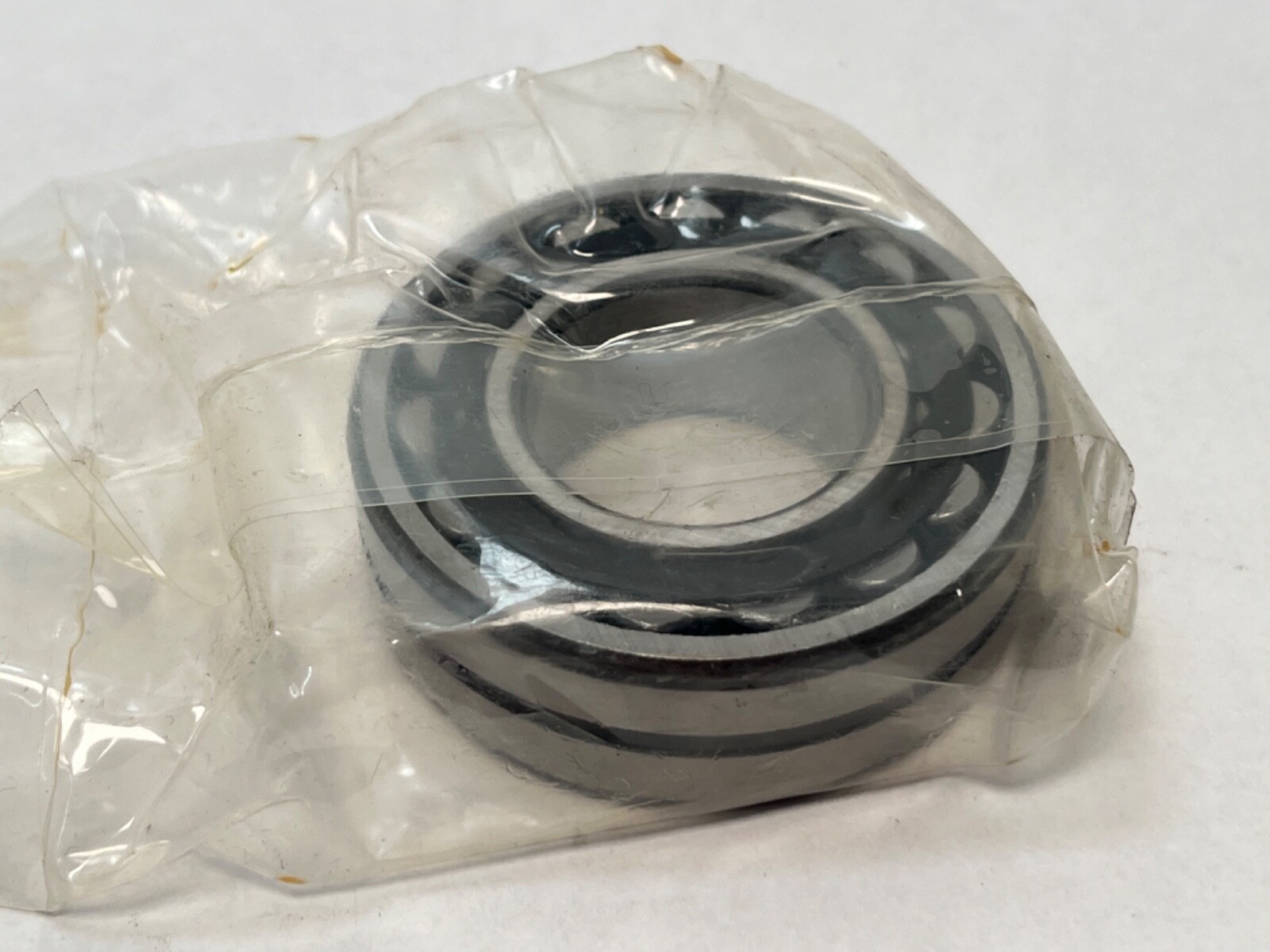

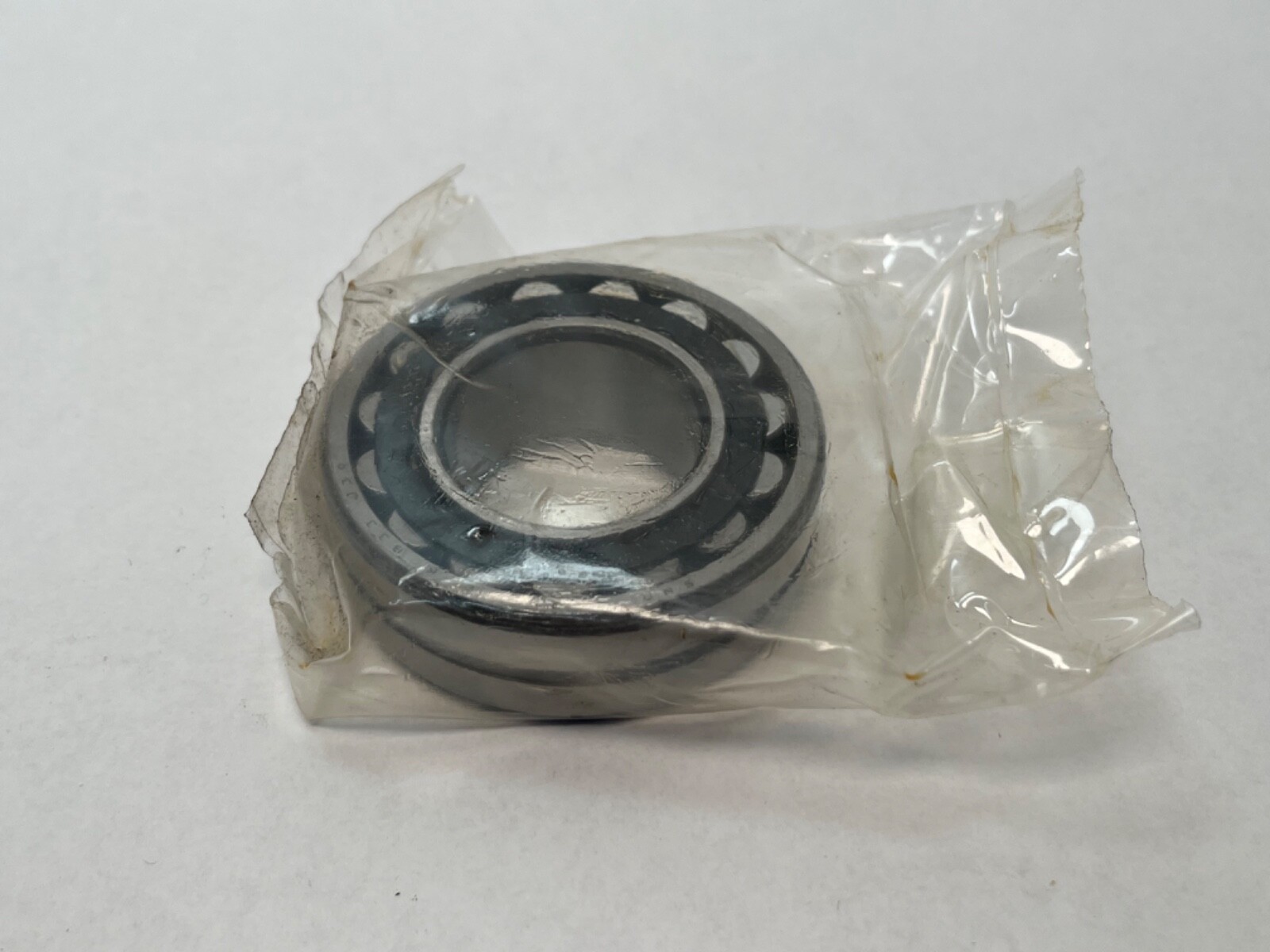

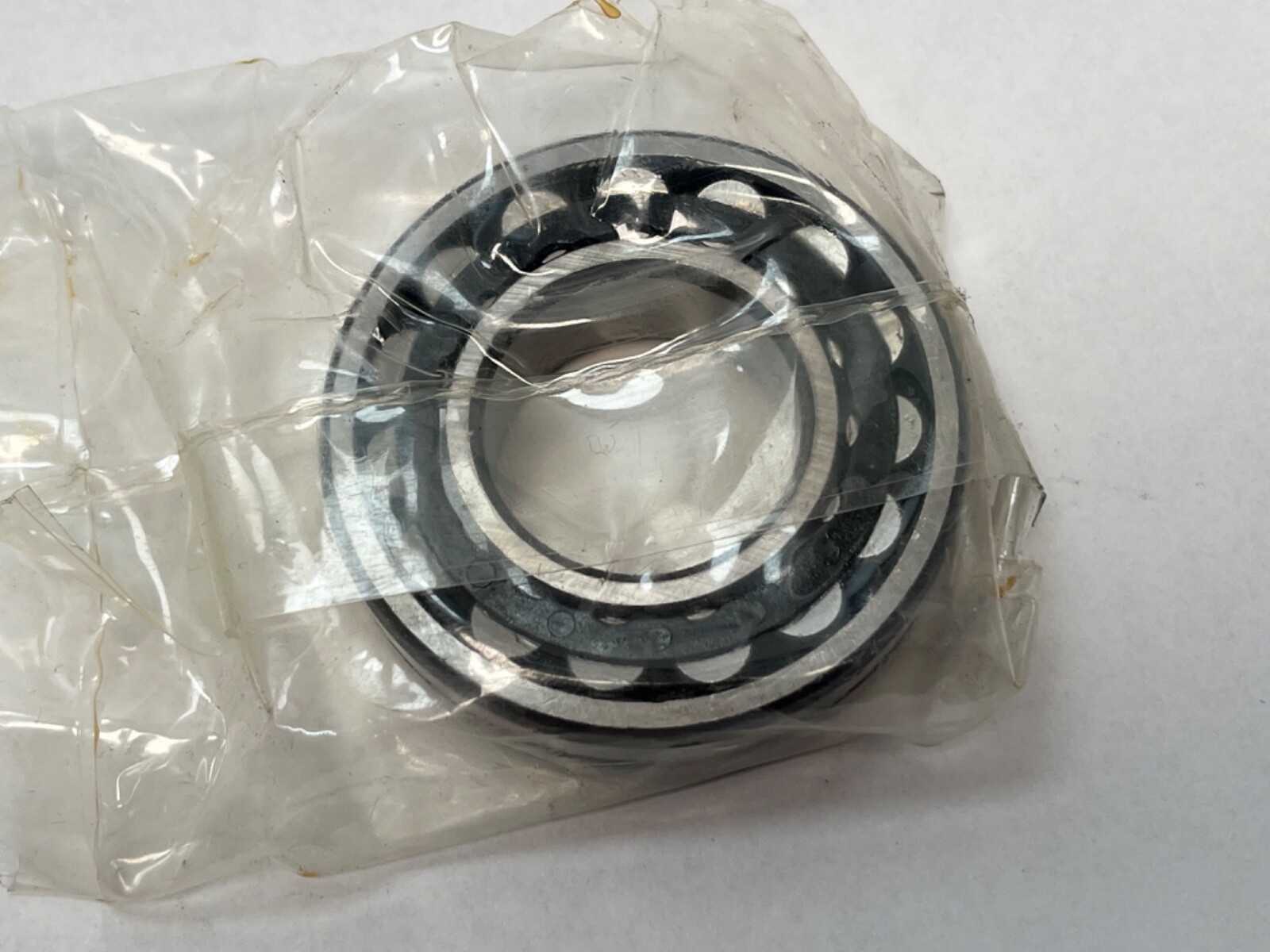

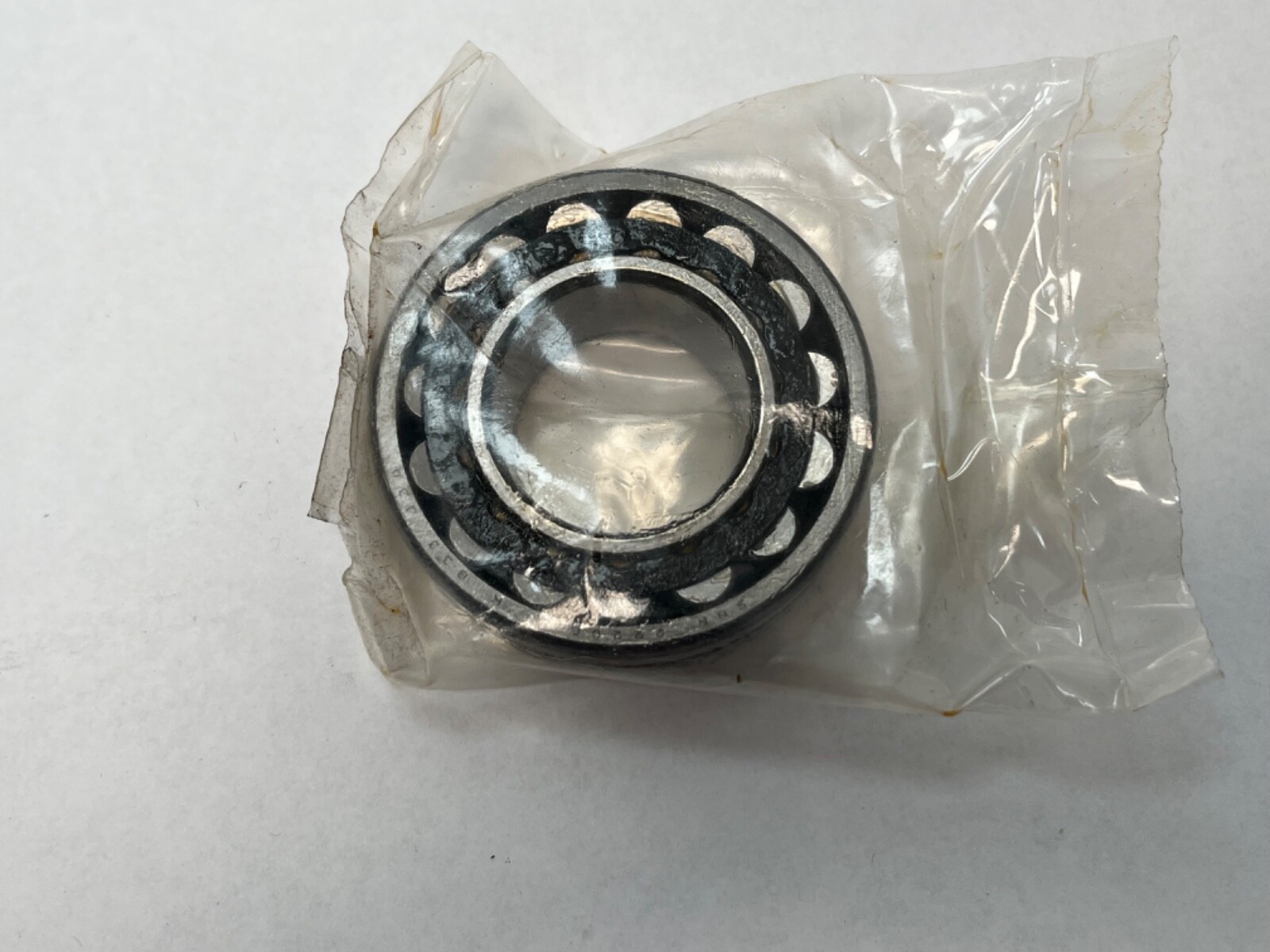

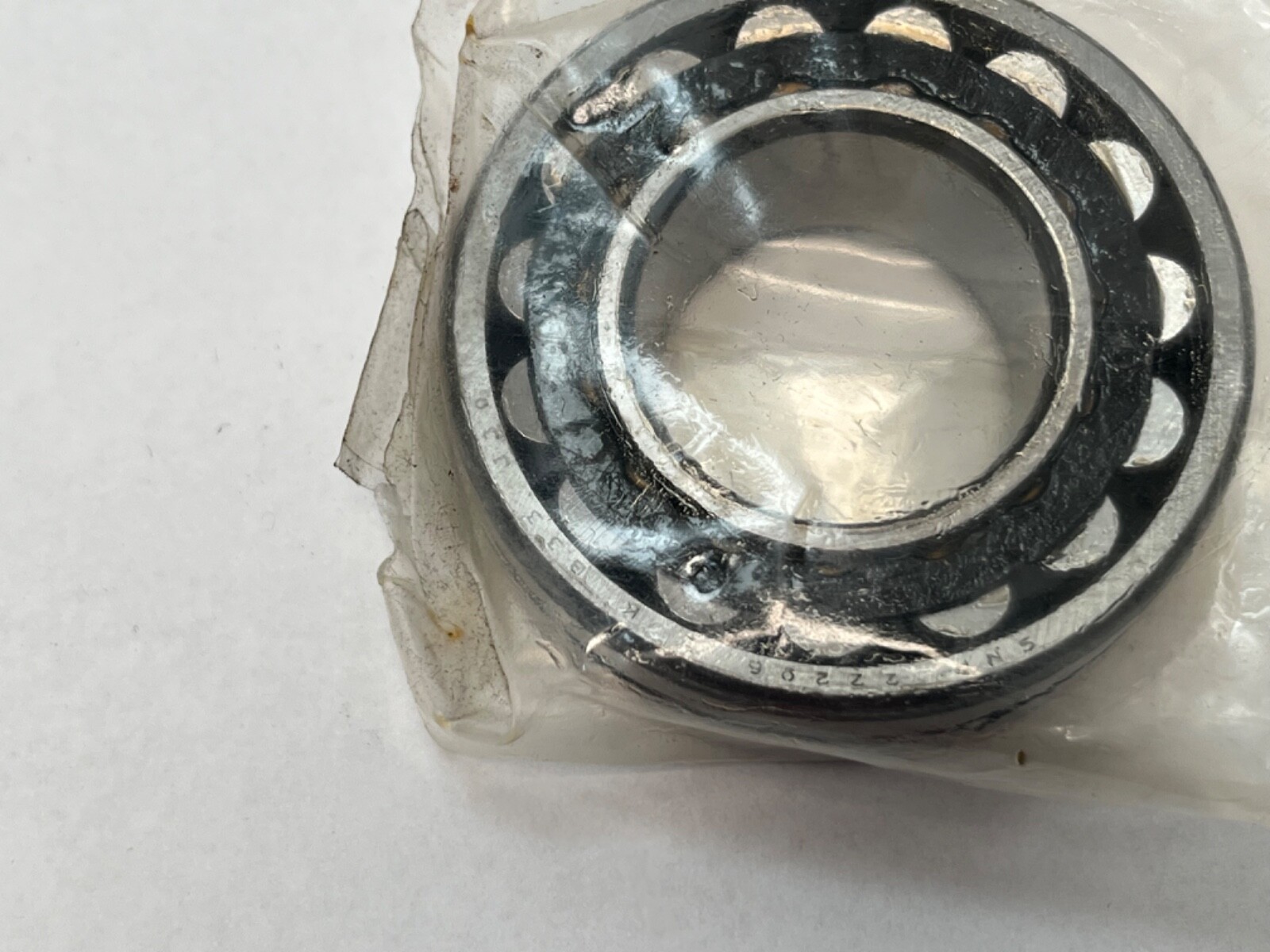

SNR 22206EKB33J30 double-row spherical roller bearing, 1:12 tapered bore, open on both faces. Manufacturer Part Number: 22206.EAK.W33.C3. Series: 22200. Number Of Rows: 2. Rolling Elements: Spherical Roller. Bore Diameter: 30 mm. Outside Diameter: 62 mm. Overall Width: 20 mm. Bore Type: Tapered 1:12. Closure Type: Open. Internal Clearance: C3. Cage Material: Pressed Steel. Cage Type: Pressed. Unit Quantity: 1 Pc.

Decoding the designation:

E — Ultage design generation. The A that goes with it is a drawn pressed steel cage.

K — 1:12 tapered bore.

B33 — annular groove machined into the outer ring outside diameter with three radial feed holes, the SNR form of the W33 lubrication feature.

J30 — C3 internal clearance, greater than normal.

Specifications:

Dynamic Load Rating: 75.7 kN. Static Load Rating: 64.5 kN. Limiting Speed: 8,800 r/min on grease, 11,000 r/min on oil. Precision Class: P0, ABEC 1. Bearing Material: Chrome bearing steel. Operating Temperature Range: -30 to +200 °C. Maximum Permissible Misalignment: 1.5°. Item Weight: 0.272 kg (0.60 lb). Lubricant: grease or oil. Harmonization Code: 8482.30.00.80.

Dimensions and mounting:

Two rows of spherical rollers run on a common sphered outer raceway, so the bearing carries heavy radial load together with thrust in either axial direction. The inner ring swivels inside the outer ring to absorb shaft deflection and angular error between housings. The 1:12 tapered bore mounts on an H306 adapter sleeve, which has a 25 mm cylindrical shaft seat and a 30 mm tapered outside diameter, secured by a KM6 locknut and an MB6 lockwasher. The W33 groove and three radial holes feed lubricant from the outer ring to the rolling elements.

Compatibility and replacement:

Same-envelope tapered-bore equivalents: SKF 22206 EK/C3, FAG 22206-E1-K-C3, Timken 22206EKJW33C3, NTN 22206EAKW33C3, NSK 22206EAKE4C3, Koyo 22206RHRK. Related parts: H306 adapter sleeve, KM6 locknut, MB6 lockwasher.

Frequently asked questions:

What size is the SNR 22206EKB33J30?

30 mm bore, 62 mm outside diameter, 20 mm width.

Which adapter sleeve fits it?

The H306 adapter sleeve, with a KM6 locknut and an MB6 lockwasher.

What are its load ratings?

Dynamic Load Rating 75.7 kN and Static Load Rating 64.5 kN.
