Availability:
2 in stock

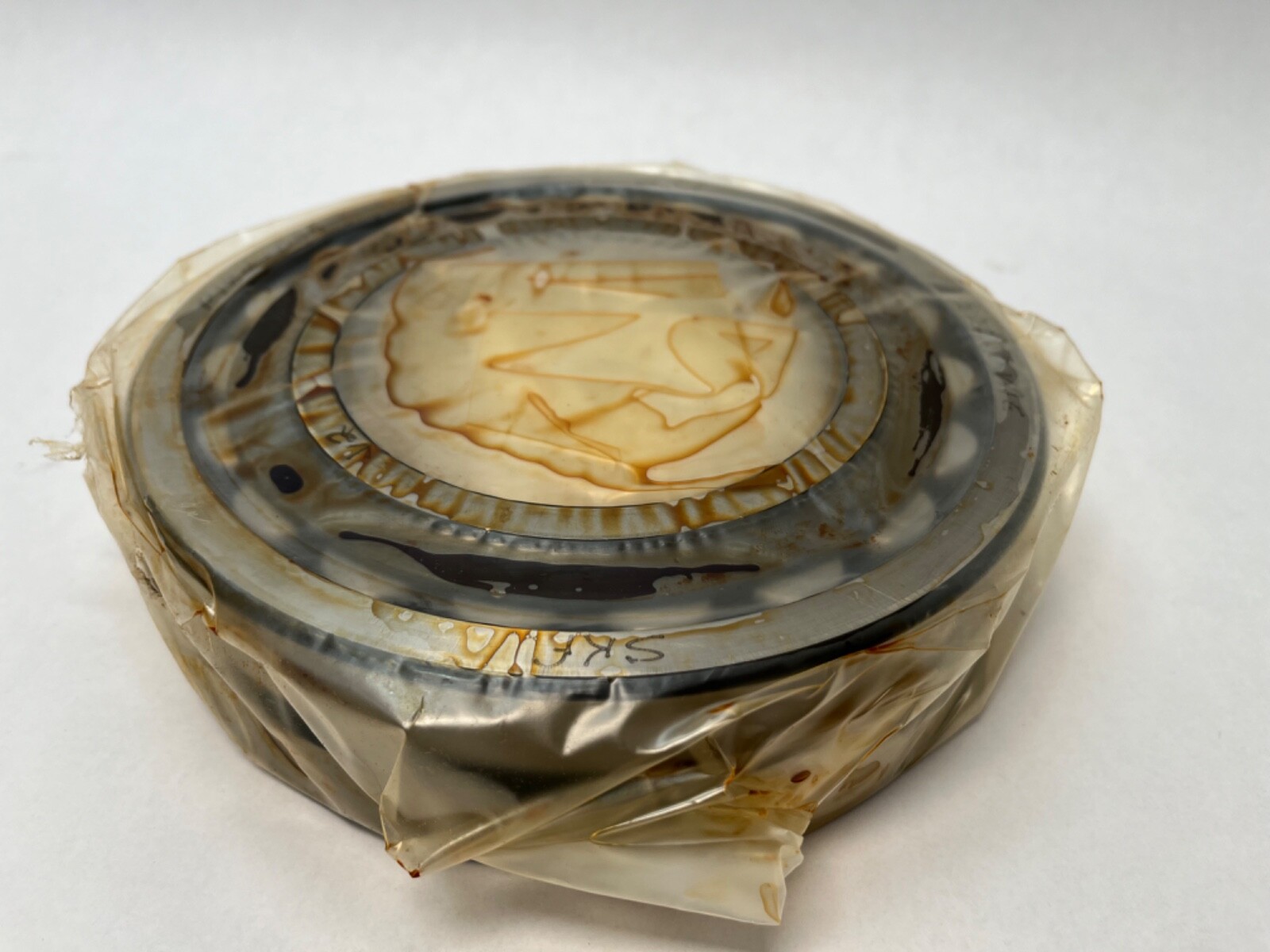

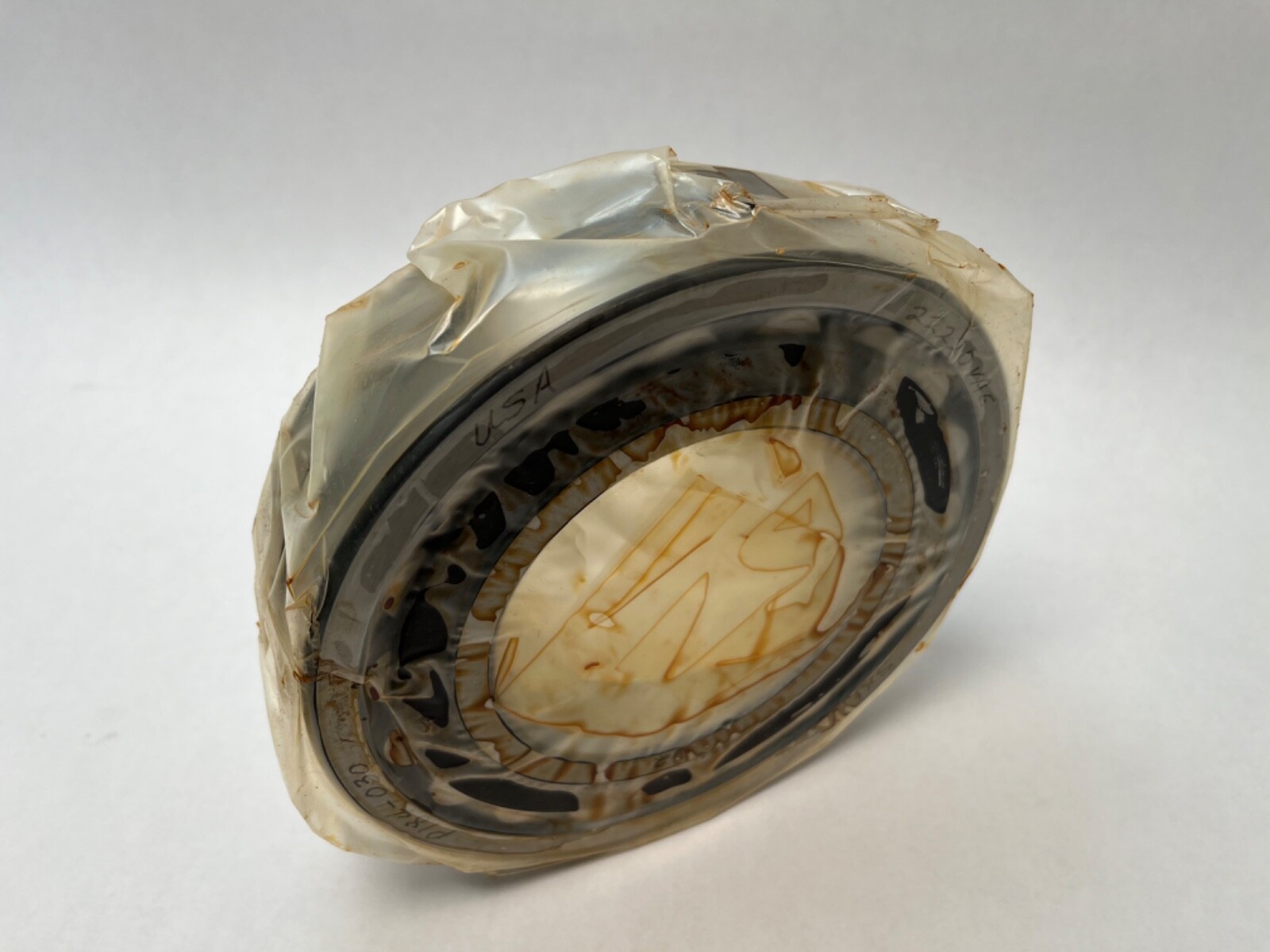

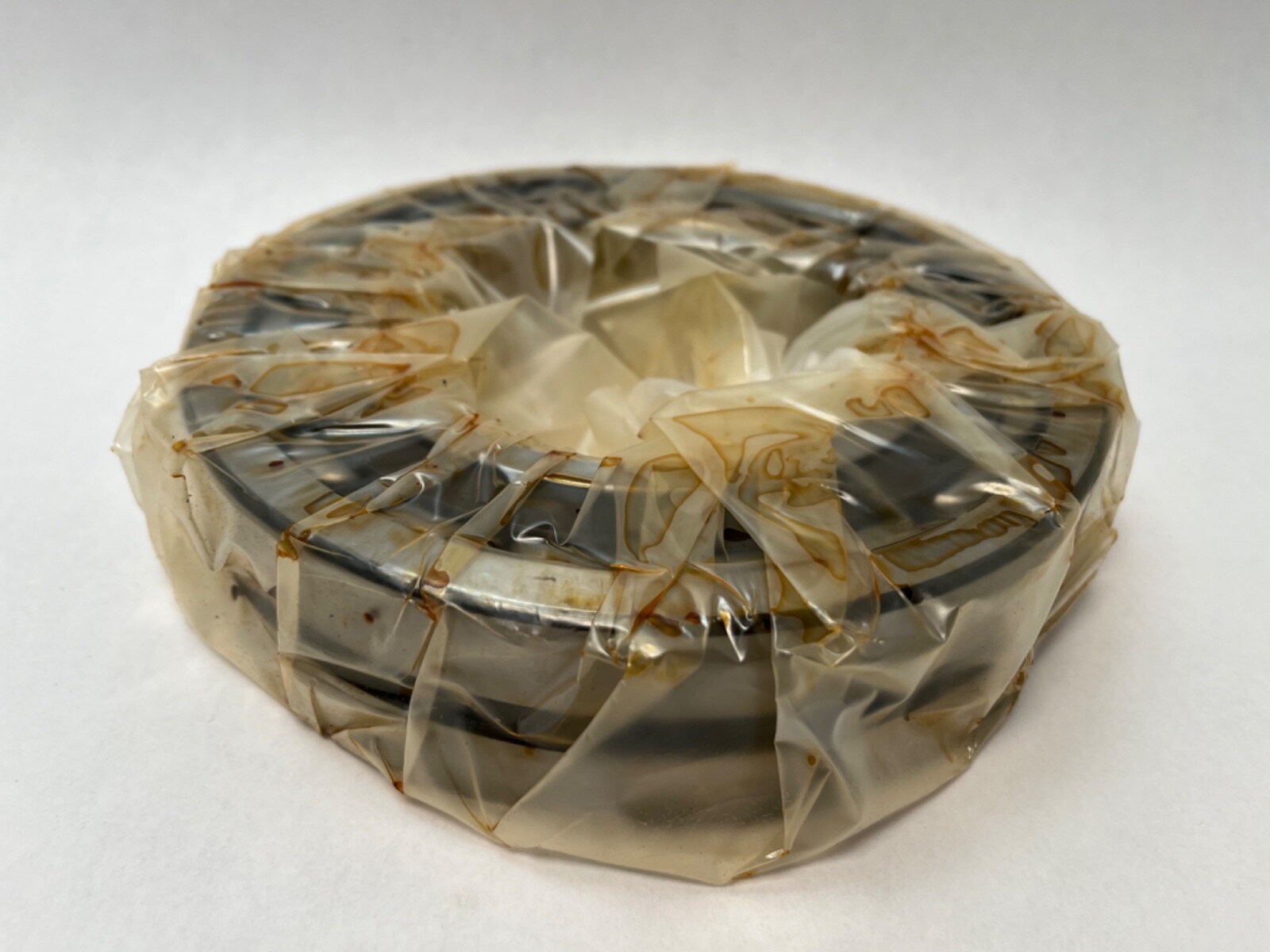

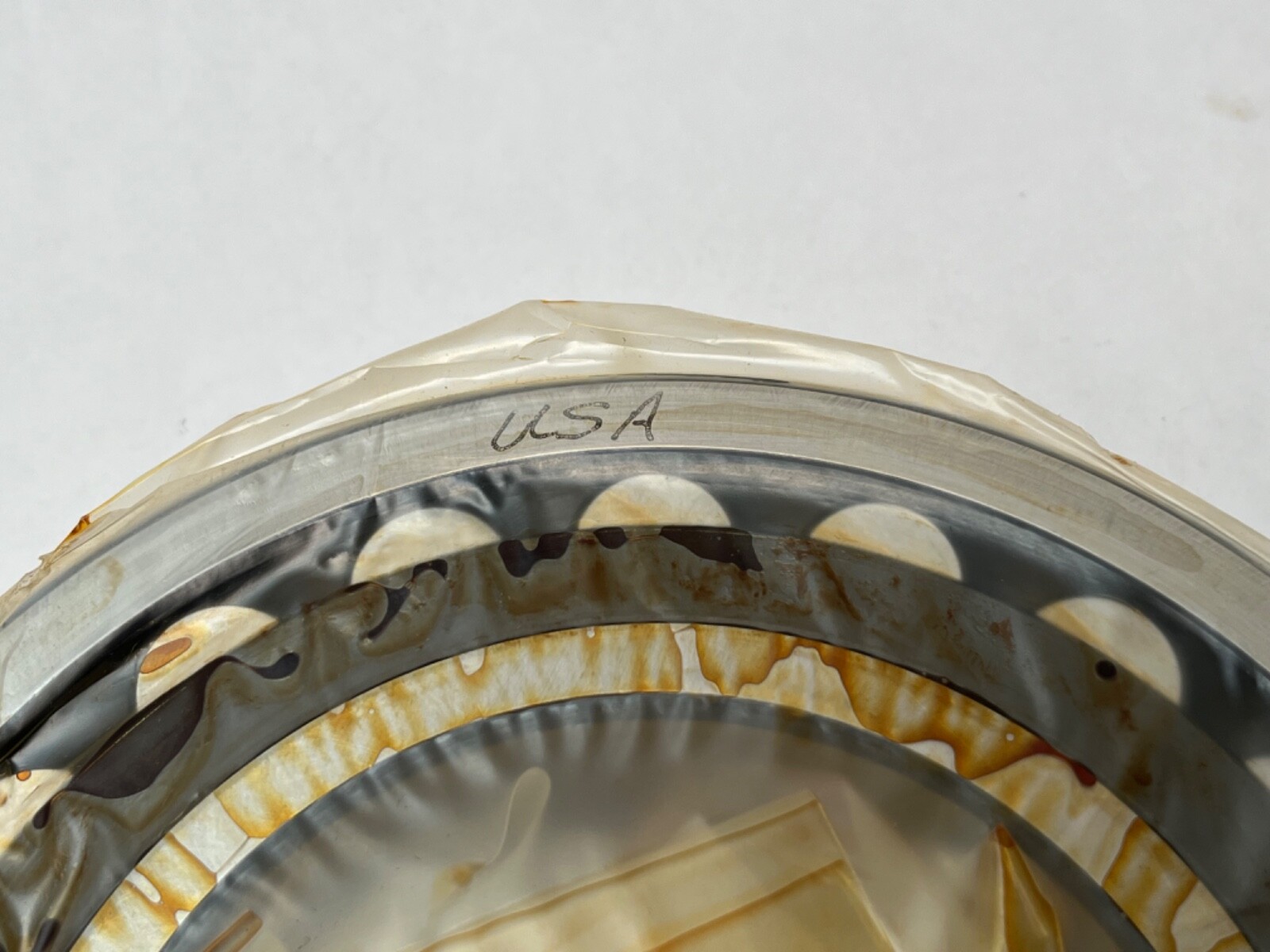

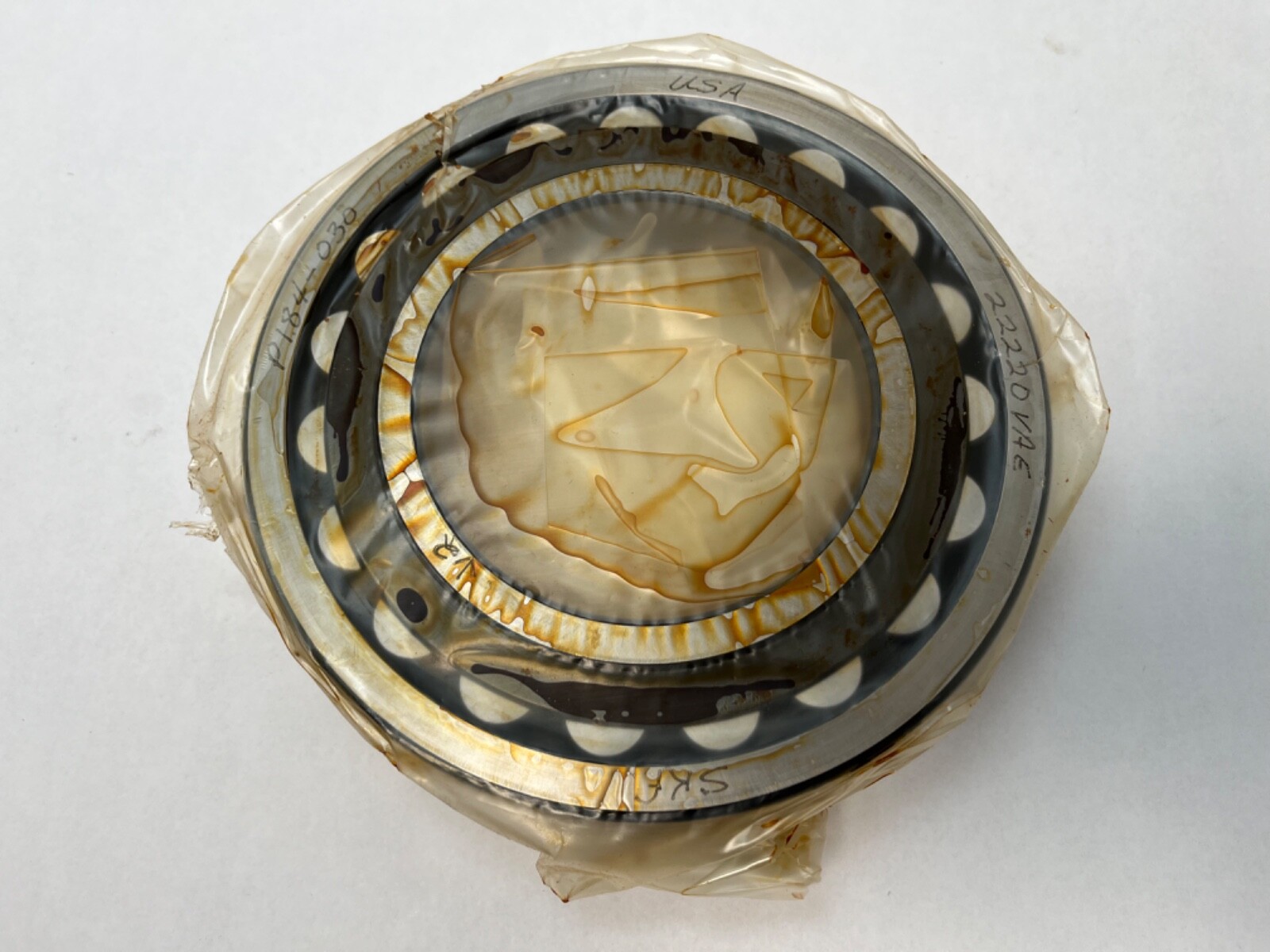

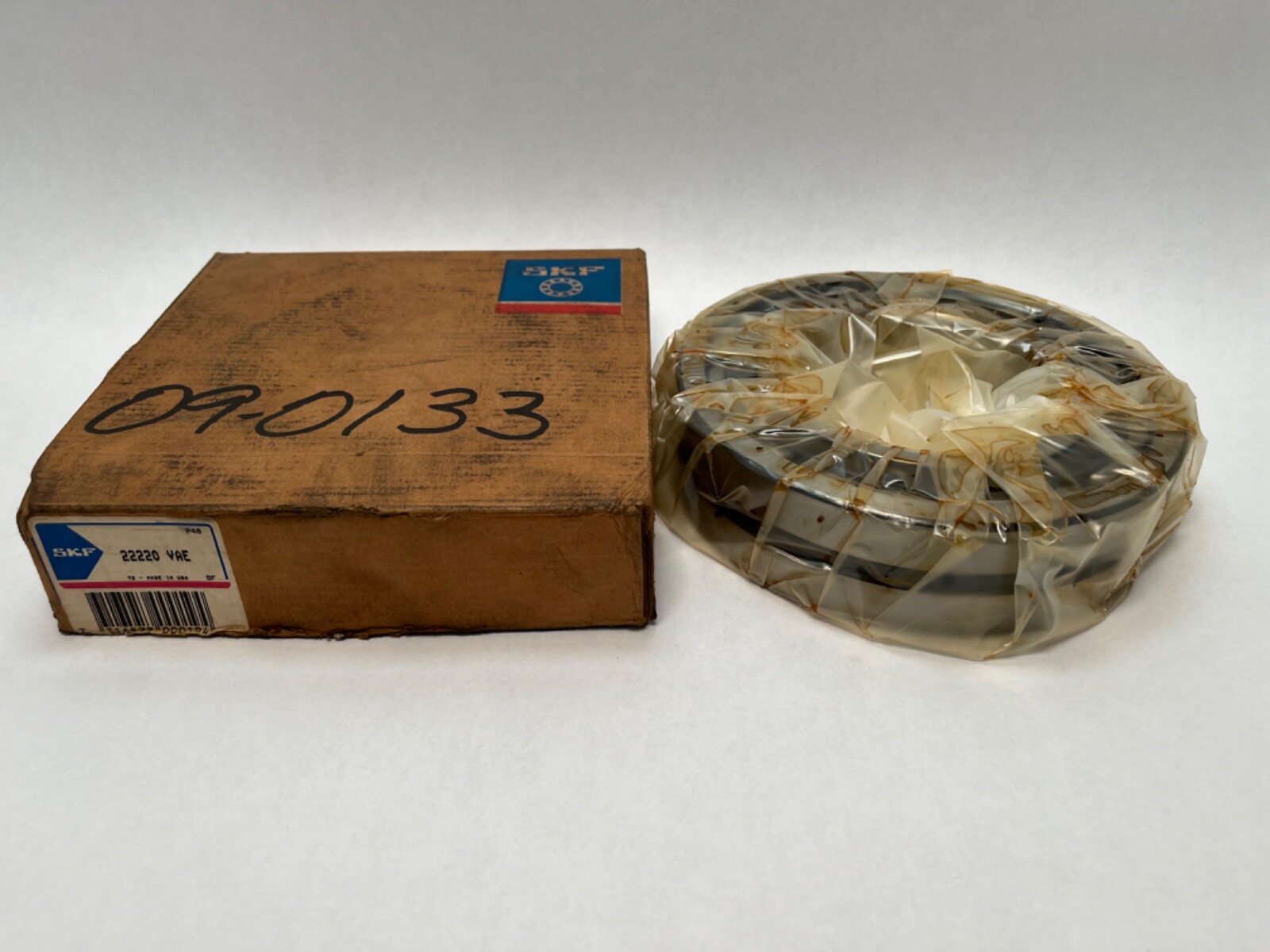

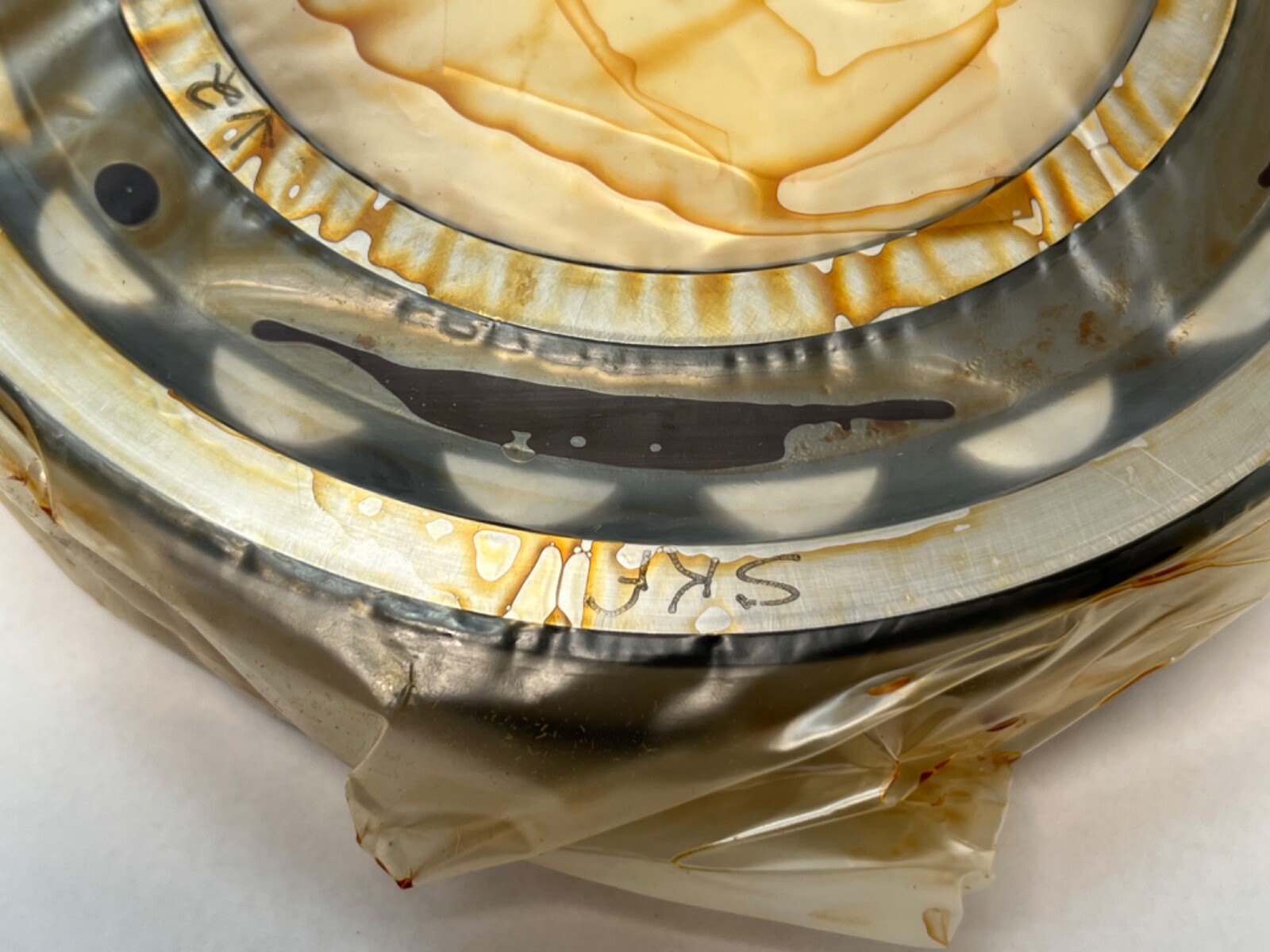

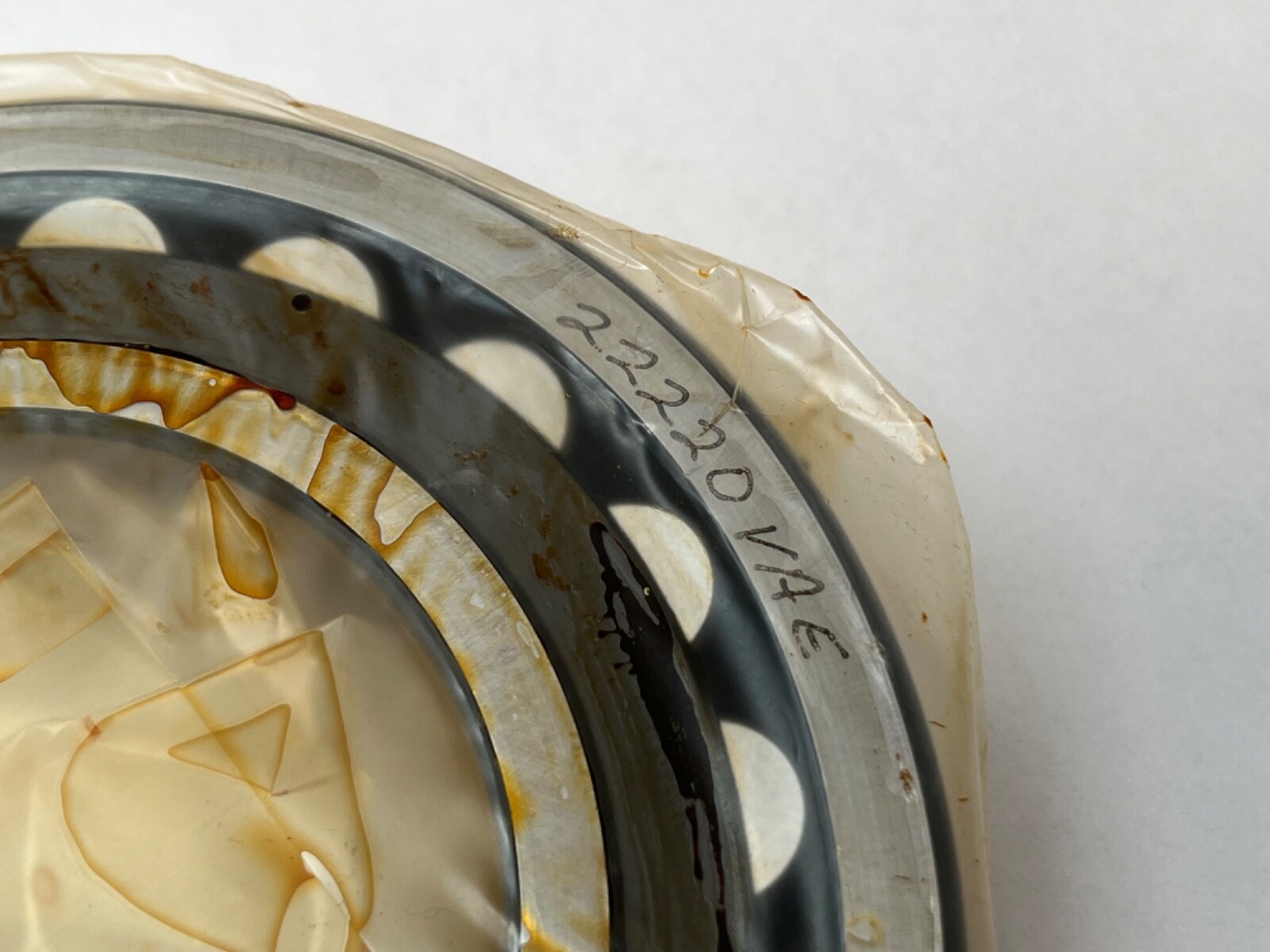

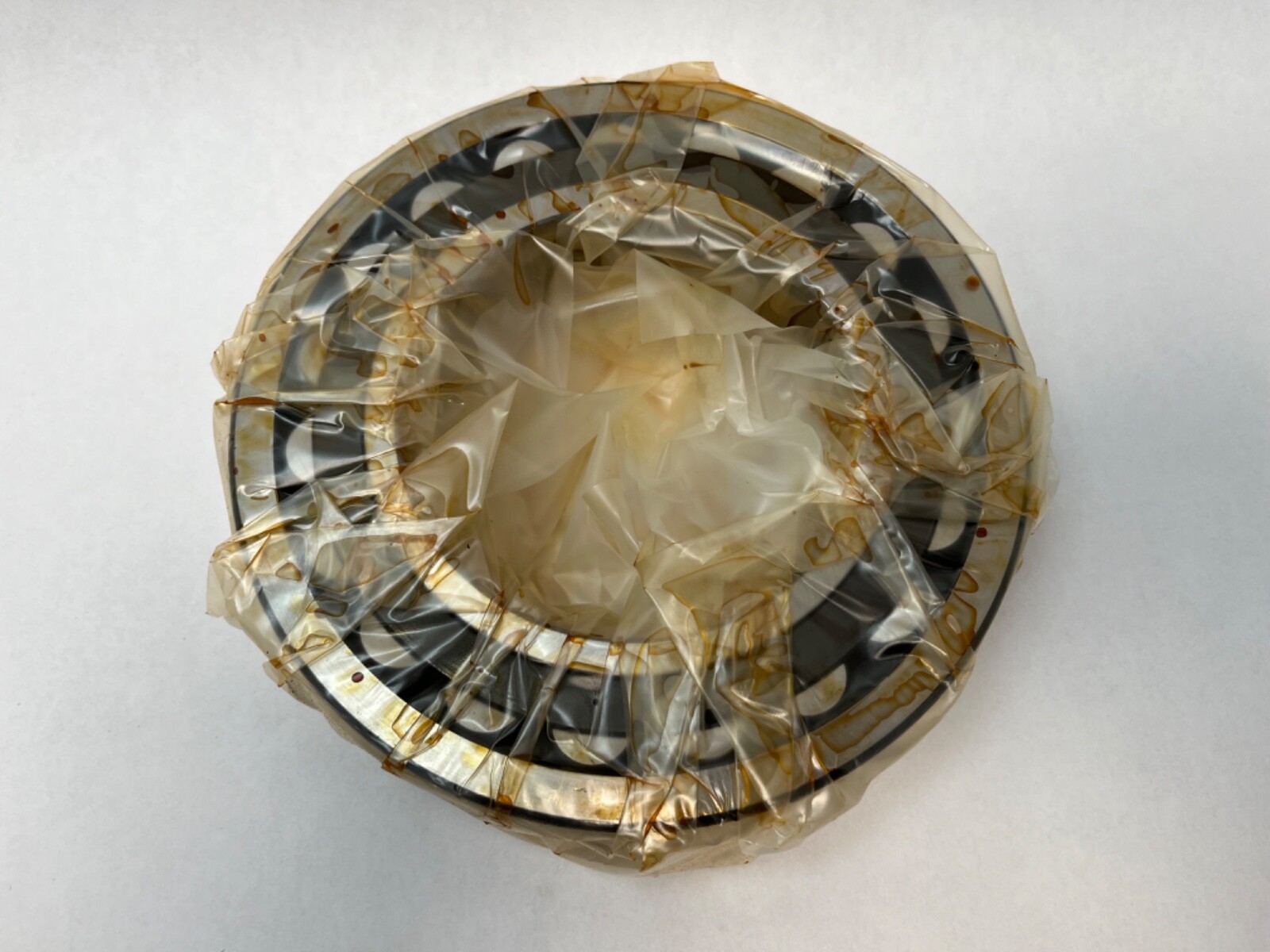

Double-row spherical roller bearing, 100 mm bore x 180 mm OD x 46 mm wide, straight bore with W33 lubrication groove. Normal CN clearance, open design.
List Price
$158.25
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22220VAEW33 |
| GTIN | 7316577000194 |
| Model | 22220-VAE-W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 100 mm |
| OD | 180 mm |
| Width | 46 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Base Number | 22220 |
| Overall Width | 46 mm |
| Mpn Variants | 22220-VAE-W33, 22220VAEW33, 22220 VAE W33, 22220-VAE |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Lubricant | grease or oil |
| Relubrication Feature | W33 lubrication groove and three holes in outer ring |
| Harmonization Code | 8482.30.00 |
| Cross Reference 1 | FAG 22220 – S suffix for lube groove |
|---|---|
| Cross Reference 2 | NSK 22220 – E4 suffix for lube groove |
| Cross Reference 3 | NTN 22220 – check lube groove suffix |
| Cross Reference 4 | Koyo 22220 – check lube groove suffix |
| Cross Reference 5 | Timken 22220 – check lube groove suffix |
| Cross Reference 6 | MRC 22220 – check lube groove suffix |
SKF 22220-VAE-W33 double-row spherical roller bearing with a straight bore and a W33 lubrication feature in the outer ring. Bore Diameter: 100 mm. Outside Diameter: 180 mm. Overall Width: 46 mm. Series: 22200. Harmonization Code: 8482.30.00.
22220 — ISO spherical roller bearing, 222 series, bore code 20: 100 mm bore, 180 mm outside diameter, 46 mm width.
W33 — annular lubrication groove with three radial holes in the outer ring, carrying grease or oil directly to the roller rows.
Rolling Elements: Spherical Roller. Number Of Rows: 2. Both roller rows run in a common spherical outer raceway, so the bearing self-aligns to shaft deflection and housing misalignment. Bore Type: Straight, for a cylindrical shaft seat. Internal Clearance: CN, normal radial clearance. Closure Type: Open. Lubricant: grease or oil, fed through the W33 groove and holes.
Unit Quantity: 1 Pc. One complete bearing: inner ring, two roller rows with cages, and outer ring.
Other makers list this envelope under the ISO number 22220 with a straight bore and normal clearance: FAG 22220, NSK 22220, NTN 22220, Koyo 22220, Timken 22220 and MRC 22220. The lubrication groove carries a maker suffix: W33 on SKF, S on FAG and E4 on NSK. Confirm the groove suffix when ordering from the other makers.
