SKF22216 E/W64CDouble-Row Spherical Roller Bearing – 80 mm Bore x 140 mm OD x 33 mm Wide, Straight Bore, Open, Solid Oil Filled

Product Description

What this part is:

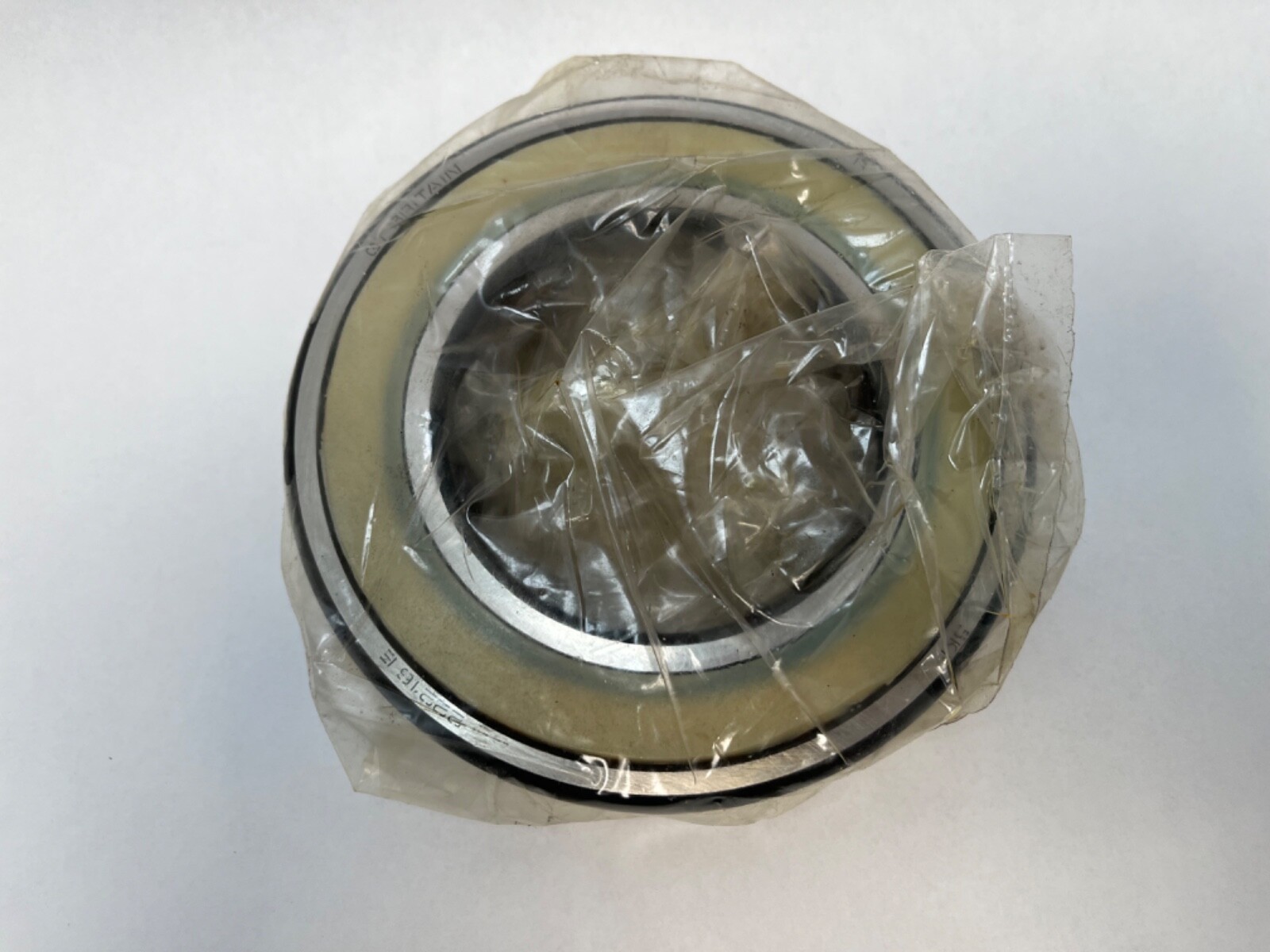

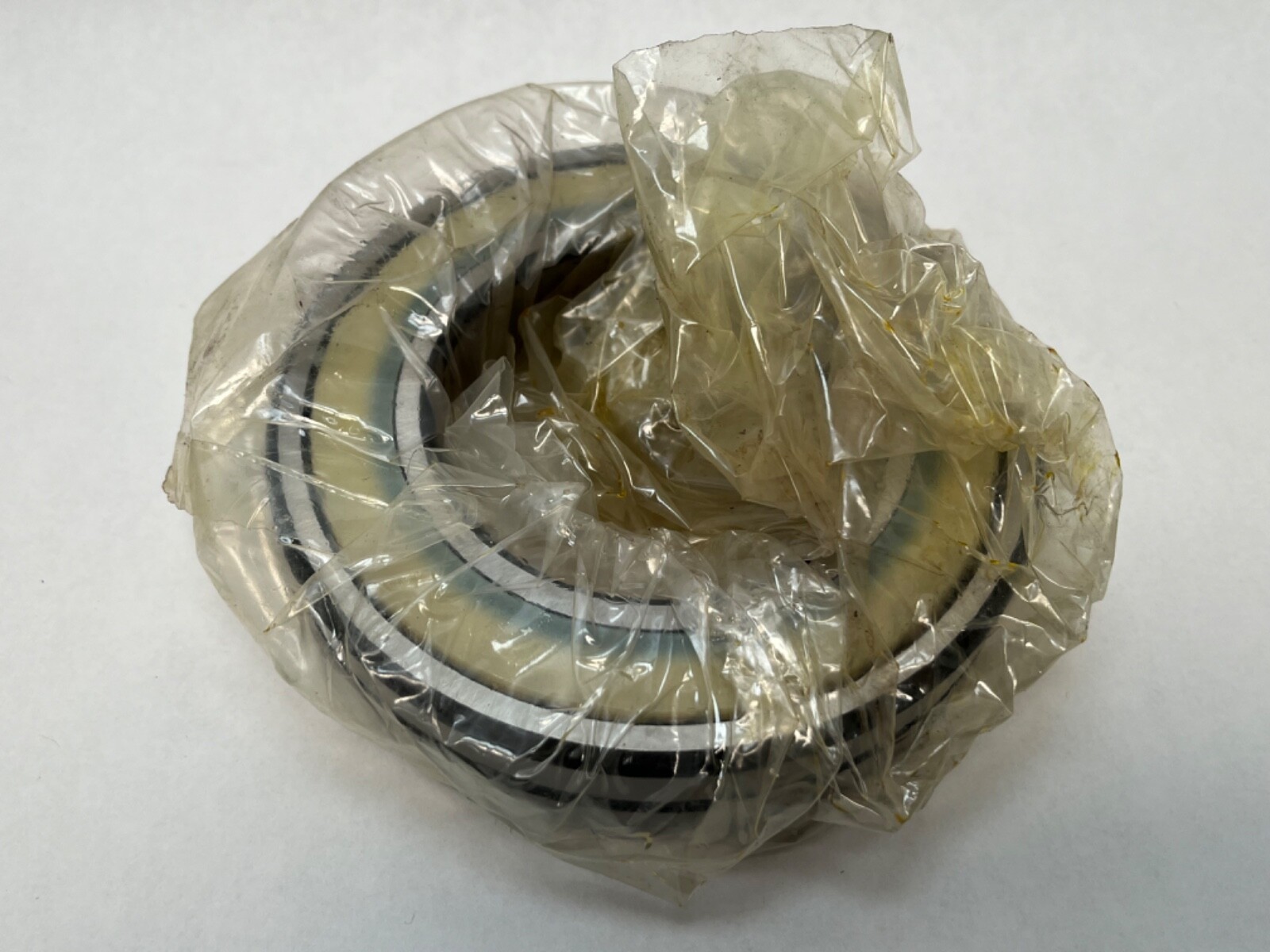

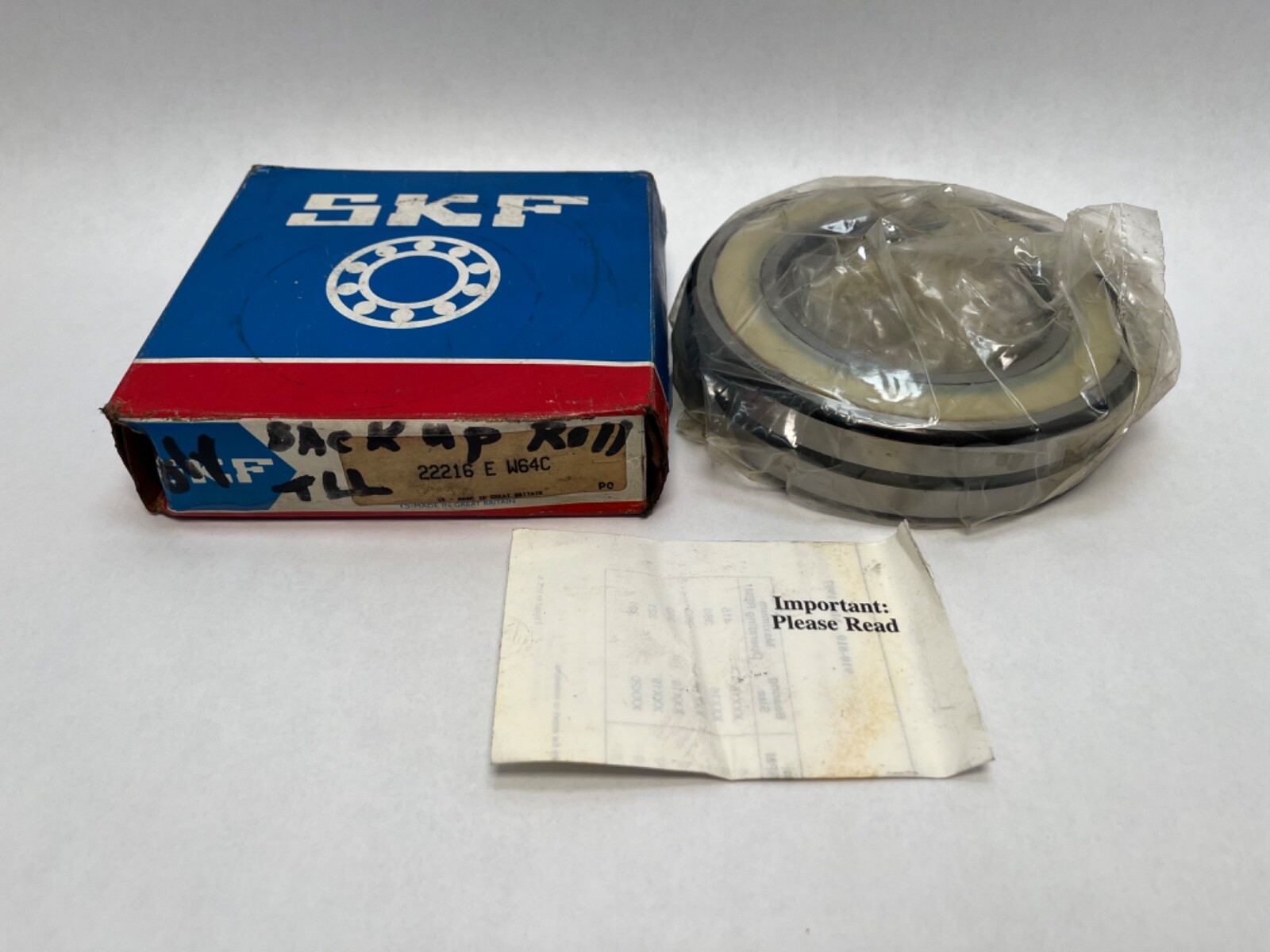

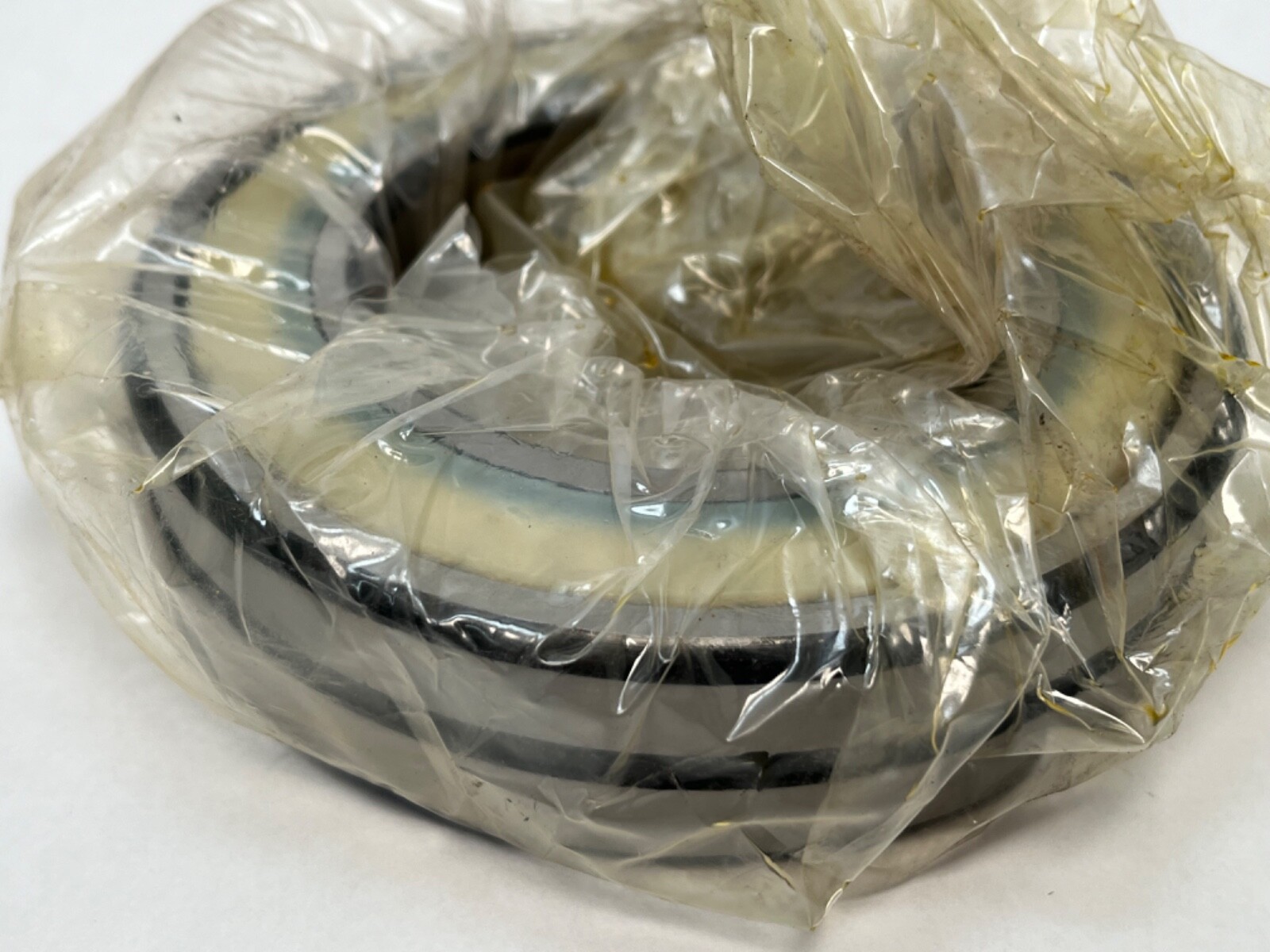

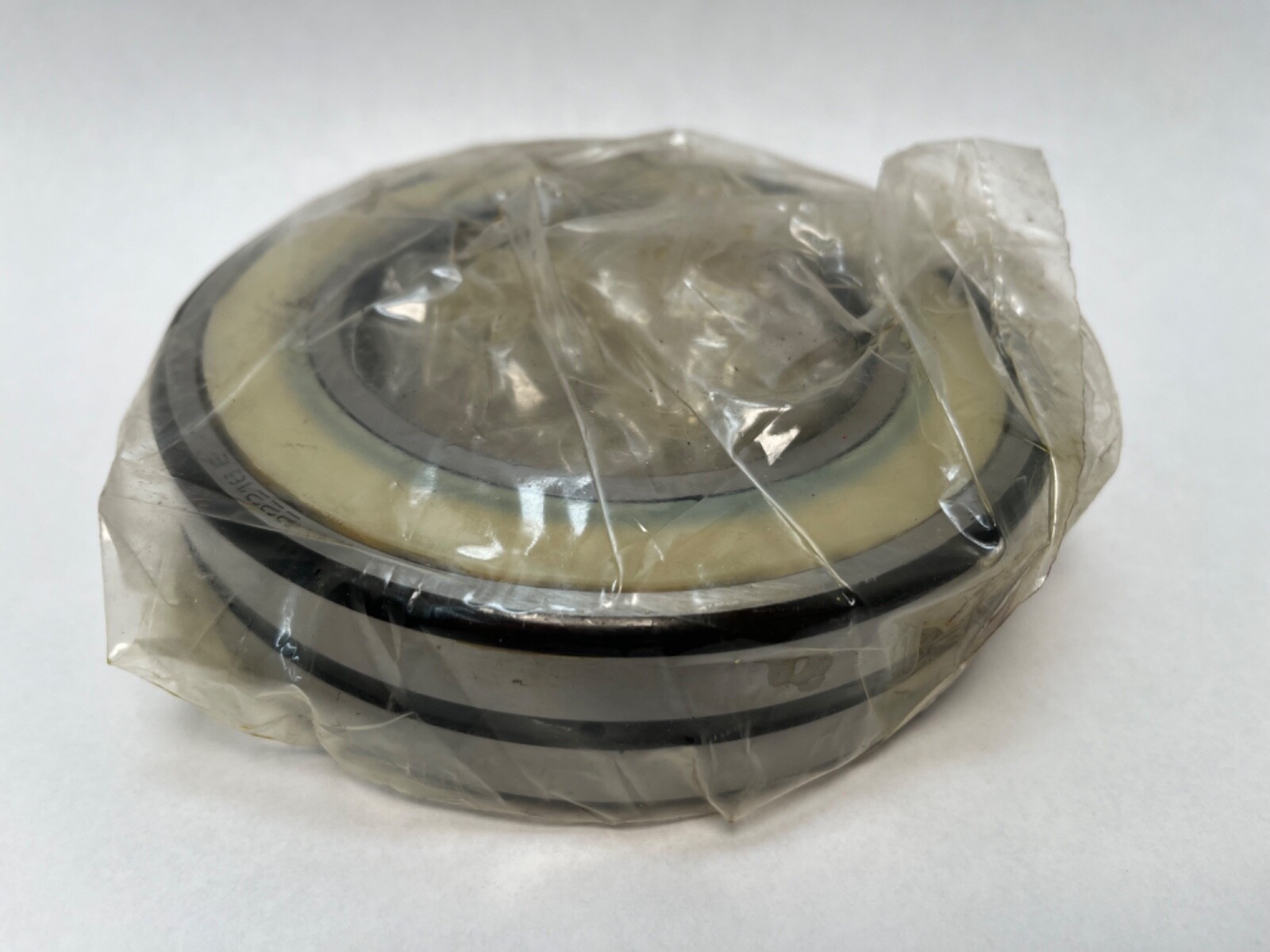

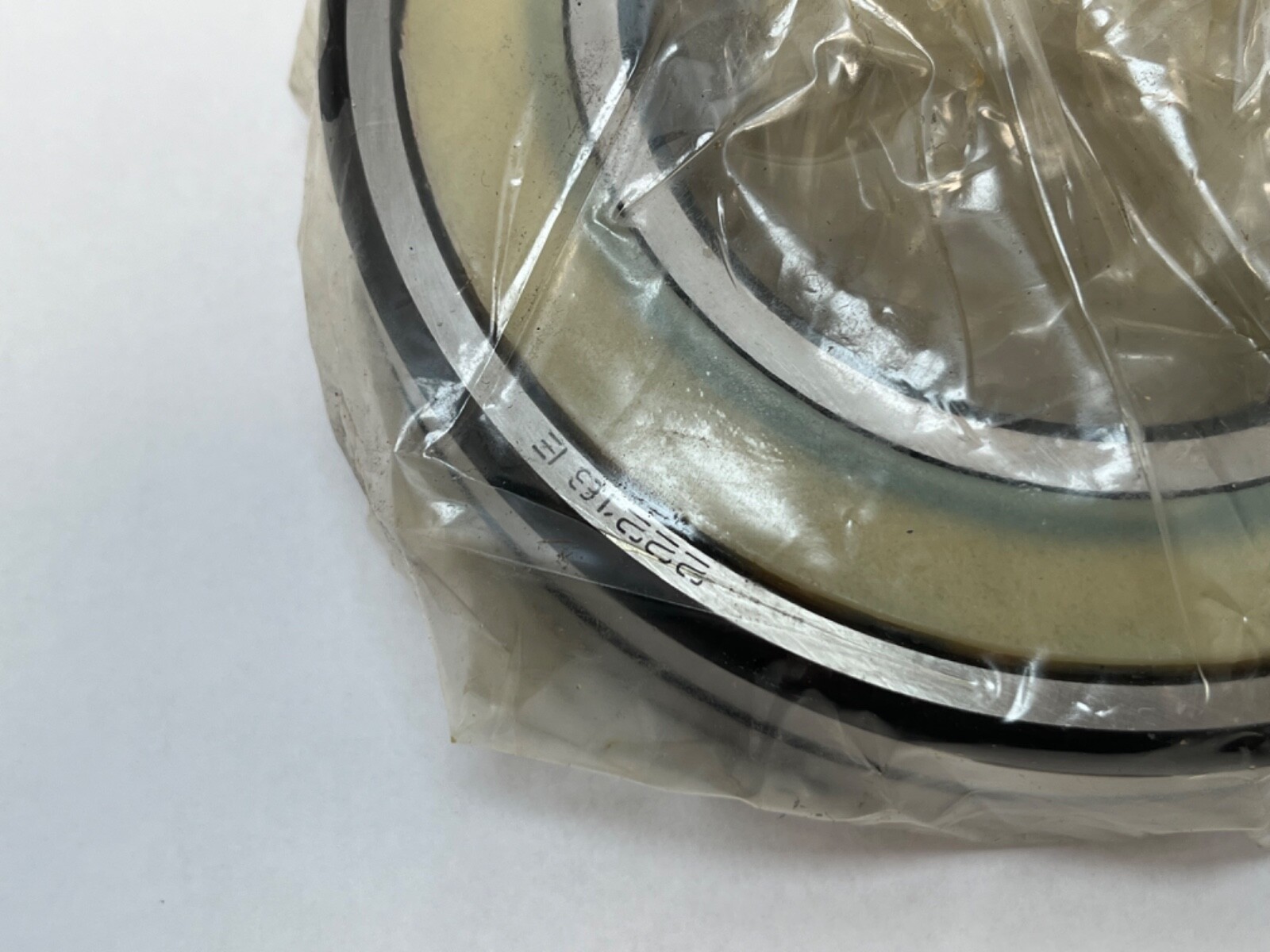

SKF 22216 E/W64C is a double-row spherical roller bearing with a straight bore, 80 x 140 x 33 mm. Two rows of barrel rollers run on a common spherical raceway ground into the outer ring, so the inner ring and roller assembly swivel within the outer ring and the bearing is self-aligning. Unit Quantity: 1 Pc.

Decoding the designation:

22216 — double-row spherical roller bearing, 222 dimension series, bore code 16 = 80 mm.

E — SKF E design, an optimised internal design for higher load capacity.

W64 — filled with Solid Oil.

Specifications:

Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 33 mm. Bore Type: Straight. Number Of Rows: 2. Rolling Elements: Spherical roller. Closure Type: Open. Lubricant: Solid Oil. Bearing Material: 52100 chrome steel. Series: 22200. Country of Origin: United States. Unit Quantity: 1 Pc.

Dimensions and mounting:

Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 33 mm. Double row, open, straight bore.

Compatibility and replacement:

Part Number: 22216-E-W64C. Base Number: 22216. MPN Variants: 22216 E/W64C, 22216EW64C, 22216-E-W64C-W33, 22216E, 22216C, 22216CC, 22216CJ, 22216CCJ.

Frequently asked questions:

What are the dimensions of the SKF 22216 E/W64C?

Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 33 mm.

What does W64 mean in the designation?

W64 is the SKF suffix for a bearing filled with Solid Oil.

What material is the bearing made from?

Bearing Material: 52100 chrome steel.
