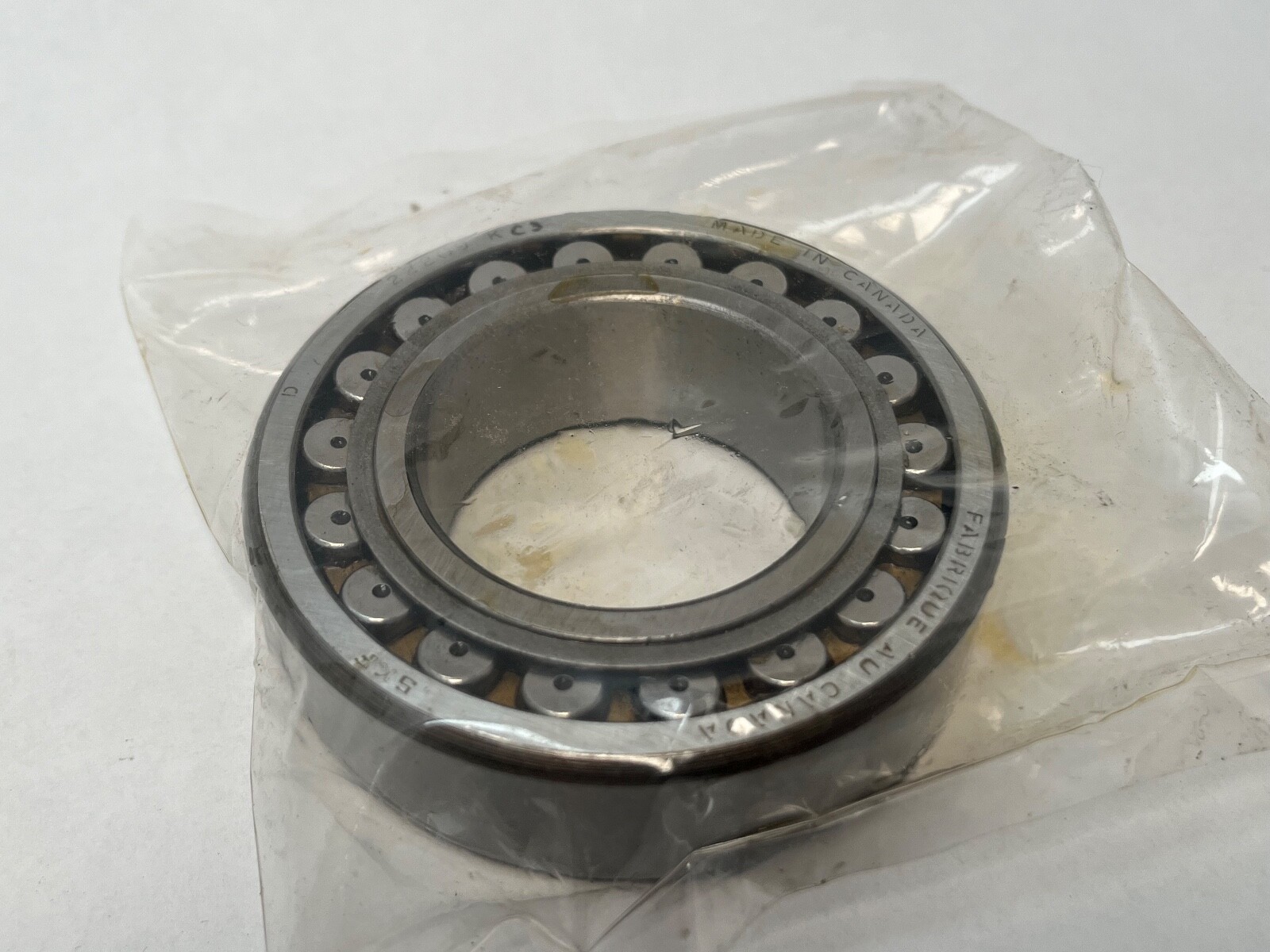

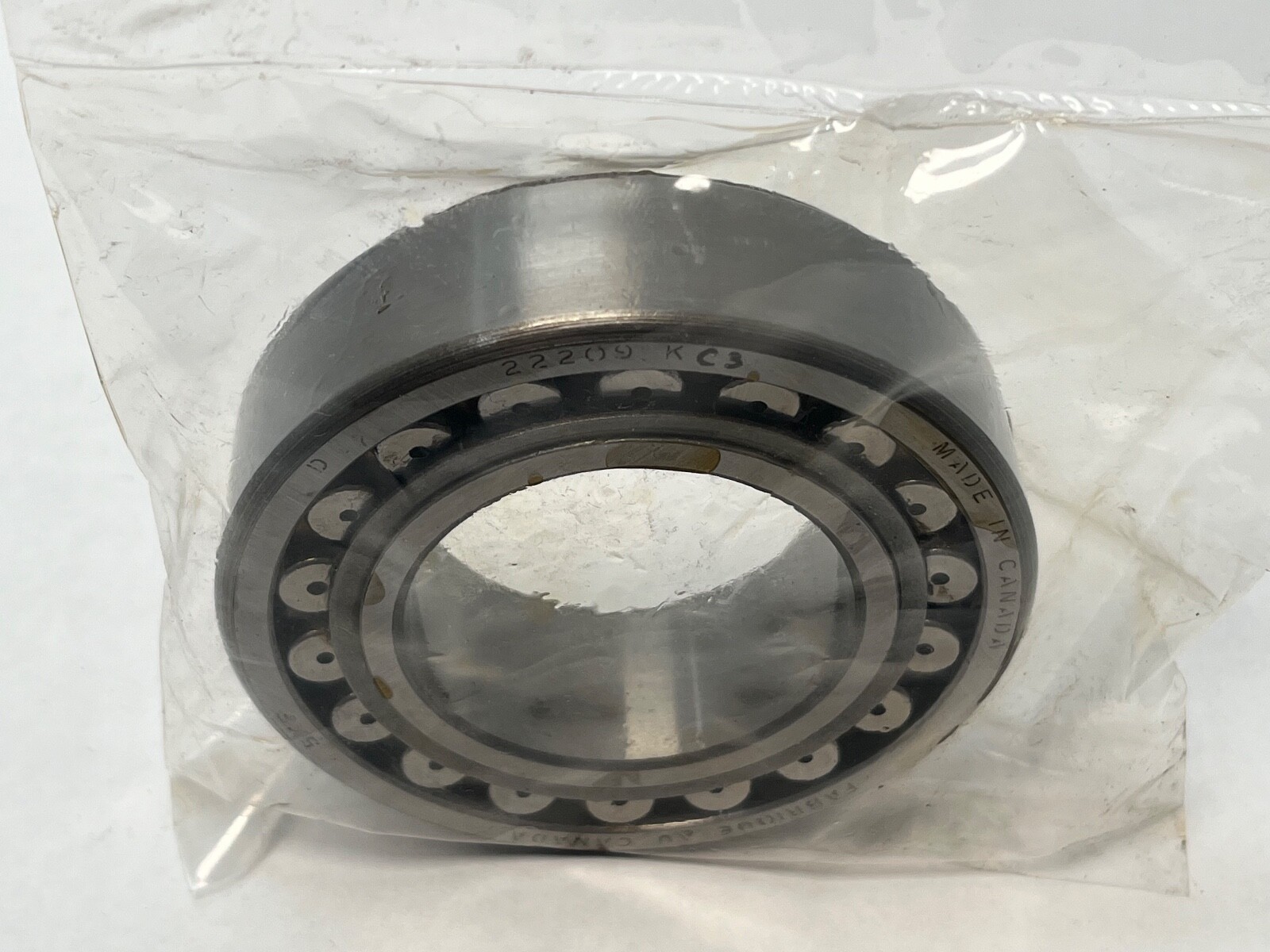

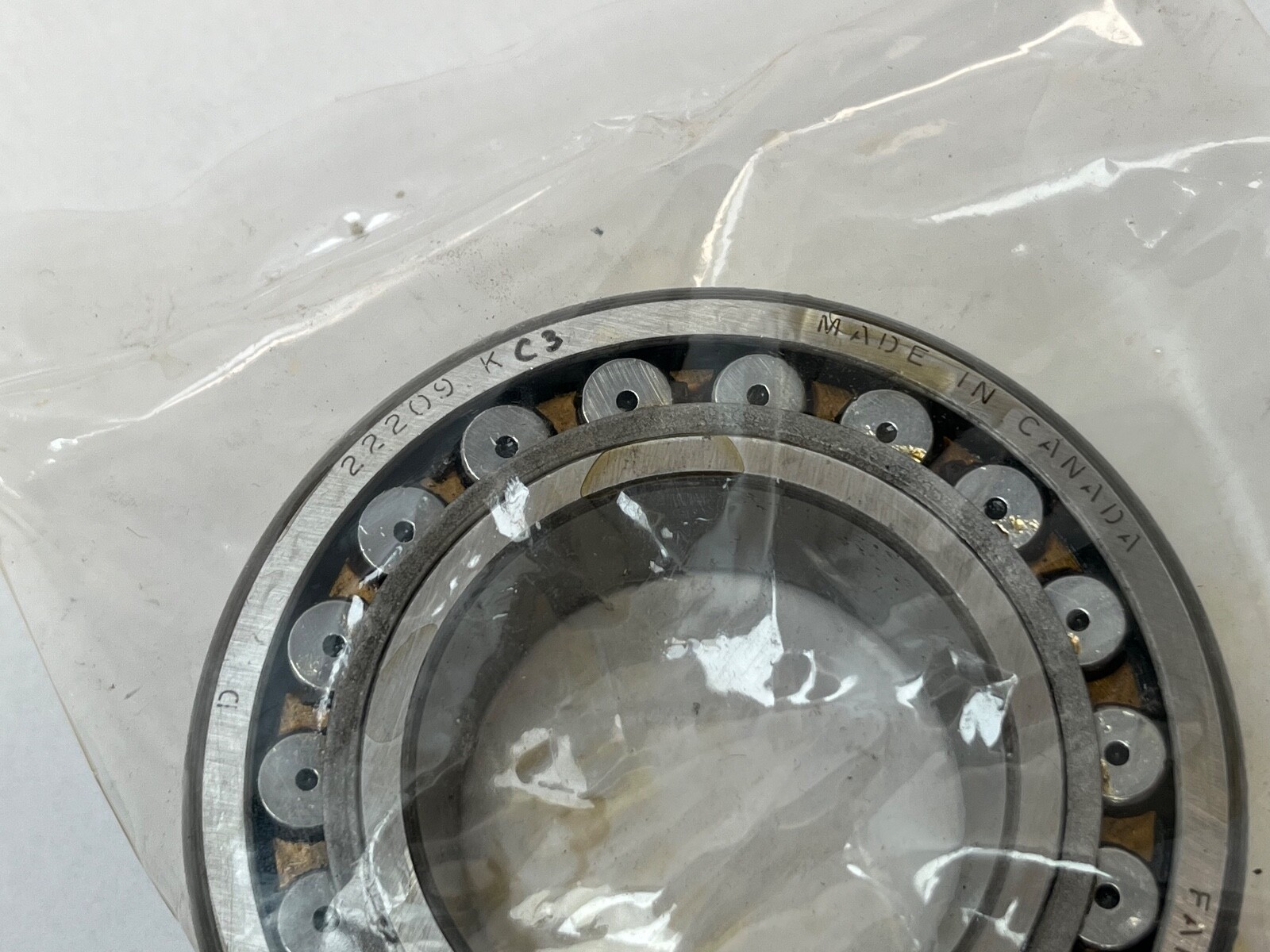

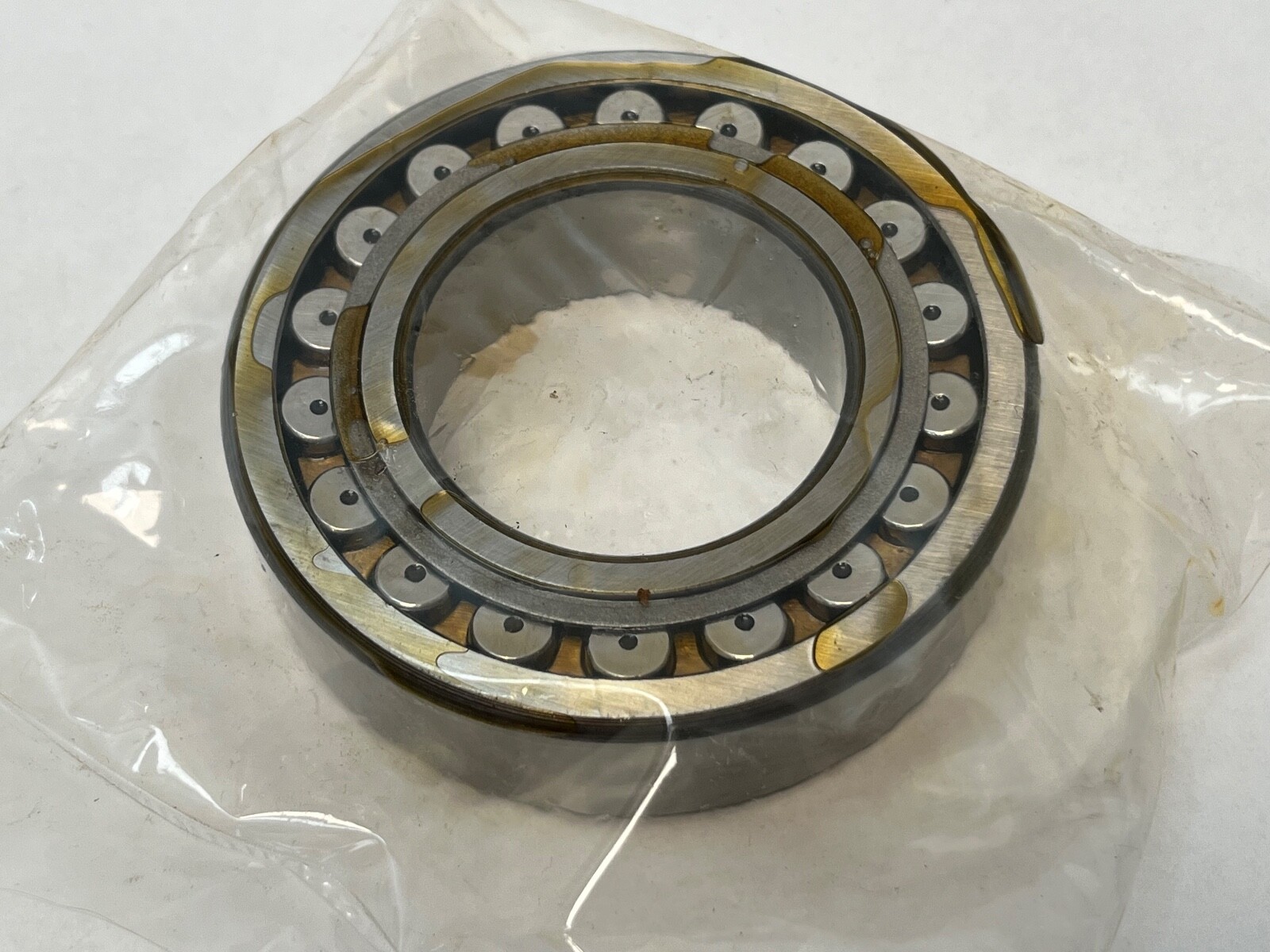

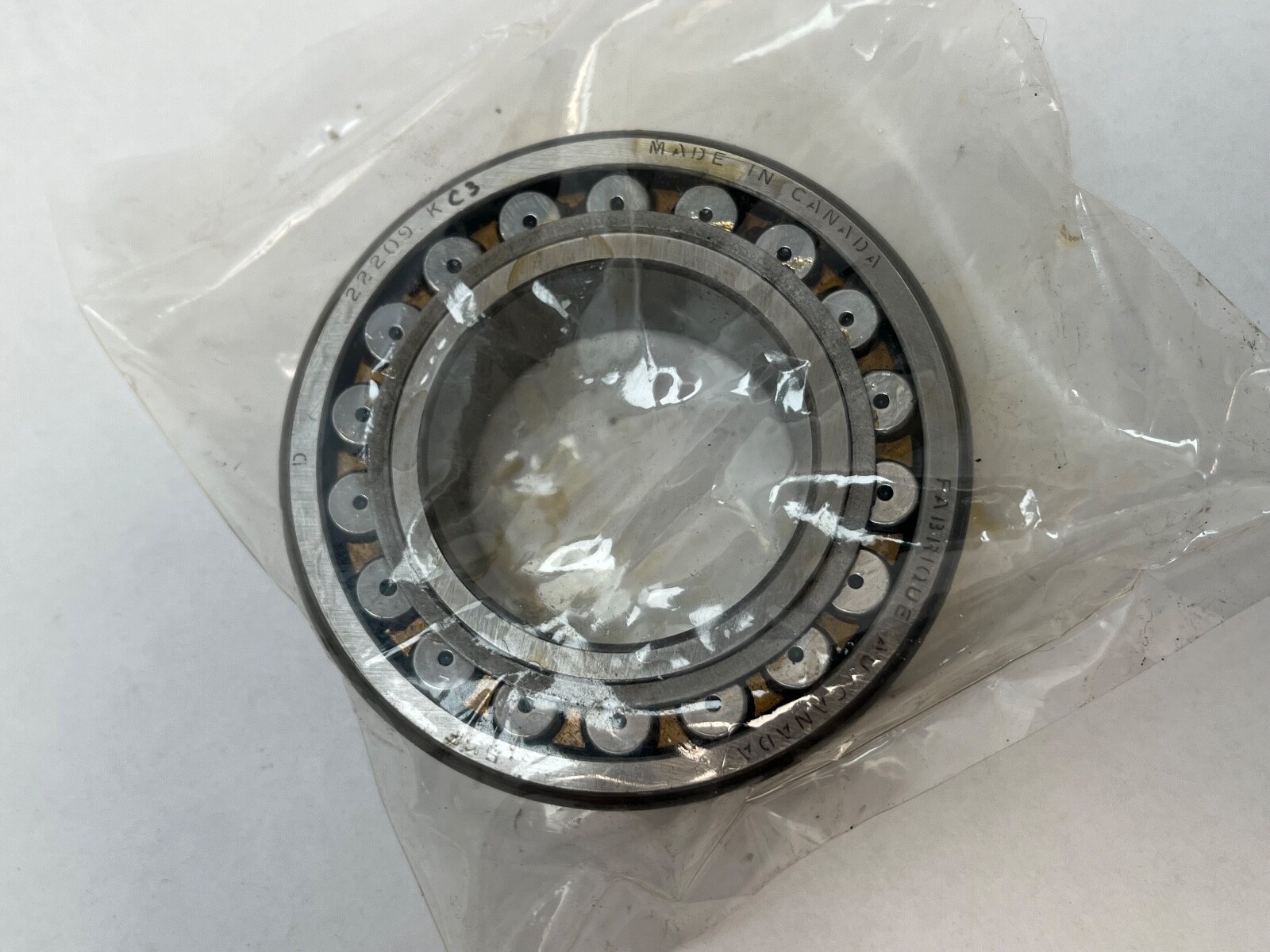

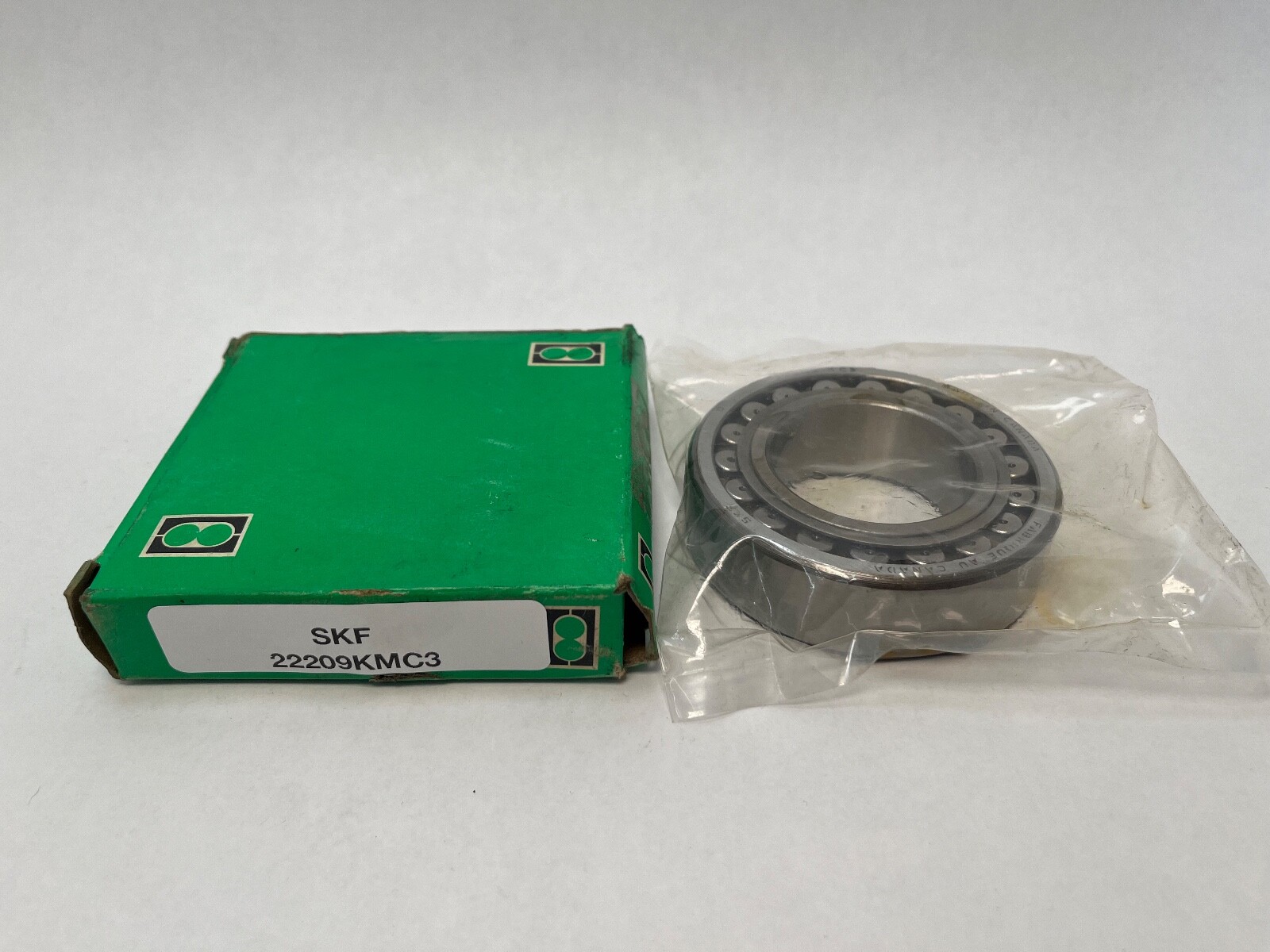

SKF 22209 KM/C3 double-row spherical roller bearing, 45 x 85 x 23 mm, 1:12 tapered bore, machined brass cage, C3 clearance. Bearing only, 1 Pc.
List Price
$65.92
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22209 KM/C3 |
| Model | 22209 K M C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Series | 22200 |
|---|---|
| Material | Bearing Steel |
| Base Number | 22209 |
| Industry Terms | spherical roller bearing; taper bore; brass cage bearing |
| Common Misspellings | SFK 22209KMC3; 22209 KM-C3; 22209KM C-3 |
| Application Types | Vibrating screens; crushers; conveyor pulleys; fans |
| Bore Shaft Size | 45 mm (1.7717 in), 1:12 tapered bore |
| Mpn Variants | 22209KMC3; 22209 KM C3; 22209-K-M-C3; 22209KM/C3; 22209 KMC3 |
| Compatible With Replaces | Adapter sleeve SKF H309 - separate part, not included |
| Rolling Elements | Spherical Rollers |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Part Number | 22209 KM/C3 |
| Maximum Permissible Misalignment | 2° |
| Cross Reference 1 | FAG 22209-K-MB-C3 - brass cage, C3 |
|---|---|
| Cross Reference 2 | NSK 22209CAKE4C3 - brass cage, C3 |
| Cross Reference 3 | Timken 22209KYMC3 - brass cage, C3 |
SKF 22209 KM/C3 double-row spherical roller bearing, bearing only, 1 Pc. 45 mm 1:12 tapered bore, 85 mm outside diameter, 23 mm width, machined brass cage, C3 internal clearance. Two rows of barrel-shaped rollers run on a common spherical raceway in the outer ring, giving self-aligning operation, high radial load capacity and axial load capacity in both directions.
222 — double-row spherical roller family; 09 bore code gives a 45 mm bore.
K — 1:12 tapered bore.
M — machined brass cage.
C3 — radial internal clearance greater than normal.
Bore Diameter: 45 mm (1.7717 in). Bore Type: Tapered 1:12. Outside Diameter: 85 mm. Overall Width: 23 mm. Number Of Rows: 2. Internal Clearance: C3. Cage Material: Machined brass. Maximum Permissible Misalignment: 2°. Series: 222. Unit Quantity: 1 Pc.
Tapered 1:12 bore mounts on SKF adapter sleeve H309, which seats on a 40 mm shaft and is supplied with KM9 locknut and MB9 lockwasher. The outer ring is plain, with no W33 lubrication groove or holes.
Cross-Reference 1: FAG 22209-K-MB-C3. Cross-Reference 2: NSK 22209CAKE4C3. Cross-Reference 3: Timken 22209KYMC3. All are 45 mm tapered bore, 85 x 23 mm, machined brass cage, C3. SKF 22209 CCK/C3W33 shares the envelope with a pressed steel cage and W33 groove. Designation forms: 22209KMC3, 22209 KM C3, 22209-K-M-C3, 22209KM/C3.
Bore Diameter: 45 mm, tapered 1:12. Outside Diameter: 85 mm. Overall Width: 23 mm.
Cage Material: Machined brass. Internal Clearance: C3.
SKF adapter sleeve H309 with KM9 locknut and MB9 lockwasher, sold separately.
