Spherical Roller Bearing - 65 mm ID, 140 mm OD, 33 mm Width, Straight Bore, W33 Lubrication Groove, CN$191.22
Low-Cross-Section Spherical Roller Bearing 65x140x33 mm, Tapered Bore 1:12, Two Stamped Steel Cages - Fits a 60 mm Shaft With an H 313 Adapter Sleeve$110.74
Spherical Roller Bearing, 65 mm ID, 140 mm OD, 33 mm Width, C3 Clearance$68.84
Double-Row Spherical Roller Bearing 65 x 120 x 31 mm, 1:12 Tapered Bore, CN Clearance, W33 Lubrication Groove$72.01| MFR / Brand | SKF |
|---|---|
| MPN | 21313CC |
| Model | 21313-CC 21313C 21313 CJ |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 65 mm |
| OD | 140 mm |
| Width | 33 mm |
| Material | Bearing Steel |
|---|---|
| Series | 21300 Series |
| Lubricant | Oil/Grease |
| Min Temp | -30°C |
| Cage Type | CC - Steel Cage |
| Dynamic Load Rating | 200 kN / 44960 lbf |
| Static Load Rating | 224 kN / 50360 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Spherical Rollers |
| Max Temp | 200°C |
| Item Weight | 5.56 lbs |
| Cage Material | Steel |
| Limiting Speed | 6000 rpm |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Relubrication Feature | With |
| Harmonization Code | 8482.30.0000 |
| Internal Clearance | CN |
| Running Accuracy | P0 |
| Running Accuracy Radial And Axial Runout | P0 |
| Maximum Permissible Misalignment | 2° |
| Cross Reference 1 | FAG 21313-E1 |
|---|---|
| Cross Reference 2 | NSK 21313E |

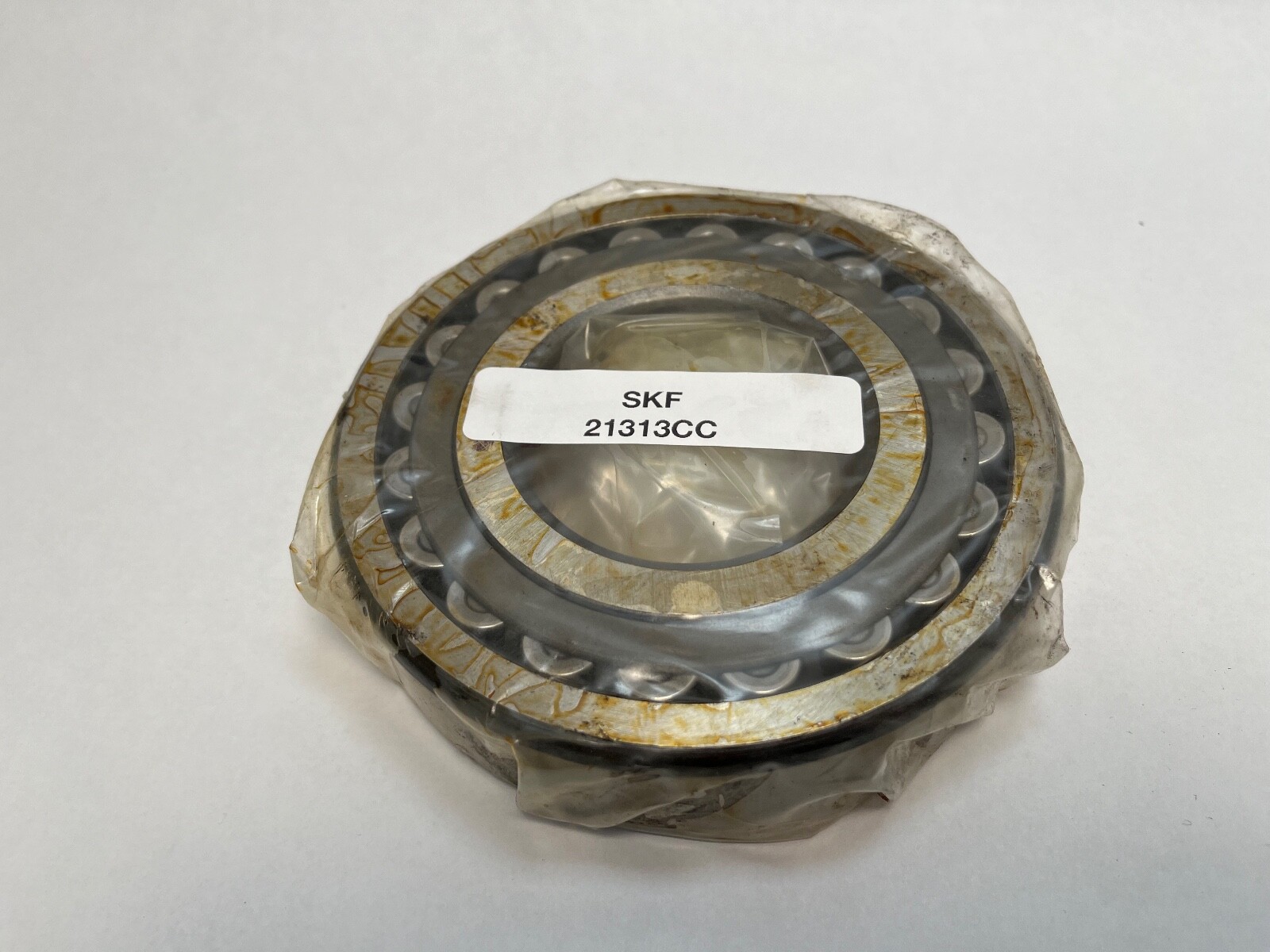

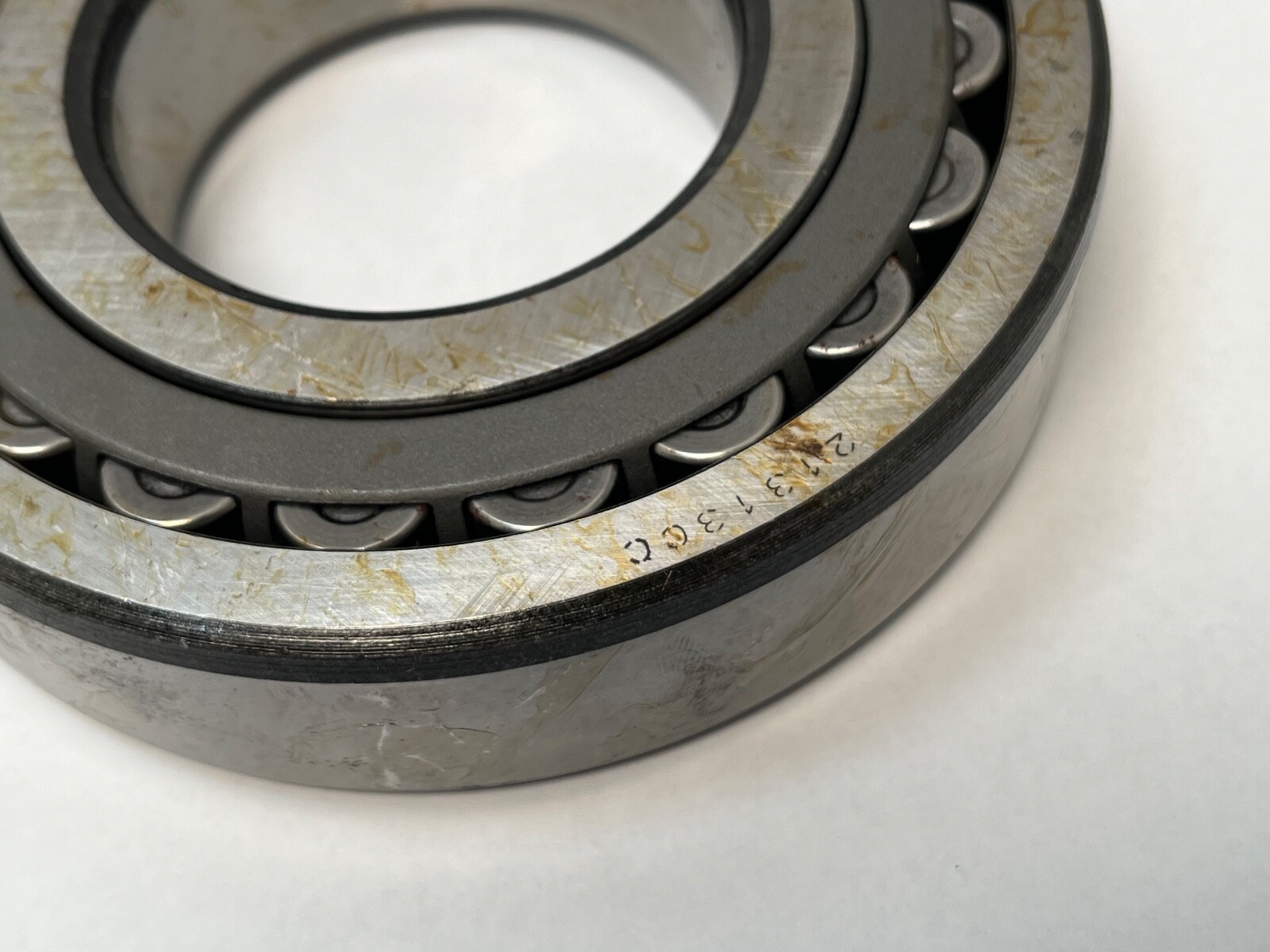

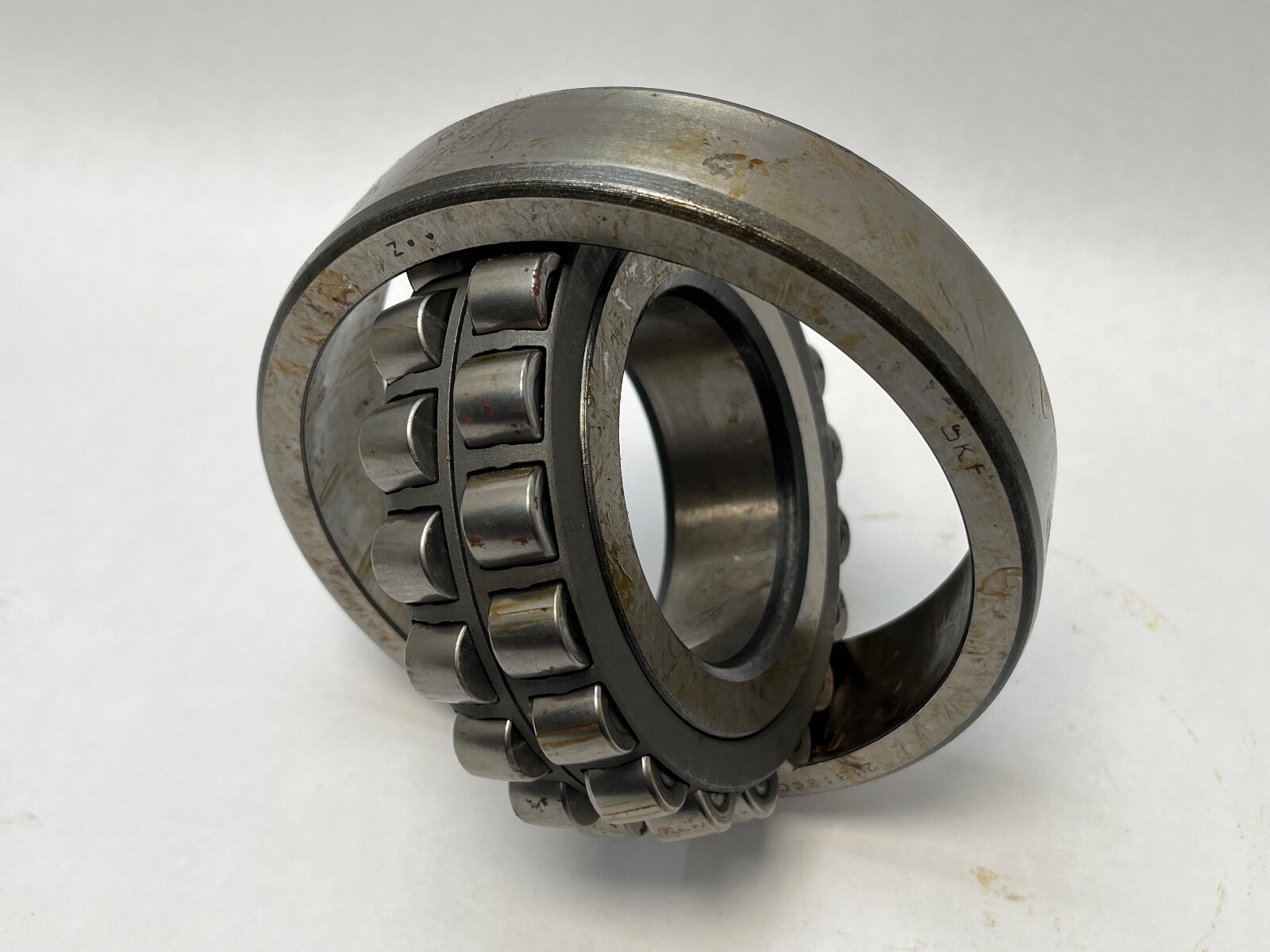

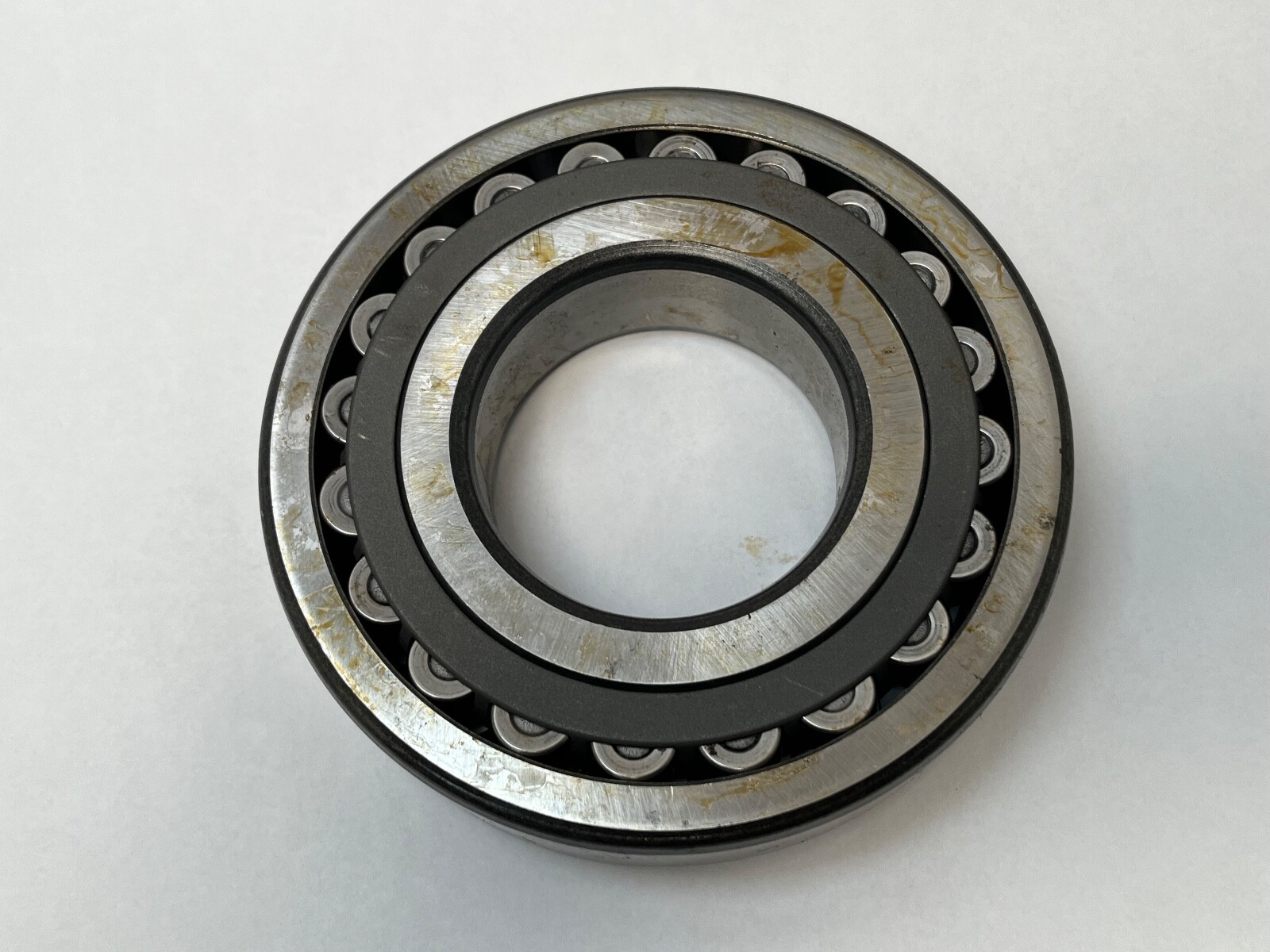

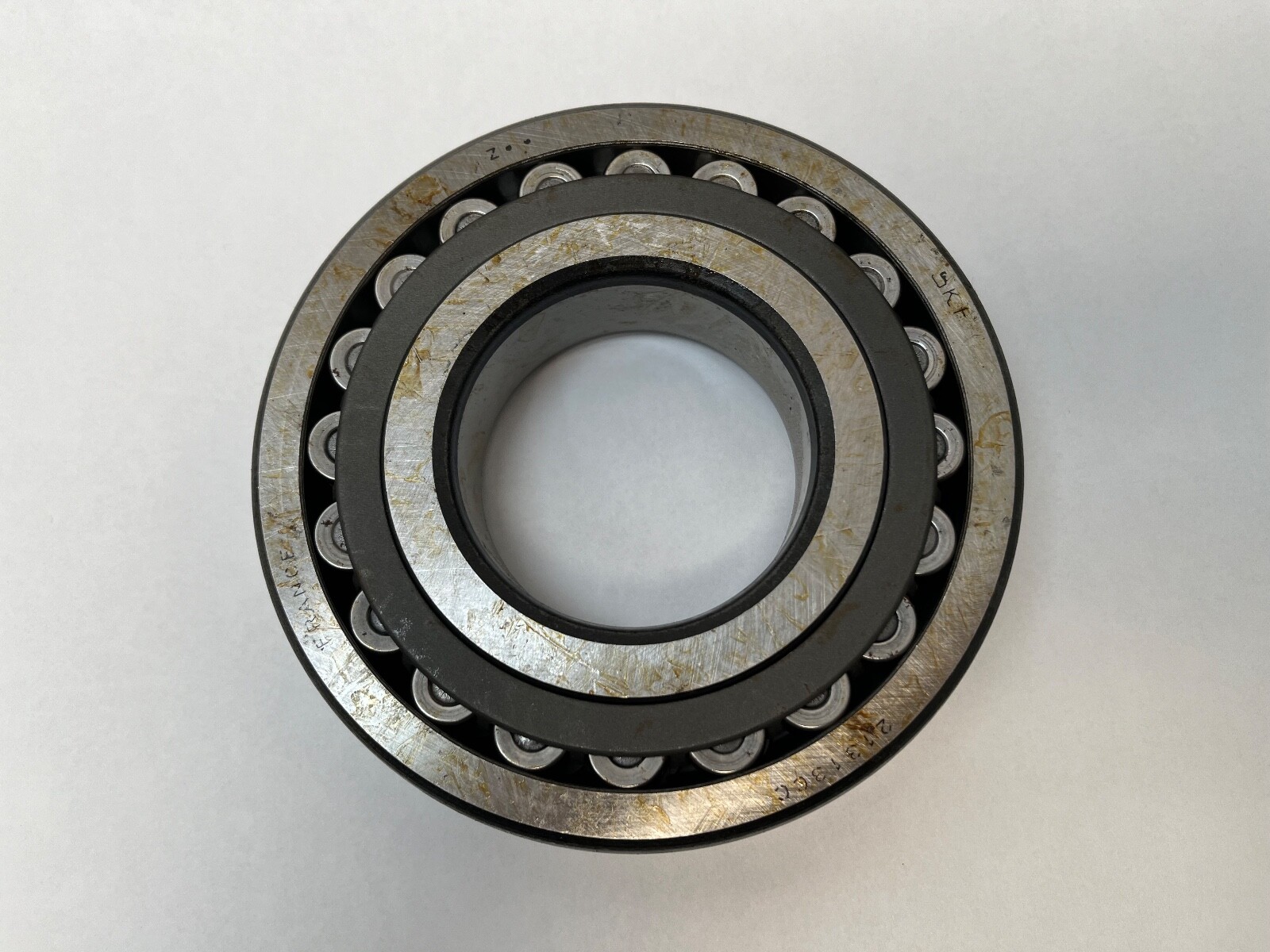

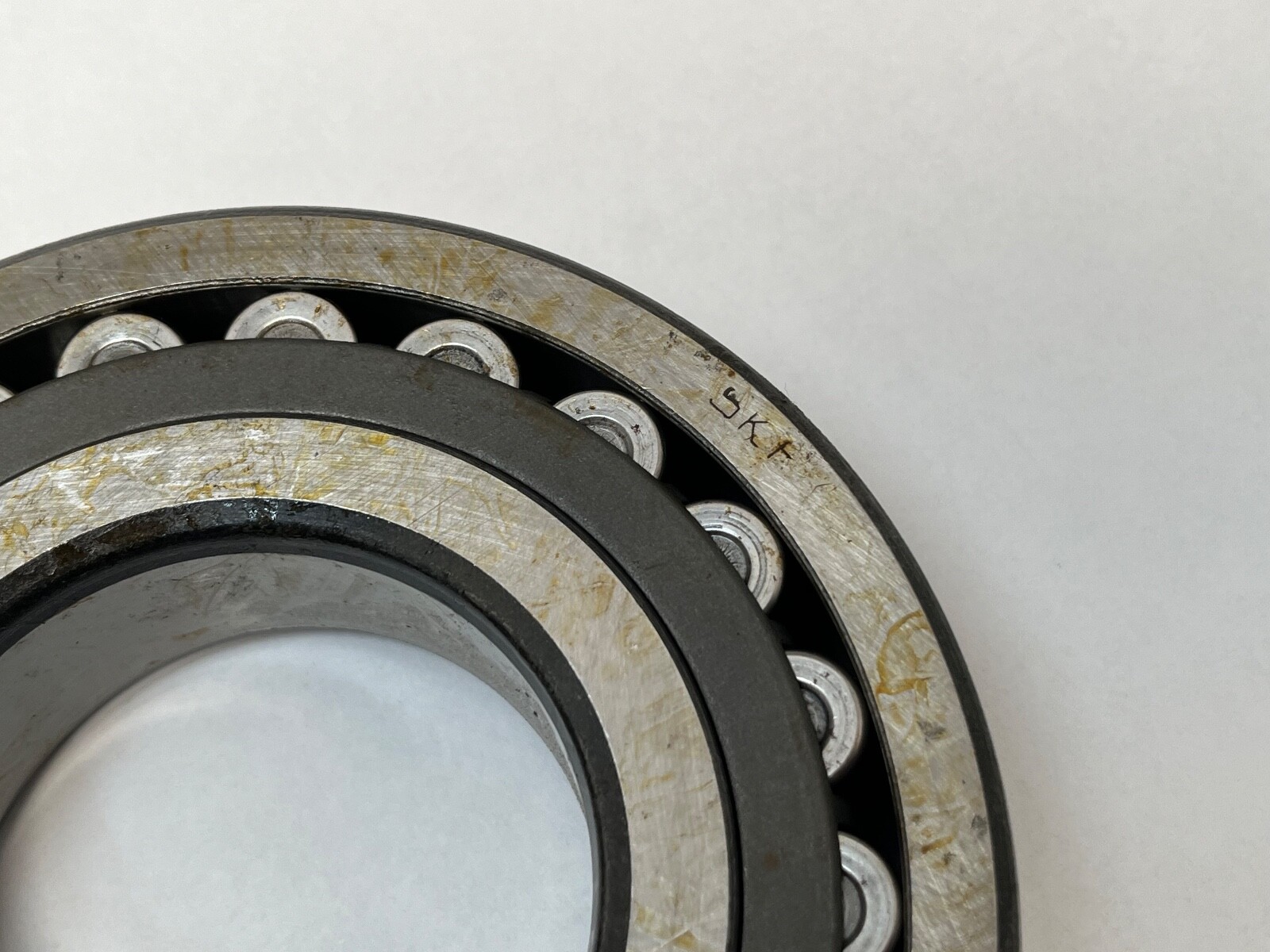

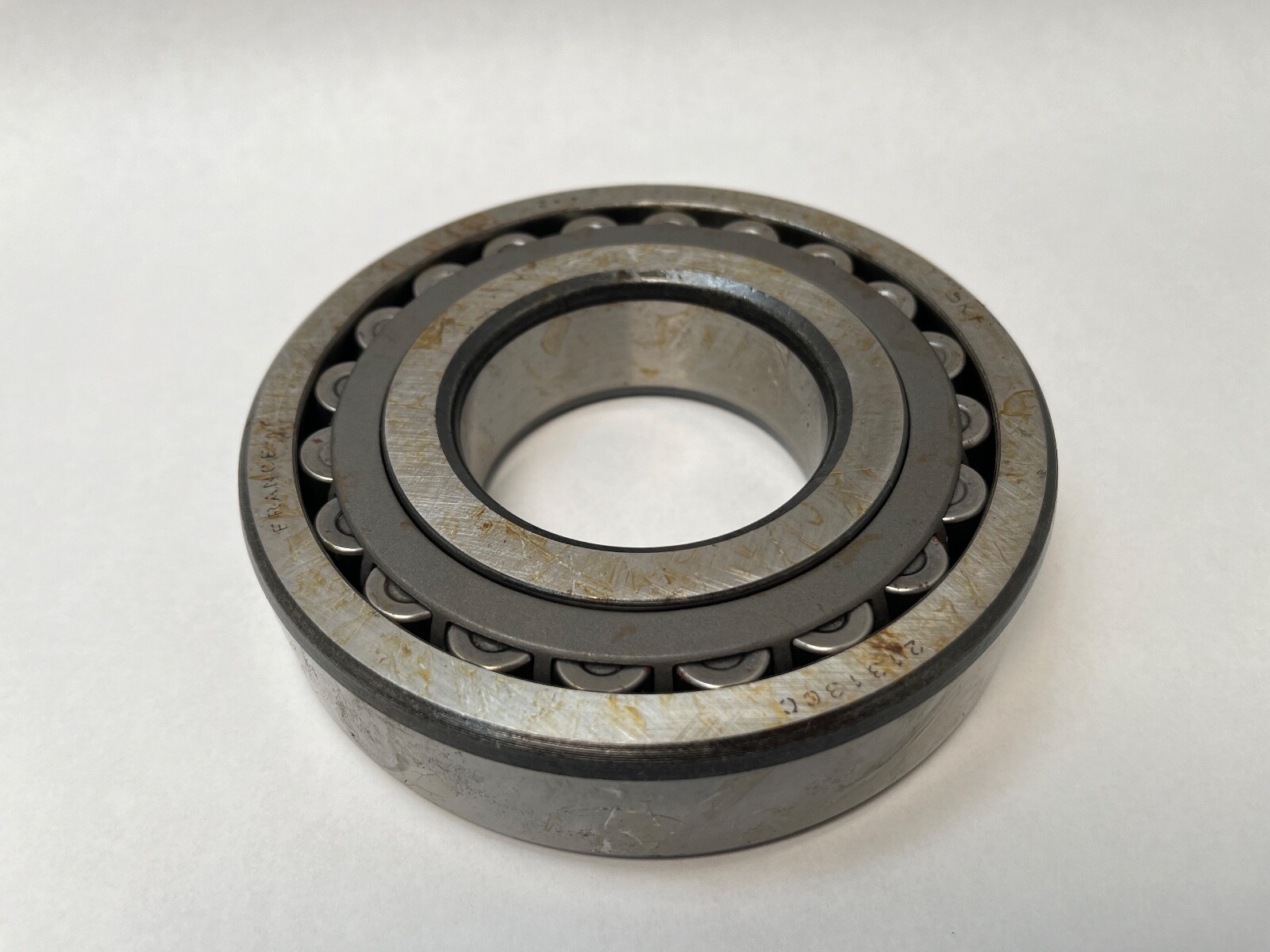

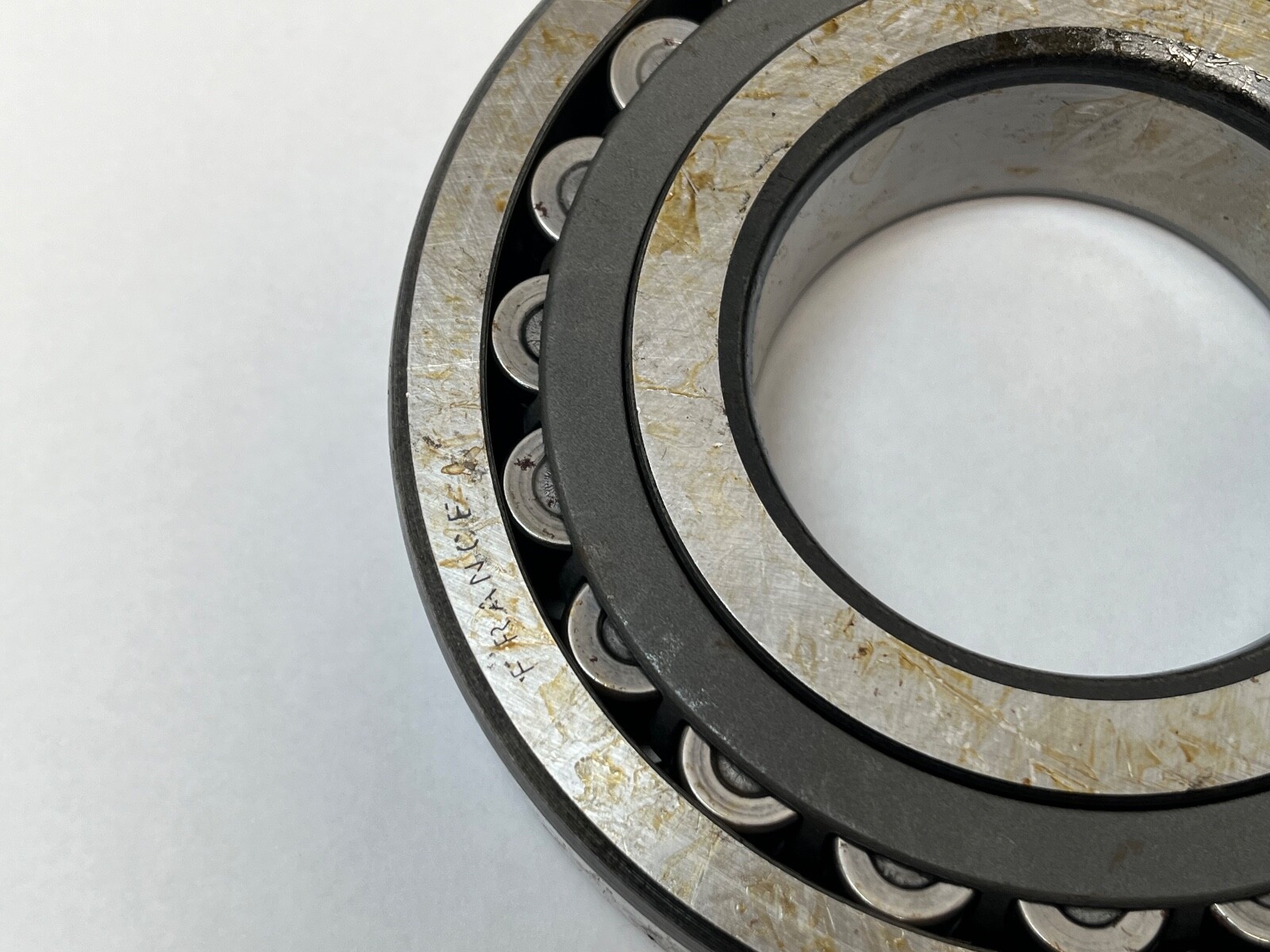

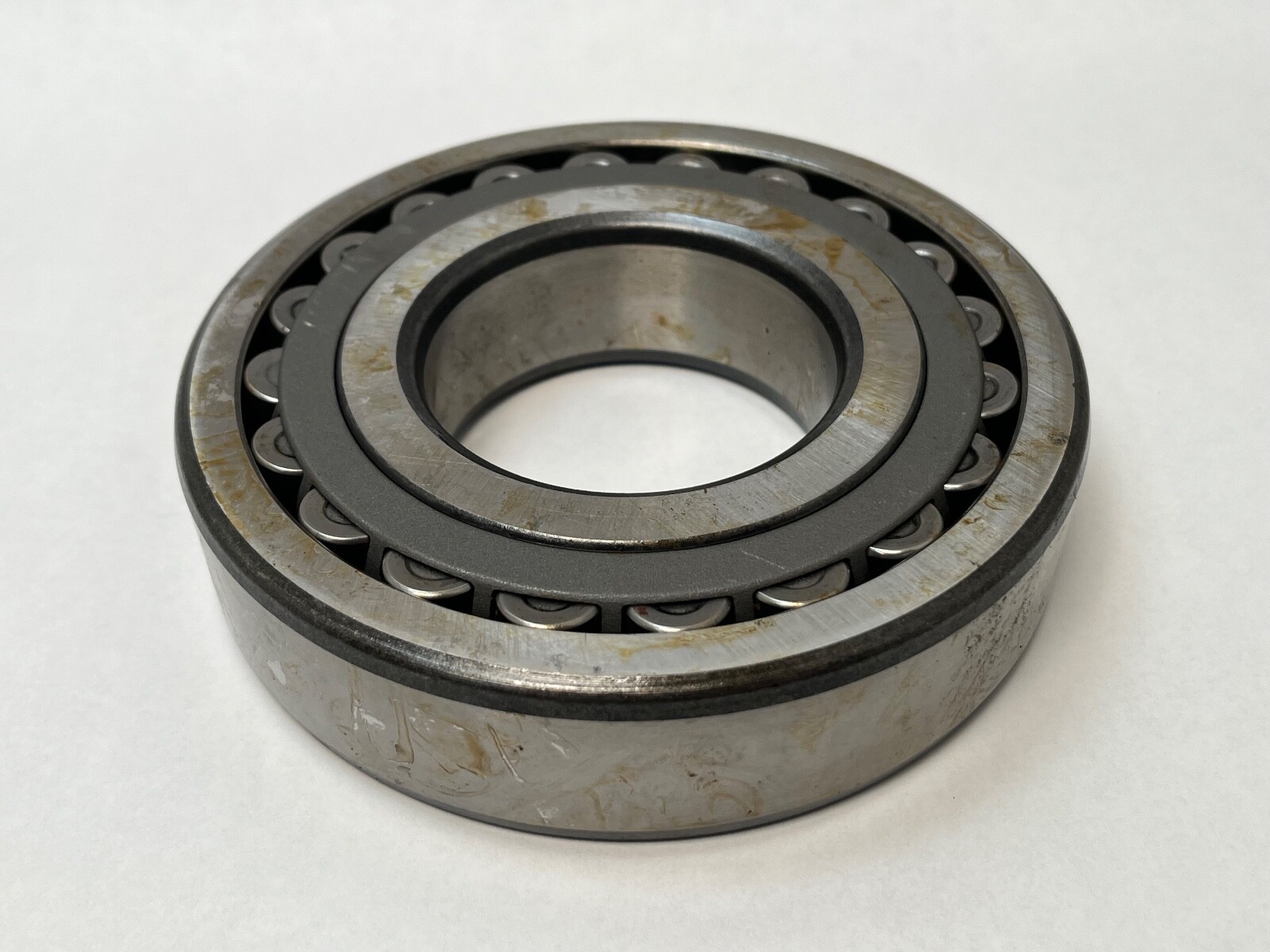

The SKF 21313-CC Spherical Bearing is a high-quality bearing made of bearing steel, designed for precision applications. With a precision rating of ABEC 1 / P0, this bearing features a dynamic load rating of 200 kN and a maximum permissible misalignment of 2°. The bearing has a bore diameter of 65 mm, an outside diameter of 140 mm, and a width of 33 mm. It is suitable for operating temperatures ranging from -30°C to 200°C and comes with a steel cage for added durability. Ideal for industrial automation and motion control systems in France.
