Spherical roller bearing, 150 x 270 x 73 mm, 1:12 tapered bore, brass cage, C3 clearance, lubrication groove. Dynamic load rating 1,010,000 N; sleeve H3130.
List Price
$363.34
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22230-E1A-K-M-C3 |
| Model | 22230E1AK.M.C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 150 mm |
| OD | 270 mm |
| Width | 73 mm |
| Series | 222 |
|---|---|
| Lubricant | Grease or oil |
| Mpn Variants | 22230-E1A-K-M-C3, 22230E1AK.M.C3, 22230-E1A-XL-K-M-C3, 22230E1AKM.CW333, 22230-E1-A-K-M-C3-W33, 22230E |
| Compatible With Replaces | Adapter sleeve H3130; withdrawal sleeve AHX3130G |
| Min Temp | -30 °C |
| Dynamic Load Rating | 1,010,000 N |
| Static Load Rating | 1,210,000 N |
| Rolling Elements | Spherical Roller |
| Max Temp | 200 °C |
| Item Weight | 17.283 kg (38.10 lb) |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | Without Snap Ring |
| Limiting Speed | 2,900 rpm |
| Internal Clearance | C3 |
| Relubrication Feature | Lubrication groove and holes in outer ring |
| Harmonization Code | 8482.30.00.80 |
| Maximum Permissible Misalignment | 1.5° |
| Industry Terms | spherical roller bearing; tapered bore spherical roller bearing; E1A bearing; 222 series bearing; 150 mm spherical roller bearing; H3130 sleeve bearing |
| Common Misspellings | FAG 22230 E1A K M C3; FAG 22230E1AKMC3; FAG 22230-E1-A-K-M-C3; FGA 22230-E1A-K-M-C3 |
| Closure Type | Open |
| Cross Reference 1 | SKF 22230 CCK/C3W33 - pressed steel cages |
|---|---|
| Cross Reference 2 | NSK 22230CAKE4C3 |

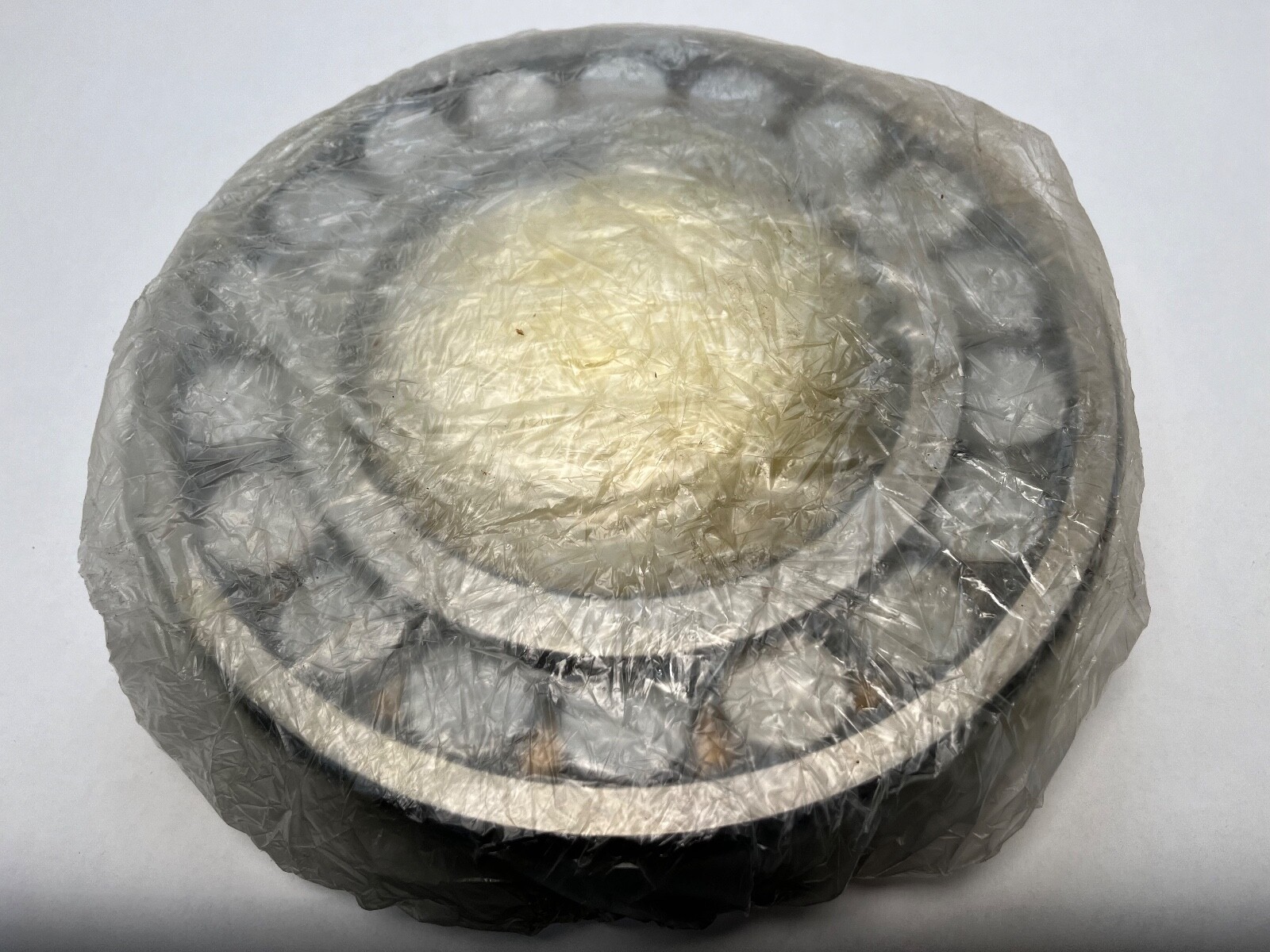

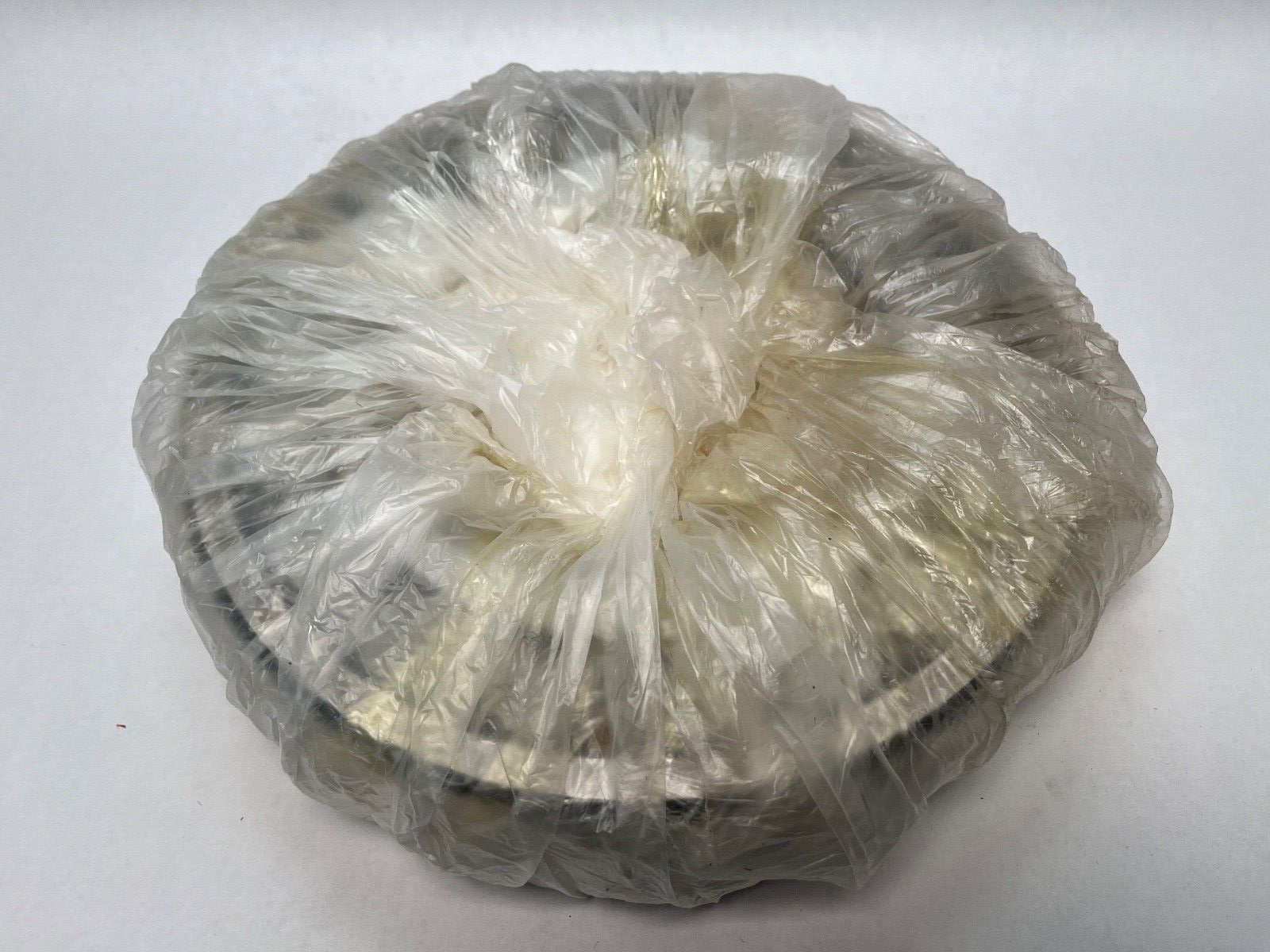

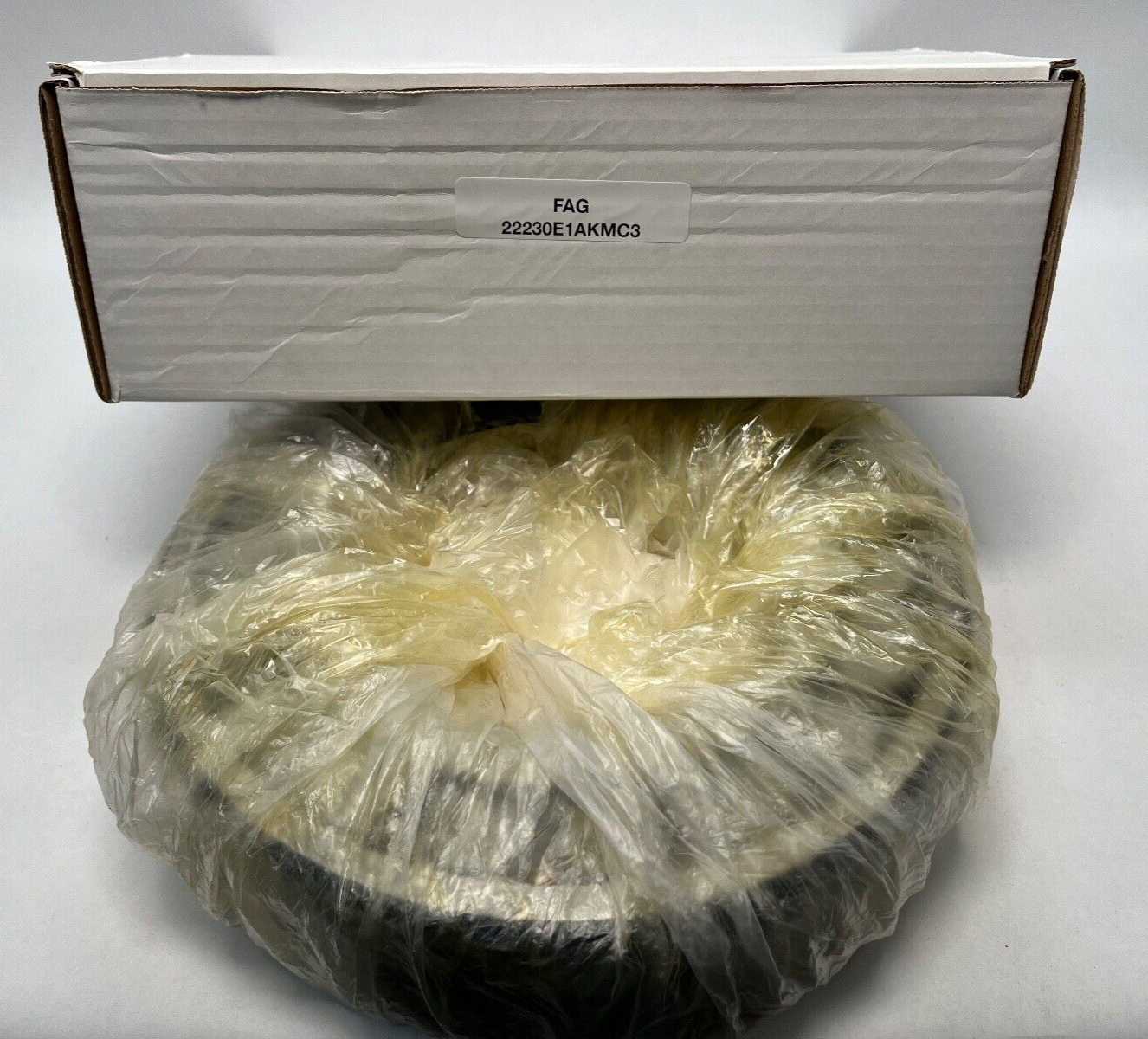

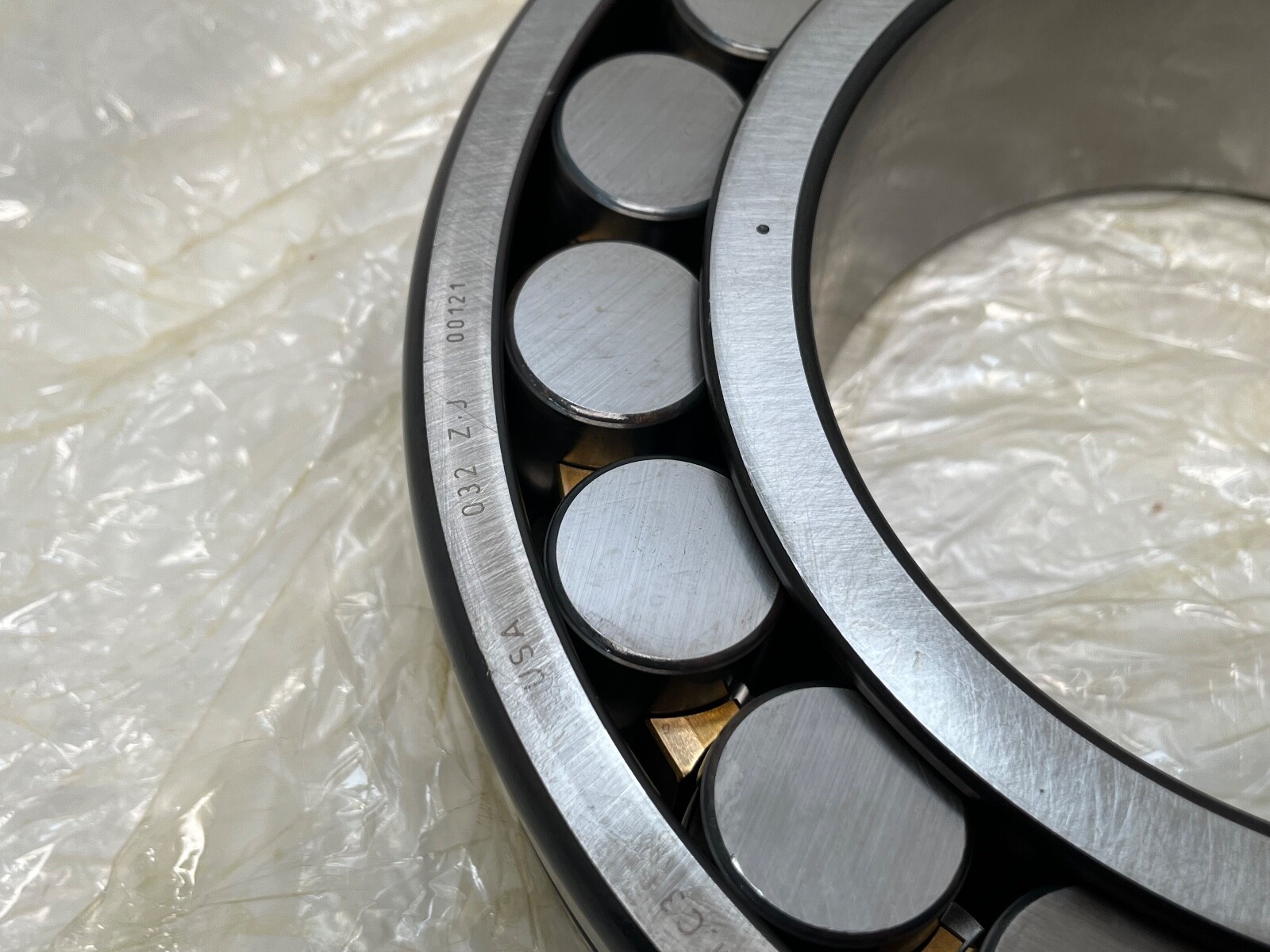

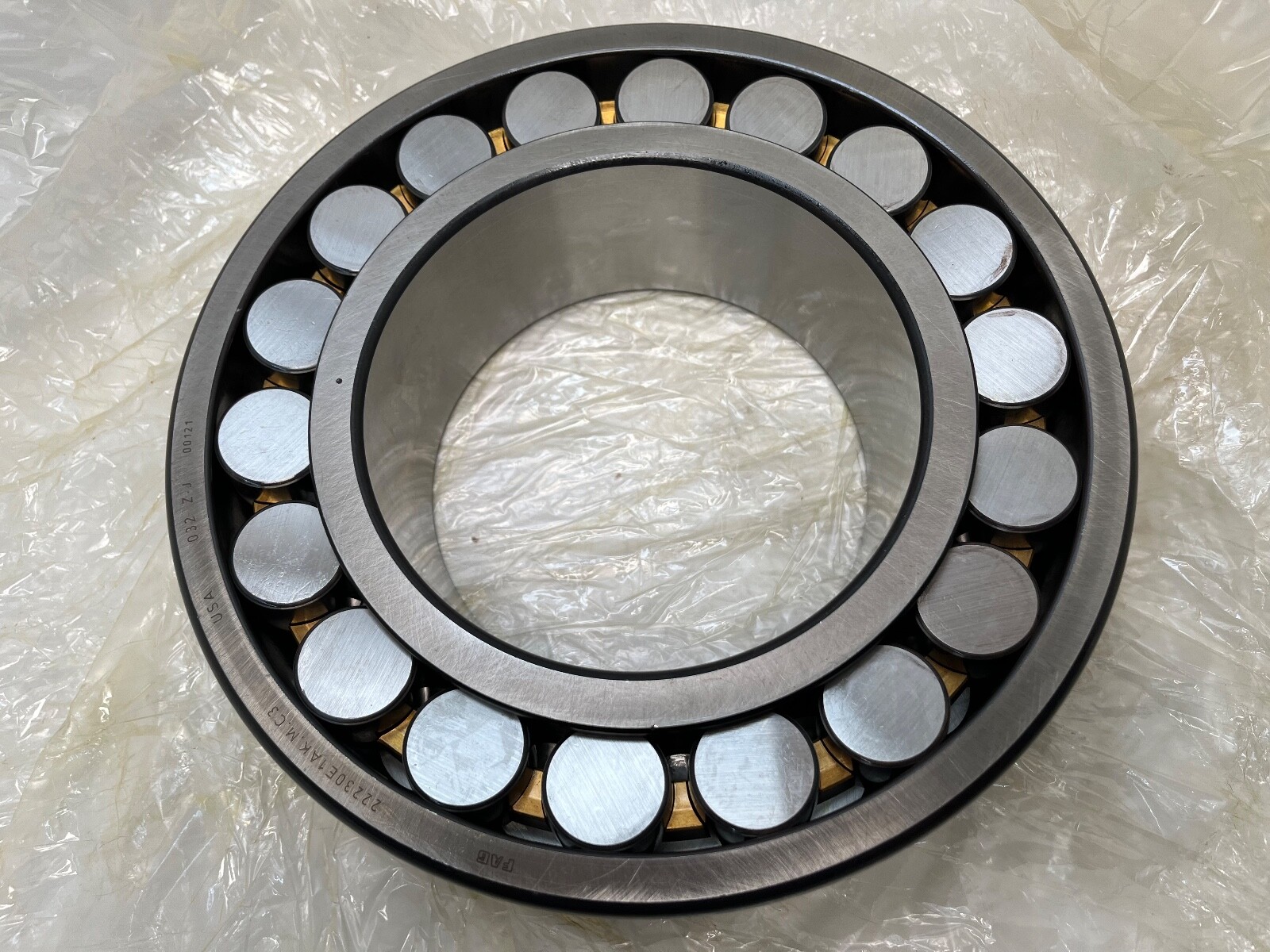

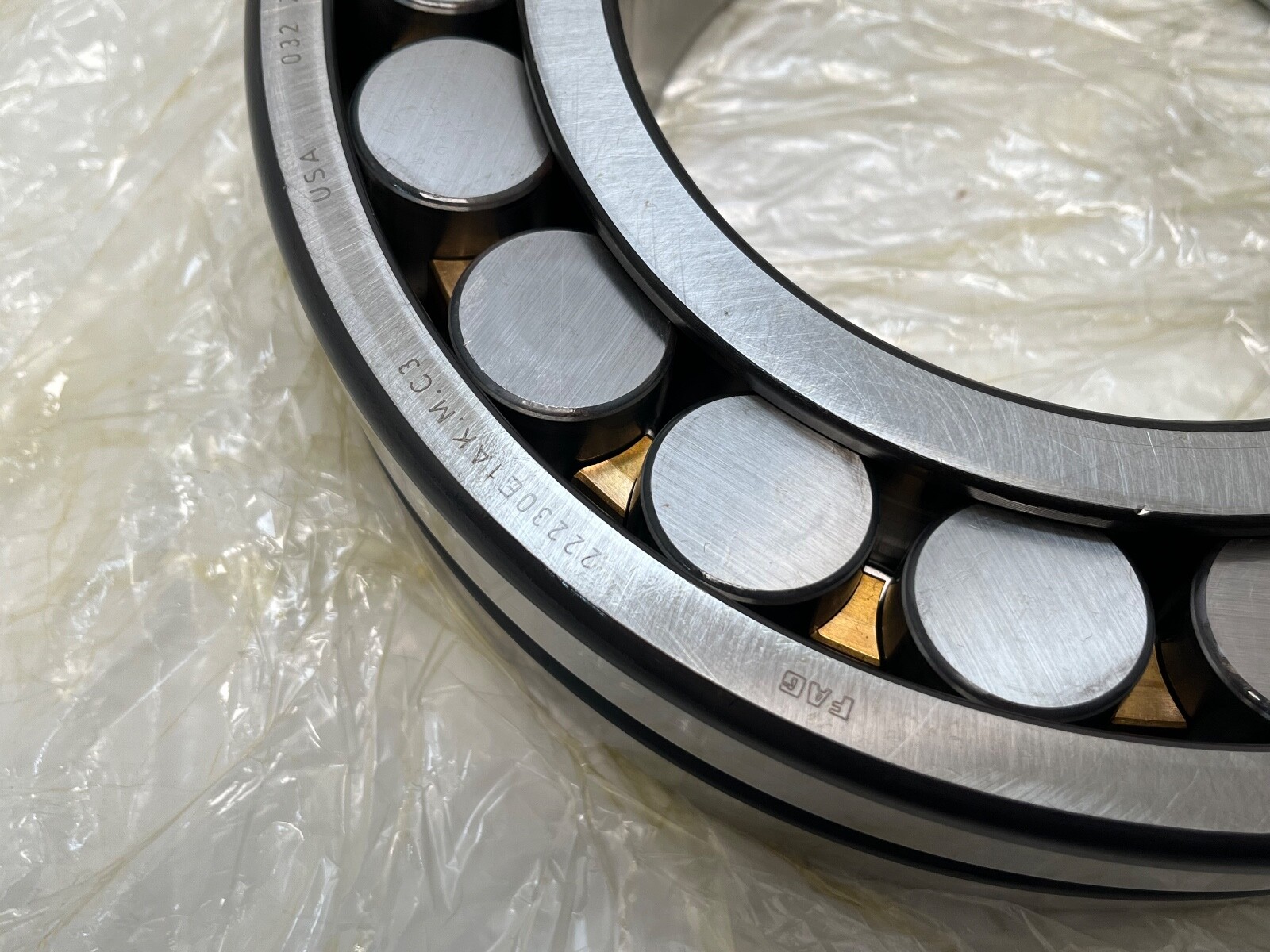

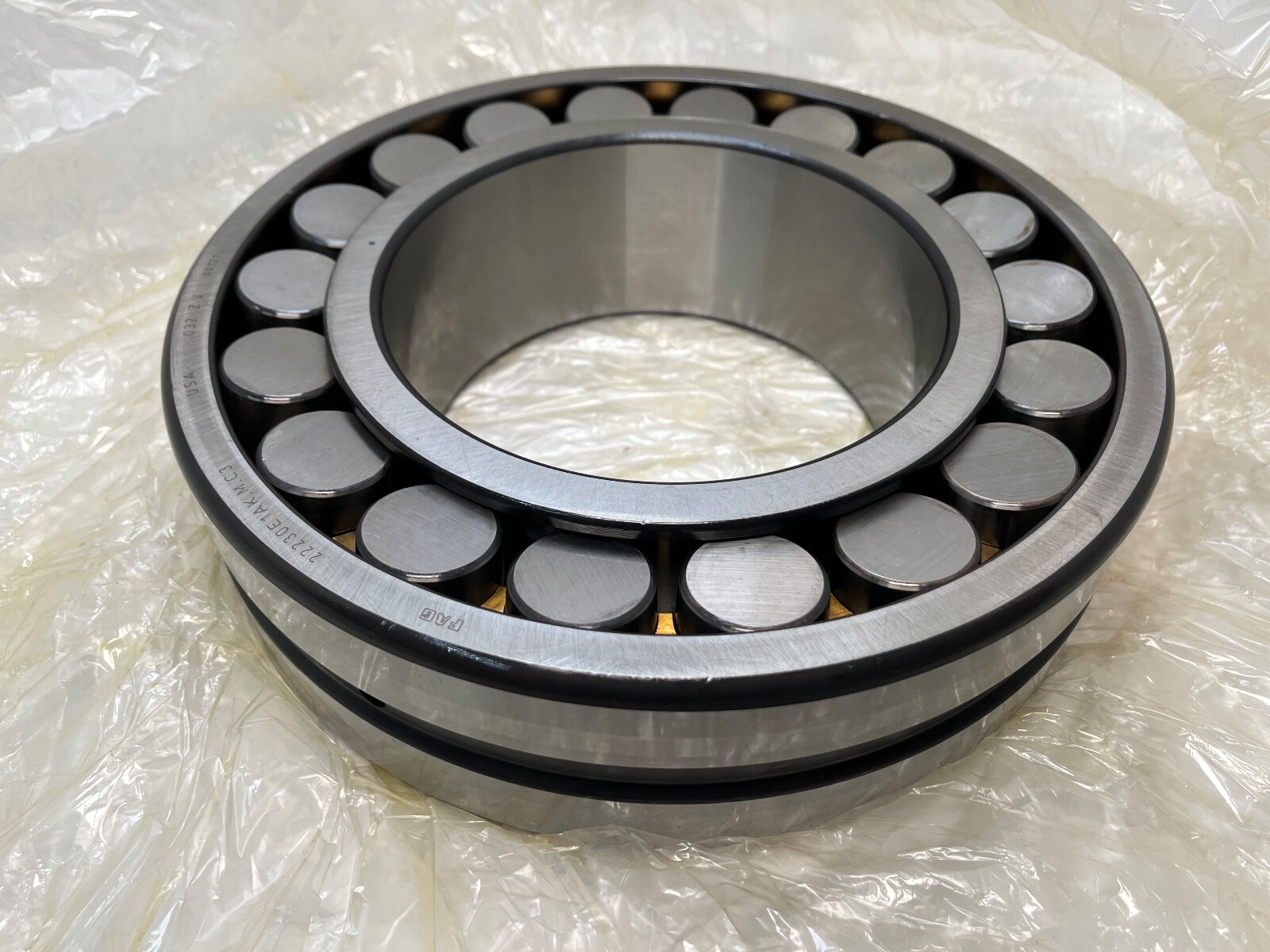

FAG 22230-E1A-K-M-C3 is a double-row spherical roller bearing in the 222 series with a 1:12 tapered bore, machined brass cage and C3 radial internal clearance. Unit Quantity: 1 Pc.
22230 — spherical roller bearing, 222 series; bore code 30 = 150 mm.
E1A — FAG E1 internal design with two outer guide ribs and no central rib; lubrication groove and holes in the outer ring.
K — tapered bore, taper 1:12.
M — machined brass cage.
C3 — radial internal clearance larger than CN.
Bore Diameter: 150 mm (small end of taper). Outside Diameter: 270 mm. Overall Width: 73 mm. Bore Type: Tapered 1:12. Rolling Elements: Spherical Roller. Number Of Rows: 2. Dynamic Load Rating: 1,010,000 N. Static Load Rating: 1,210,000 N. Fatigue Load Limit: 114,000 N. Limiting Speed: 2,900 rpm. Reference Speed: 2,050 rpm. Operating Temperature: -30 to 200 °C. Internal Clearance: C3. Cage Material: Machined brass. Lubricant: grease or oil, through the outer-ring groove (8 mm holes, 15 mm groove width). Maximum Permissible Misalignment: 1.5°. Item Weight: 17.283 kg (38.10 lb). Axial load factors: e = 0.25, Y1 = 2.69, Y2 = 4, Y0 = 2.63.
Adapter sleeve: H3130. Withdrawal sleeve: AHX3130G. Shaft Shoulder Diameter: 164 mm min, 177 mm max. Housing Shoulder Diameter: 256 mm max. Minimum Chamfer: 3 mm. Maximum Recess Radius: 2.5 mm. Inner Ring Raceway Diameter: 177.9 mm.
Current Schaeffler designation 22230-E1A-XL-K-M-C3 replaces 22230-E1A-K-M-C3 and 22230E1AK.M.C3. Cross-references: SKF 22230 CCK/C3W33 (pressed steel cages), NSK 22230CAKE4C3. MPN Variants: 22230-E1A-K-M-C3, 22230E1AK.M.C3, 22230-E1A-XL-K-M-C3, 22230E1AKM.CW333, 22230-E1-A-K-M-C3-W33, 22230E.
Bore 150 mm (1:12 tapered), outside diameter 270 mm, width 73 mm.
Adapter sleeve H3130; withdrawal sleeve AHX3130G.
Dynamic load rating 1,010,000 N and static load rating 1,210,000 N; limiting speed 2,900 rpm.
