Availability:
1 in stock

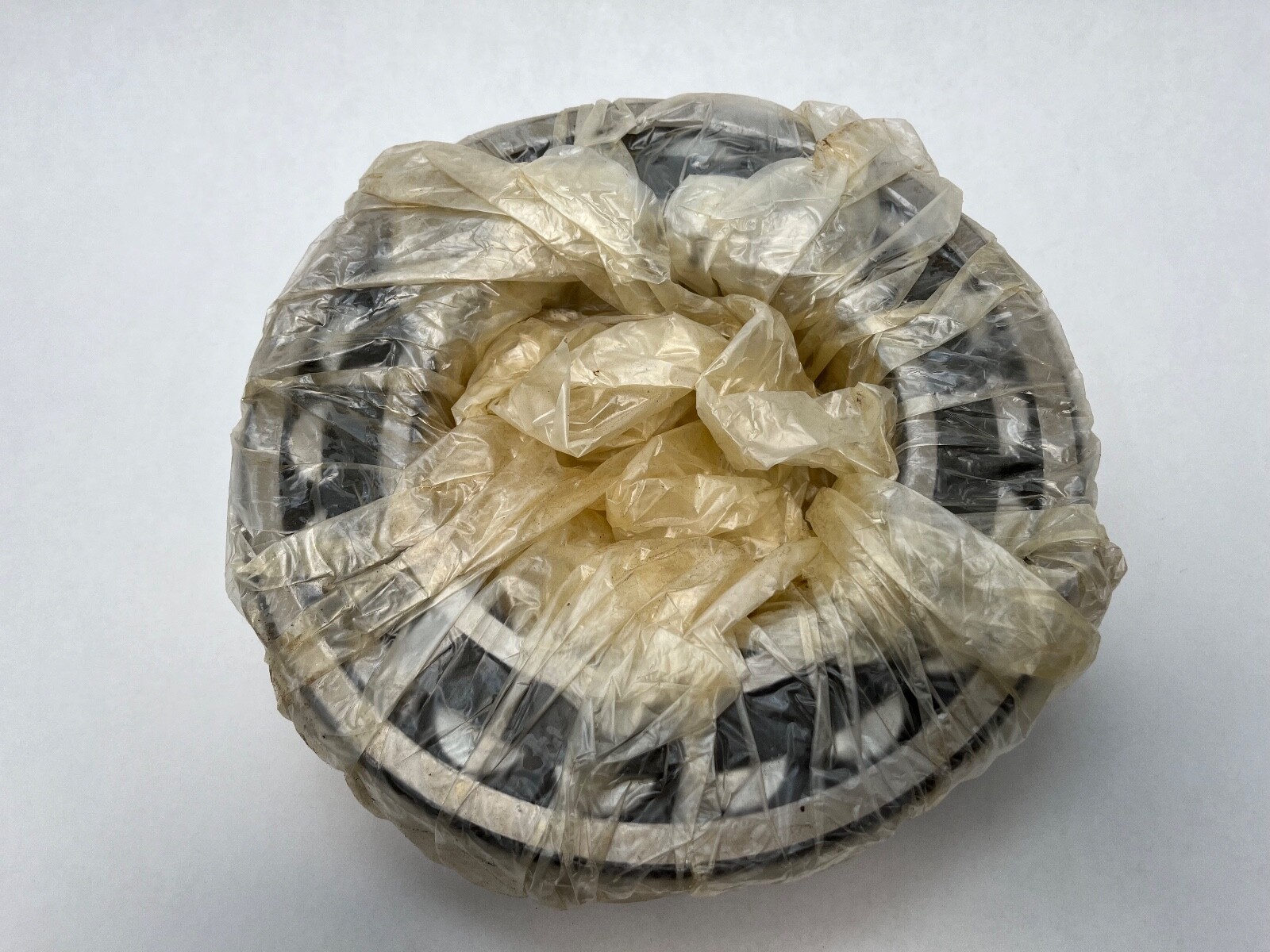

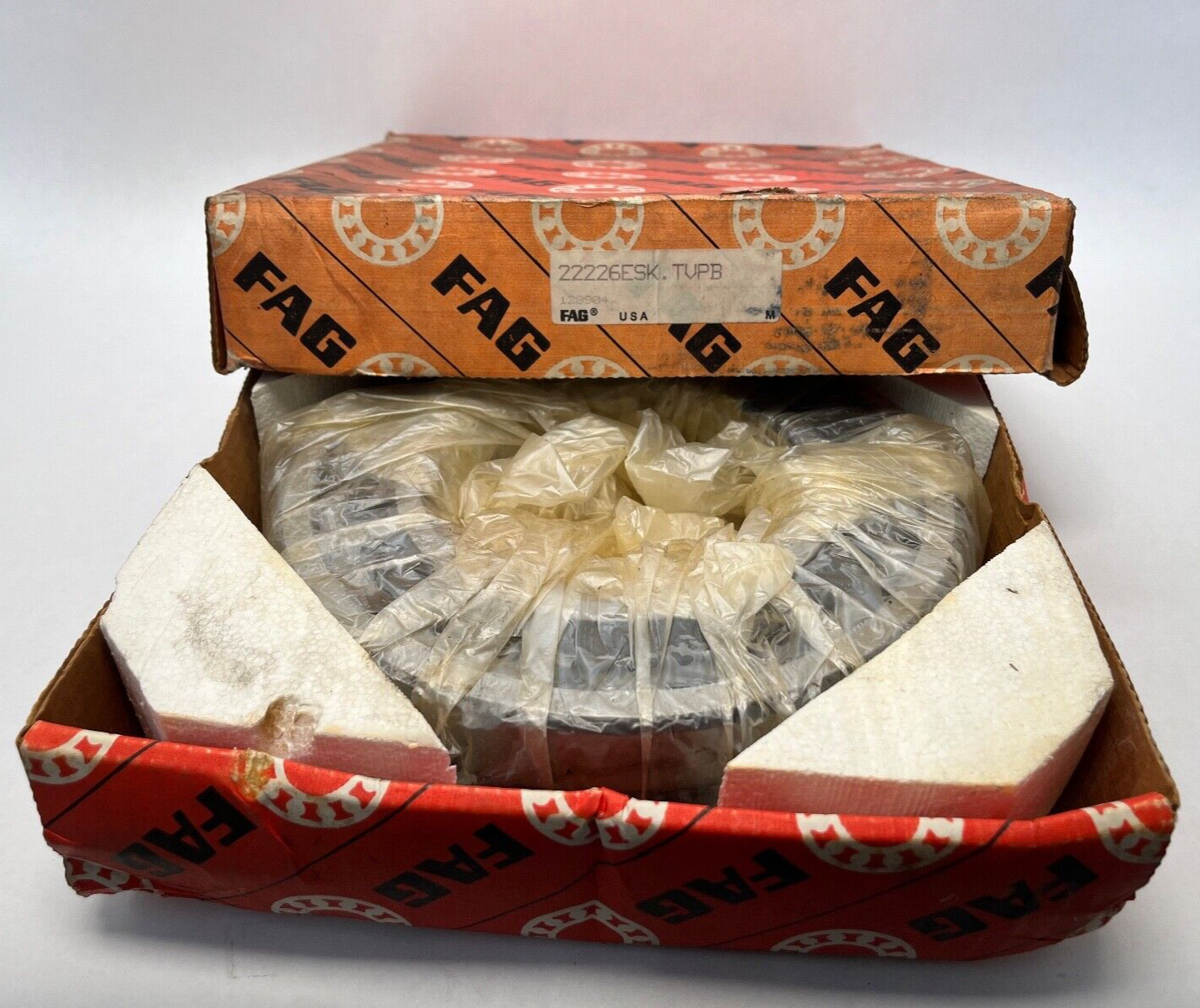

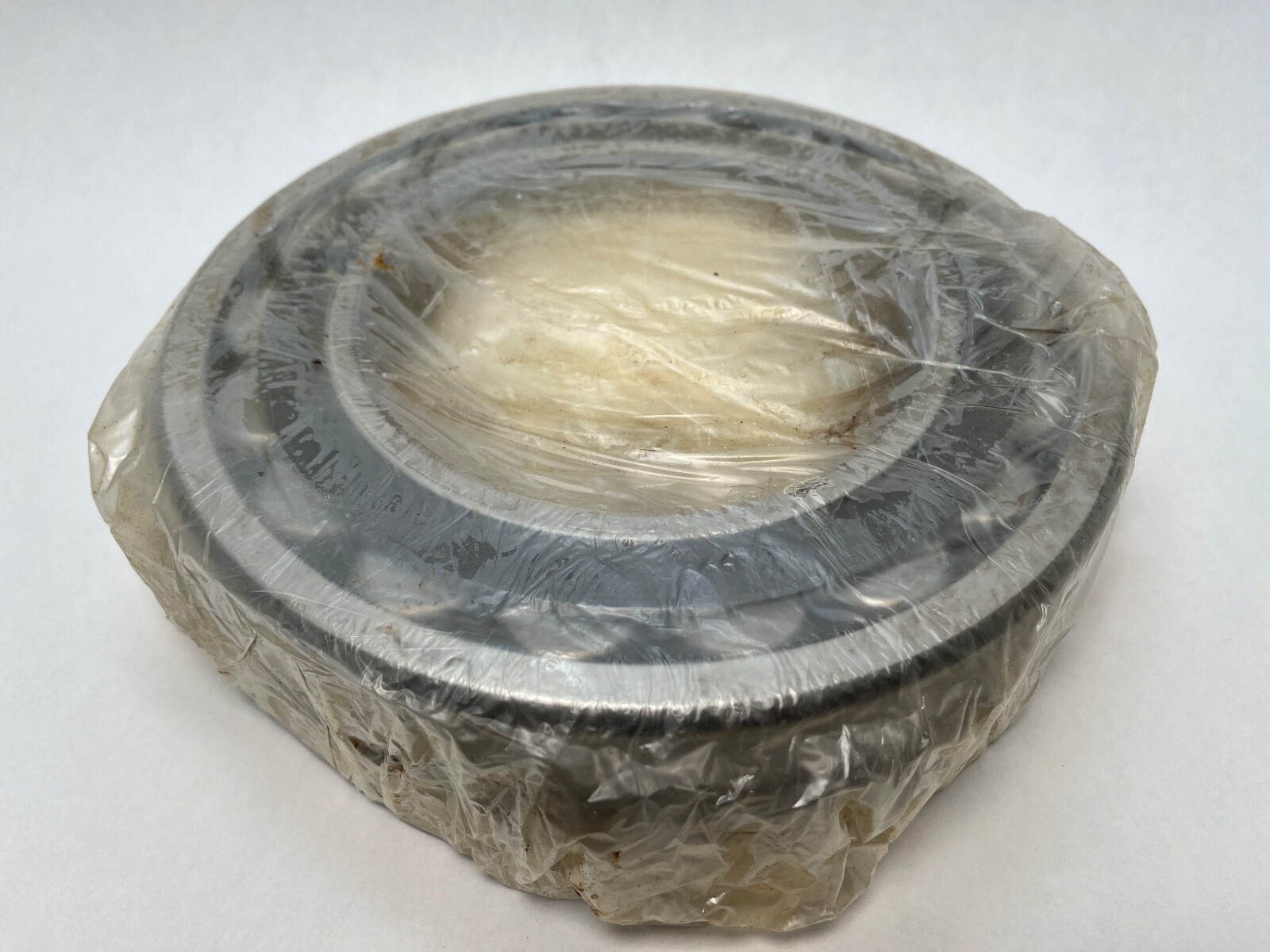

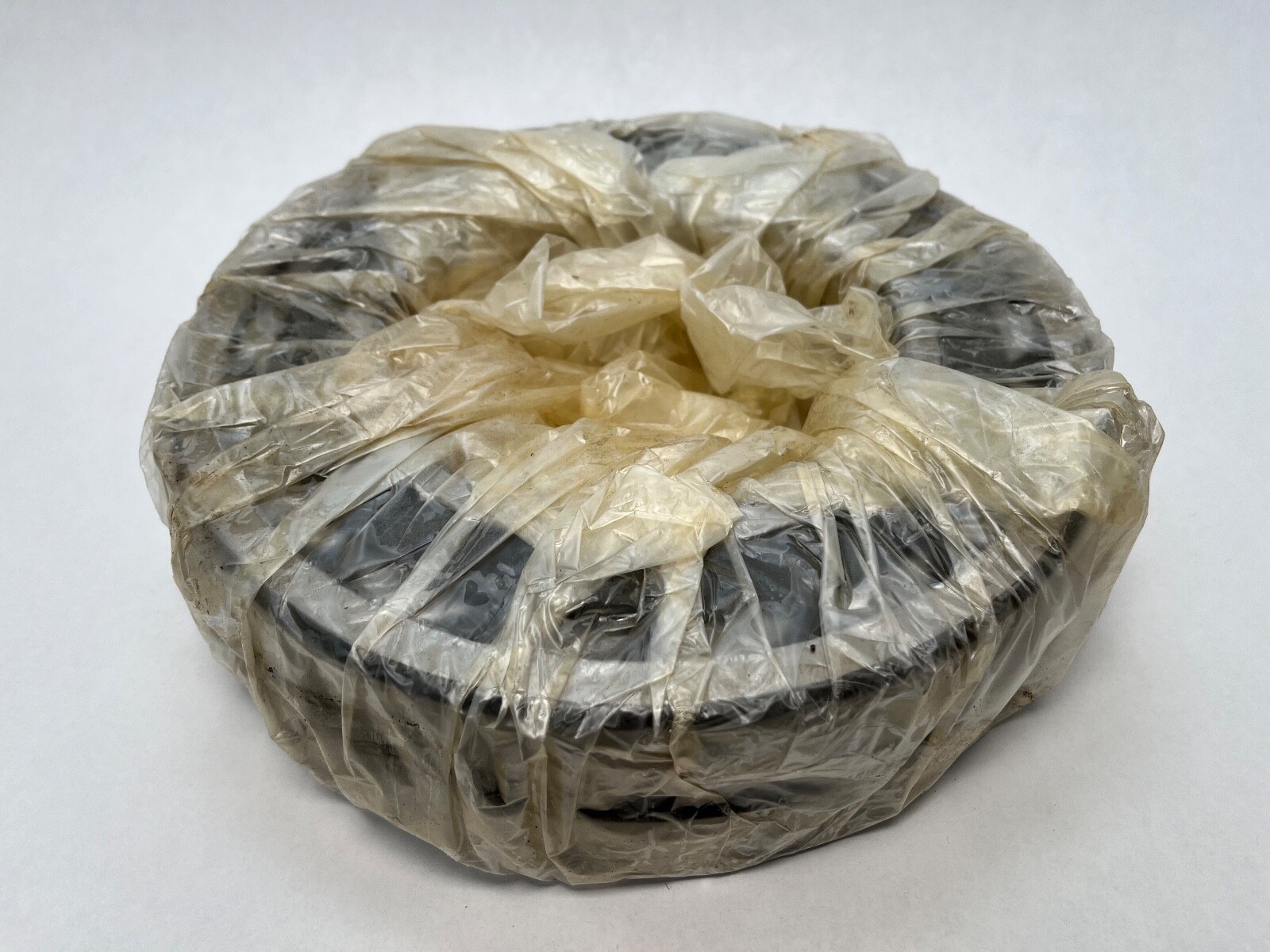

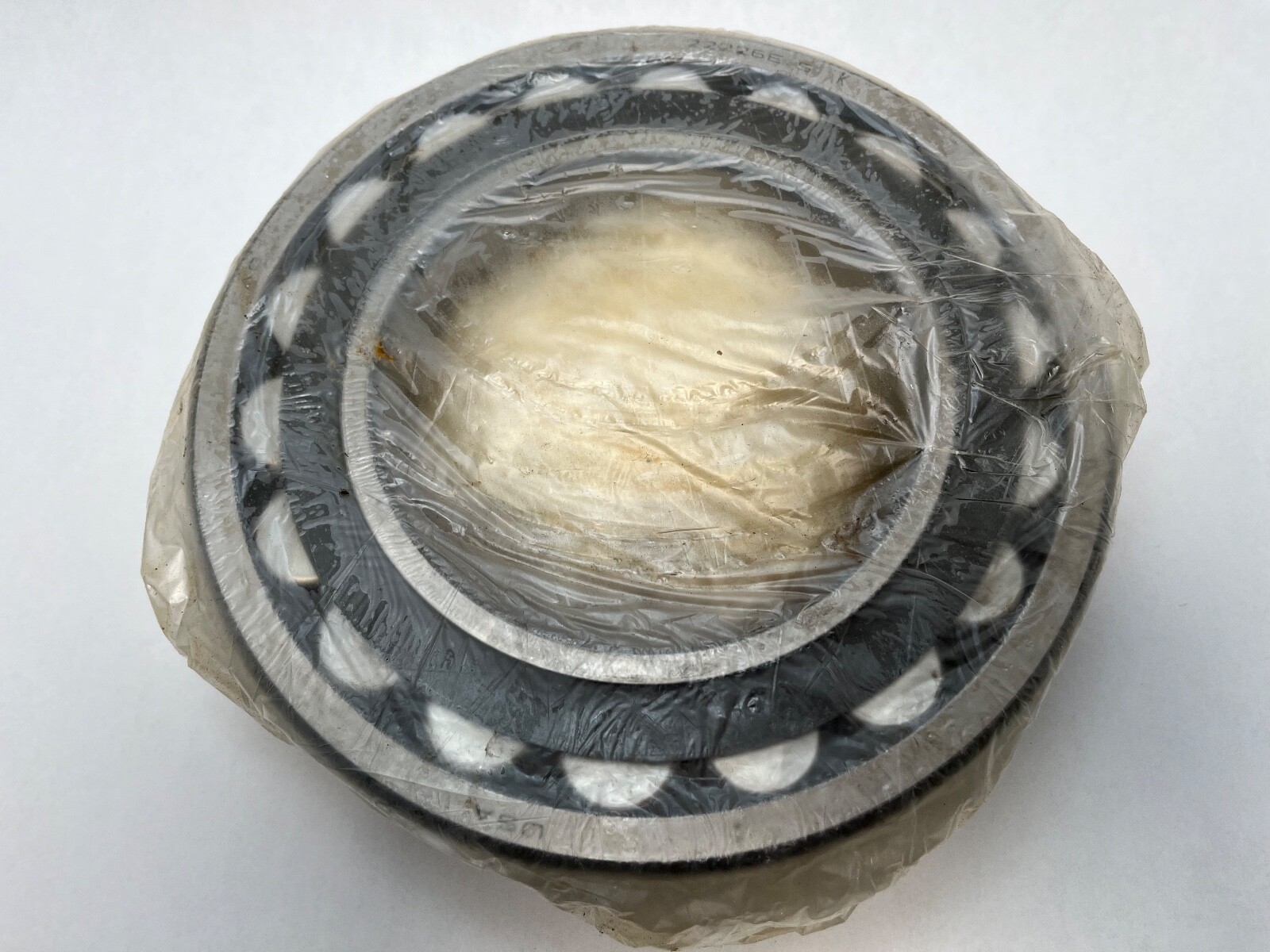

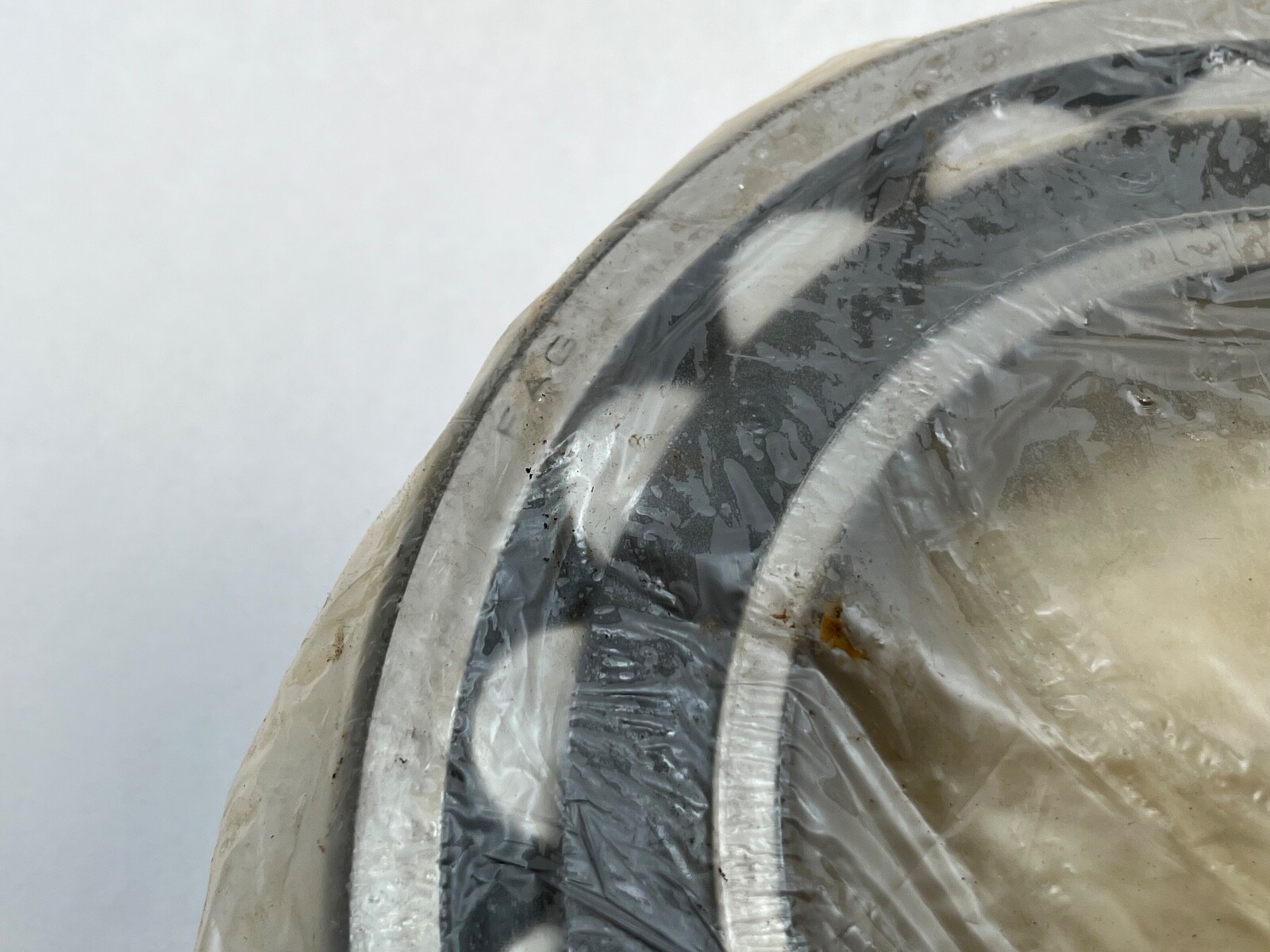

Spherical roller bearing, 130 mm 1:12 tapered bore x 230 mm OD x 64 mm wide, E design, polyamide TVPB cage, W33-type lube groove, H3126 sleeve fit.
List Price
$351.88
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| Model | 22226 ES K TVPB / 22226 CKJ/CCKJ W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 130 mm |
| OD | 230 mm |
| Width | 64 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Lubricant | grease or oil |
| Mpn Variants | 22226ESK.TVPB, 22226-ES-K-TVPB, 22226ESKTVPB, 22226E |
| Compatible With Replaces | Mounts on H3126 adapter sleeve |
| Rolling Elements | Spherical Roller |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Relubrication Feature | Lubrication groove and three holes (S / W33) |
| Harmonization Code | 8482.30.00 |
| Cross Reference 1 | FAG 22226-E1-XL-K – current design |
|---|---|
| Cross Reference 2 | NSK 22226EAKE4 – steel cage |
| Cross Reference 3 | NTN 22226EAKD1 – steel cage |
| Cross Reference 4 | Timken 22226KEJW33 – steel cage |
| Cross Reference 5 | SKF 22226 EK – steel cage, no lube groove |

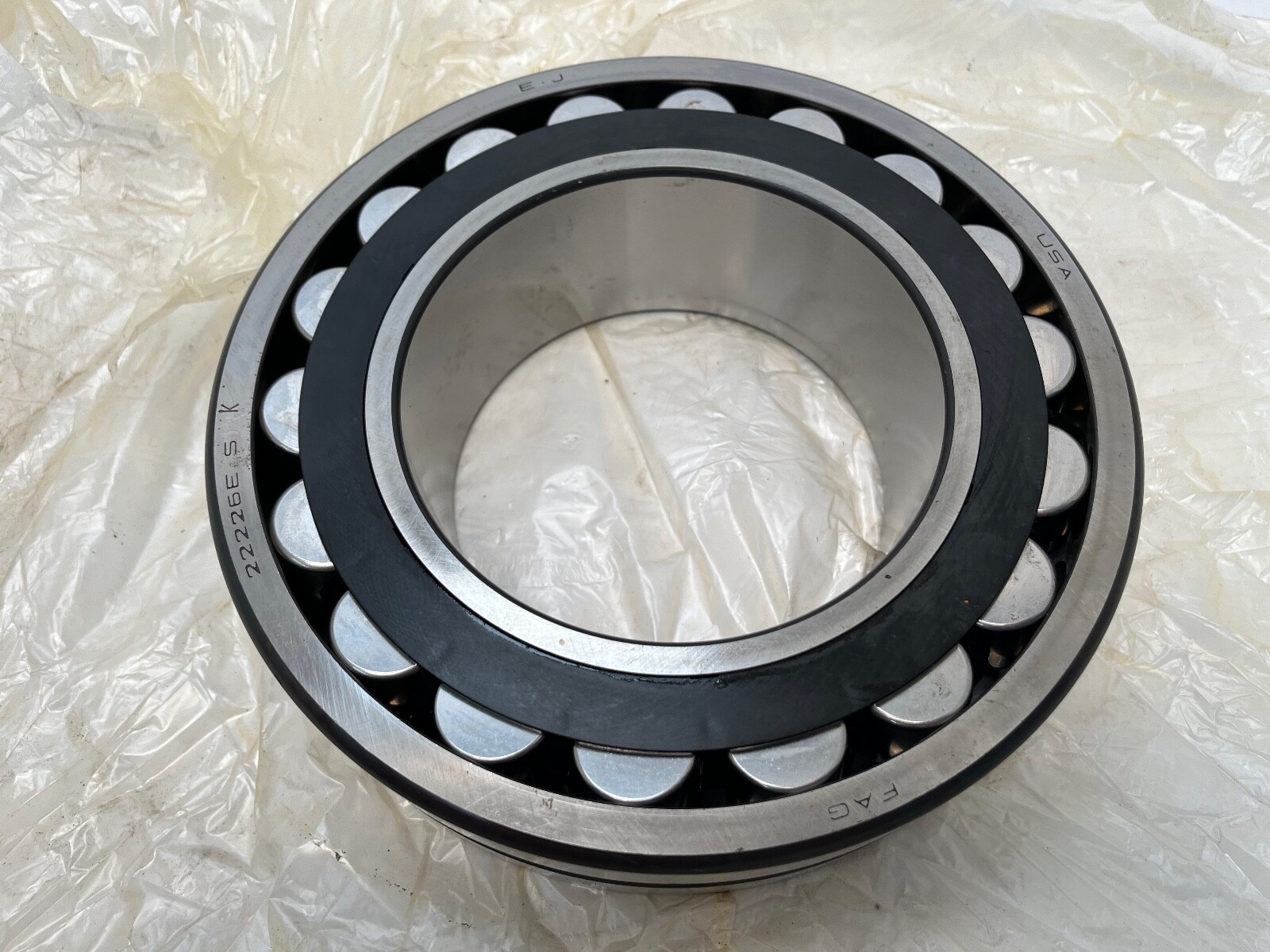

FAG 22226ESK.TVPB double-row spherical roller bearing with a 1:12 tapered bore, outer-ring lubrication groove and a polyamide cage. Bore Diameter: 130 mm. Outside Diameter: 230 mm. Width: 64 mm. Rolling Elements: Spherical Roller. Number Of Rows: 2.

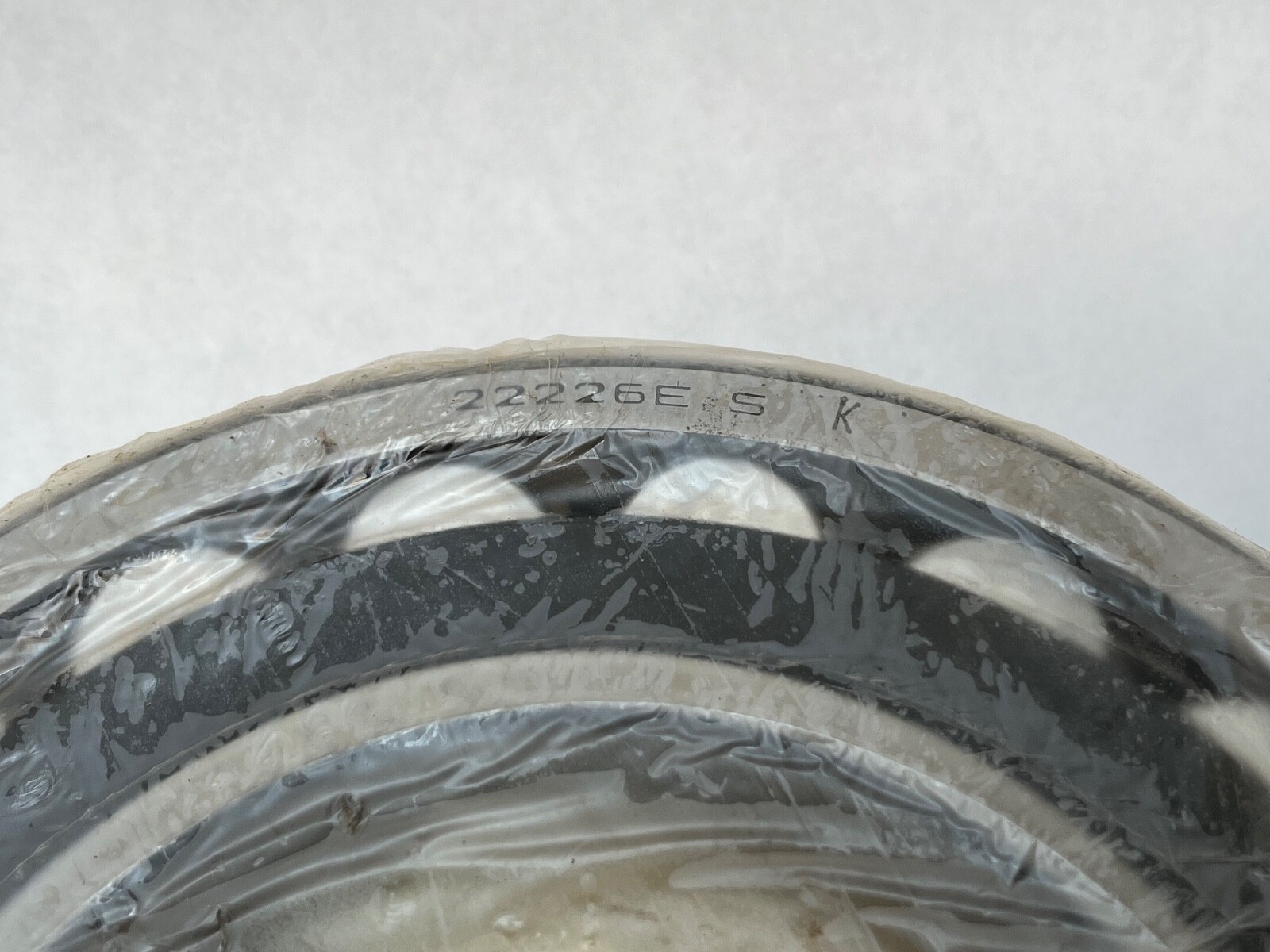

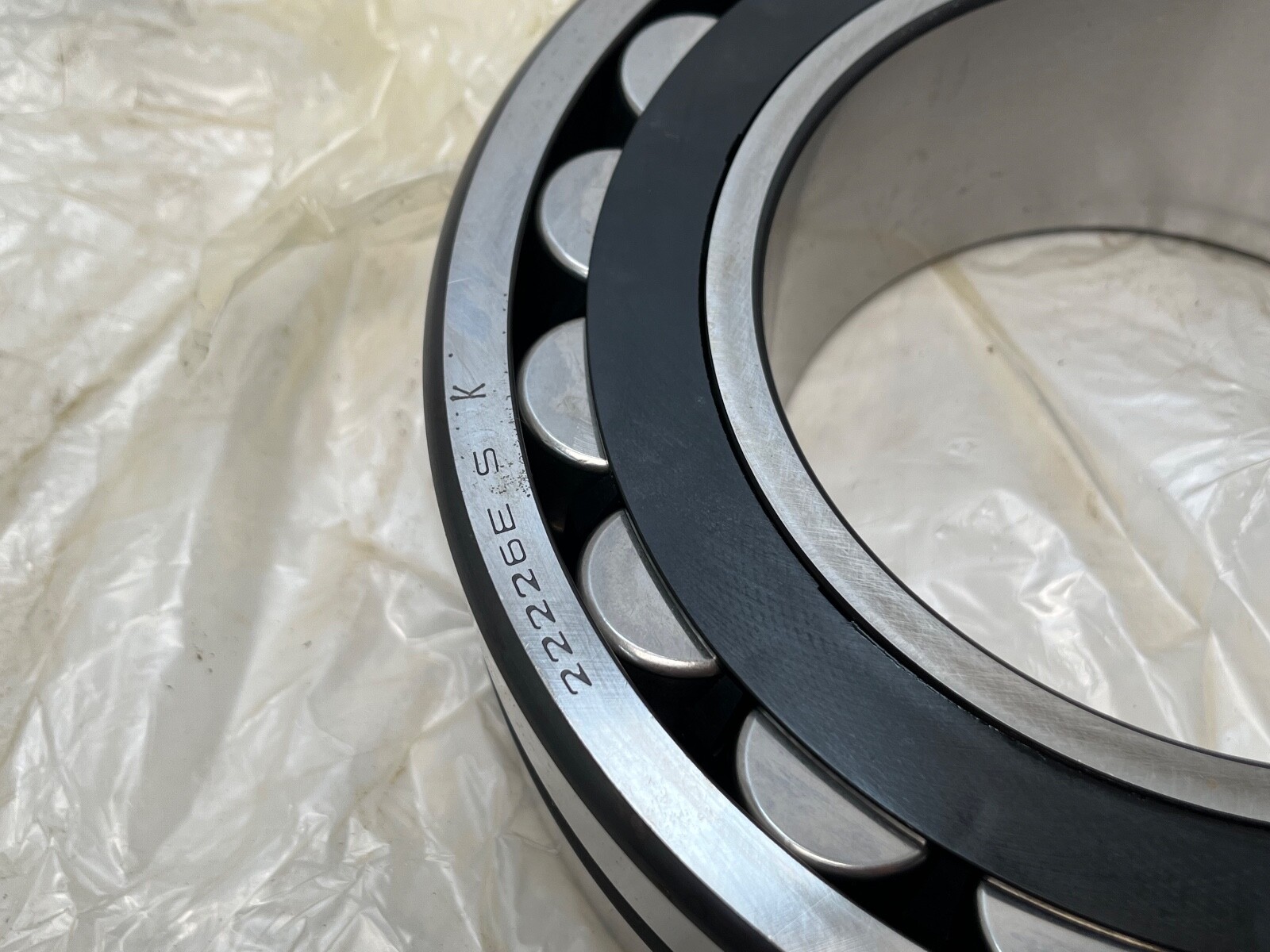

222 — FAG 222 series spherical roller bearing, 22 dimension series.
26 — bore code, 26 x 5 = 130 mm bore.
E — FAG reinforced E internal design.
S — lubrication groove and three radial lubrication holes in the outer ring, the FAG equivalent of W33.
K — tapered bore, taper 1:12.
TVPB — glass-fibre reinforced polyamide cage.
No clearance suffix — normal radial internal clearance, CN.
Bore Type: Tapered 1:12. Cage Material: Polyamide. Internal Clearance: CN. Lubricant: grease or oil. Seal Type: Open. The groove and three holes feed lubricant directly between the roller rows.
Adapter sleeve: H3126, 115 mm shaft seat, with KM26 locknut and MB26 lock washer.
Unit Quantity: 1 Pc. Single bearing, open, tapered bore.
Closest match: FAG 22226-E1-XL-K, the current FAG design with the same lubrication groove and holes. Same 130 x 230 x 64 mm tapered-bore size with groove and holes: NSK 22226EAKE4, NTN 22226EAKD1 and Timken 22226KEJW33, each with a steel cage rather than polyamide. SKF 22226 EK has the same size and taper but no lubrication groove.
