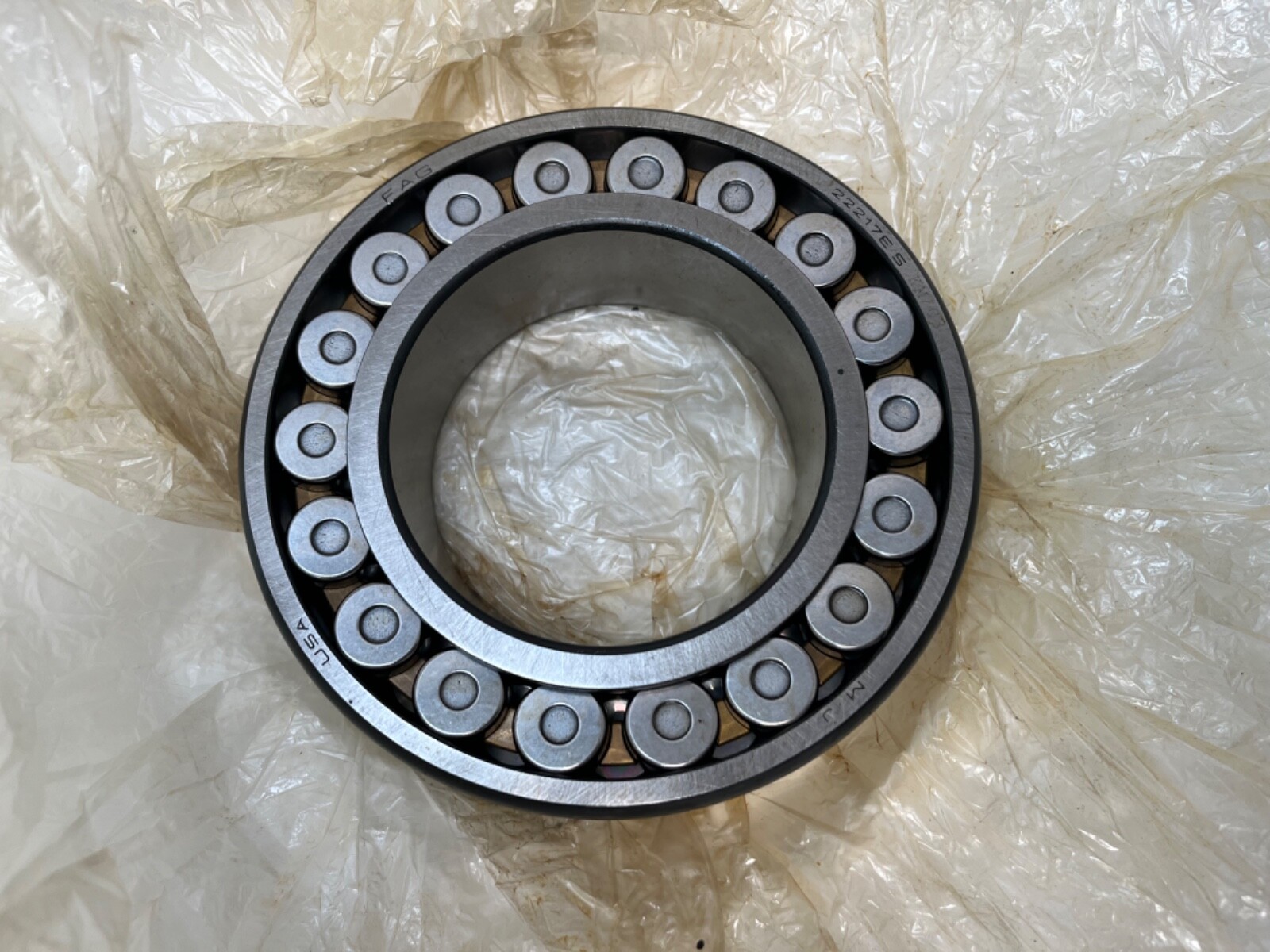

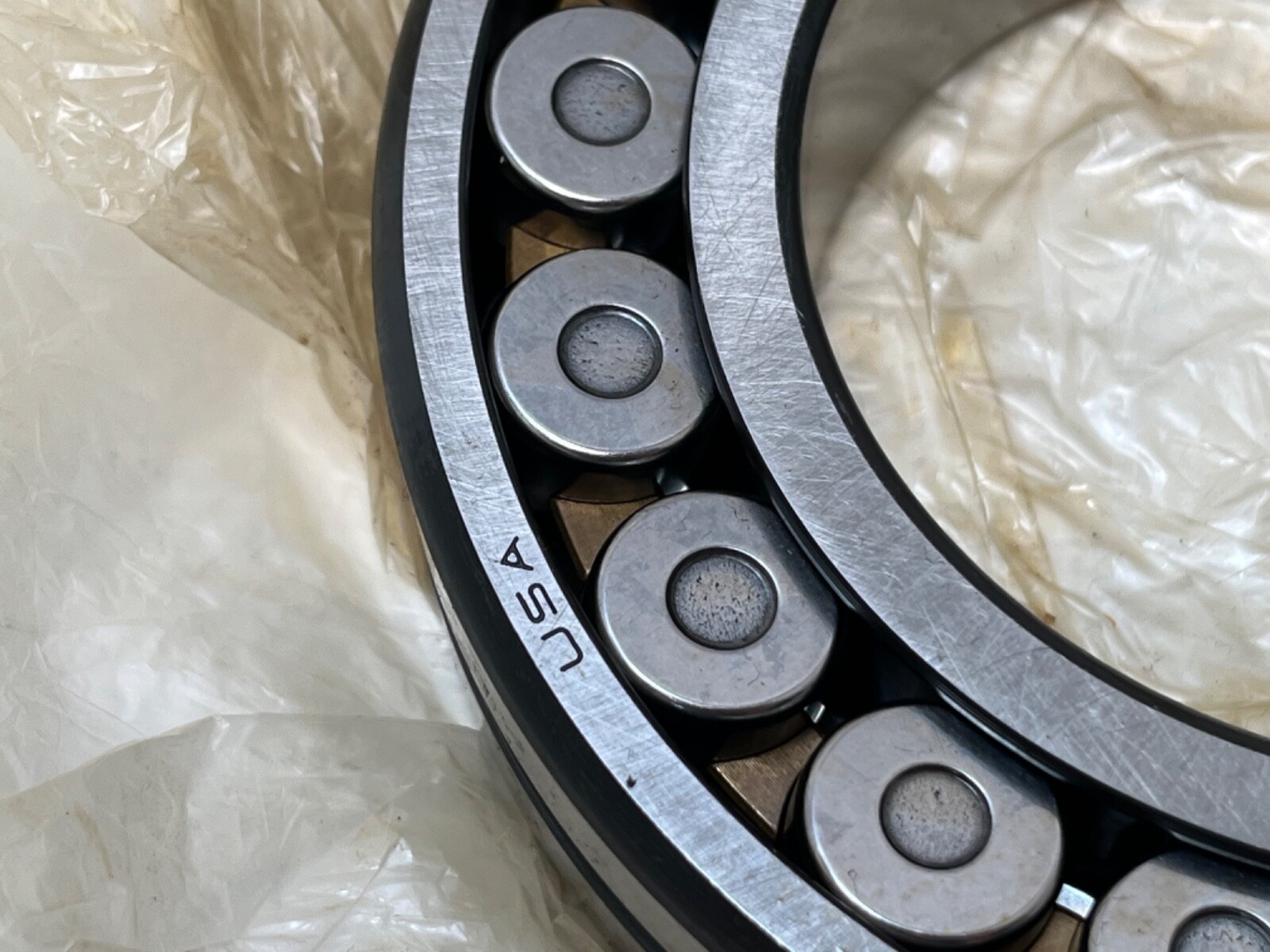

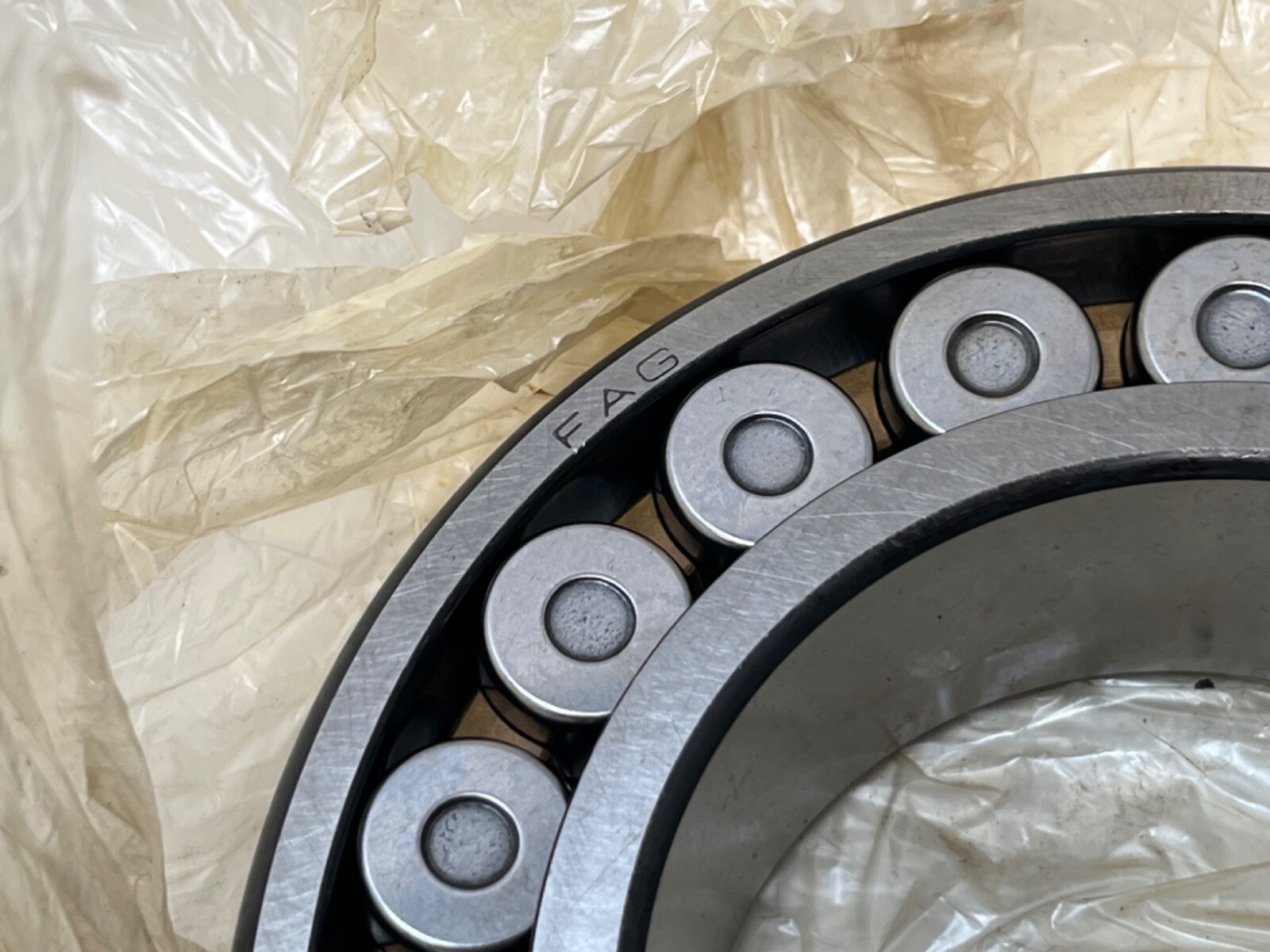

FAG 22217ESKM.C3 spherical roller bearing, 85 x 150 x 36 mm, 1:12 tapered bore, machined brass cage, C3 clearance, W33 lubrication groove, H317 sleeve.
List Price
$117.62
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22217ESKM.C3 |
| Model | 22217ESKM.C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 85 mm |
| OD | 150 mm |
| Width | 36 mm |
| Series | 22200 |
|---|---|
| Bore | Tapered 1:12 |
| Dynamic Load Rating | 305,000 N |
| Static Load Rating | 325,000 N |
| Rolling Elements | Spherical Roller |
| Item Weight | 2.55 kg (5.62 lb) |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00.80 |
| Internal Clearance | C3 |
| Limiting Speed | 5,700 rpm |
| Overall Width | 36 mm |

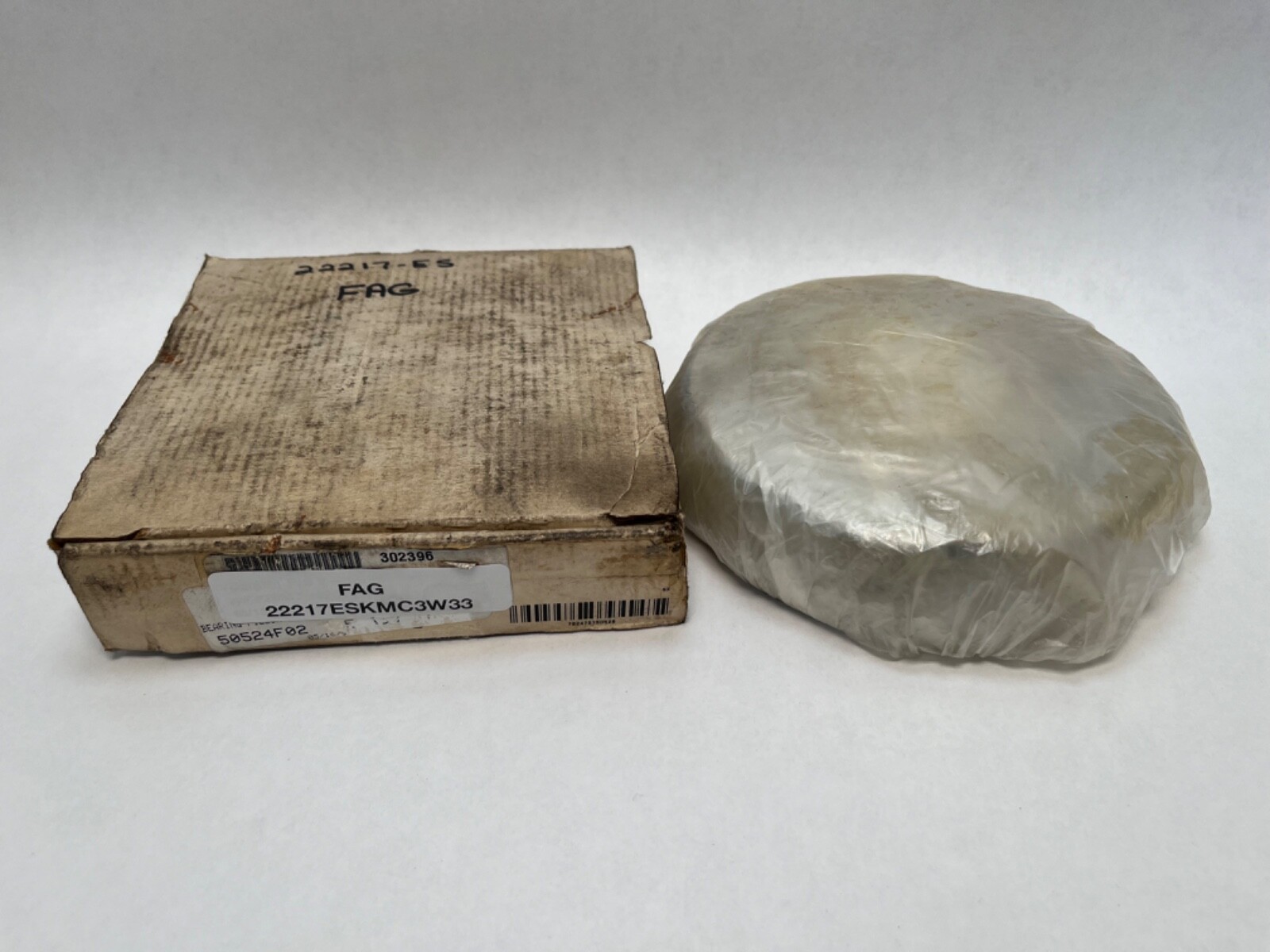

| Mpn Variants | 22217ESKM.C3, 22217-ES-K-M-C3-W33, 22217ESKMC3, 22217E |
| Compatible With Replaces | Schaeffler successor 22217-E1A-XL-K-M-C3; adapter sleeve H317; withdrawal sleeve AHX317 |
| Additional Attributes | Reference Speed: 3,450 rpm (successor 22217-E1A-XL-K-M-C3). Lubrication groove width: 6.5 mm. |
| Relubrication Feature | Yes |
| Cross Reference 1 | SKF 22217 EK/C3 |
|---|---|
| Cross Reference 2 | Timken 22217KEMW33C3 |
| Cross Reference 3 | NSK 22217CAMKE4C3 |
FAG 22217ESKM.C3 double-row spherical roller bearing, 85 x 150 x 36 mm, 1:12 tapered bore, machined brass cage, C3 internal clearance, outer-ring lubrication groove with radial holes. One bearing.

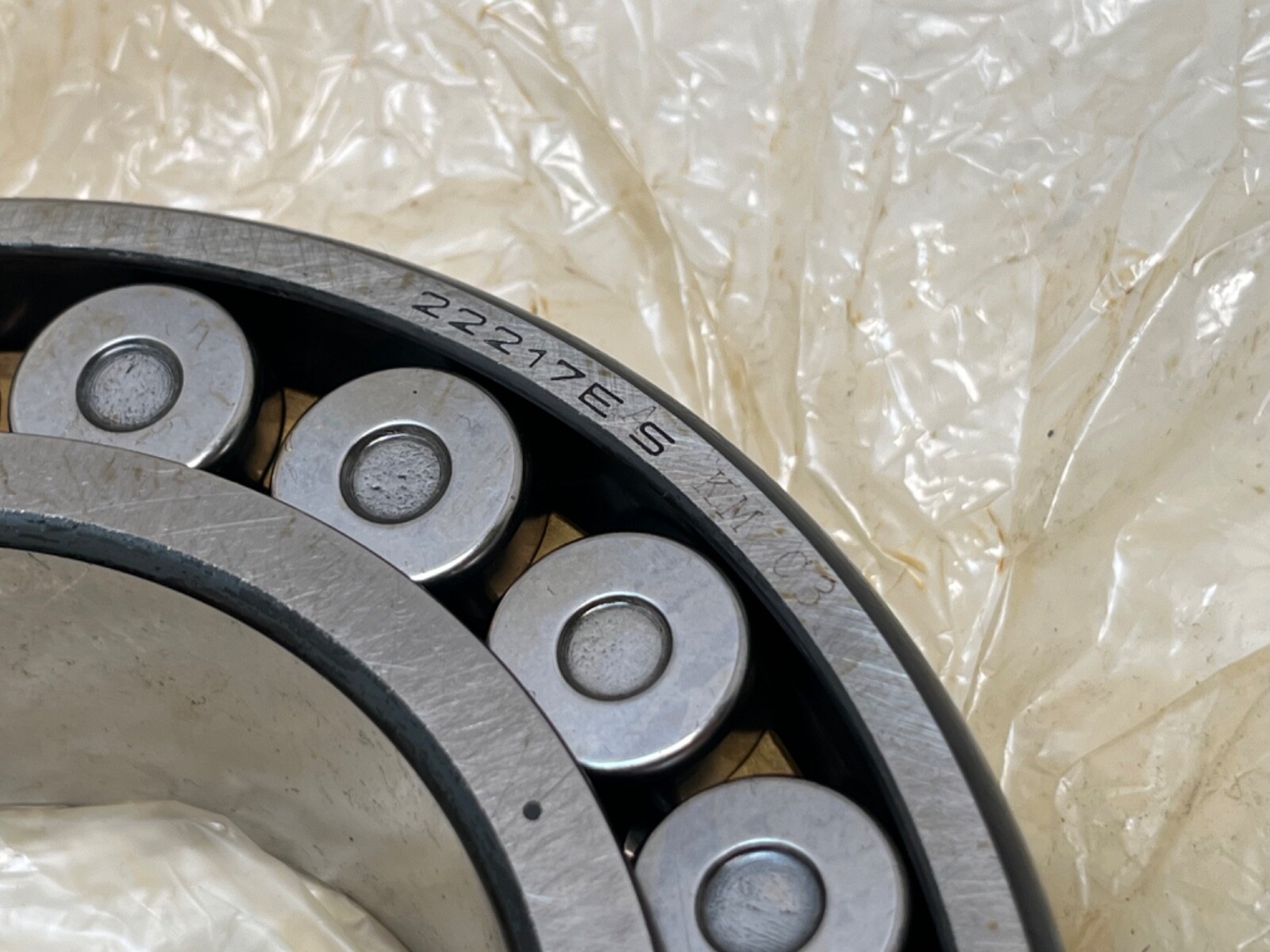

22217 — 222 series spherical roller bearing, bore code 17 = 85 mm, envelope 85 x 150 x 36 mm.
E — FAG reinforced internal design without a central rib.

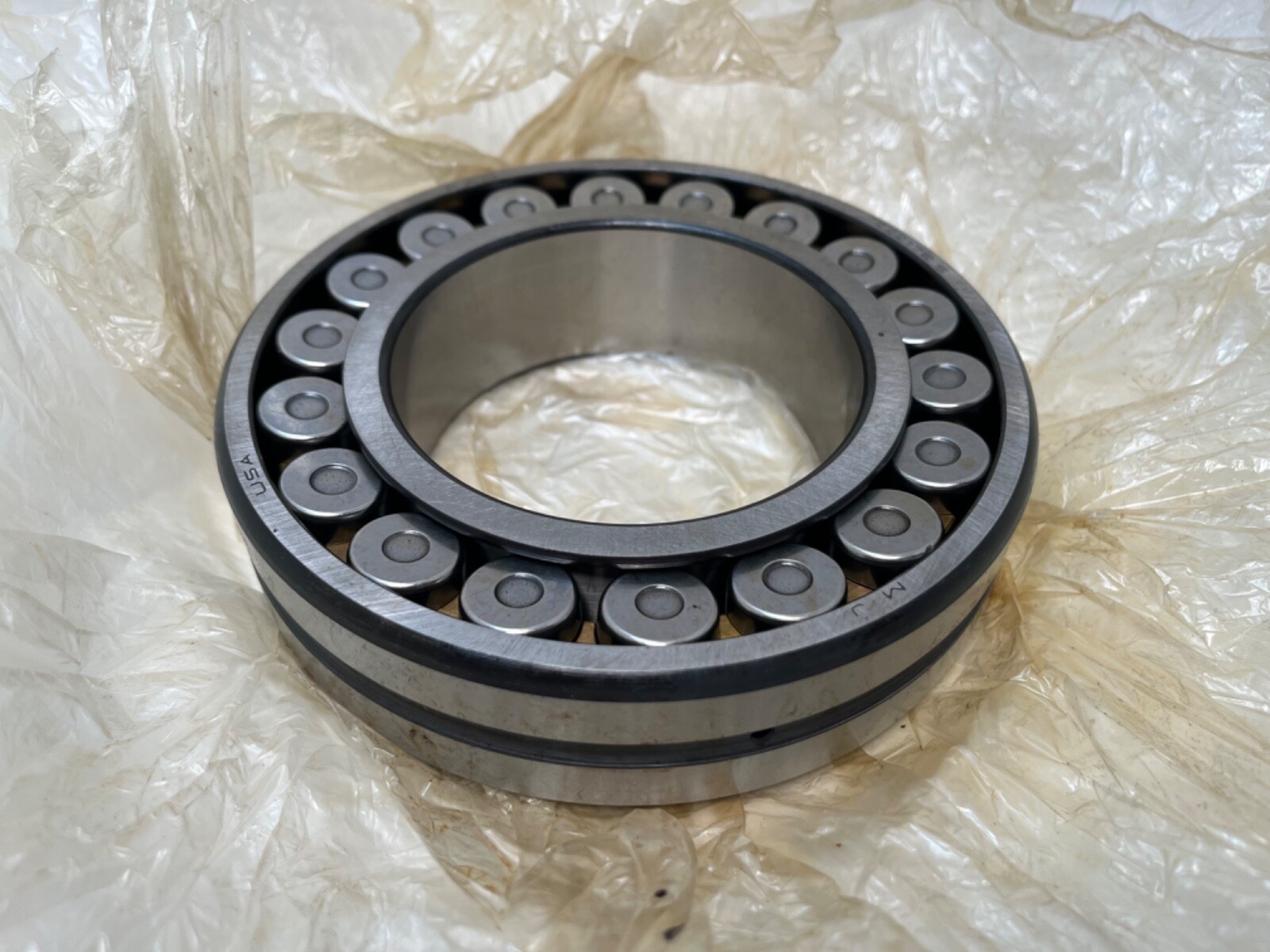

S — lubrication groove and radial lubrication holes in the outer ring.
K — tapered bore, taper 1:12.
M — machined brass cage.
C3 — radial internal clearance larger than normal.
Bore Diameter: 85 mm. Outside Diameter: 150 mm. Overall Width: 36 mm. Bore Type: Tapered 1:12. Number Of Rows: 2. Rolling Elements: Spherical Roller. Closure Type: Open. Cage Material: Machined brass. Internal Clearance: C3. Series: 22200. Lubricant: grease or oil, fed through the outer-ring groove and holes. Relubrication Feature: Yes. Unit Quantity: 1 Pc. Data of the current Schaeffler successor 22217-E1A-XL-K-M-C3: Dynamic Load Rating: 305,000 N. Static Load Rating: 325,000 N. Limiting Speed: 5,700 rpm. Reference Speed: 3,450 rpm. Item Weight: 2.55 kg (5.62 lb).
Adapter sleeve: H317. Withdrawal sleeve: AHX317. Data of the successor: Minimum shaft shoulder diameter: 96 mm. Maximum housing shoulder diameter: 139 mm. Maximum fillet radius: 2 mm. Lubrication groove width: 6.5 mm.
Current Schaeffler successor: 22217-E1A-XL-K-M-C3 on the same 85 x 150 x 36 mm envelope. Tapered-bore C3 equivalents: SKF 22217 EK/C3, Timken 22217KEMW33C3 and NSK 22217CAMKE4C3.
Bore Diameter: 85 mm, tapered 1:12. Outside Diameter: 150 mm. Overall Width: 36 mm.
Adapter sleeve: H317. Withdrawal sleeve: AHX317.
The current Schaeffler successor is 22217-E1A-XL-K-M-C3 on the same 85 x 150 x 36 mm envelope.
