Single-row barrel roller bearing, 60 x 130 x 31 mm, 1:12 tapered bore, machined brass cage, C3 internal clearance. Radial load, self-aligning. 1 Pc.
List Price
$137.68
10 in stock
10 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | FAG |
|---|---|
| MPN | 20312KMBC3 |
| Model | 20312 K MB C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 60 mm |
| OD | 130 mm |
| Width | 31 mm |
| Material | Bearing Steel |
|---|---|
| Series | 20300 |
| Condition | New |
| Lubricant | None |
| Base Number | 20312 |
| Industry Terms | Barrel roller bearing, tonneau roller bearing, single row spherical outer raceway bearing, self-aligning roller bearing, taper bore roller bearing |
| Common Misspellings | 20312KMB, 20312 KMB C3, 2031 2K MB C3, FAG 20312-KMB-C3, barrell roller bearing, barel roller bearing |
| Application Types | Fans and blowers, gearboxes, conveyor pulleys, crushers, vibrating and misaligning shaft installations |
| Bore Shaft Size | 60 mm (2.362 in), tapered 1:12 |
| Mpn Variants | 20312K.MB.C3, 20312-K-MB-C3, 20312 K MB C3, 20312KMBC3, 20312K MB C3 |
| Compatible With Replaces | Adapter sleeve H312 (1:12 taper, 55 mm shaft seat) for mounting on a plain cylindrical shaft |
| Additional Attributes | Barrel roller design carries radial load; self-aligning through the spherical outer raceway |
| Min Temp | -30 °C |
| Dynamic Load Rating | 156 kN / 35070 lbf |
| Static Load Rating | 143 kN / 32145 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Cylindrical Rollers |
| Max Temp | 120 °C |
| Item Weight | 4.32 lbs |
| Cage Material | Machined brass |
| Limiting Speed | 7000 rpm |
| Number Of Rows | 1 |
| Bore Type | Tapered |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00.40 |
| Design Units | Metric |
| Internal Clearance | C3 |
| Part Number | 20312K.MB.C3 |
| Cross Reference 1 | 20312 (ISO base number) |
|---|---|
| Cross Reference 2 | 20312K (taper bore, cage and clearance unspecified) |
| Cross Reference 3 | Koyo 20312 K |
| Cross Reference 4 | NTN 20312 K |

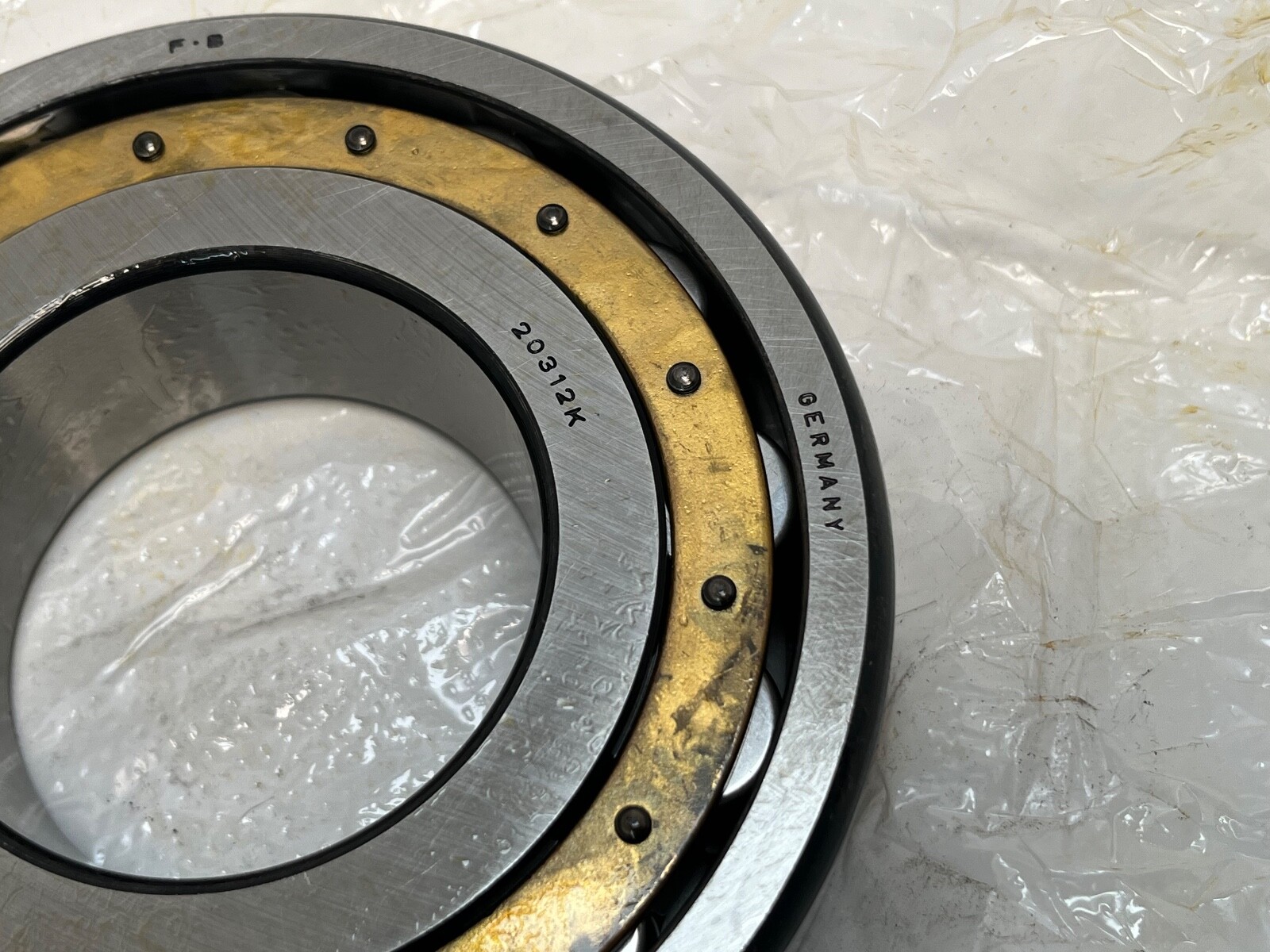

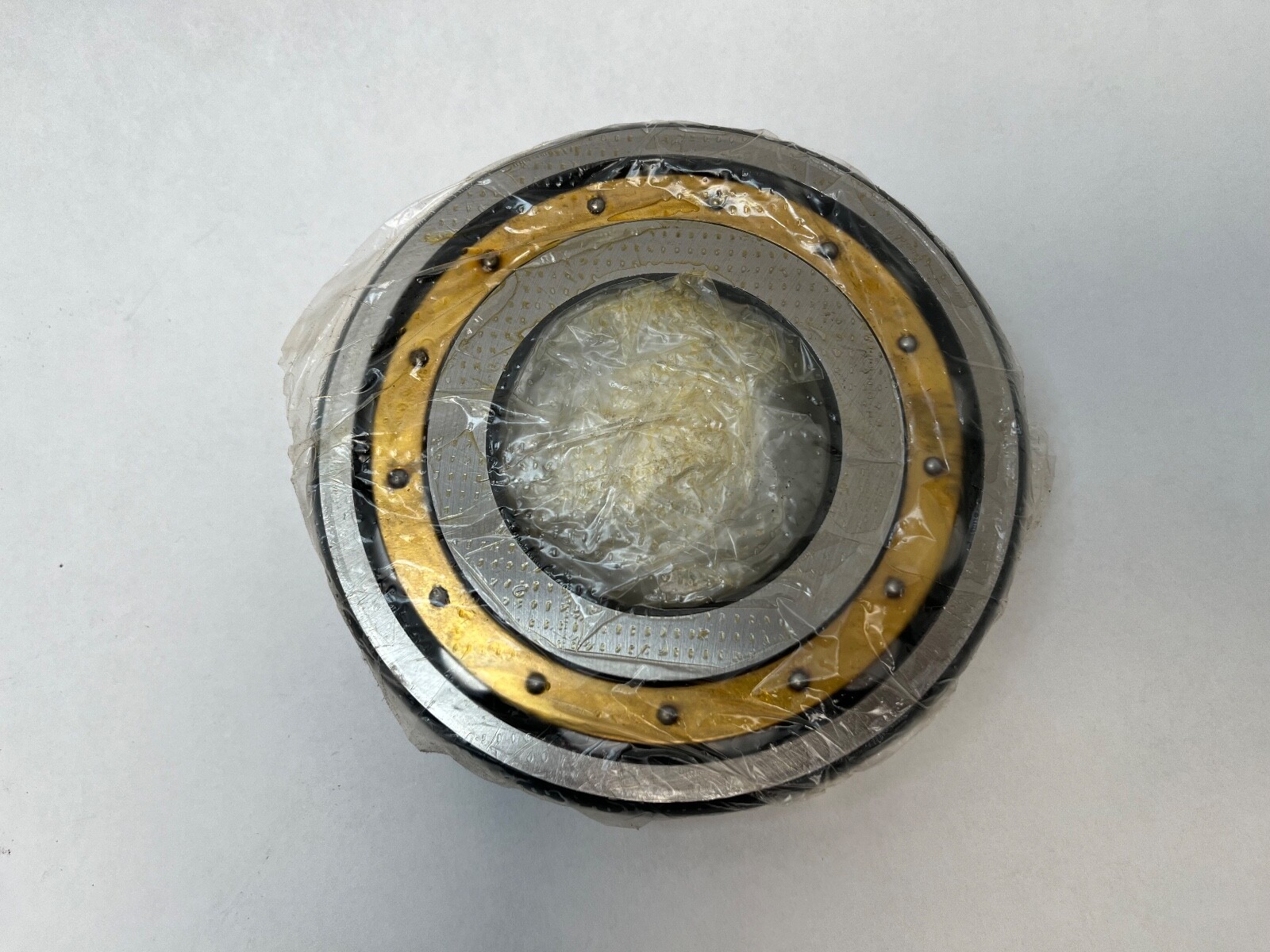

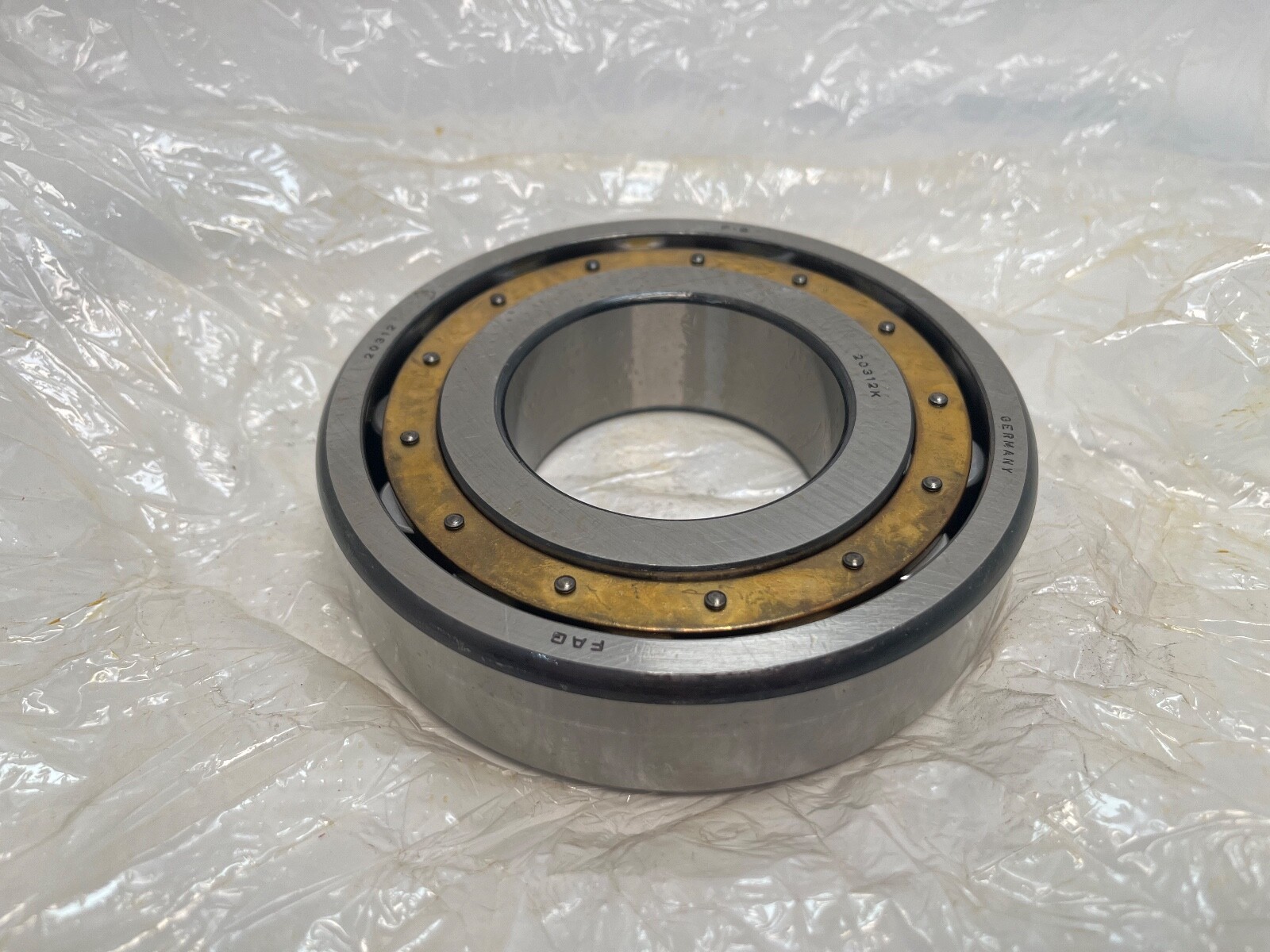

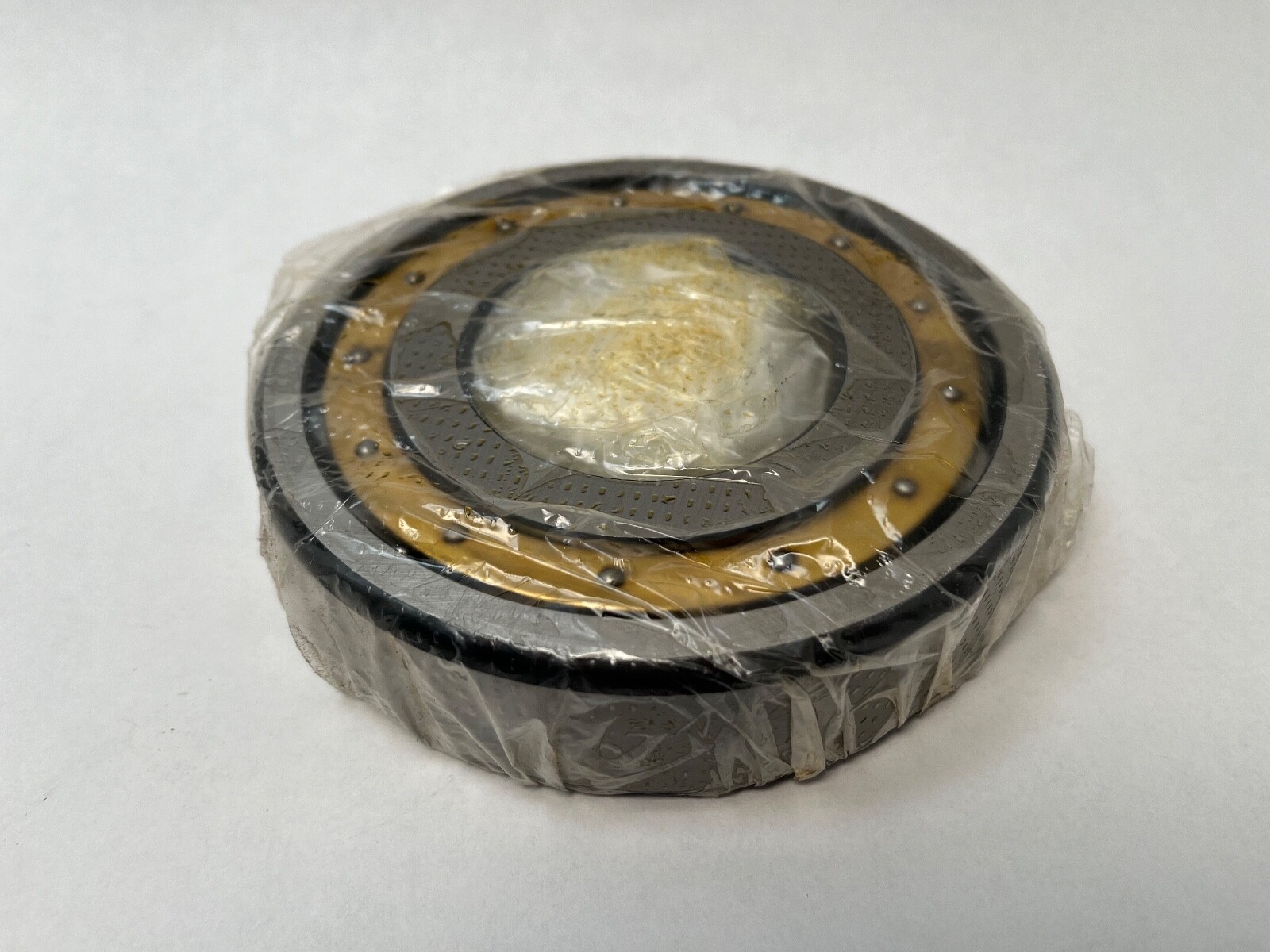

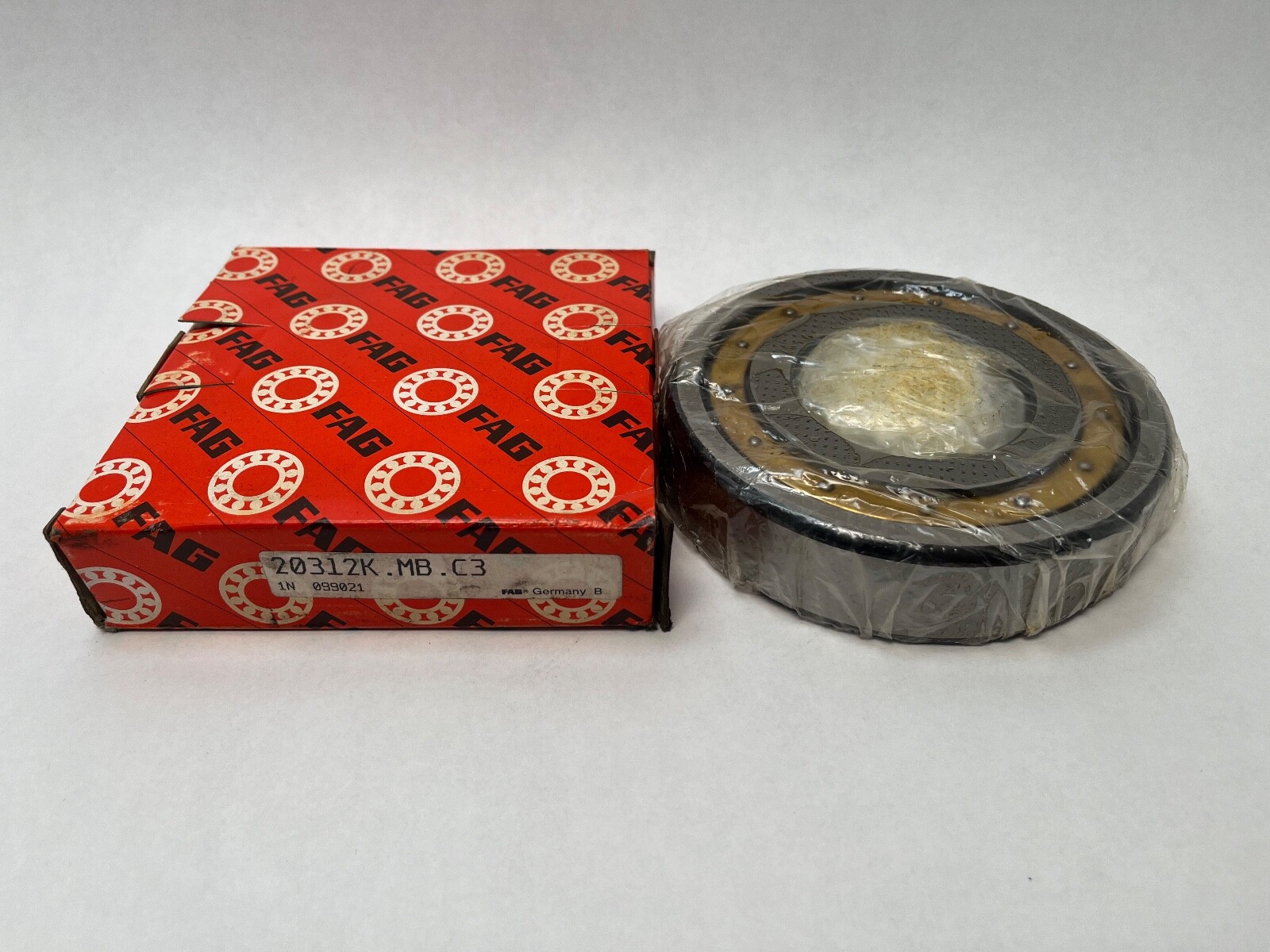

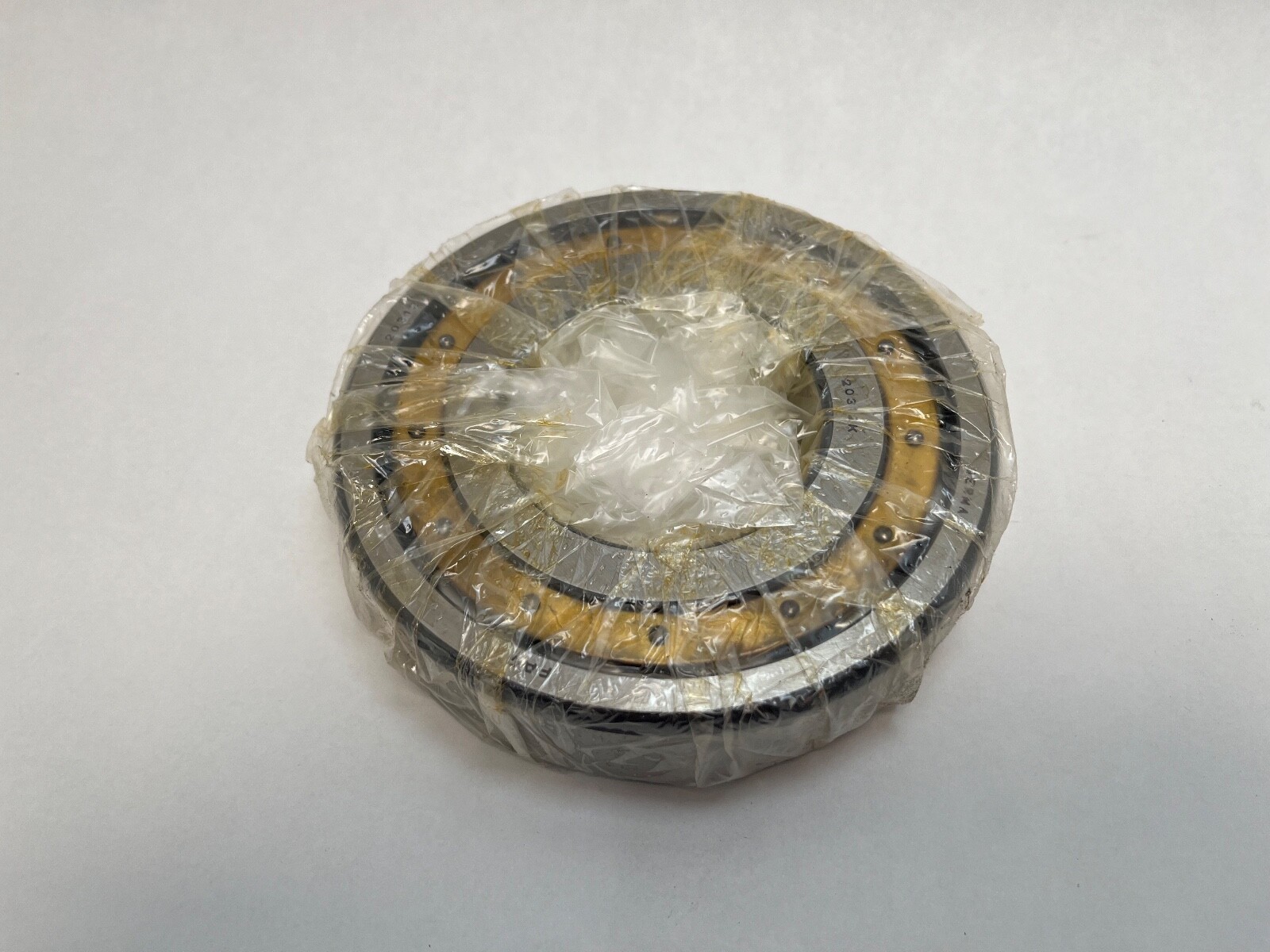

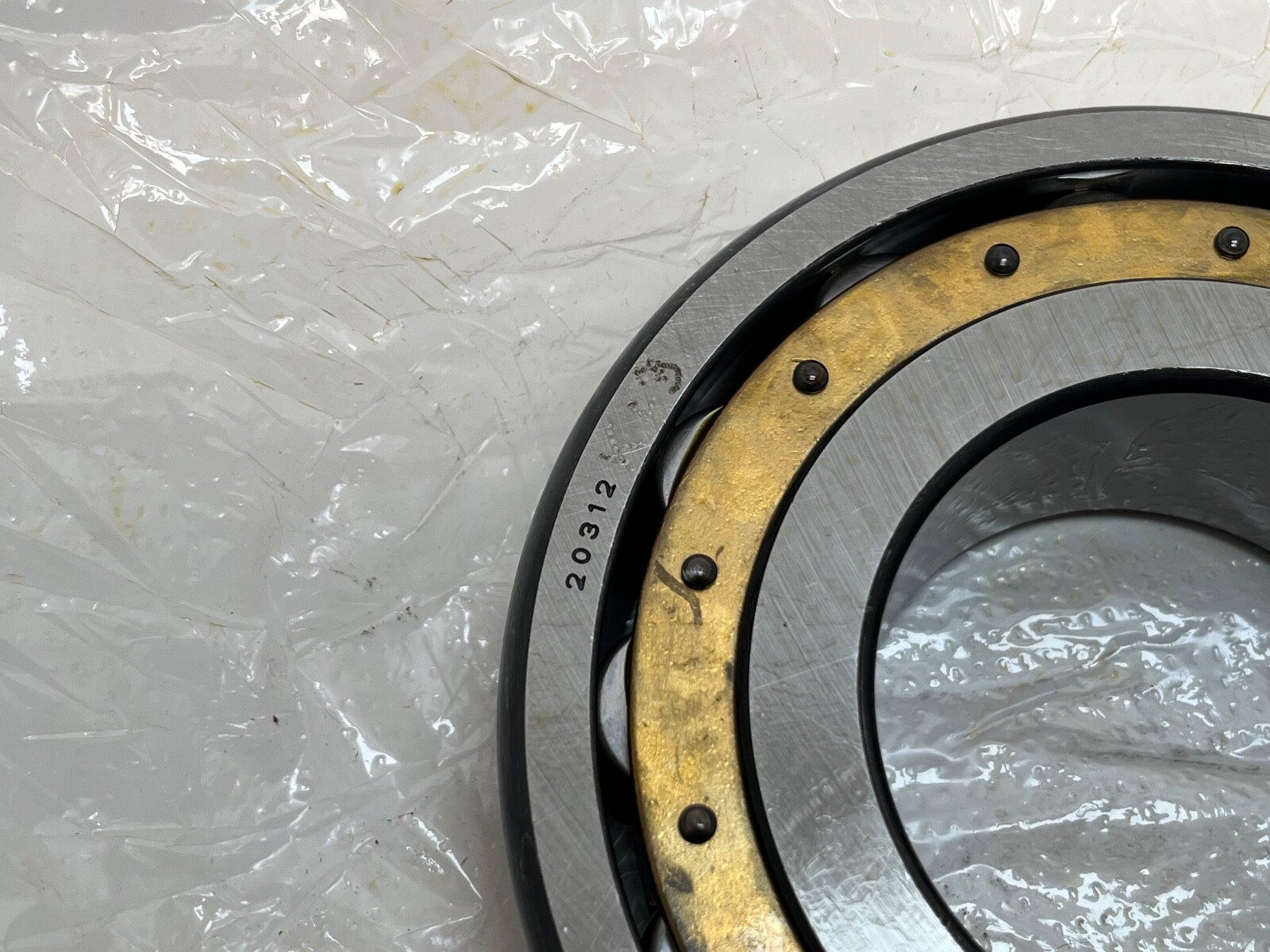

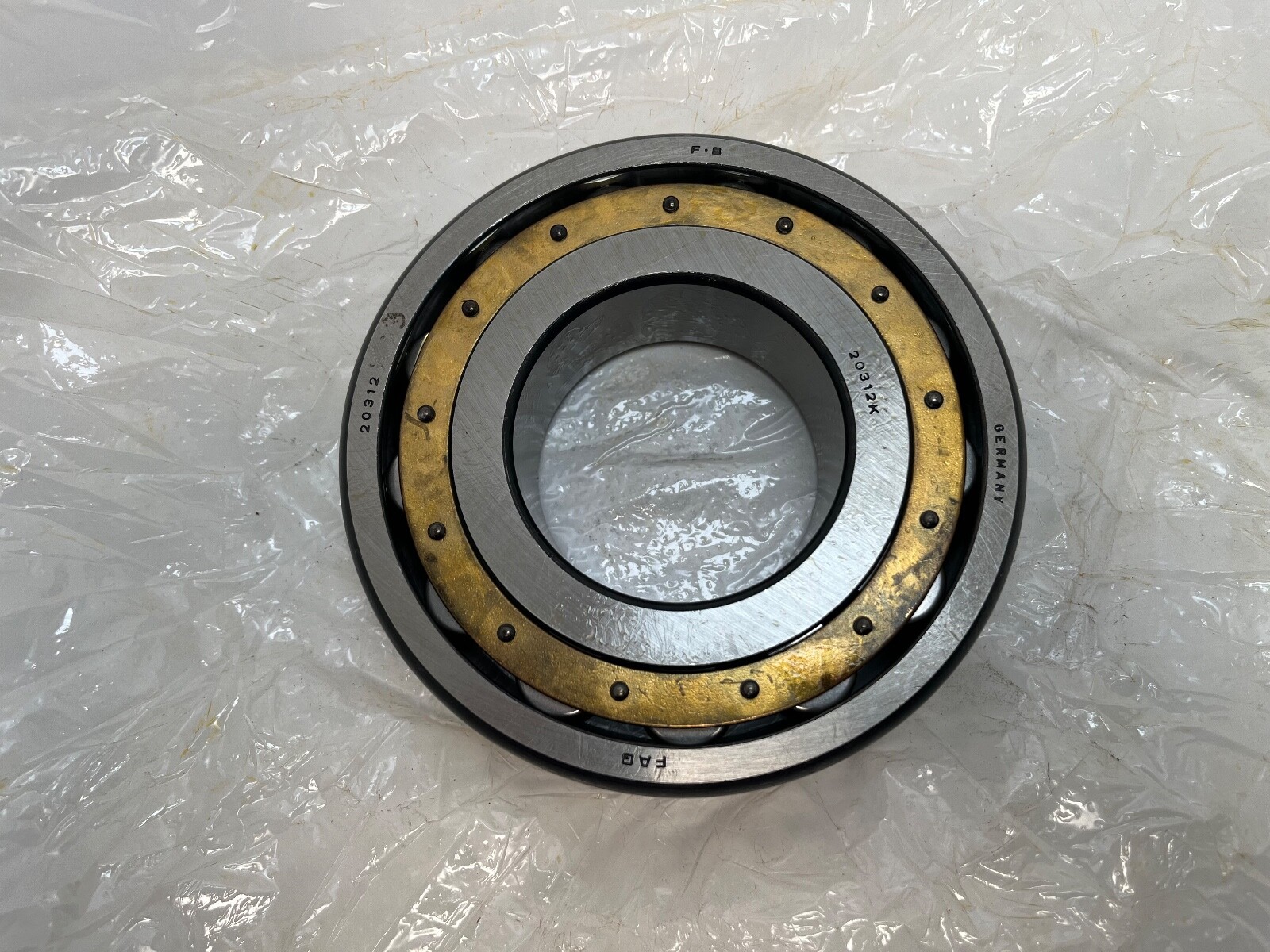

A single-row barrel roller bearing with a tapered bore, 60 mm bore × 130 mm outside diameter × 31 mm width. One row of barrel-shaped rollers runs on a spherical outer raceway, which lets the inner ring and roller set swivel relative to the outer ring. The bearing therefore accommodates static misalignment and running shaft deflection. Load direction is radial.
203 — barrel roller dimension series, single row.
12 — bore code, 60 mm.
K — 1:12 tapered bore.
MB — machined brass cage, inner-ring guided.
C3 — radial internal clearance greater than normal.
The barrel roller profile concentrates a single row of long rollers on a spherical outer raceway, so the design buys self-alignment and a high radial rating in a narrow section, and carries load in the radial direction. A machined brass cage tolerates higher temperature and shock loading than a pressed-steel cage and raises the permissible speed compared with a full-complement design. C3 clearance leaves running room for a press-fit inner ring, a temperature difference across the bearing, or both, which is the usual choice where the shaft runs hotter than the housing.
Bore: 60 mm, tapered 1:12
Outside diameter: 130 mm
Width: 31 mm
Rows: 1
Rolling element: barrel roller
Cage: machined brass, inner-ring guided
Radial internal clearance: C3
Closure: open, both faces
Sale unit 1 Pc. Bearing only. Supplied without adapter sleeve H312 and without locknut or lock washer.
The 1:12 tapered bore seats either directly on a matching tapered shaft journal or on an adapter sleeve fitted to a plain cylindrical shaft. Drive-up on the taper sets the residual internal clearance, so the C3 figure above is the as-supplied value measured before mounting.
The ISO base number is 20312. A 20312 K with a different cage code or a different clearance class is a related size rather than an interchange, since cage material changes the speed and temperature rating and the clearance class changes the mounted preload. A cylindrical-bore 20312 shares the same envelope and is a related size, its bore being a different fit.
