FAG20310-TSingle Row Barrel Roller Bearing 50x110x27 mm Cylindrical Bore Polyamide Cage

Product Description

What this part is:

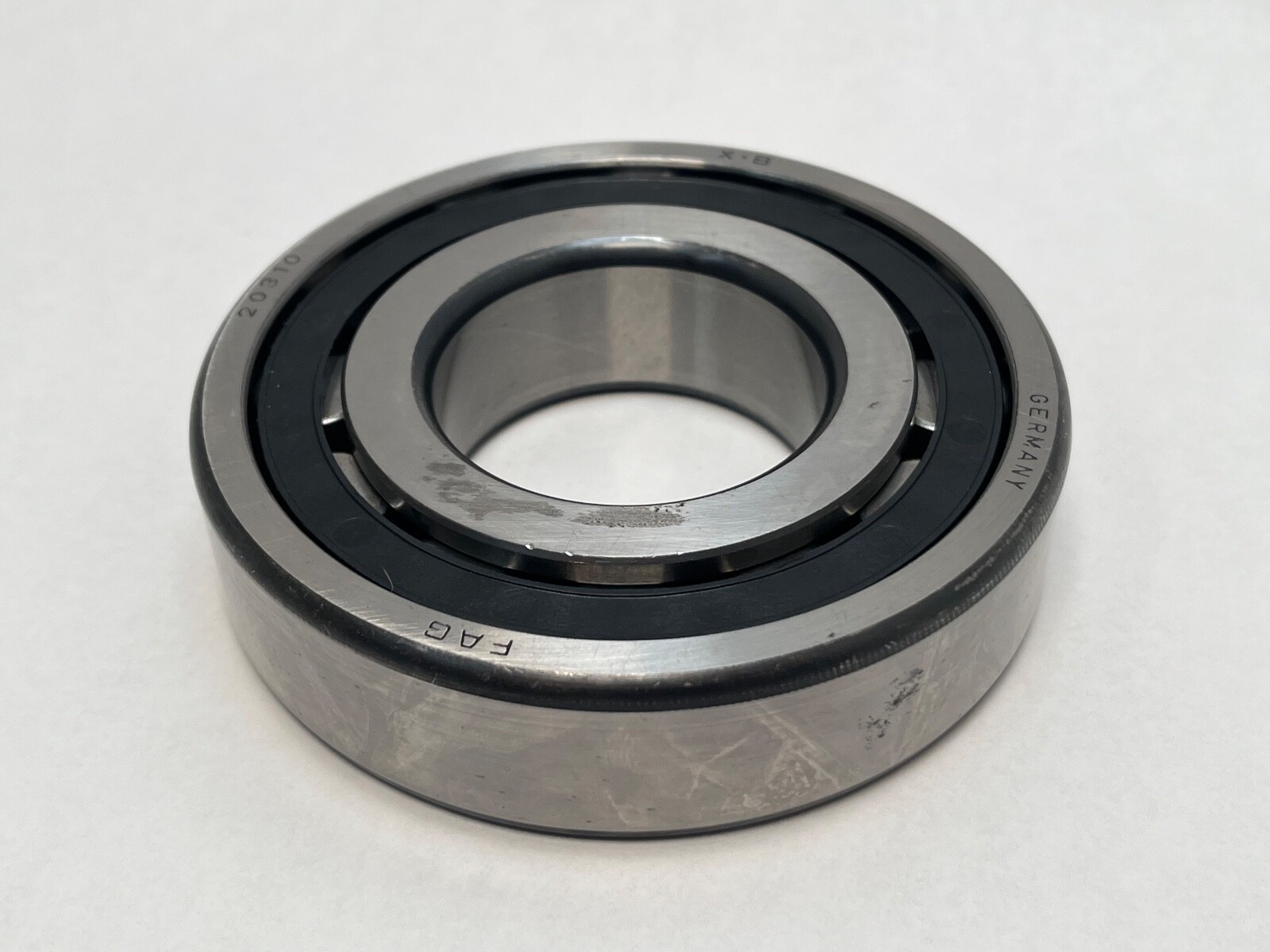

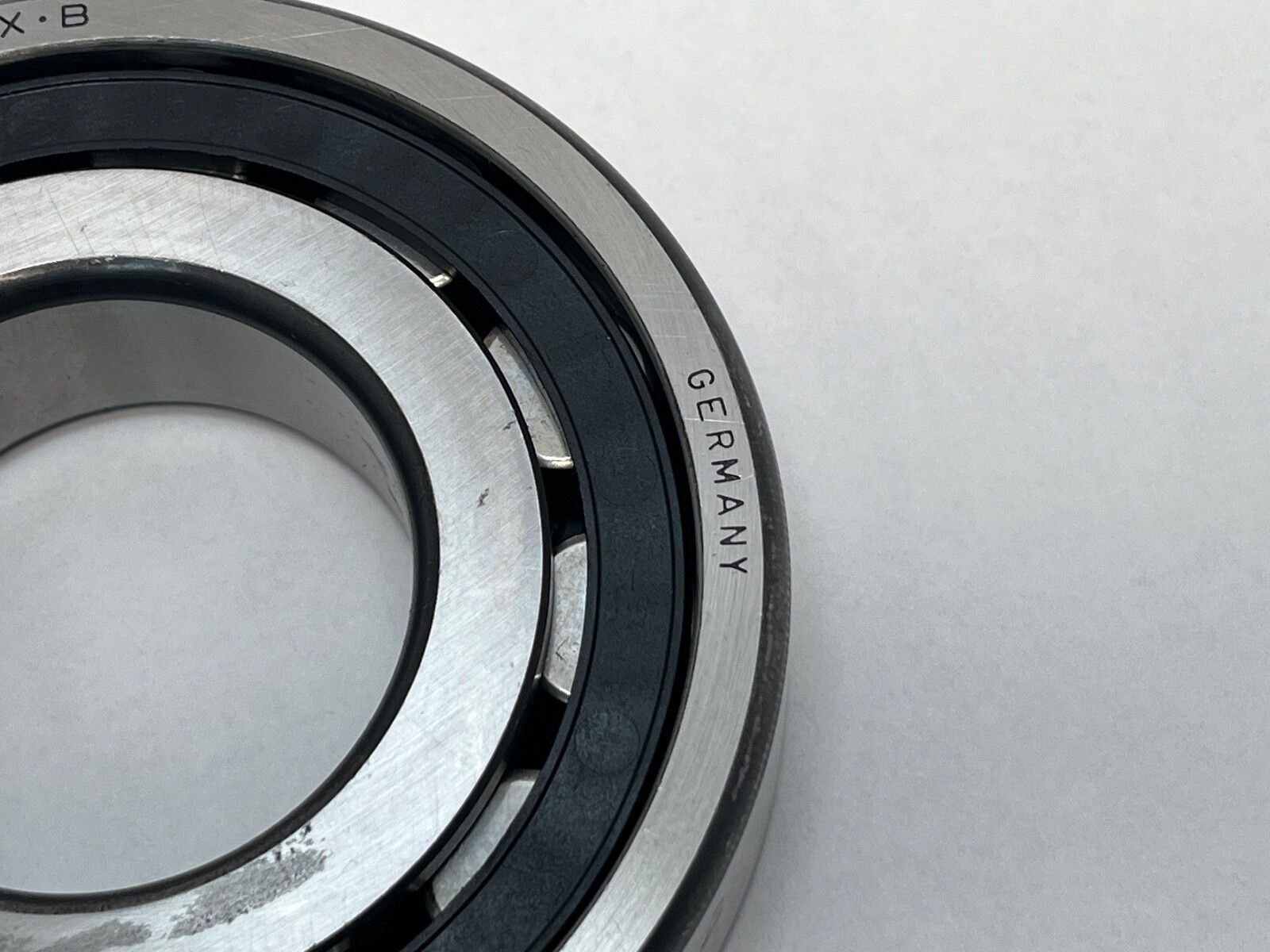

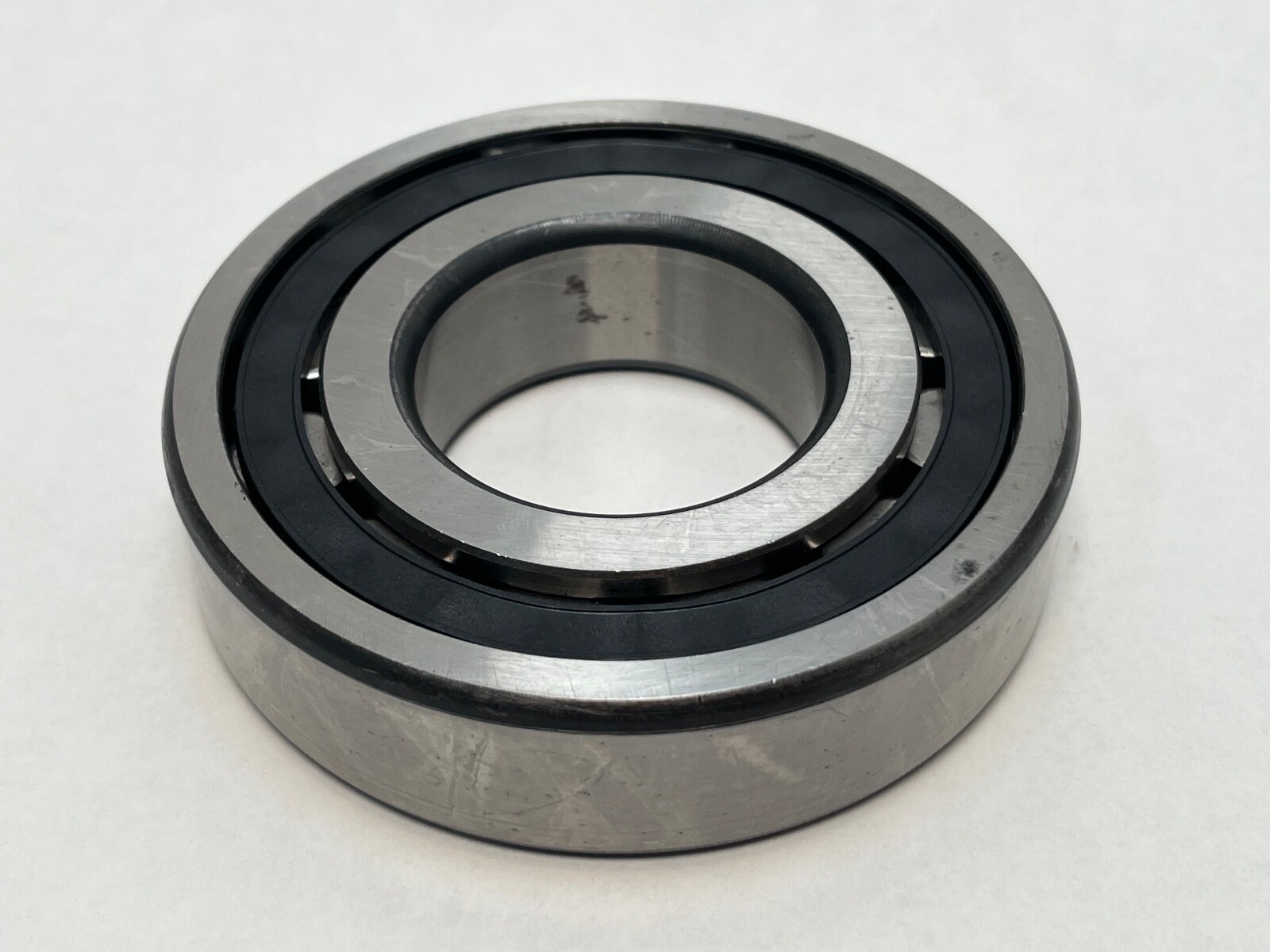

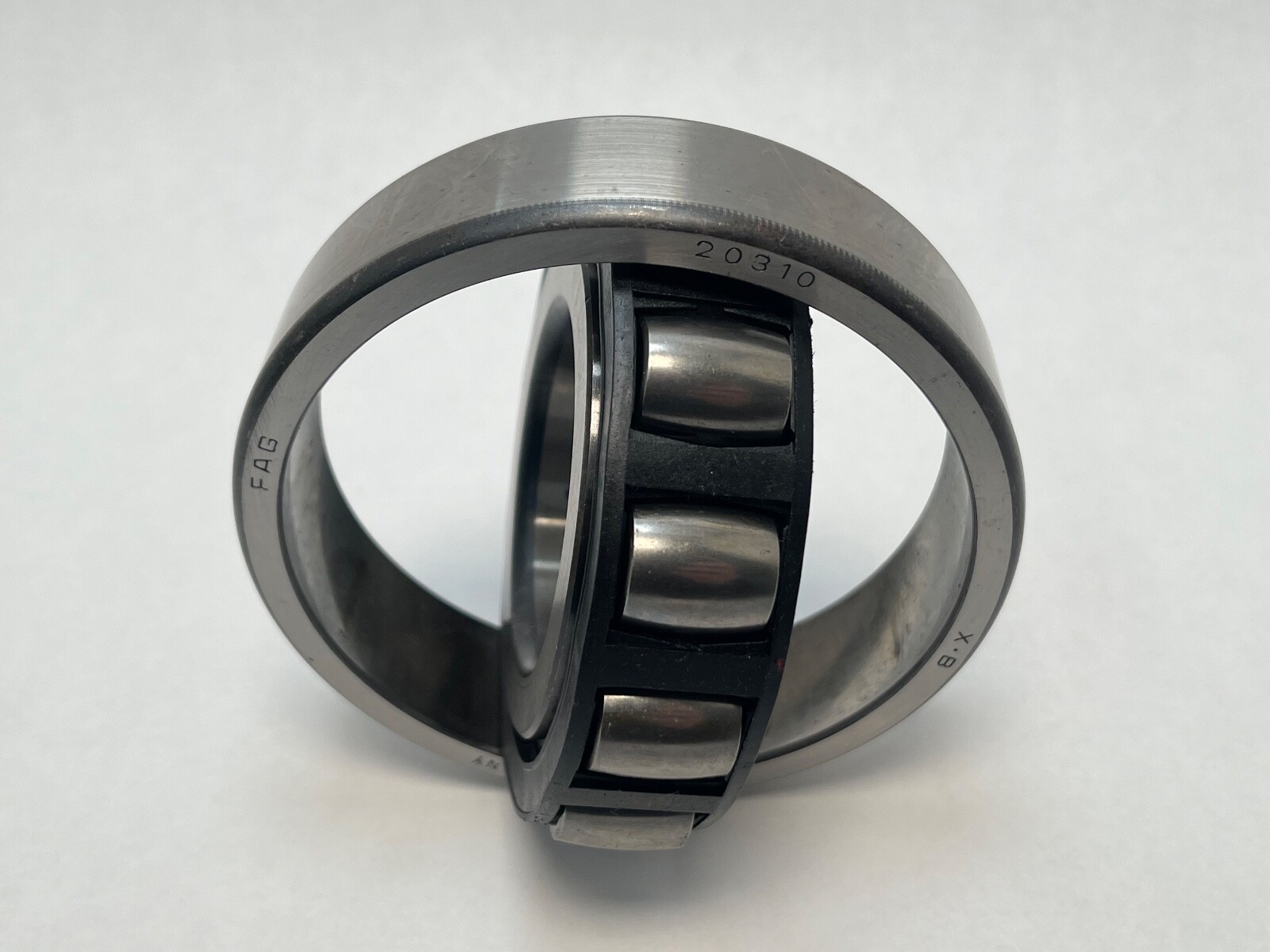

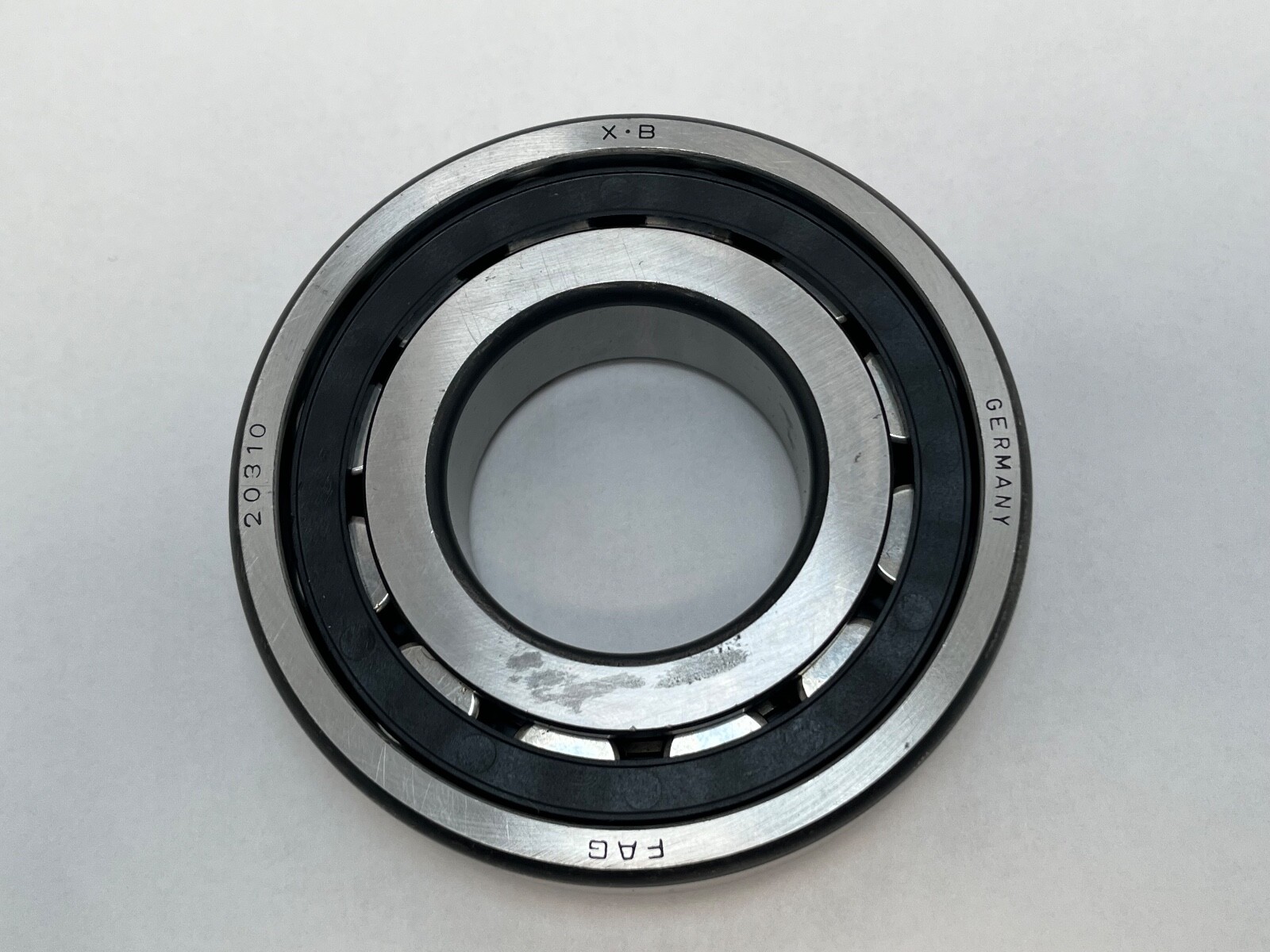

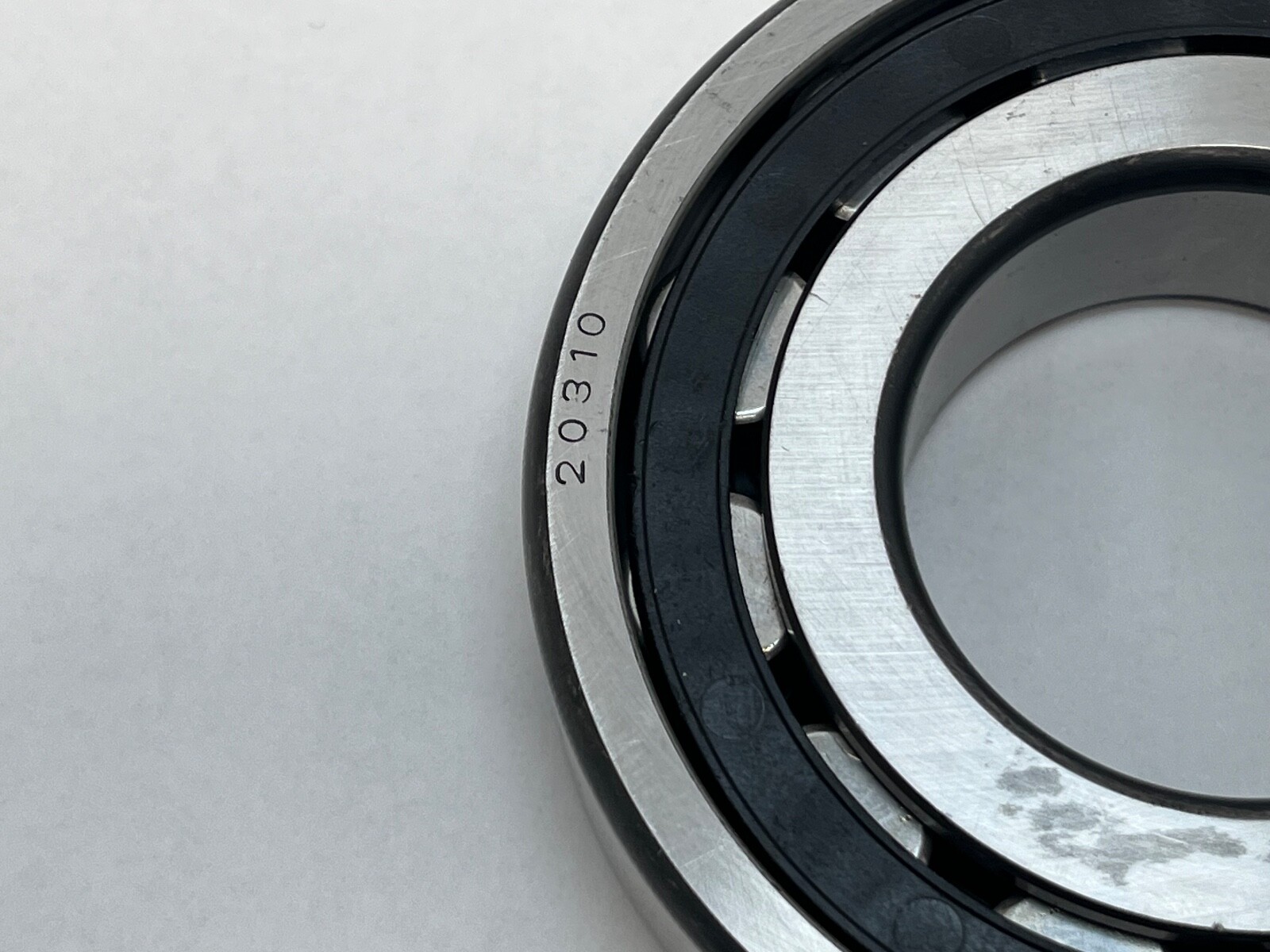

FAG 20310-T single-row barrel roller bearing. One row of barrel-shaped rollers runs on a spherical outer raceway, so the inner ring, roller set and cage swivel inside the outer ring. Bore Diameter: 50 mm (1.9685 in). Outside Diameter: 110 mm (4.3307 in). Width: 27 mm (1.0630 in). Number Of Rows: 1. Bore Type: Cylindrical. Cage: glass-fibre reinforced polyamide 6.6, T / TVP. Internal Clearance: CN (normal). Unit Quantity: 1 Pc.

Decoding the designation:

20 — barrel roller bearing, single row.

3 — ISO dimension series, heavier section than the 202xx range on the same bore.

10 — bore code, 10 x 5 = 50 mm bore.

T / TVP — glass-fibre reinforced polyamide 6.6 cage.

Specifications:

Series: 203. Base Number: 20310. Rolling Elements: Barrel rollers. Closure Type: Open. Material: Bearing Steel. Condition: New – Open box.

Dimensions and mounting:

50 x 110 x 27 mm. The barrel roller carries radial load and self-aligns on its spherical outer raceway, taking shaft deflection and housing misalignment without edge loading the rollers. The 203 section is wider and larger in outside diameter than a 20210 on the same 50 mm shaft, which gives longer rollers and higher radial capacity.

Compatibility and replacement:

Alternate written forms of the same bearing: 20310-T, 20310T, 20310-TVP, 20310TVP. The 20310MB carries a machined brass cage and is a related size. The tapered-bore 20310K.T is a related size with a different bore form. The 22310 is a double-row spherical roller bearing, a different bearing type.

Frequently asked questions:

What size is the FAG 20310-T?

50 mm bore, 110 mm outside diameter, 27 mm width.

What cage does it have?

A glass-fibre reinforced polyamide 6.6 cage, T / TVP.

Is it self-aligning?

Yes, the barrel rollers run on a spherical outer raceway that accommodates misalignment.
