Availability:
1 in stock
Single-row barrel roller bearing, 100 mm bore x 180 mm OD x 34 mm wide. Cylindrical bore, machined brass cage, C3 clearance, radial load with self-alignment. 1 Pc.
List Price
$199.76
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | FAG |
|---|---|
| MPN | 20220MBC3 |
| Model | 20220 MB C3 / 20220M |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 100 mm |
| OD | 180 mm |
| Width | 34 mm |
| Material | Bearing Steel |
|---|---|
| Series | 20200 |
| Condition | New – Open box |
| Base Number | 20220 |
| Industry Terms | barrel roller bearing, single row barrel roller, self-aligning roller bearing |

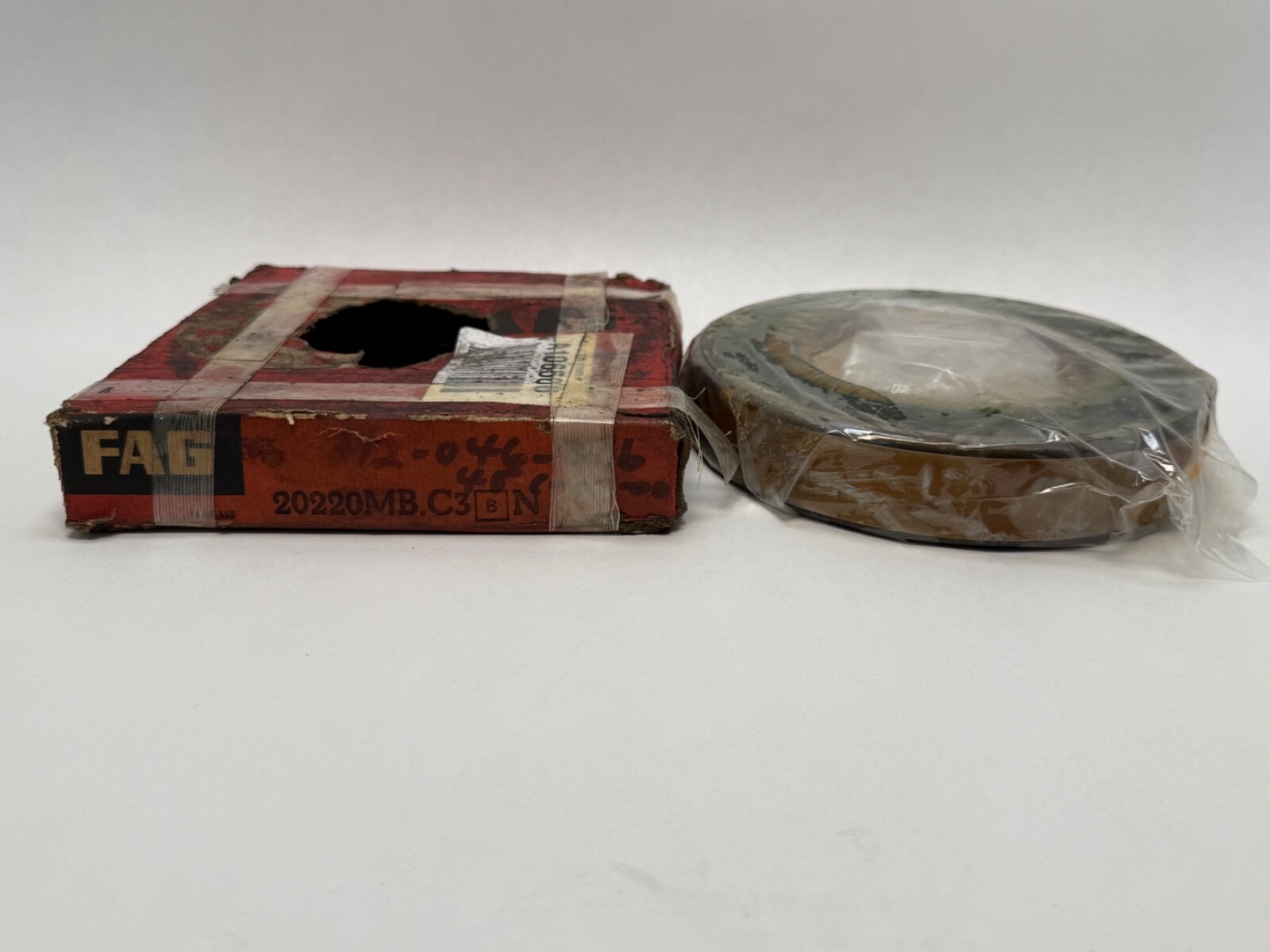

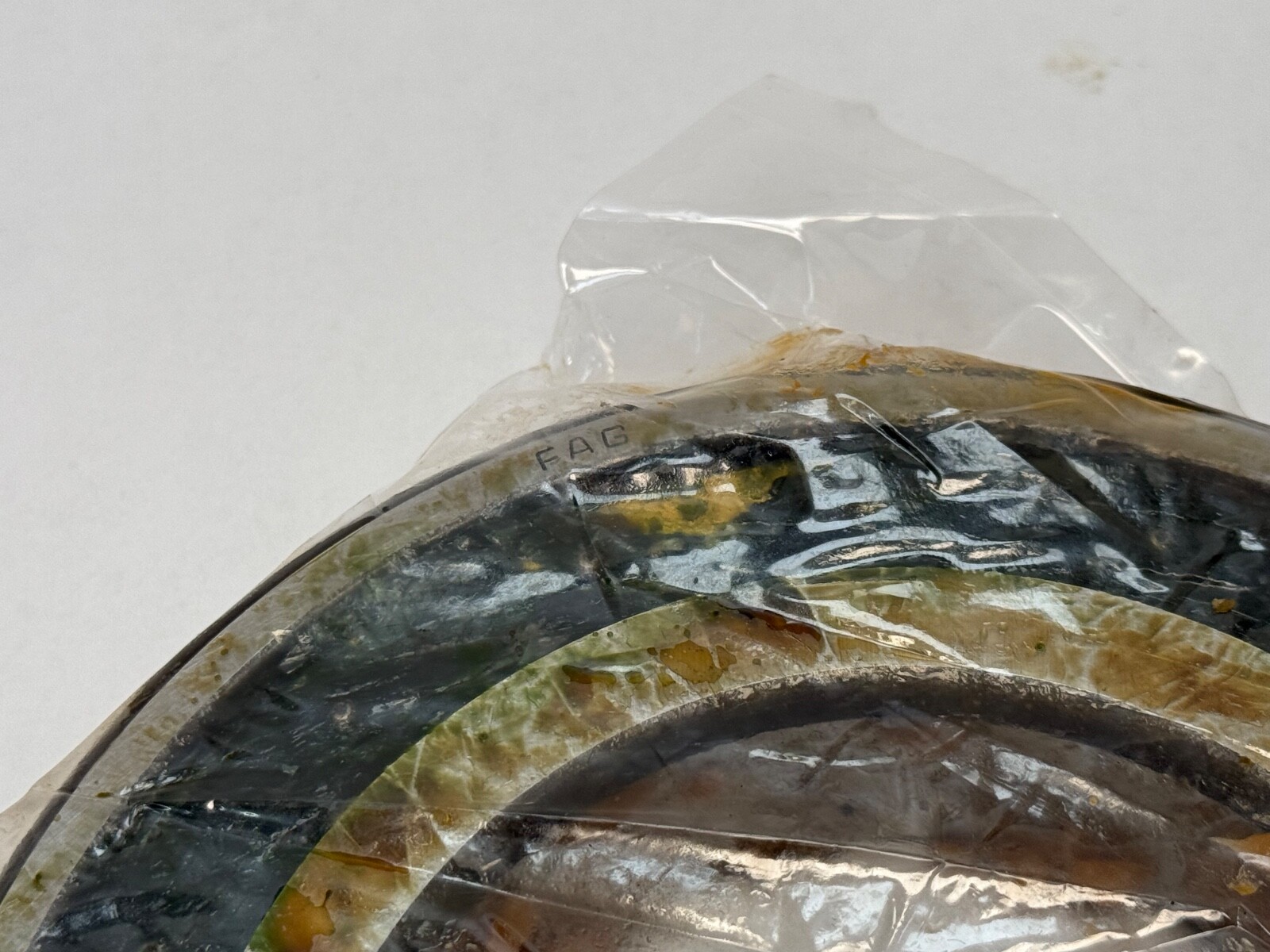

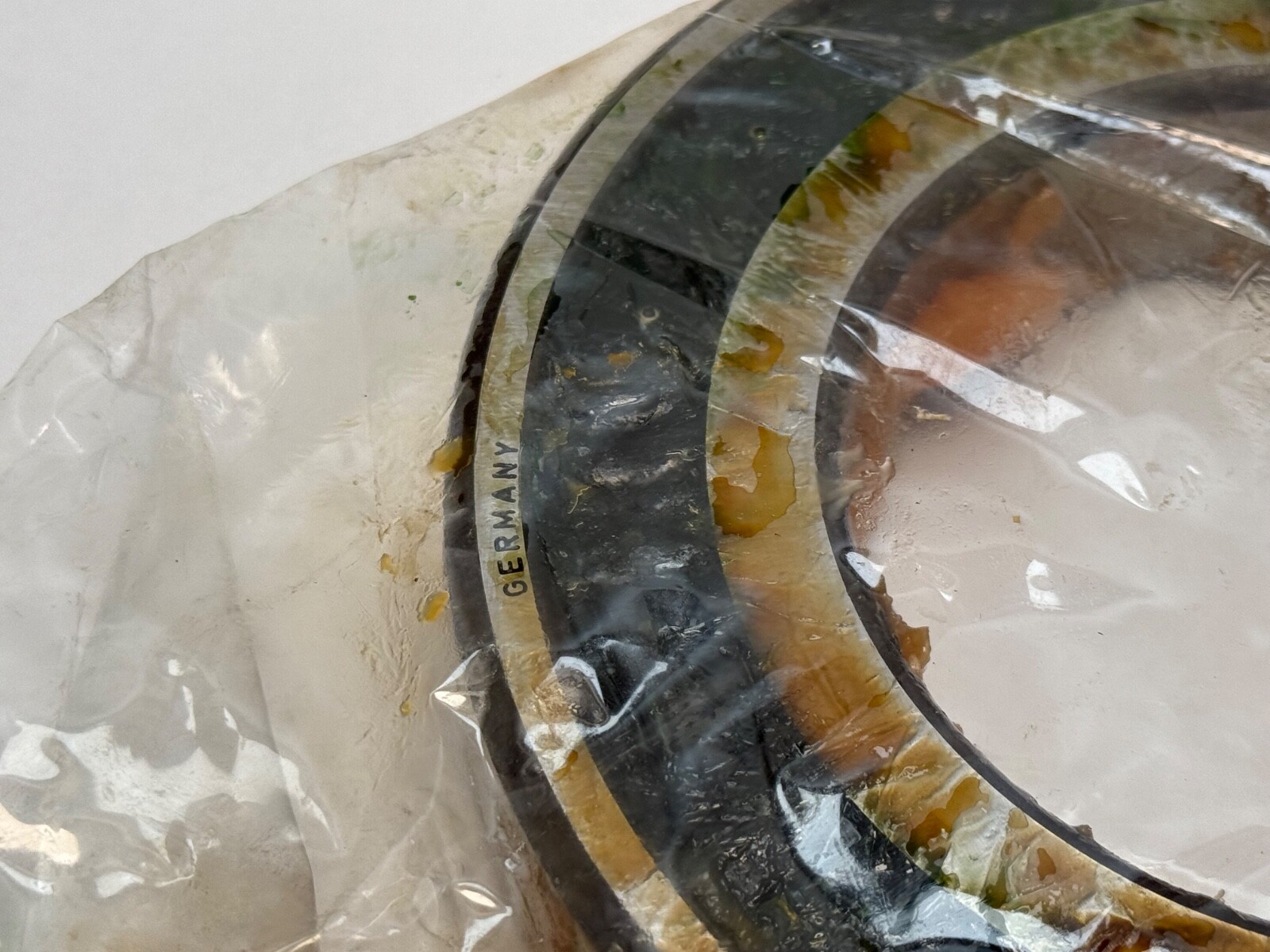

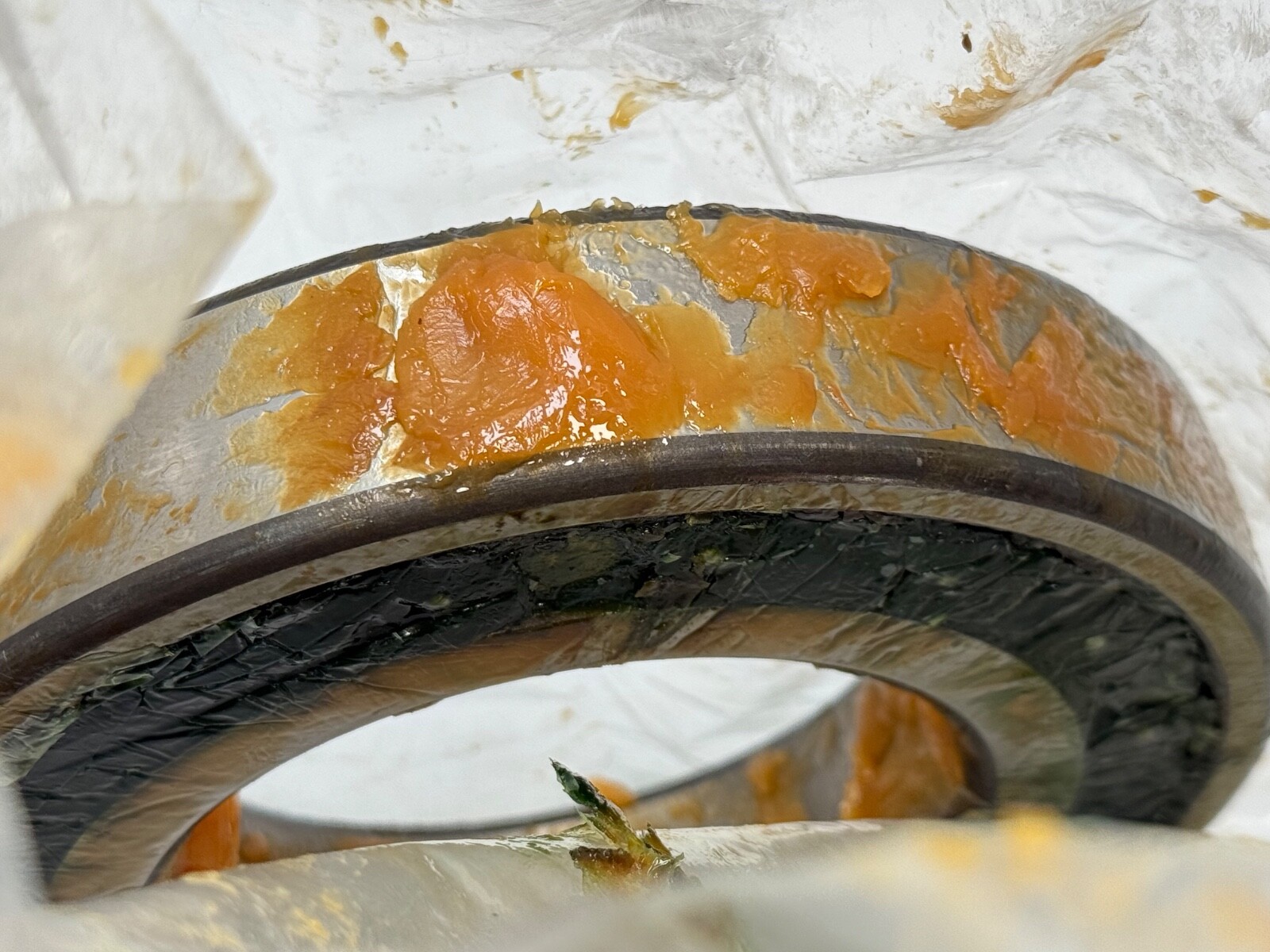

| Condition Note | Made In Germany, New Old Stock, Grease Packed |
| Bore Shaft Size | 100 mm (3.9370 in) |
| Mpn Variants | 20220MB.C3, 20220-MB-C3, 20220MBC3, 20220MB, 20220 MB C3 |
| Min Temp | -40 °C |
| Cage Type | Machined Brass |
| Dynamic Load Rating | 225 kN |
| Static Load Rating | 290 kN |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Barrel Roller |
| Max Temp | 200 °C |
| Item Weight | 8.40 lbs |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00 |
| Design Units | Metric |
| Internal Clearance | C3 |
| Part Number | 20220-MB-C3 |
| Cross Reference 1 | SKF 20220 C |
|---|

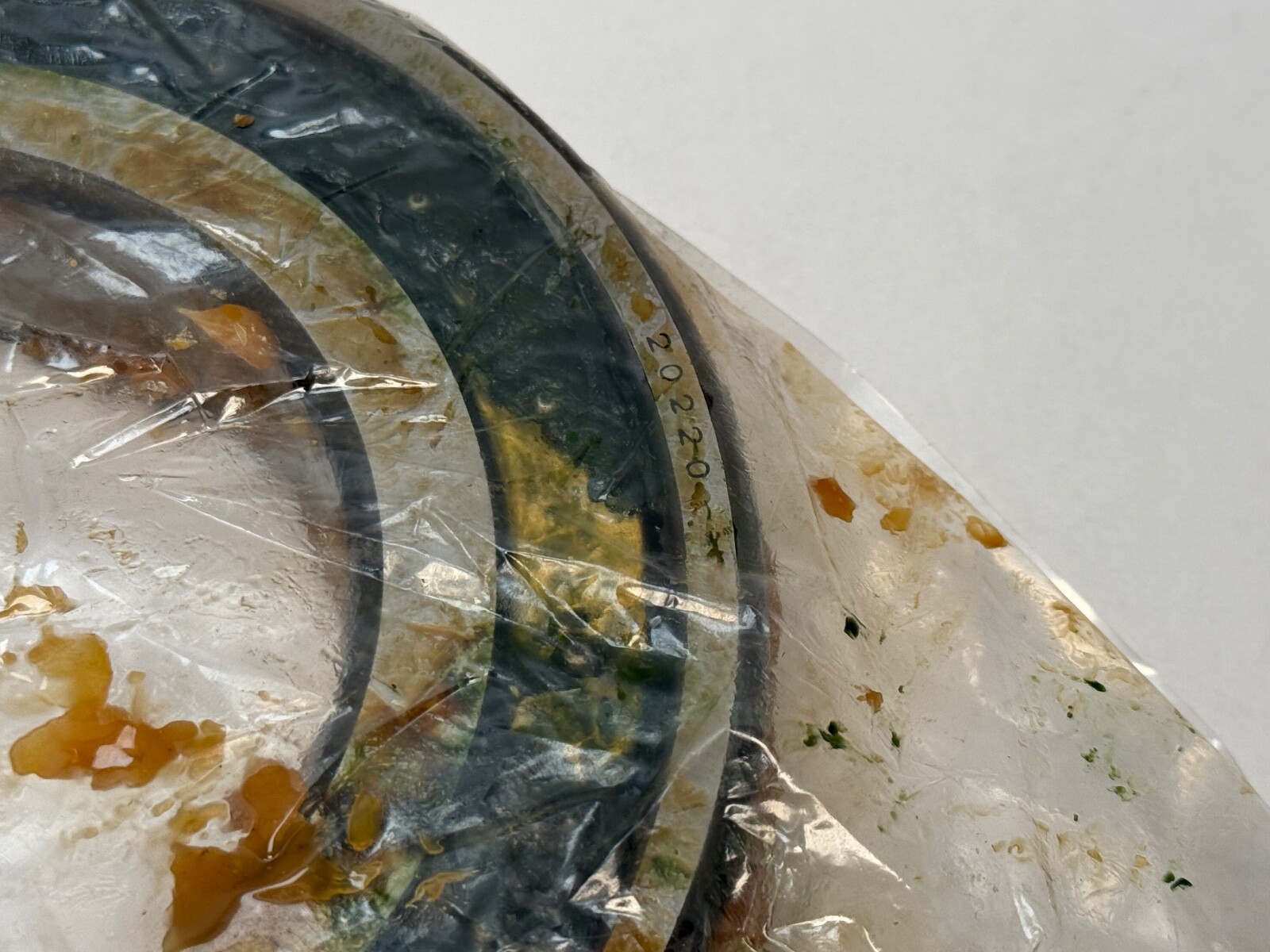

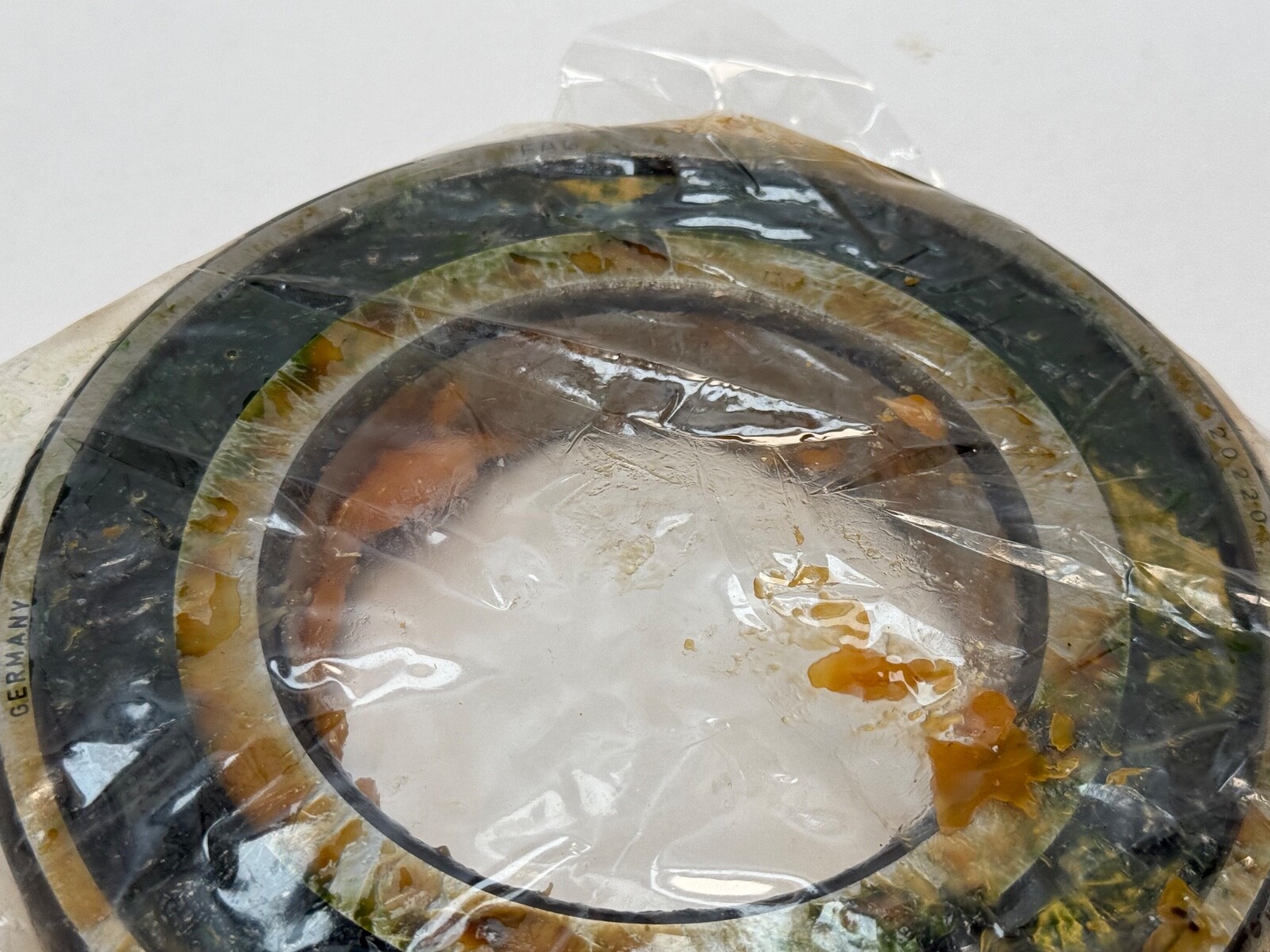

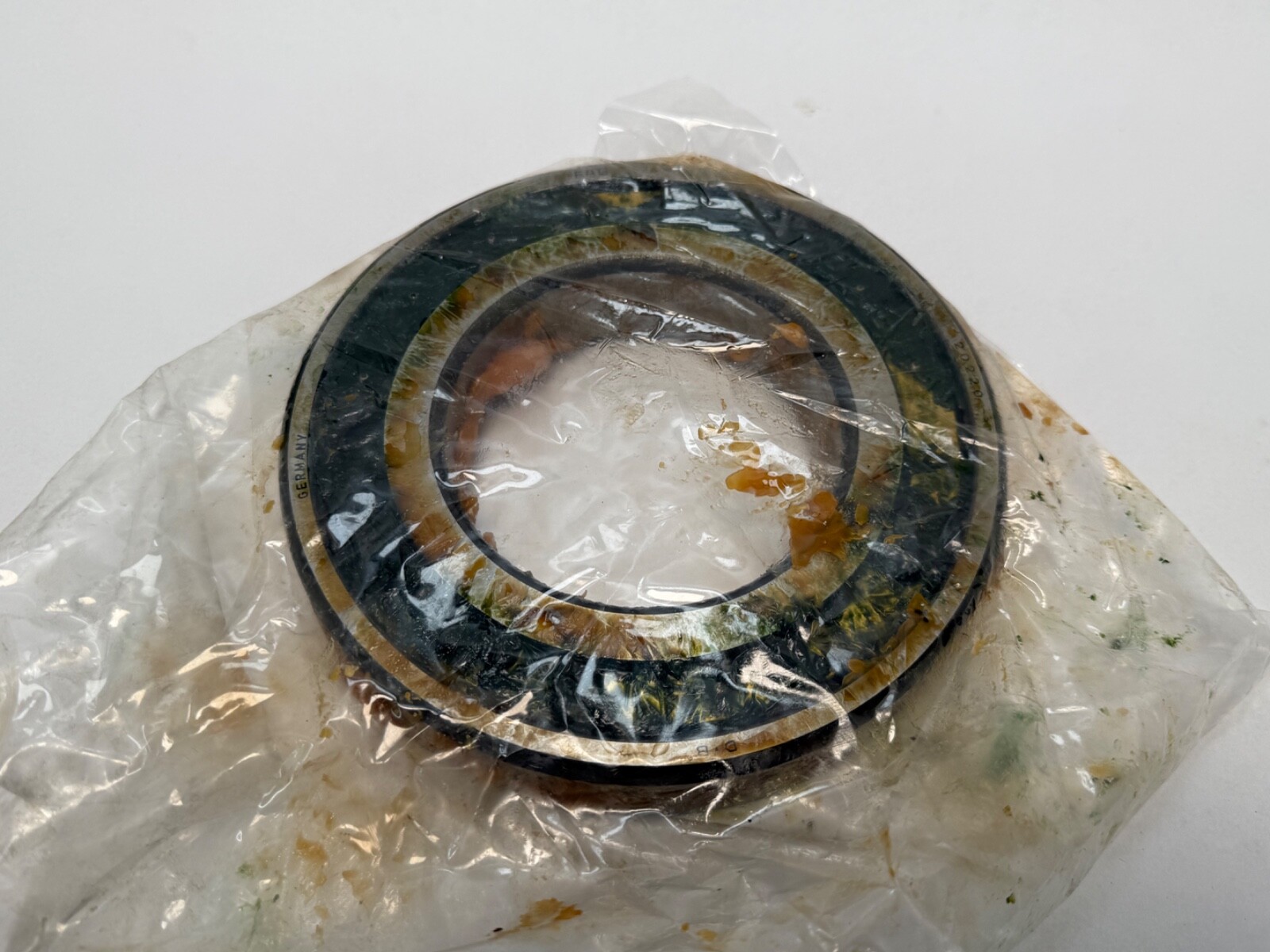

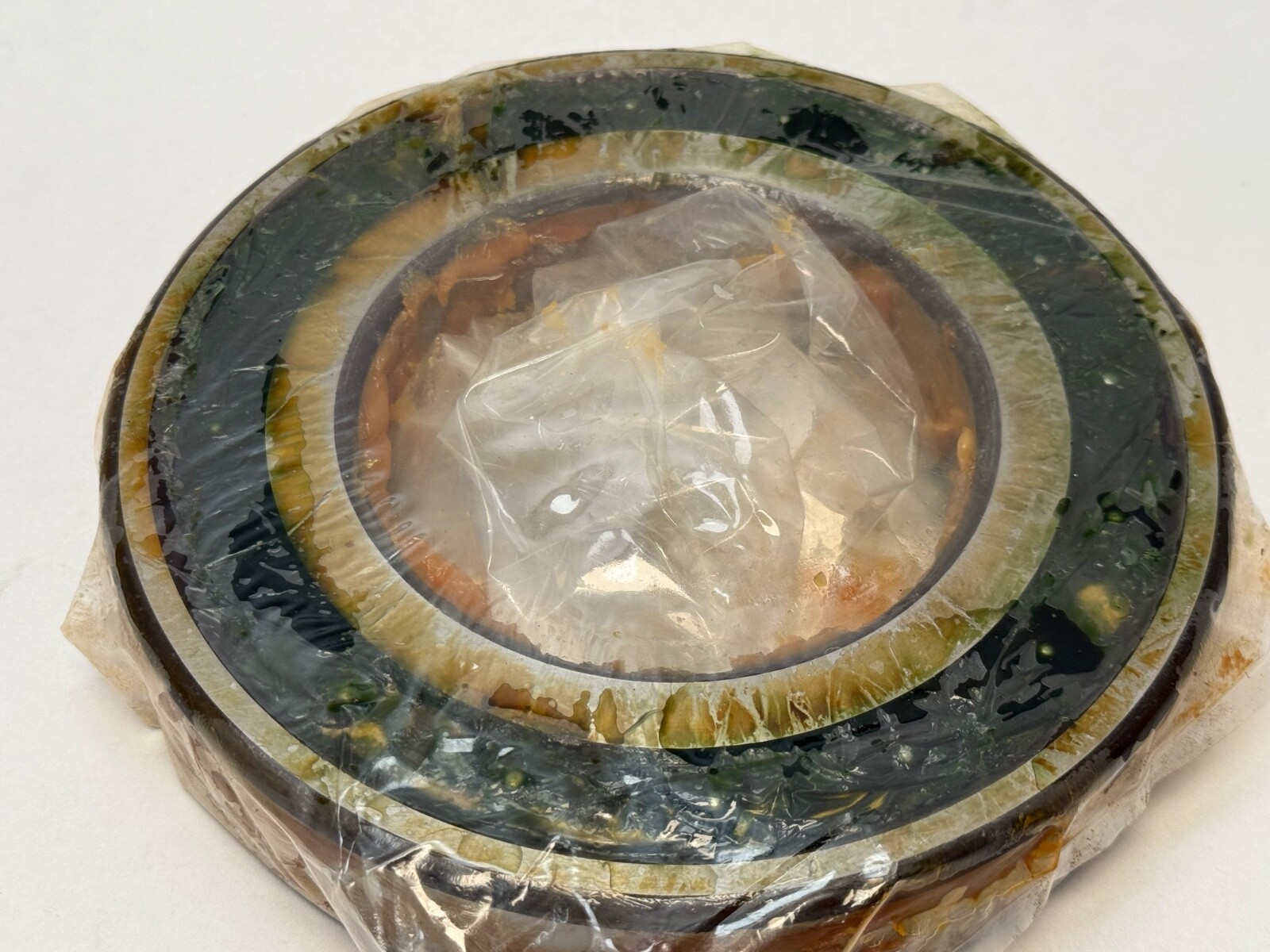

FAG 20220-MB-C3, a single-row barrel roller bearing. One row of barrel-shaped rollers runs on a spherical outer raceway, so the inner ring, roller set and cage swivel inside the outer ring. Boundary dimensions 100 mm bore × 180 mm outside diameter × 34 mm width. Cylindrical bore.
20 – barrel roller, single row2 – ISO dimension series20 – bore code, 20 × 5 = 100 mm boreMB – machined brass cage, inner-ring guidedC3 – radial internal clearance greater than normal
The barrel roller carries radial load and self-aligns on its spherical outer raceway, taking shaft deflection and housing misalignment without edge loading the rollers. Load is radial only. C3 leaves running clearance for a tight shaft fit and for thermal growth of the inner ring. The machined brass cage runs at higher speed and temperature than a pressed steel cage.
Bore: 100 mm (3.9370 in)Outside diameter: 180 mm (7.0866 in)Width: 34 mm (1.3386 in)Rows: 1Bore form: cylindricalCage: machined brass, MBInternal clearance: C3
1 Pc. Bearing only, cylindrical bore, mounted directly on the shaft seat.
Alternate written forms of the same bearing: 20220-MB-C3, 20220MB.C3, 20220MBC3. The tapered-bore 20220K.MB is a related size with a different bore form, and the normal-clearance 20220MB is a related variant. The 22220 is a double-row spherical roller bearing.
