Availability:
1 in stock

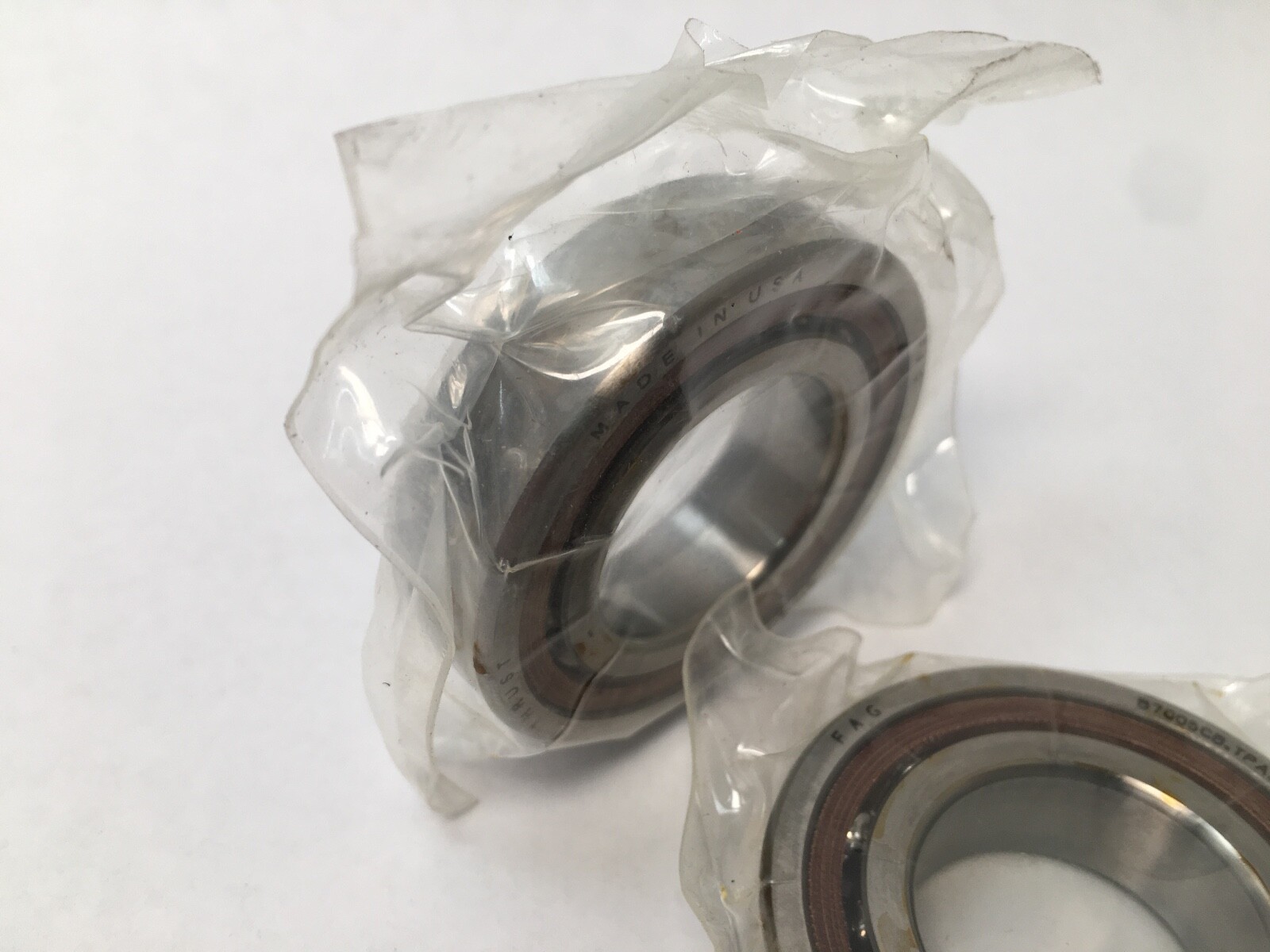

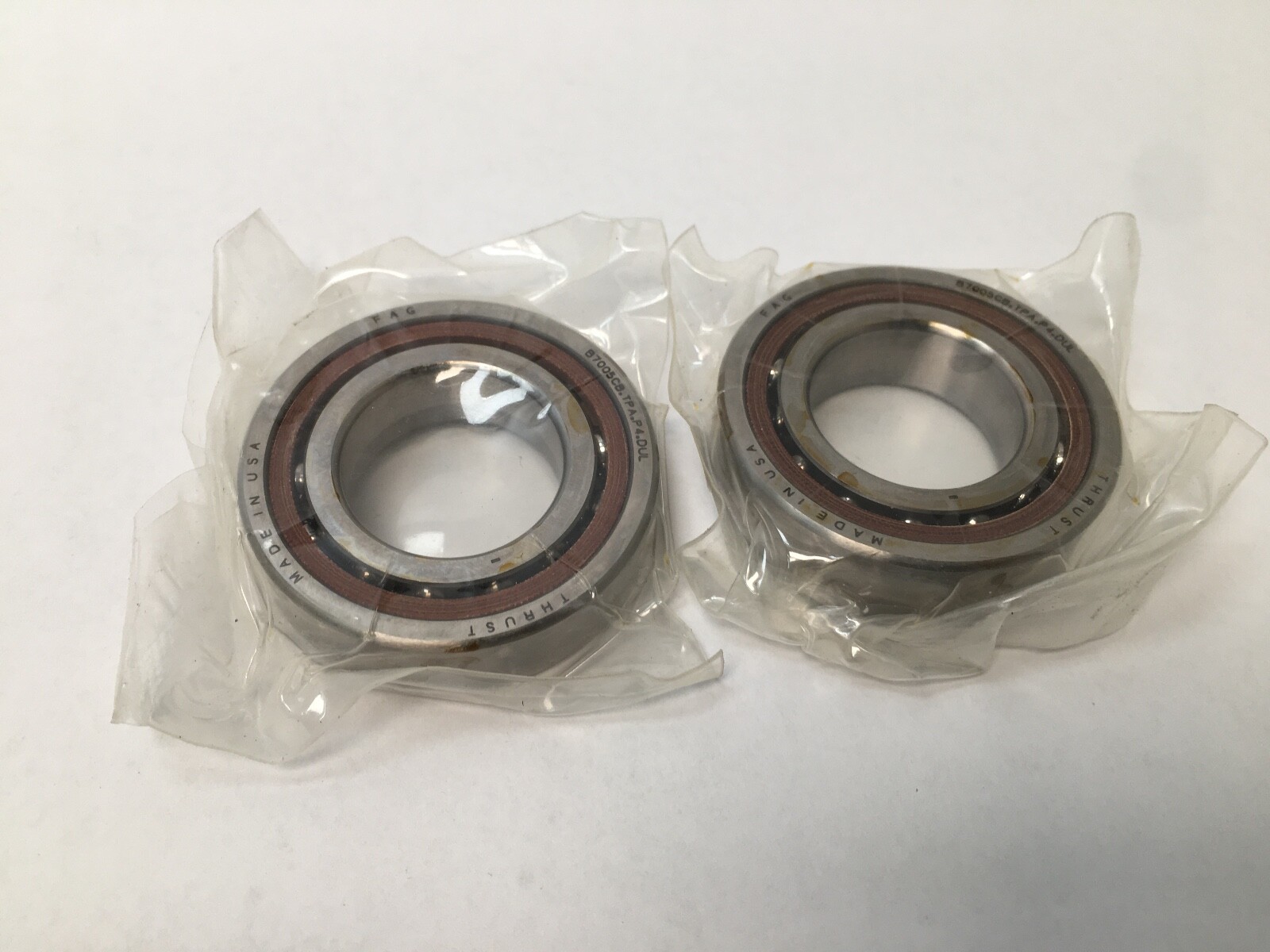

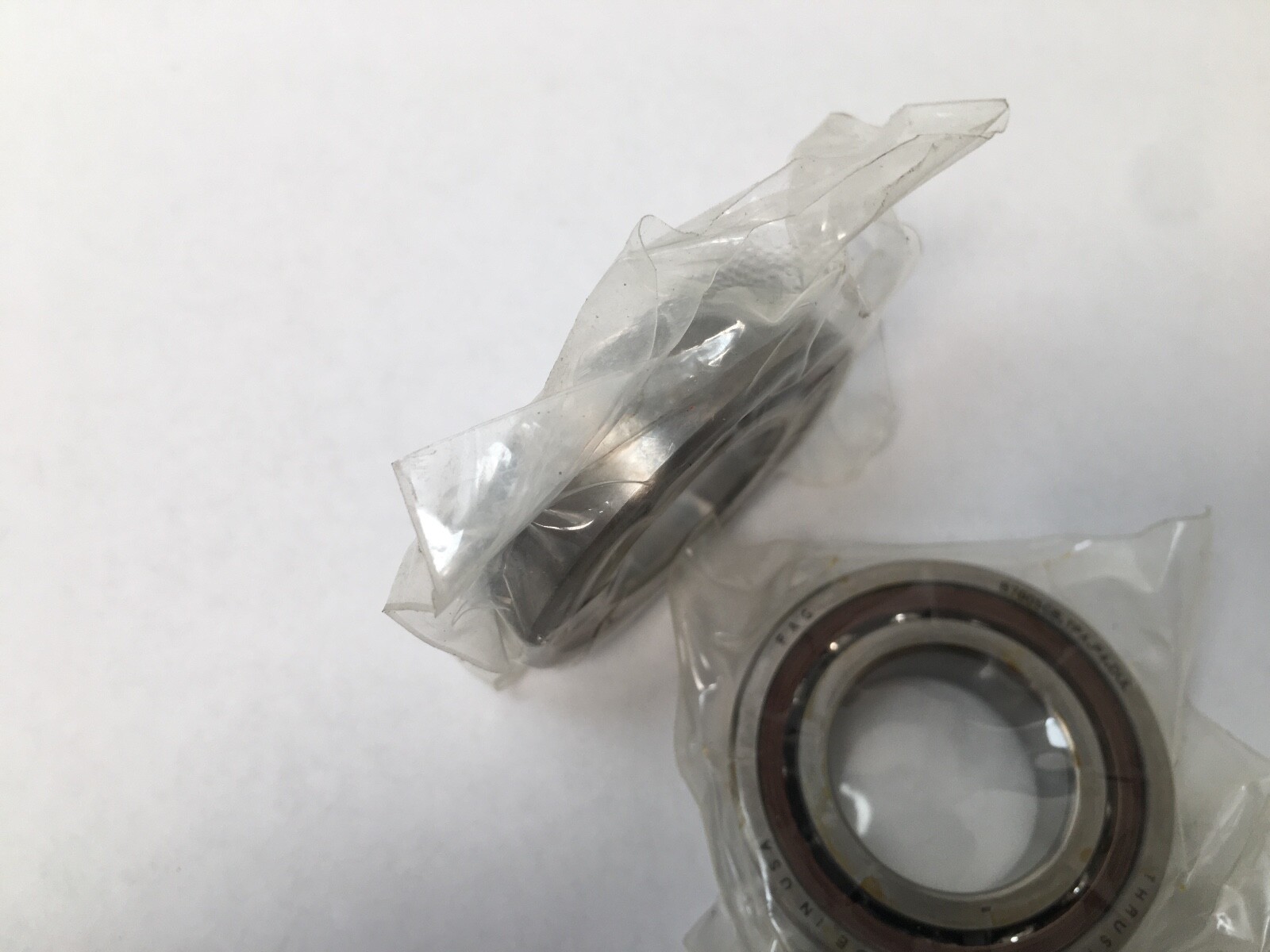

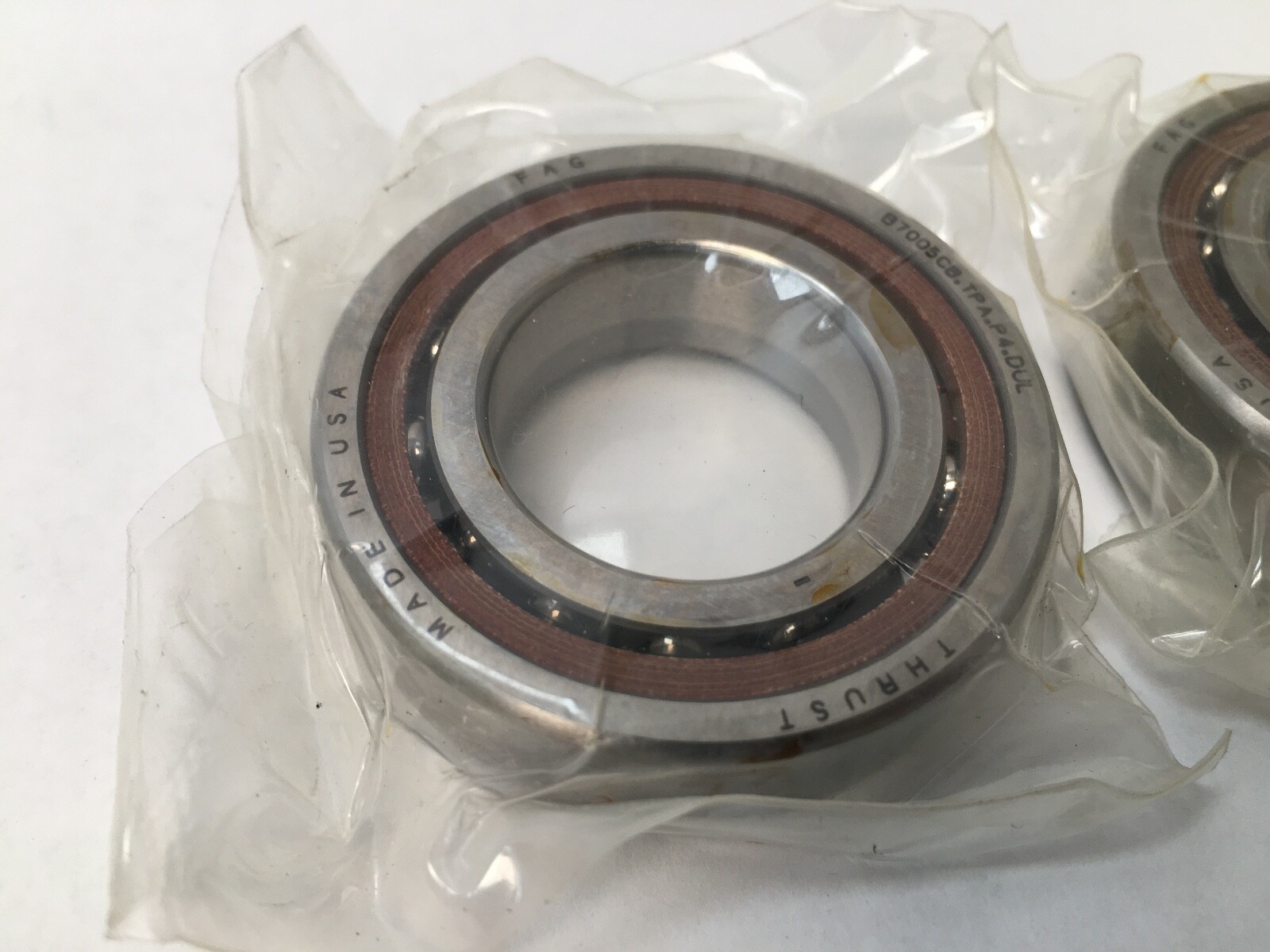

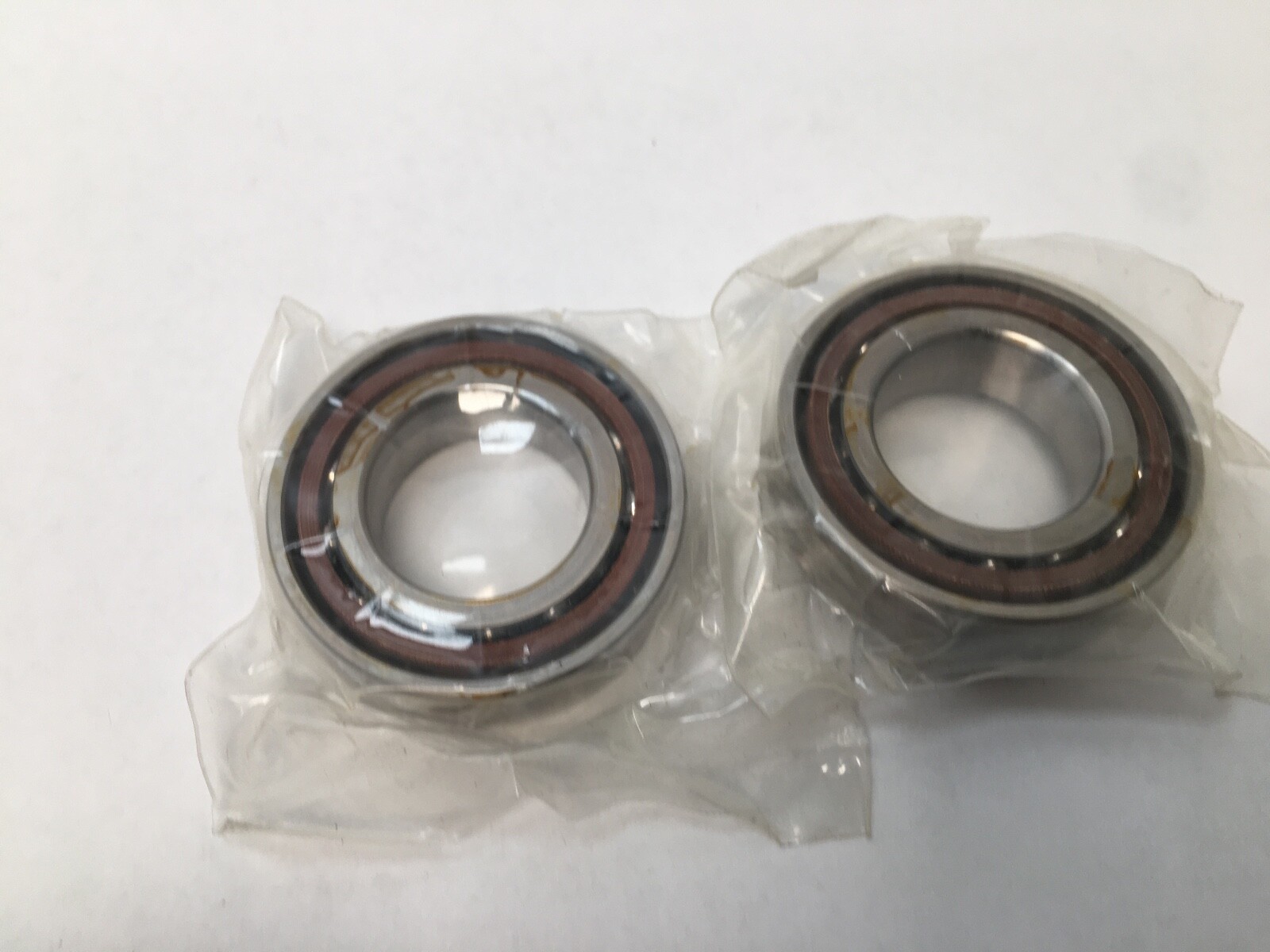

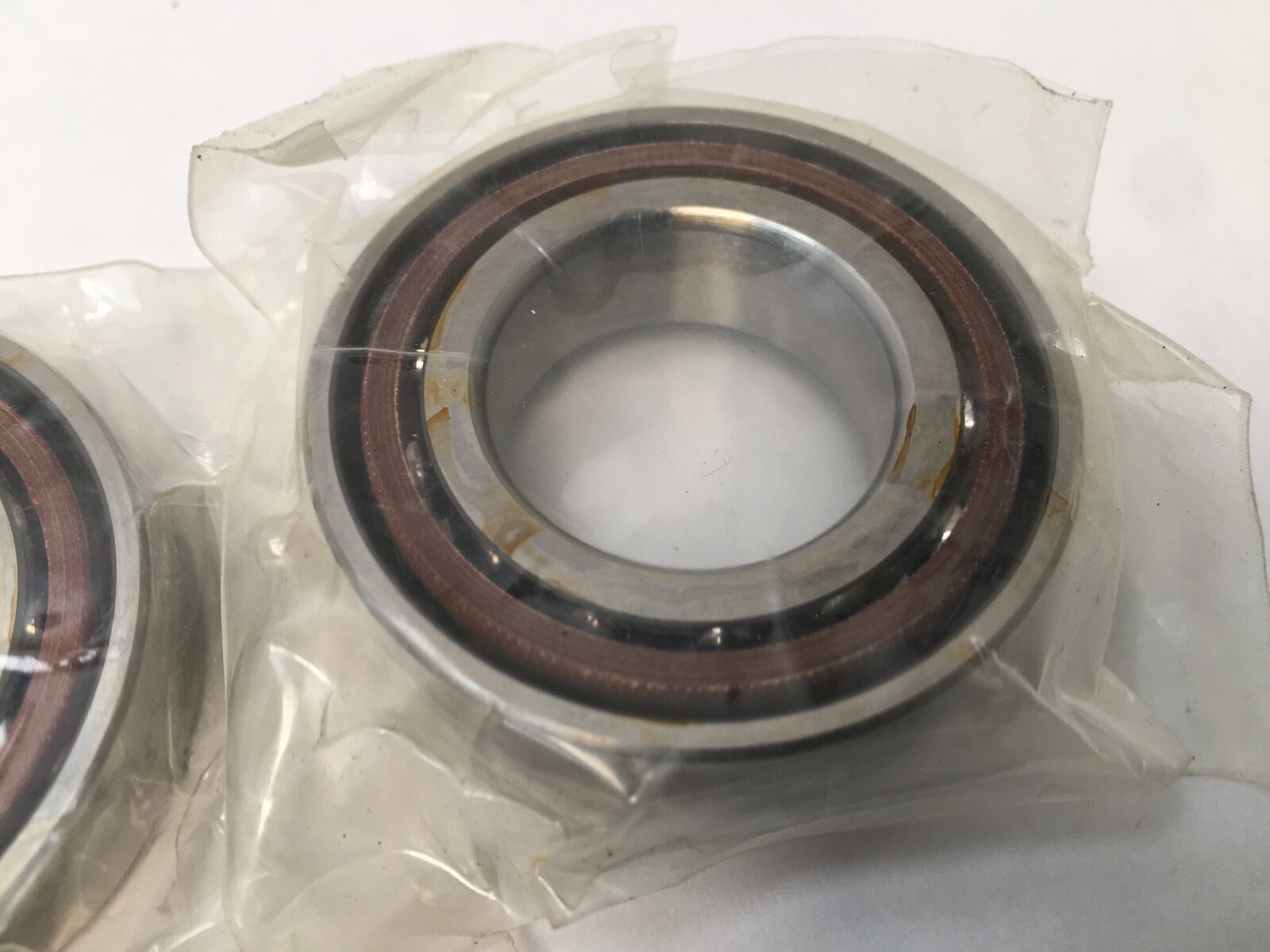

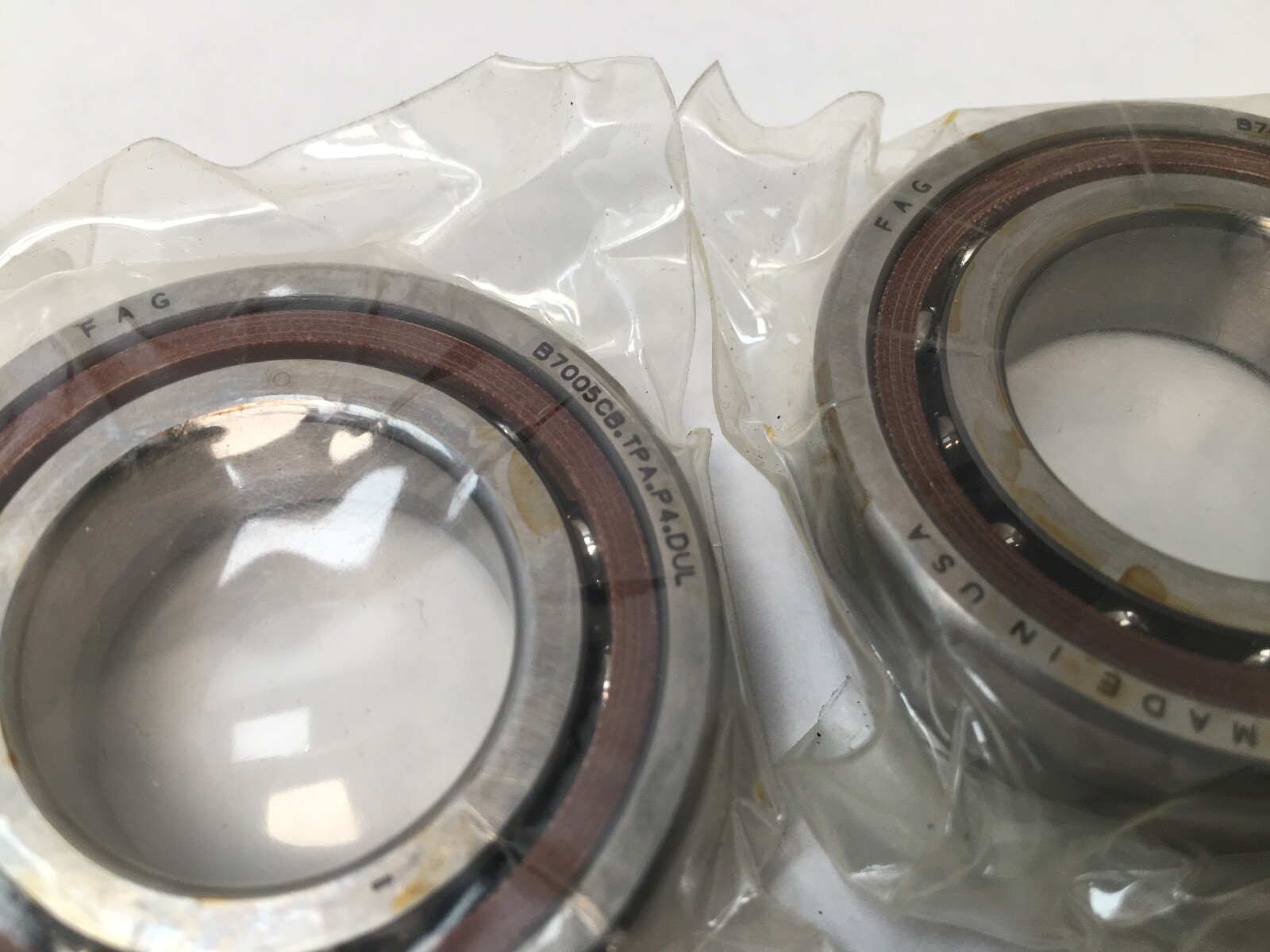

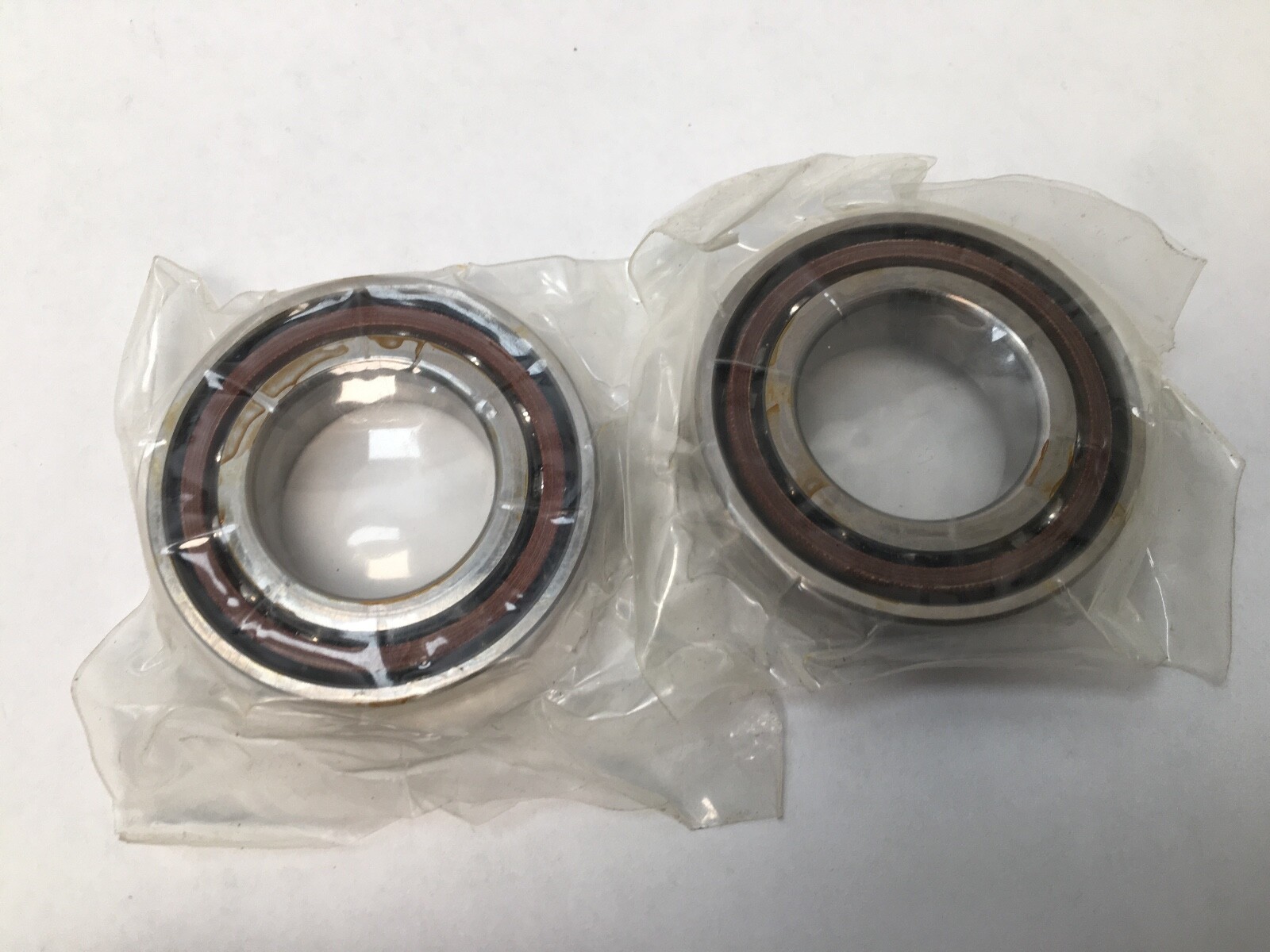

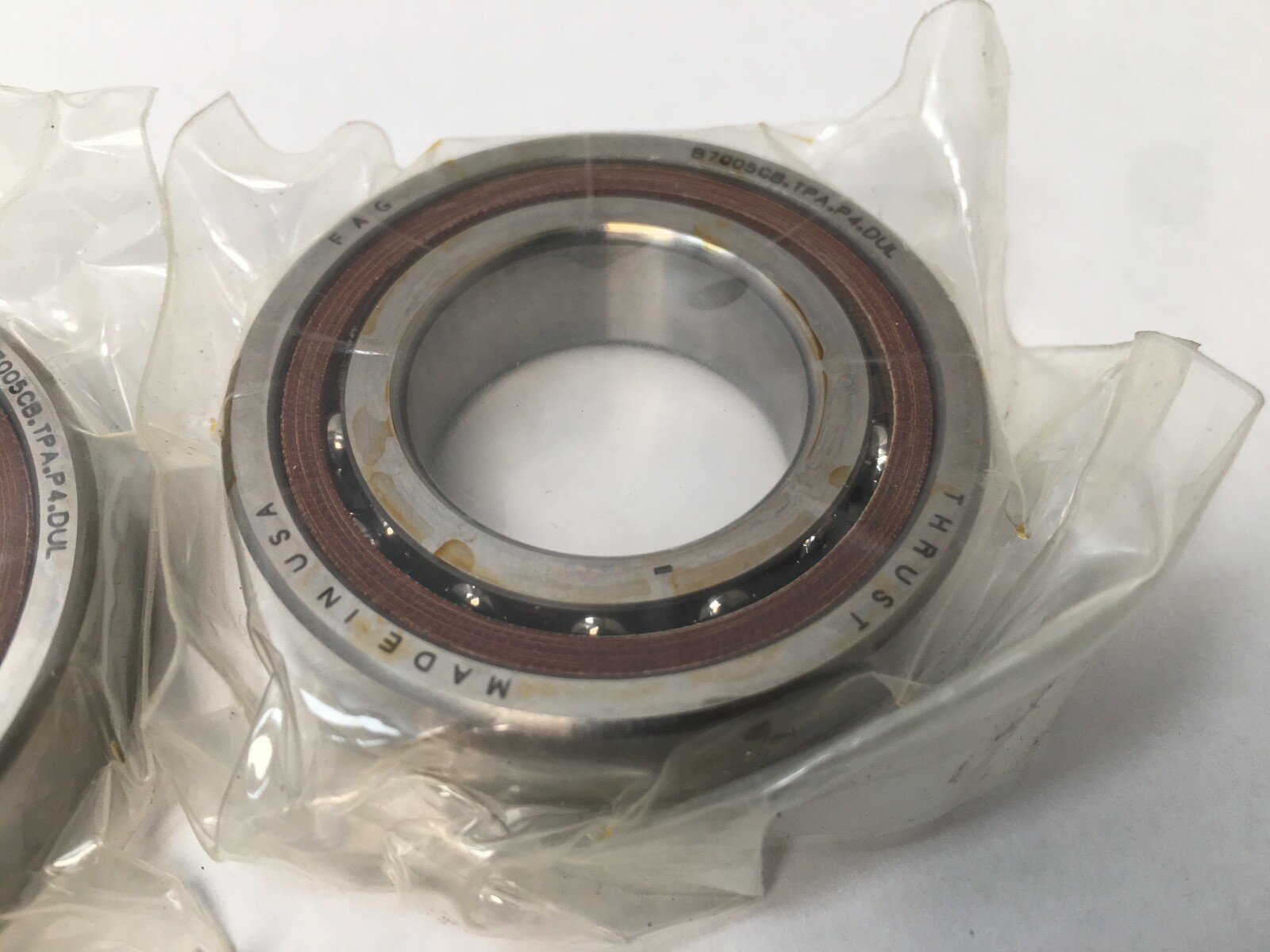

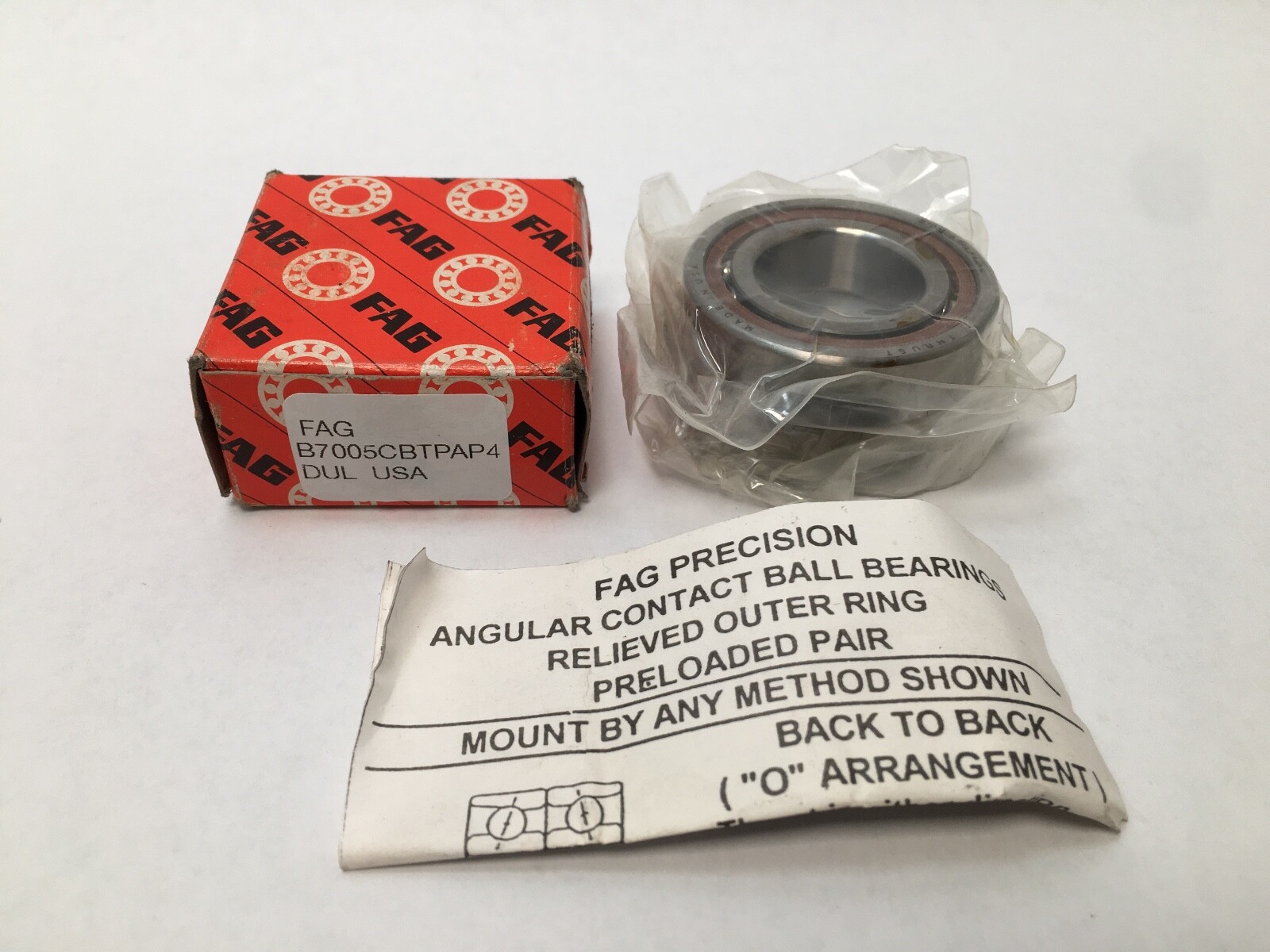

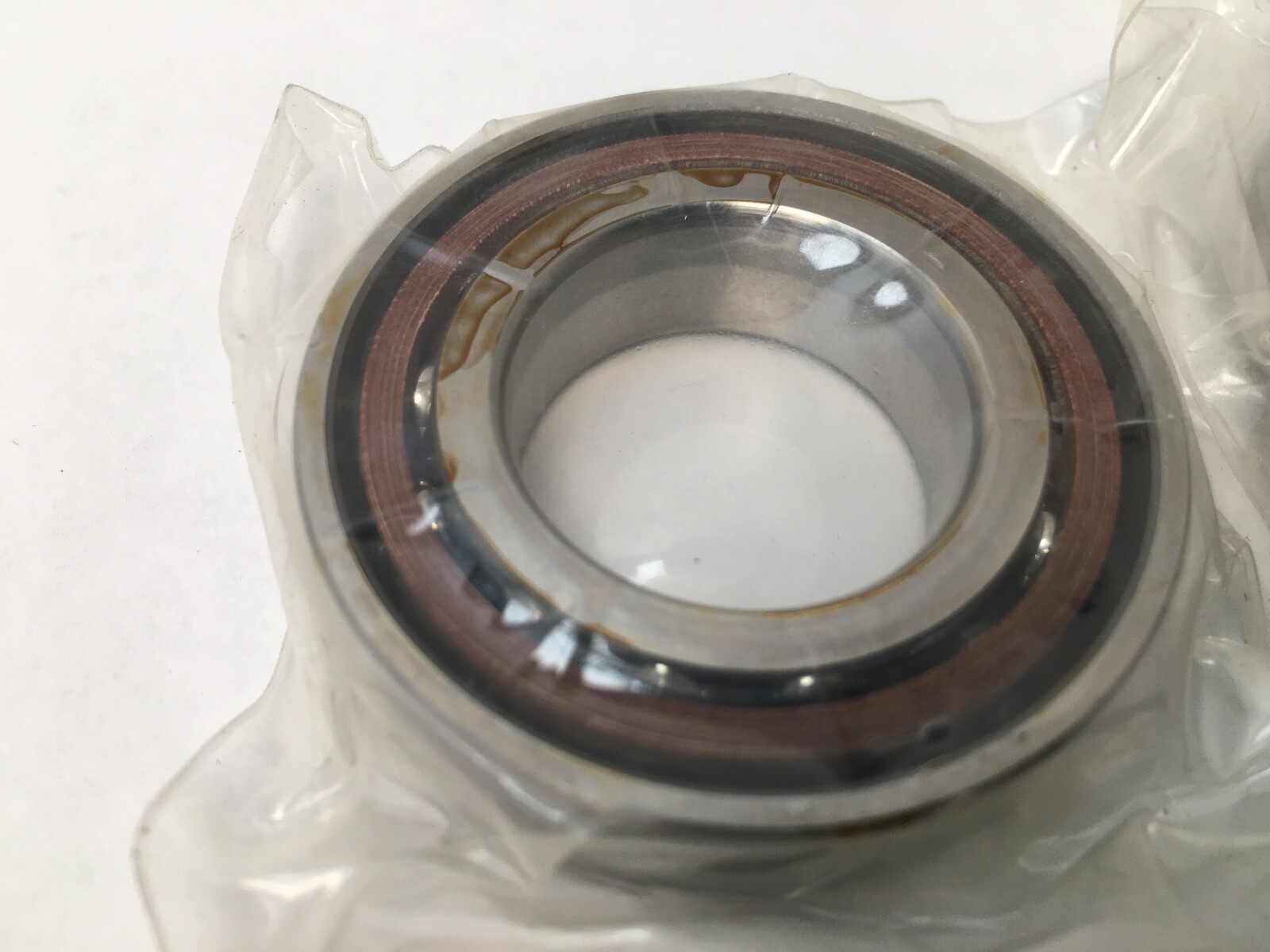

FAG B7005CB.TPA.P4.DUL angular contact bearing pair, 25 x 47 x 12 mm, 15° contact angle, ABEC 7 / P4, light preload, universal matched set of 2.
List Price
$183.57
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7005CB.TPA.P4.DUL |
| Model | B7005CB.TPA.P4.DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 47 mm |
| Width | 12 mm |
| Series | 7000 |
|---|---|
| Preload | Light |
| Min Temp | -30 °C |
| Cage Type | TPA laminated fabric |
| Dynamic Load Rating | 13,700 N per bearing (B7005-C-T-P4S-UL data) |
| Static Load Rating | 5,900 N per bearing (B7005-C-T-P4S-UL data) |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 0.077 kg (0.17 lb) per bearing |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal matched pair (DB, DF or DT) |
| Limiting Speed | 34,000 rpm grease; 50,000 rpm oil |
| Base Number | 7005 |
| Overall Width | 12 mm |
| Mpn Variants | B7005CB.TPA.P4.DUL, B7005CB-TPA-P4-DUL, B7005CBTPAP4DUL, B7005C.TPA.P4.DUL, B7005-C-T-P4S-DUL |
| Compatible With Replaces | Schaeffler B7005-C-T-P4S-UL (single bearing) |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Preload force light 73 N; Axial rigidity light 30 N/µm; Pressure-cone apex distance 10.8 mm; Shaft shoulder 30 mm; Housing shoulder 42 mm (B7005-C-T-P4S-UL data) |
| Cross Reference 1 | SKF 7005 CD/P4ADGA |
|---|---|
| Cross Reference 2 | NSK 7005CTRDULP4 |
| Cross Reference 3 | Fafnir 2MM9105WI DUL |
FAG B7005CB.TPA.P4.DUL is a super-precision angular contact ball bearing set: two single-row spindle bearings ground as a universal matched pair with light preload. Bore Diameter: 25 mm. Outside Diameter: 47 mm. Overall Width: 12 mm per bearing. Contact Angle: 15°. Precision Class: ABEC 7 / P4.
B — FAG spindle bearing (super-precision angular contact) prefix.
70 — ISO dimension series 10, light section.
05 — bore code; 05 x 5 = 25 mm bore.
C — 15° contact angle.
TPA — laminated fabric (phenolic) cage.
P4 — ISO tolerance class P4, equivalent to ABEC 7.
DUL — two bearings, universally ground, light preload. Mounts back-to-back, face-to-face or tandem.
Bearing Type: Angular Contact Ball Bearing. Rolling Elements: Ball. Cage Material: Phenolic. Closure Type: Open. Preload: Light (UL). Mounting Arrangement: Universal matched pair. B7005-C-T-P4S-UL data, per bearing: Dynamic Load Rating: 13,700 N. Static Load Rating: 5,900 N. Limiting Speed: 34,000 rpm grease; 50,000 rpm oil. Light preload force: 73 N. Axial rigidity, light preload: 30 N/µm. Operating temperature: −30 °C to 100 °C.
B7005-C-T-P4S-UL data: shaft shoulder diameter 30 mm, housing shoulder diameter 42 mm, maximum fillet radius 0.6 mm, pressure-cone apex distance 10.8 mm, oil-jet pitch diameter 32.5–34.1 mm. Mass: 0.077 kg (0.17 lb) per bearing.
Unit Quantity: 2 Pcs, one universal matched pair.
Same 25 x 47 x 12 mm, 15°, ABEC 7 duplex envelope as SKF 7005 CD/P4ADGA, NSK 7005CTRDULP4 and Fafnir 2MM9105WI DUL. Current Schaeffler single-bearing designation: B7005-C-T-P4S-UL, which replaces B7005C.TPA.P4.UL.
