FAGB7017C.T.P5.ULAngular Contact Ball Bearing – 85 mm ID, 130 mm OD, 22 mm Width, 15° Contact Angle, Light Preload, ABEC 5

Product Description

What this part is:

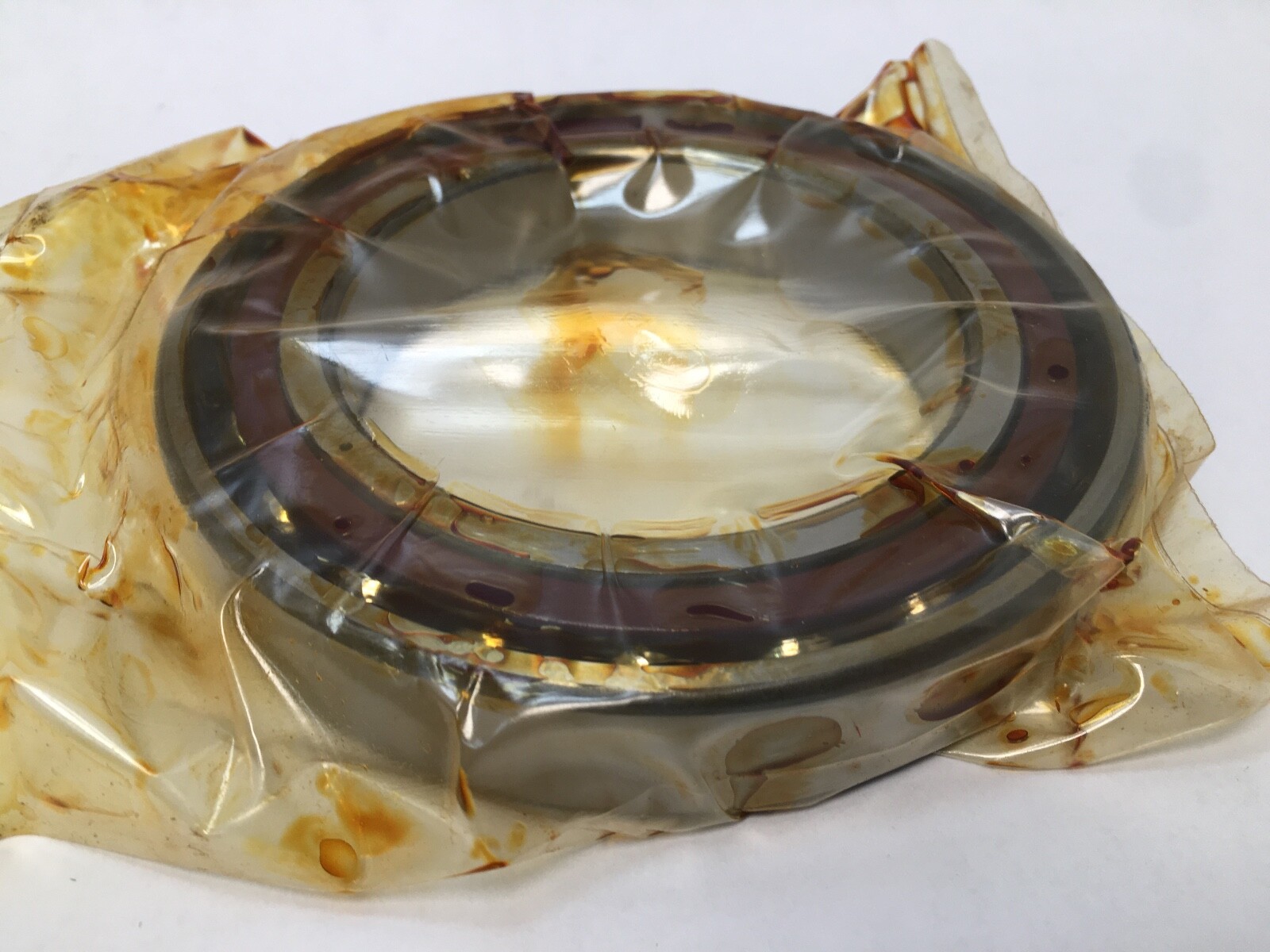

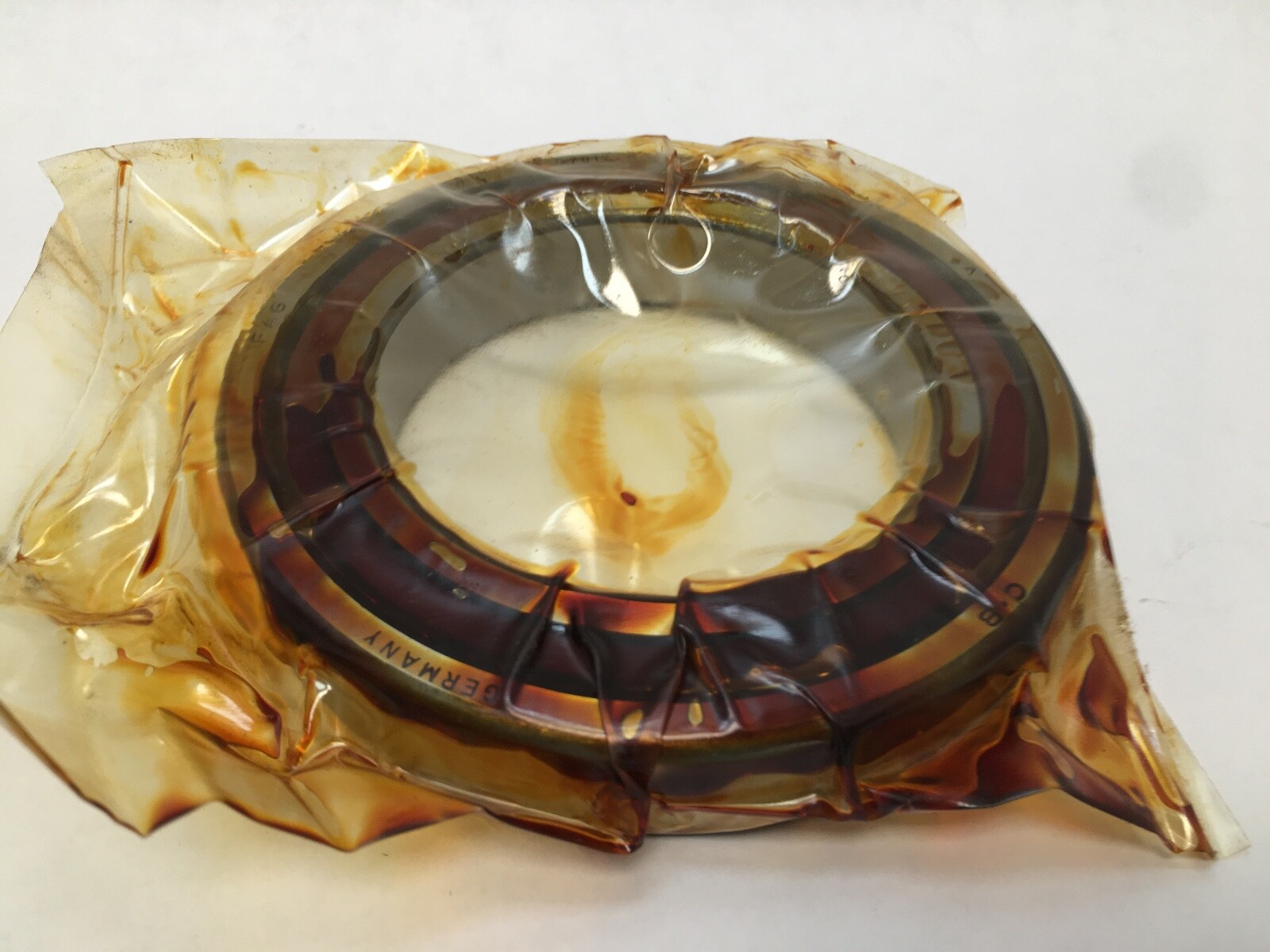

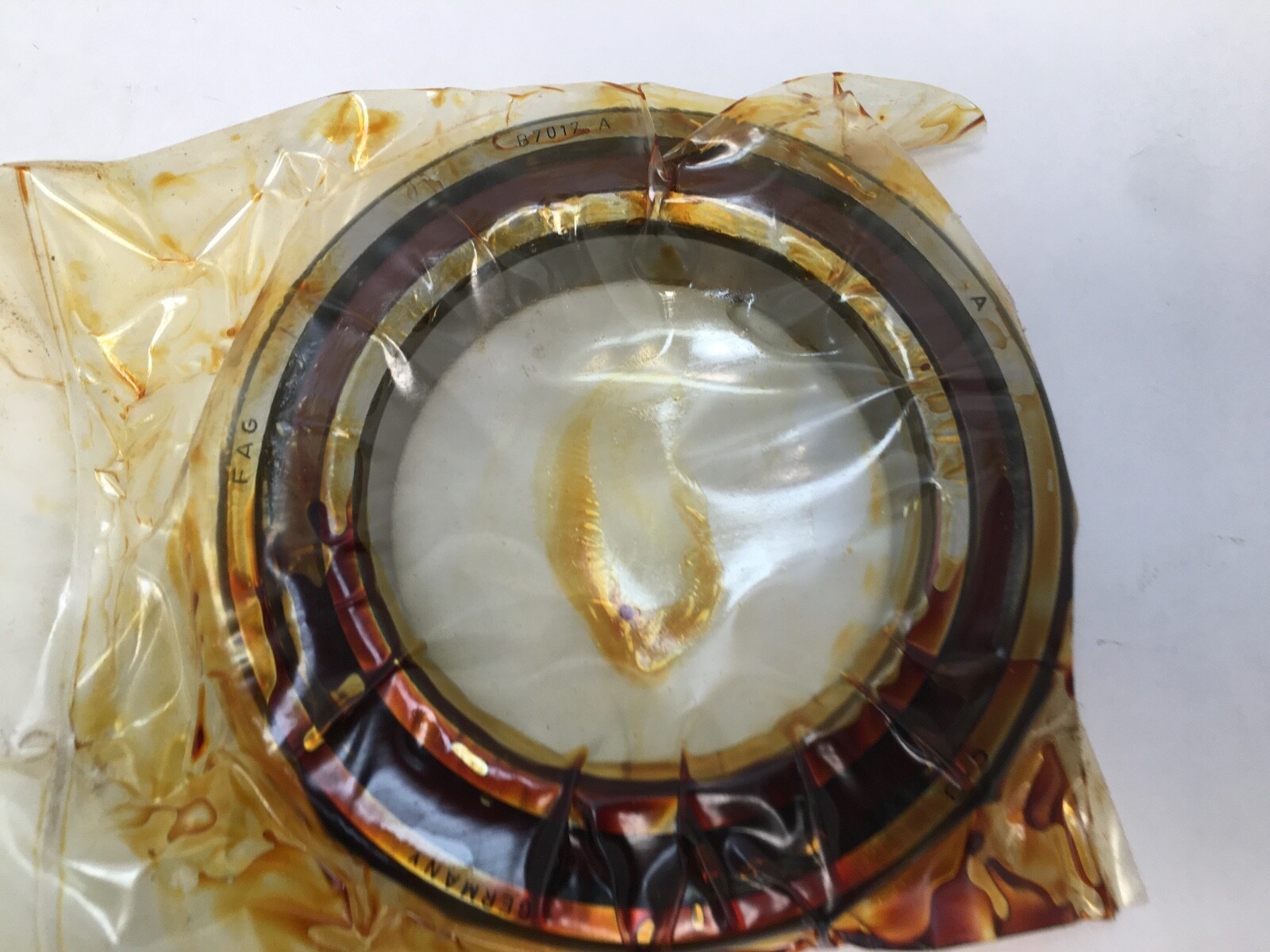

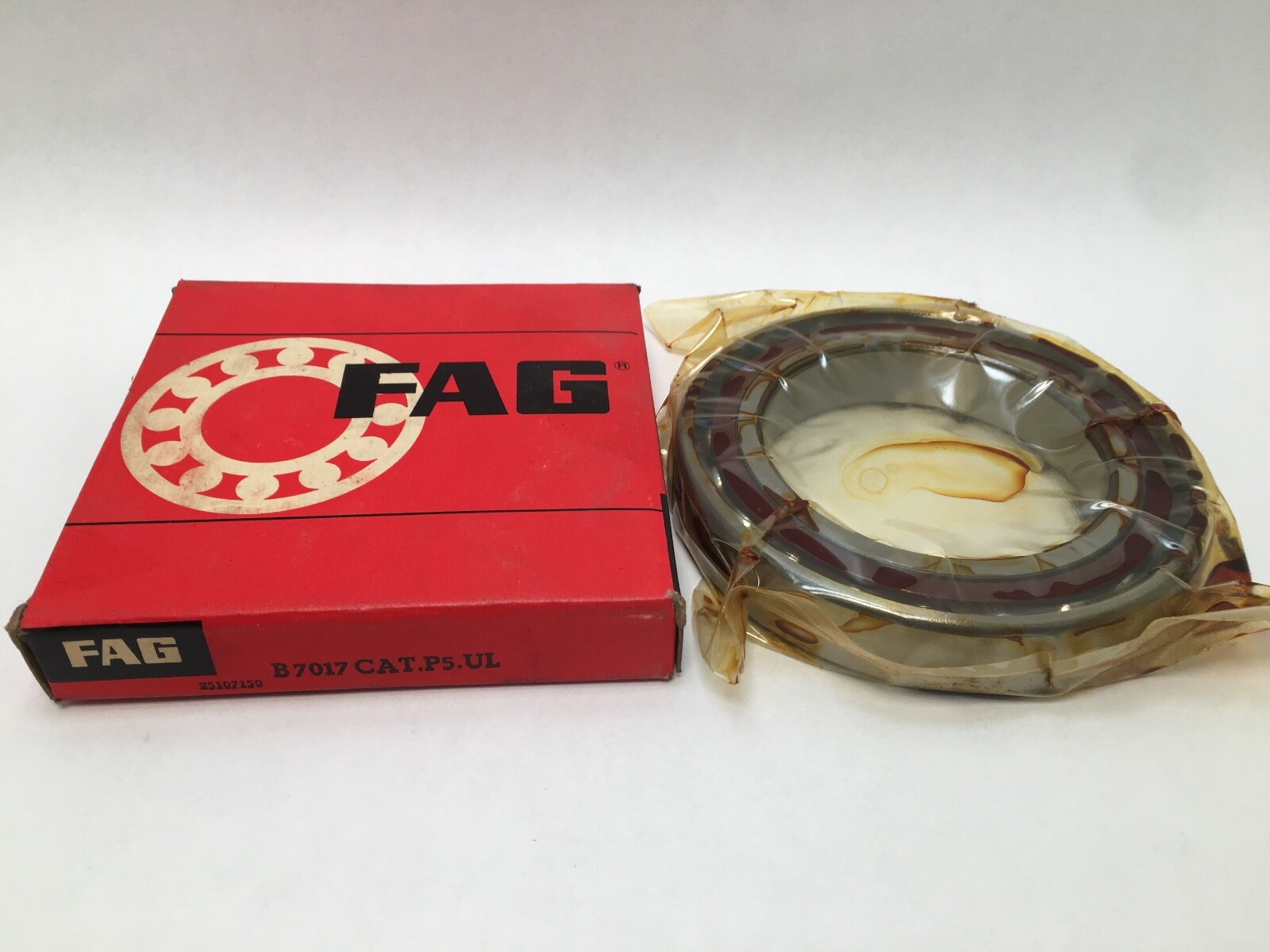

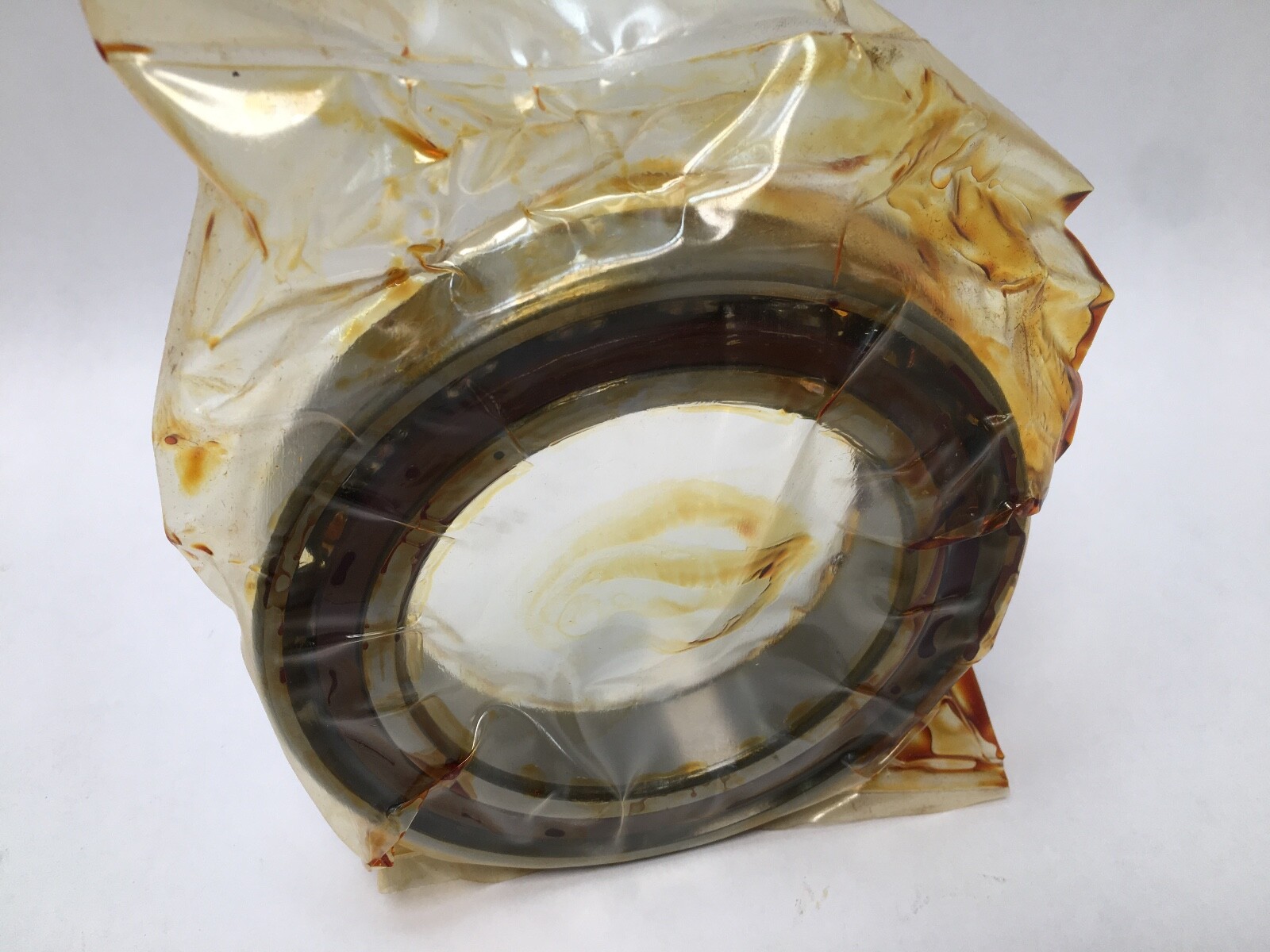

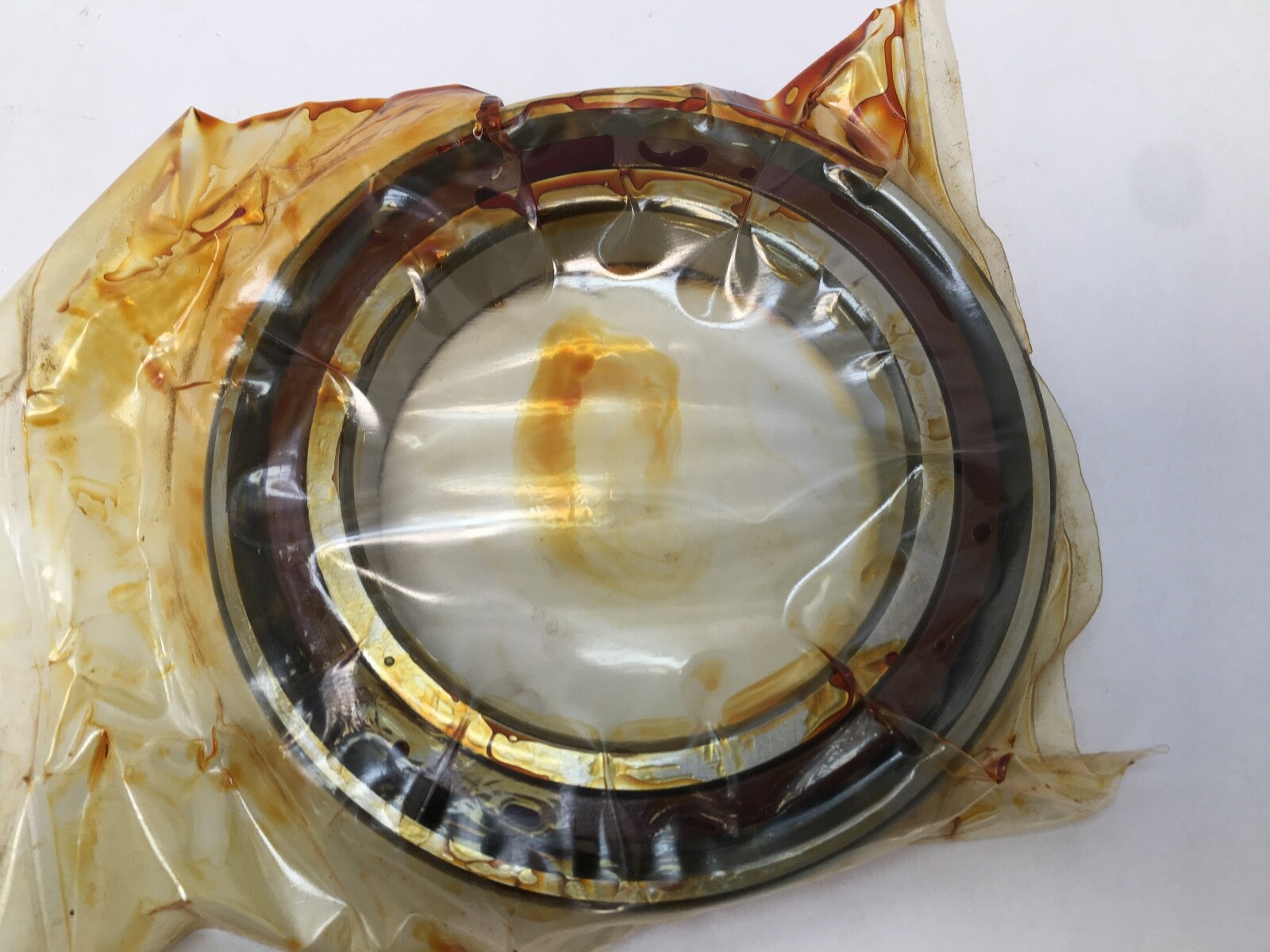

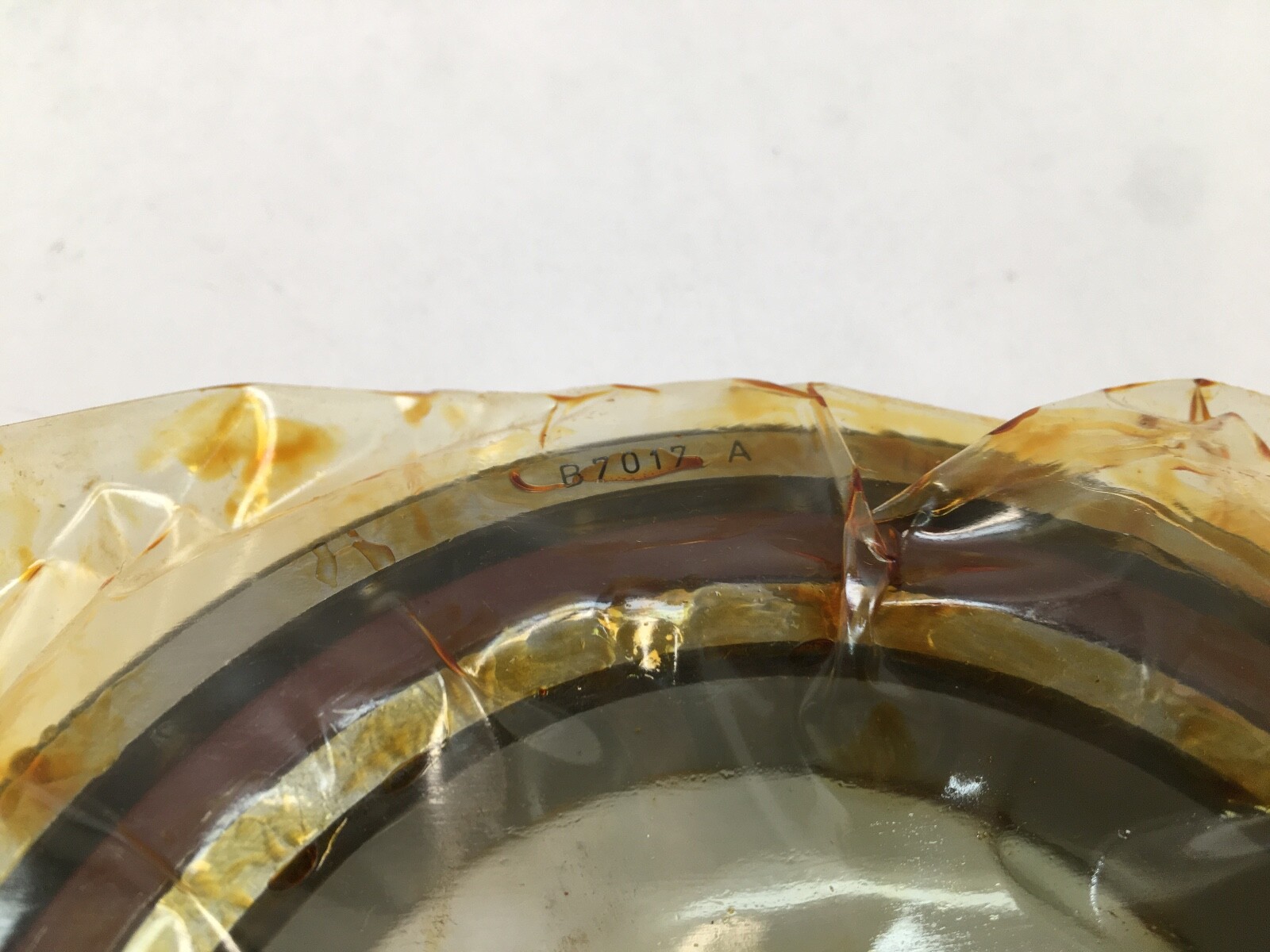

FAG B7017C.T.P5.UL spindle bearing (marking B-7017-C-T-P5-UL), current Schaeffler designation B7017-C-T-P4S-UL. Single-row angular contact ball bearing, universally ground, Light preload. Unit Quantity: 1 Pc.

Decoding the designation:

B70 — FAG spindle bearing, ISO dimension series 10 (70xx).

17 — bore code, 17 x 5 = 85 mm.

C — 15° contact angle.

T — laminated fabric (phenolic) cage.

P5 — ISO tolerance class P5, equivalent to ABEC 5.

U — universal design, for pairing back-to-back, face-to-face or in tandem with another U bearing of the same size.

L — Light preload.

Specifications:

Bore Diameter: 85 mm. Outside Diameter: 130 mm. Width: 22 mm. Contact Angle: 15°. Number Of Rows: 1. Closure Type: Open. Dynamic Load Rating: 66,000 N. Static Load Rating: 43,500 N. Fatigue Load Limit: 4,450 N. Limiting Speed: 11,000 rpm grease; 16,000 rpm oil. Cage Material: Phenolic. Precision Class: ABEC 5 / P5. Preload: Light, 367 N for a universal pair in back-to-back or face-to-face arrangement; Medium 1,183 N and Heavy 2,368 N in the same size. Operating Temperature: -30 °C to 100 °C. Item Weight: 0.892 kg (1.97 lb). Lubricant: grease or oil. Series: B70.

Dimensions and mounting:

Shaft shoulder diameter: 93 mm. Housing shoulder diameter: 122 mm. Distance between pressure cone apexes: 25.4 mm.

Compatibility and replacement:

Cross-Reference 1: SKF 7017 CD – 15 deg, Normal tolerance vs P5. Cross-Reference 2: NSK 7017C – 15 deg, Normal tolerance vs P5. Cross-Reference 3: Fafnir 2MM9117WI – 15 deg, ABEC 7. Schaeffler lists B7017-C-T-P4S-UL as the current designation replacing B7017C.TPA.P5.UL.

Frequently asked questions:

What are the dimensions and contact angle of the FAG B7017C.T.P5.UL?

Bore 85 mm, outside diameter 130 mm, width 22 mm, contact angle 15°.

What are the load ratings and speeds?

Dynamic Load Rating 66,000 N, Static Load Rating 43,500 N. Limiting Speed 11,000 rpm grease and 16,000 rpm oil.

What do T, P5, U and L mean in the designation?

T is a laminated fabric phenolic cage, P5 is ISO tolerance class P5 (ABEC 5), U is universal design and L is Light preload.
