Availability:
1 in stock

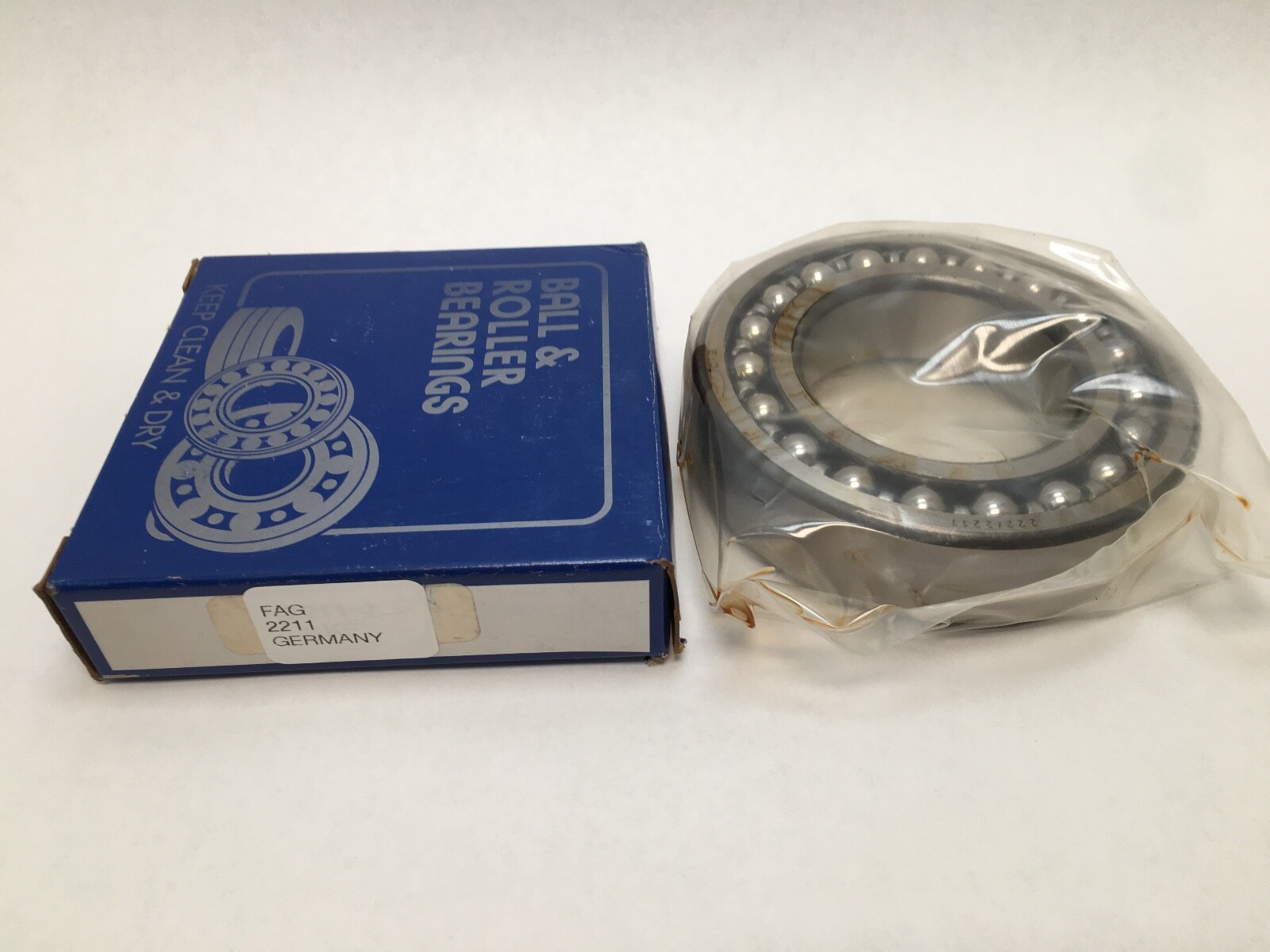

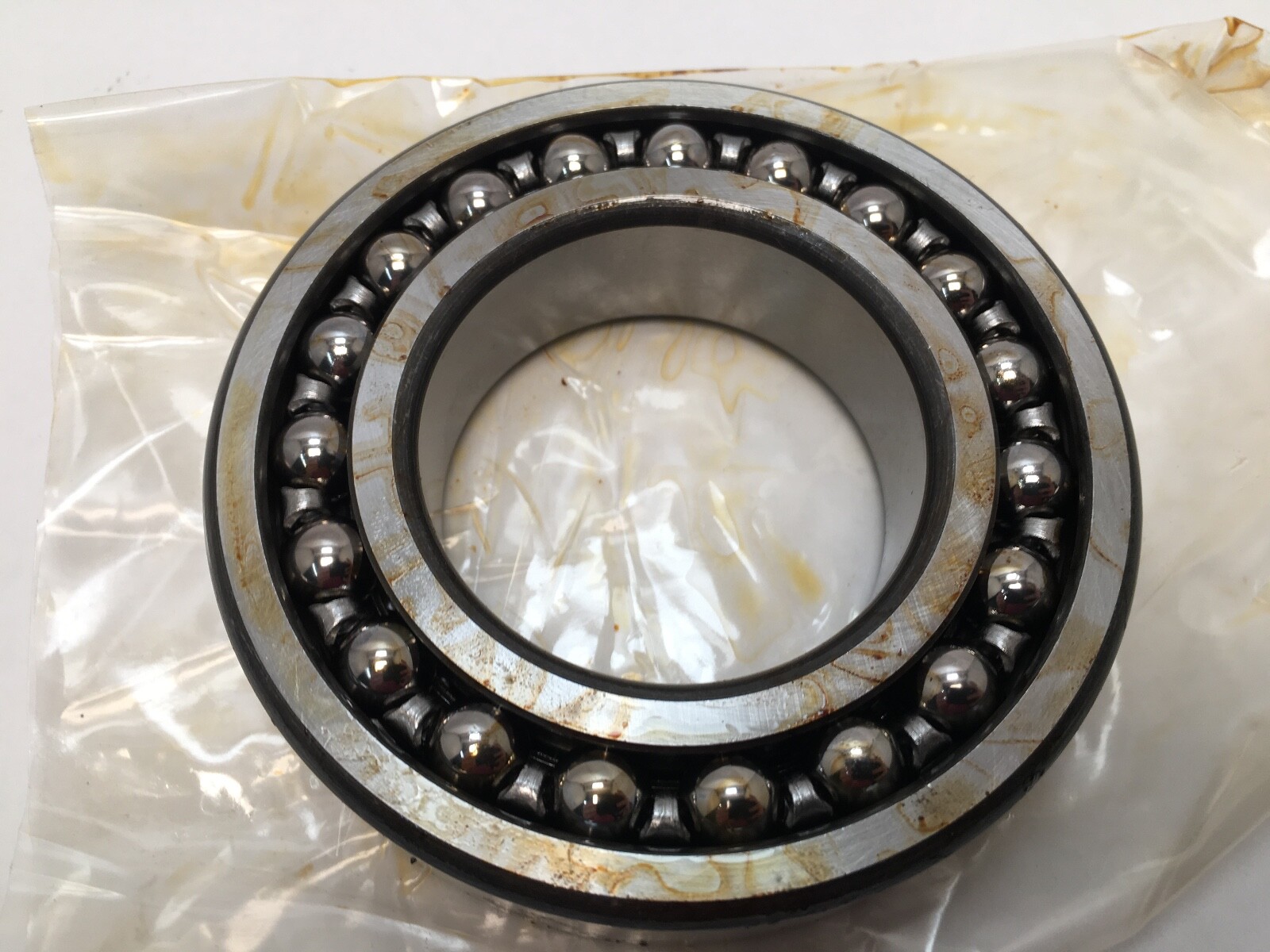

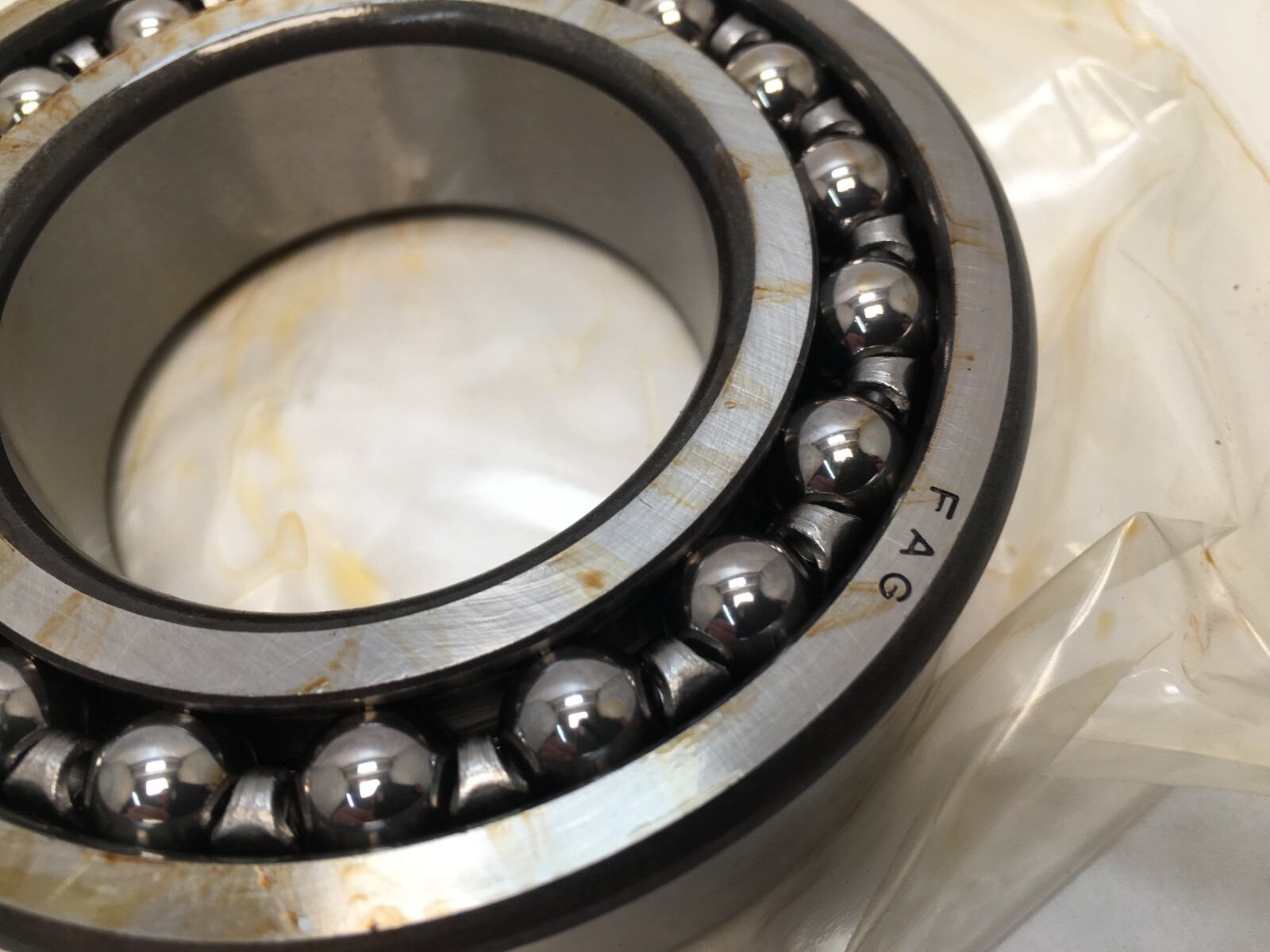

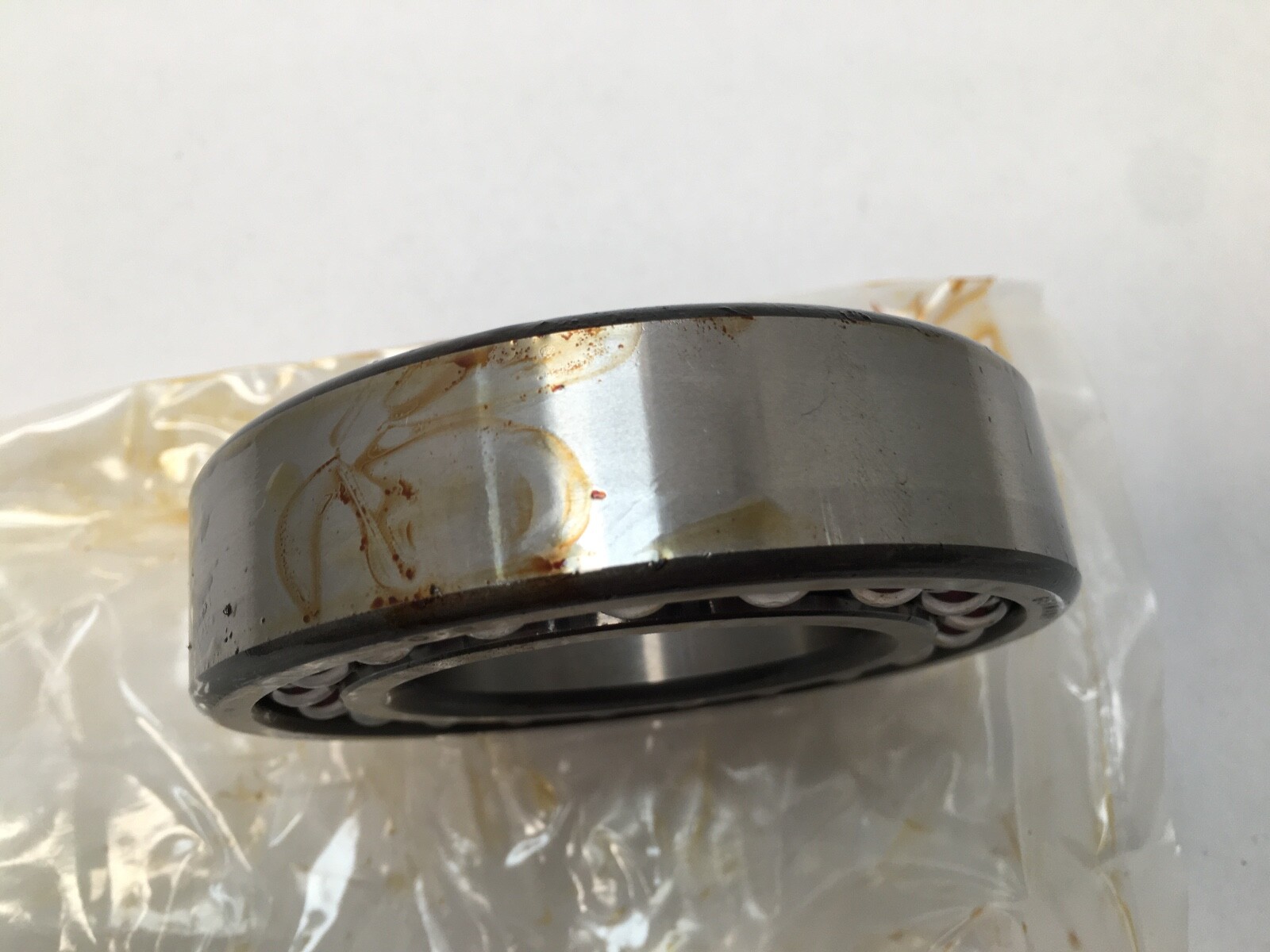

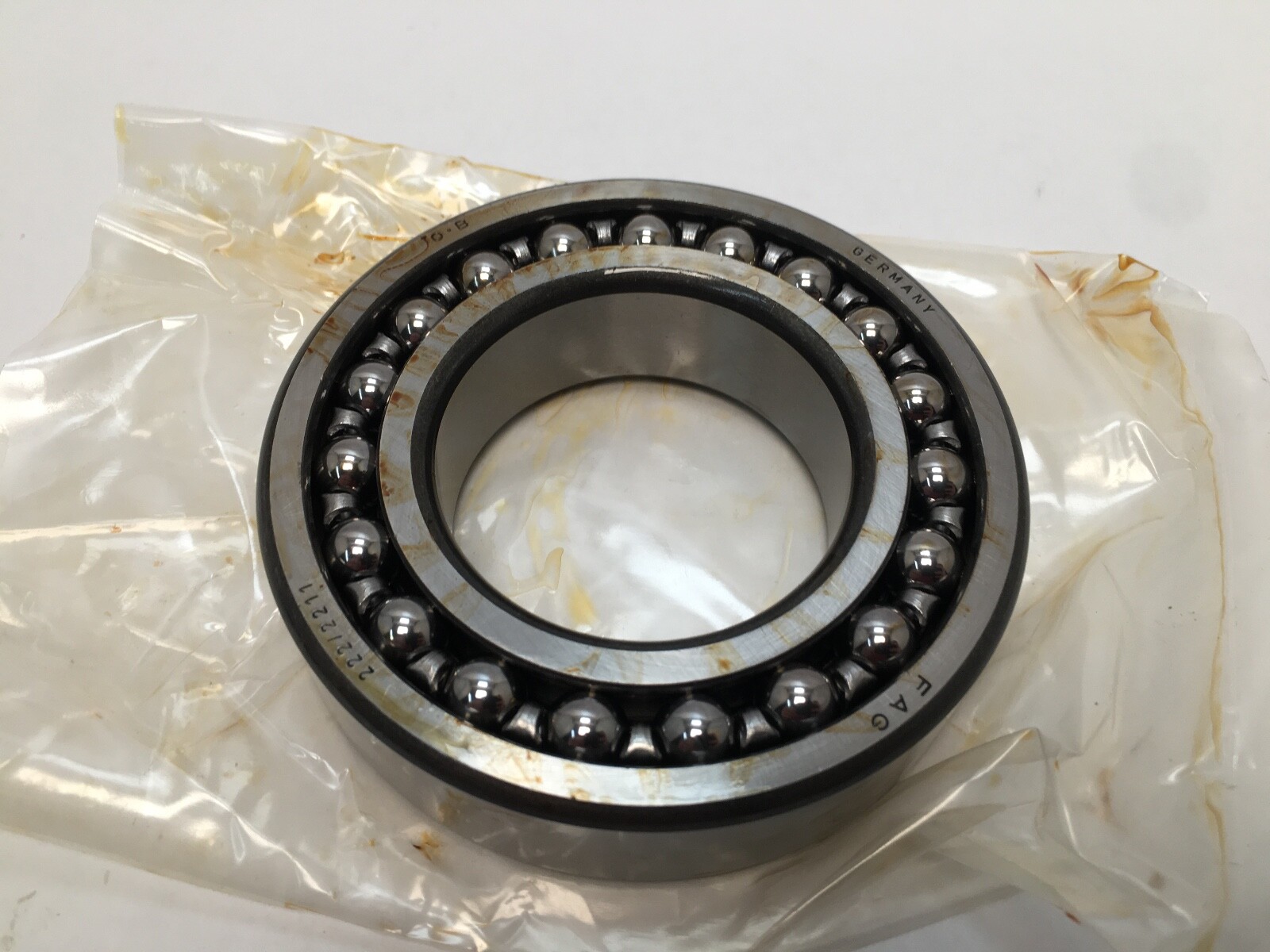

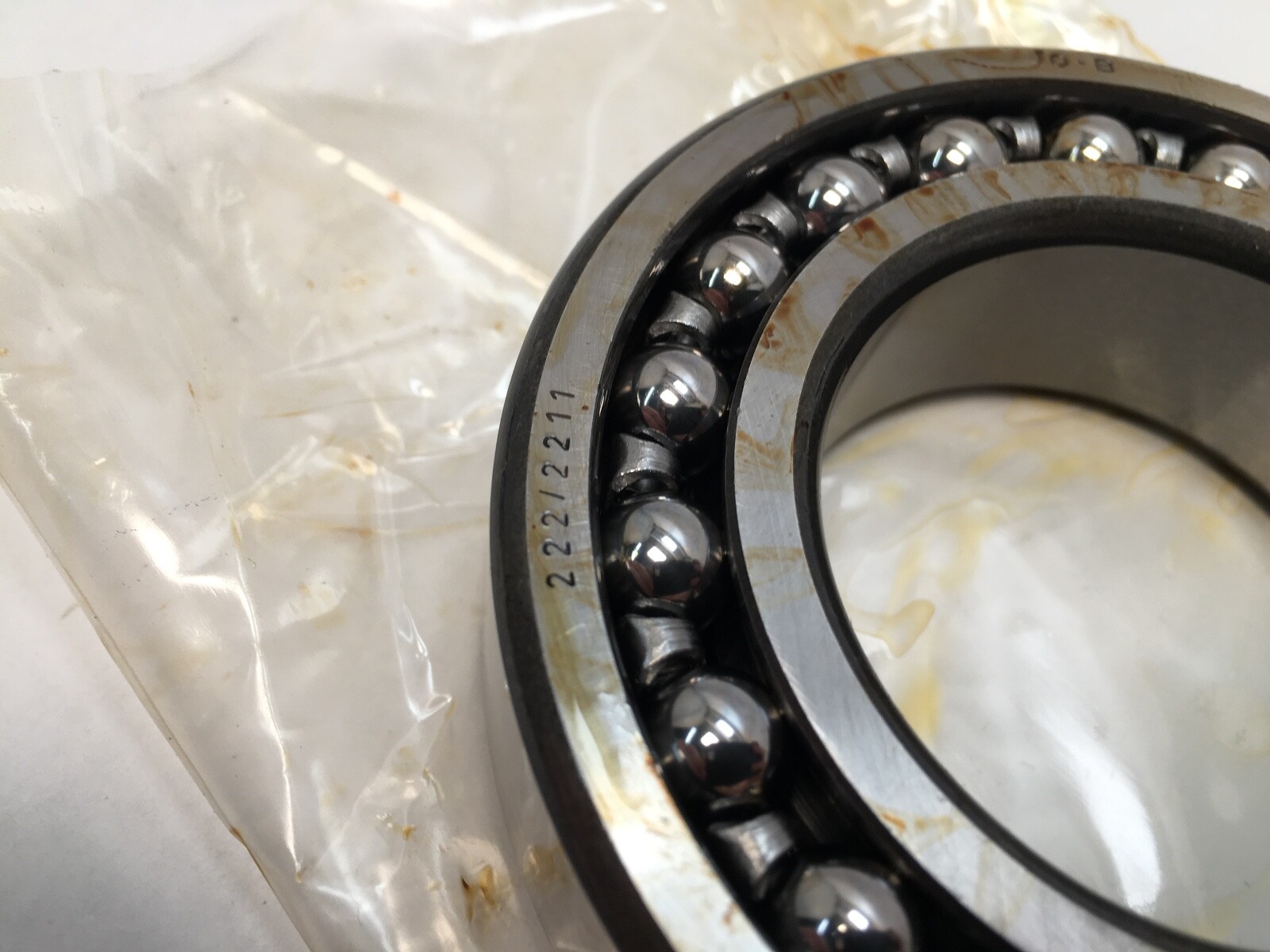

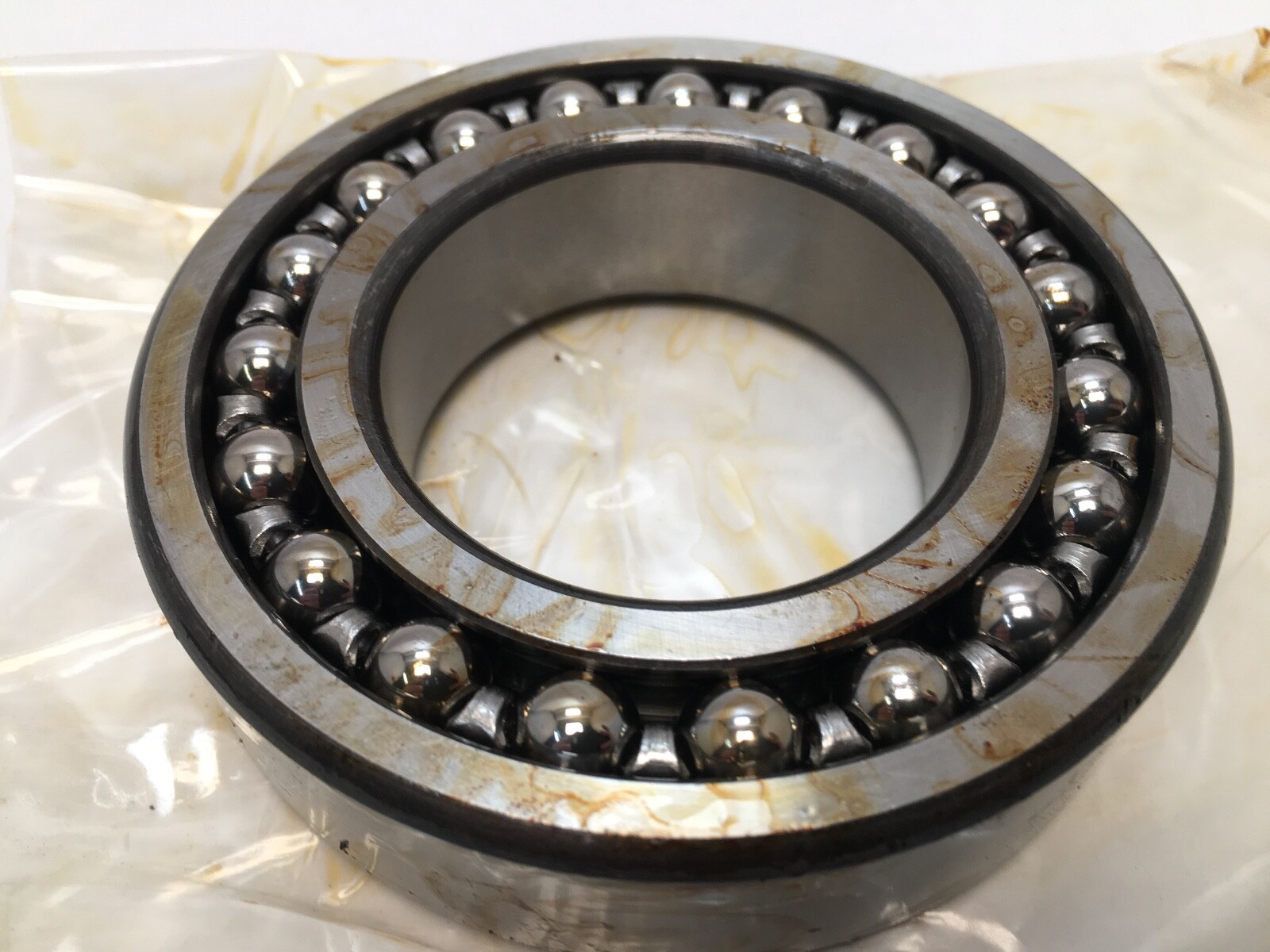

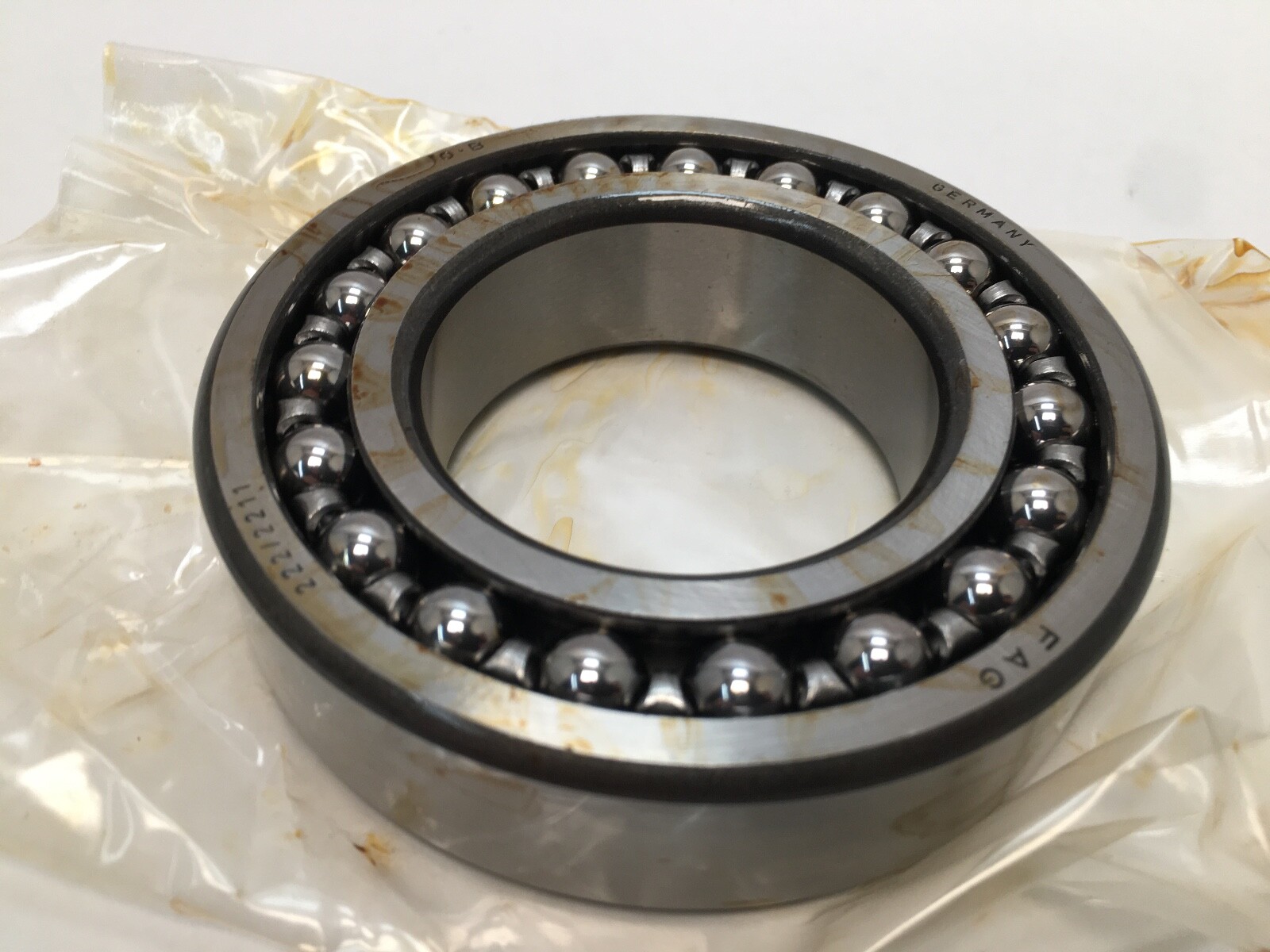

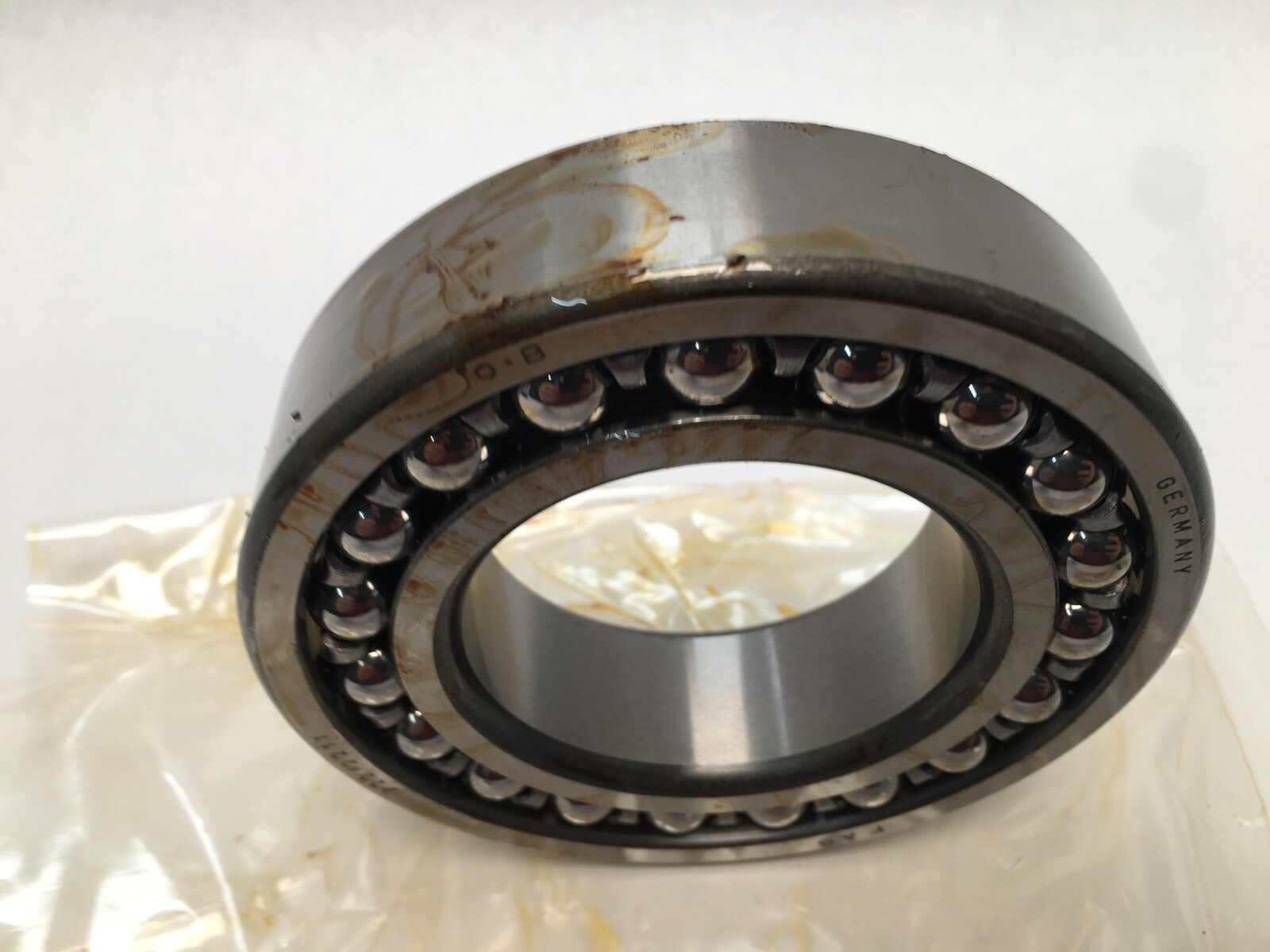

FAG 2211 self-aligning ball bearing, 55 mm bore x 100 mm OD x 25 mm wide, straight bore, open, CN clearance. Double-row design for shaft misalignment.
List Price
$38.22
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 2211 |
| Model | 2211 |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 55 mm |
| OD | 100 mm |
| Width | 25 mm |
| Series | 2200 |
|---|---|

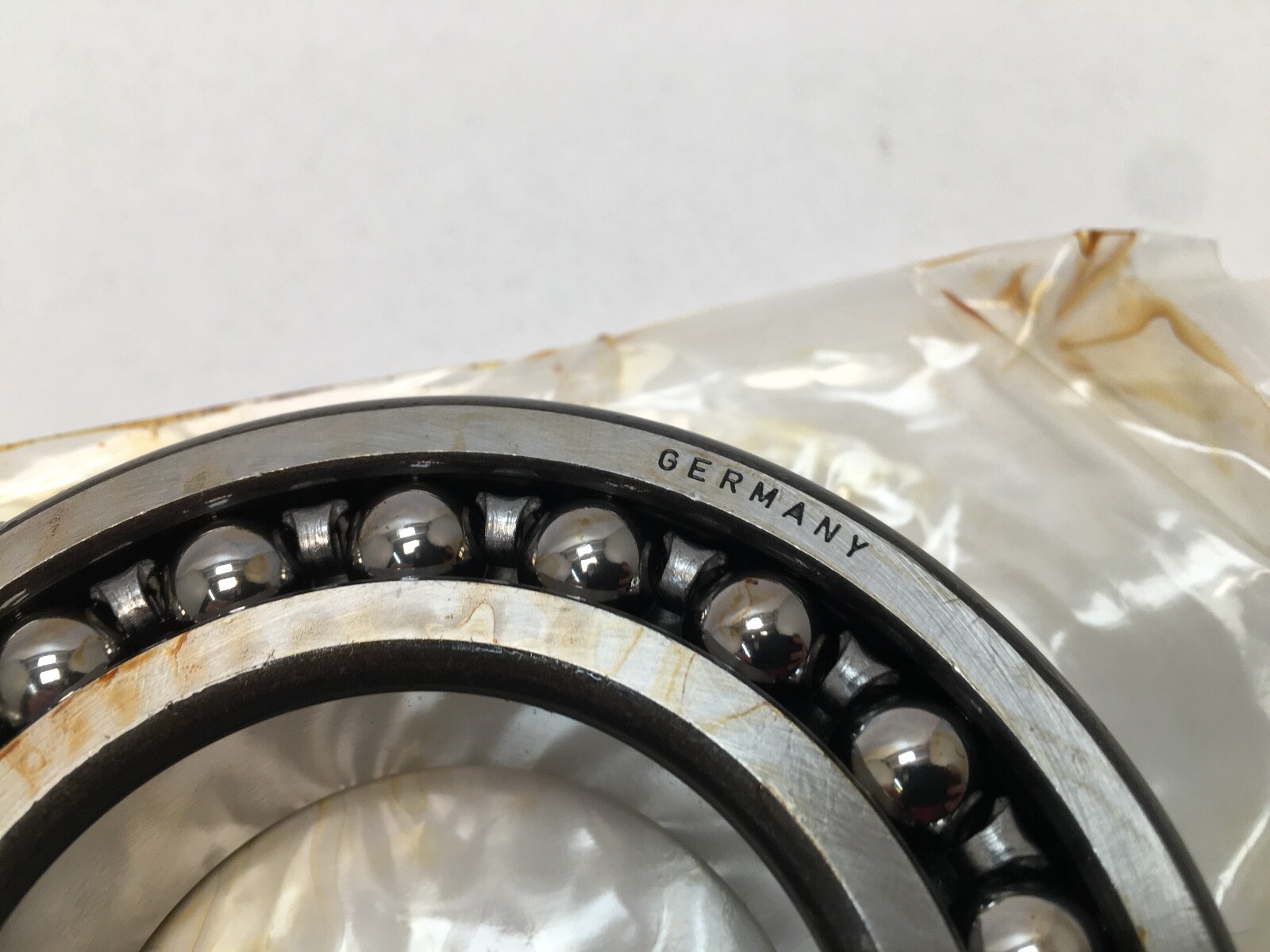

| Country Region Of Manufacture | Germany |
| Dynamic Load Rating | 39,000 N |
| Static Load Rating | 12,500 N |
| Rolling Elements | Ball |
| Item Weight | 0.744 kg (1.64 lb) |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 7,000 rpm |
| Internal Clearance | CN |
| Base Number | 2211 |
| Industry Terms | self-aligning ball bearing, double row ball bearing, 2200 series |
| Common Misspellings | 221 1, 2211 FAG, F.A.G. 2211 |
| Application Types | line shafts, fans, conveyors, agricultural machinery, textile machinery |
| Mpn Variants | 2211, FAG 2211, 2211TV, 2211-TVH |
| Compatible With Replaces | Successor: FAG 2211-TVH |
| Additional Attributes | Successor 2211-TVH data: Dynamic Load Rating, Static Load Rating, Limiting Speed and Item Weight rows carry Schaeffler figures for 2211-TVH. Max housing shoulder 91 mm; min shaft shoulder 64 mm; max fillet radius 1.5 mm. |
| Cross Reference 1 | SKF 2211 ETN9 |
|---|---|
| Cross Reference 2 | NSK 2211 |
| Cross Reference 3 | NTN 2211 |
| Cross Reference 4 | Koyo 2211 |
| Cross Reference 5 | SNR 2211 |

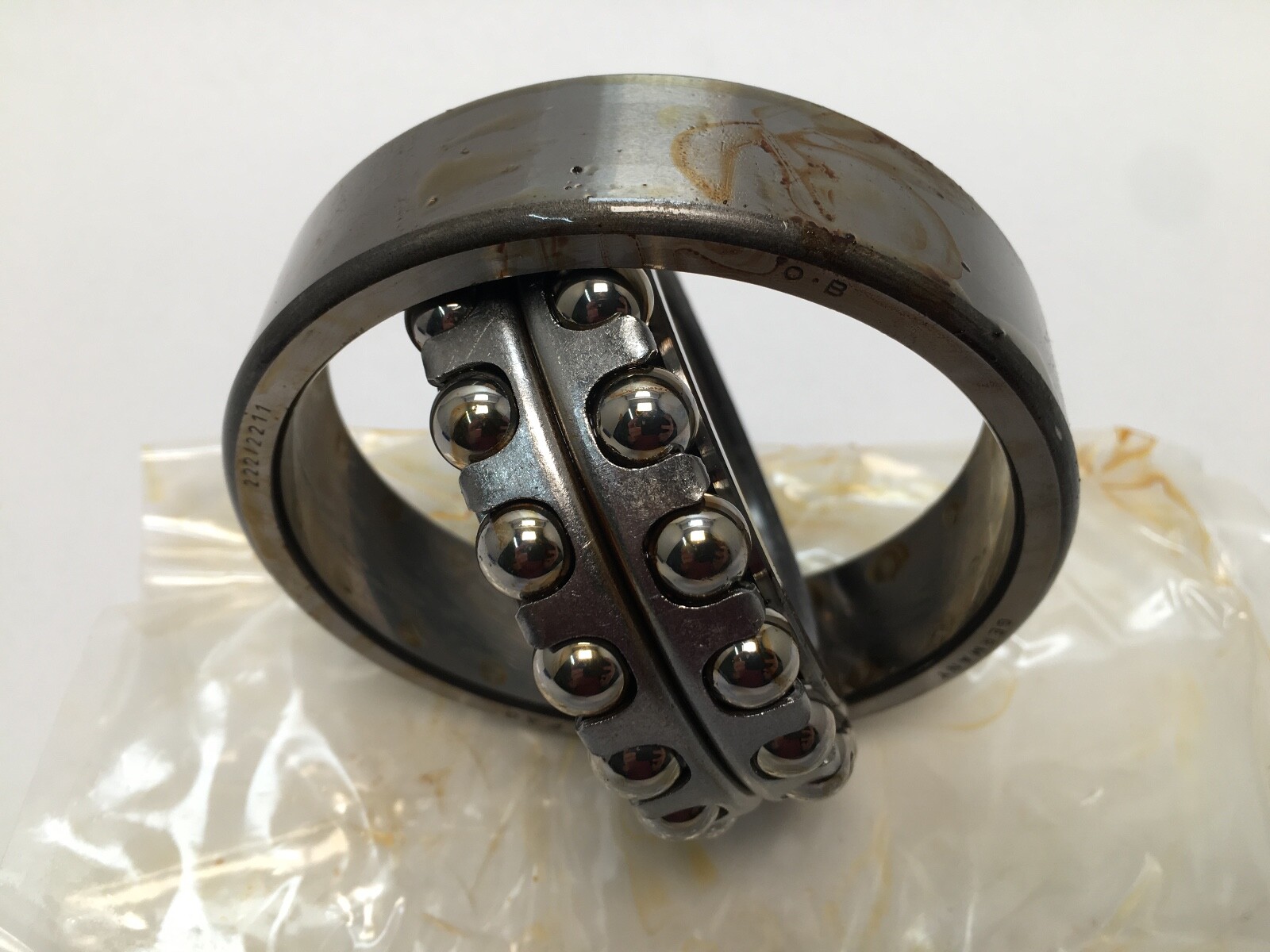

FAG 2211 double-row self-aligning ball bearing with a straight (cylindrical) bore and open faces. Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 25 mm. The spherical outer-ring raceway accommodates static shaft misalignment and shaft deflection.
22 — FAG 22 series, light wide-section double-row self-aligning ball bearing (dimension series 22).
11 — bore code; 11 × 5 = 55 mm bore.
No suffix — straight bore, open, normal (CN) internal clearance. The current Schaeffler successor is 2211-TVH, with a glass-fibre reinforced polyamide cage.
Successor 2211-TVH data: Dynamic Load Rating: 39,000 N. Static Load Rating: 12,500 N. Limiting Speed: 7,000 rpm. Item Weight: 0.744 kg (1.64 lb). Internal Clearance: CN. Rolling Elements: Ball. Number Of Rows: 2.
Successor 2211-TVH data: Maximum housing shoulder diameter: 91 mm. Minimum shaft shoulder diameter: 64 mm. Maximum fillet radius: 1.5 mm.
Same 55 x 100 x 25 mm envelope: SKF 2211 ETN9, NSK 2211, NTN 2211, Koyo 2211, SNR 2211. Schaeffler successor: FAG 2211-TVH.
