Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
Double-row self-aligning ball bearing, 50 x 90 x 23 mm, straight bore. Open, glass-fibre polyamide cage, C3 clearance, 2.5° permissible misalignment.
List Price
$41.30
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 2210 ETN9/C3 |
| GTIN | 7316570648287 |
| Model | 2210-ETN9-C3 |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 50 mm |
| OD | 90 mm |
| Width | 23 mm |
| Series | 2200 |
|---|---|
| Lubricant | Oil or grease, supplied by the housing |
| Base Number | 2210 |
| Industry Terms | self-aligning ball bearing; double row self aligning bearing; spherical ball bearing; misalignment bearing; 2210 bearing; 2210 self aligning |
| Common Misspellings | 2210 ETN9 C3 SFK; 2210ETN-9; 2210 ET N9; 2210 ETNG/C3; 22l0 ETN9 |
| Application Types | Shafts subject to deflection or misalignment; textile machinery; agricultural machinery; fans and blowers; conveyor and line shafting |
| Bore Shaft Size | 50 mm (1.9685 in) |
| Mpn Variants | 2210 ETN9/C3; 2210ETN9C3; 2210-E-TN9/C3; 2210 E-TN9/C3; 2210ETN9/C3; 2210 ETN9 C3; 2210E; 2210 ETN9; 2210 |
| Material | Chrome bearing steel |
| Cage Type | Ball-guided |
| Dynamic Load Rating | 33,800 N |
| Static Load Rating | 11,200 N |
| Rolling Elements | Balls |
| Item Weight | 0.55 kg (1.21 lb) |
| Cage Material | Glass-fibre reinforced polyamide 6,6 |
| Number Of Rows | 2 |
| Bore Type | Straight (parallel) |
| Snap Ring Included | No |
| Limiting Speed | 9,500 rpm |
| Harmonization Code | 8482.10.90.30 |
| Internal Clearance | C3 |
| Part Number | 2210 ETN9/C3 |
| Maximum Permissible Misalignment | 2.5° |
| Overall Width | 23 mm |
| Cross Reference 1 | FAG 2210-TVH-C3 |
|---|---|
| Cross Reference 2 | NKE 2210-TV-C3 |
| Cross Reference 3 | NTN 2210SC3 |
| Cross Reference 4 | SNR 2210EG15C3 |
| Cross Reference 5 | Koyo 2210 C3 |
| Cross Reference 6 | SKF 2210 ETN9 (related size, normal CN clearance) |
| Cross Reference 7 | SKF 2210 E-2RS1TN9 (related size, contact seals both faces) |

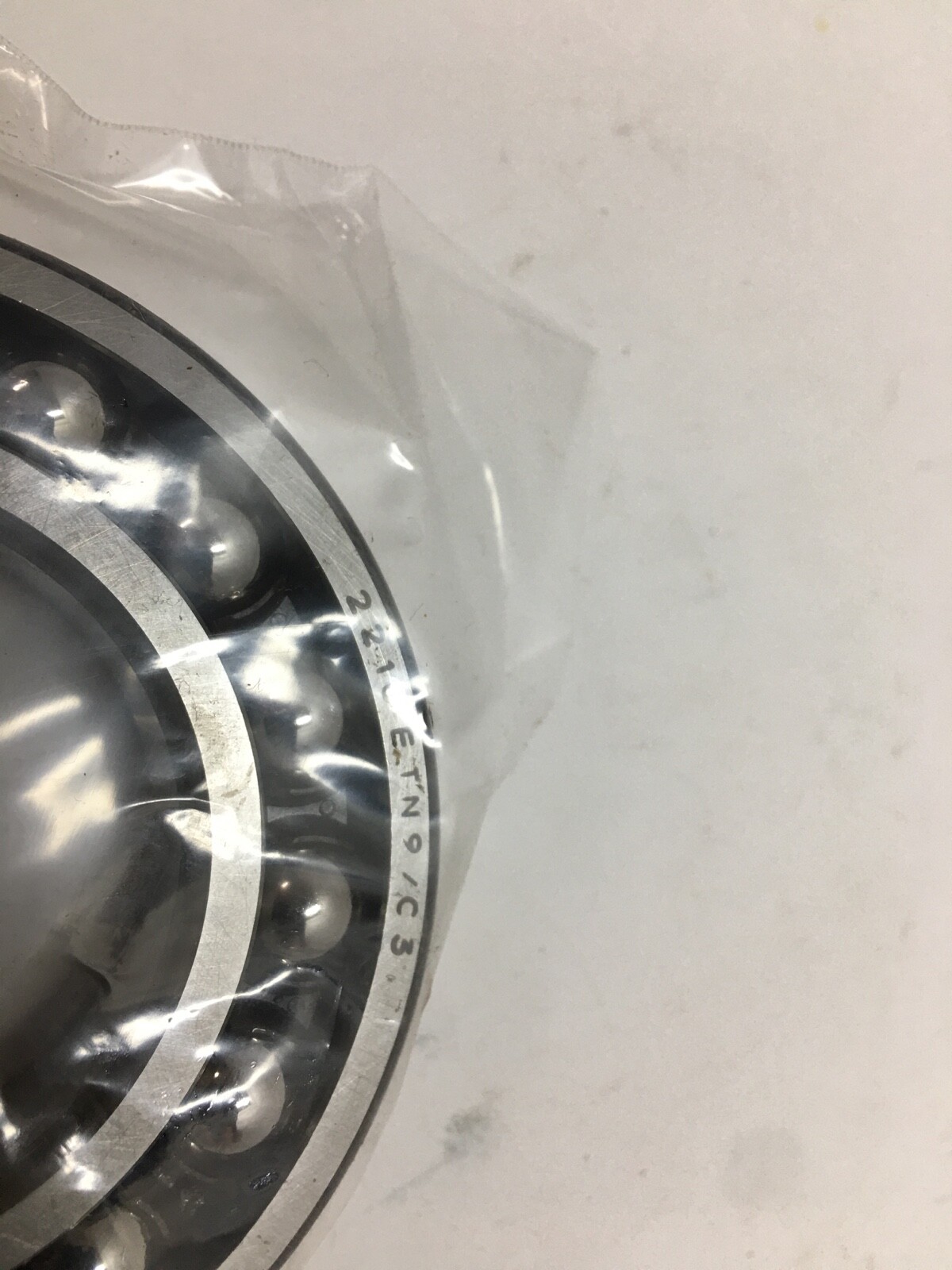

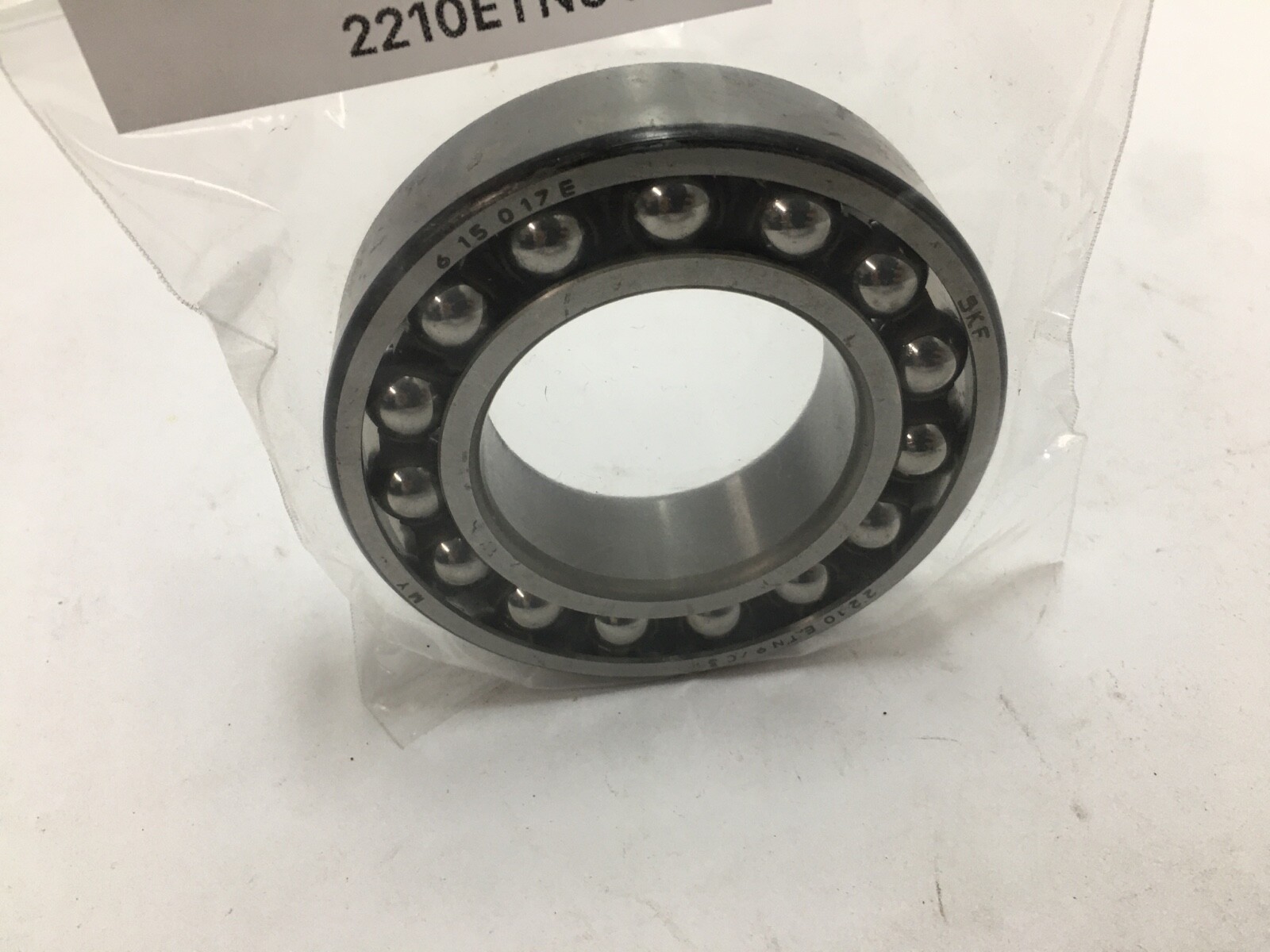

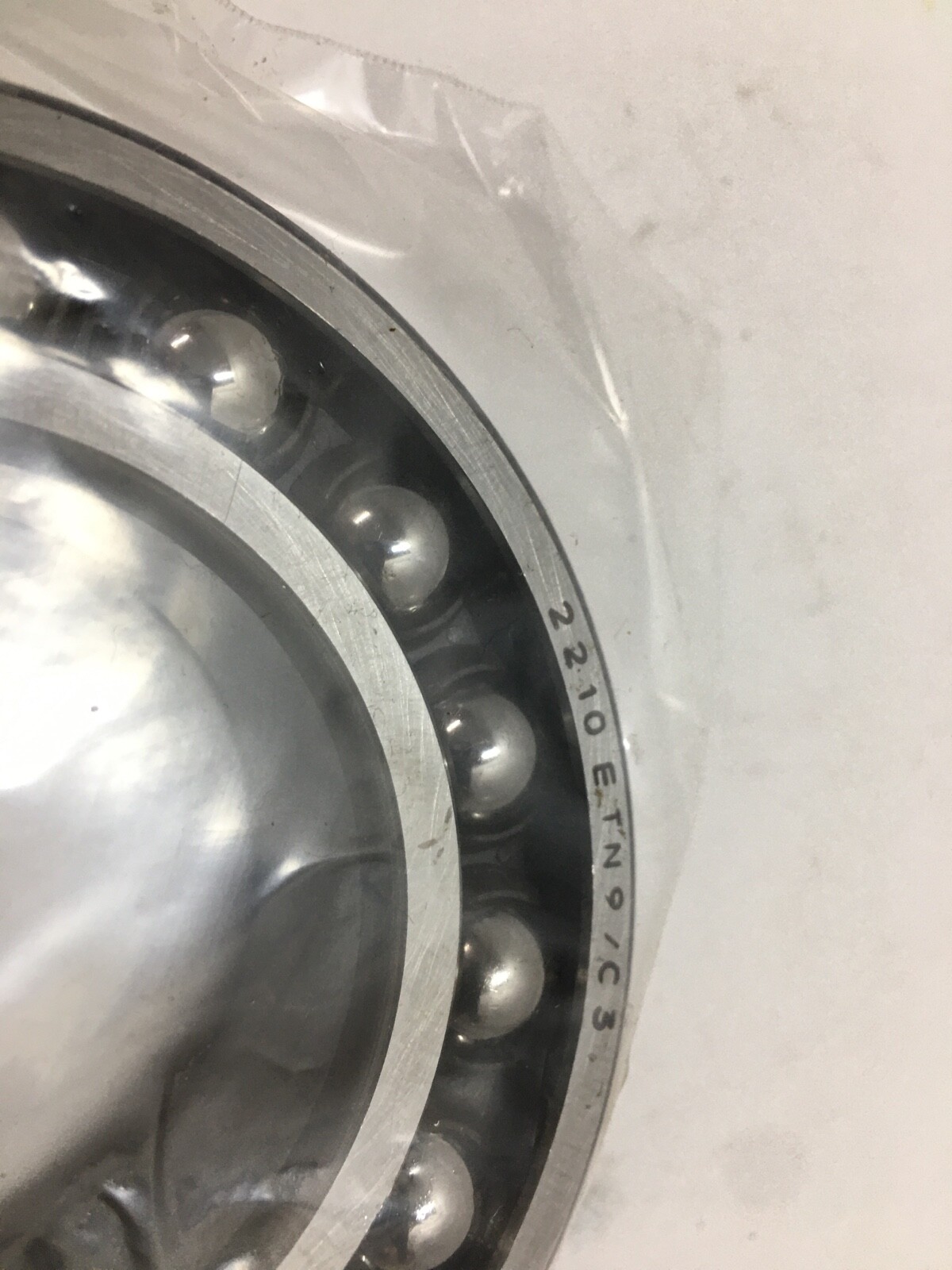

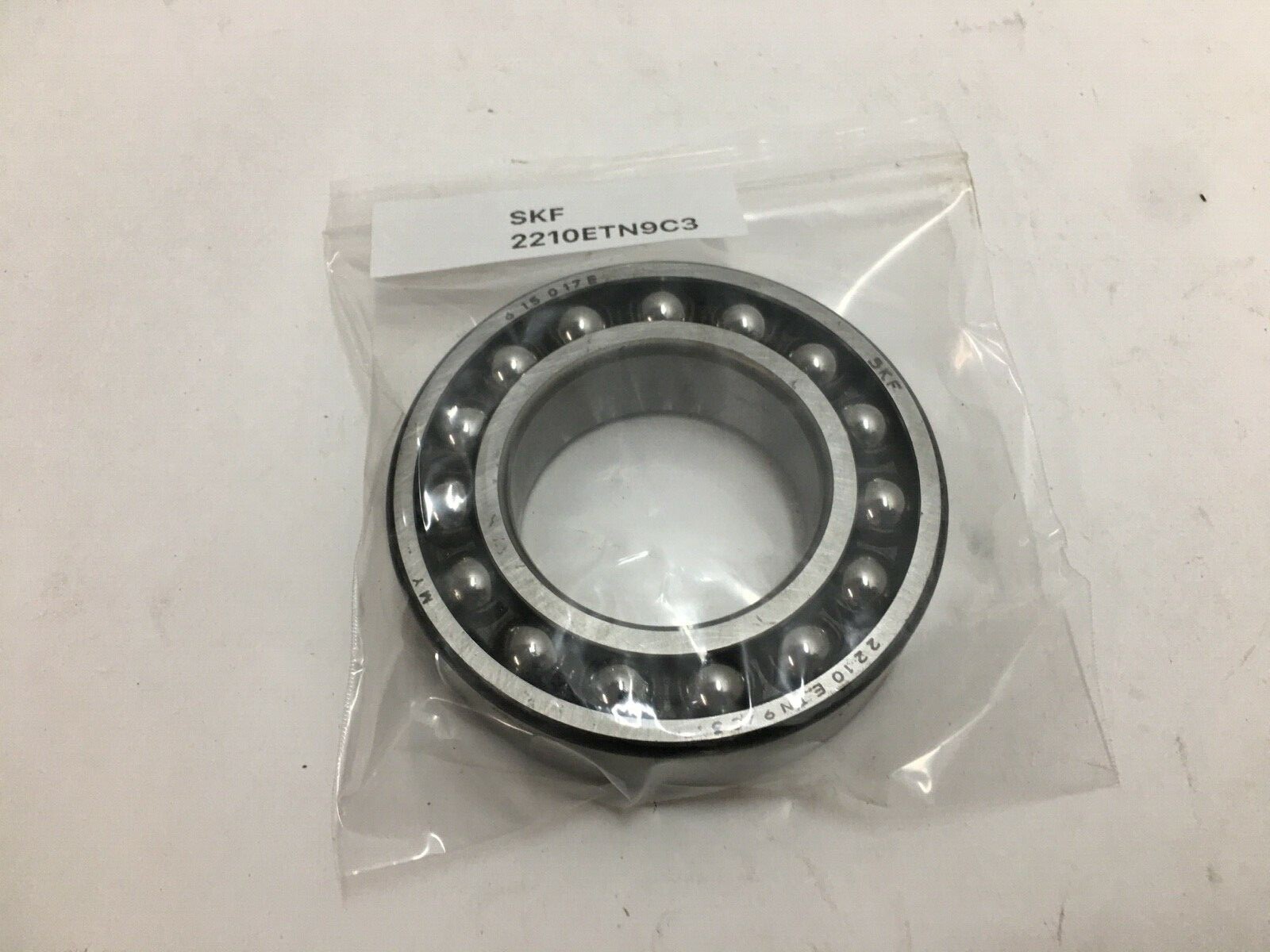

The SKF 2210 ETN9/C3 is a double-row self-aligning ball bearing: 50 mm bore, 90 mm outside diameter, 23 mm width. Straight bore, open on both faces, C3 radial internal clearance, with a moulded glass-fibre reinforced polyamide cage. Unit Quantity: 1 Pc.
2210 — 2200 dimension series, 50 mm bore.
E — SKF reinforced execution with a larger ball complement than the original design.
TN9 — injection-moulded glass-fibre reinforced polyamide 6,6 cage, ball-guided.
C3 — radial internal clearance greater than normal.
No K — straight (parallel) bore.
Bearing Type: Self-Aligning Ball Bearing. Number Of Rows: 2. Bore Type: Straight. Closure Type: Open. Internal Clearance: C3. Cage Material: Glass-fibre reinforced polyamide 6,6. Dynamic Load Rating: 33,800 N. Static Load Rating: 11,200 N. Limiting Speed: 9,500 rpm. Maximum Permissible Misalignment: 2.5°. Item Weight: 0.55 kg (1.21 lb). Series: 2200. Bearing Material: Chrome bearing steel.
Bore Diameter: 50 mm. Outside Diameter: 90 mm. Overall Width: 23 mm. Parallel bore seats directly on the shaft with no adapter sleeve. Supplied without seals, shields or snap ring.
Cross-references: FAG 2210-TVH-C3, NKE 2210-TV-C3, NTN 2210SC3, SNR 2210EG15C3, Koyo 2210 C3. Related sizes on the same envelope: SKF 2210 ETN9 (normal CN clearance), SKF 2210 E-2RS1TN9 (contact seals both faces), SKF 2210 EKTN9/C3 (1:12 tapered bore, takes an adapter sleeve).
50 mm bore, 90 mm outside diameter, 23 mm width.
Dynamic Load Rating: 33,800 N. Static Load Rating: 11,200 N. Limiting Speed: 9,500 rpm.
E is the reinforced execution, TN9 is the glass-fibre reinforced polyamide 6,6 cage and C3 is radial internal clearance greater than normal.
