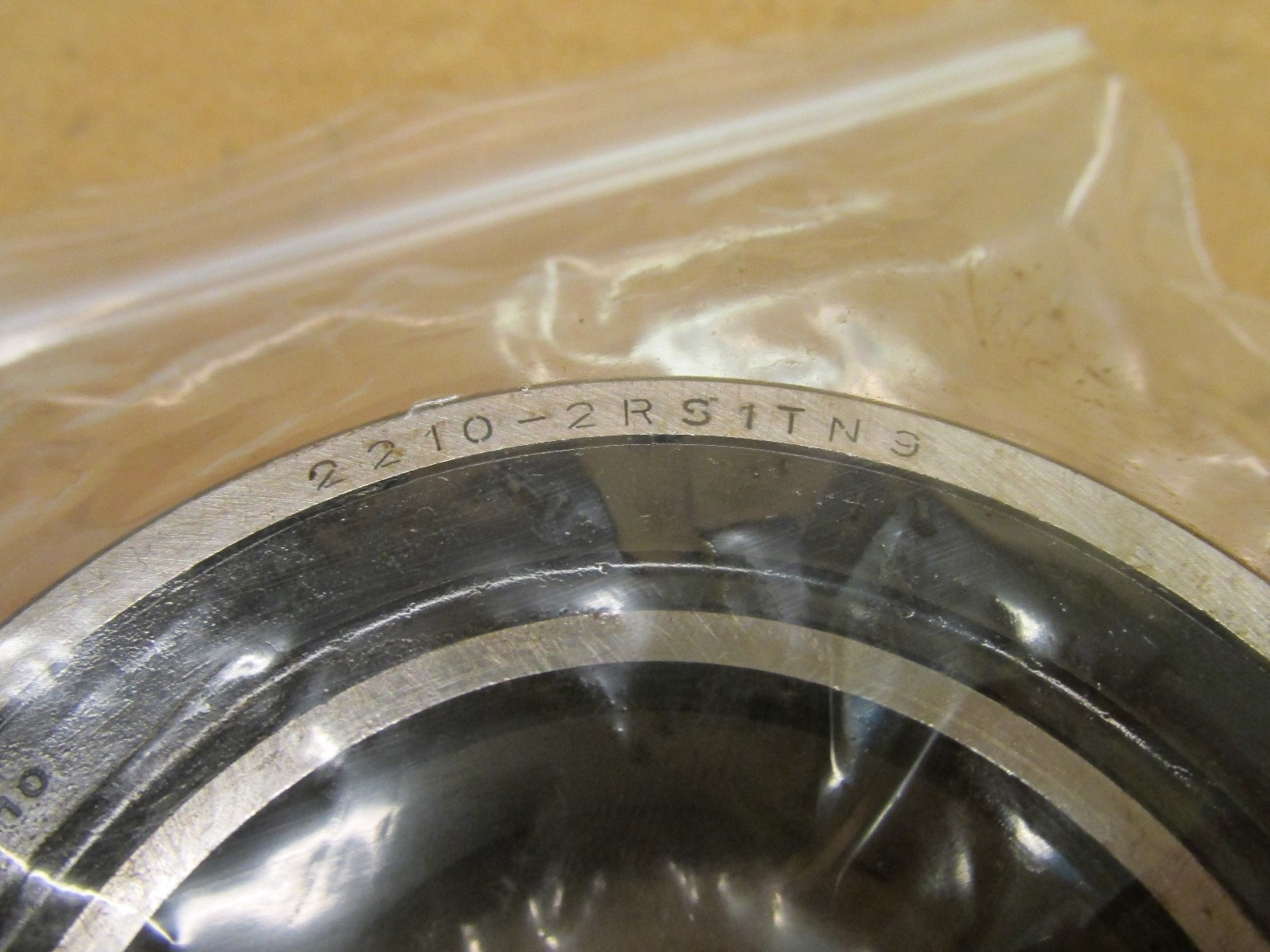

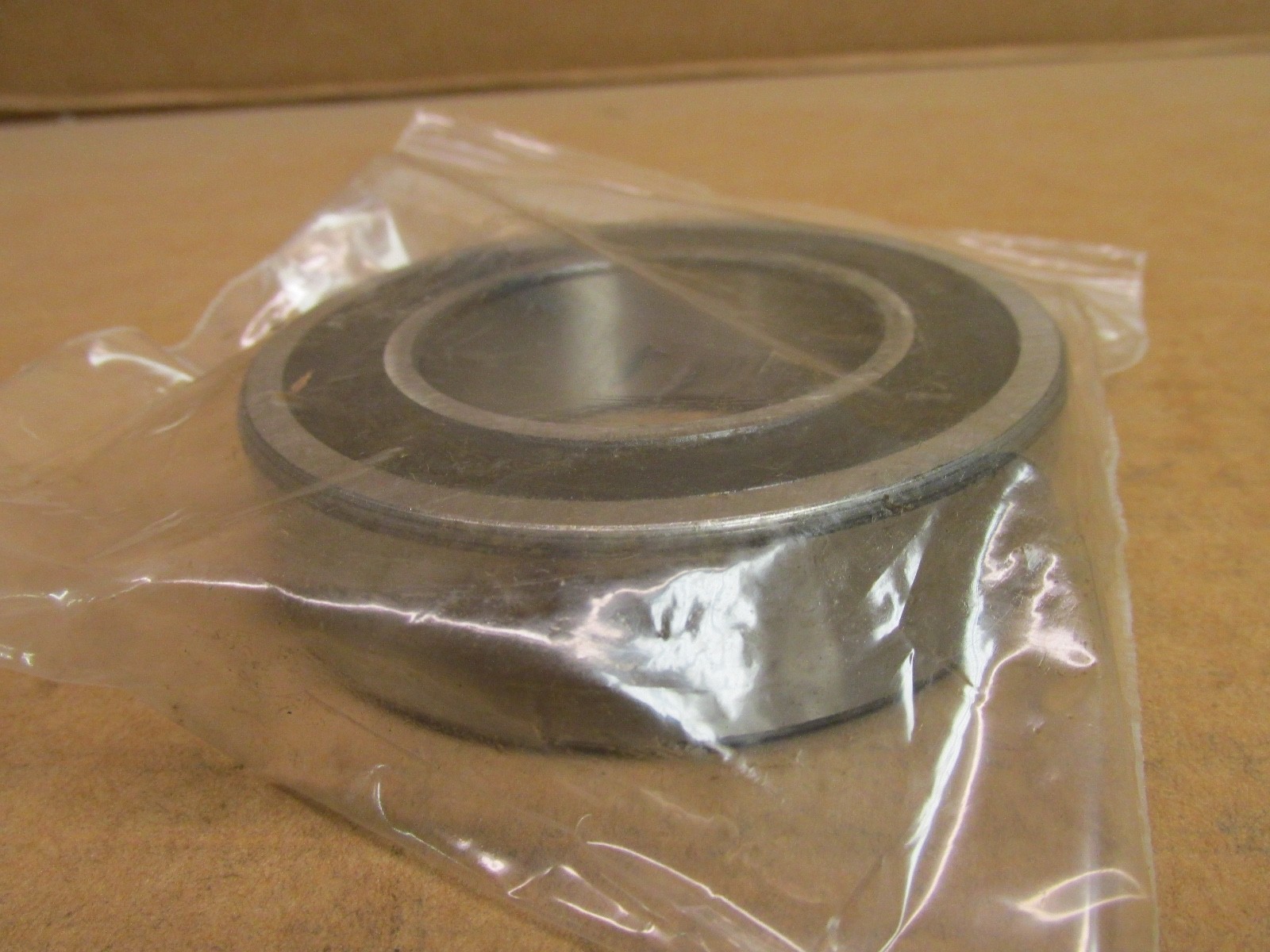

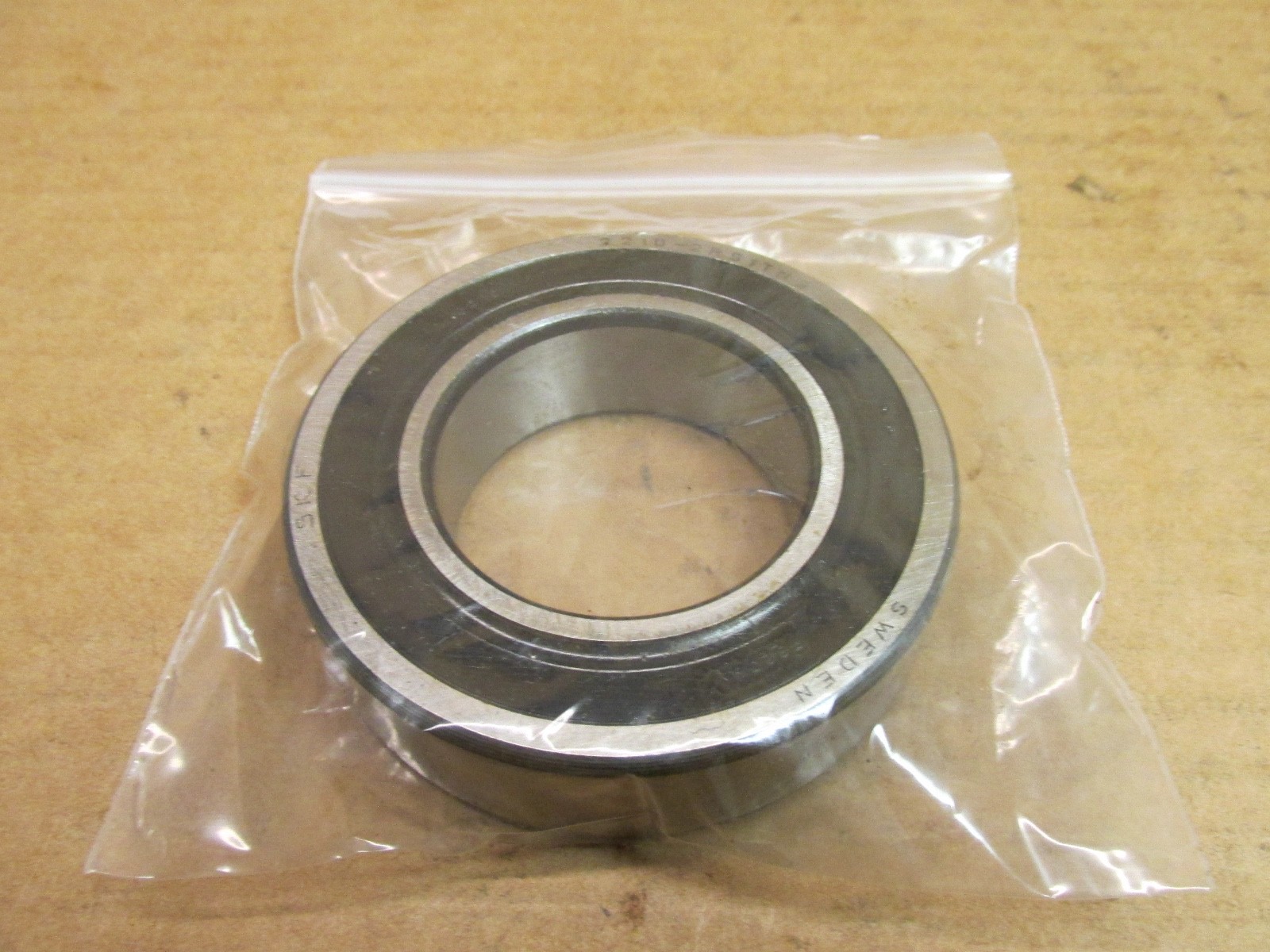

SKF2210 E-2RS1TN9Self Aligning Ball Bearing Sealed 50x90x23 mm 2210-2RS1-TN9

Condition: New – Open box

Availability:

1 in stock

Double-row self-aligning ball bearing, 50 x 90 x 23 mm, contact seals both sides, glass-fibre polyamide cage, 22,900 N dynamic load rating, CN clearance.

List Price

$48.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandSKF
MPN2210 E-2RS1TN9
GTIN7316577063212
Model2210-2RS1 TN9
Bearing TypeSelf Aligning Ball Bearing
ID50 mm
OD90 mm
Width23 mm

Technical Specifications

Base Number2210
Industry TermsSelf-aligning ball bearing, double row self aligning bearing, spherical outer raceway ball bearing, sealed self aligner, 2210 bearing
Common MisspellingsSKF 2210 2RSI TN9, 2210-2RS1TN-9, 2210 RS1 TN9, SKF2210E2RS1TN9, 2210 E 2RSITN9
Application TypesConveyors, line shafts, fans, textile machinery, agricultural drives, applications with shaft deflection or housing misalignment
Bore Shaft Size50 mm (1.9685 in)
Mpn Variants2210 E-2RS1TN9, 2210E-2RS1TN9, 2210-2RS1-TN9, 22102RS1TN9, 2210 2RS1 TN9, 2210E2RS1TN9, 2210 E 2RS1 TN9
Additional AttributesFatigue load limit 420 N; fillet radius cleared 1.1 mm; spherical outer raceway; PA66 glass-fibre cage
Item Weight0.6 kg (1.32 lb)
Cage MaterialPolyamide
Number Of Rows2
Bore TypeCylindrical, straight
Snap Ring IncludedNo
Harmonization Code8482.10.50
Part Number2210 E-2RS1TN9
Cage TypeBall-centred, injection-moulded
Dynamic Load Rating22,900 N
Static Load Rating8,150 N
Limiting Speed4,800 rpm grease
Internal ClearanceCN

Cross-References

Cross Reference 1FAG 2210-2RS-TVH
Cross Reference 2SKF 2210 E-2RS1TN9/C3 - C3 clearance
Cross Reference 3SKF 2210 ETN9 - open, no seals
Seller Part Number: AO3B5#IQYSRE

Product Description

What this part is:

SKF 2210 E-2RS1TN9 double-row self-aligning ball bearing, 50 mm bore, 90 mm outside diameter, 23 mm width. Cylindrical bore, contact seals on both sides, glass-fibre reinforced polyamide cage, normal (CN) clearance. Unit Quantity: 1 Pc.

Decoding the designation:

2210 — wide-series self-aligning ball bearing; bore code 10 = 50 mm (bore code x 5).

E — optimised internal design with a larger ball complement and higher load capacity.

2RS1 — contact seal on each side.

TN9 — ball-centred injection-moulded cage in glass-fibre reinforced polyamide PA66.

No clearance suffix — normal clearance, CN.

Specifications:

Bore Diameter: 50 mm. Outside Diameter: 90 mm. Overall Width: 23 mm. Number Of Rows: 2. Rolling Elements: Ball. Bore Type: Cylindrical, straight. Closure Type: Contact seals both sides. Cage Material: Polyamide (glass-fibre reinforced PA66). Internal Clearance: CN. Lubricant: Grease. Dynamic Load Rating: 22,900 N. Static Load Rating: 8,150 N. Fatigue Load Limit: 420 N. Limiting Speed: 4,800 rpm. Item Weight: 0.6 kg (1.32 lb). Series: 2200.

Dimensions and mounting:

Maximum shaft and housing fillet radius cleared: 1.1 mm. Spherical outer raceway; the inner ring, cage and balls swivel inside the outer ring to absorb shaft deflection and housing misalignment.

Compatibility and replacement:

FAG 2210-2RS-TVH: 50 x 90 x 23 mm, rubber seals both sides, polyamide cage, CN clearance; limiting speed 4,250 rpm. SKF 2210 E-2RS1TN9/C3: same envelope and seals with C3 internal clearance. SKF 2210 ETN9: open version without seals.

Frequently asked questions:

What are the dimensions of the SKF 2210 E-2RS1TN9?

Bore 50 mm, outside diameter 90 mm, width 23 mm, with a cylindrical bore.

What are the load ratings and speed limit?

Dynamic load rating 22,900 N, static load rating 8,150 N, fatigue load limit 420 N, limiting speed 4,800 rpm.

What seals and cage does it have?

Contact seals on both sides (2RS1) and a glass-fibre reinforced polyamide PA66 ball-centred cage (TN9), with normal CN clearance.
