Availability:
1 in stock

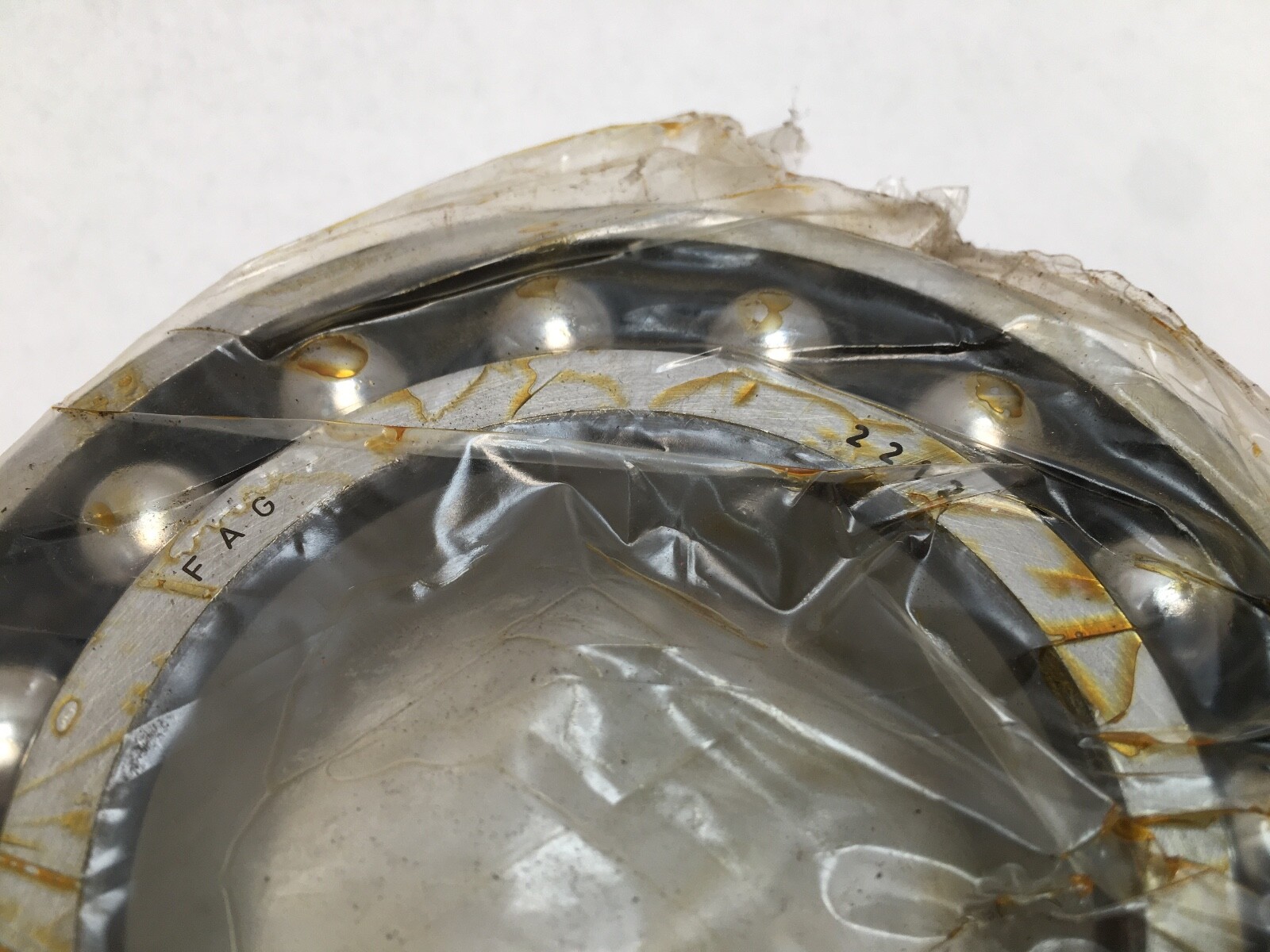

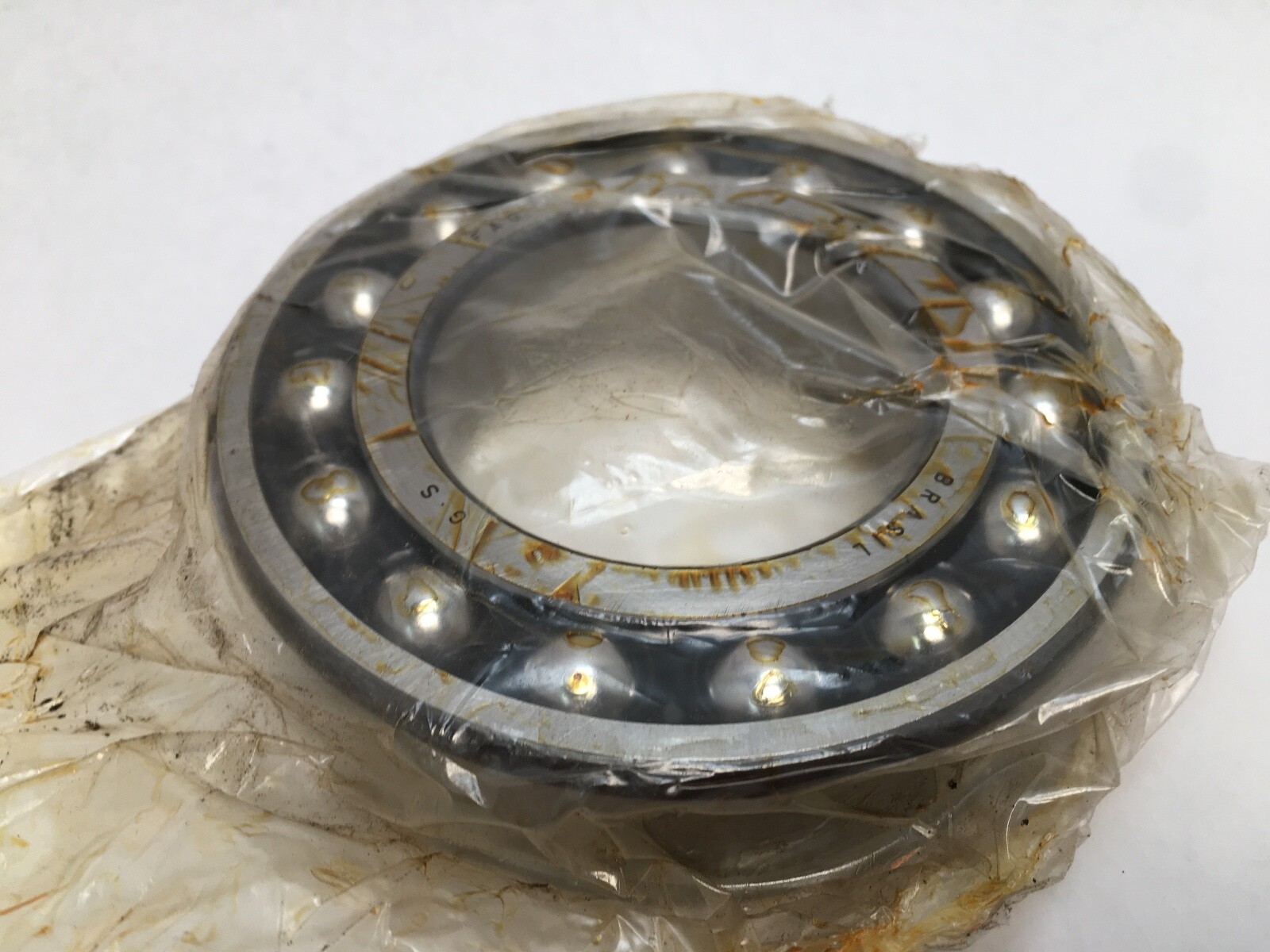

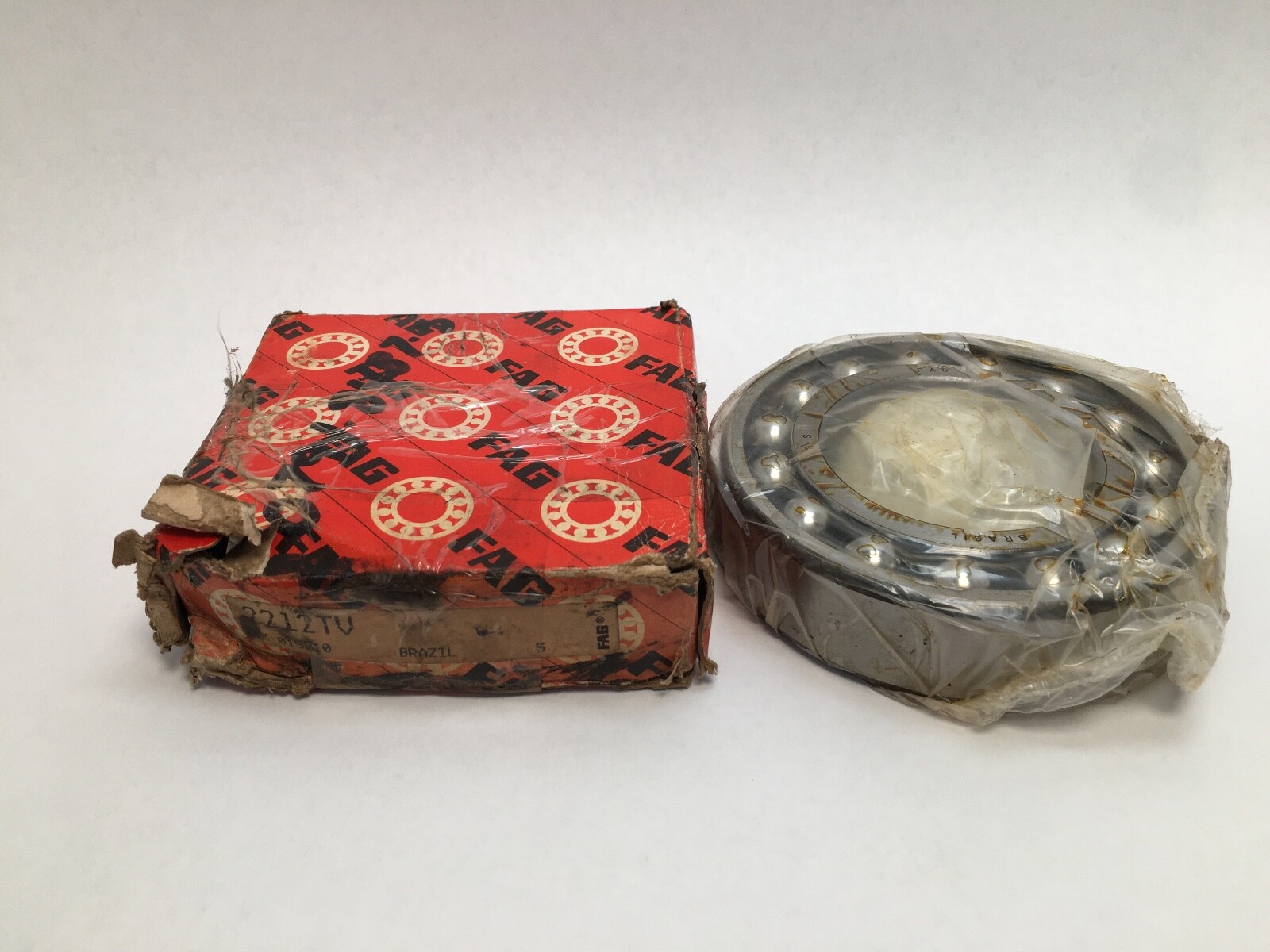

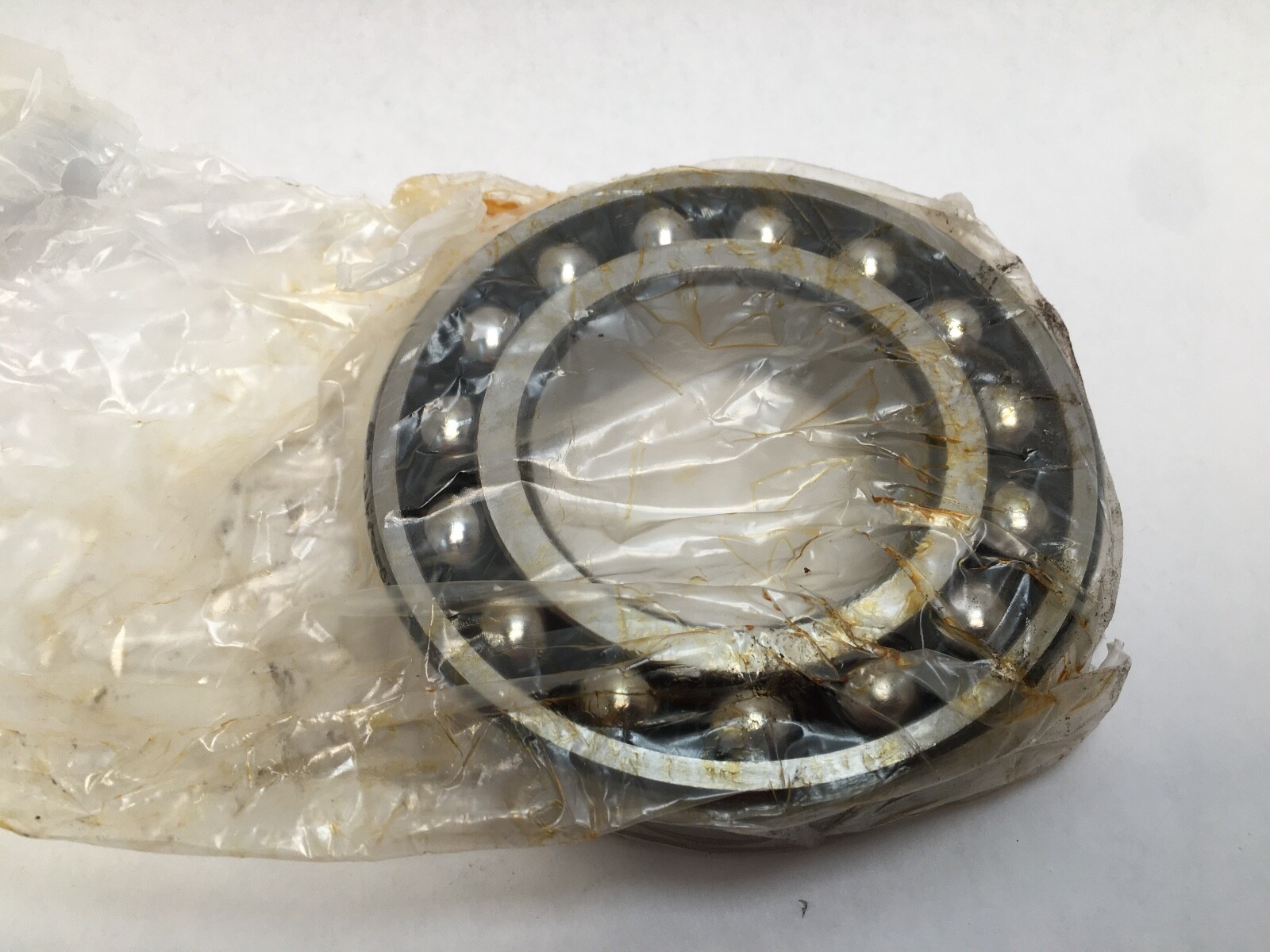

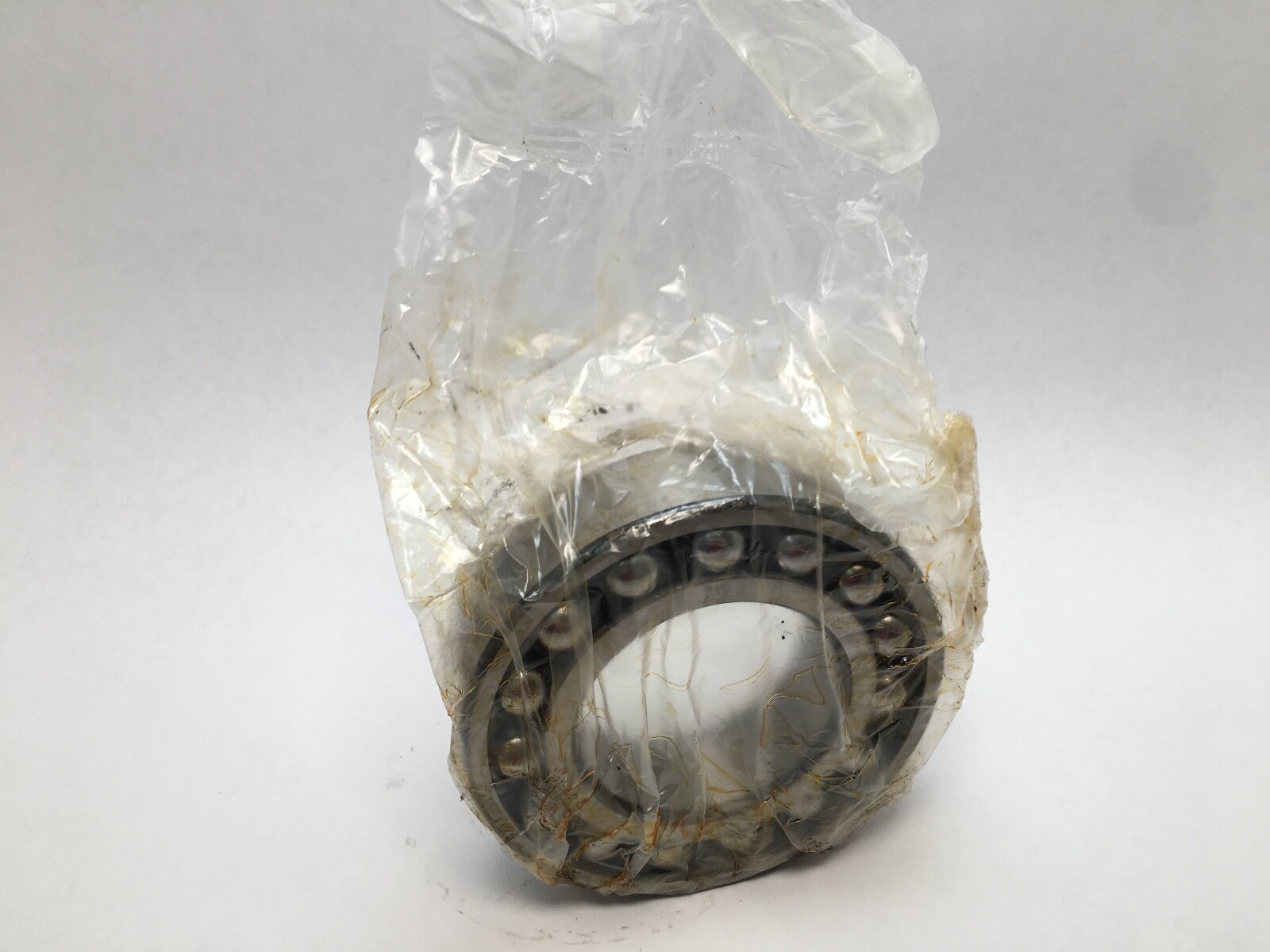

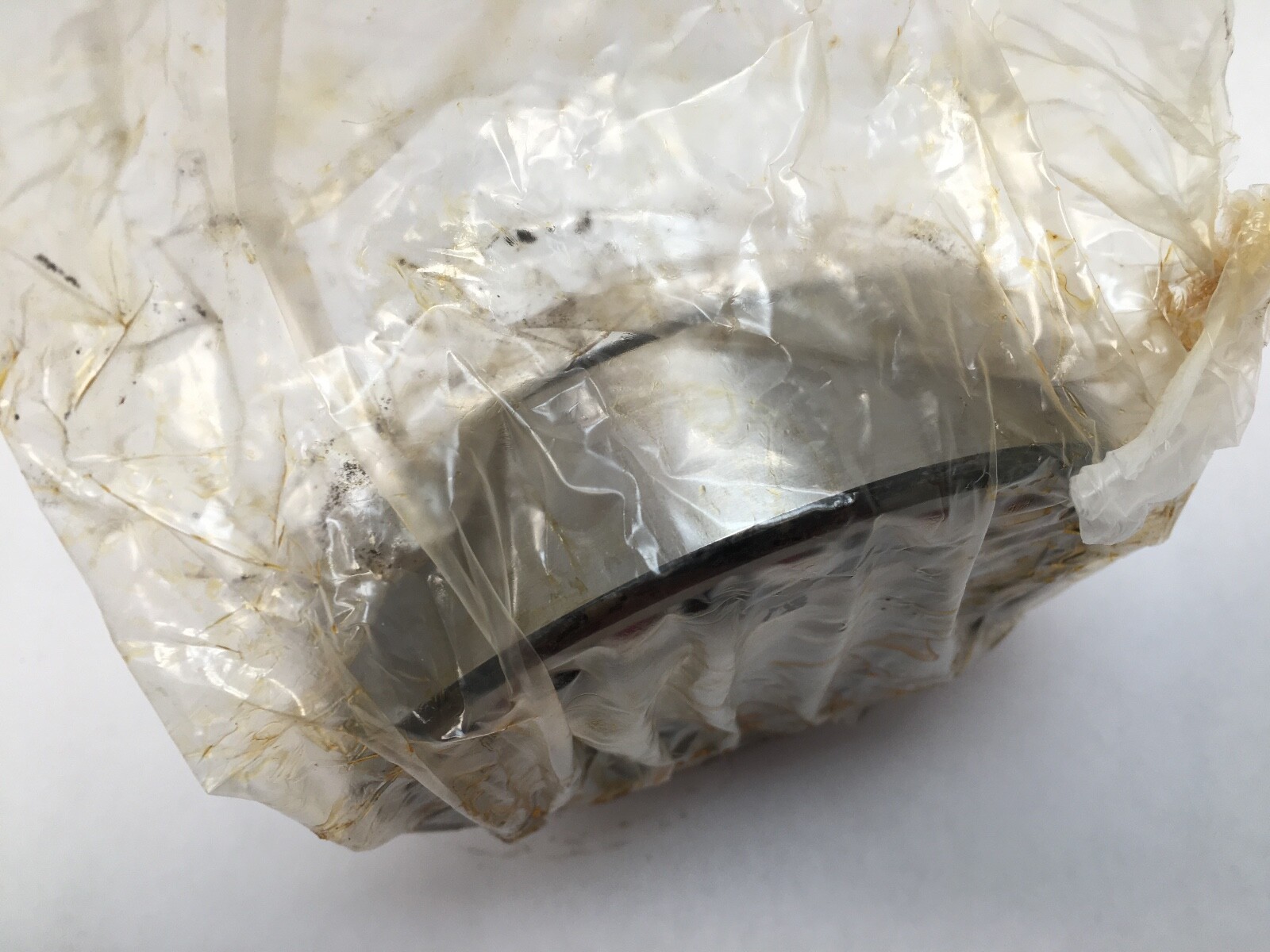

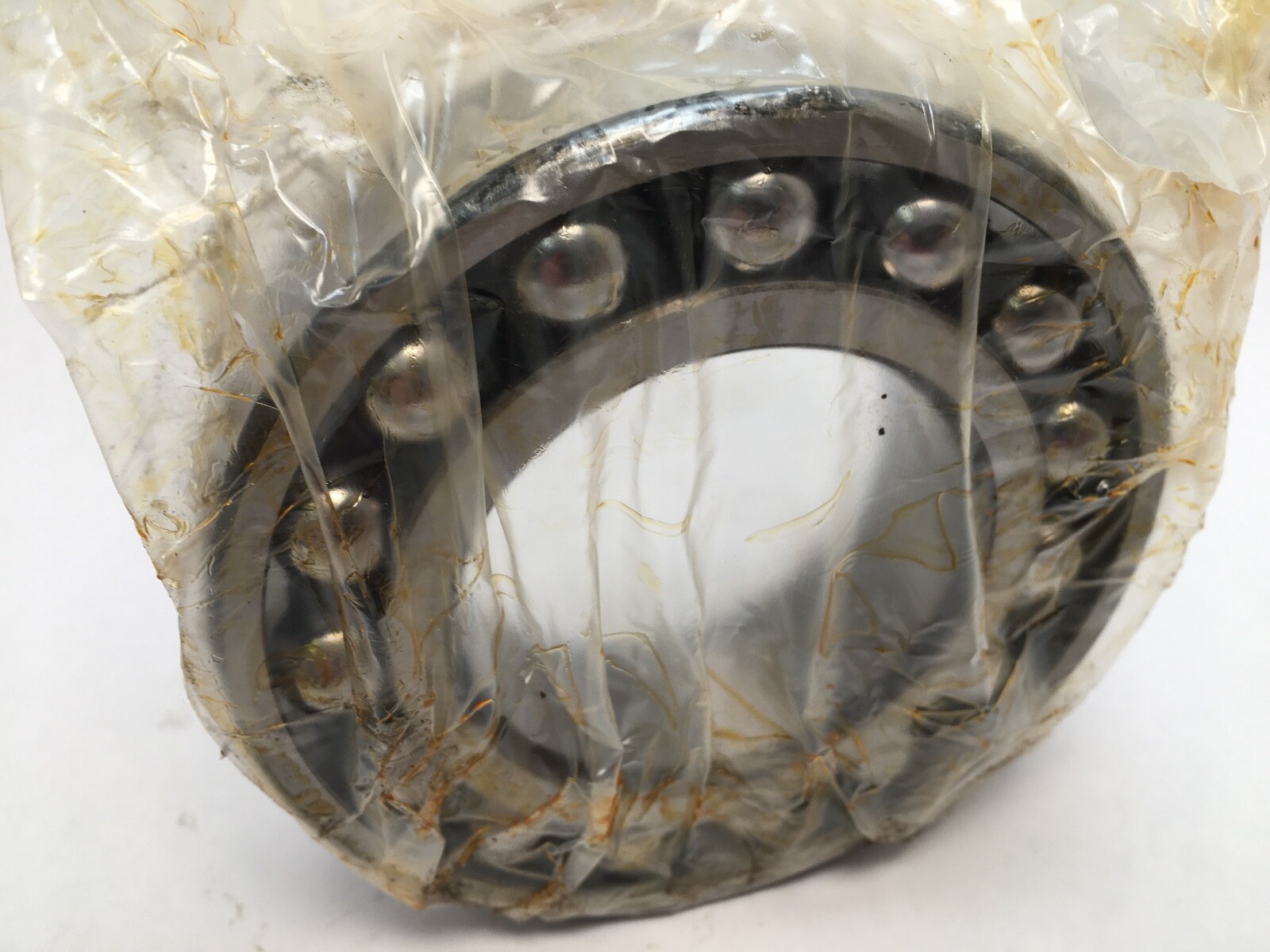

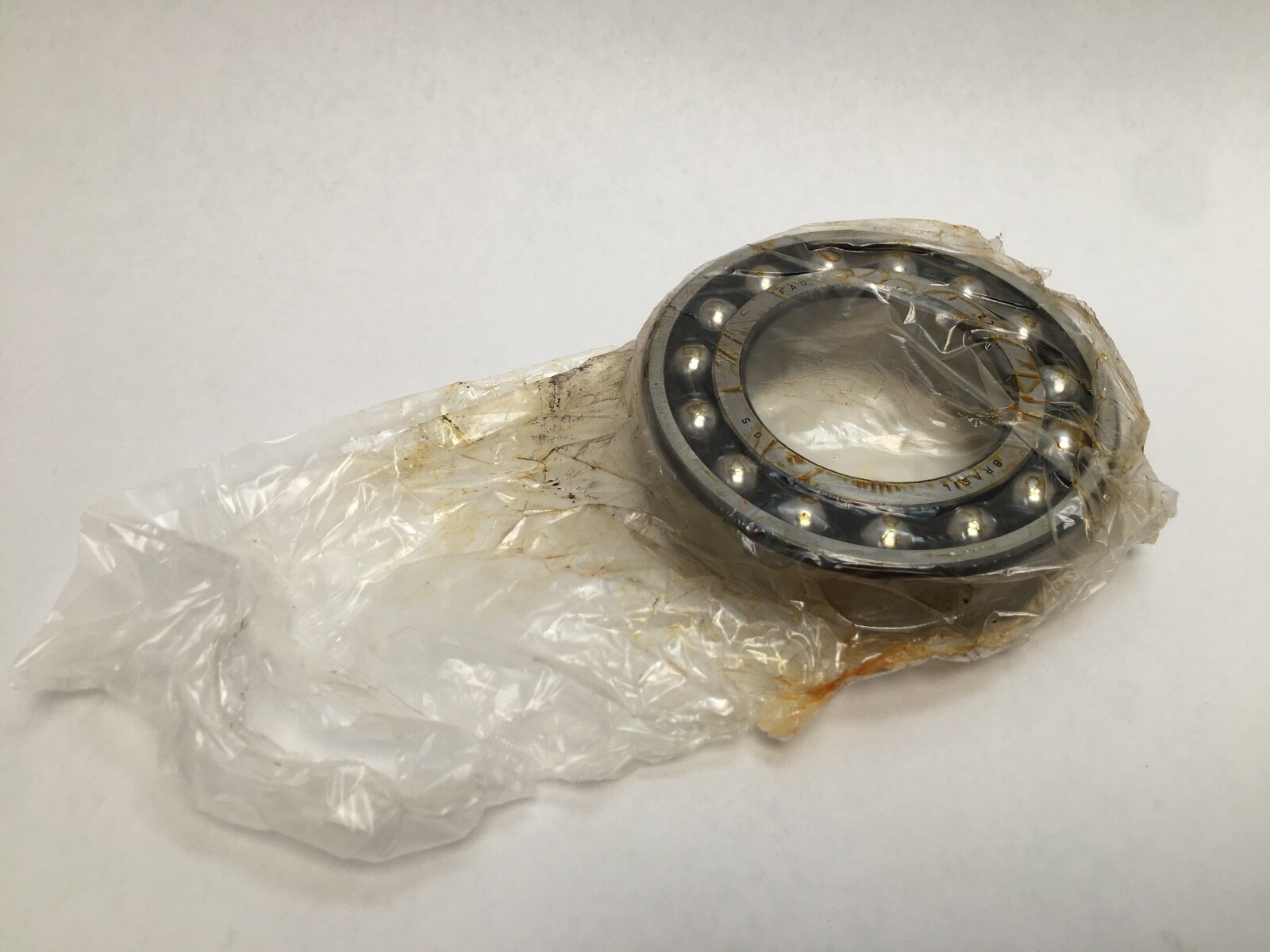

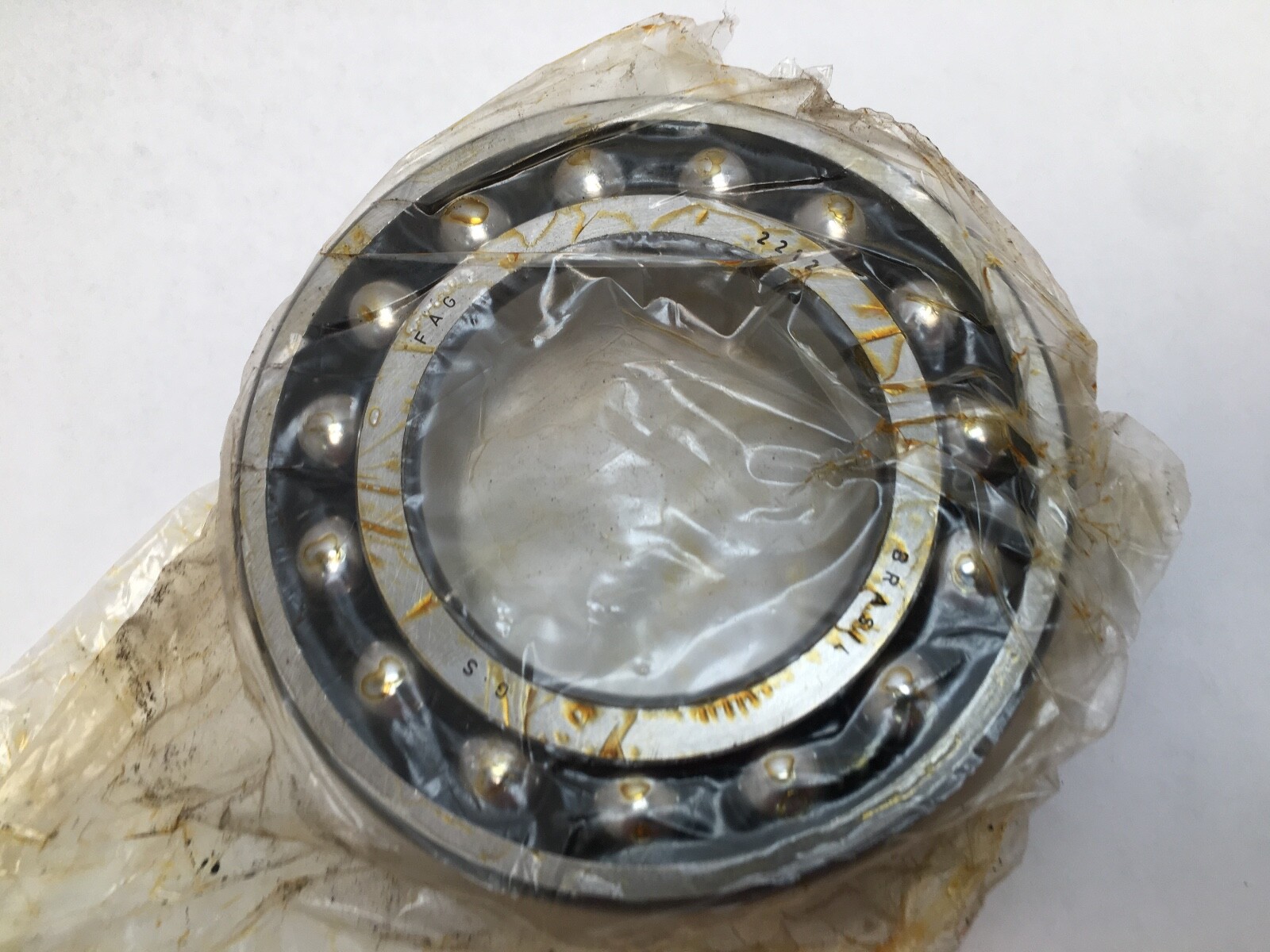

FAG 2212TV self-aligning ball bearing, 60 mm bore x 110 mm OD x 28 mm wide, straight bore, open, polyamide cage, CN clearance, 48,000 N dynamic rating.
List Price
$35.08
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 2212TV |
| Model | 2212-TVH |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 28 mm |
| Dynamic Load Rating | 48,000 N |
|---|---|
| Static Load Rating | 16,500 N |
| Lubricant | Oil Preservative |
| Series | 2200 |
| Max Temp | 120 °C |
| Min Temp | -30 °C |
| Duty Type | Standard |
| Rolling Elements | Ball |
| Item Weight | 1.05 kg (2.31 lb) |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Cage Type | Window cage, glass-fibre reinforced (TV/TVH) |
| Base Number | 2212 |
| Industry Terms | self-aligning ball bearing, double row ball bearing, 2200 series |
| Common Misspellings | 2212T, 2212-TW, 221TV |
| Application Types | line shafts, fans, conveyors, agricultural machinery, textile machinery |
| Mpn Variants | 2212TV, 2212-TV, 2212 TV, 2212-TVH |
| Compatible With Replaces | Current designation FAG 2212-TVH |
| Additional Attributes | Thermal speed rating 6,400 rpm; fatigue load limit 1,040 N; min shaft shoulder 69 mm; max housing shoulder 101 mm |
| Limiting Speed | 6,300 rpm |
| Cross Reference 1 | SKF 2212 ETN9 |
|---|---|
| Cross Reference 2 | NSK 2212 |
| Cross Reference 3 | NTN 2212S |
| Cross Reference 4 | Koyo 2212 |
| Cross Reference 5 | Koyo 2212 |
FAG 2212TV double-row self-aligning ball bearing, straight bore, open, polyamide cage. Current Schaeffler designation: 2212-TVH. Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 28 mm. The spherical outer-ring raceway accommodates static shaft misalignment and shaft deflection.
22 — FAG 22 series, wide light-section self-aligning ball bearing.
12 — bore code; 12 × 5 = 60 mm bore.
TV / TVH — solid window cage of glass-fibre reinforced polyamide.
No clearance suffix — normal (CN) radial internal clearance.
Dynamic Load Rating: 48,000 N. Static Load Rating: 16,500 N. Limiting Speed: 6,300 rpm. Thermal speed rating: 6,400 rpm. Item Weight: 1.05 kg (2.31 lb). Operating temperature: −30 °C to 120 °C. Internal Clearance: CN. Cage Material: Polyamide.
Minimum shaft shoulder diameter: 69 mm. Maximum housing shoulder diameter: 101 mm. Maximum fillet radius: 1.5 mm. Minimum chamfer dimension: 1.5 mm.
Same 60 x 110 x 28 mm envelope: SKF 2212 ETN9, NSK 2212, NTN 2212S, Koyo 2212. Current FAG designation 2212-TVH replaces 2212TV.
