Double-row self-aligning ball bearing, 50 mm bore x 90 mm OD x 23 mm wide, contact rubber seals both faces, straight bore, polyamide cage. 1 Pc.
List Price
$75.40
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
SKF 2210 E-2RS1TN9 Self Aligning Ball Bearing Sealed 50x90x23 mm 2210-2RS1-TN9$50.95
Self-Aligning Ball Bearing — 50 mm Bore, 90 mm OD, 23 mm Width, Straight Bore, Open, Polyamide Cage$36.46
Double-Row Self-Aligning Ball Bearing, 50 x 90 x 23 mm, C3 Clearance, Polyamide Cage, Cylindrical Bore, Open, 1 Pc$40.10
Self-Aligning Ball Bearing - 50 mm ID, 90 mm OD, 23 mm Width, Double Row, Open, Straight Bore$23.12| MFR / Brand | FAG |
|---|---|
| MPN | 2210.2RS.TV |
| GTIN | 4012801160490 |
| Model | 22102RS TV |
| Bearing Type | Self Aligning Ball Bearing, Double Rubber Seal |
| ID | 50 mm |
| OD | 90 mm |
| Width | 23 mm |
| Lubricant | Grease |
|---|---|
| Material | Bearing Steel |
| Base Number | 2210 |
| Industry Terms | Self-aligning ball bearing; double row ball bearing; sealed self aligning bearing; misalignment bearing; 22 series; 2210 |
| Common Misspellings | 2210 2RSTV; 2210-2RS-TVH; 22102RS-TV; FAG 2210RS TV |
| Application Types | Long unsupported shafts; conveyor shafts; agricultural and material-handling drives; textile machinery; woodworking machinery; wet or dusty positions |
| Bore Shaft Size | 50 mm (1.9685 in), straight cylindrical bore |
| Mpn Variants | 2210-2RS-TV; 22102RSTV; 2210.2RS.TV; 2210 2RS TV; 2210-2RSR-TVH; 2210-2RS; 2210 |
| Manufacturer Status | Active FAG/Schaeffler catalogue designation |
| Rolling Elements | Balls |
| Cage Material | Glass-fibre reinforced polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | CN |
| Part Number | 2210-2RS-TV |

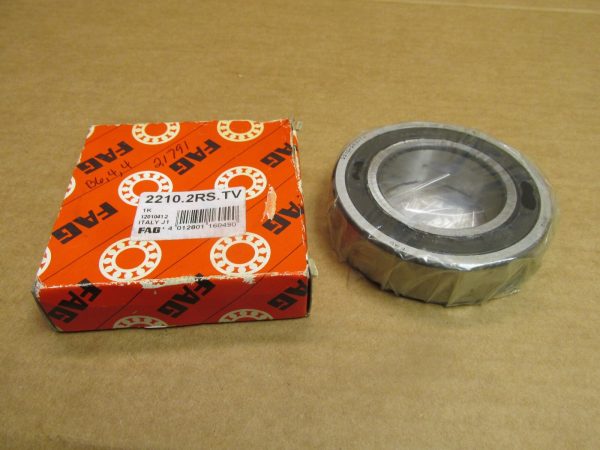

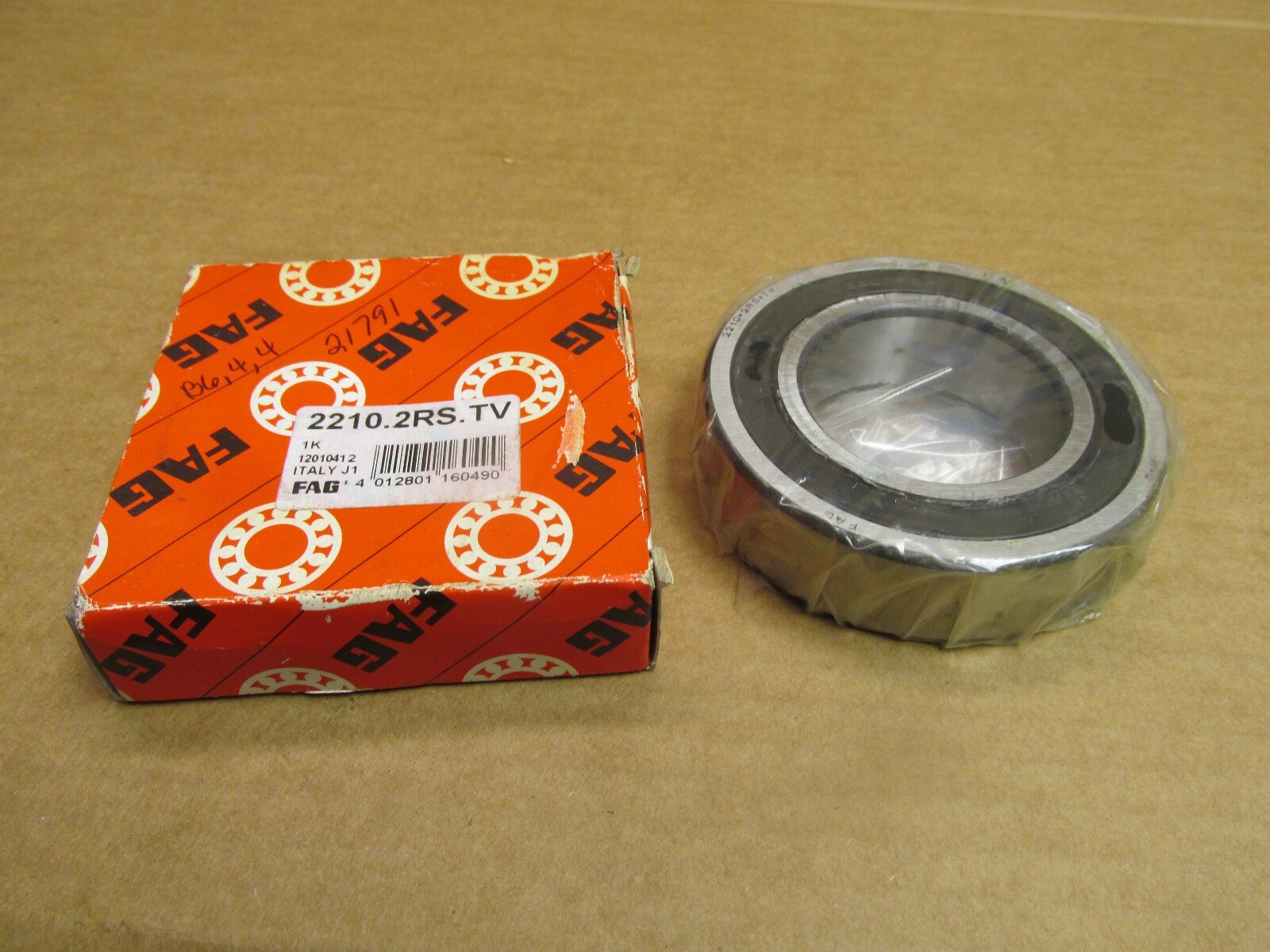

FAG 2210-2RS-TV is a double-row self-aligning ball bearing with a contact rubber seal on each face. Bore Diameter: 50 mm. Outside Diameter: 90 mm. Width: 23 mm. Two rows of balls run on a common spherical outer raceway, so the inner ring, ball complement and cage swivel inside the outer ring.
22 — ISO dimension series of the double-row self-aligning ball family.
10 — bore code, 10 x 5 = 50 mm bore.
2RS — contact rubber seal on both faces; a single RS is one seal with the opposite face open.
TV — glass-fibre reinforced polyamide cage.
No K — straight cylindrical bore.
Bearing Type: Self-aligning ball bearing, double row, sealed. Rolling Elements: Steel balls. Number Of Rows: 2. Bore Type: Straight. Seal Type: Double Rubber Seal. Cage Material: Glass-fibre reinforced polyamide. Lubricant: Grease. Internal Clearance: CN. Series: 22. Material: Bearing Steel. GTIN: 4012801160490. Unit Quantity: 1 Pc.
Bore Diameter: 50 mm (1.9685 in), straight cylindrical bore. Outside Diameter: 90 mm. Width: 23 mm. Factory greased and sealed on both faces.
ISO base number 2210. The designations 2210-2RS, 2210 E-2RS1TN9 and 2210 2RSTN denote sealed straight-bore double-row self-aligning ball bearings, 50 x 90 x 23 mm. The open 2210-TV is a related size with no seals. The 2210-K-2RS-TV has a 1:12 tapered bore. The 1210 shares the 50 mm bore in the narrower 12 series.
50 mm bore, 90 mm outside diameter, 23 mm wide.
A contact rubber seal on both faces.
A glass-fibre reinforced polyamide cage.
