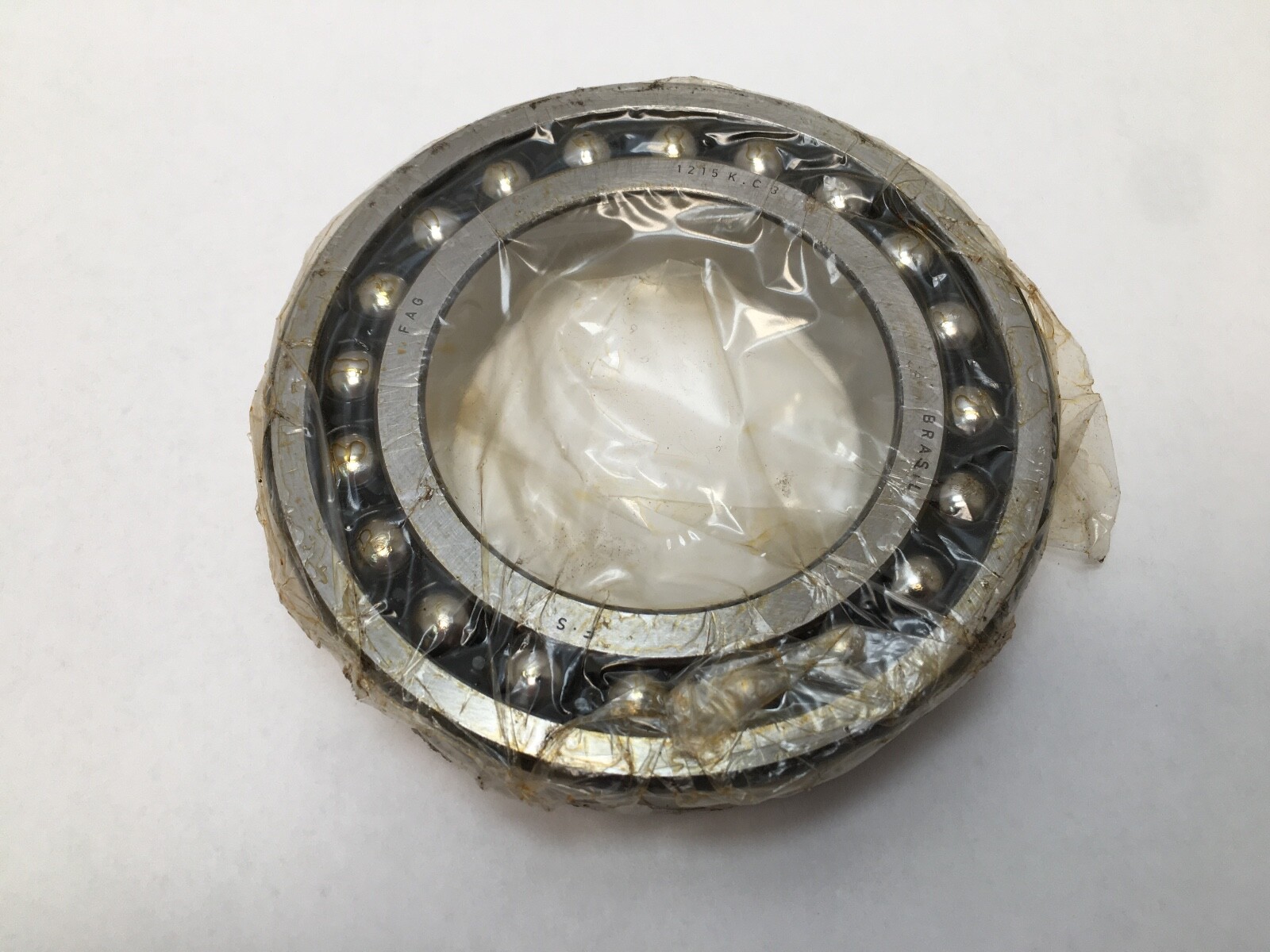

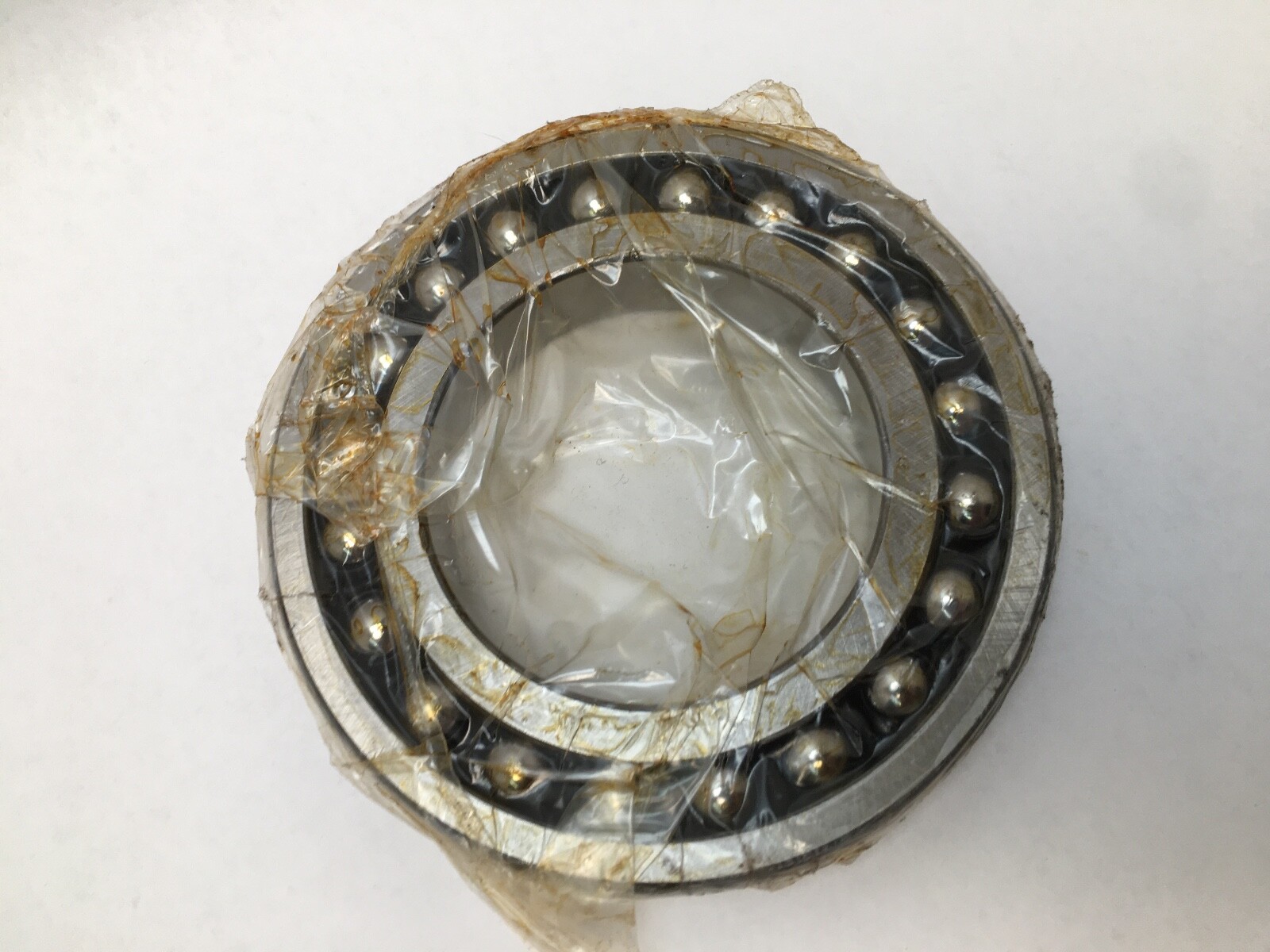

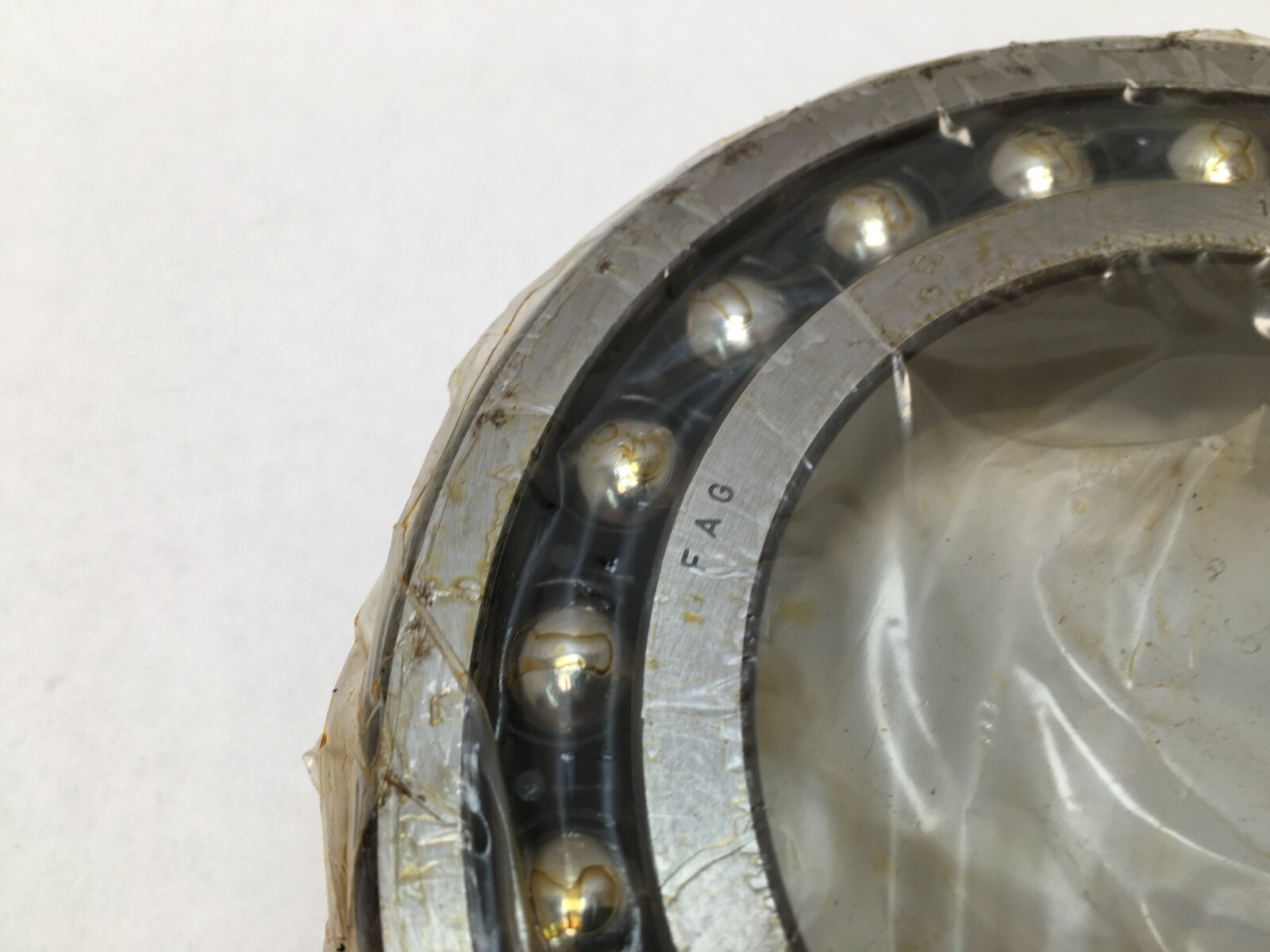

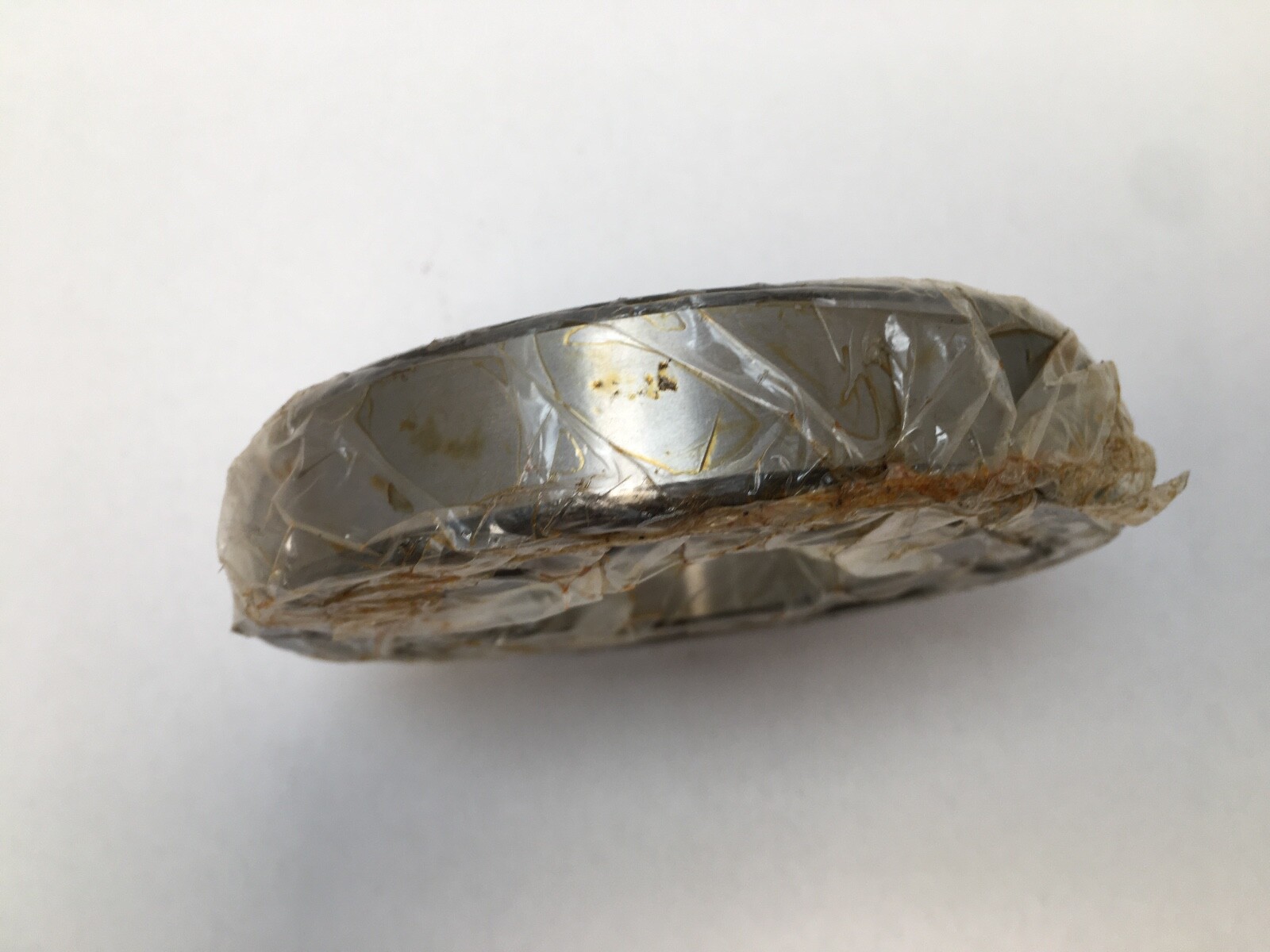

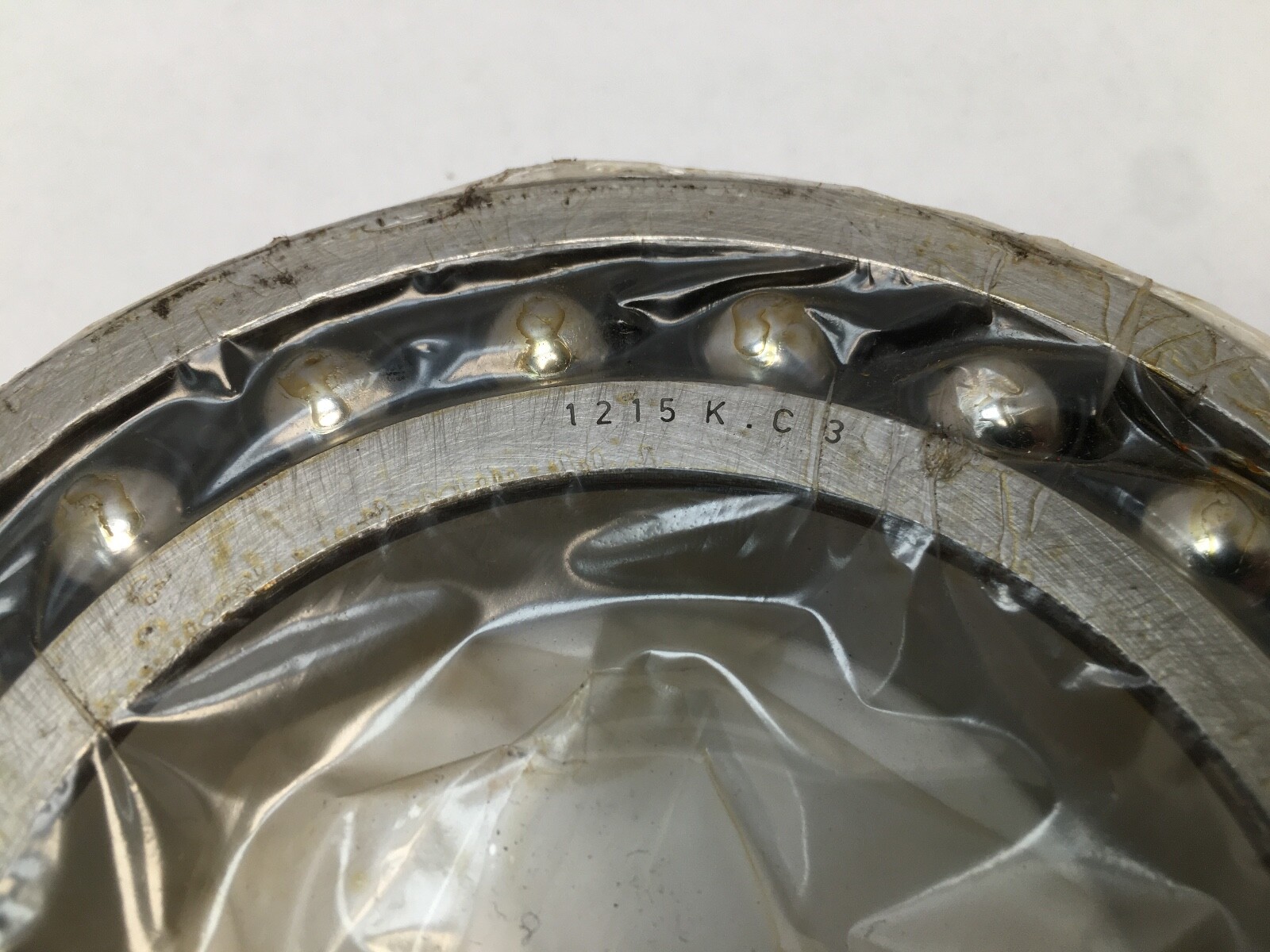

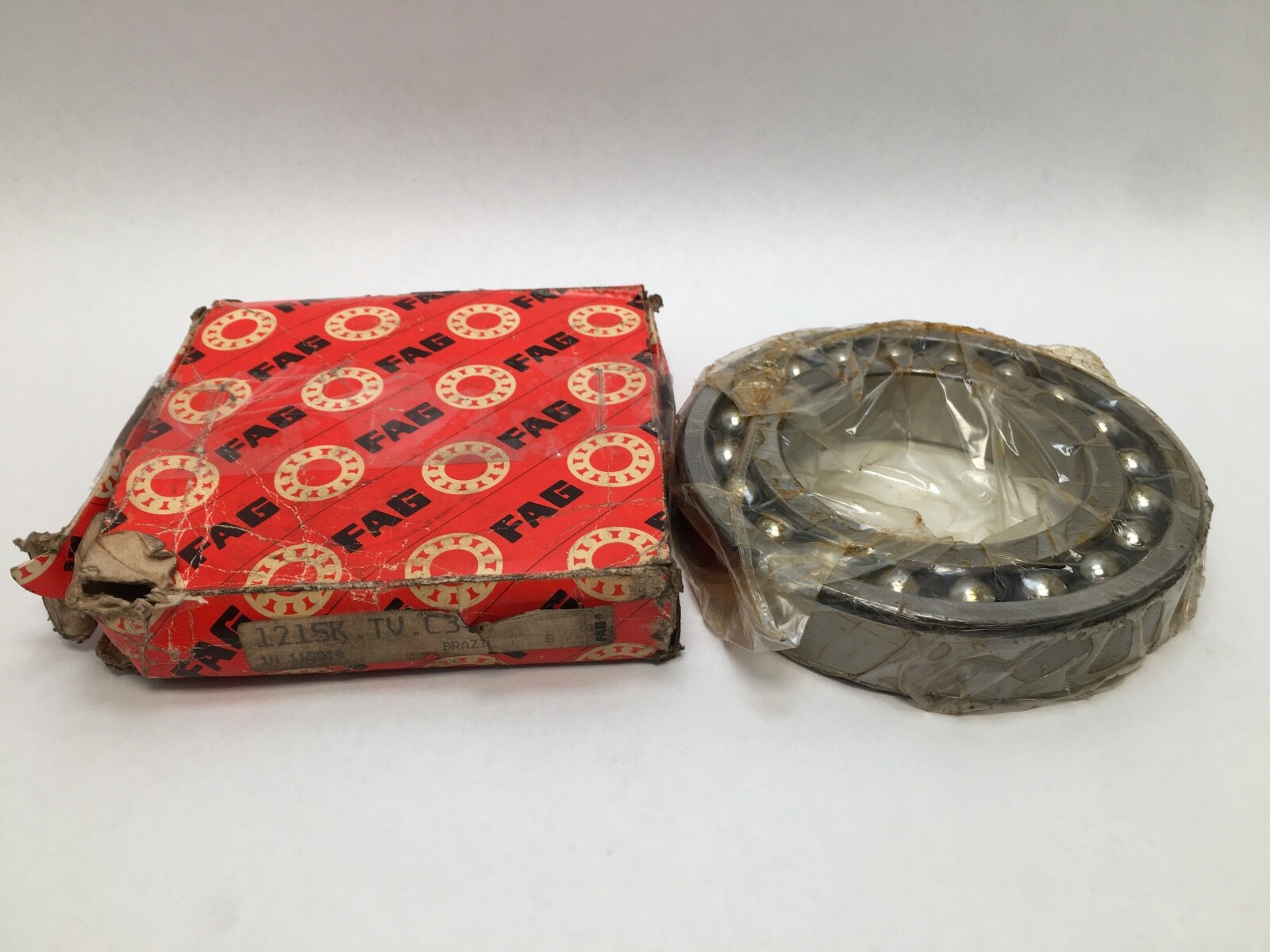

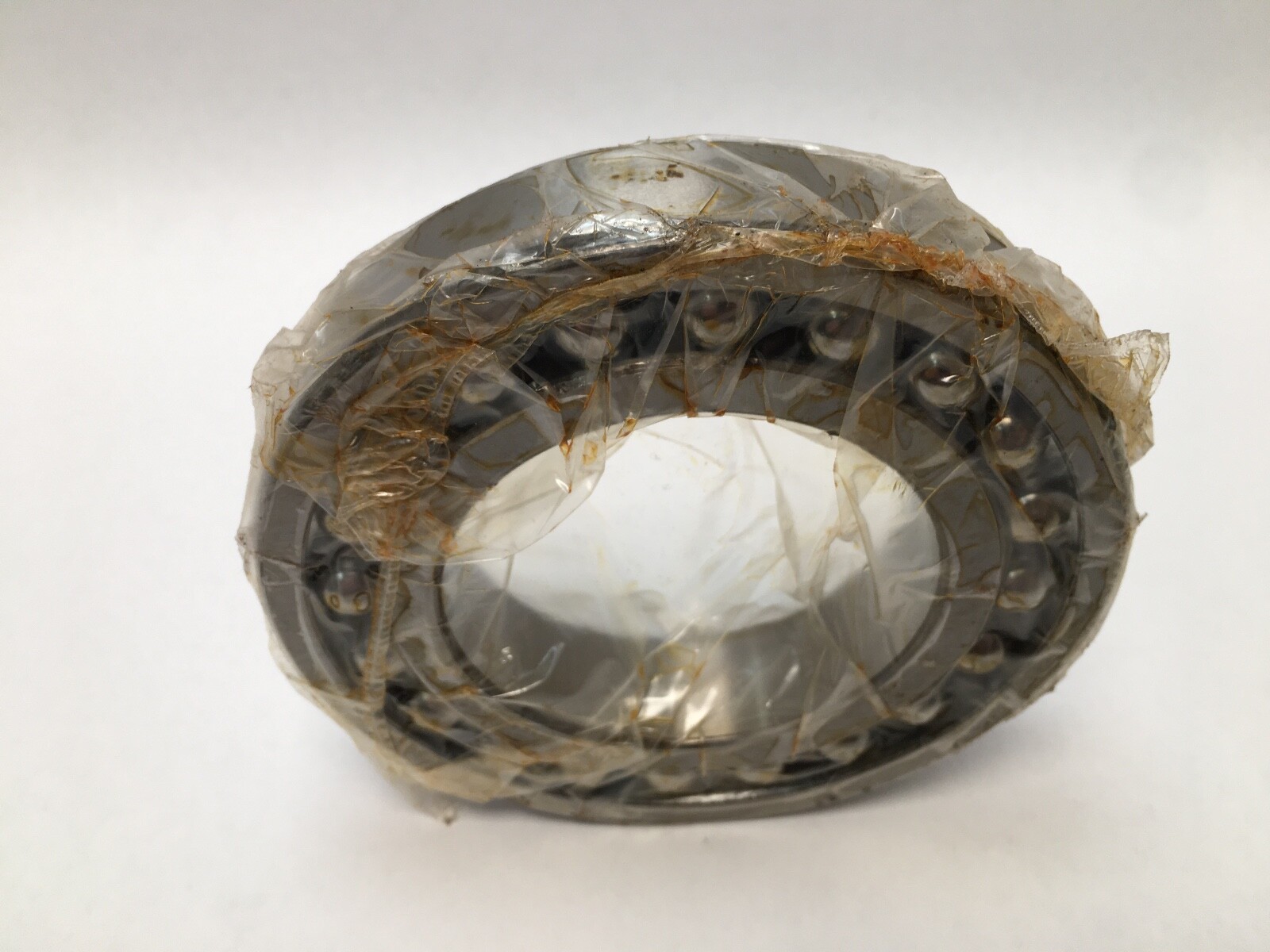

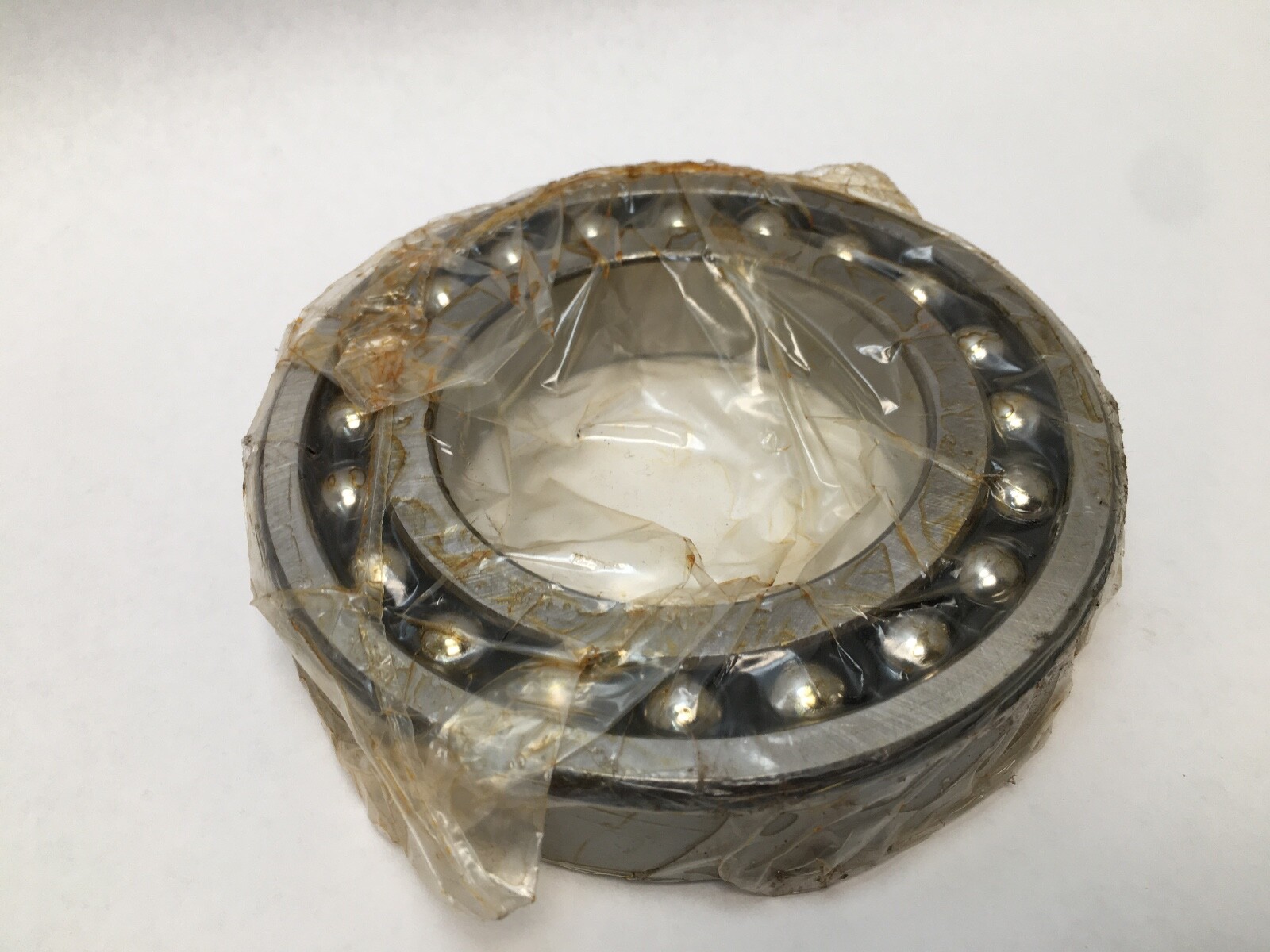

FAG 1215K.TV.C3 self-aligning ball bearing, 75 mm tapered bore (1:12) x 130 mm OD x 25 mm wide, polyamide cage, C3 clearance. Mounts on an H215 sleeve.
List Price
$37.14
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 1215KTVC3 |
| Model | 1215-K-TVH-C3 |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Series | 1200 |
|---|---|
| Cage Type | Window cage, glass-fibre reinforced (TV/TVH) |
| Dynamic Load Rating | 39,000 N |
| Static Load Rating | 15,700 N |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 1.295 kg (2.85 lb) |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Limiting Speed | 5,700 rpm |
| Internal Clearance | C3 |
| Base Number | 1215 |
| Industry Terms | self-aligning ball bearing, tapered bore bearing, adapter sleeve bearing, 1200 series |
| Common Misspellings | 1215KTV C3, 1215-KTV-C3, 1215KC3 |
| Application Types | line shafts, fans, conveyors, agricultural machinery |
| Mpn Variants | 1215K.TV.C3, 1215-K-TV-C3, 1215-K-TVH-C3, 1215KTVC3, 1215 K TV C3 |
| Compatible With Replaces | Current designation FAG 1215-K-TVH-C3; adapter sleeve H215 |
| Additional Attributes | Adapter sleeve H215; thermal speed rating 5,500 rpm; fatigue load limit 980 N; min shaft shoulder 84 mm; max housing shoulder 121 mm |
| Min Temp | -30 °C |
| Cage Material | Polyamide |
| Cross Reference 1 | SKF 1215 EKTN9/C3 |
|---|---|
| Cross Reference 2 | NSK 1215KC3 |
| Cross Reference 3 | Koyo 1215KC3 |
| Cross Reference 4 | SNR 1215K G15 C3 |
| Cross Reference 5 | SNR 1215K G15 C3 |
FAG 1215K.TV.C3 double-row self-aligning ball bearing with a 1:12 tapered bore, polyamide cage and C3 clearance, open. Current Schaeffler designation: 1215-K-TVH-C3. Bore Diameter: 75 mm. Outside Diameter: 130 mm. Overall Width: 25 mm.
12 — FAG 12 series, light-section self-aligning ball bearing.
15 — bore code; 15 × 5 = 75 mm bore.
K — tapered bore, taper 1:12.
TV / TVH — solid window cage of glass-fibre reinforced polyamide.
C3 — radial internal clearance greater than normal.
Dynamic Load Rating: 39,000 N. Static Load Rating: 15,700 N. Limiting Speed: 5,700 rpm. Thermal speed rating: 5,500 rpm. Item Weight: 1.295 kg (2.85 lb). Operating temperature: −30 °C to 120 °C. Internal Clearance: C3. Cage Material: Polyamide.
Adapter sleeve: H215. Minimum shaft shoulder diameter: 84 mm. Maximum shaft shoulder diameter: 92 mm. Maximum housing shoulder diameter: 121 mm. Maximum fillet radius: 1.5 mm.
Same 75 x 130 x 25 mm tapered-bore C3 envelope: SKF 1215 EKTN9/C3, NSK 1215KC3, Koyo 1215KC3, SNR 1215K G15 C3. Current FAG designation 1215-K-TVH-C3 replaces 1215K.TV.C3.
