Deep Groove Ball Bearings: The Industry Default and When to Reach for Something Else
If you pulled a bearing off general industrial equipment at random, there’s a good chance
Availability:
1 in stock
Double-row self-aligning ball bearing, 45 x 85 x 19 mm, straight bore, glass-fibre polyamide cage, open both faces. Absorbs shaft-to-housing misalignment.
List Price
$24.71
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 1209.TV |
| Model | 1209-TV |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 45 mm |
| OD | 85 mm (3.3465 in) |
| Width | 19 mm |
| Series | 1200 |
|---|---|
| Lubricant | Oil or Grease |
| Material | High Carbon Chrome Bearing Steel |
| Base Number | 1209 |
| Industry Terms | self aligning ball bearing, double row ball bearing, 1209 bearing, misalignment bearing, straight bore self aligning bearing, 45mm bore bearing |
| Common Misspellings | FAG 1209TV, 1209 T V, FAG 1209-TVH, 1209TU, FAG l209.TV, 1209K TV |
| Application Types | Long shafts, conveyors, fabricated frames, agricultural machinery, fans, woodworking and textile machinery |
| Overall Width | 19 mm (0.7480 in) |
| Bore Shaft Size | 45 mm (1.7717 in), straight cylindrical bore |
| Mpn Variants | 1209.TV, 1209TV, 1209-TV, 1209 TV, 1209TVH, 1209-TVH, 1209 |
| Rolling Elements | Ball |
| Cage Material | Glass-fibre reinforced polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN (normal) |
| Duty Type | Standard |
| Harmonization Code | 8482.10.50 |
| Design Units | Metric |
| Bearing Material | High carbon chrome bearing steel |
| Part Number | 1209.TV |
| Cross Reference 1 | SKF 1209 ETN9 |
|---|---|
| Cross Reference 2 | NSK 1209TN |
| Cross Reference 3 | NTN 1209 |
| Cross Reference 4 | Koyo 1209 |

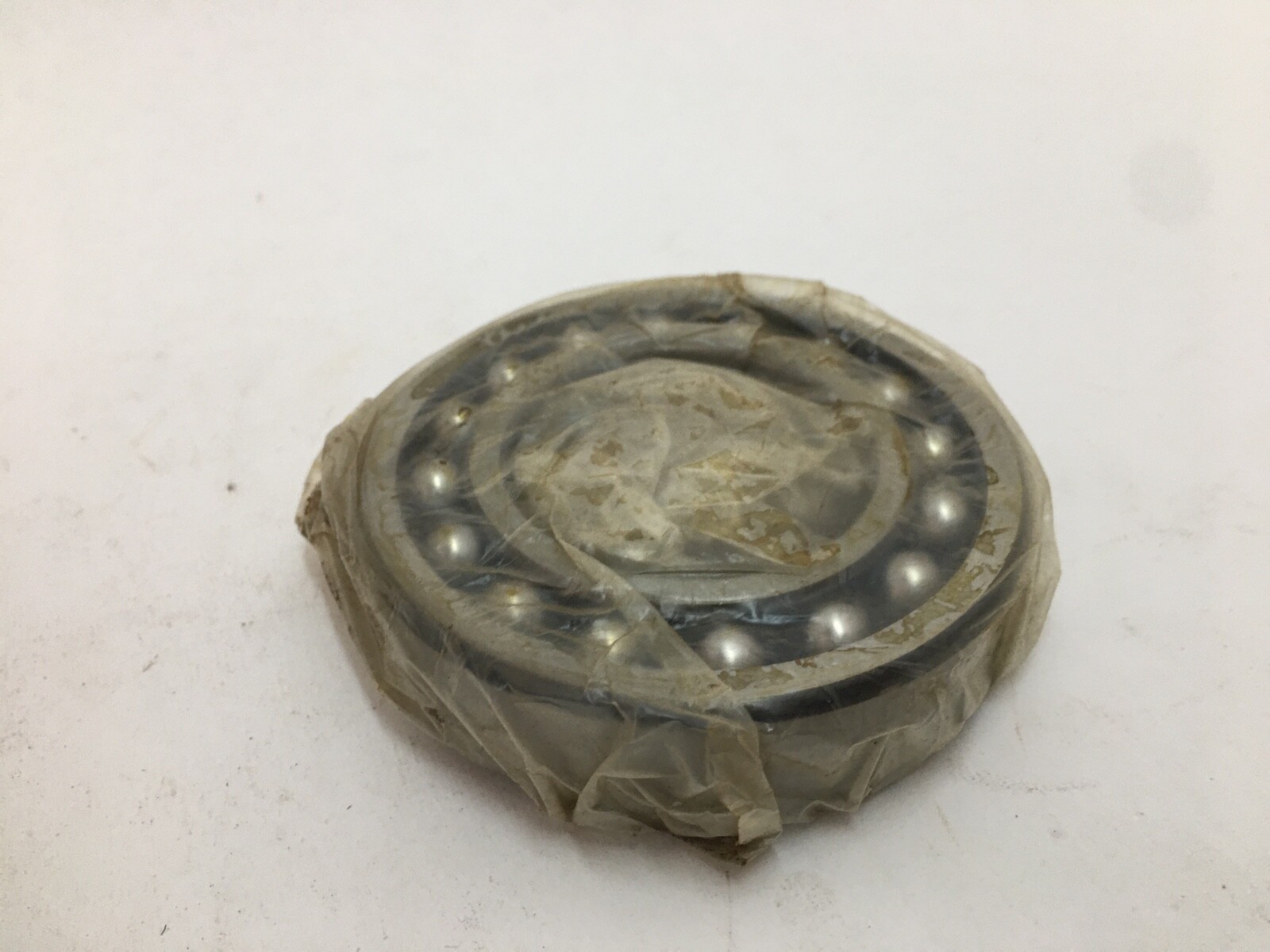

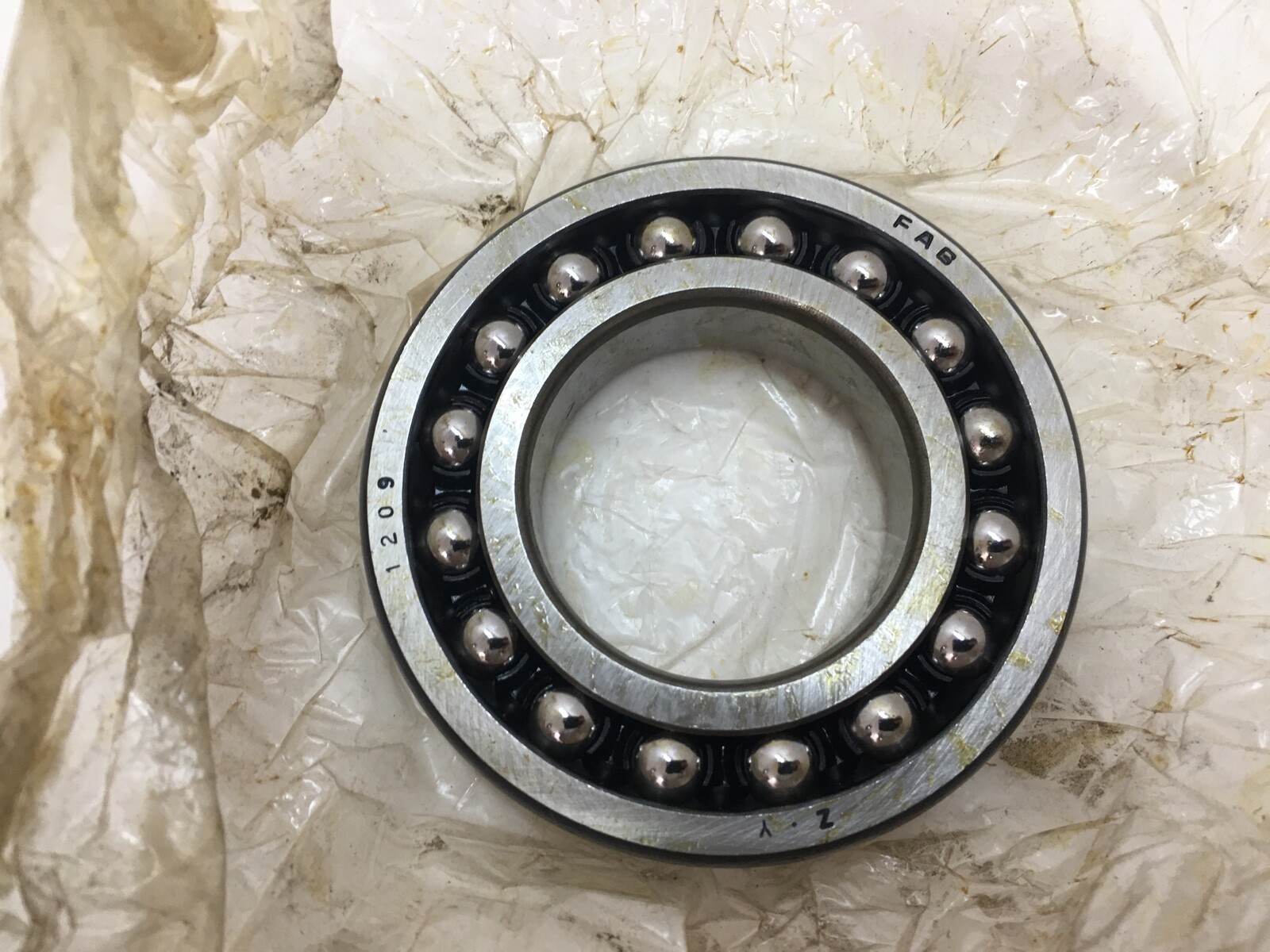

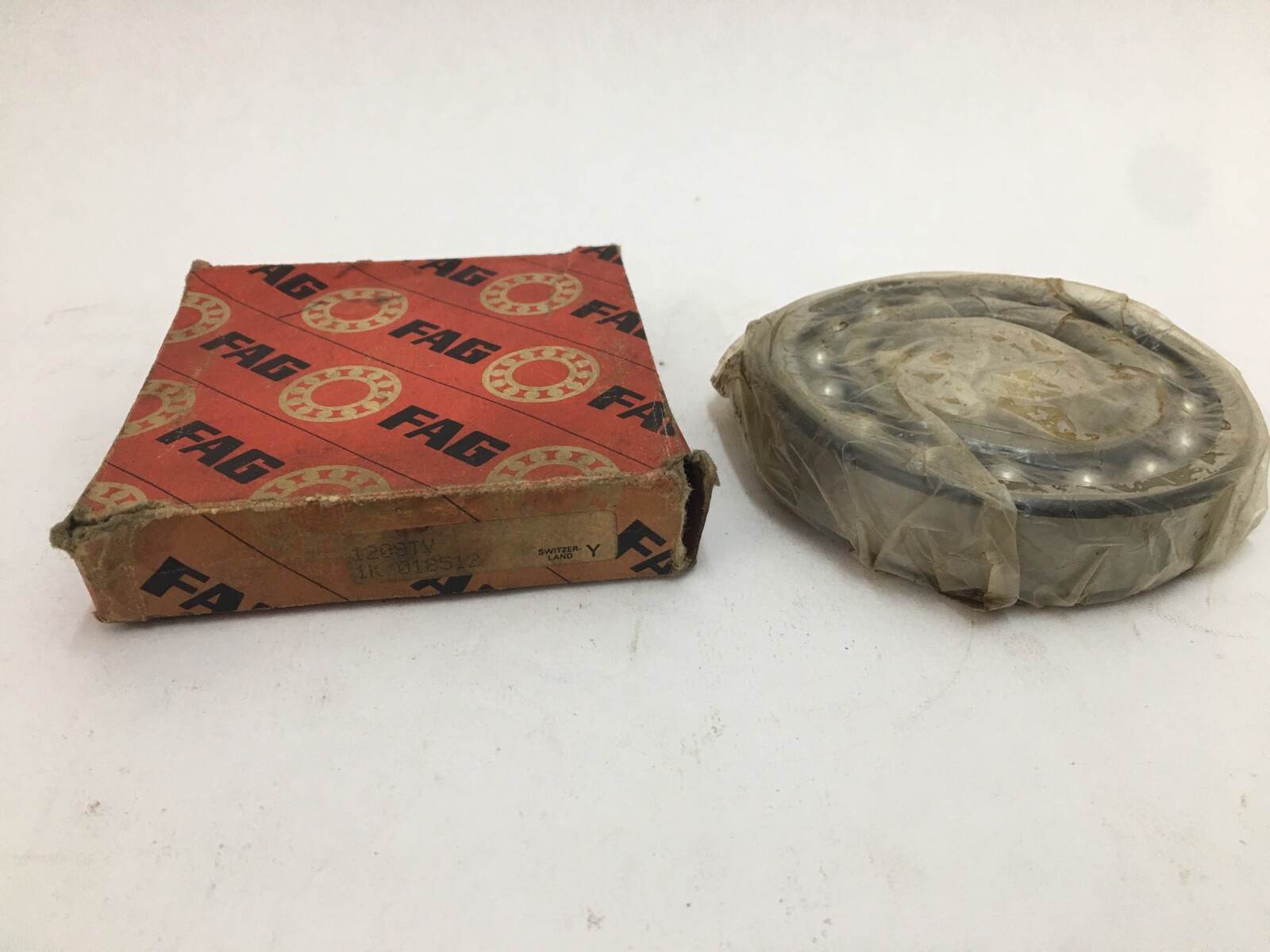

FAG 1209.TV double-row self-aligning ball bearing: 45 mm bore, 85 mm outside diameter, 19 mm width, straight cylindrical bore, open on both faces. Two rows of balls run in one spherical outer raceway. Unit Quantity: 1 Pc.
1209 — double-row self-aligning ball bearing, 45 mm bore, 85 mm outside diameter, 19 mm width, straight bore.
TV — glass-fibre reinforced polyamide cage (also written TVH).
Bore Diameter: 45 mm (1.7717 in). Outside Diameter: 85 mm (3.3465 in). Overall Width: 19 mm (0.7480 in). Number Of Rows: 2. Rolling Elements: Ball. Cage Material: Glass-fibre reinforced polyamide. Internal Clearance: CN (normal). Closure Type: Open both faces. Bore Type: Straight. Bearing Material: High carbon chrome bearing steel. Lubricant: grease or oil. Series: 1200.
Straight cylindrical bore with a spherical outer raceway; the inner ring and ball set swivel inside the outer ring. The 1209-K variant has a 1:12 tapered bore and takes an H209 adapter sleeve.
Cross-references: SKF 1209 ETN9, NSK 1209TN, NTN 1209 and Koyo 1209. Also written 1209TV, 1209-TV and 1209-TVH. A 6209 deep groove bearing shares the 45 x 85 mm bore and outside diameter and is a rigid, non-self-aligning design.
45 mm bore, 85 mm outside diameter, 19 mm width.
A glass-fibre reinforced polyamide cage (TV).
Straight cylindrical; the tapered version is the 1209-K.
$35.59
6 in stock
