Availability:
2 in stock

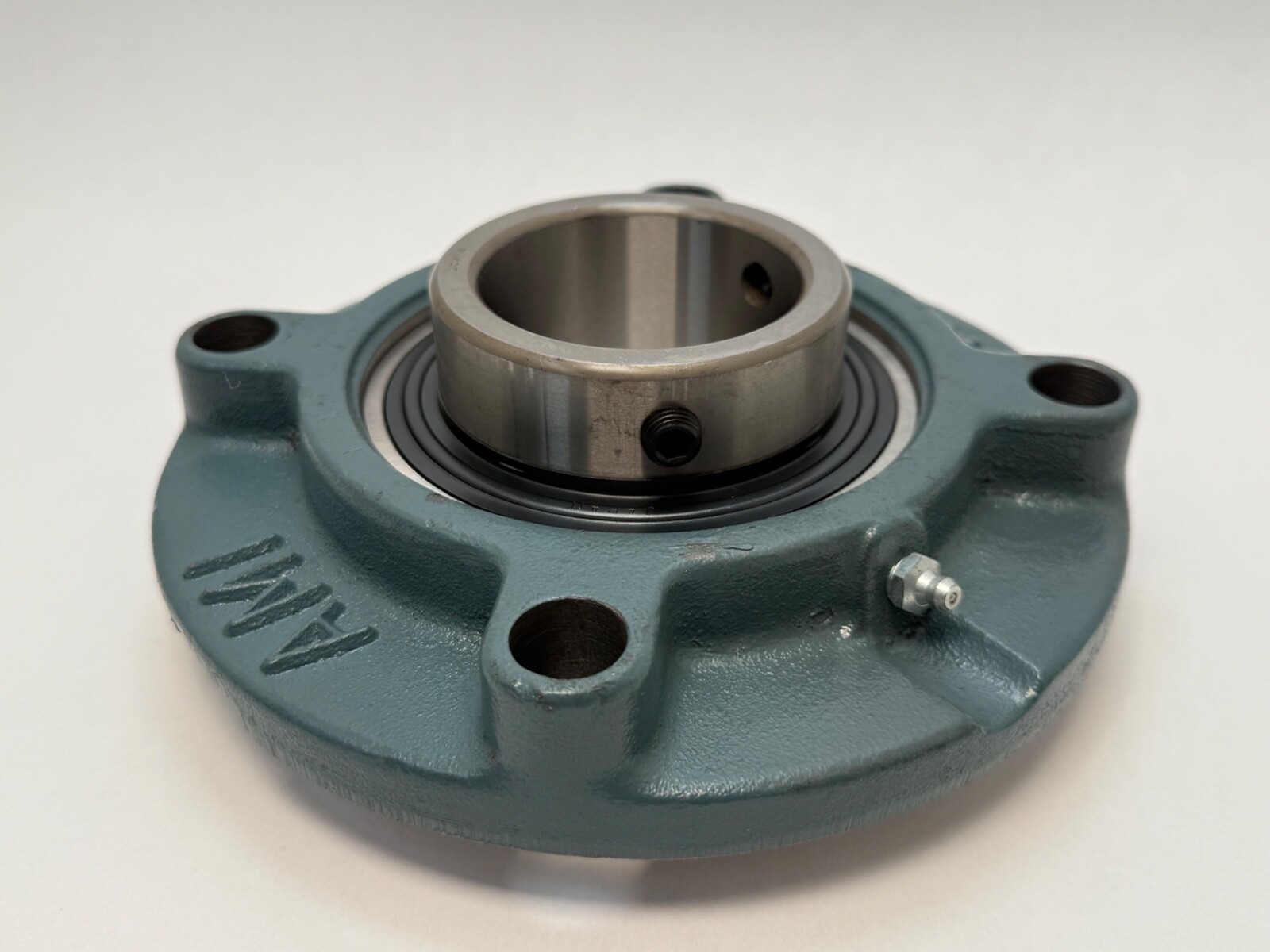

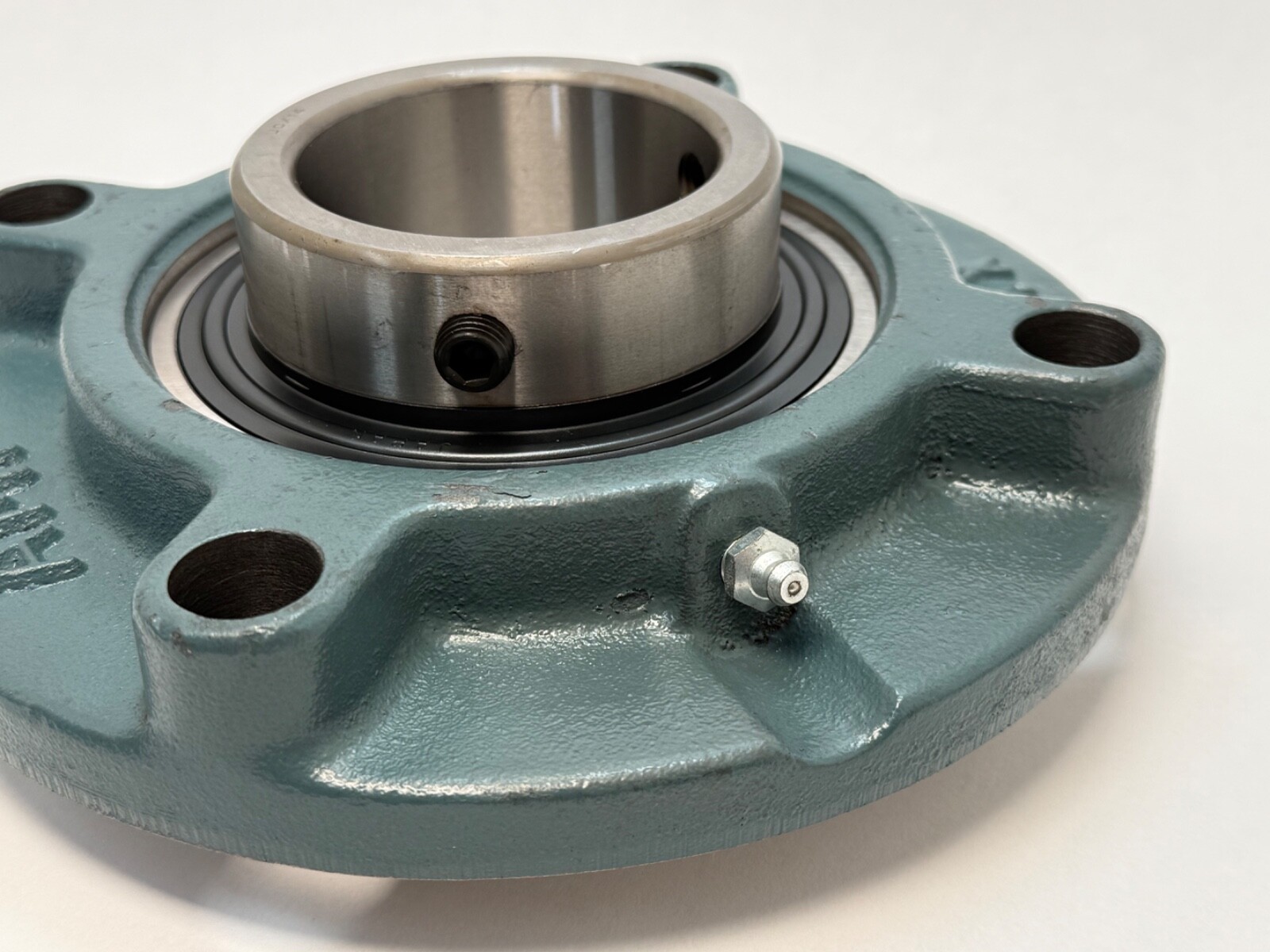

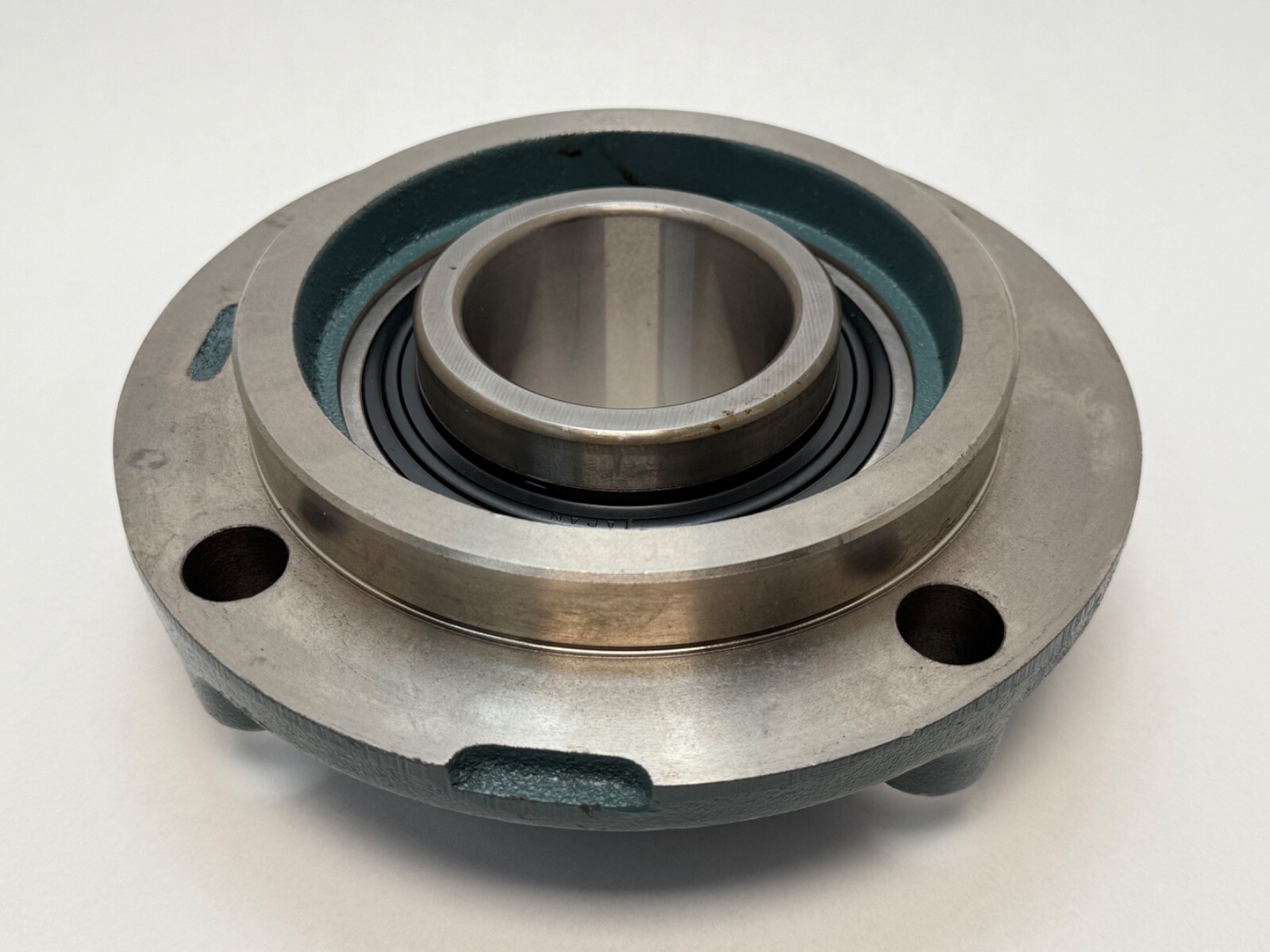

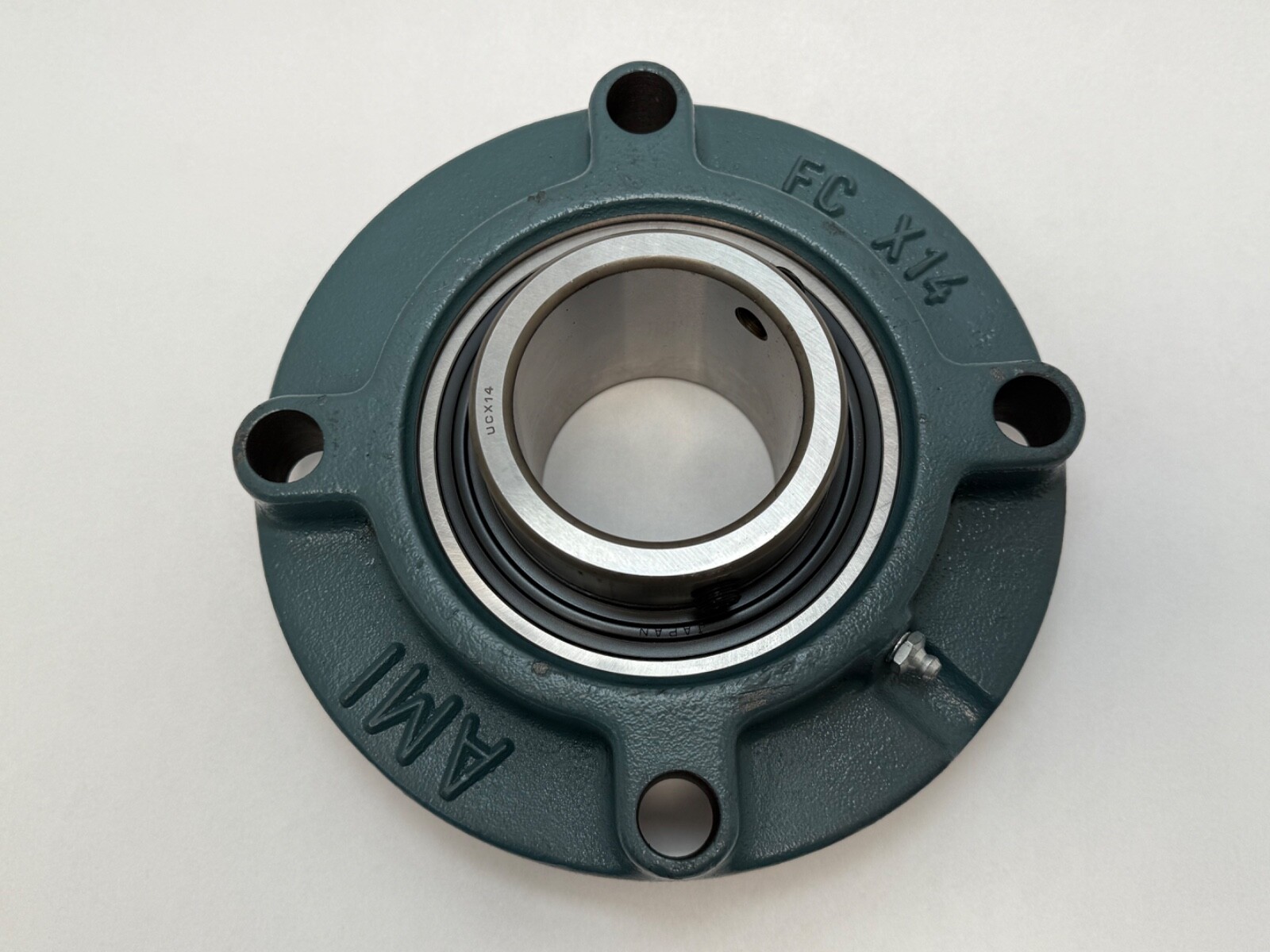

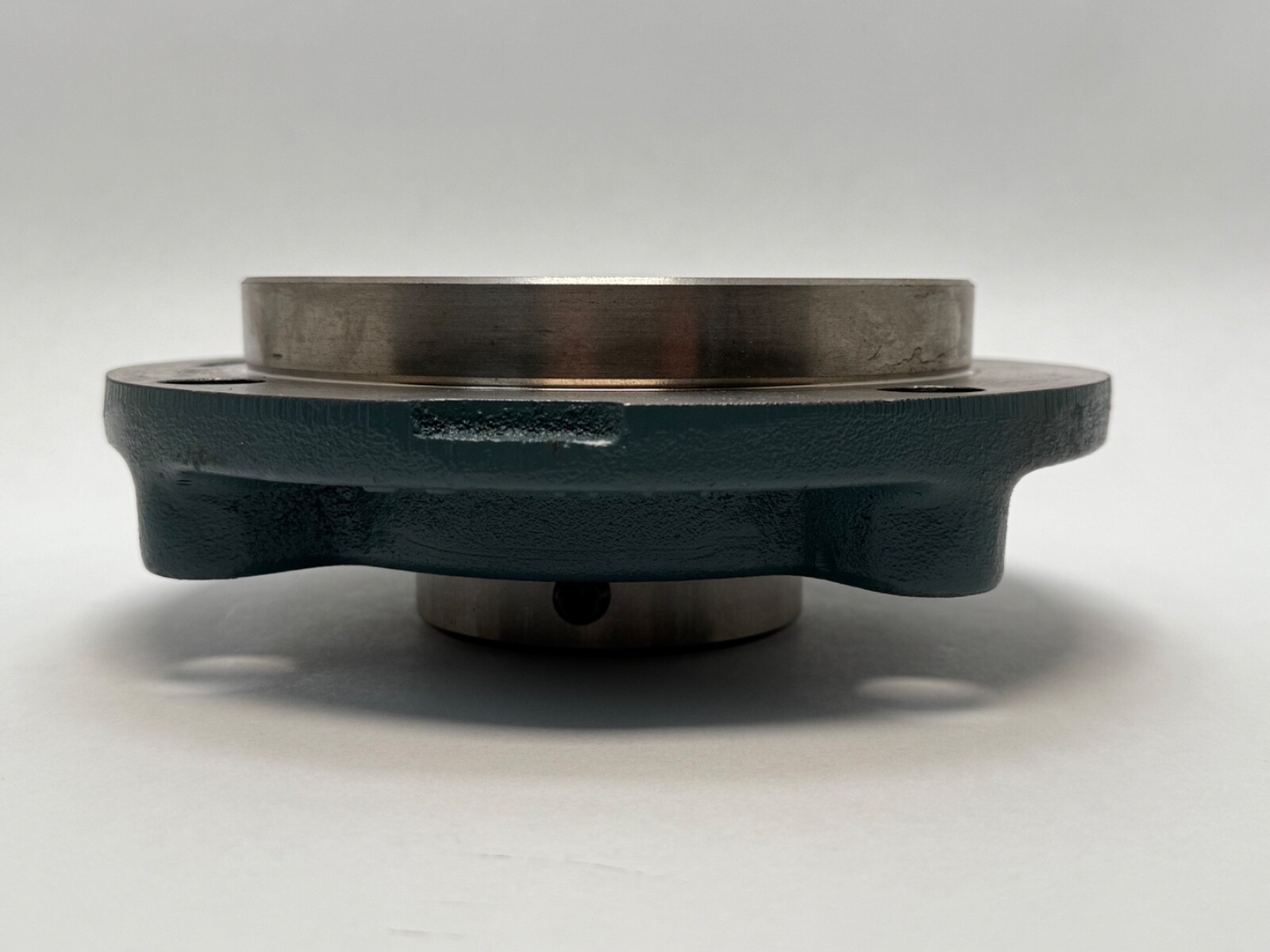

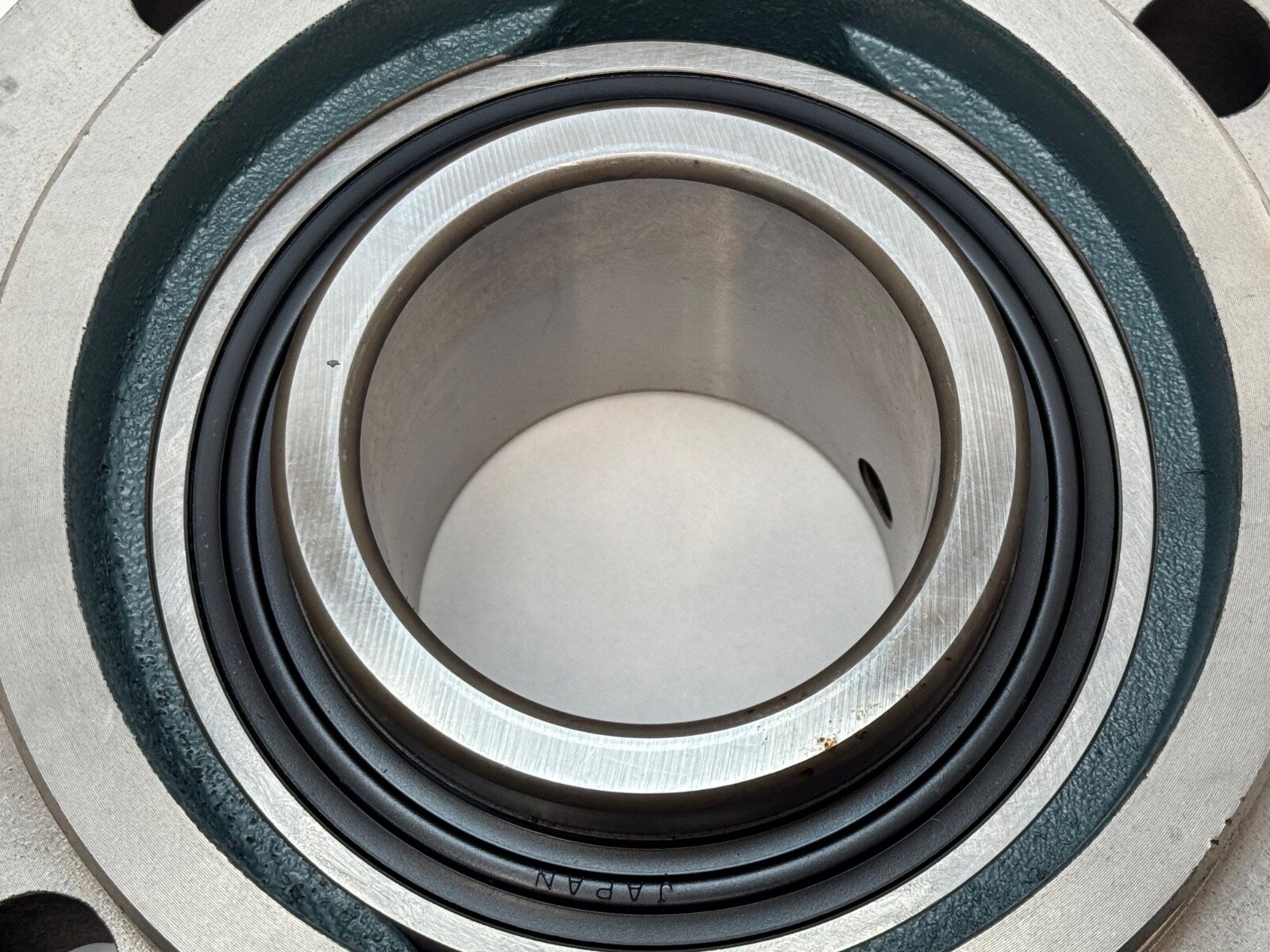

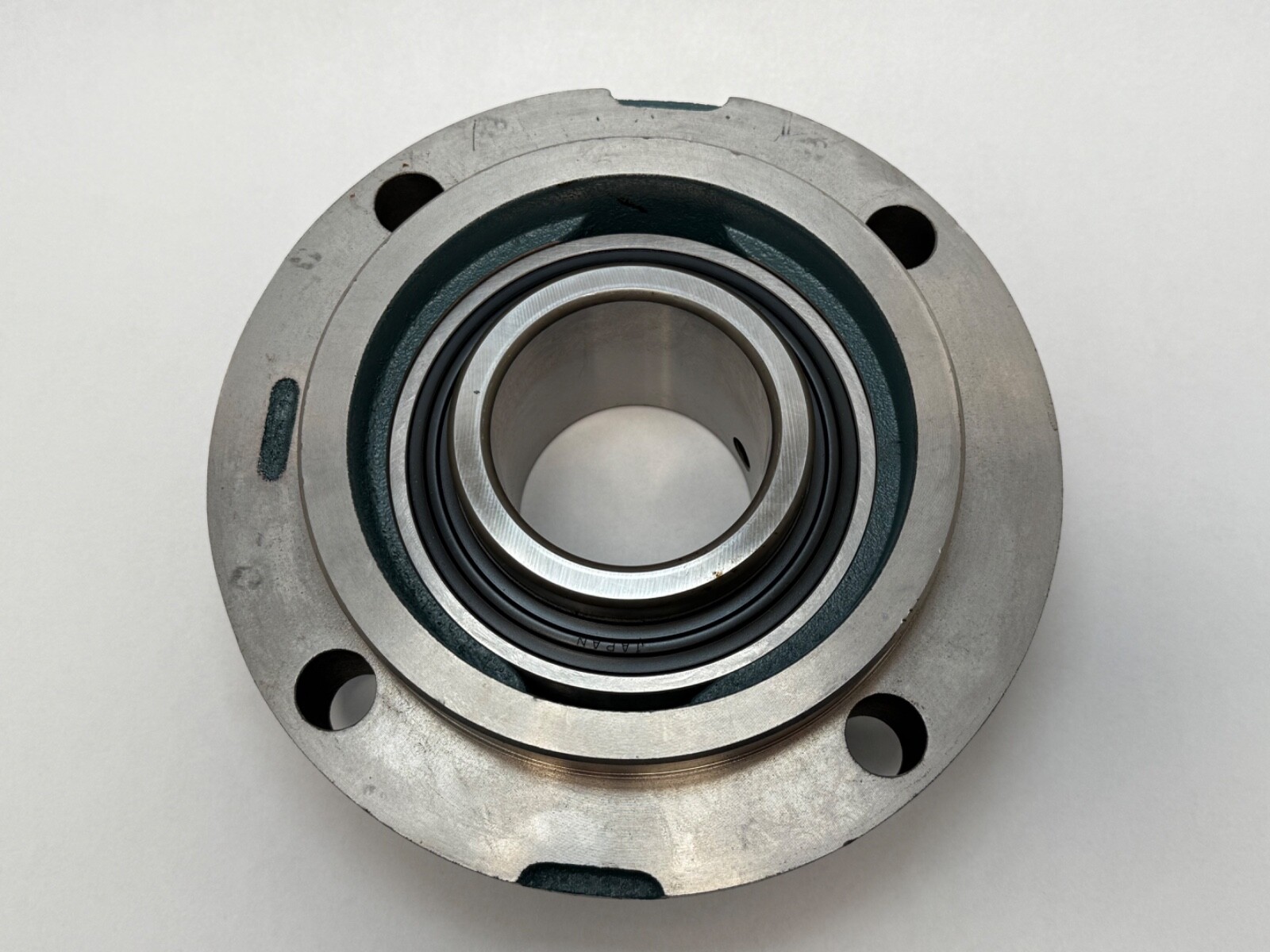

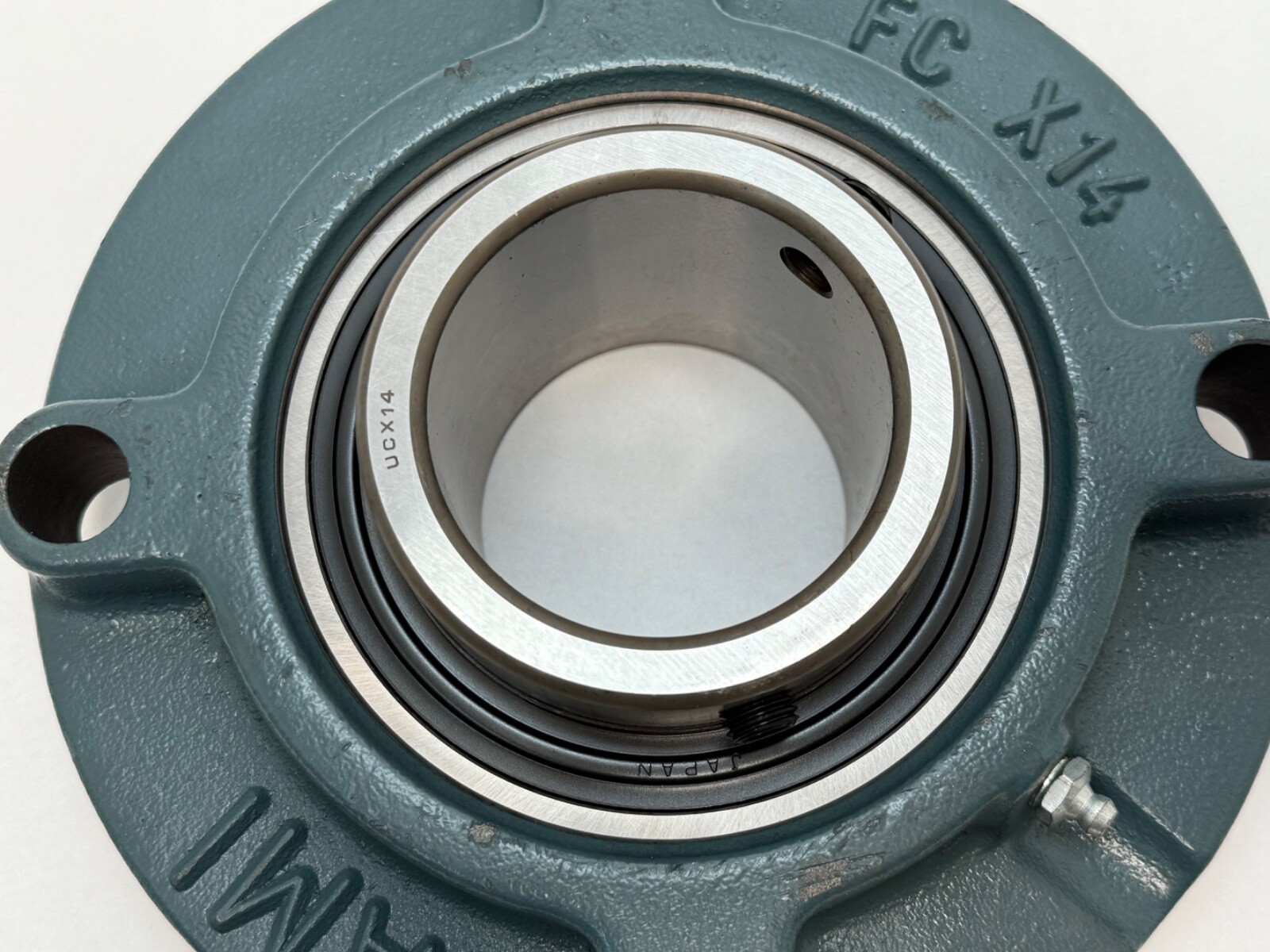

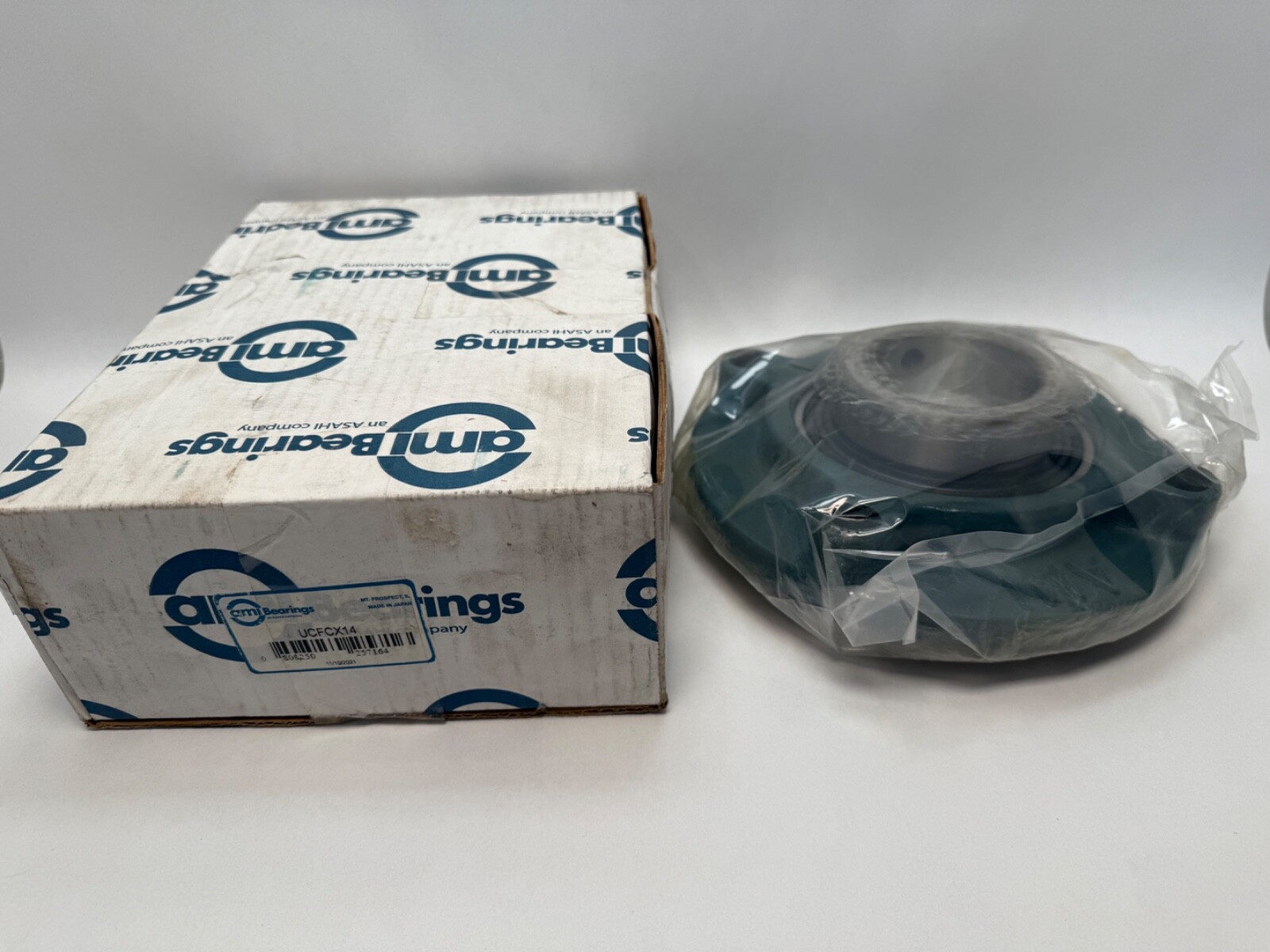

AMI UCFCX14 piloted flange cartridge ball bearing unit, 70 mm bore, 4-bolt 190 mm bolt circle, cast iron housing, set screw locking, UCX14 medium-duty insert.
List Price
$101.25
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | AMI |
|---|---|
| GTIN | 0808250257164 |
| Model | UCFCX-14 |
| ID | 70 mm |
| Material | Cast Iron |
|---|---|
| Type | Piloted Flange Cartridge Bearing |
| Bearing Insert Type | Ball |
| Replacement Insert | UCX14 |
| Mpn Variants | UCFCX14, UCFCX-14, UCFCX 14 |
| Min Temp | 0°F |
| Dynamic Load Rating | 6,750 kgf |
| Static Load Rating | 4,900 kgf |
| Series | UCFCX00 |
| Max Temp | 212°F |
| Item Weight | 16.5 lb |
| Cage Material | Steel |
| Duty Type | Medium Duty |
| Locking Device | Set Screw |
| Relubrication Feature | Yes, 1/8-27 NPT fitting tap |
| Housing Material | Cast Iron |
| Bearing Material | AISI 52100 Steel |
AMI UCFCX14 is a set screw locking piloted flange cartridge ball bearing unit from the AMI UCFCX00 medium-duty series. It pairs a UCX14 wide inner ring bearing insert with an FCX14 cast iron piloted flange cartridge housing for a 70 mm shaft.
UC — wide inner ring ball bearing insert with set screw locking.
FC — piloted flange cartridge housing, four-bolt.
X — AMI medium-duty series, one size heavier than the 200 series.
14 — size code for a 70 mm bore.
Shaft Diameter: 70 mm. Bearing Insert: UCX14. Housing: FCX14. Housing Material: Cast Iron. Insert Material: AISI 52100 Steel. Locking Device: Set Screw (120°). Seal Type: Contact seal and slinger. Cage Material: Steel. Outer Ring: Spherical OD. Lubrication: Prelubricated and relubricatable. Lubrication Fitting Tap: 1/8-27 NPT. Duty Type: Medium Duty. Operating Temperature: 0°F to 212°F. Dynamic Load Rating (insert): 6,750 kgf. Static Load Rating (insert): 4,900 kgf. Unit Weight: 16.5 lb.
Flange Diameter (a): 222 mm. Bolt Circle Diameter (p): 190 mm. Pilot Diameter (f): 164 mm. Bolt Size: M16. Bolt Hole (s): 19 mm. Flange Thickness (J): 20 mm. Pilot Height (K): 14 mm. Unit Standoff (Z): 58.5 mm. Length Through Bore (Bi): 77.8 mm. Dimension e: 134.3 mm. Dimension g: 36 mm. Mounting Type: 4-bolt piloted flange.
Replacement insert: AMI UCX14. Replacement housing: AMI FCX14. MPN variants: UCFCX14, UCFCX-14. Inch-bore sibling in the same housing: UCFCX14-44 (2-3/4 in).
Shaft Diameter: 70 mm, locked with two set screws at 120°. Bolt Pattern: four M16 bolts on a 190 mm bolt circle, 164 mm pilot diameter, 222 mm flange.
