Two-bolt cast iron pillow block for a 1 in shaft, Grip-Tight concentric locking adapter, non-expansion, relubricatable, contact lip seal with flinger.
List Price
$40.57
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | P2B-GT-100 |
| GTIN | 782475885725 |
| Model | P2B GT 100 129157 |
| ID | 1 in |
| Material | Cast Iron |
|---|---|
| Series | GT |
| Type | Pillow Block Bearing |
| Base Number | P2B-GT-100 |
| Industry Terms | pillow block, plummer block, 2-bolt bearing, mounted unit, Grip-Tight bearing, GT block |
| Common Misspellings | Dodge P2BGT 100, P2B GT100, pillowblock, pillow-block, Grip Tite, Griptight |
| Application Types | Conveyors, fans, blowers, agricultural equipment, material handling |
| Centre Height Base To Bore Centerline | 1.438 in (1-7/16 in / 36.5 mm) |
| Bolt Center To Center | 4.1 in nominal (3.688 in - 4.5 in slot range) |
| Number Of Bolt Holes | 2 |
| Number Of Bolt Holes For Fasteners | 2 |
| Bearing Insert Type | Ball |
| Bore Shaft Size | 1 in (25.4 mm) |
| Housing Style | 2-bolt pillow block, cast iron |
| Locking Method | Grip-Tight adapter, 360 degree concentric grip |
| Mpn Variants | P2B-GT-100, P2BGT100, P2B GT 100, 129157, P2BGT-100 |
| Rolling Elements | Ball |
| Bearing Type | Mounted ball bearing unit |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Duty Type | Standard |
| Locking Device | Grip Tight |
| Harmonization Code | 8483.20.40.40 |
| Housing Material | Cast Iron |
| Expansion Type | Non-Expanding |
| Part Number | 129157 |

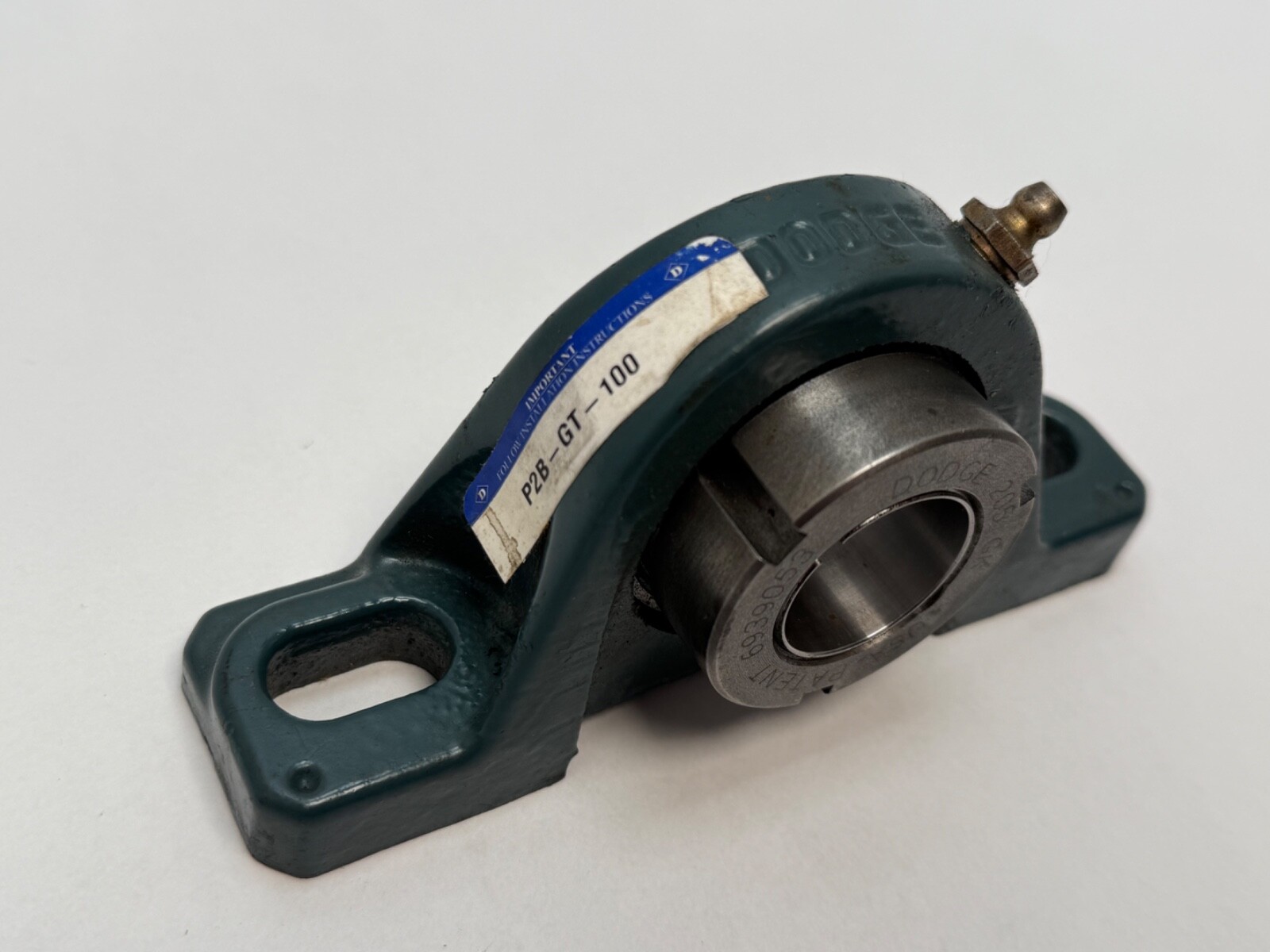

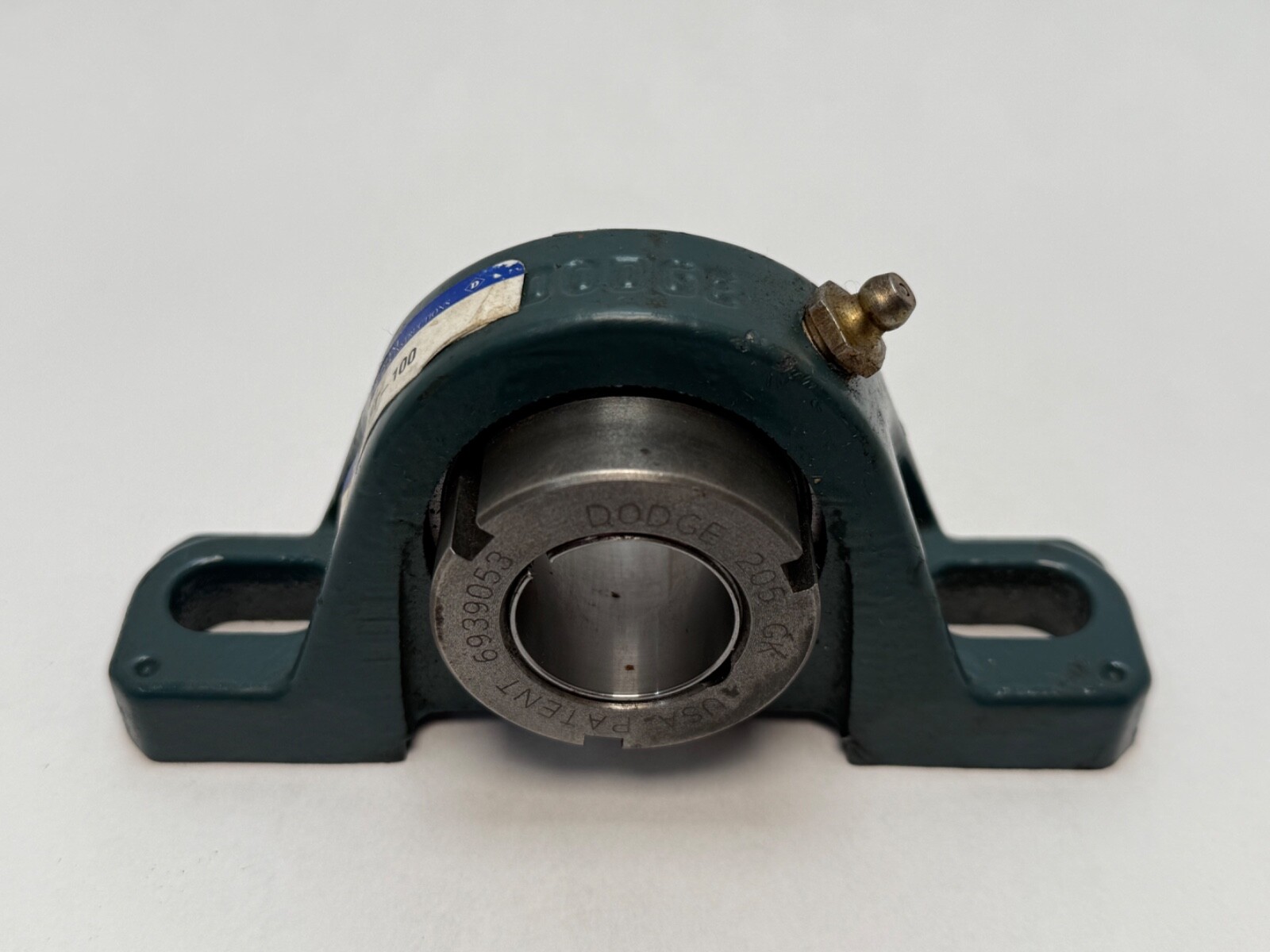

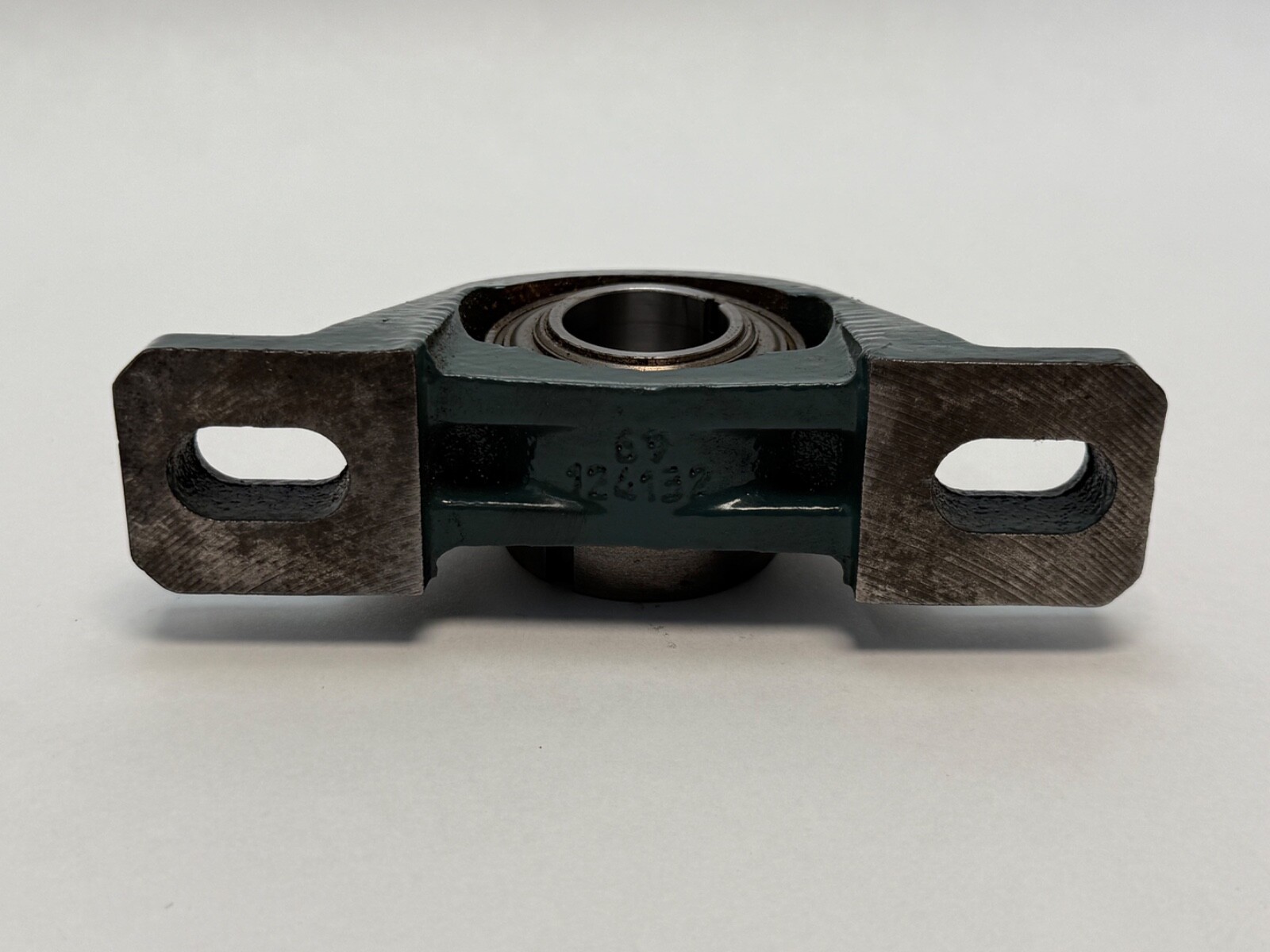

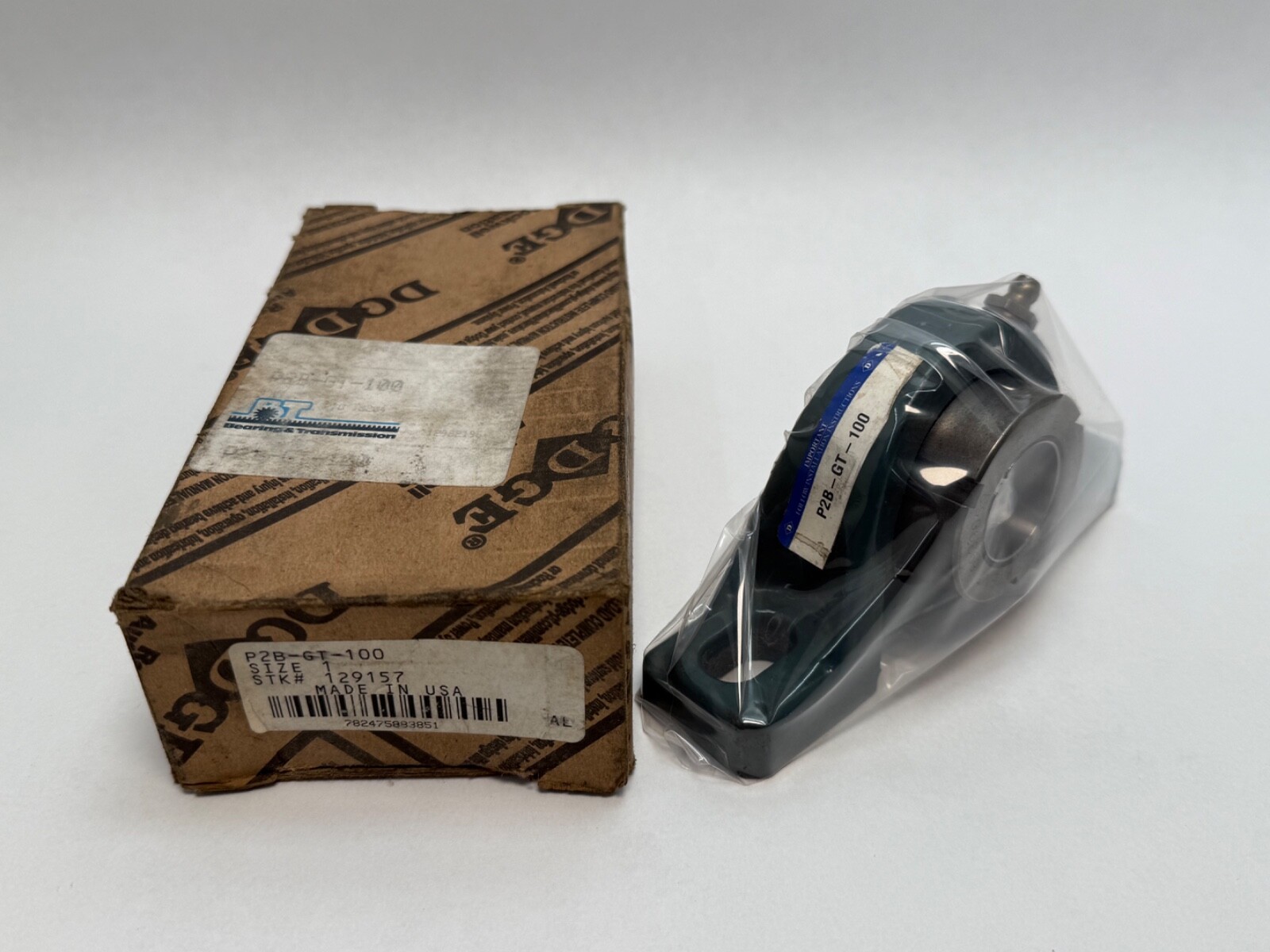

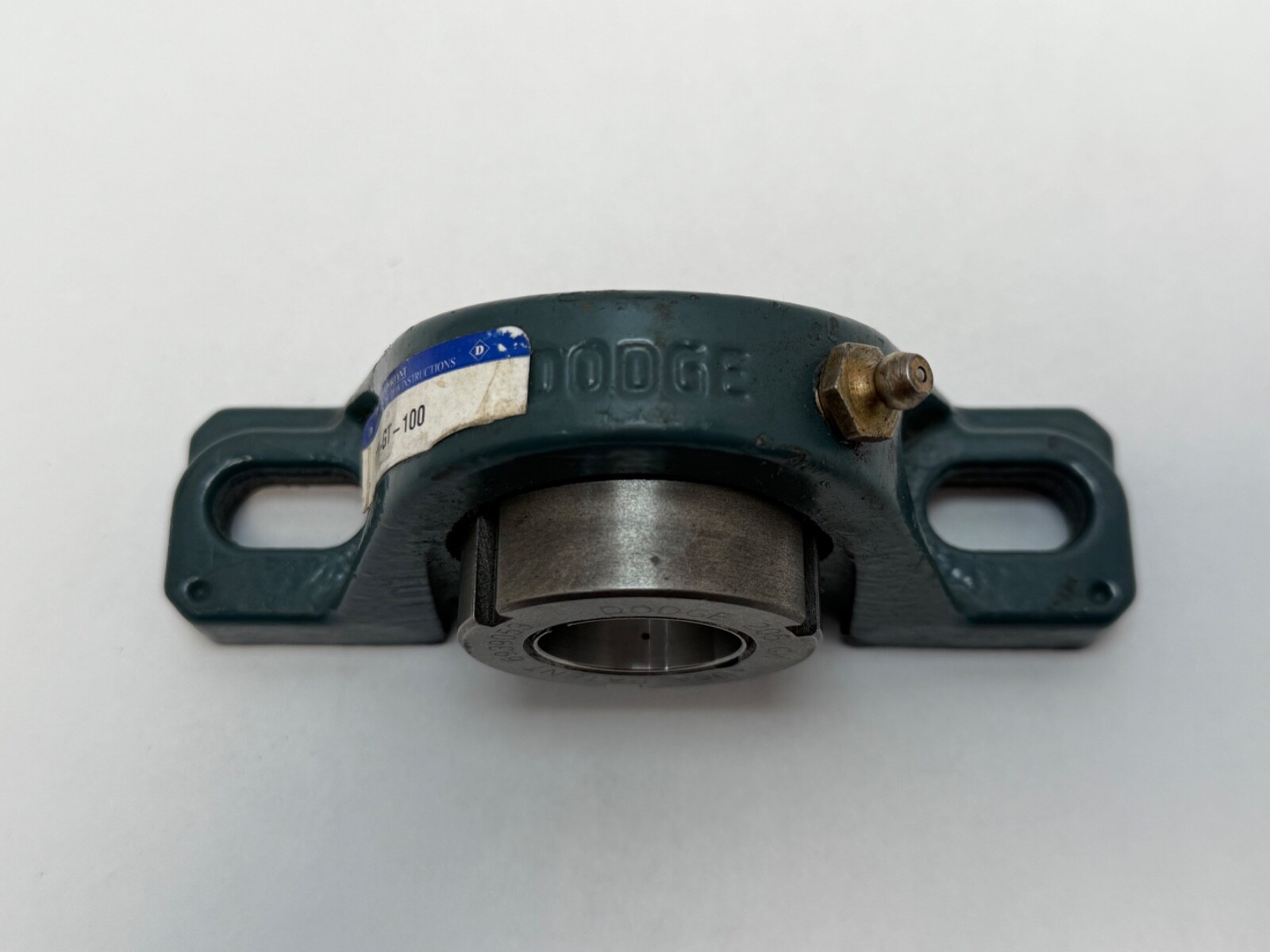

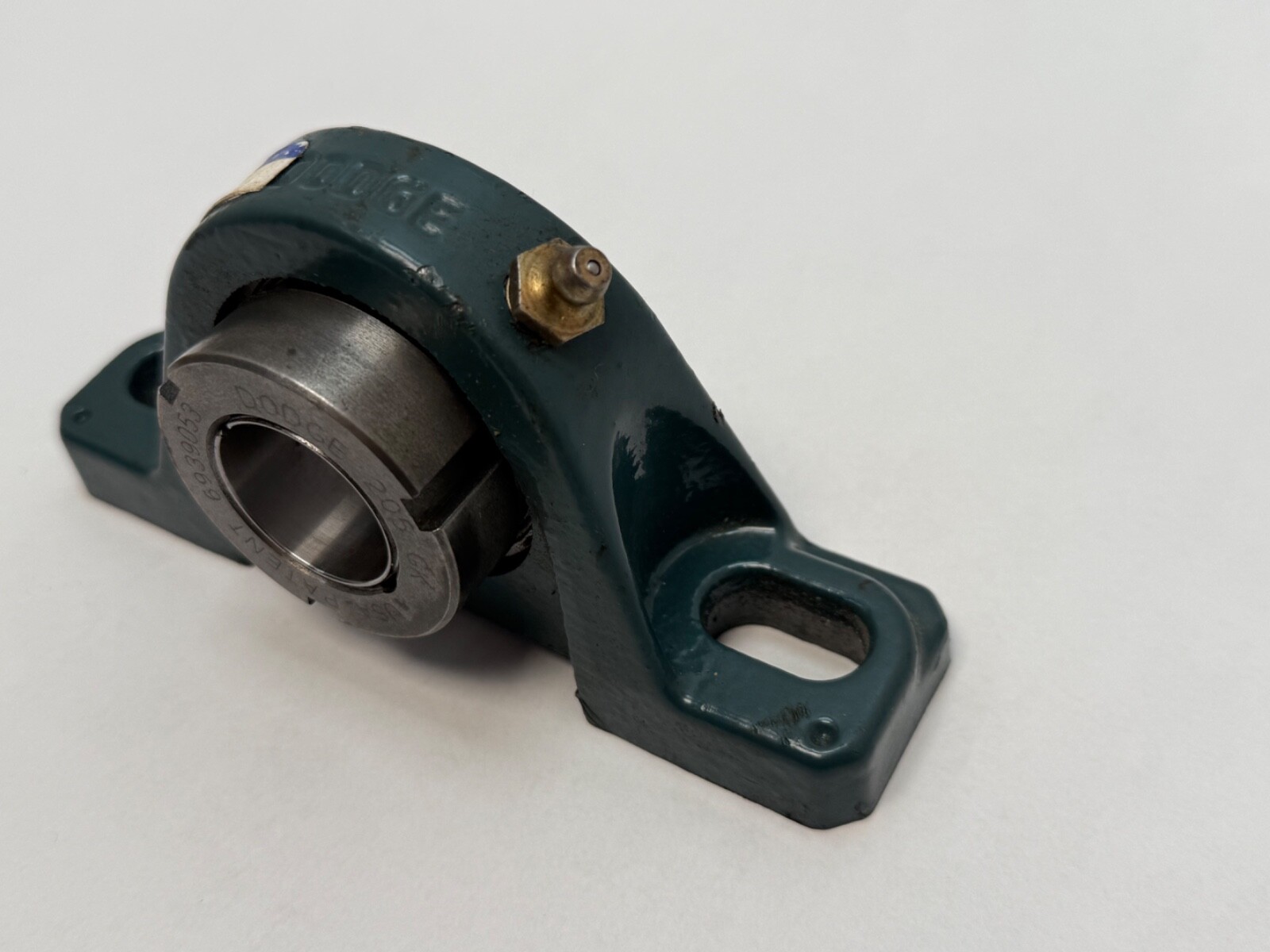

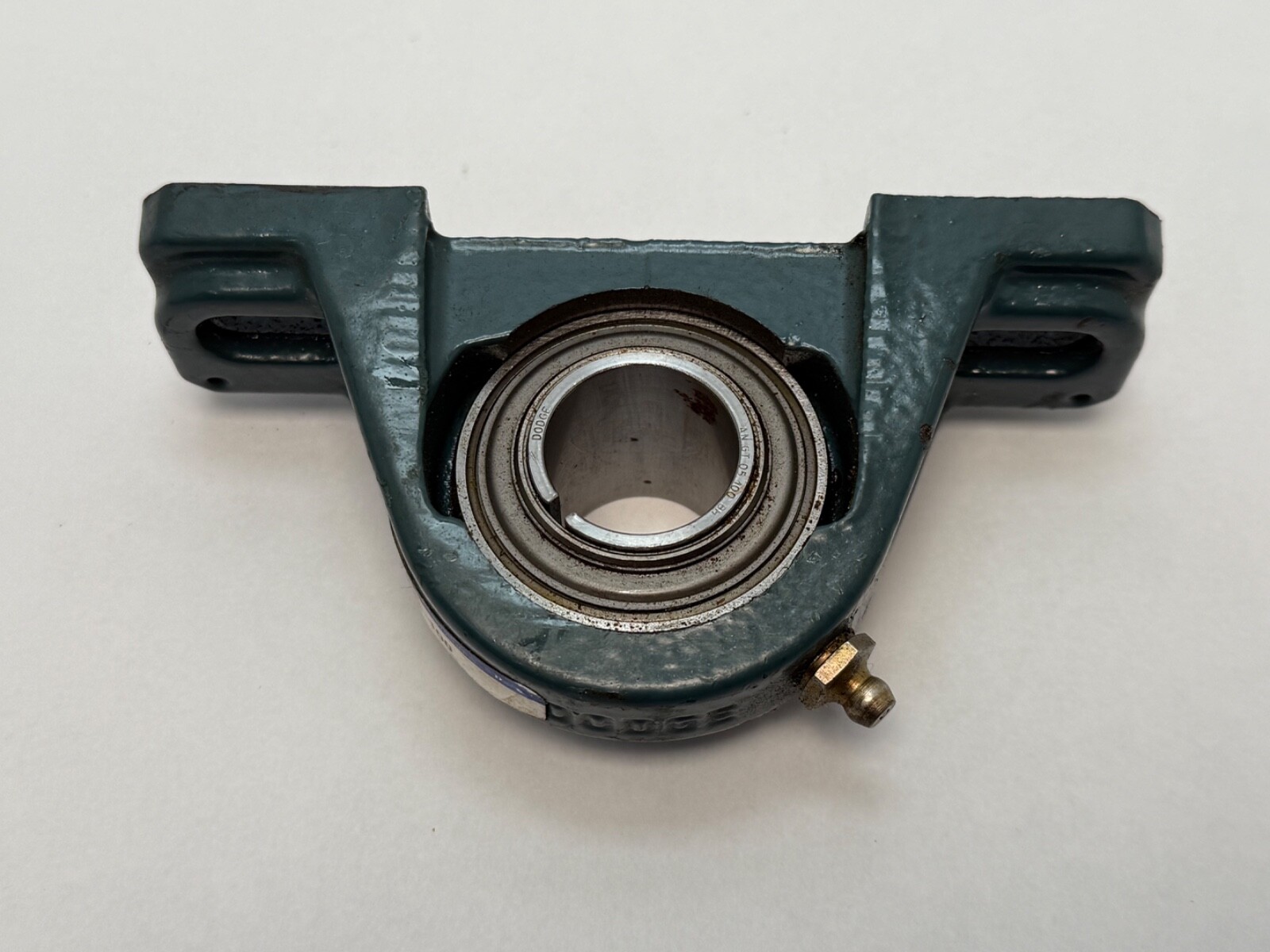

Dodge P2B-GT-100 mounted ball bearing unit, Dodge part number 129157. Two-bolt cast iron pillow block for a 1 in (25.4 mm) round-bore shaft with a Grip-Tight adapter locking system. One complete unit: cast iron housing, ball insert and Grip-Tight adapter assembled. Unit Quantity: 1 Pc.
P2B — Dodge two-bolt pillow block housing.

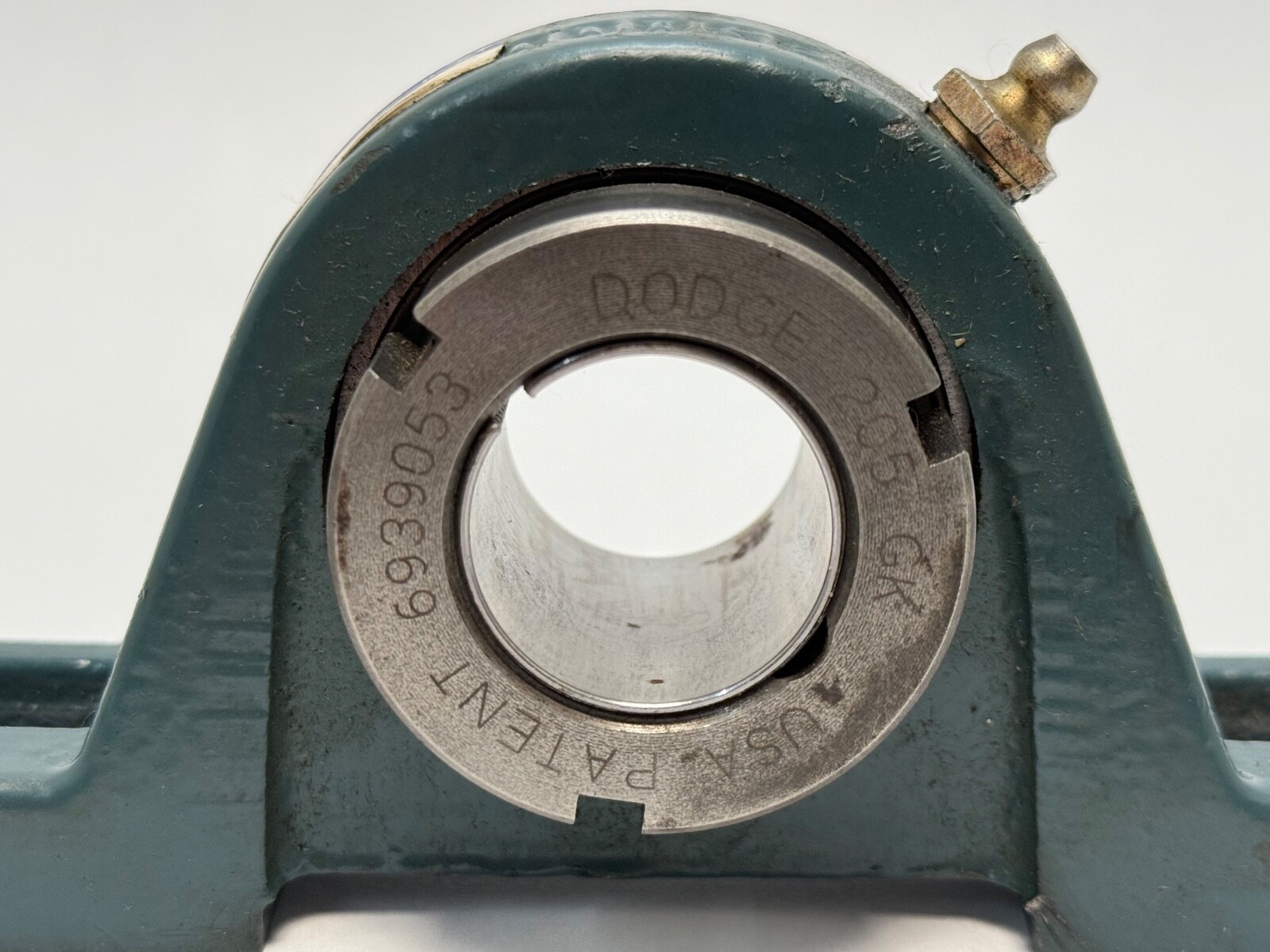

GT — Grip-Tight adapter-mounted locking system.
100 — 1 in bore.
129157 — Dodge / Baldor part number for this configuration.
Brand: Dodge. Housing Style: Two-bolt pillow block, cast iron. Bore / Shaft Size: 1 in (25.4 mm). Bore Type: Straight, round. Bearing Type: Mounted ball bearing unit. Number Of Rows: 1. Rolling Elements: Balls. Locking Method: Grip-Tight adapter, 360° concentric grip. Expansion Type: Non-expansion (fixed). Closure Type: Contact lip seal with flinger. Housing Material: Cast iron. Insert Material: Steel. Relubrication: Grease fitting. Duty: Standard. Dynamic Load Rating: 3,146 lbf. Static Load Rating: 1,769 lbf. Design Units: Inch. Harmonization Code: 8483.20.40.40.
Bolt Centre To Centre: 4.1 in nominal, over a 3.688 in to 4.5 in slot range. Base To Shaft Centre Height: 1.438 in (1-7/16 in / 36.5 mm). Overall Length: 5-1/2 in (139.7 mm). Overall Height: 2.77 in (70.4 mm). Housing Width: 1.46 in (37.1 mm). Bore Length: 1.453 in to 1.46 in. Number Of Bolt Holes: 2. Mounting Bolt Size: 3/8 in.
Dodge F2B (two-bolt) and F4B (four-bolt) are flange-mount housings; the P2B is a pillow block that bolts to a horizontal surface below the shaft.
Two-bolt pillow blocks in a 1 in bore are also made by SealMaster (MP/NP), Link-Belt (P3U/PB) and Browning (VF); bolt centres and centre height differ by maker.
Other forms of the designation: P2B-GT-100, P2BGT100, P2B GT 100, P2BGT-100, 129157. Dodge is now Dodge Industrial, part of RBC Bearings.
A 1 in (25.4 mm) shaft, locked with a Grip-Tight adapter.
Non-expansion (fixed), so it locates the shaft axially and takes thrust.
4.1 in nominal over a 3.688 in to 4.5 in slot range, with 3/8 in mounting bolts.
