Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
29 in stock

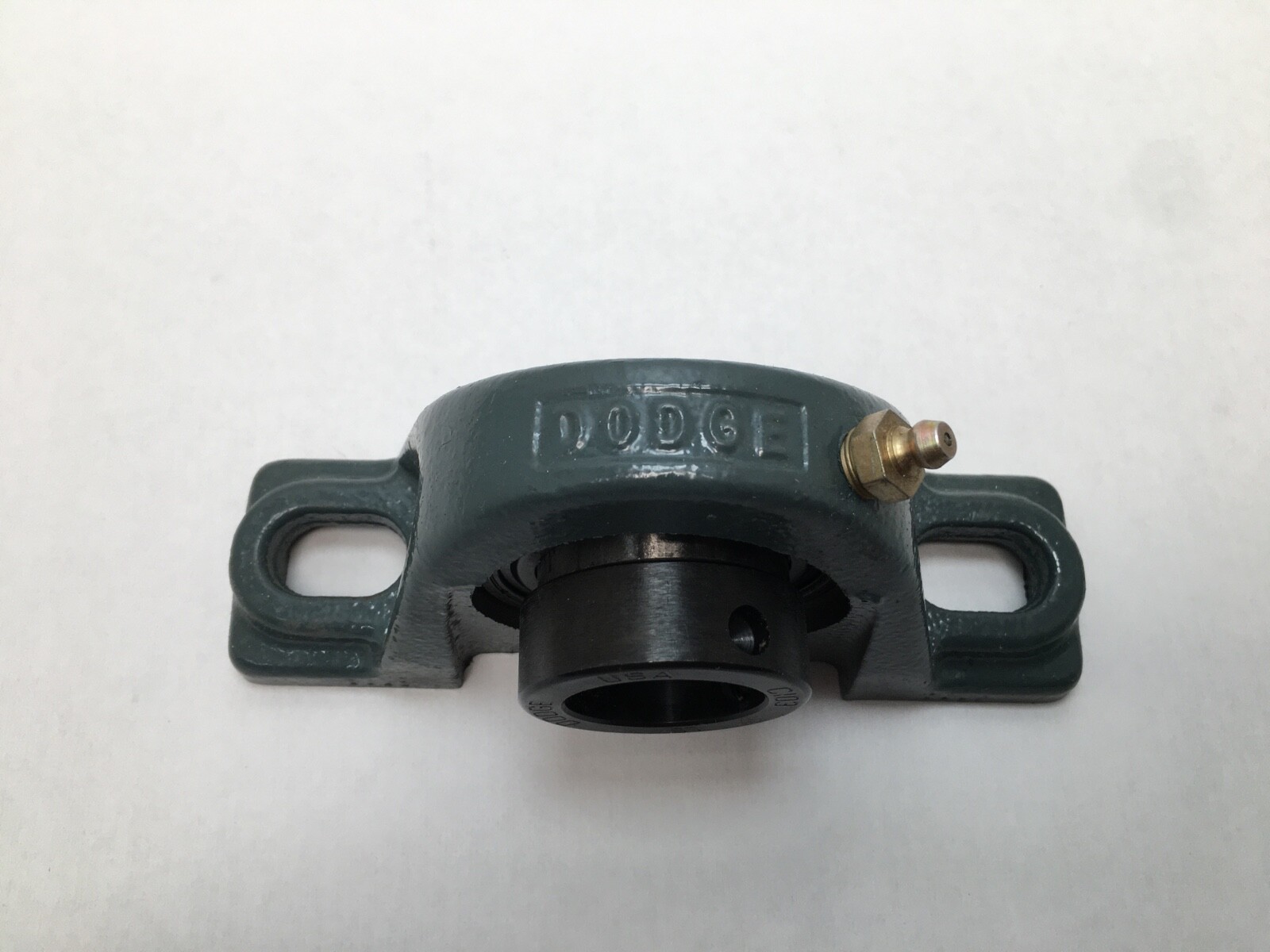

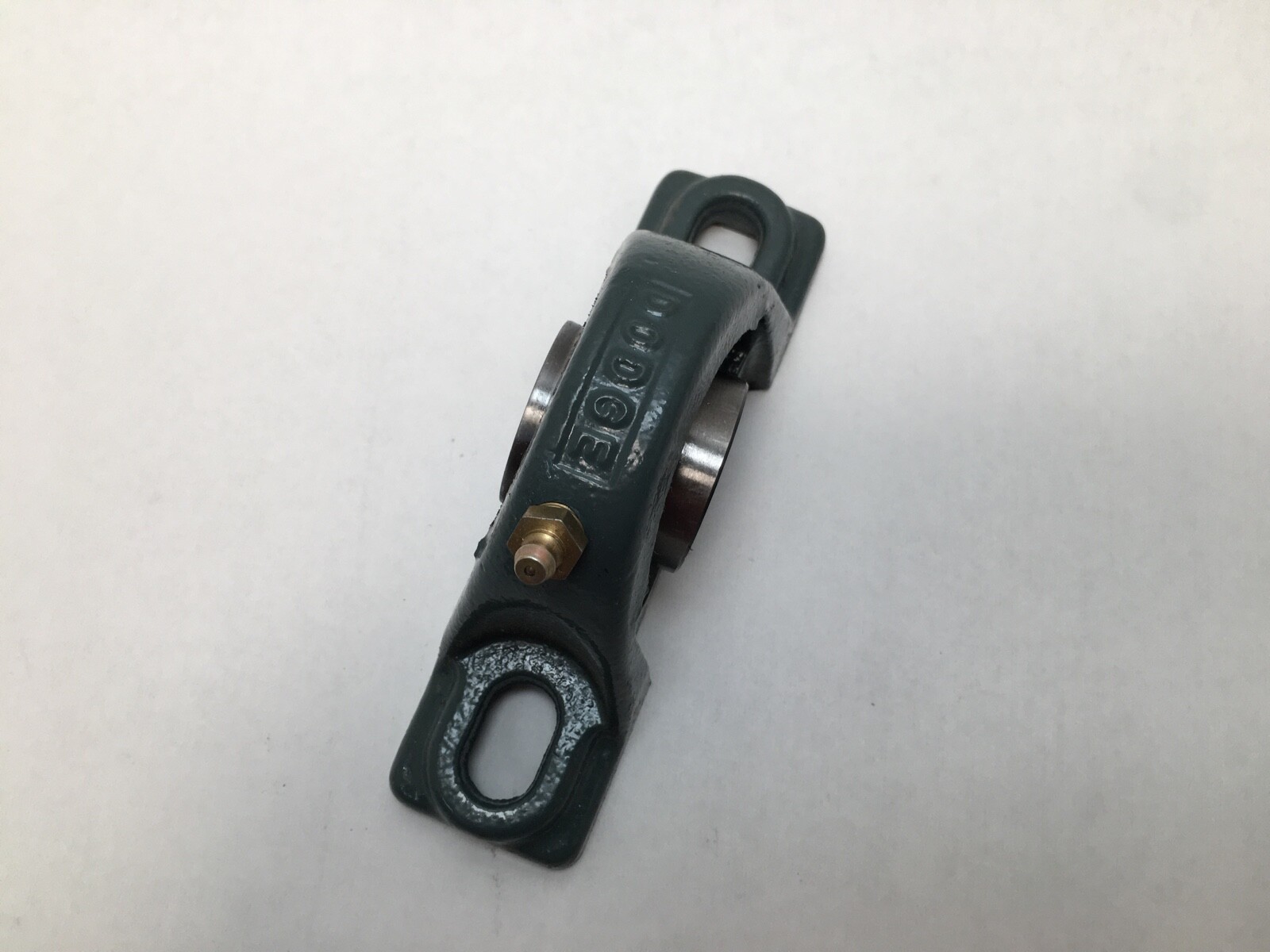

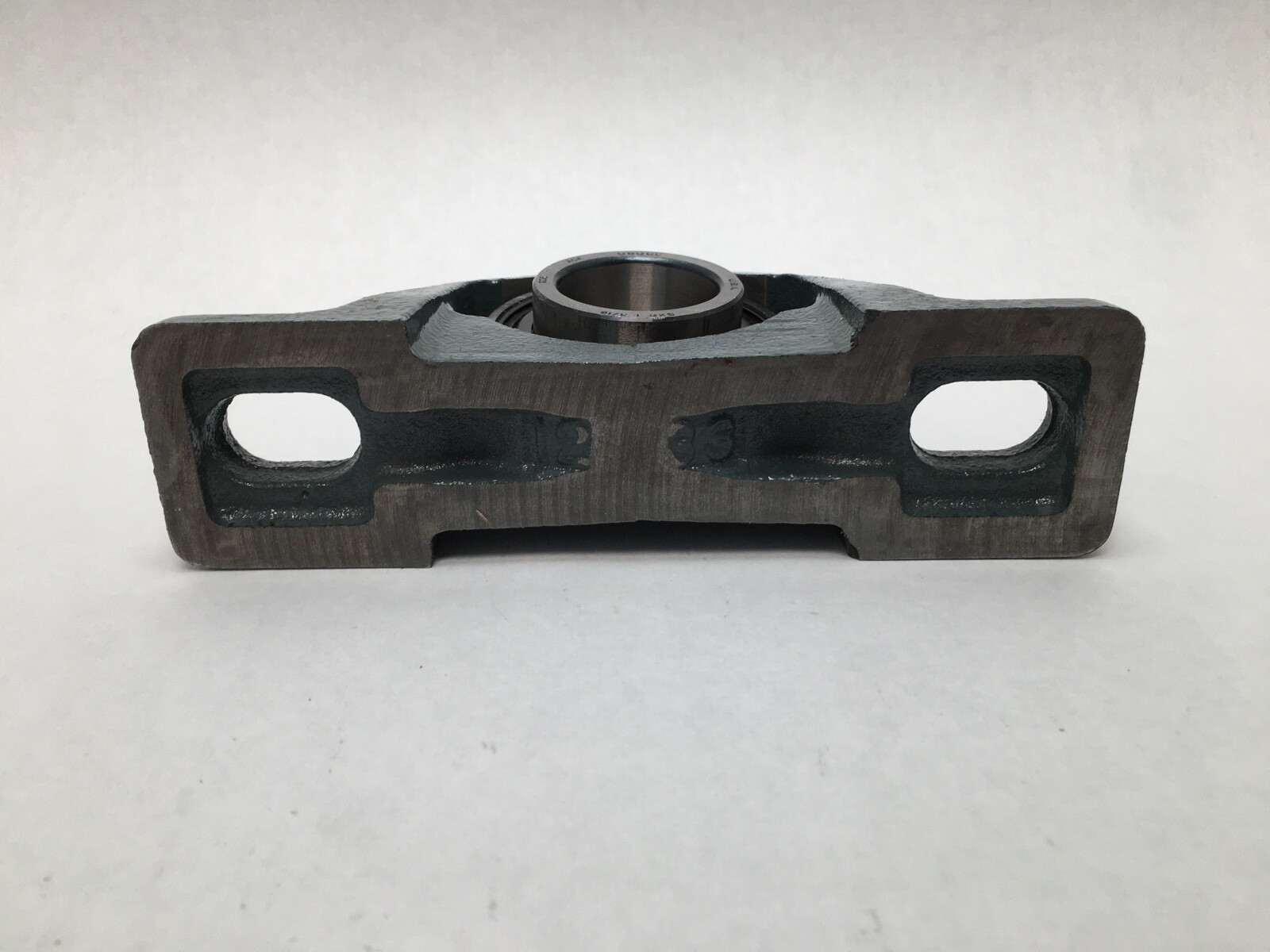

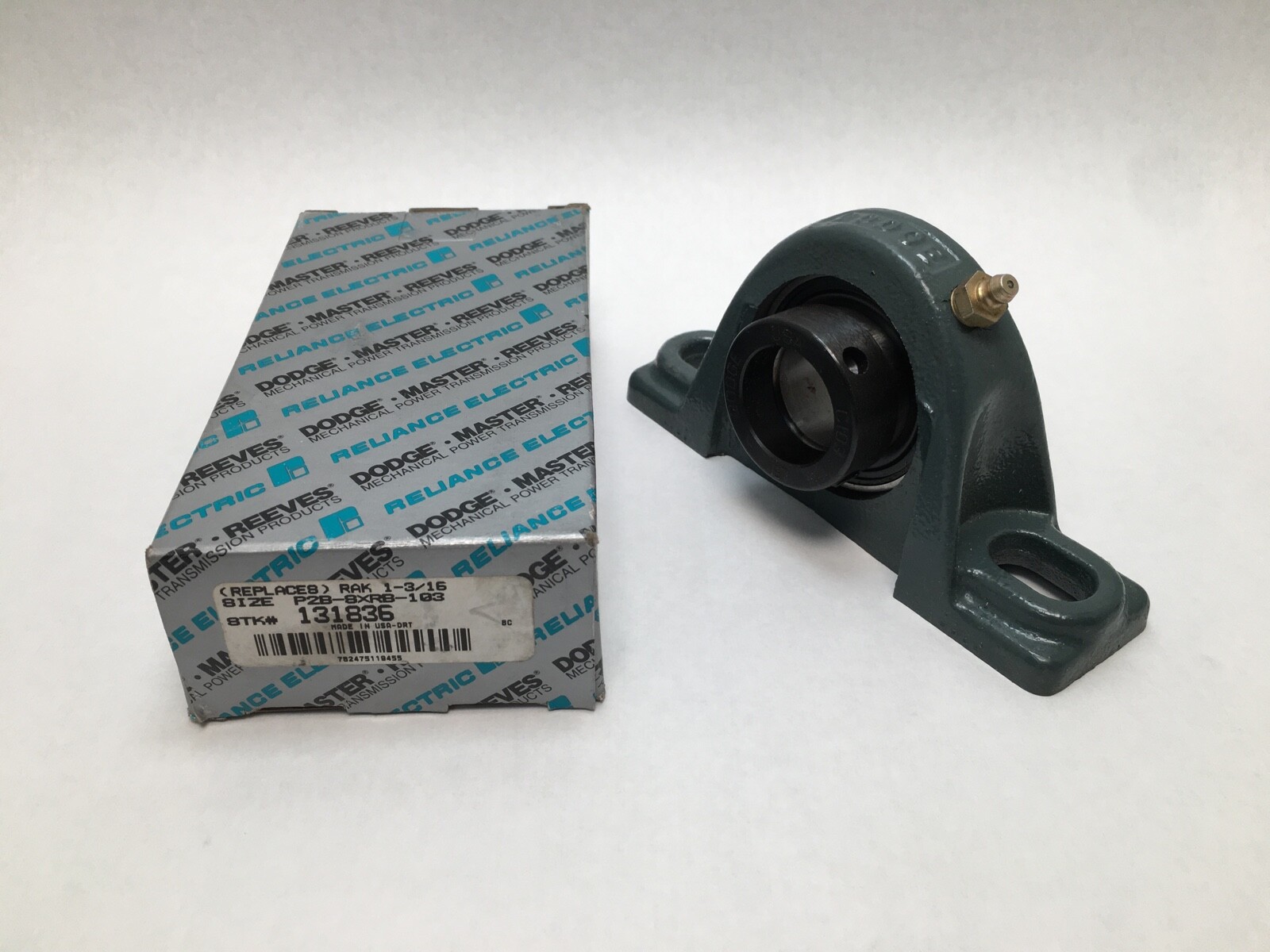

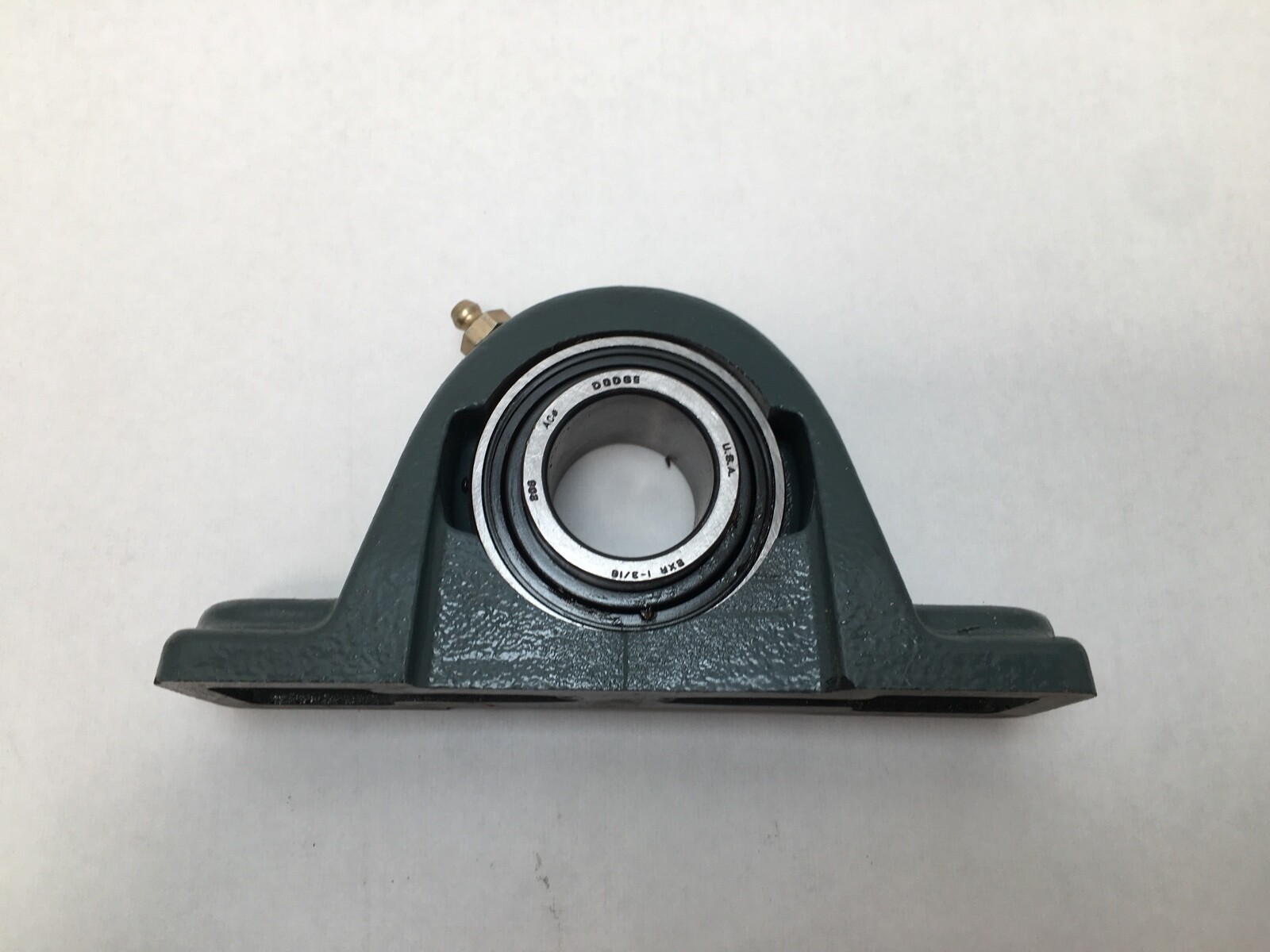

Ball bearing pillow block, 1-3/16 in bore, two-bolt cast iron housing, eccentric collar lock, 1.56 in centre height. Dodge P2B-SXRB-103, part 131836.
List Price
$31.88
29 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | P2B-SXRB-103 131836 |
| Model | P2BSXRB103 |
| ID | 1-3/16 in (1.1875 in) |
| Material | Cast Iron |
|---|---|
| Series | SXR |
| Type | Pillow Block Bearing |
| Lubricant | Grease (Unirex N2) |
| Bolt Center To Center | 4.25-5.00 in |
| Number Of Bolt Holes | 2 |
| Bolt Center To Center Length | 4.25-5.00 in |
| Centre Height Base To Bore Centerlinepillow Block | 1.5600 in |
| Number Of Bolt Holes For Fasteners | 2 |
| Centre Height | 1.5600 in |
| Housing Style | Two-Bolt Pillow Block, Solid |
| Mpn Variants | P2B-SXRB-103, P2BSXRB103, P2B SXRB 103, 131836 |
| Dynamic Load Rating | 4,368 lbf (19,430 N) |
| Static Load Rating | 2,538 lbf (11,290 N) |
| Rolling Elements | Ball |
| Bearing Type | Ball Bearing Pillow Block Unit |
| Item Weight | 1.19 kg (2.63 lb) |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 4,500 rpm |

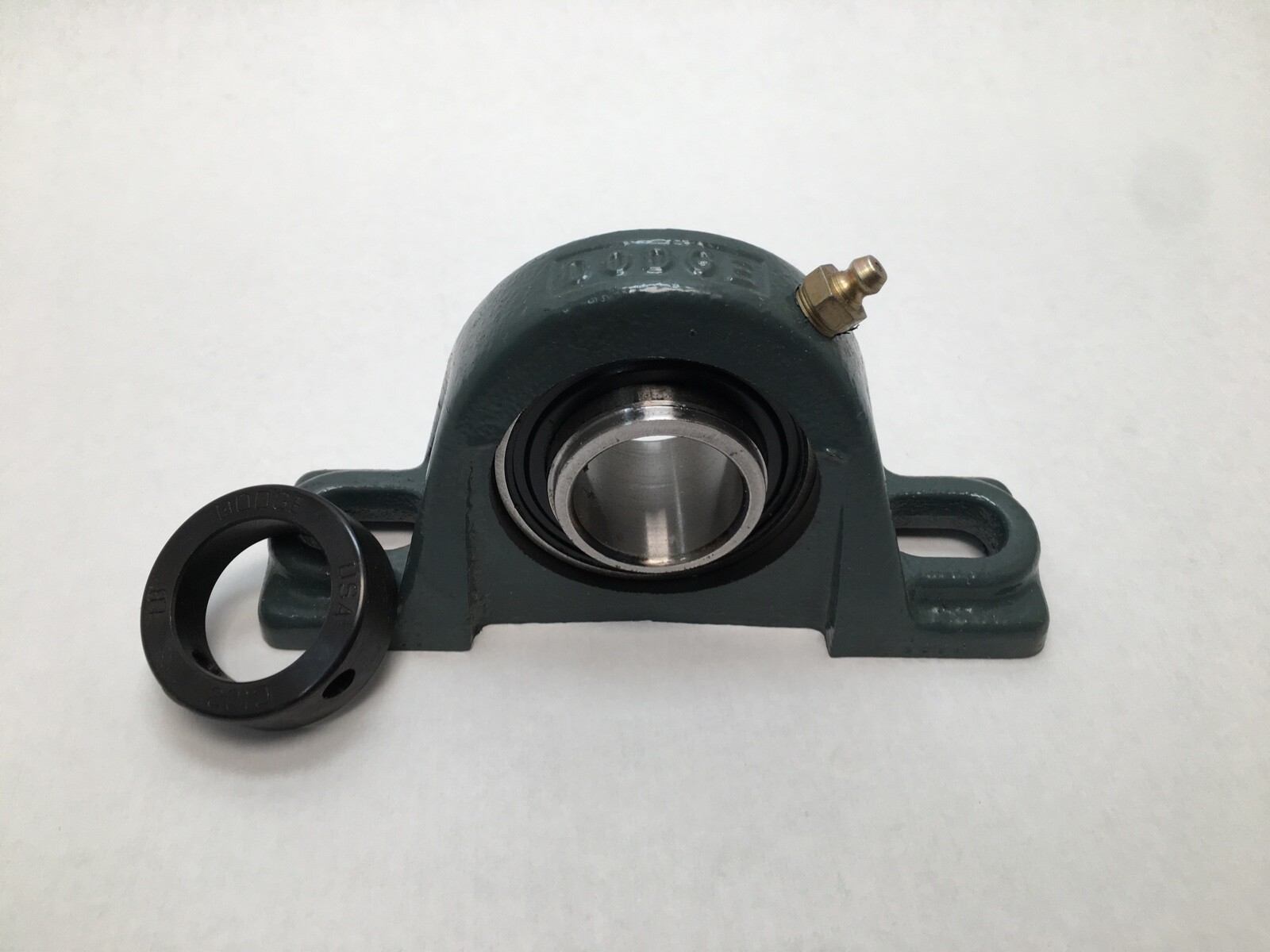

| Locking Device | Eccentric Collar |
| Harmonization Code | 8483.20.40.40 |
| Housing Material | Cast Iron |
| Expansion Type | Non-Expansion (Fixed) |

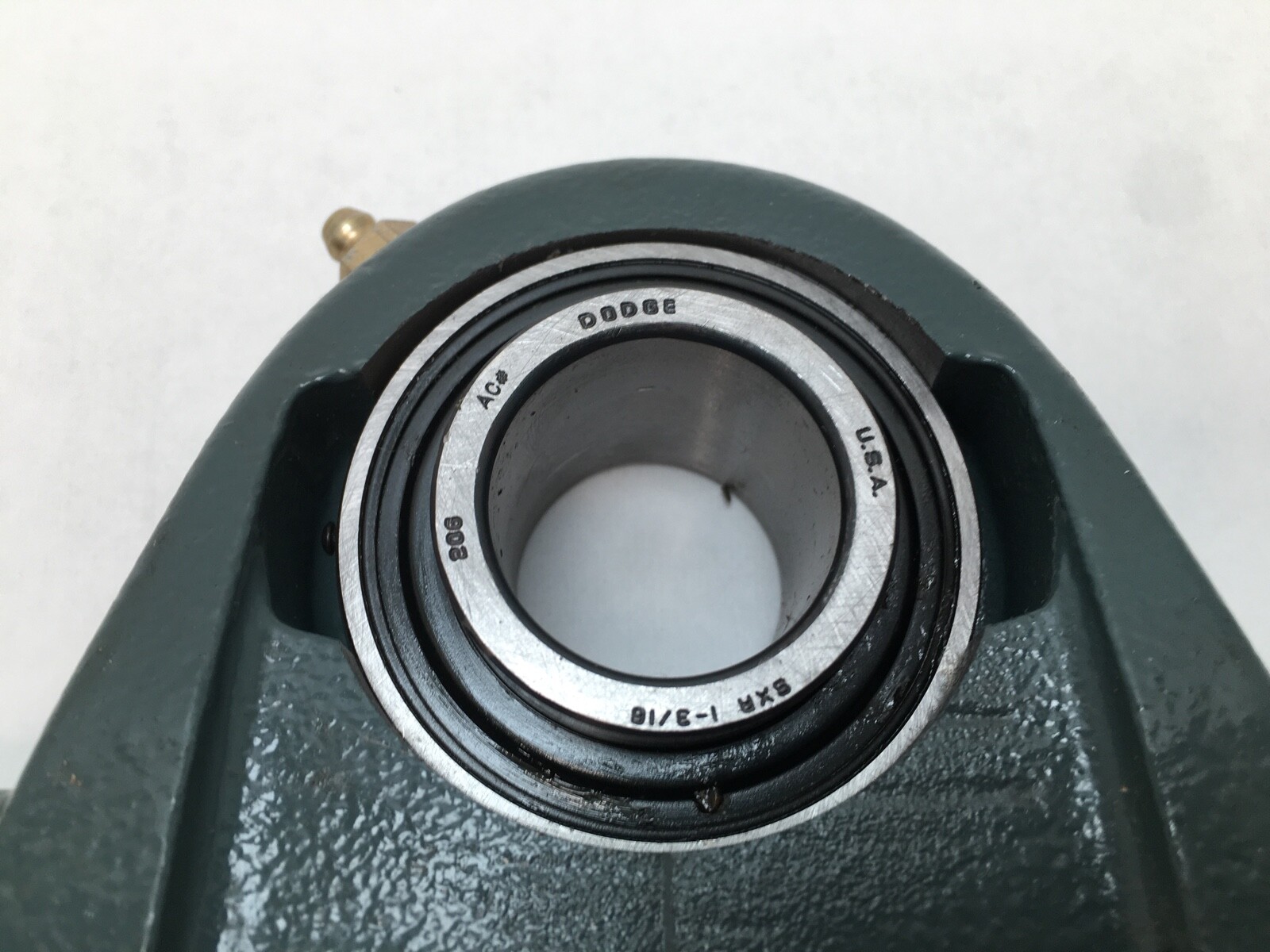

Dodge P2B-SXRB-103 two-bolt pillow block ball bearing unit, Dodge part number 131836. Bore Diameter: 1-3/16 in (1.1875 in). Bearing Type: Ball, 206 series insert. Housing Type: Two-bolt pillow block, solid housing. Housing Material: Cast iron. Locking Device: Eccentric collar. Expansion Type: Non-expansion (fixed).
P2B — Dodge two-bolt pillow block housing.
SXR — Dodge SXR eccentric collar mounted ball bearing line.
103 — shaft size, 1-3/16 in: first digit whole inches, last two digits sixteenths.
Dynamic Load Rating: 4,368 lbf (19,430 N). Static Load Rating: 2,538 lbf (11,290 N). Maximum Speed: 4,500 rpm. The eccentric collar locks the inner ring to the shaft by rotation in the direction of shaft travel. Seal Type: Single-lip contact seal. Lubricant: Grease, factory fill Unirex N2. Greasable: Yes.
Centre Height: 1.5600 in base to bore centreline. Bolt Center To Center: 4.25 to 5.00 in slotted. Bolt Diameter: 0.500 in. Length Through Bore: 1.77 in. Item Weight: 1.19 kg (2.63 lb).
Dodge lists take-up frames LD-20 and TS-250 for this unit size.
