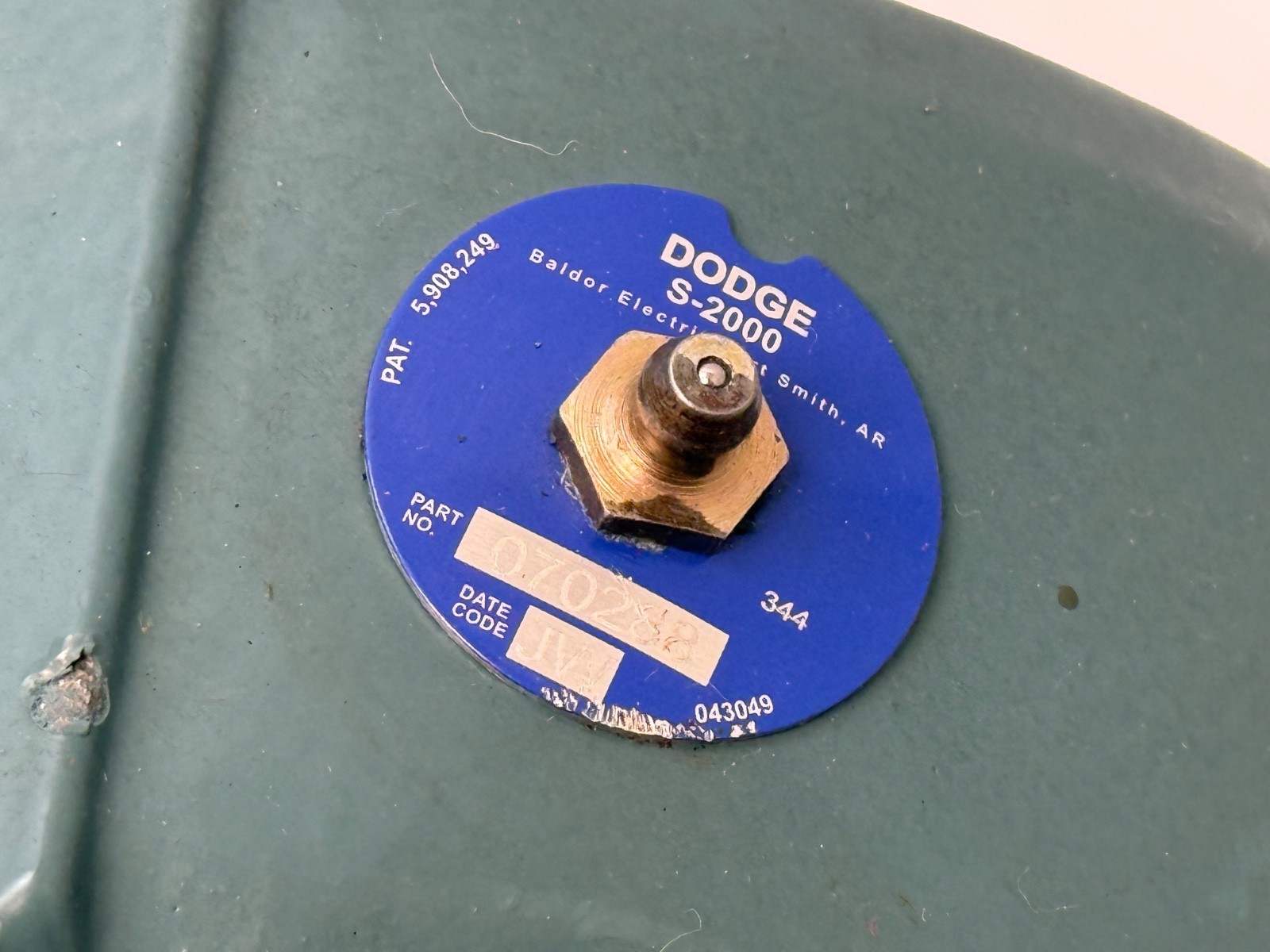

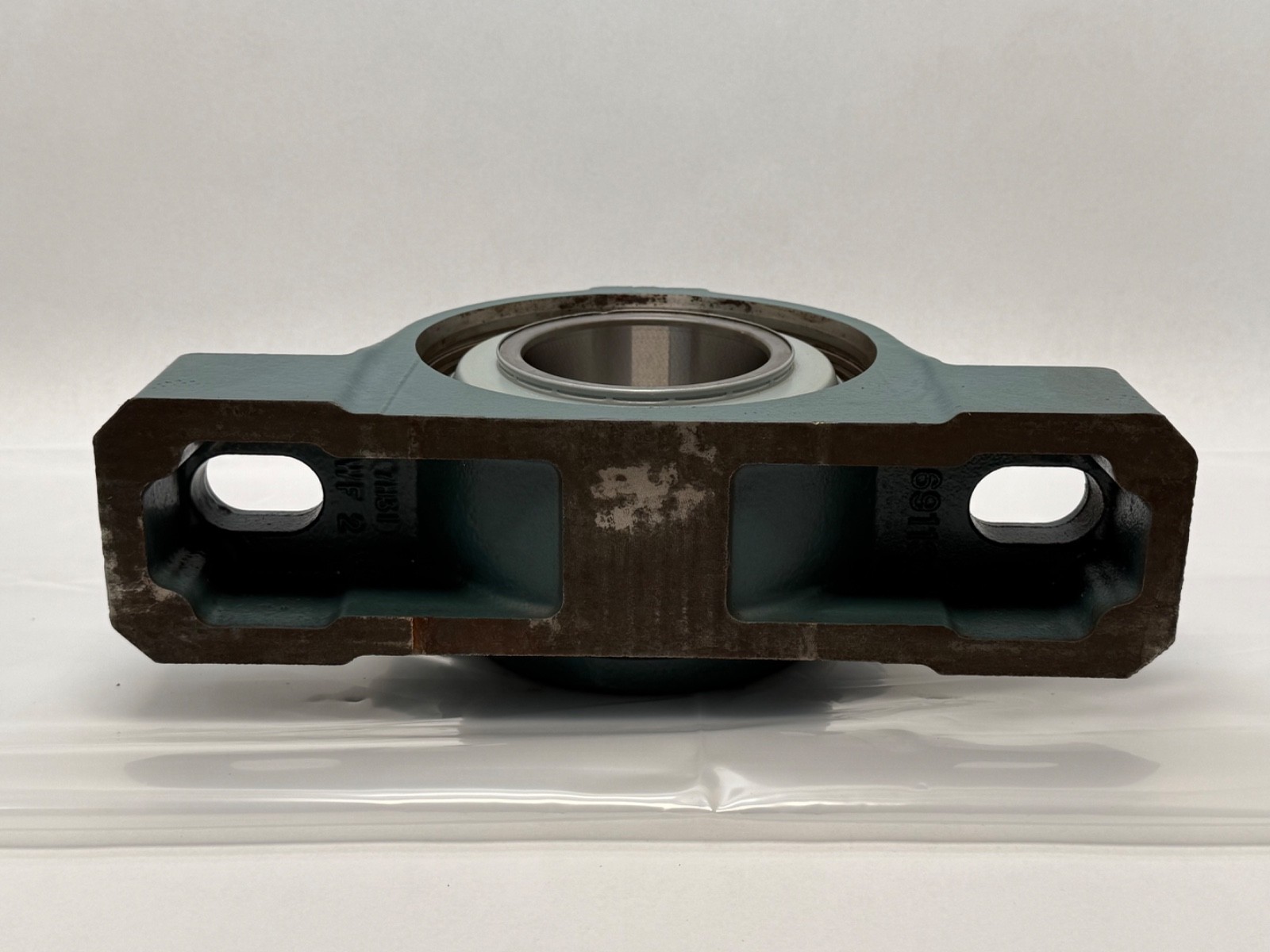

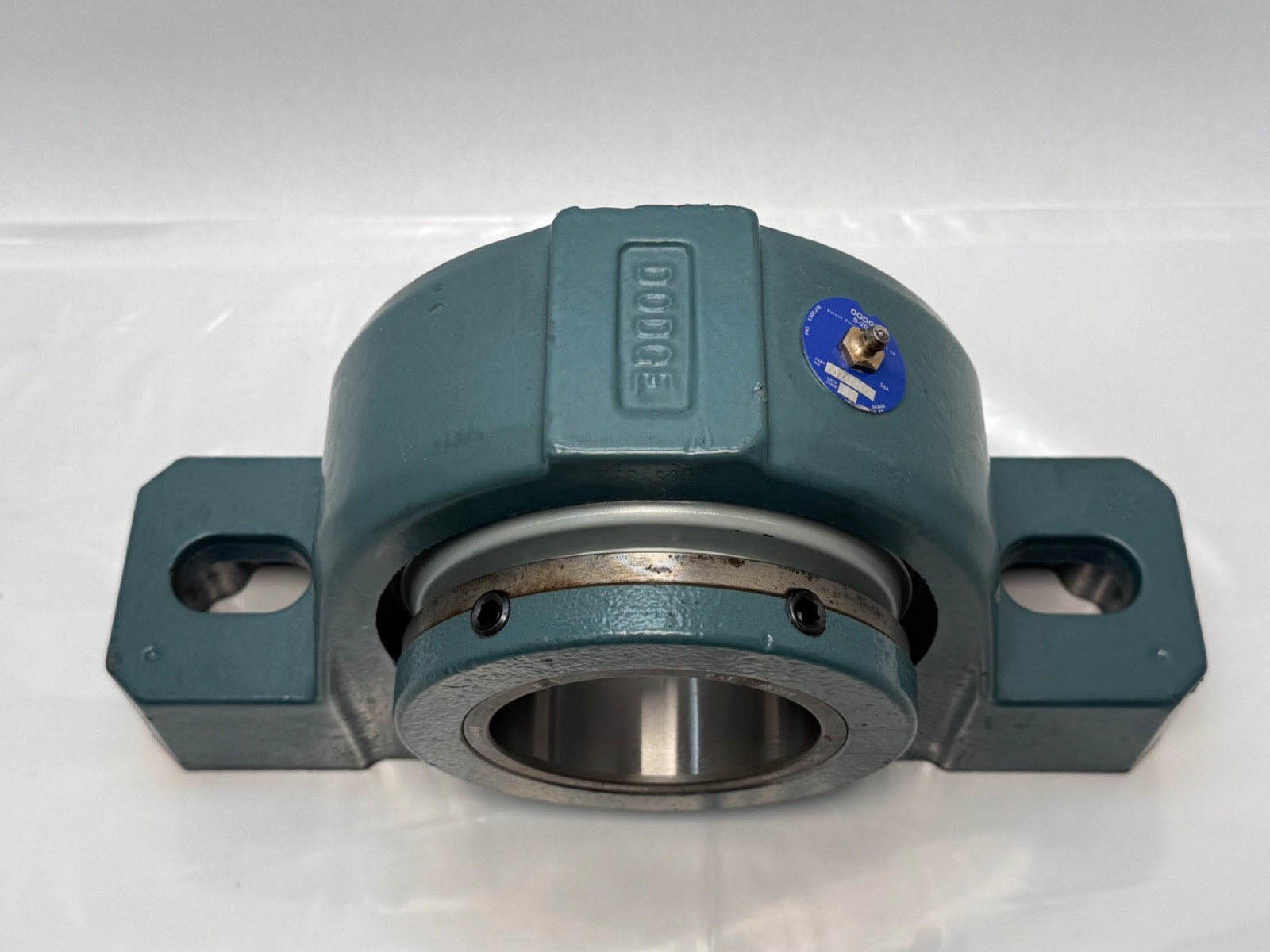

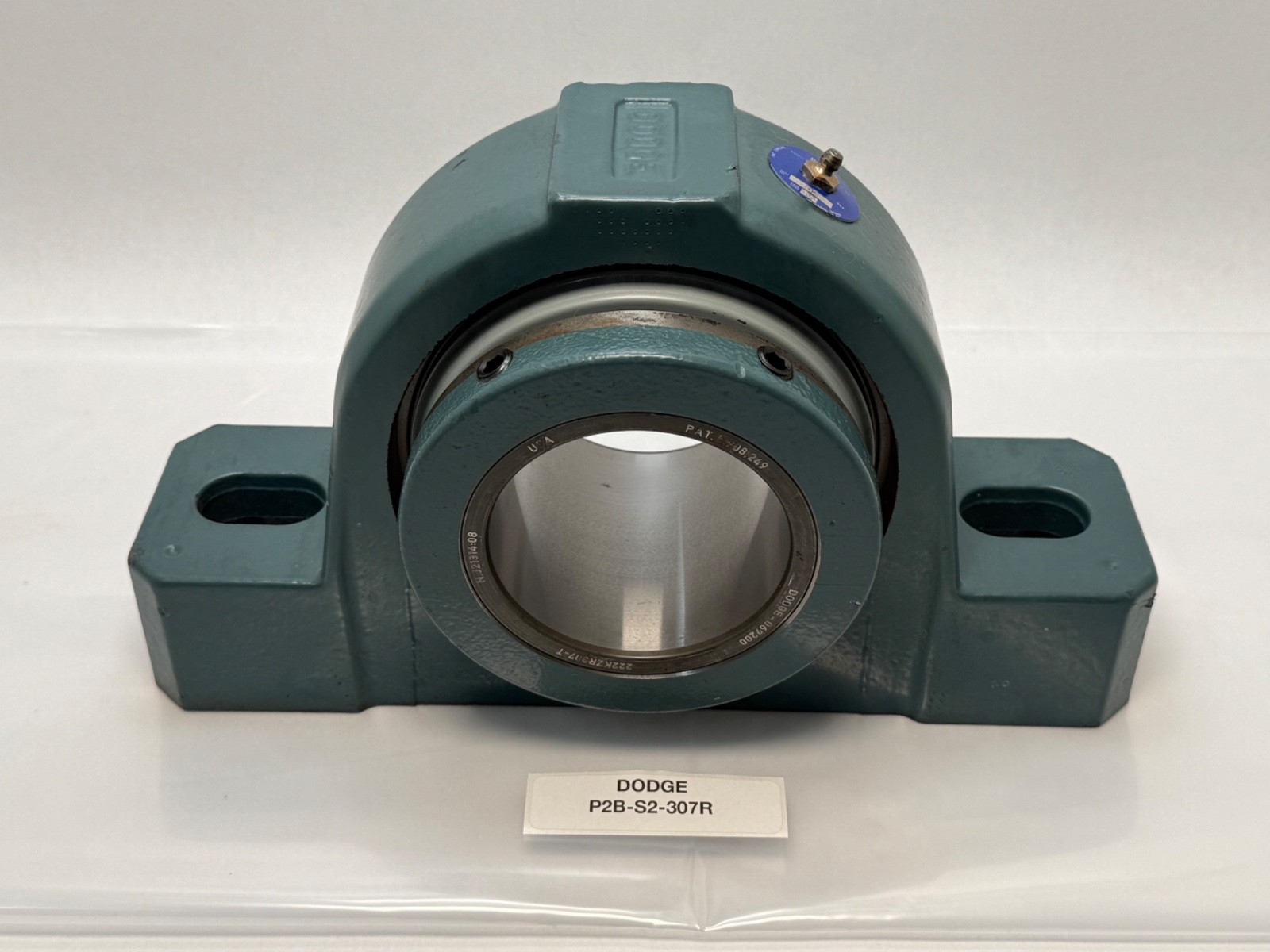

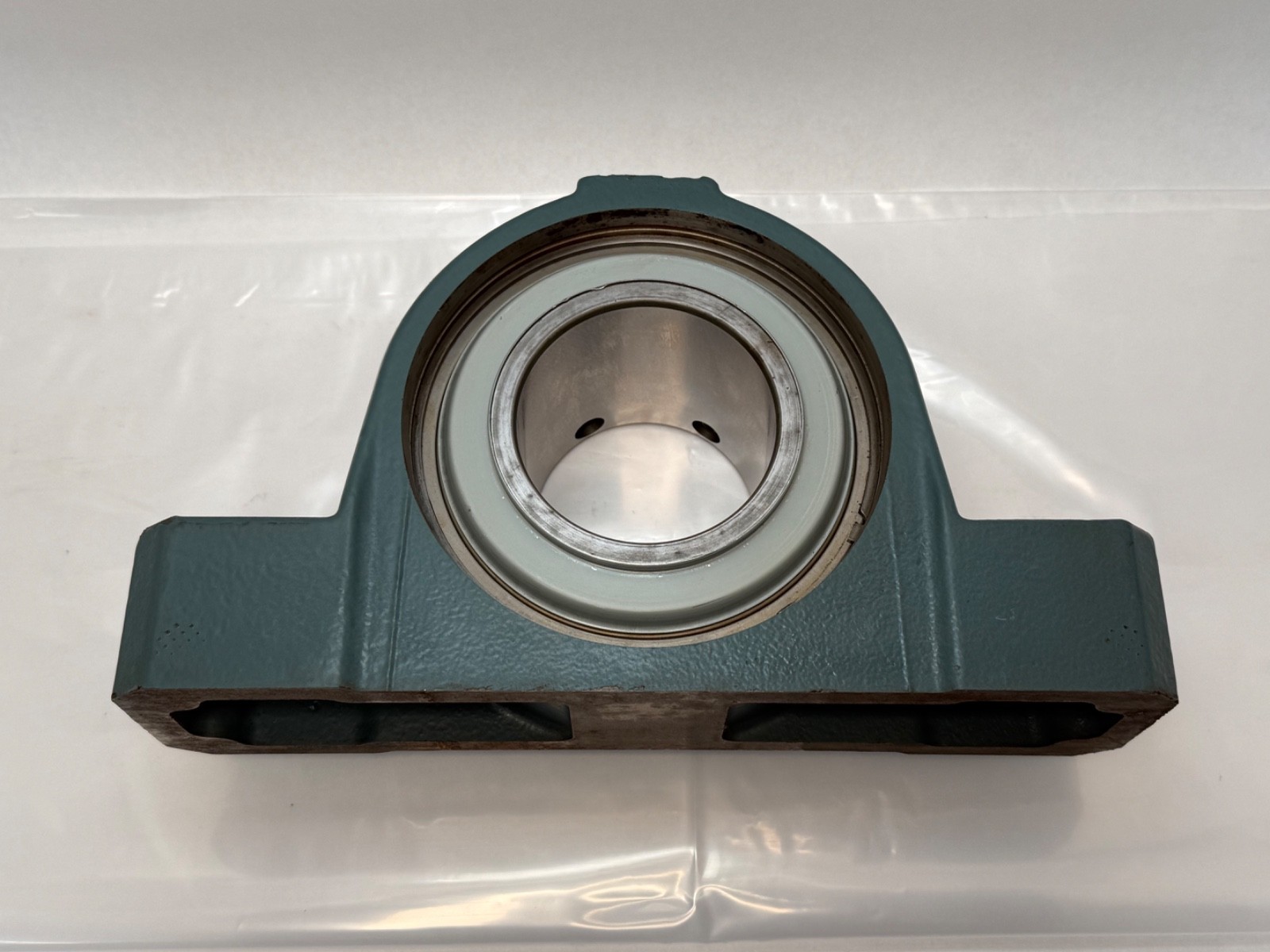

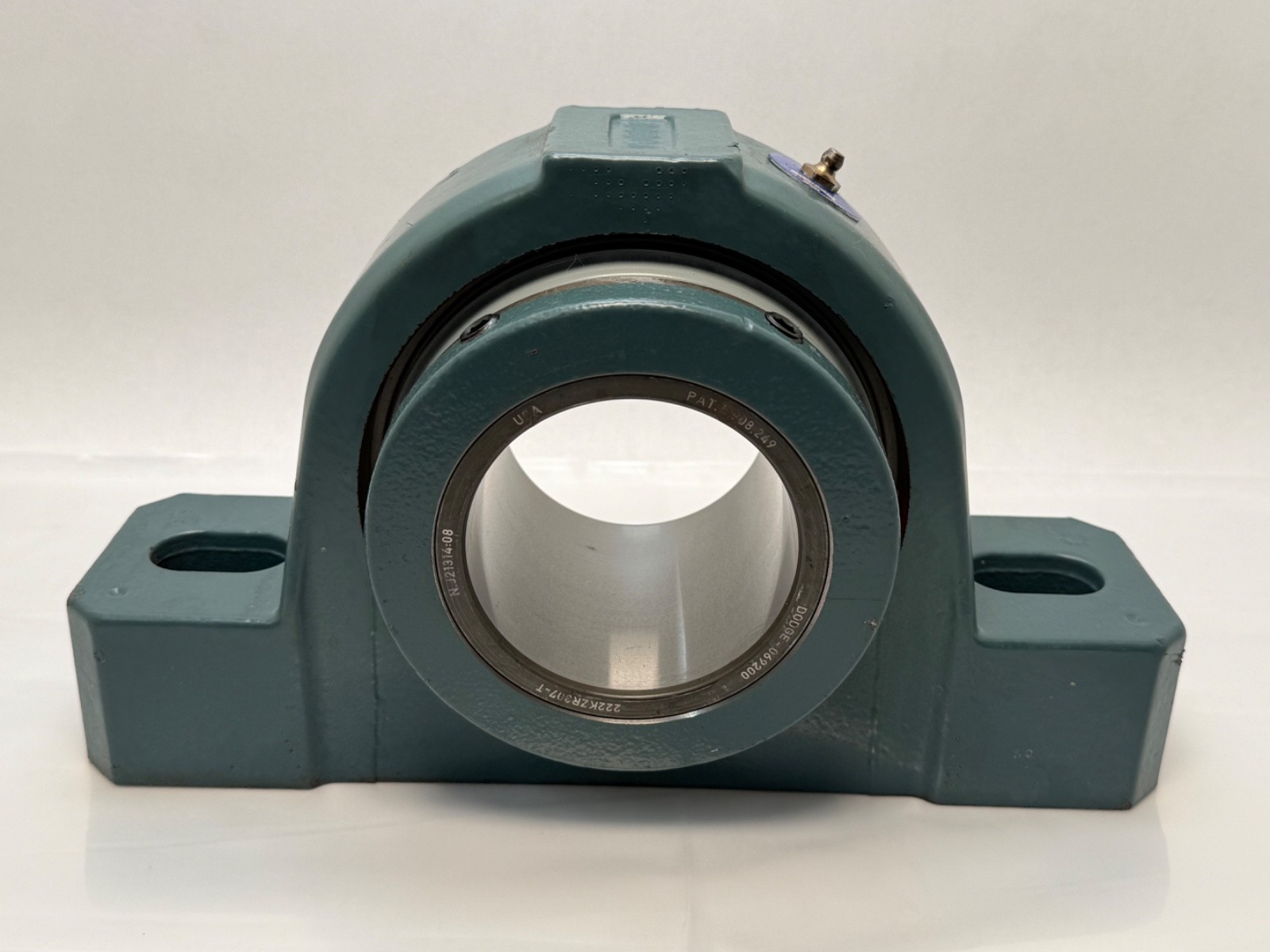

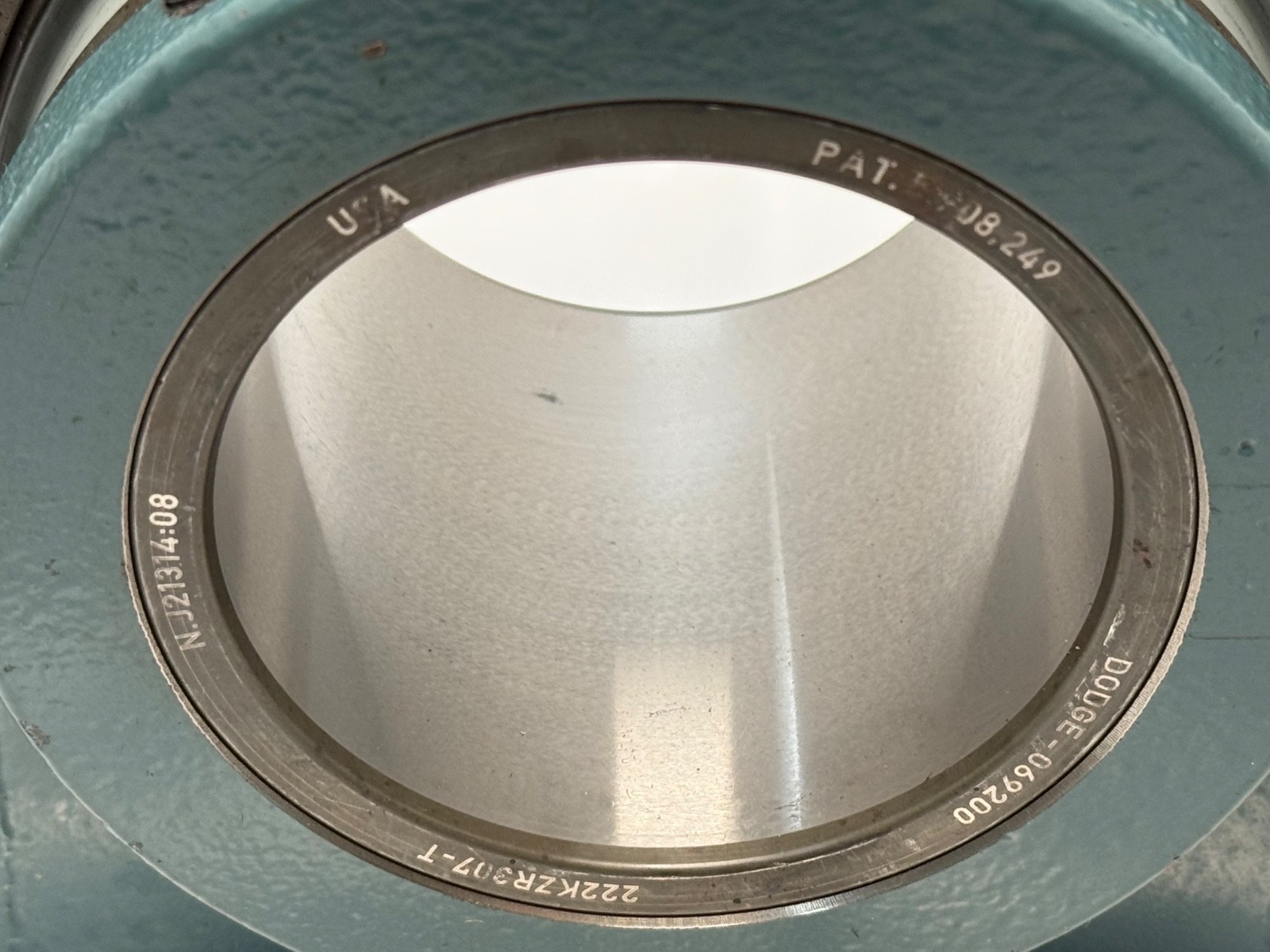

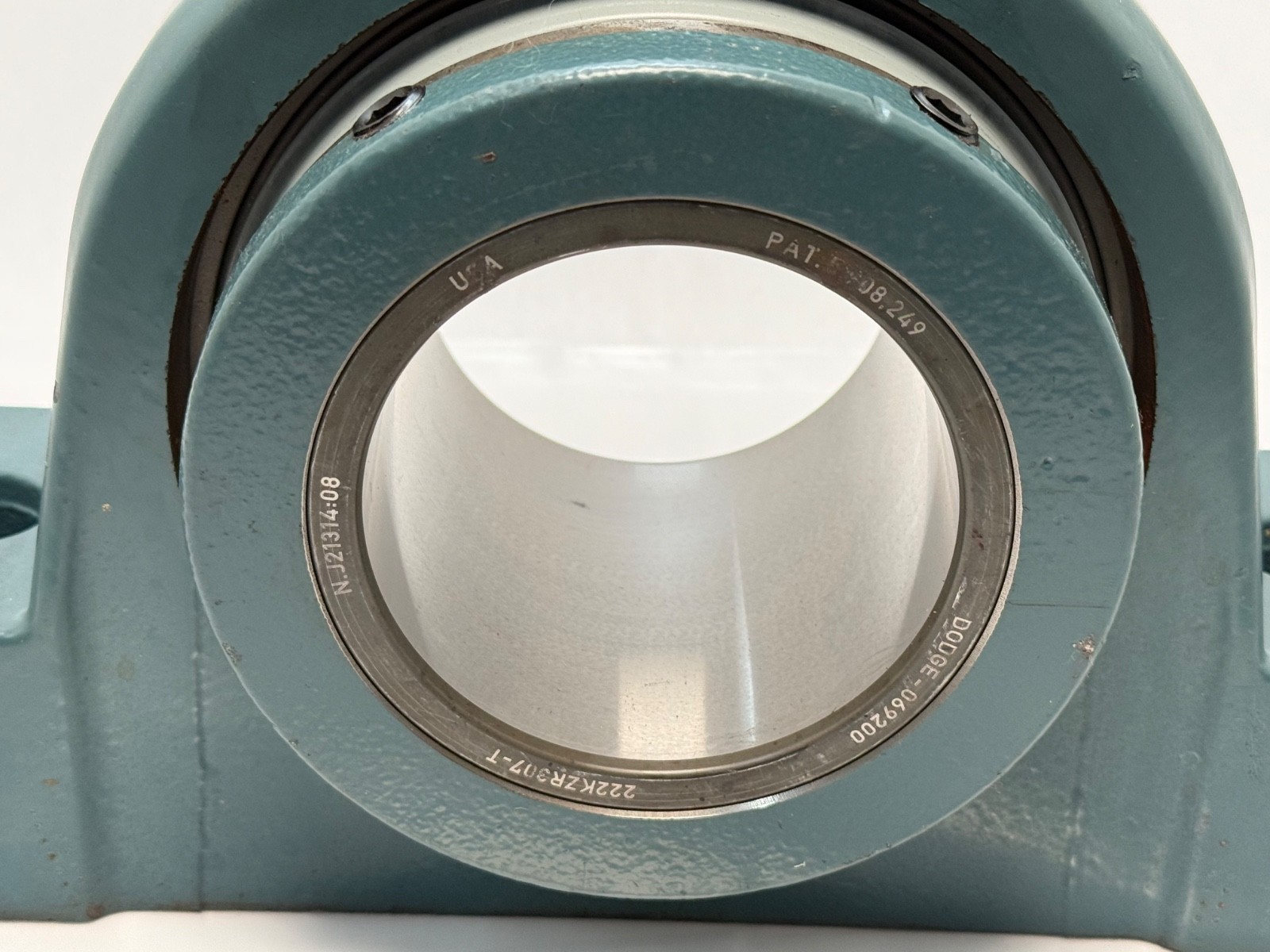

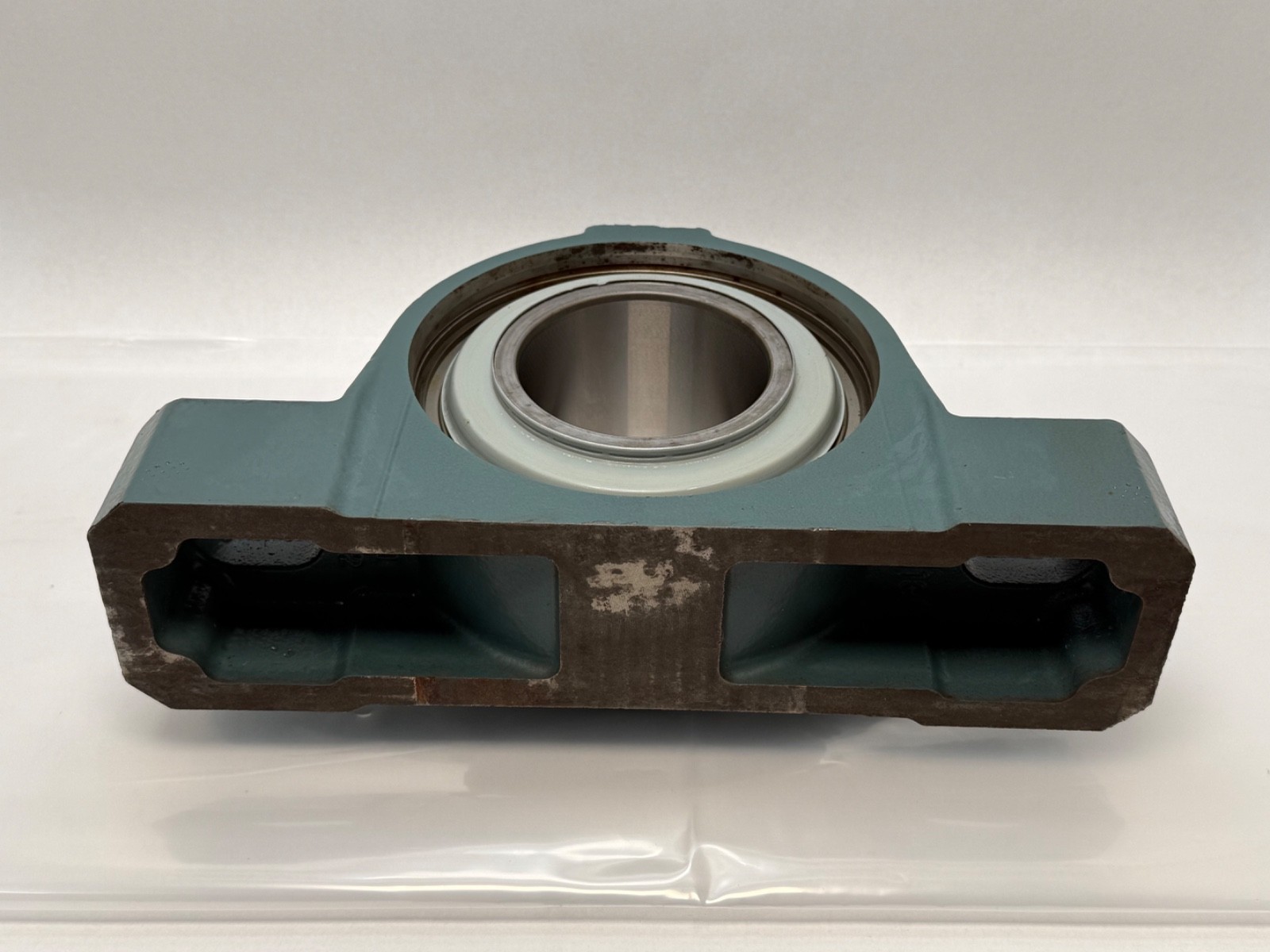

Dodge P2B-S2-307R pillow block bearing – image 1

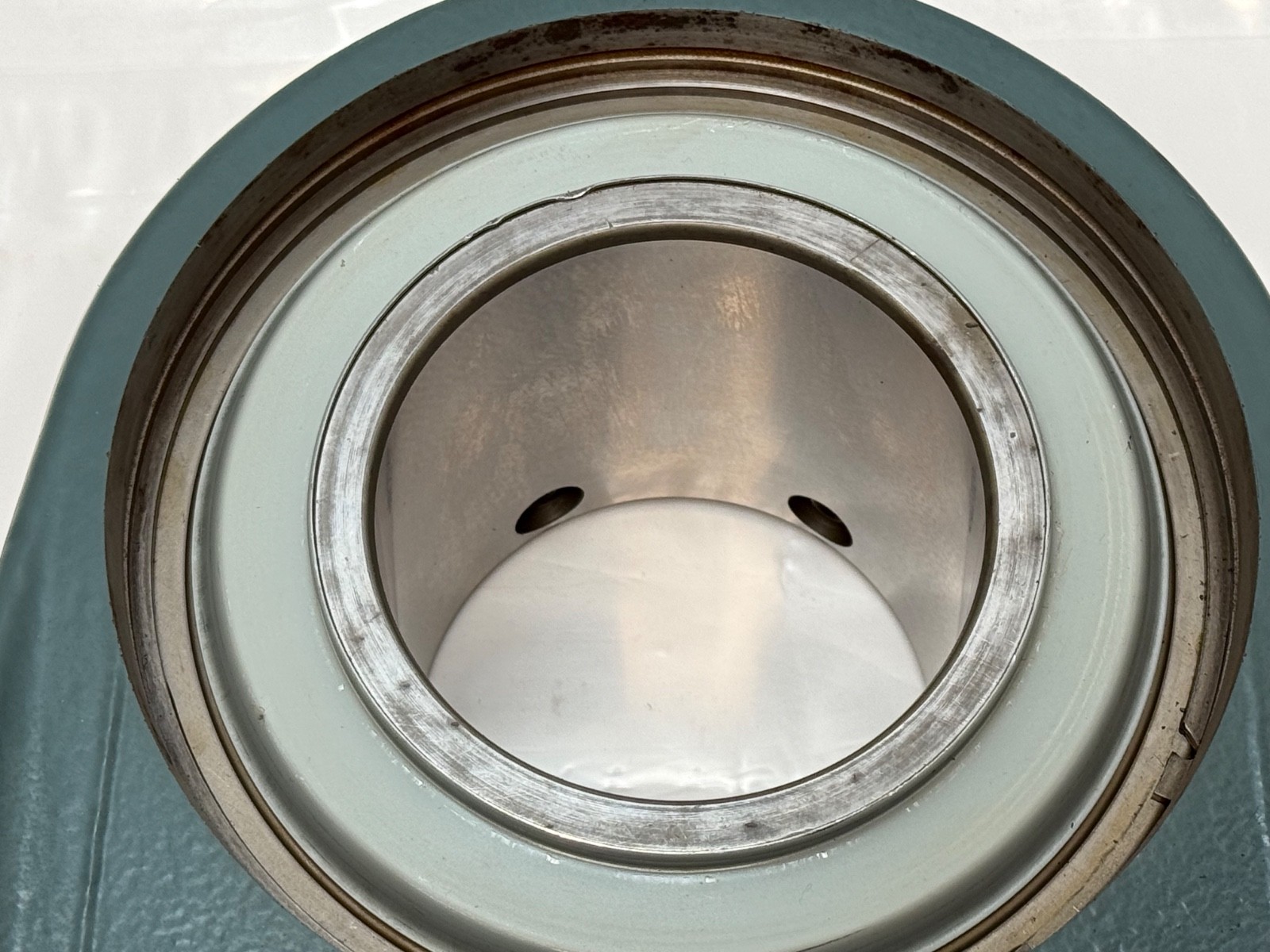

Dodge P2B-S2-307R pillow block bearing – image 2

Dodge P2B-S2-307R pillow block bearing – image 3

Dodge P2B-S2-307R pillow block bearing – image 4

Dodge P2B-S2-307R pillow block bearing – image 5

Dodge P2B-S2-307R pillow block bearing – image 6

Dodge P2B-S2-307R pillow block bearing – image 7

Dodge P2B-S2-307R pillow block bearing – image 8

Dodge P2B-S2-307R pillow block bearing – image 9

Dodge P2B-S2-307R pillow block bearing – image 10

13k+ reviews

See our eBay reviews

DodgeP2B-S2-307RSpherical Roller Pillow Block Bearing – 3-7/16 in Bore, Two-Bolt, Cast Iron, Set Screw, Non-Expansion

Name: Dodge P2B-S2-307R Spherical Roller Pillow Block Bearing – 3-7/16 in Bore, Two-Bolt, Cast Iron, Set Screw, Non-Expansion
Brand: Dodge
SKU: CE4#ALKSE5
Price: 365.27 USD
Availability: InStock

Condition: New – Open box

Condition Note: Made In USA, New Old Stock

Availability:

1 in stock

Categories: Bearings, Pillow Block Bearing

Spherical roller pillow block, 3-7/16 in bore, two-bolt cast iron housing, set screw lock, 3.75 in centre height. Dodge S-2000 P2B-S2-307R, 070288.

Same day shipment

List Price

$365.27

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	Dodge
MPN	P2B-S2-307R
GTIN	782475305933
Model	P2BS2307R / 070288
ID	3-7/16 in

Technical Specifications

Material	Cast Iron
Type	Pillow Block Bearing
Bolt Center To Center	9.38-10.63 in
Number Of Bolt Holes	2
Bolt Center To Center Length	9.38-10.63 in
Number Of Bolt Holes For Fasteners	2
Bearing Insert Type	Spherical Roller
Centre Height Pillow Block	3.7500 in
Centre Height	3.7500 in
Housing Style	Two-Bolt Pillow Block, Solid
Mpn Variants	P2B-S2-307R, P2BS2307R, P2B S2 307R, 070288
Dynamic Load Rating	65,500 lbf (291,360 N)
Static Load Rating	81,500 lbf (362,530 N)
Series	S-2000
Rolling Elements	Spherical Roller
Bearing Type	Spherical Roller Pillow Block Unit
Item Weight	14.68 kg (32.36 lb)
Limiting Speed	1,280 rpm
Lubricant	Grease (Mobilgrease XHP 222)
Locking Device	Set Screw
Harmonization Code	8483.20.80.80
Housing Material	Cast Iron
Expansion Type	Non-Expansion (Fixed)

Seller Part Number: CE4#ALKSE5

Product Description

What this part is:

Dodge P2B-S2-307R two-bolt pillow block from the S-2000 mounted spherical roller bearing line, Dodge part number 070288. Bore Diameter: 3-7/16 in (3.4375 in). Bearing Type: Spherical roller. Housing Type: Two-bolt pillow block, solid housing. Housing Material: Cast iron. Locking Device: Set screw. Expansion Type: Non-expansion (fixed).

Decoding the designation:

P2B — Dodge two-bolt pillow block housing.

S2 — Dodge S-2000 mounted spherical roller bearing series.

307 — shaft size, 3-7/16 in: first digit whole inches, last two digits sixteenths.

R — Dodge non-expansion (fixed) unit.

What these specs mean in practice:

Dynamic Load Rating: 65,500 lbf (291,360 N). Static Load Rating: 81,500 lbf (362,530 N). Maximum Speed: 1,280 rpm. The spherical roller insert carries heavy radial load with thrust and accommodates shaft misalignment. Seal Type: Triple-lip contact seal. Lubricant: Grease, factory fill Mobilgrease XHP 222. Greasable: Yes. Sensor Ready: Yes.

Mounting data:

Centre Height: 3.7500 in base to bore centreline. Bolt Center To Center: 9.38 to 10.63 in slotted. Bolt Diameter: 0.875 in. Length Through Bore: 4.02 in. Item Weight: 14.68 kg (32.36 lb).

Interchange guidance:

Related Dodge parts: end cover IPEC18 (307), part 069966, and S2IPECO-307, part 070186. Dodge lists take-up frames HD-250 and TS-400 for this unit size.
