Availability:
2 in stock

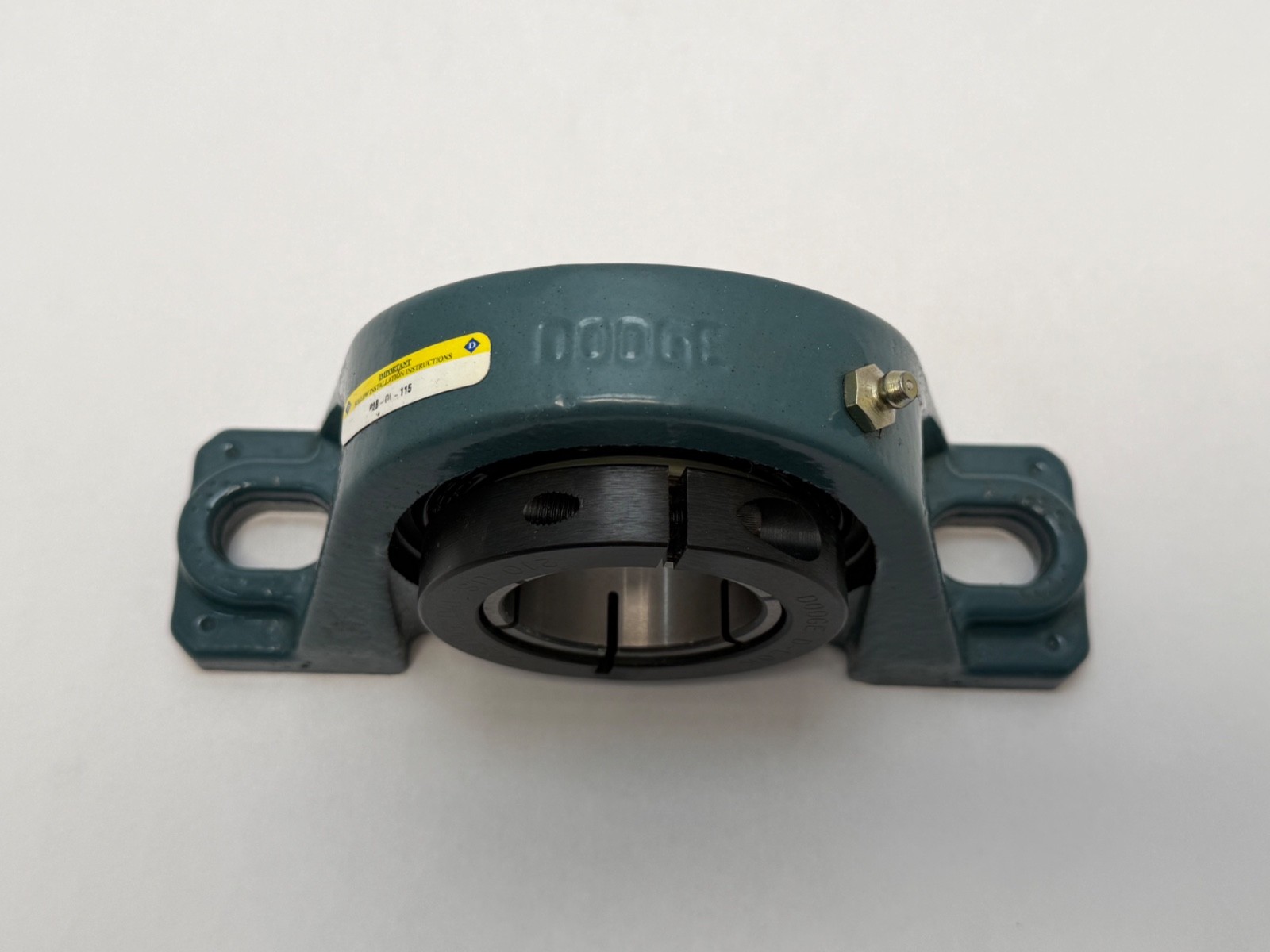

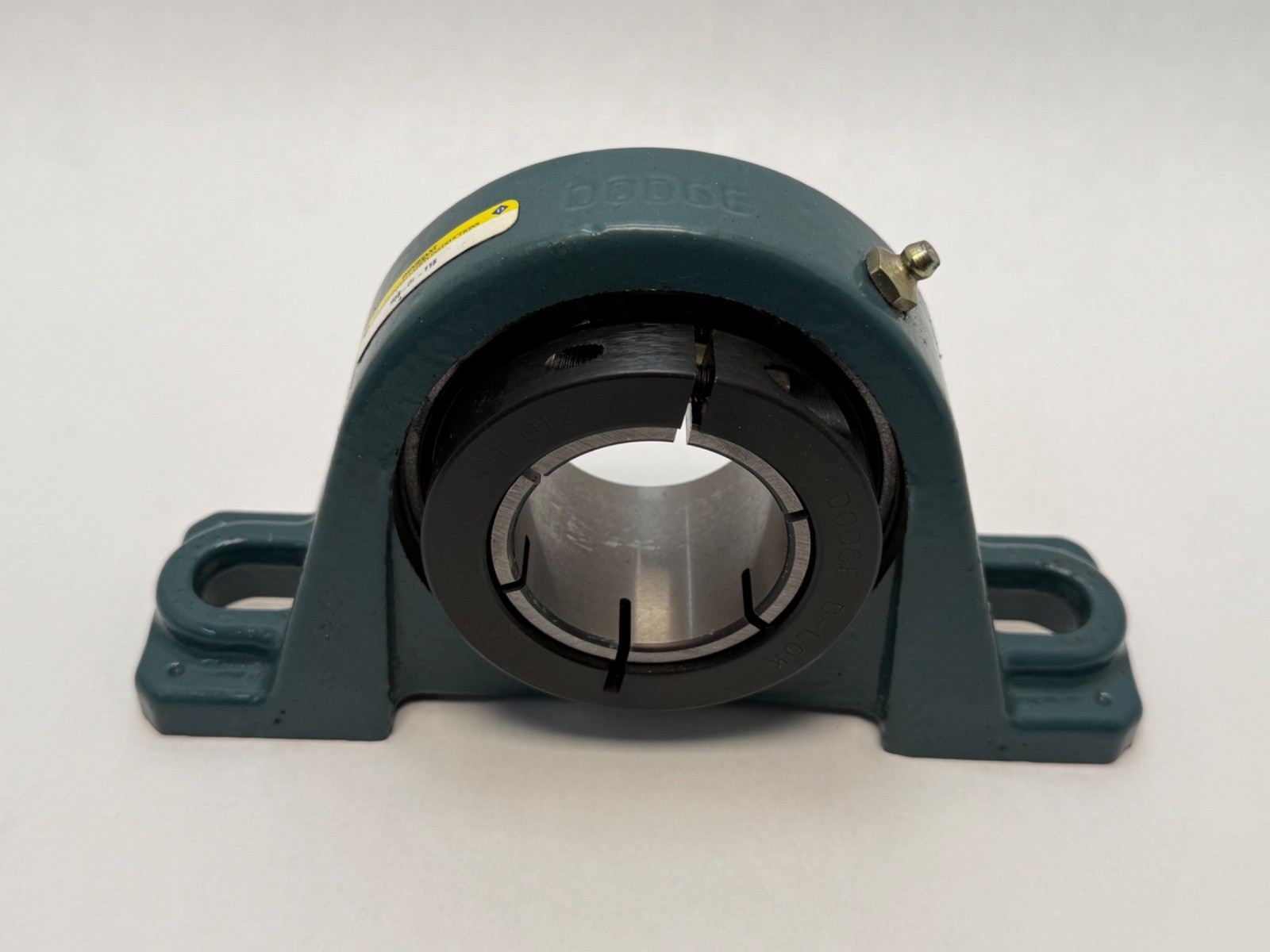

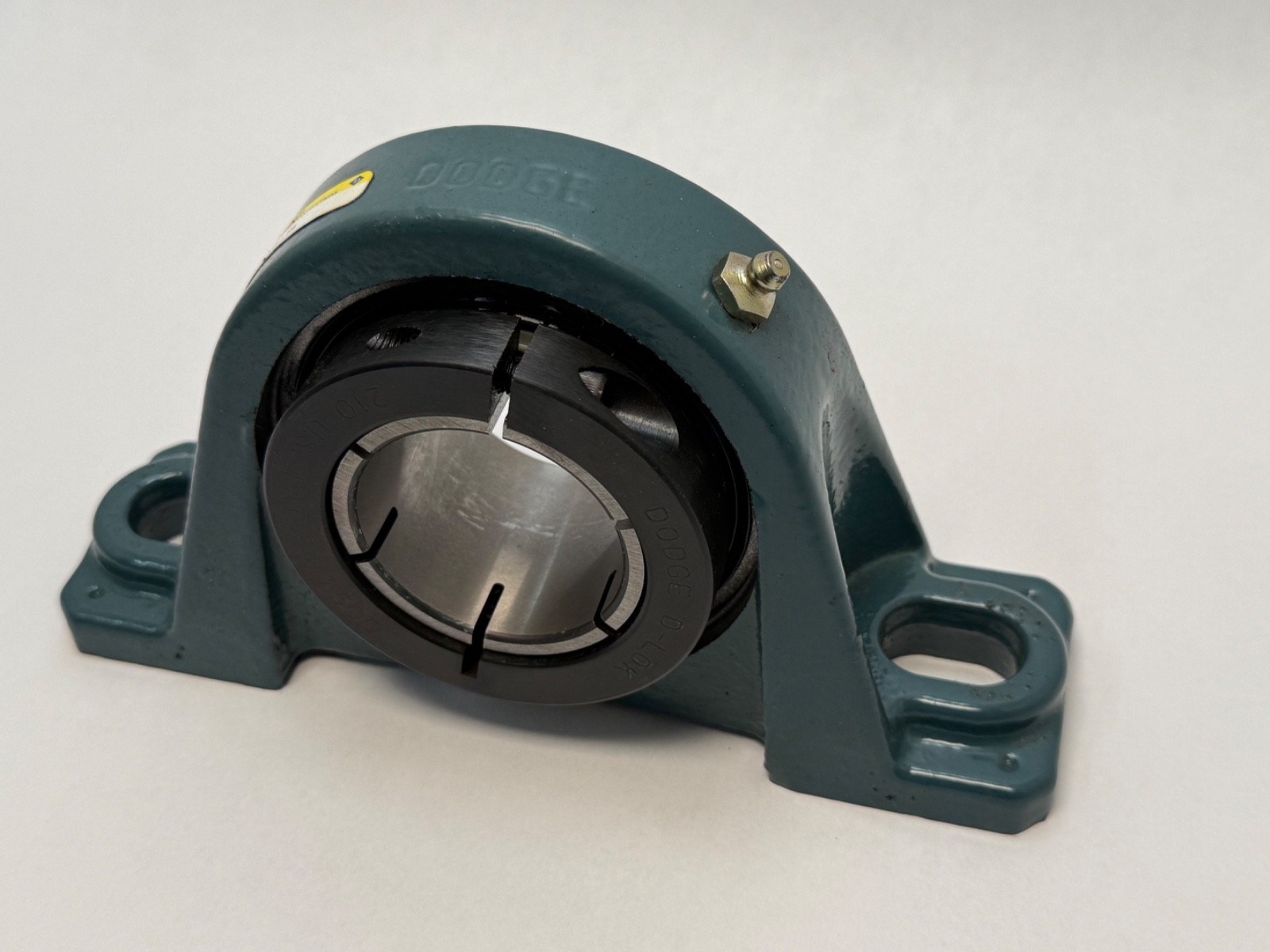

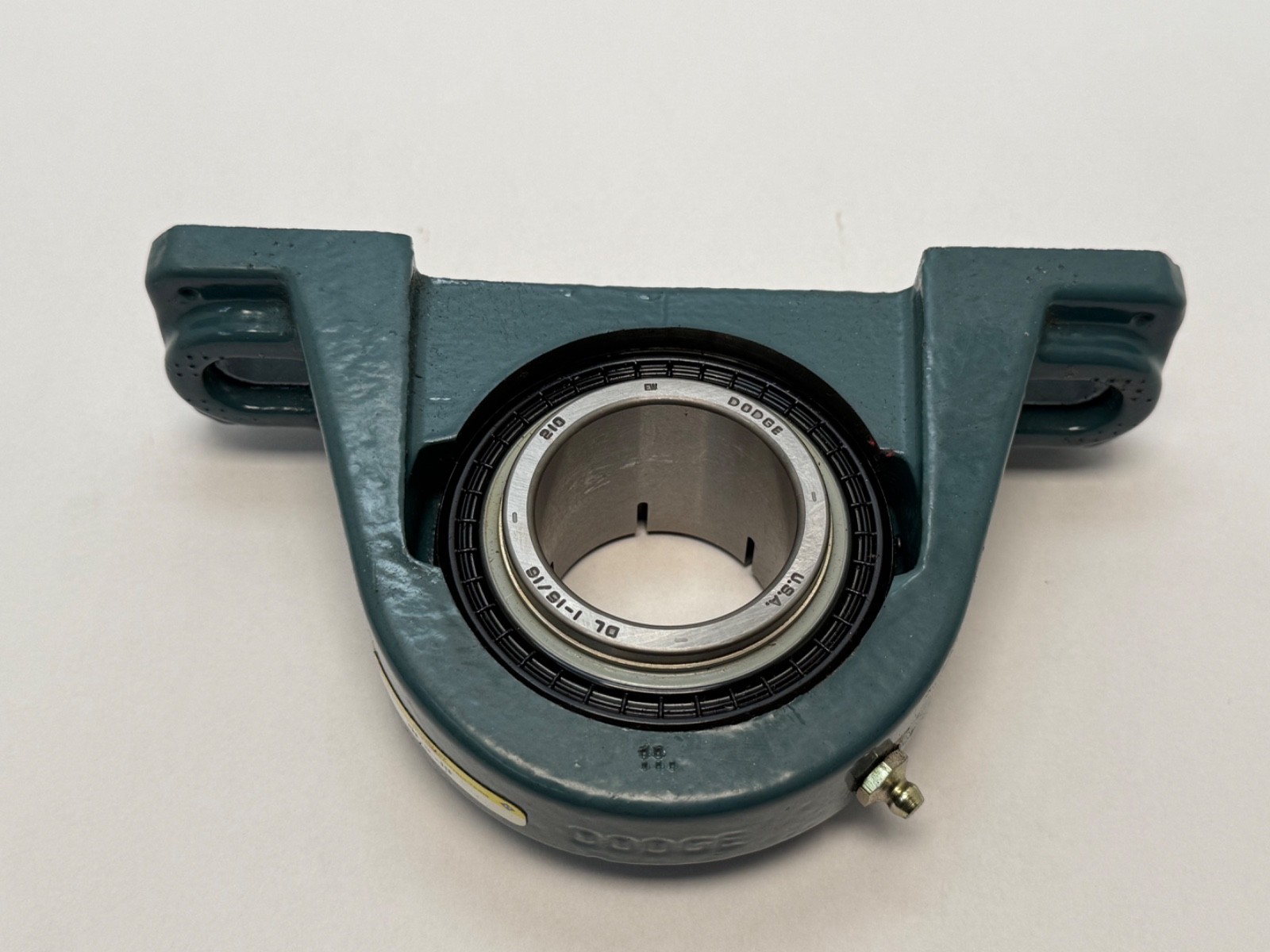

Two-bolt cast iron pillow block, 1-15/16 in bore, concentric D-LOK clamp collar, single-lip seal, non-expansion, 7,891 lbf dynamic, 2-1/4 in centre height.
List Price
$101.78
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| GTIN | 782475890613 |
| Model | P2B DL 115 / 128714 |
| ID | 1-15/16 in |
| Material | Cast iron housing, steel bearing insert |
|---|---|
| Type | Pillow Block Bearing |
| Base Number | 128714 |
| Industry Terms | Pillow block bearing, two-bolt plummer block, D-LOK pillow block, concentric collar mounted bearing |
| Common Misspellings | P2BDL-115, P2B DL115, Dodge P2B DLOK 115, 128714 |
| Overall Width | 2.01 in bore length |
| Bolt Center To Center Length | 6.0 to 6.68 in (slotted feet) |
| Bearing Insert Type | Ball |
| Bore Shaft Size | 1-15/16 in (49.21 mm) |
| Housing Style | Two-bolt pillow block, cast iron |
| Locking Method | D-LOK concentric clamp collar |
| Relubrication | Grease fitting in the housing; factory filled with Mobil Unirex N2 |
| Mpn Variants | P2BDL115, P2B DL 115, P2B-DL115, 128714 |
| Additional Attributes | Base to shaft centreline 2-1/4 in; standard duty; concentric collar mount |
| Dynamic Load Rating | 7,891 lbf (35.1 kN) |
| Static Load Rating | 5,213 lbf (23.2 kN) |
| Bearing Type | Mounted single-row ball bearing pillow block unit |
| Number Of Rows | 1 |
| Lubricant | Mobil Unirex N2 lithium complex grease |
| Expansion Type | Non-expansion |

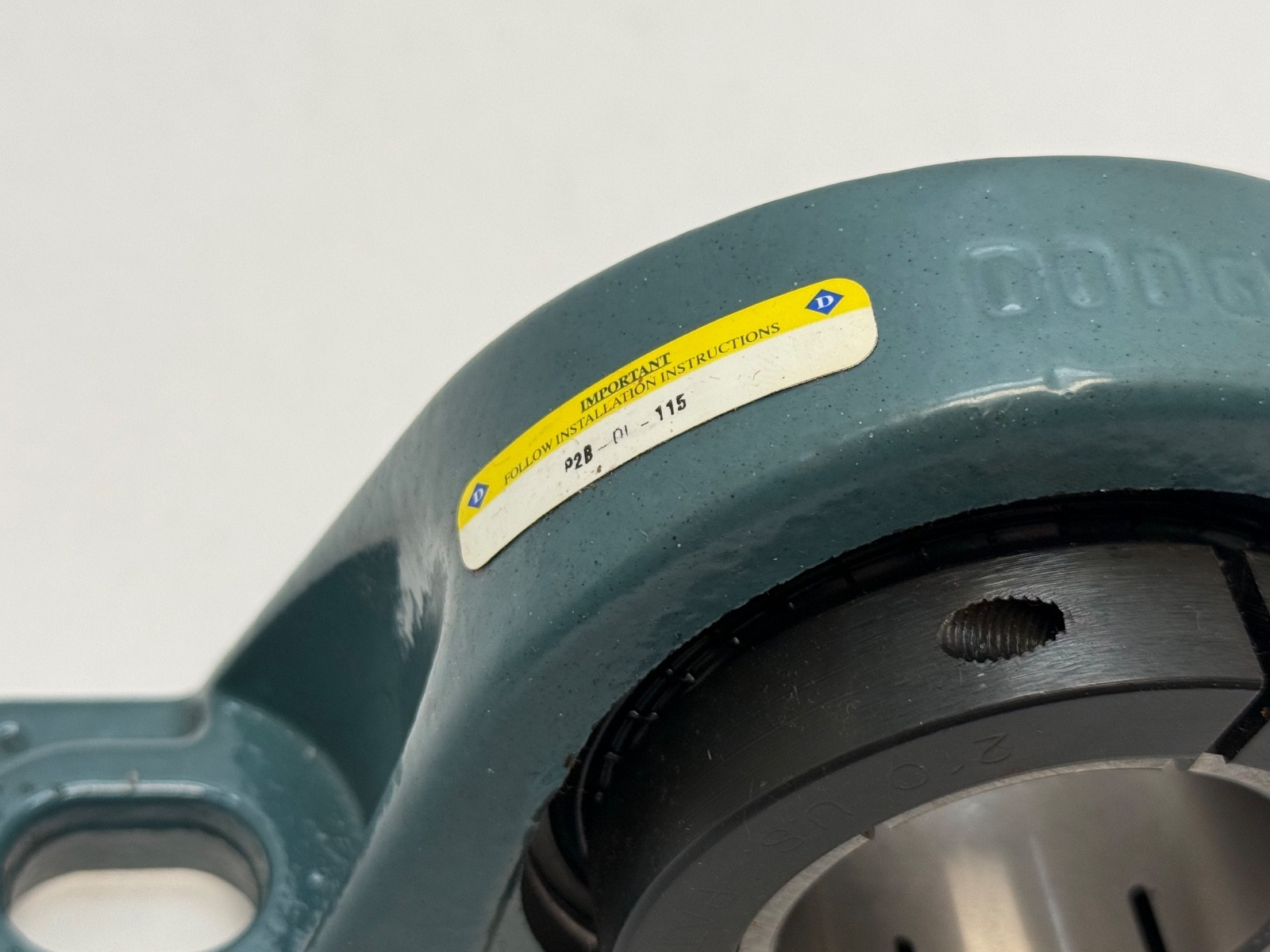

| Part Number | P2B-DL-115 |
| Cross Reference 1 | Dodge P2B-SCM-115 - setscrew locking instead of D-LOK |
|---|
Dodge P2B-DL-115, Dodge item number 128714, is a two-bolt pillow block ball bearing unit. Bearing Type: Mounted single-row ball bearing insert in a pillow block housing. Housing Style: Two-bolt pillow block, cast iron, standard duty. Bore / Shaft Size: 1-15/16 in (49.21 mm). Bore Length: 2.01 in. Locking Method: D-LOK concentric clamp collar. Closure Type: Single-lip contact seal. Expansion Type: Non-expansion. Dynamic Load Rating: 7,891 lbf. Static Load Rating: 5,213 lbf. Base to shaft centreline: 2-1/4 in.
P2B — two-bolt pillow block housing, bolted down to a horizontal base with the shaft running parallel to that surface.

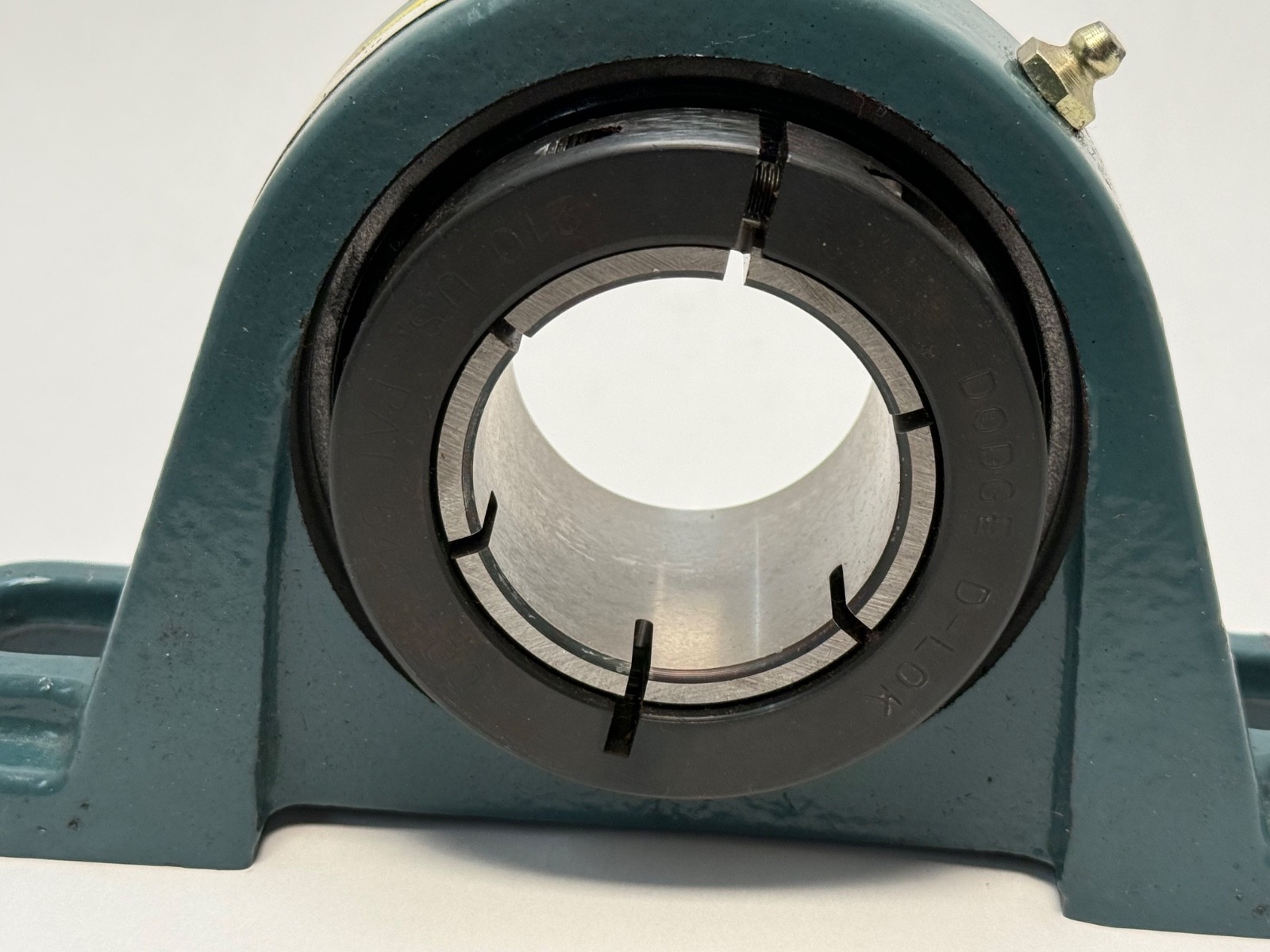

DL — D-LOK concentric clamp collar, which grips the shaft evenly all the way round rather than biting at two setscrew points.
115 — bore code for a 1-15/16 in shaft.

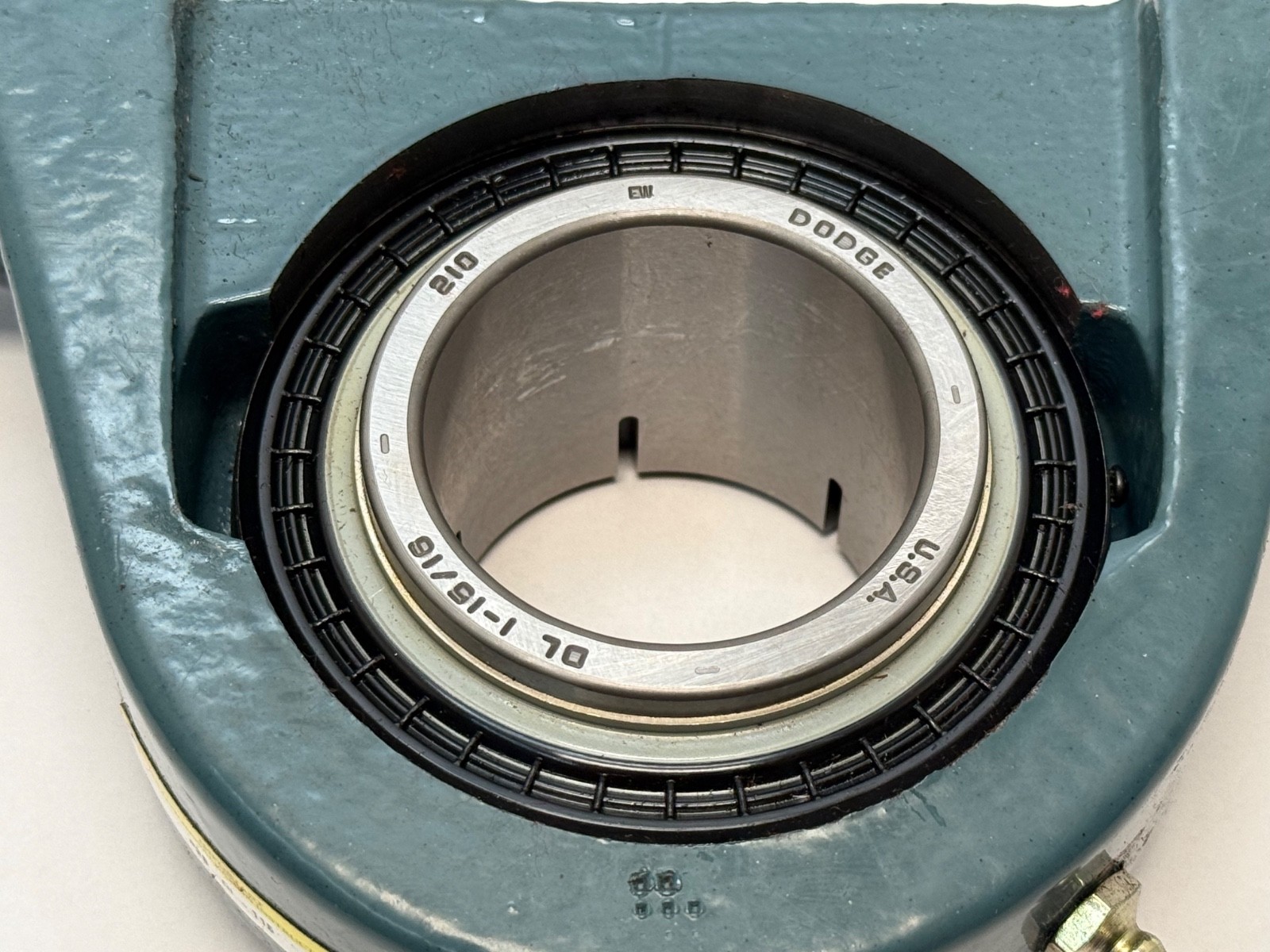

Locking Method: D-LOK concentric clamp collar. A concentric grip centres the insert on the shaft, so the assembly runs with less vibration at speed than a setscrew unit and holds against creep under reversing or shock load. Dynamic Load Rating: 7,891 lbf and Static Load Rating: 5,213 lbf set the load ceiling. Closure Type: single-lip contact seal, which retains grease and keeps coarse debris out on general conveyor, fan and drive duty.

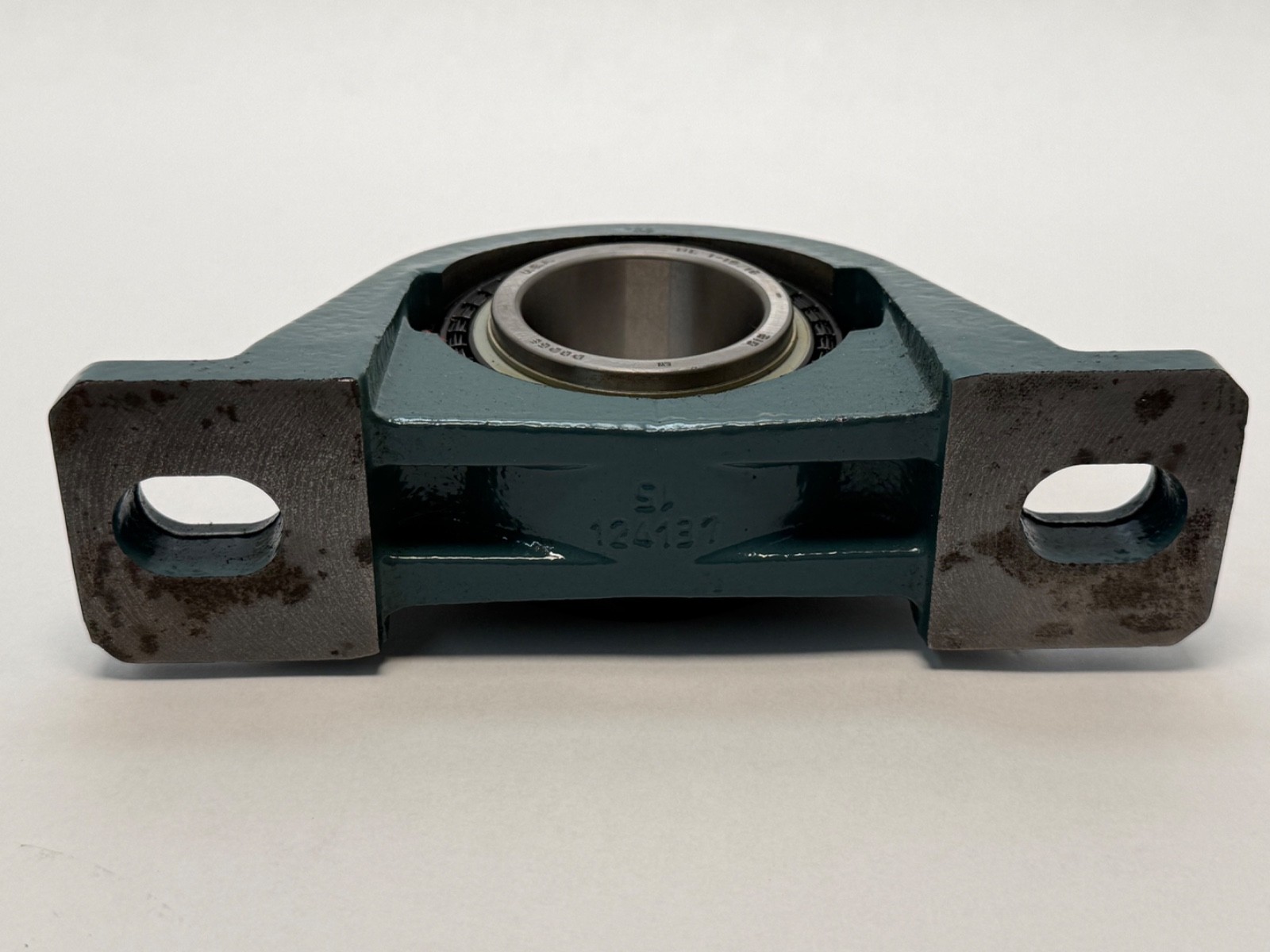

Housing Style: Two-bolt pillow block, cast iron. Bolt Center To Center Length: 6.0 to 6.68 in, on slotted feet that let the block be shifted along its base for alignment. Base to shaft centreline height: 2-1/4 in. Bore Length: 2.01 in.
Expansion Type: Non-expansion, the unit holds the shaft axially. Relubrication: grease fitting in the housing, factory filled with Mobil Unirex N2 lithium complex grease.

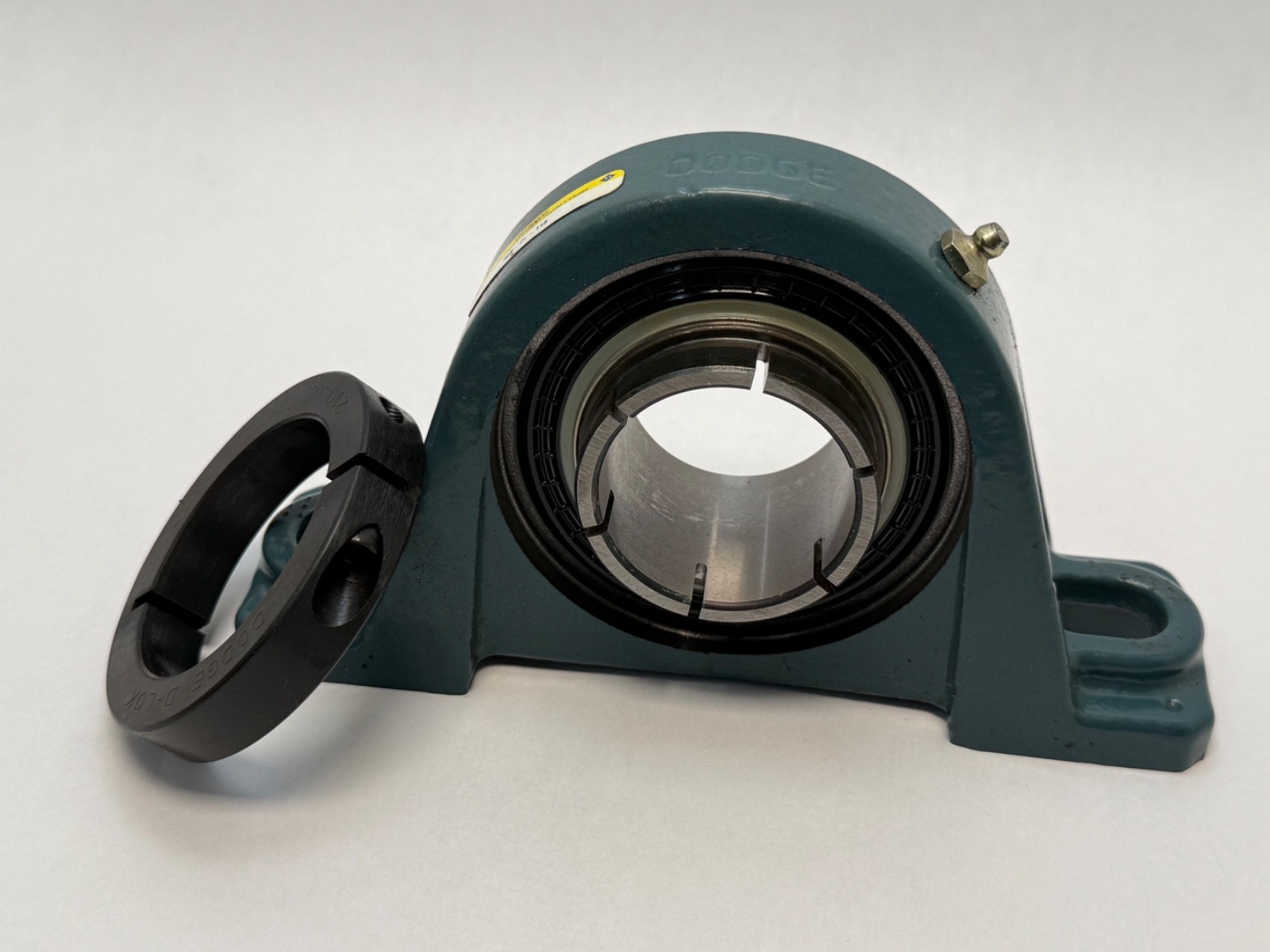

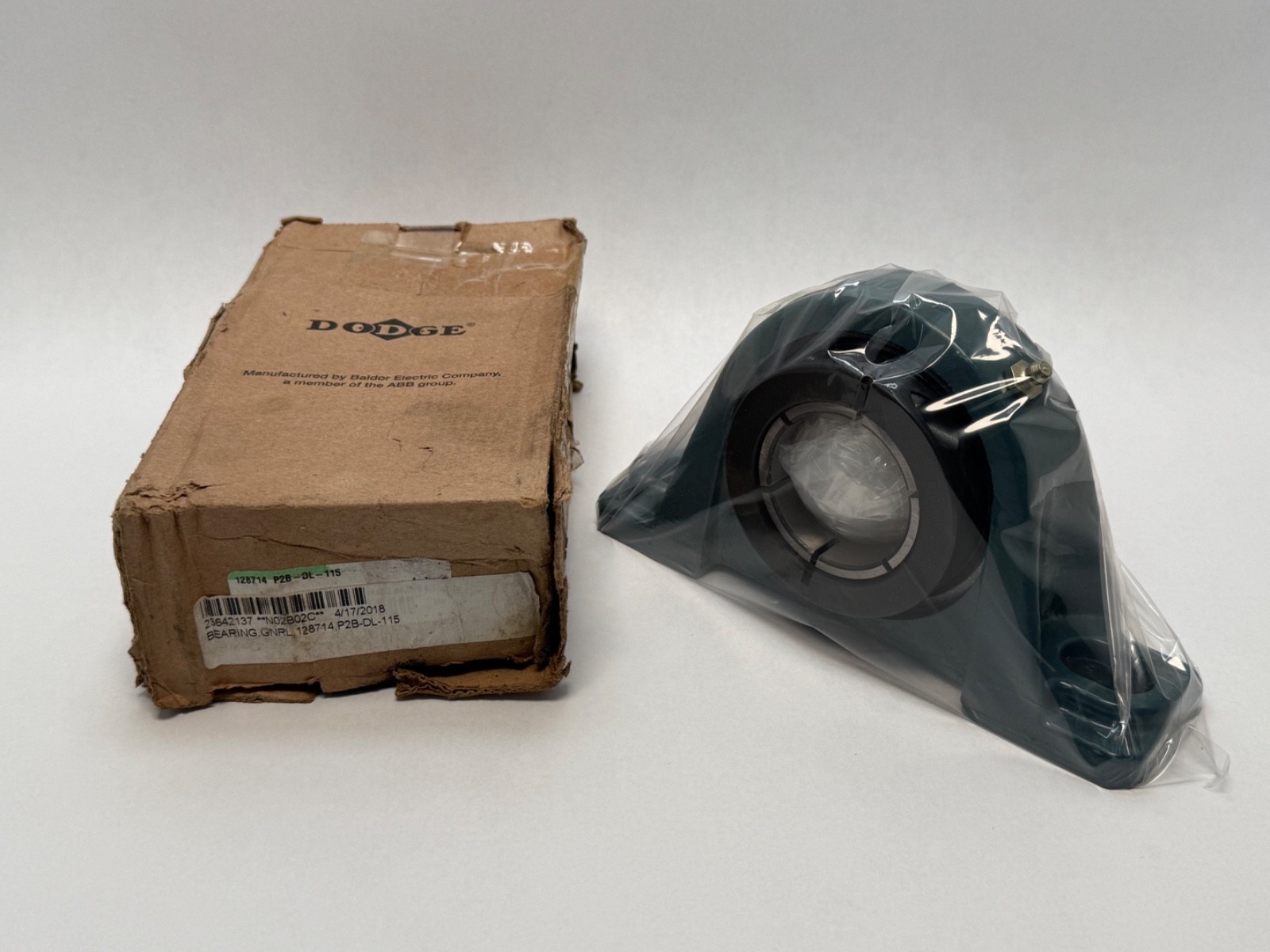

Unit Quantity: 1 Pc. Complete pillow block — cast iron housing with the ball bearing insert and its D-LOK collar fitted.
Part Number: P2B-DL-115. Base Number: 128714. Searchable variants: P2BDL115, P2B DL 115, P2B-DL115. The setscrew equivalent at the same bore is the Dodge P2B-SCM-115, item 126814.
