Availability:
1 in stock
Drawn cup needle roller bearing, 5/8 in bore x 13/16 in OD x 7/16 in wide, full complement for high radial load in a thin section. Two pieces, open both ends.
List Price
$21.24
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | B-107 |
| GTIN | 087796000391 |
| Model | B107 / B 107 |
| Bearing Type | Needle Roller Bearing |
| ID | 0.6250 in (15.875 mm) |
| OD | 0.8125 in (20.638 mm) |
| Width | 0.4375 in (11.113 mm) |
| Base Number | B-107 |
|---|---|
| Industry Terms | drawn cup needle roller bearing, shell type needle bearing, full complement needle bearing |
| Common Misspellings | B-10-7, Torington B107, Timkin B107 |
| Overall Width | 0.4375 in (11.113 mm) |
| Mpn Variants | B-107, B107, B 107, Torrington B-107 |
| Compatible With Replaces | Torrington B-107 |
| Material | Bearing Steel |
| Cage Type | Full complement |
| Dynamic Load Rating | 9,390 N |
| Static Load Rating | 16,200 N |
| Series | B Series |
| Rolling Elements | Needle Roller |
| Condition | New – Open box |
| Number Of Rows | 1 |
| Limiting Speed | 3,000 rpm grease; 4,500 rpm oil |
| Inner Ring | None |
| Closure Type | Open |
| Cross Reference 1 | Koyo B-107 |
|---|

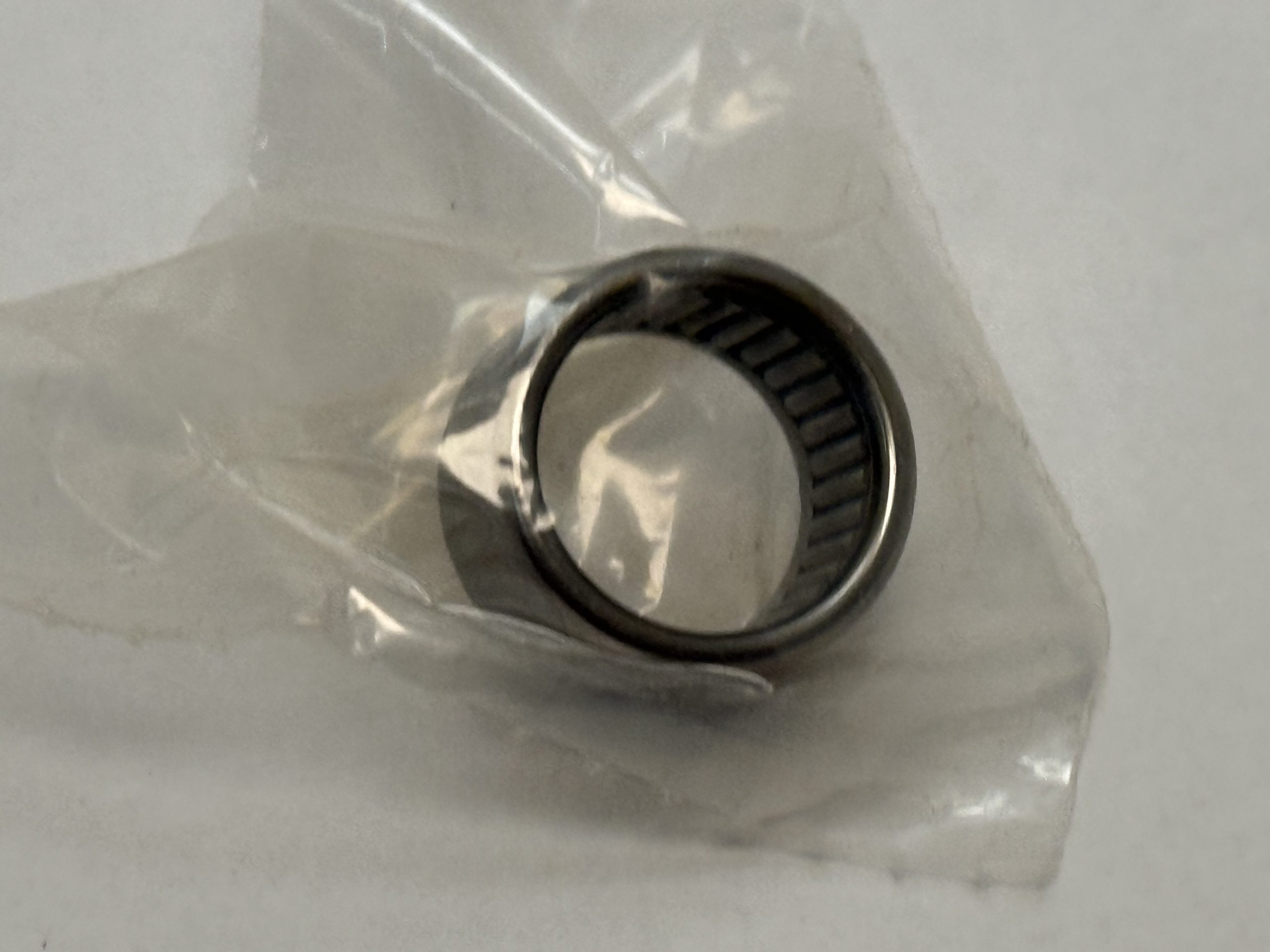

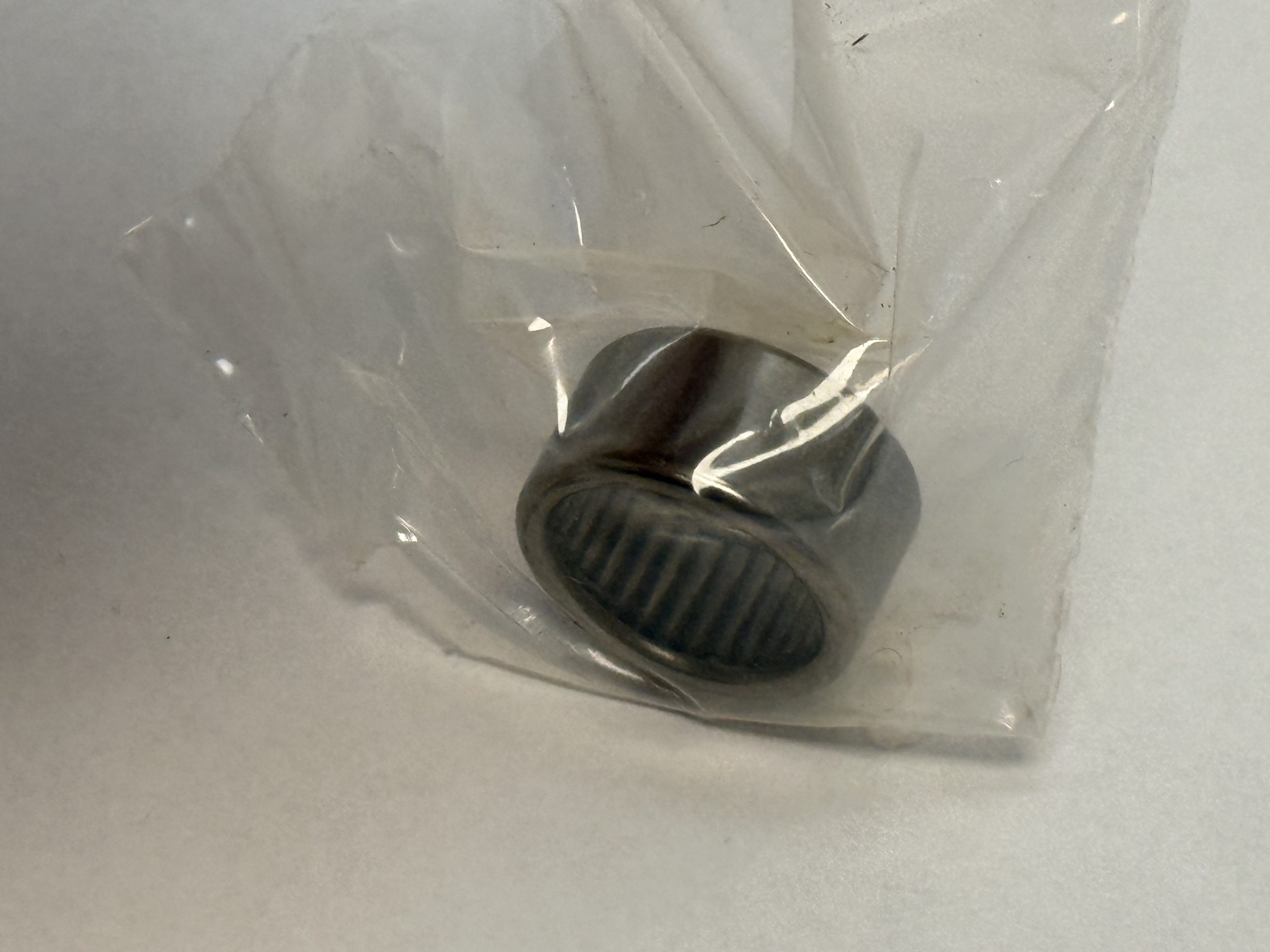

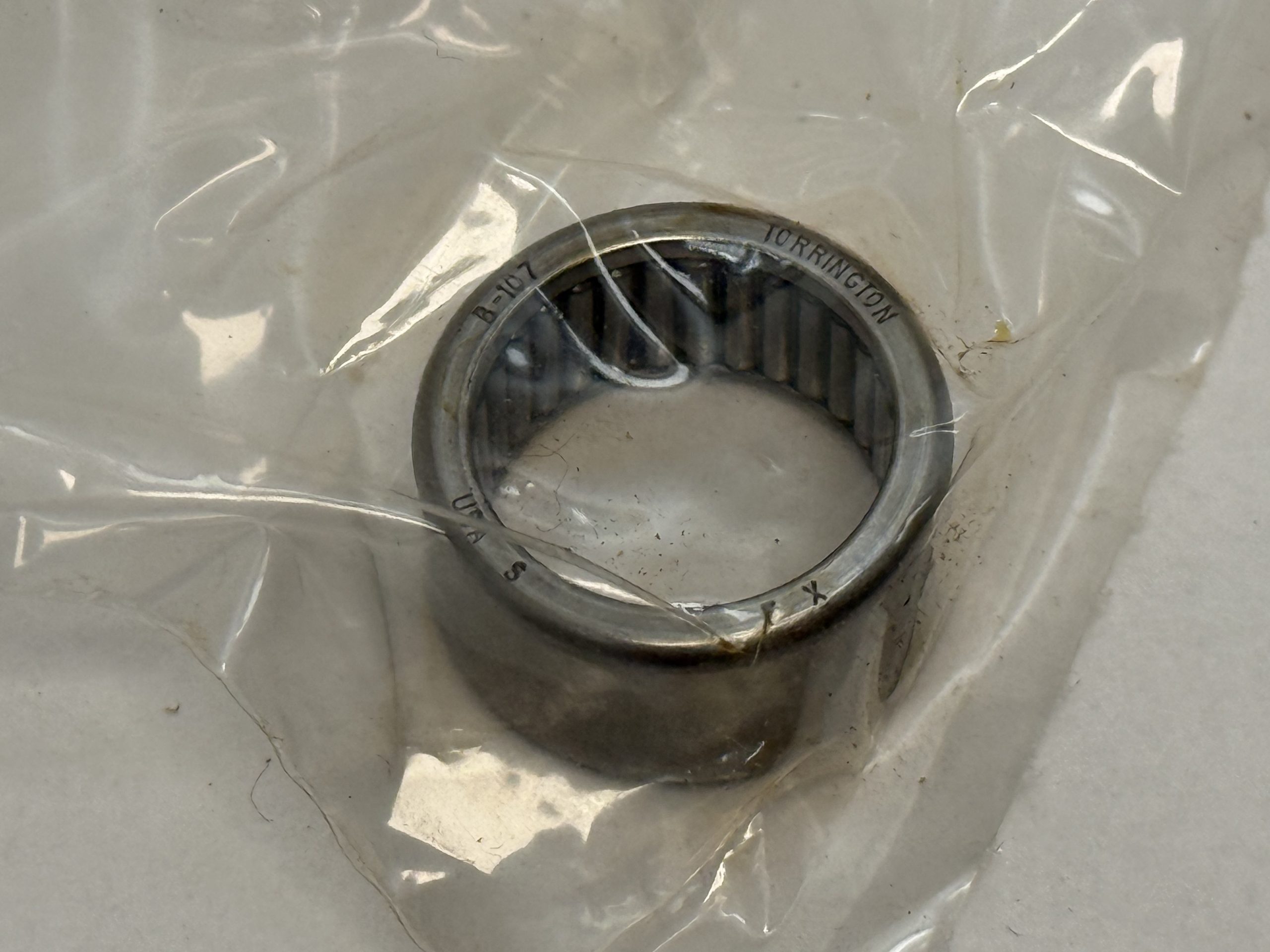

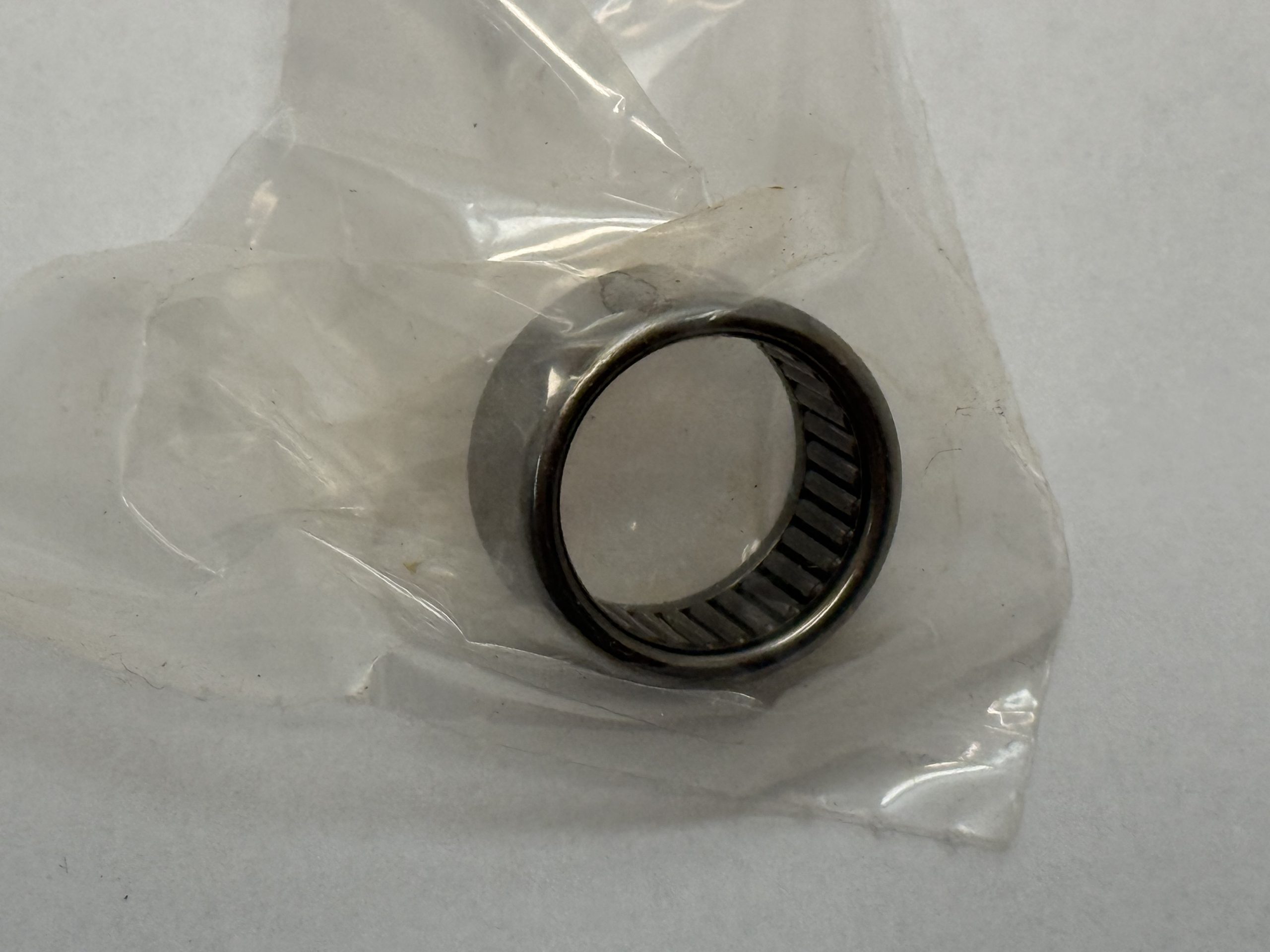

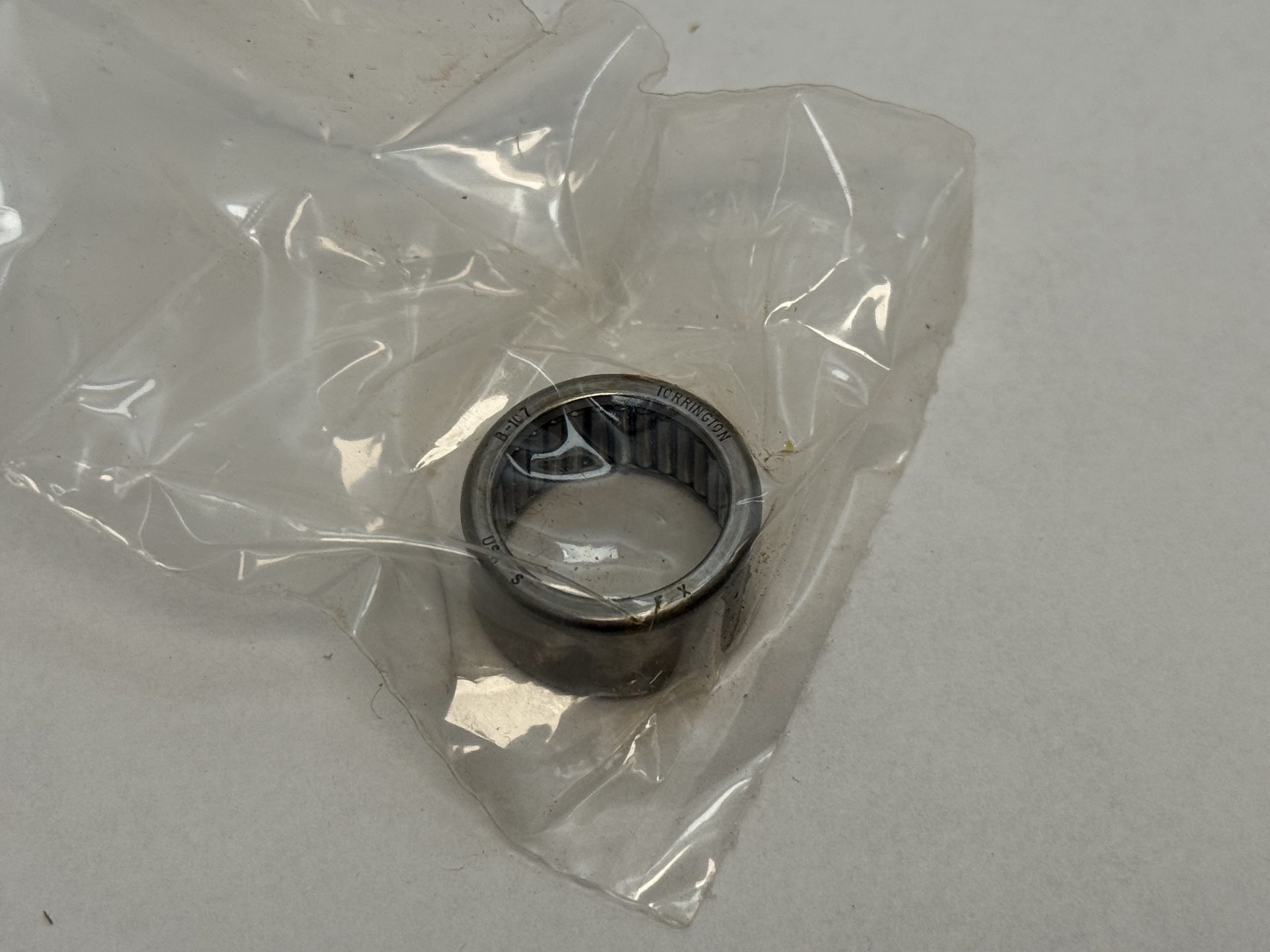

Timken (Torrington) B-107 drawn cup needle roller bearing, inch series, open both ends, full complement. Bore Diameter: 0.6250 in (15.875 mm). Outside Diameter: 0.8125 in (20.638 mm). Overall Width: 0.4375 in (11.113 mm). Rolling Elements: Needle Roller. Cage Type: Full complement. The needle rollers fill the cup and are retained by the formed lips of the drawn outer cup.
B — drawn cup needle roller bearing, full complement, open ends, inch series. The caged bearing in the same envelope is the J series.
10 — bore in sixteenths of an inch: 10/16 = 0.625 in.
7 — width in sixteenths of an inch: 7/16 = 0.4375 in.
Dynamic Load Rating: 9,390 N (2,110 lbf). Static Load Rating: 16,200 N (3,650 lbf). The full complement of rollers gives high radial capacity in a 3/32 in radial section. Limiting Speed: 3,000 rpm grease; 4,500 rpm oil. Number Of Rows: 1. Closure Type: Open.
Inner Ring: none. The drawn cup is a press fit in the housing bore and the needle rollers run directly on the shaft, which forms the inner raceway. Housing bore: 0.8125 in nominal. Shaft diameter: 0.6250 in nominal.

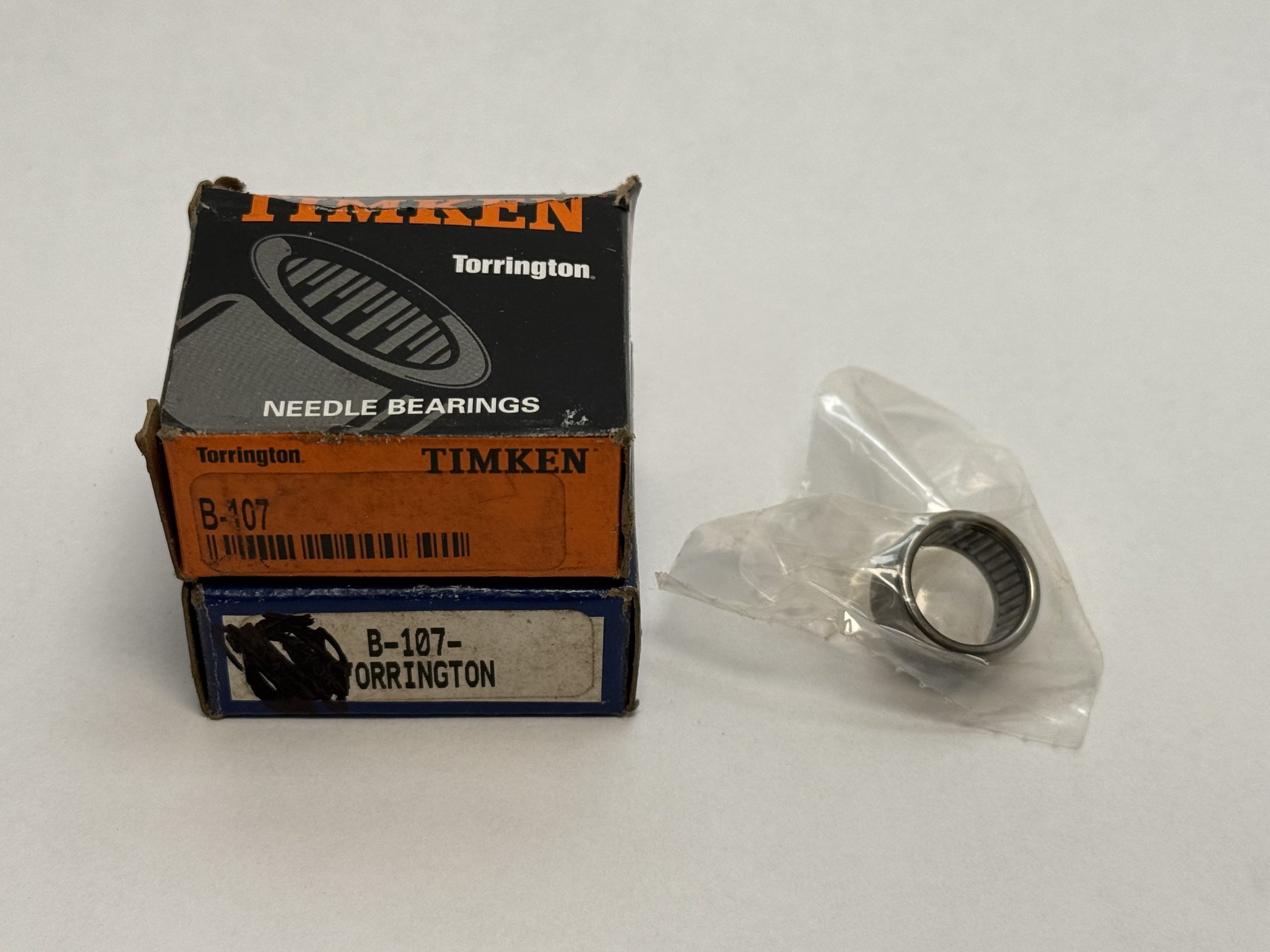

Unit Quantity: 2 Pcs. Two B-107 bearings, one in a Timken/Torrington carton and one in an earlier Torrington carton, same part number on both. MPN Variants: B-107, B107, B 107.
Cross-Reference: Koyo B-107, the same full complement drawn cup bearing in the same 5/8 x 13/16 x 7/16 in envelope. The Torrington drawn cup needle roller line is produced under the Koyo name.
