Single-row tapered roller bearing set, 5.0000 in bore, 11.6250 in OD, 3.2501 in width. Timken TS imperial series cone EE540502 and cup 541162.
List Price
$5,844.50
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | EE540502/541162 |
| Model | EE 540502 / 541162 |
| Bearing Type | Tapered Roller Bearing Cone and Cup Set, Open |
| ID | 5.0000 in |
| OD | 11.6250 in |
| Series | 540000 |
|---|---|
| Base Number | EE540502/541162 |
| Industry Terms | Taper bearing set; TS single-row tapered roller bearing; cone and cup set; taper roller cone and race |
| Common Misspellings | Timkin EE540502/541162; EE54502/541162; EE540502/54162; EE540502 541162 |
| Application Types | Heavy industrial shafting; gearboxes and speed reducers; mill and mining equipment; large wheel and pinion mountings |
| Bore Shaft Size | 5.0000 in (127 mm) |
| Mpn Variants | EE540502/541162; EE 540502 / 541162; EE540502-541162; EE-540502; 540502/541162 |
| Closure Type | Open |
| Dynamic Load Rating | 823,000 N |
| Static Load Rating | 1,090,000 N |
| Rolling Elements | Tapered Rollers |
| Item Weight | 27.1 kg (59.70 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.20.00 |
| Part Number | EE540502/541162 |
| Additional Attributes | C90 213,000 N (47,900 lbf); Ca90 145,000 N (32,700 lbf); cone width 87.313 mm; cup width 57.15 mm; e 0.4; K 1.47; Y 1.51; effective center -20.6 mm |

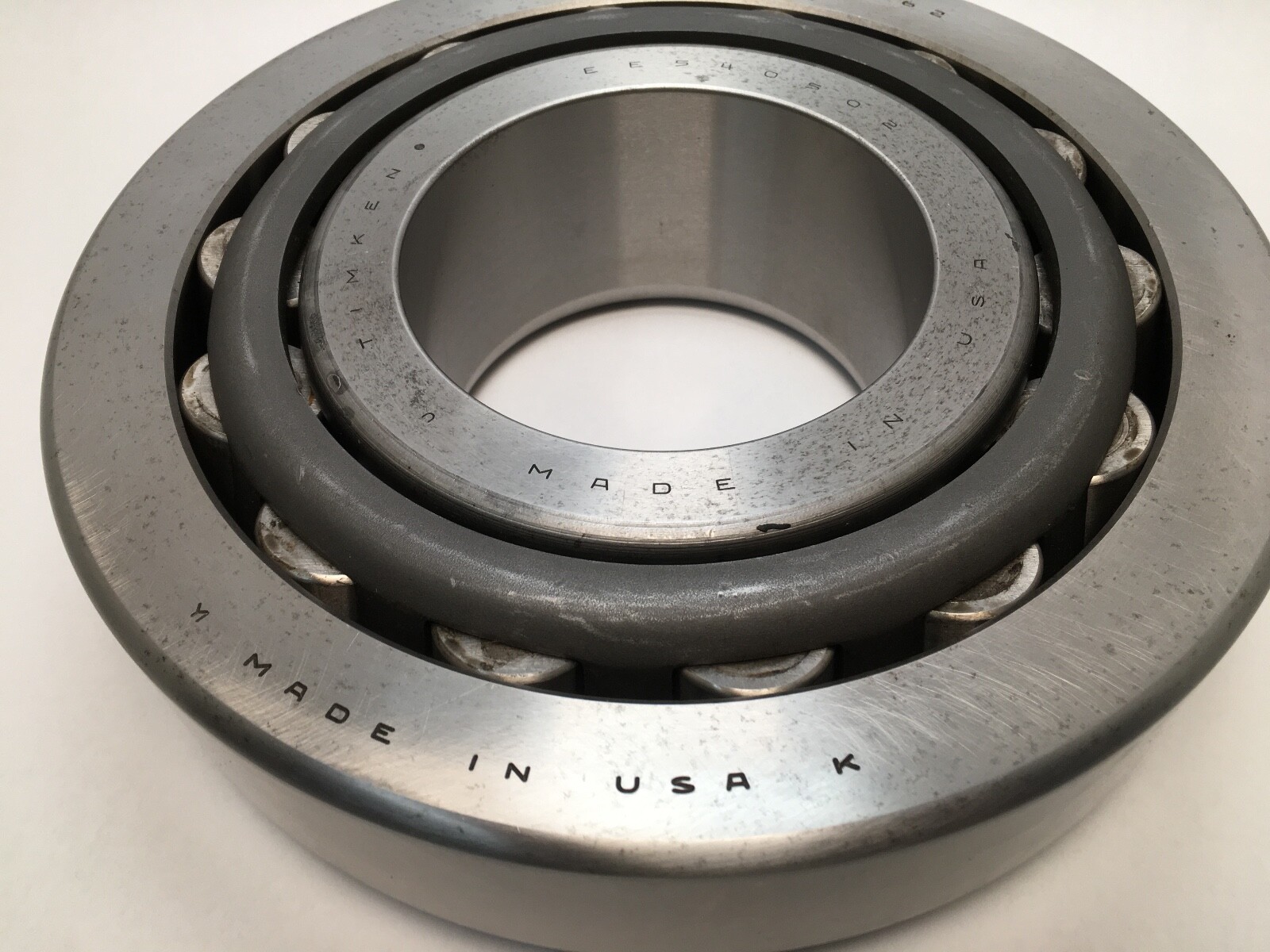

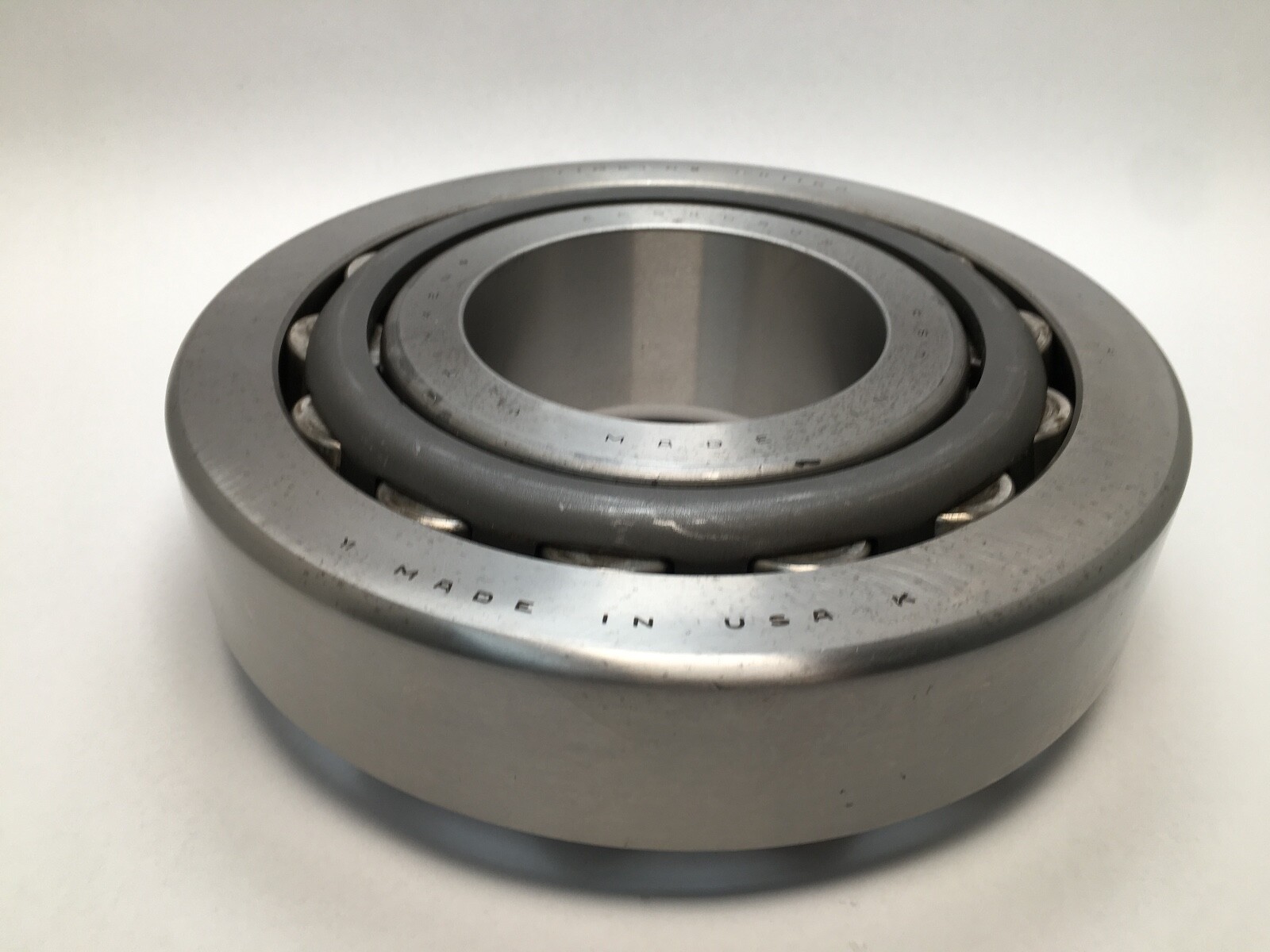

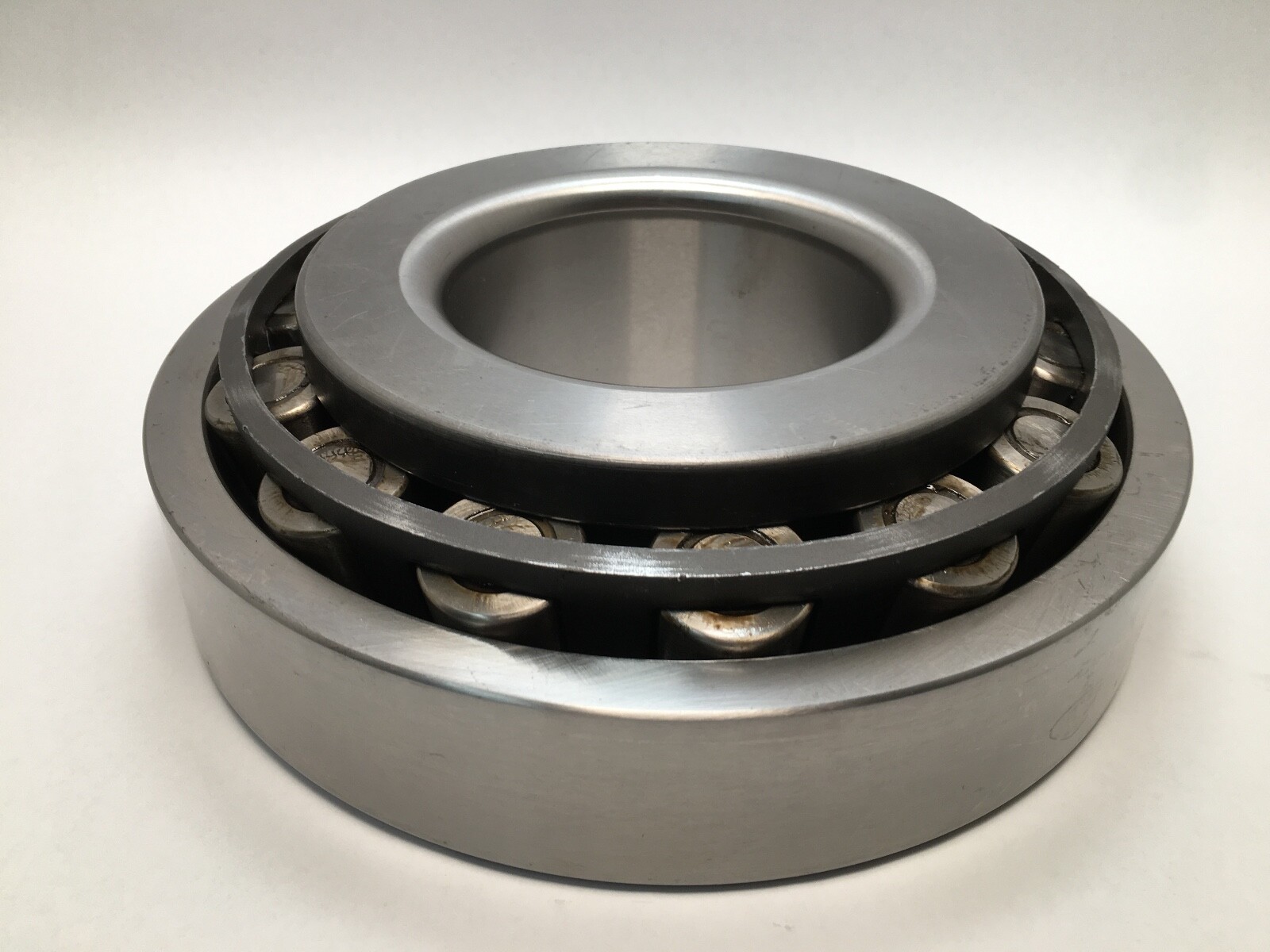

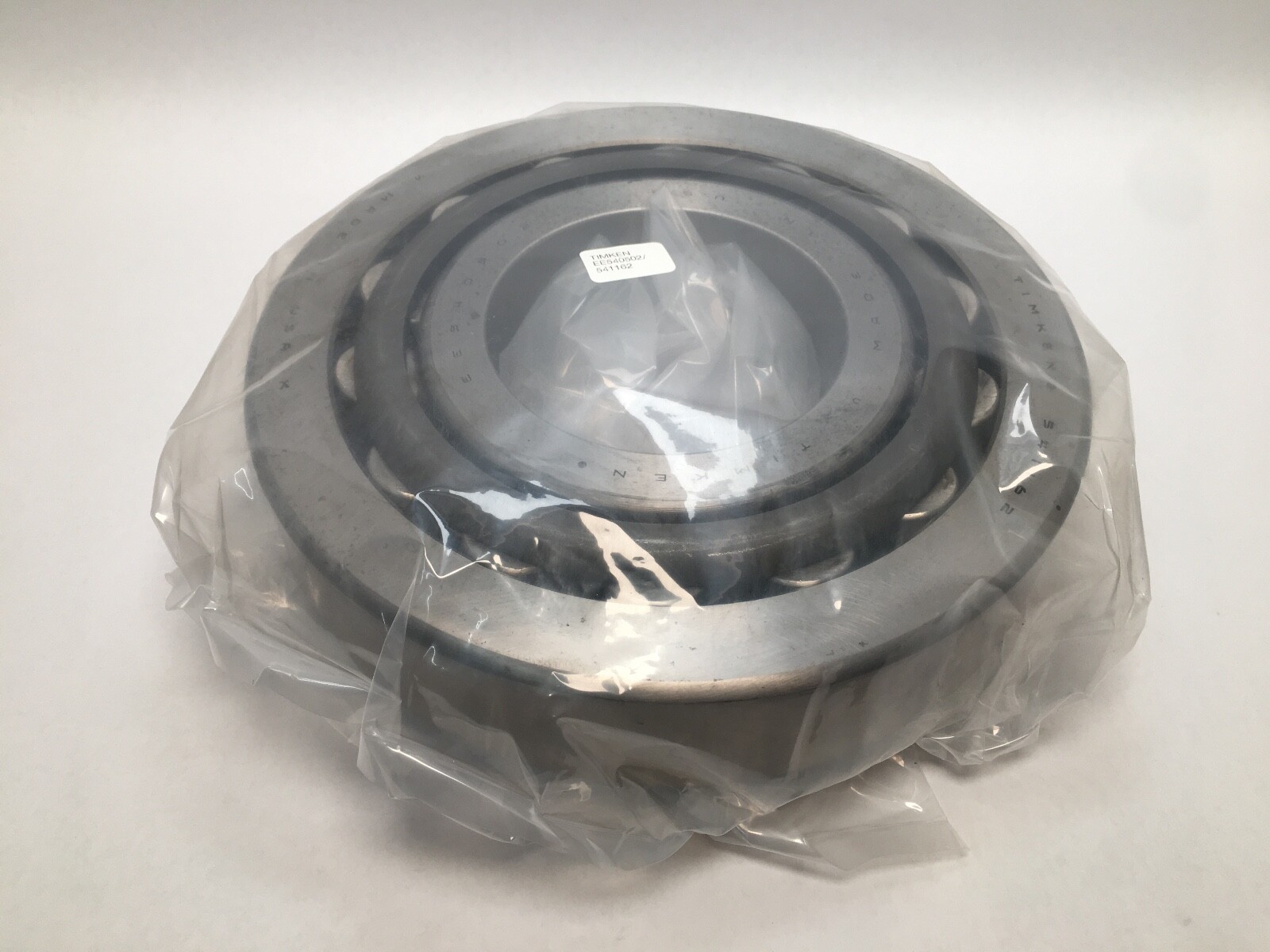

Timken EE540502/541162 single-row tapered roller bearing set in the TS (tapered single) imperial series, supplied as a matched cone and cup. Bore 5.0000 in (127 mm), cup outside diameter 11.6250 in (295.275 mm), width 3.2501 in (82.553 mm). Open on both faces. Unit Quantity: 1 Pc (one cone and one cup).

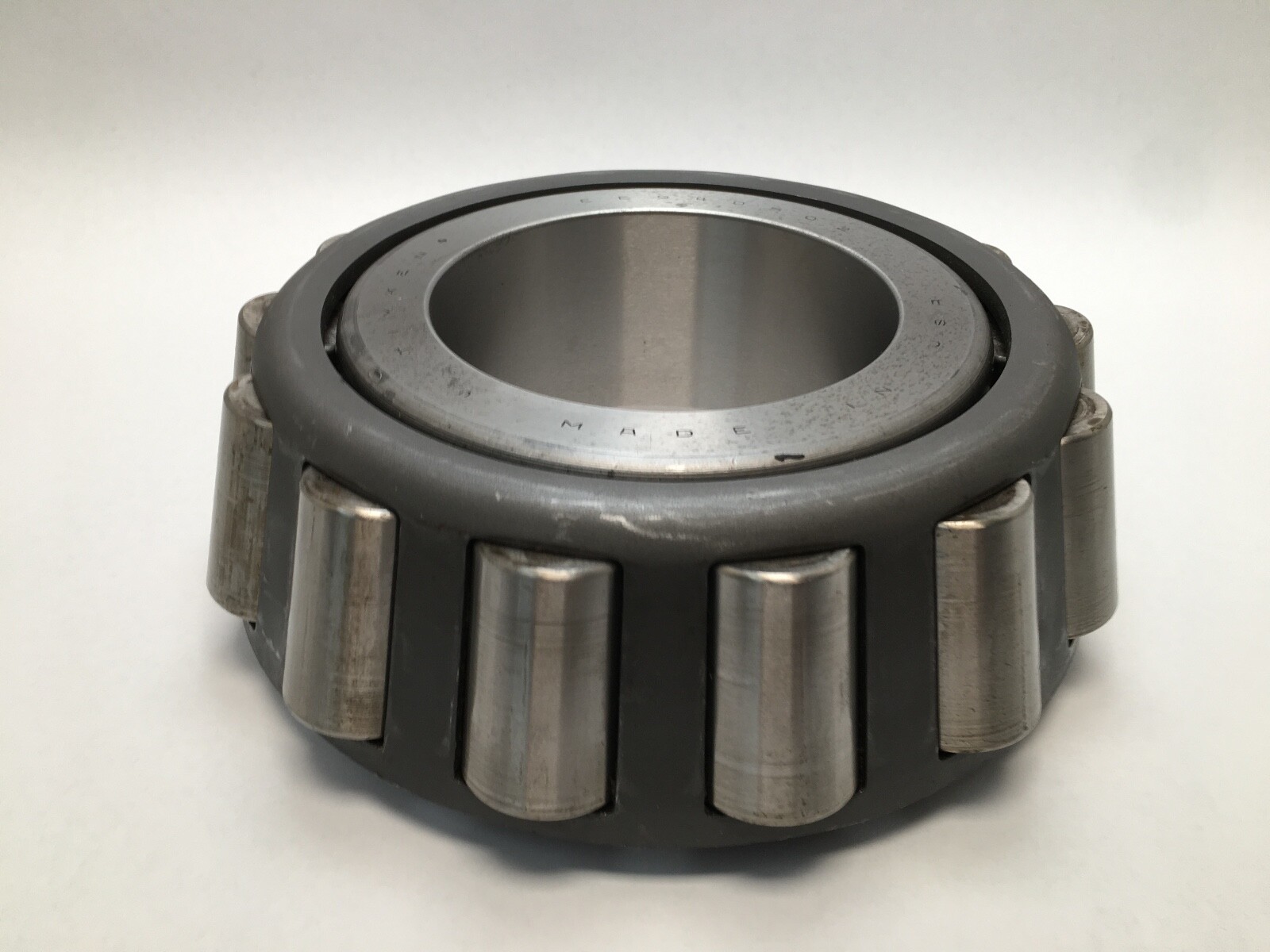

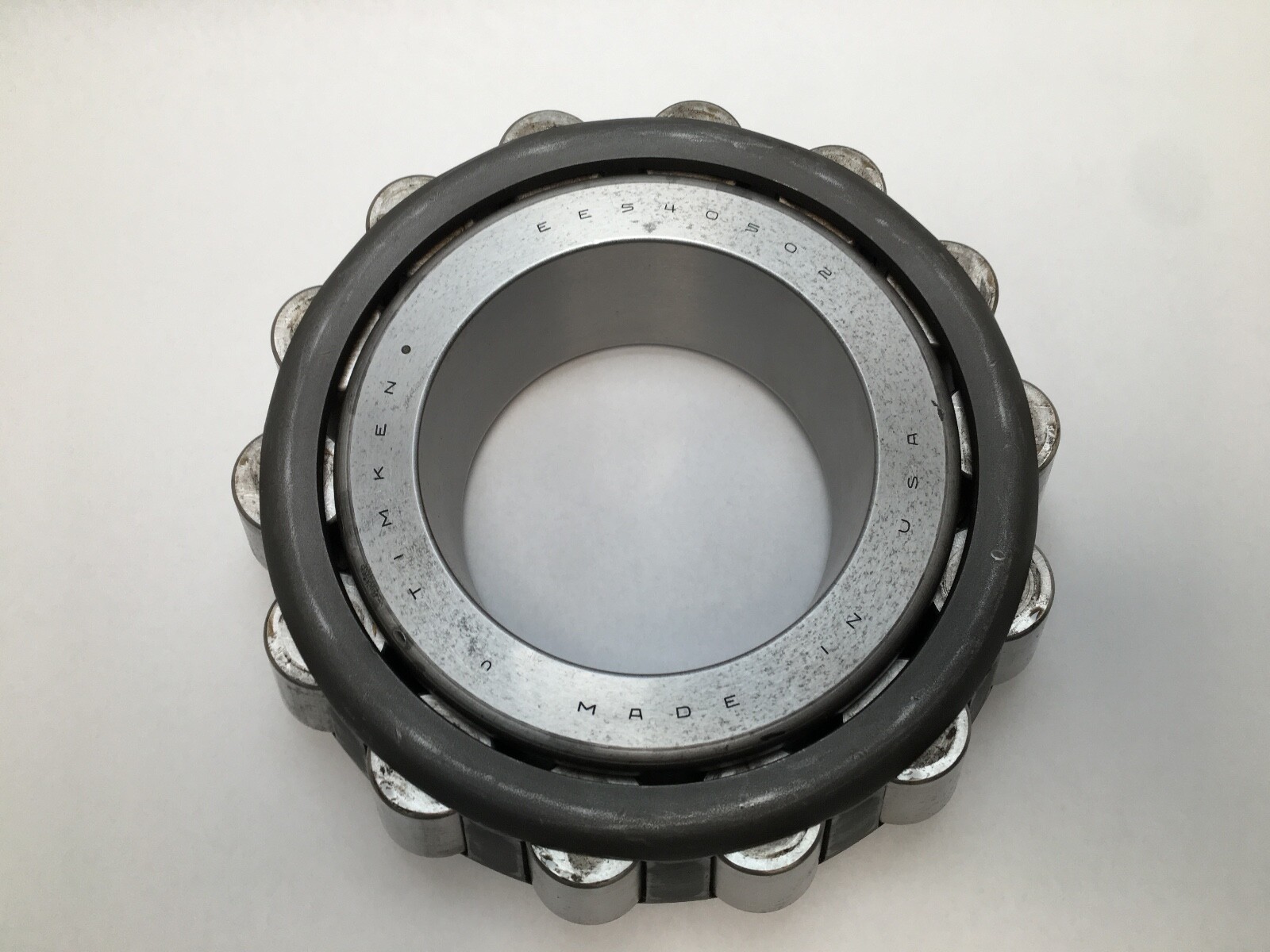

EE540502 — the cone: inner ring with its roller and cage assembly.

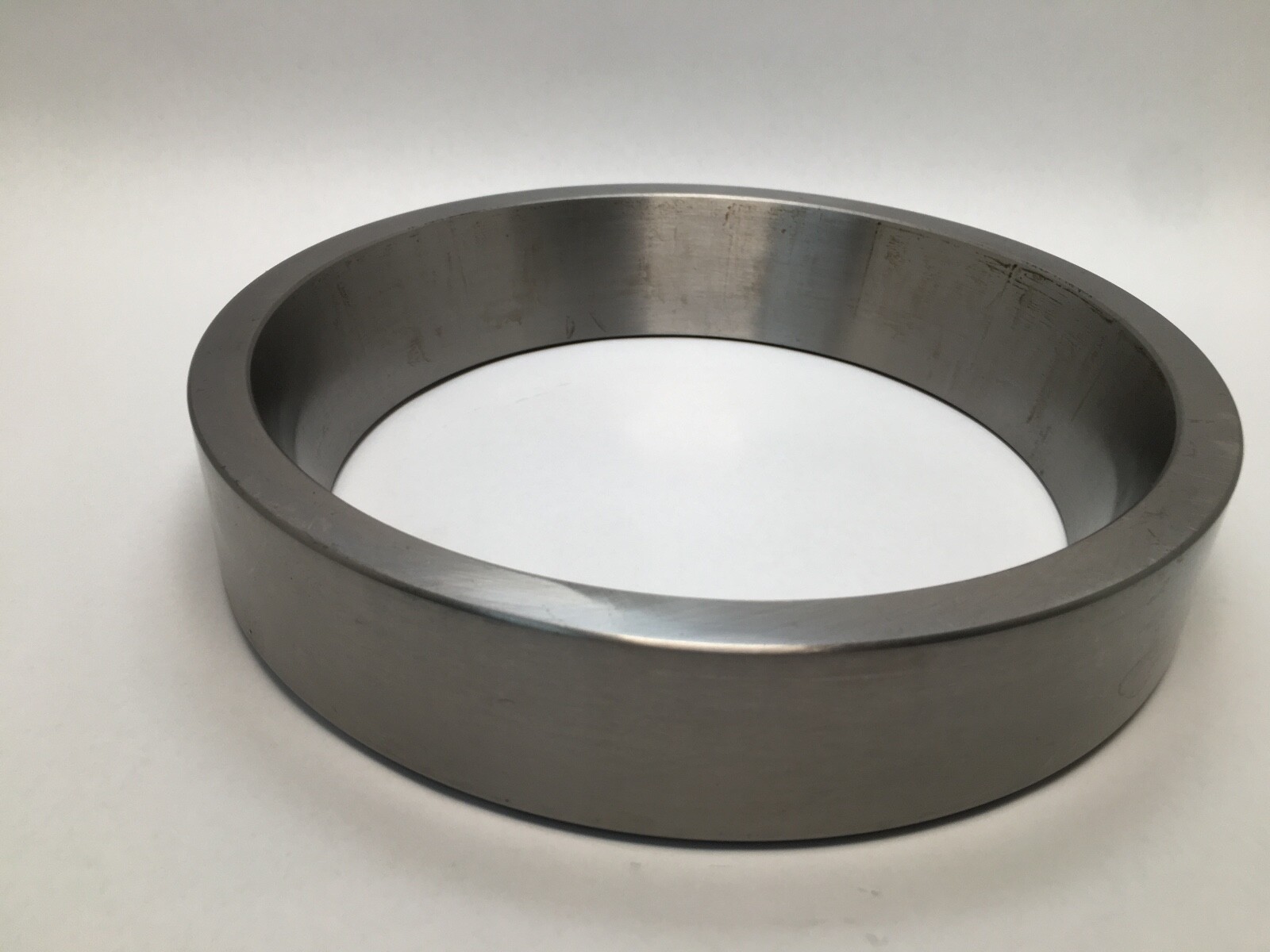

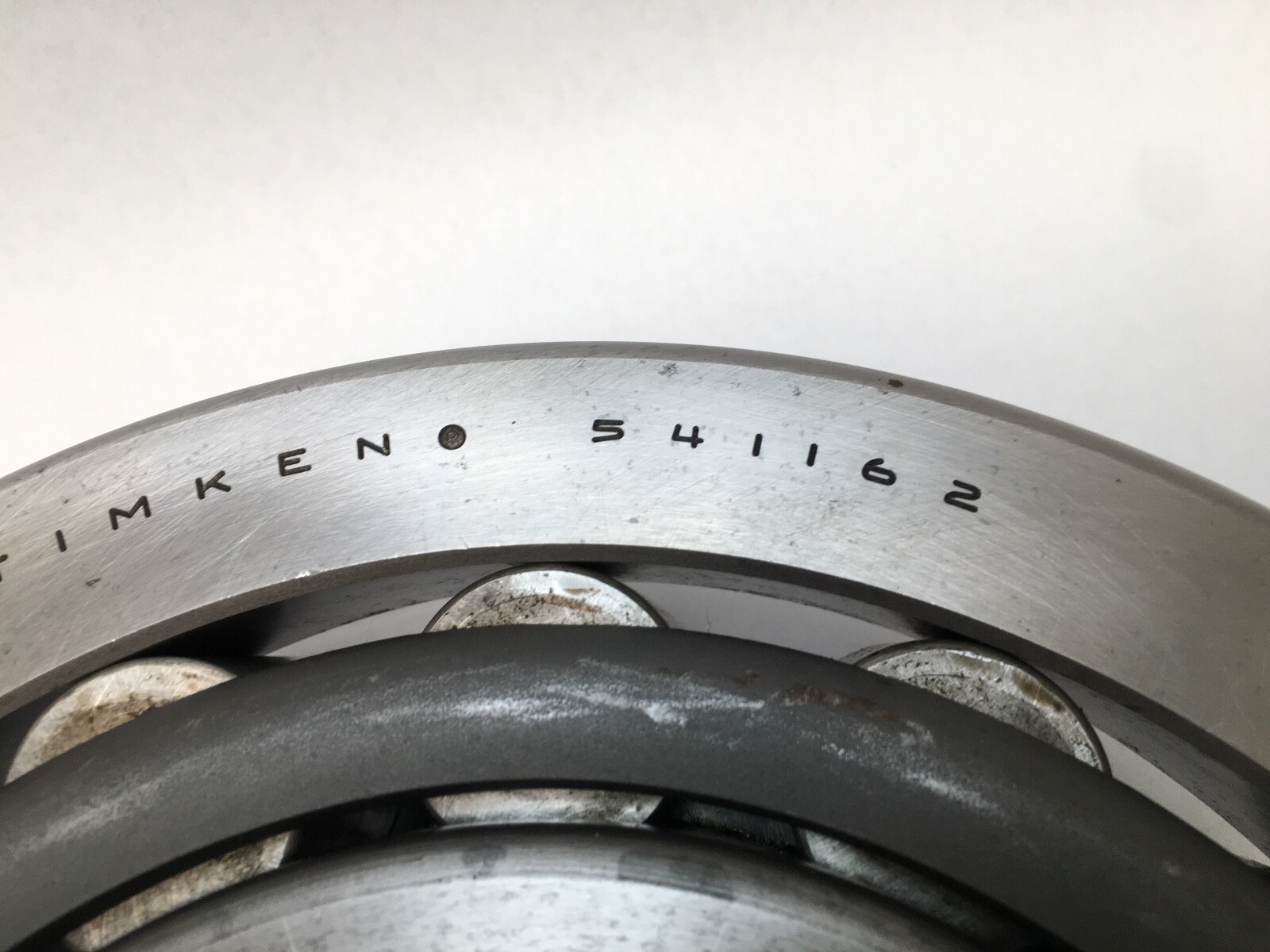

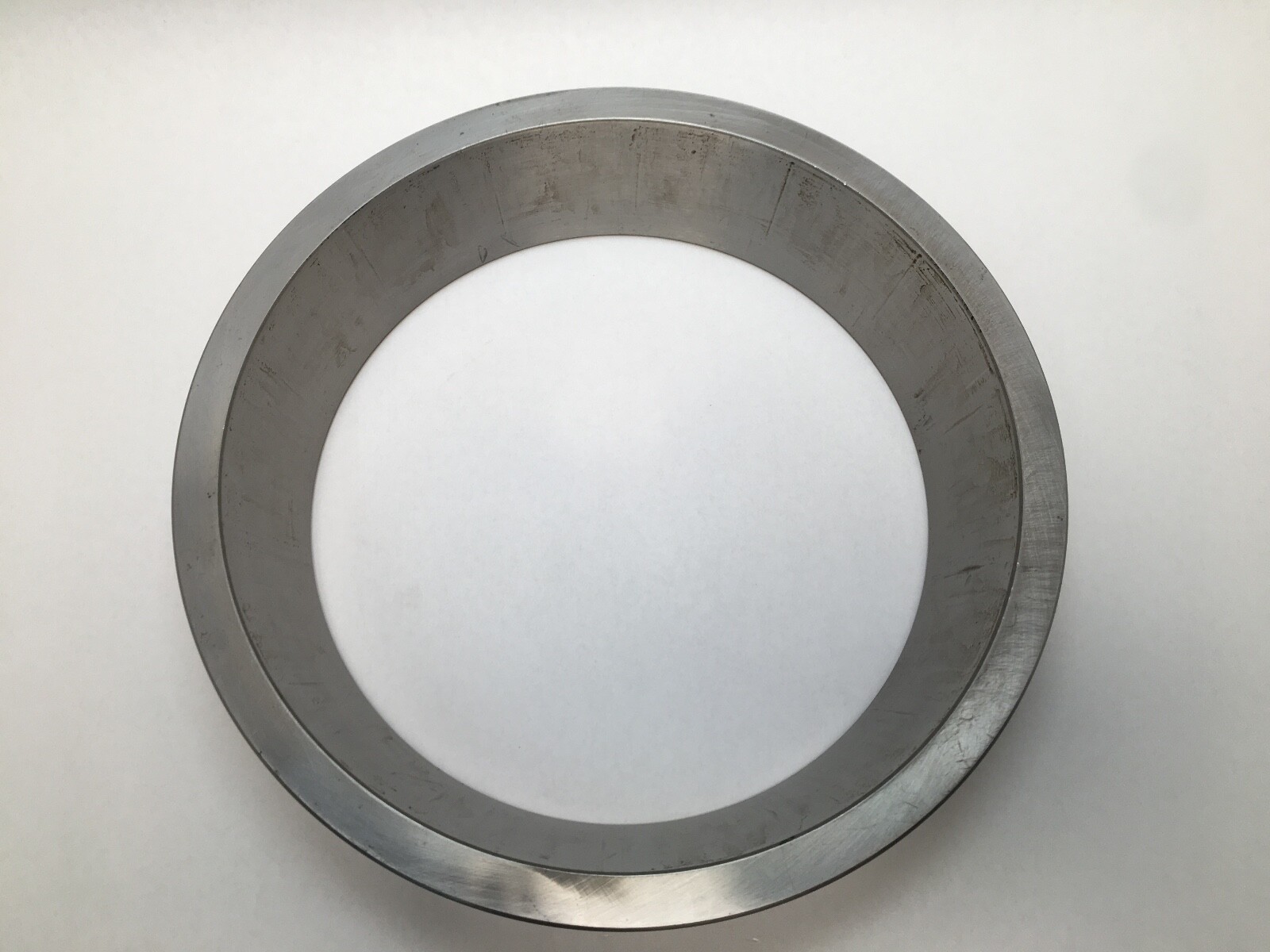

541162 — the cup: the separate outer race.
EE540502/541162 — the Timken part number for the matched cone and cup pair.
Bore Diameter: 5.0000 in (127 mm). Outside Diameter: 11.6250 in (295.275 mm). Overall Width (T): 3.2501 in (82.553 mm). Dynamic Radial Load Rating, 1M revolutions (C1): 823,000 N (185,000 lbf). Dynamic Radial Load Rating, 90M revolutions (C90): 213,000 N (47,900 lbf). Dynamic Axial Rating, 90M revolutions (Ca90): 145,000 N (32,700 lbf). Static Radial Load Rating (C0): 1,090,000 N (246,000 lbf). Item Weight: 27.1 kg (59.70 lb). Rows: 1. Closure Type: Open. Series: 540000.
Cone width (B): 3.4375 in (87.313 mm). Cup width (C): 2.25 in (57.15 mm). Effective center location: -0.81 in (-20.6 mm), inside the cone backface. Max shaft fillet radius: 0.530 in (13.460 mm). Max housing fillet radius: 0.250 in (6.35 mm). Shaft backing shoulder diameter: 6.1 in (155 mm) front face, 7.13 in (181 mm) back face. Housing backing shoulder diameter: 10.43 in (264.90 mm) front face, 10.08 in (256.03 mm) back face. e factor 0.4, K factor 1.47, Y factor 1.51.
Cone EE540502 mates with cup 541162. CAD model and data sheet: available from Timken (cad.timken.com).

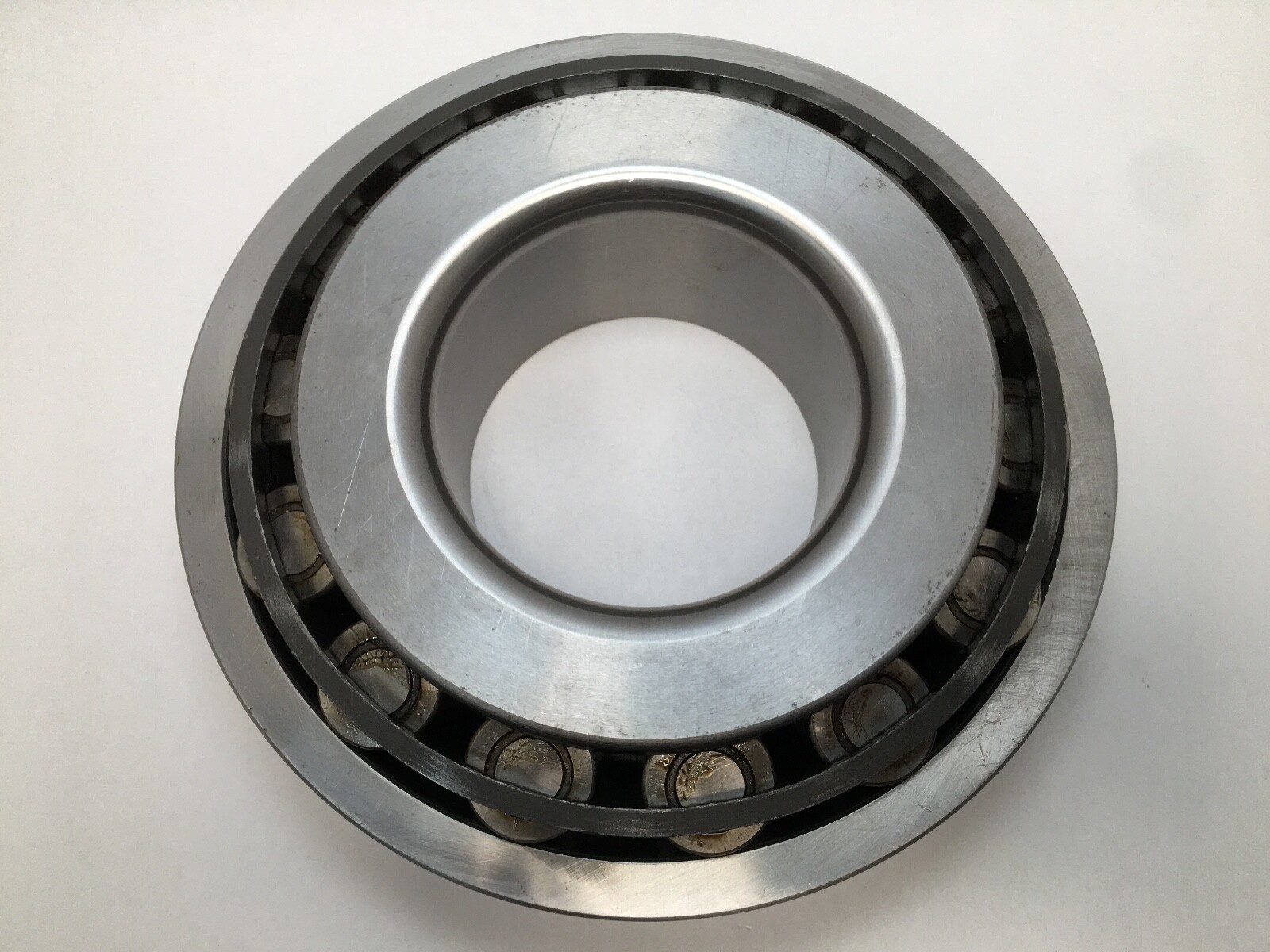

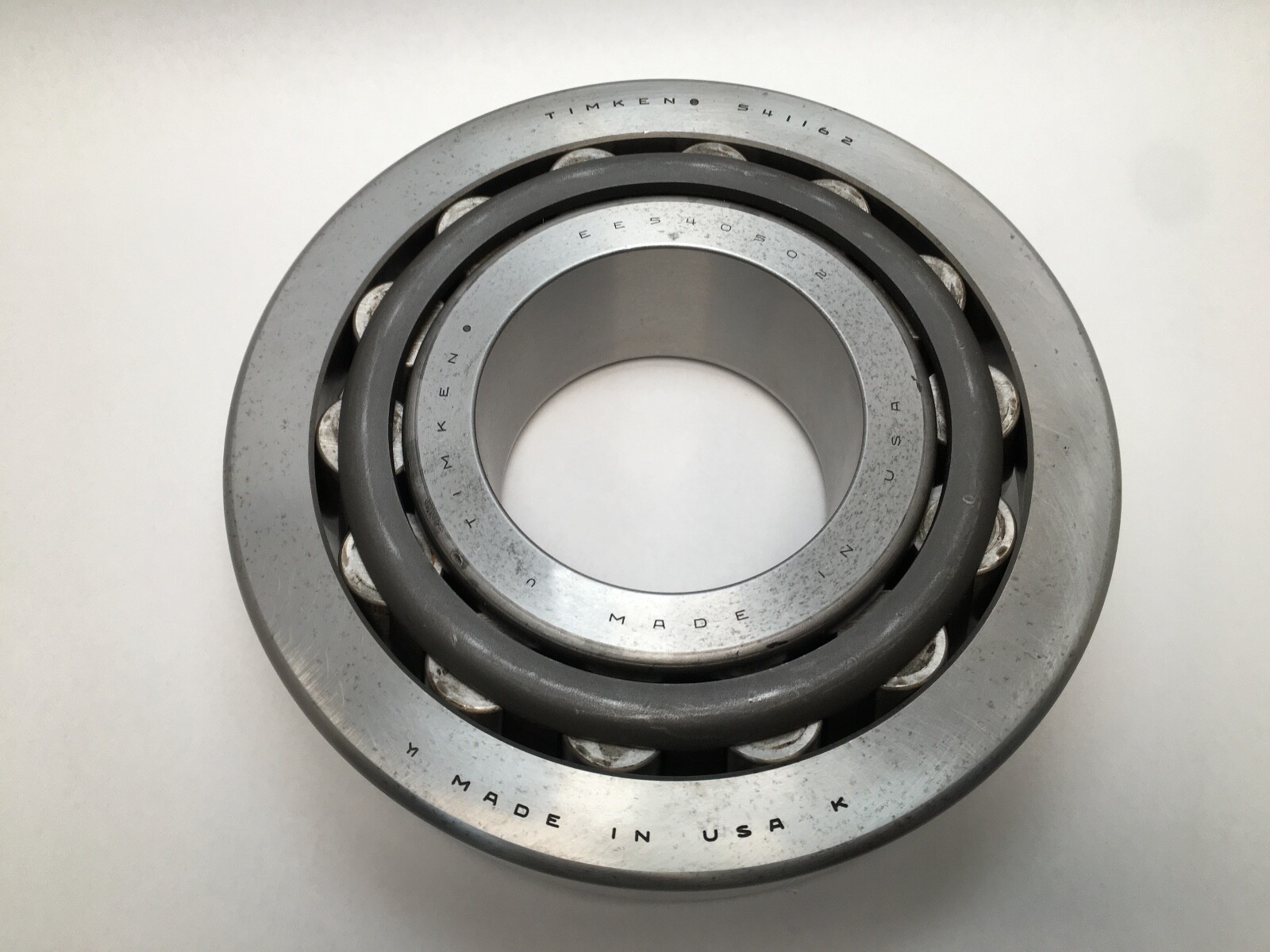

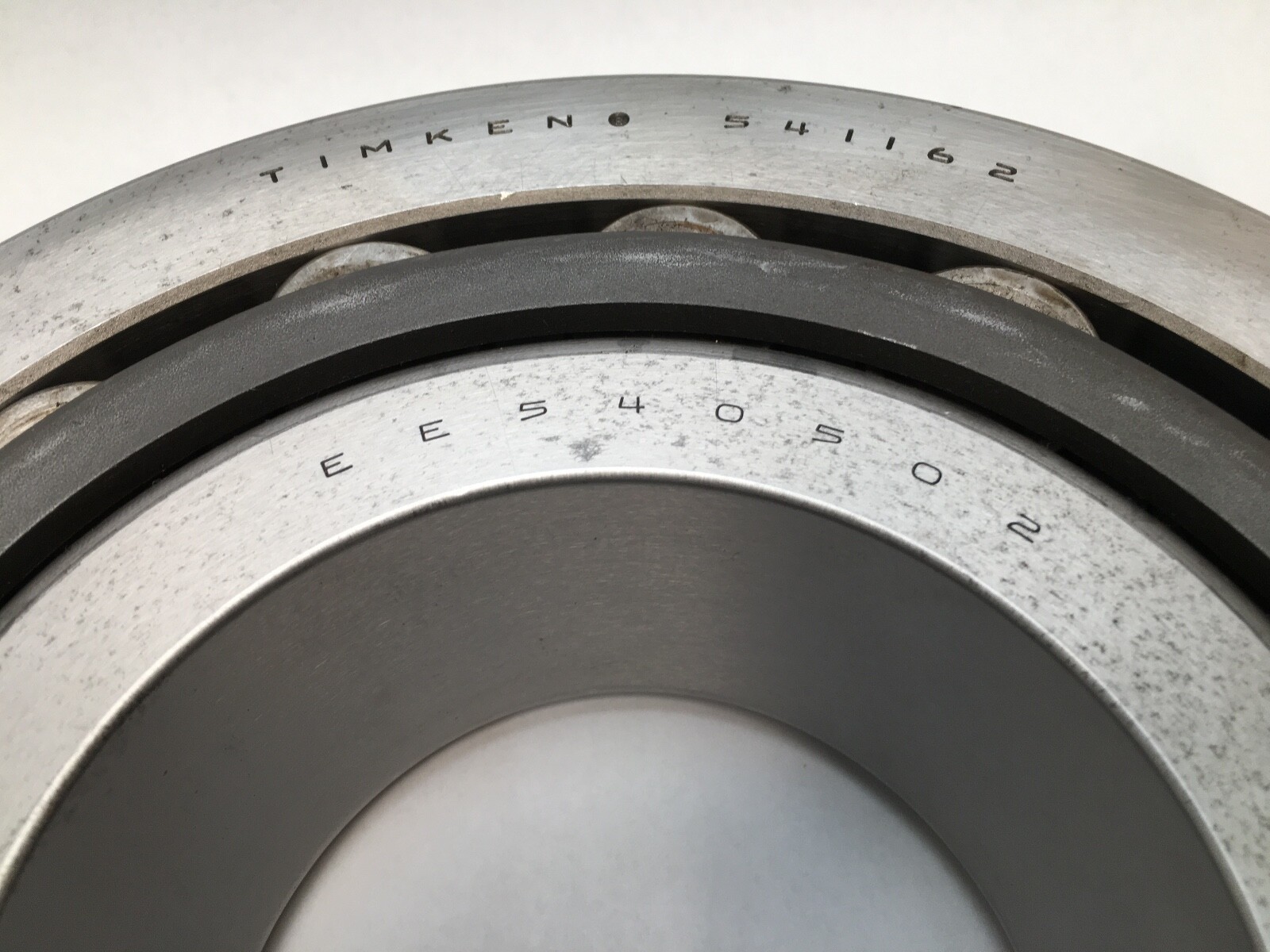

Cone EE540502 and cup 541162.
Timken publishes C1 823,000 N (185,000 lbf), C90 213,000 N (47,900 lbf) and static C0 1,090,000 N (246,000 lbf).
Bore 5.0000 in (127 mm), outside diameter 11.6250 in (295.275 mm), weight 27.1 kg (59.70 lb).
