Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
Tapered roller bearing cone and cup set, 2.0625 in bore, 3.6718 in OD, 1.1875 in assembled width, K factor 1.73, 122,000 N dynamic rating. 2 Pcs.
List Price
$42.45
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 3767/3730 |
| Model | 3767 / 3730 |
| Bearing Type | Tapered Roller Bearing Cone and Cup Set |
| ID | 2.0625 in (52.388 mm) |
| OD | 3.6718 in (93.264 mm) |
| Series | 3700 |
|---|---|
| Harmonization Code | 8482.20.00 |
| Cup Part Number | 3730 |
| Design Units | Imperial |
| Bearing Material | Case-Carburized Steel |
| Cup Width | 0.9375 in (23.813 mm) |
| Cup Backface To Clear Radius | 0.13" |
| Cone Part Number | 3767 |
| Cone Width | 1.1930 in (30.302 mm) |
| Cone Backface To Clear Radius | 0.14" |
| Cone Frontface Backing Diameter | 2.68" |
| Cup Frontface Backing Diameter | 3.43" |
| Cage Cone Frontface Clearance | 0.09" |
| Cage Cone Backface Clearance | 0.04" |
| Effective Center Location | -0.32 in (-8.1 mm) |
| Base Number | 3767/3730 |
| Total Width | 1.1875 in (30.163 mm) |
| Overall Width | 1.1875 in (30.163 mm) |
| Mpn Variants | 3767/3730, 3767-3730, 3767 3730, 3767, 3730 |
| Compatible With Replaces | Timken 3767 cone, Timken 3730 cup |
| Precision Class | Not specified |
| Dynamic Load Rating C1 | 122,000 N (27,500 lbf) |
| Dynamic Axial Rating Ca90 | 18,300 N (4,120 lbf) |
| K Factor | 1.73 |
| E Factor | 0.34 |
| Dynamic Load Rating | 122,000 N |
| Static Load Rating | 153,000 N (34,300 lbf) |
| Precision Rating | Not specified |
| Rolling Elements | Tapered Roller |
| Item Weight | 0.8 kg (1.8 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Industry Terms | tapered roller bearing set; cone and cup; TS single-row; inch taper bearing; matched cone cup |
| Common Misspellings | Timkin 3767/3730; Timkin 3767 3730; Tim ken 3767-3730; Timkon 3767/3730 |
| Cross Reference 1 | SKF 3767/3730 |
|---|---|
| Cross Reference 2 | FAG K3767-3730 |
| Cross Reference 3 | NSK 3767/3730 |
| Cross Reference 4 | NTN 4T-3767/3730 |
| Cross Reference 5 | Koyo 3767/3730 |
| Cross Reference 6 | Fersa 3767/3730 |
| Cross Reference 7 | BCA/Bower 3767/3730 |
| Cross Reference 8 | PEER 3767/3730 |

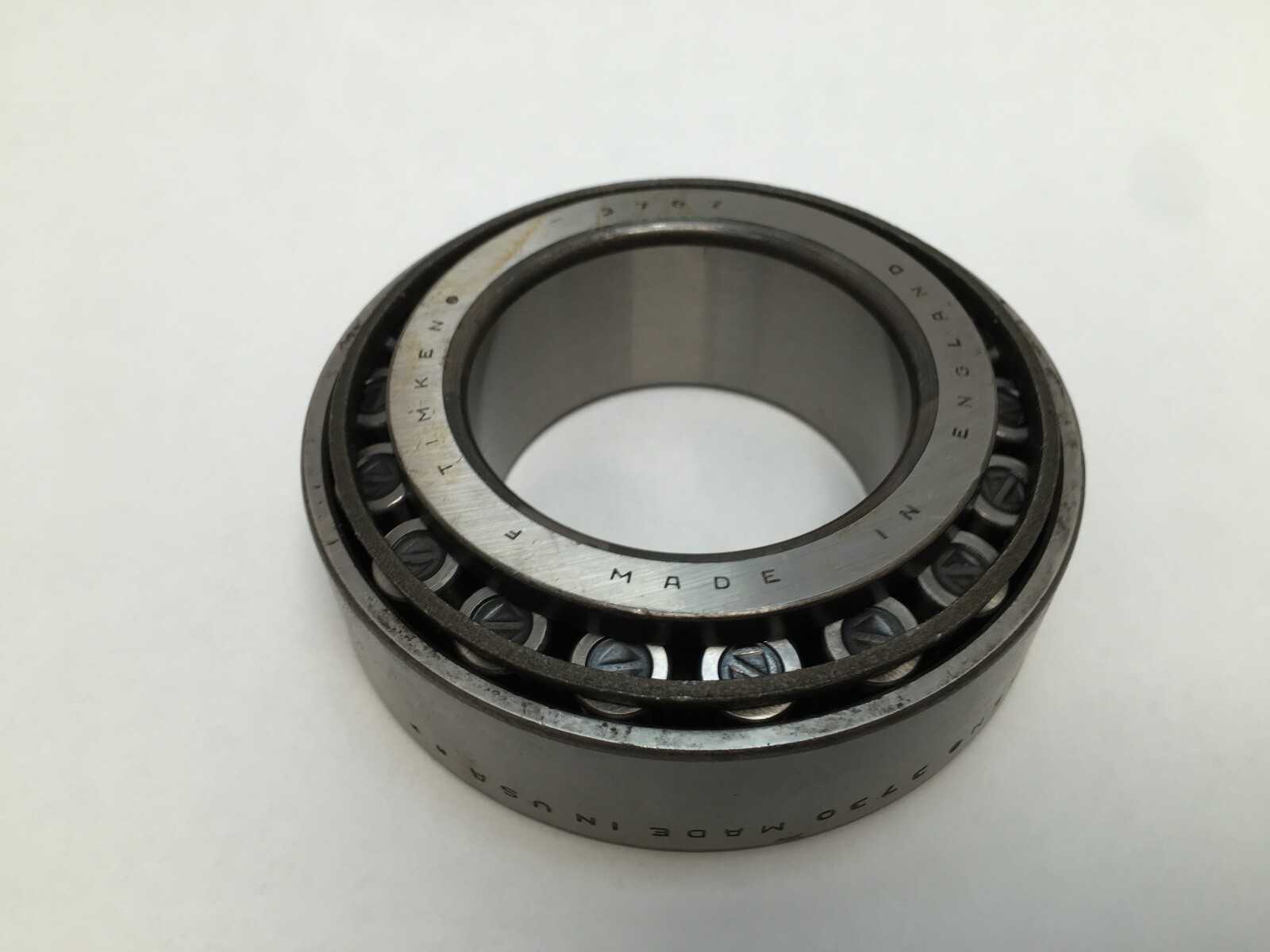

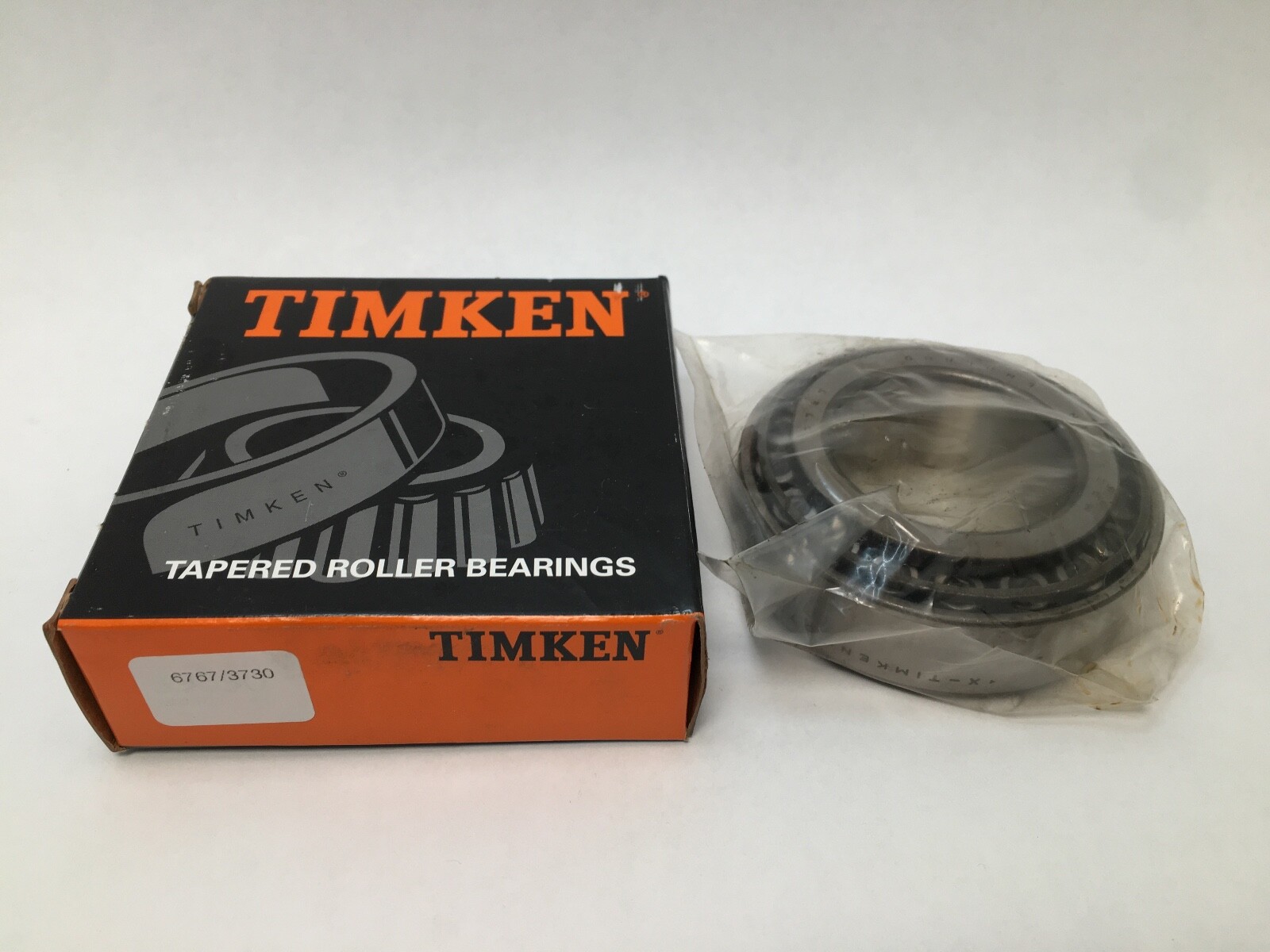

Timken 3767/3730 single-row inch tapered roller bearing, supplied as a matched cone and cup. Cone Part Number: 3767. Cup Part Number: 3730. Unit Quantity: 2 Pcs. Condition: new old stock, open box.

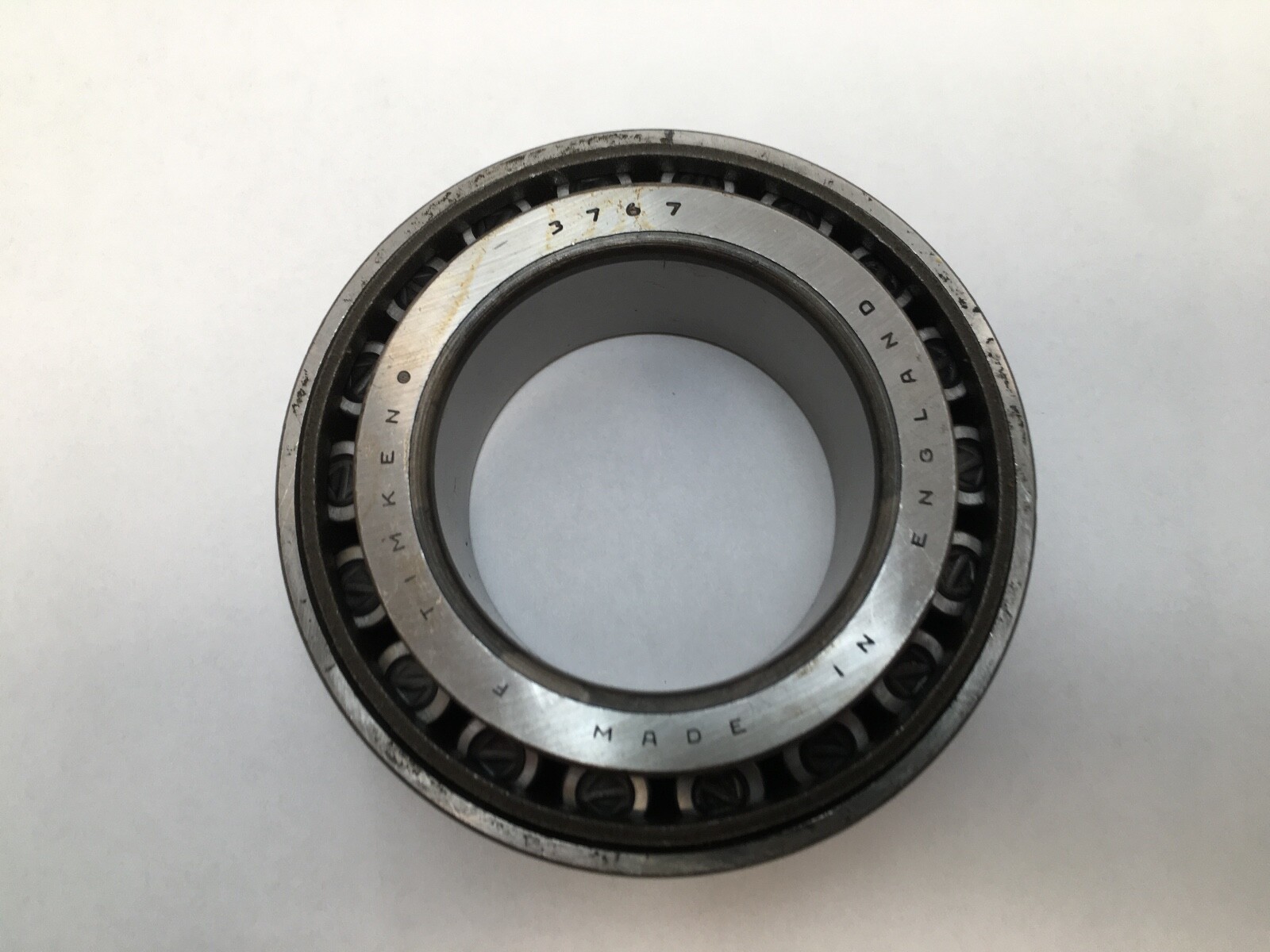

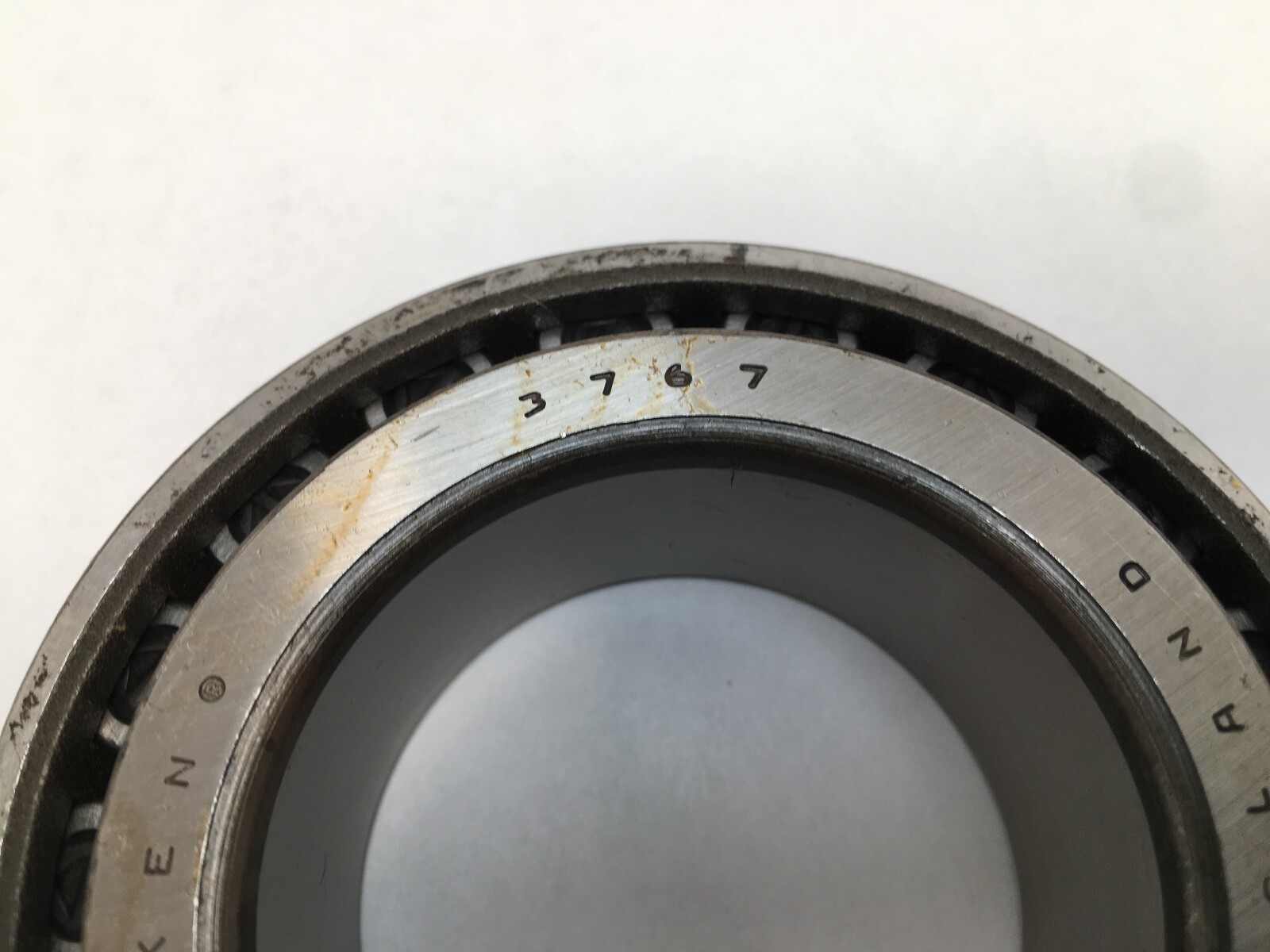

3767 — the cone number, a 3700-series inch tapered roller cone on a 2.0625 in bore.

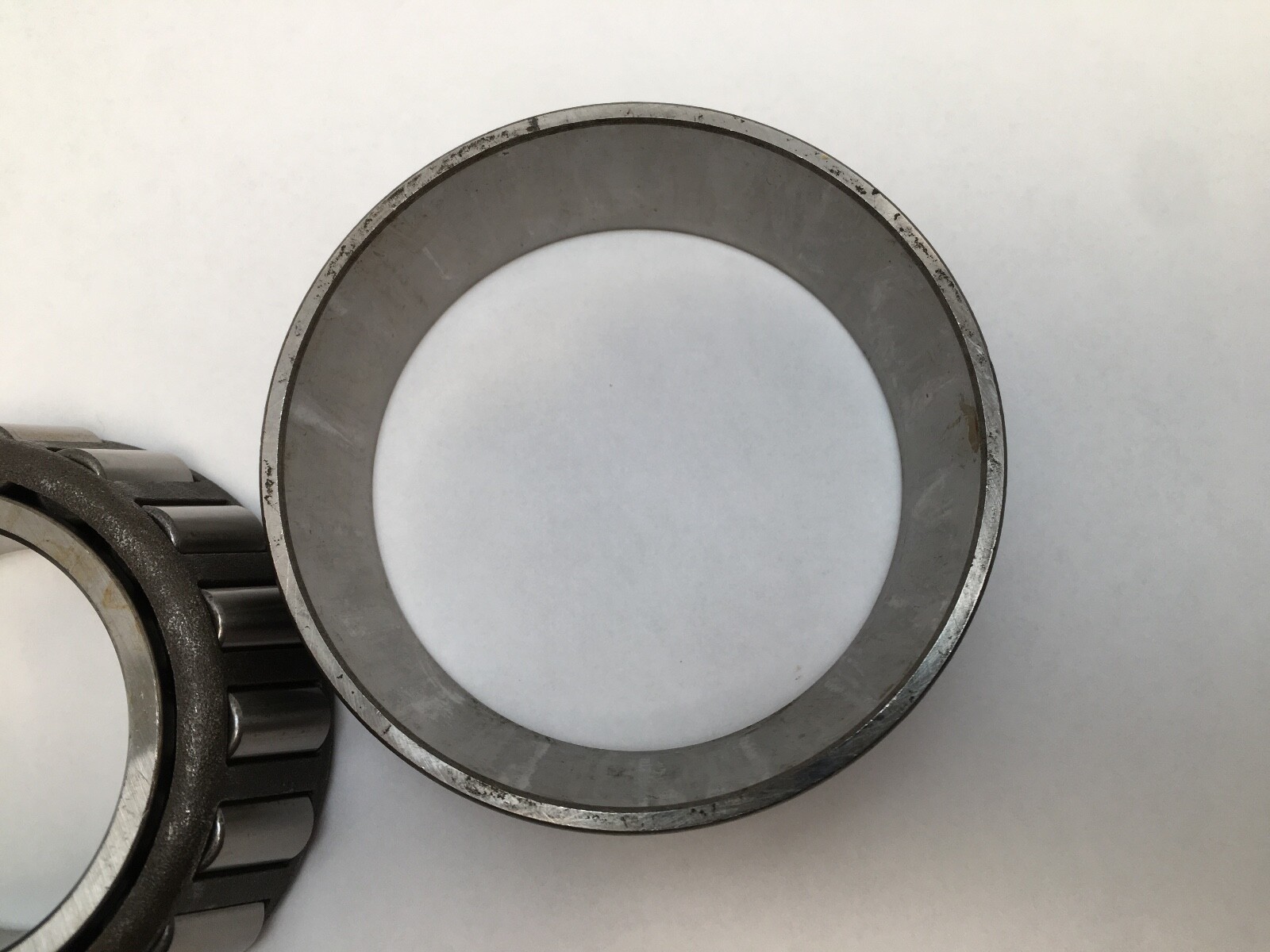

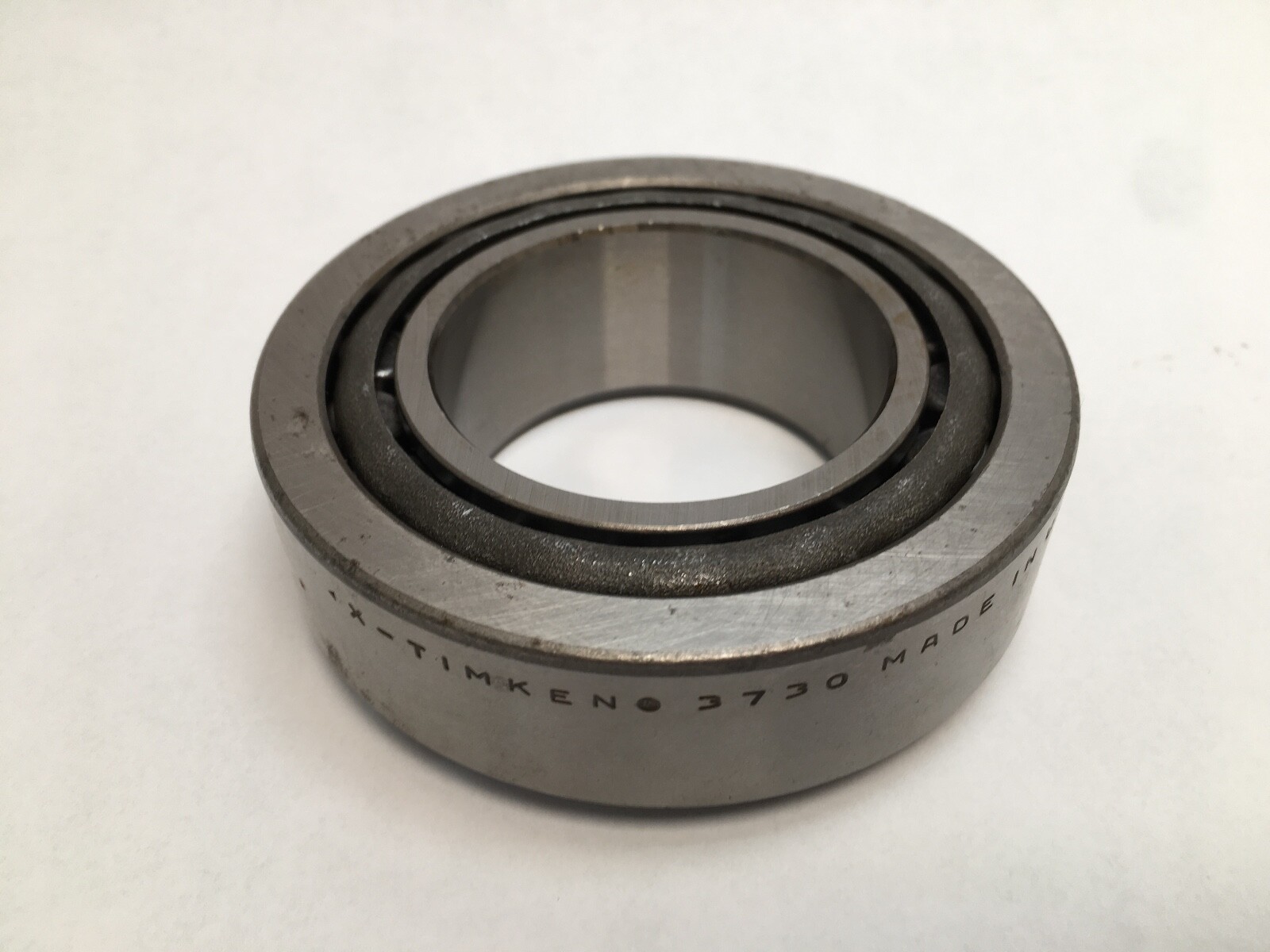

3730 — the cup number Timken pairs with the 3767 cone, giving a 3.6718 in outside diameter and a 0.9375 in outer ring width.
Bore Diameter: 2.0625 in (52.388 mm). Outside Diameter: 3.6718 in (93.264 mm). Overall Width (T): 1.1875 in (30.163 mm). Cone Width: 1.1930 in (30.302 mm). Cup Width: 0.9375 in (23.813 mm). Series: 3700. Rolling Elements: Tapered Roller. Number Of Rows: 1. Bore Type: Straight. Bearing Material: Case-Carburized Steel. Item Weight: 0.8 kg (1.8 lb). Harmonization Code: 8482.20.00.
Dynamic Load Rating (C1): 122,000 N (27,500 lbf). Dynamic Radial Load Rating (C90): 31,700 N (7,120 lbf). Dynamic Axial Rating (Ca90): 18,300 N (4,120 lbf). Static Load Rating (C0): 153,000 N (34,300 lbf). K Factor: 1.73. e Factor: 0.34. Y Factor: 1.77.
Effective Center Location: –0.32 in (–8.1 mm), measured inside the cone backface. Max Shaft Fillet Radius: 0.09 in (2.3 mm). Max Housing Fillet Radius: 0.03 in (0.76 mm).
Shaft Backing Shoulder Diameter, frontface (da): 2.32 in (59 mm). Shaft Backing Shoulder Diameter, backface (db): 2.48 in (63 mm). Housing Backing Shoulder Diameter, frontface (Da): 3.50 in (87.90 mm). Housing Backing Shoulder Diameter, backface (Db): 3.31 in (84.07 mm).
Cross-references: SKF 3767/3730, FAG K3767-3730, NSK 3767/3730, NTN 4T-3767/3730, Koyo 3767/3730, Fersa 3767/3730, BCA/Bower 3767/3730, PEER 3767/3730. MPN variants: 3767/3730, 3767-3730, 3767 3730.

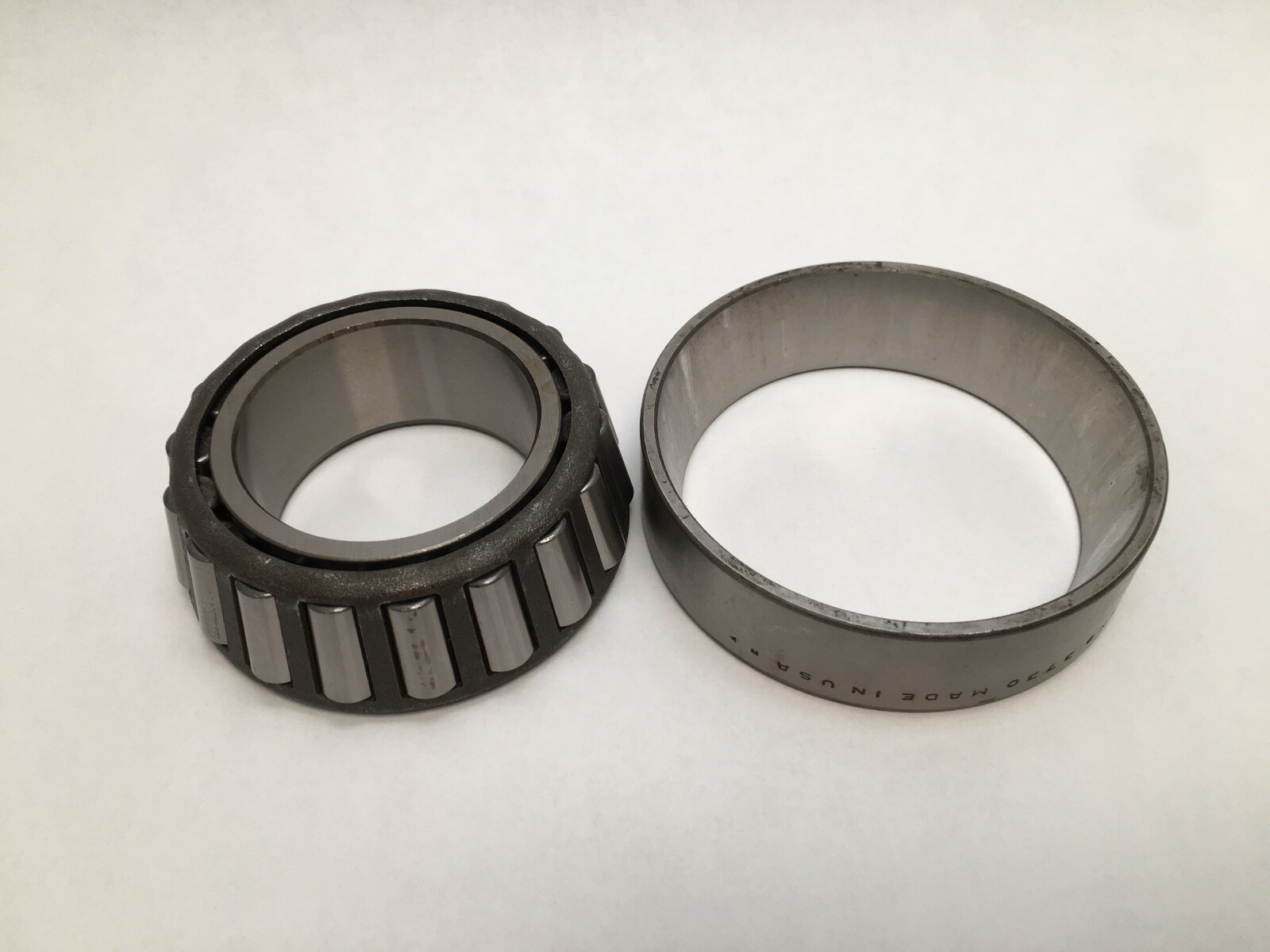

The 3767 cone, carrying the inner race, rollers and cage, and the 3730 cup, the outer race. Timken catalogues the pair as one TS single-row assembly.
Bore 2.0625 in (52.388 mm) and outside diameter 3.6718 in (93.264 mm).
Dynamic Load Rating (C1) is 122,000 N (27,500 lbf); static load rating (C0) is 153,000 N (34,300 lbf).
