Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
Out of stock

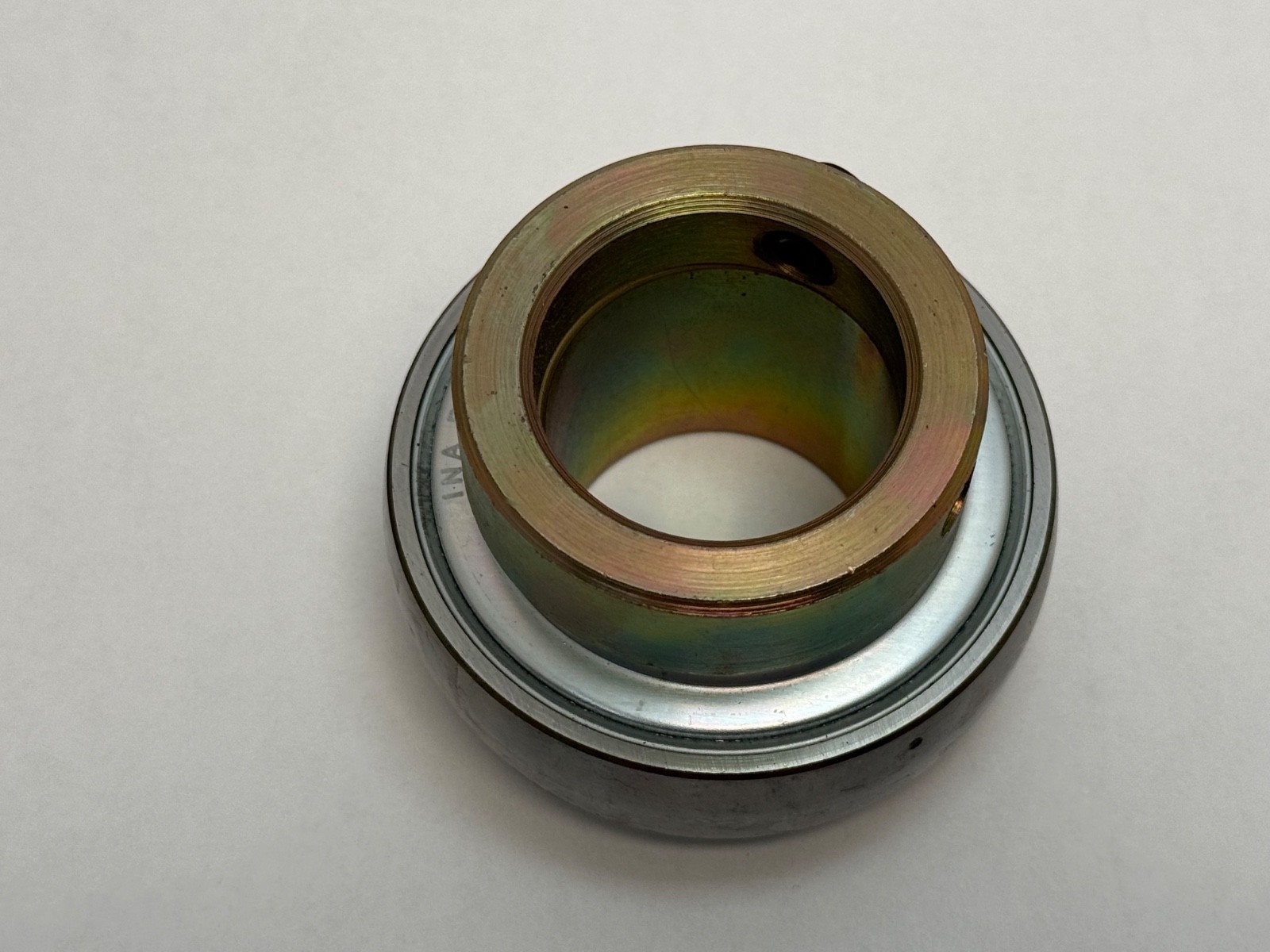

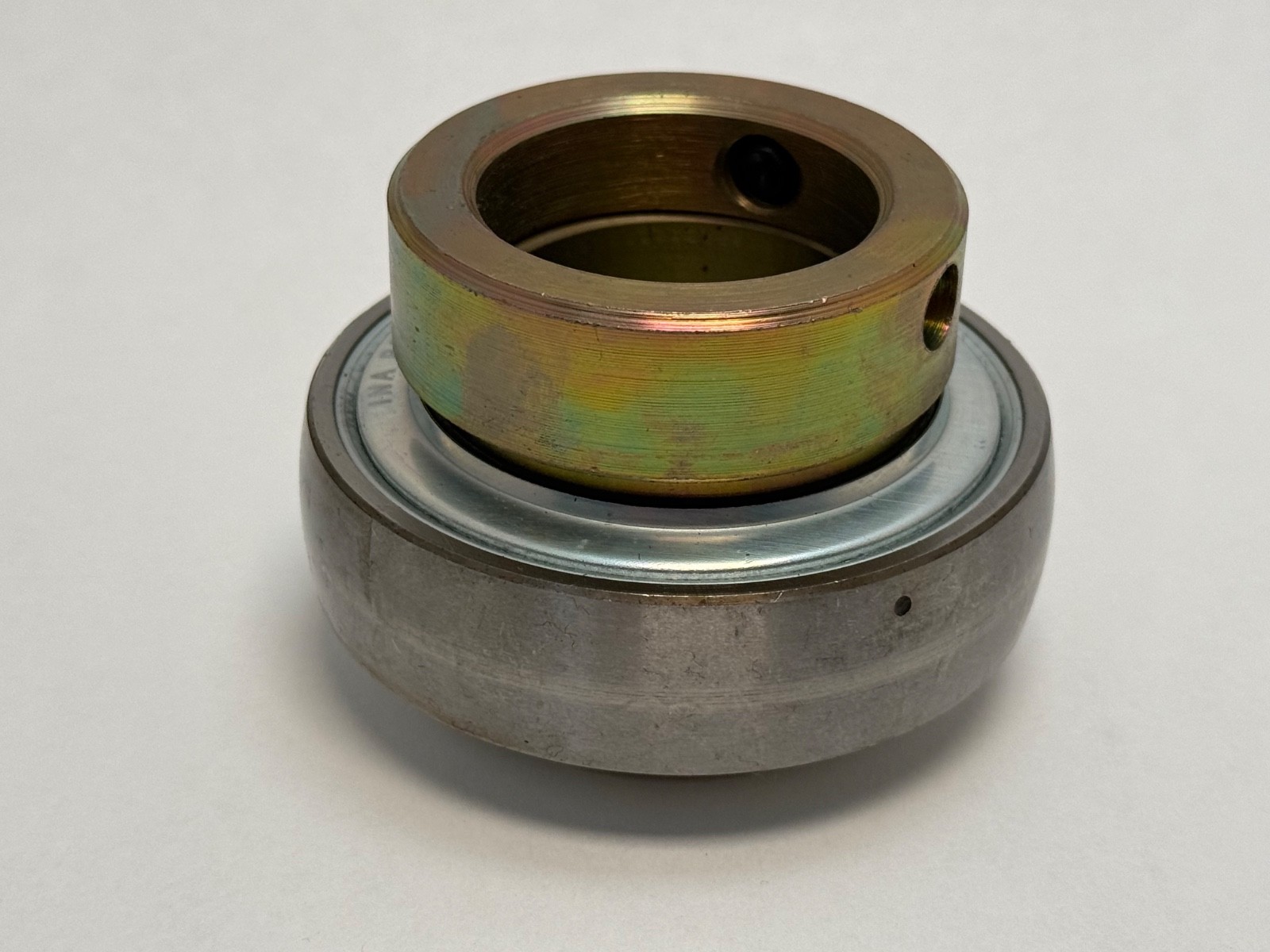

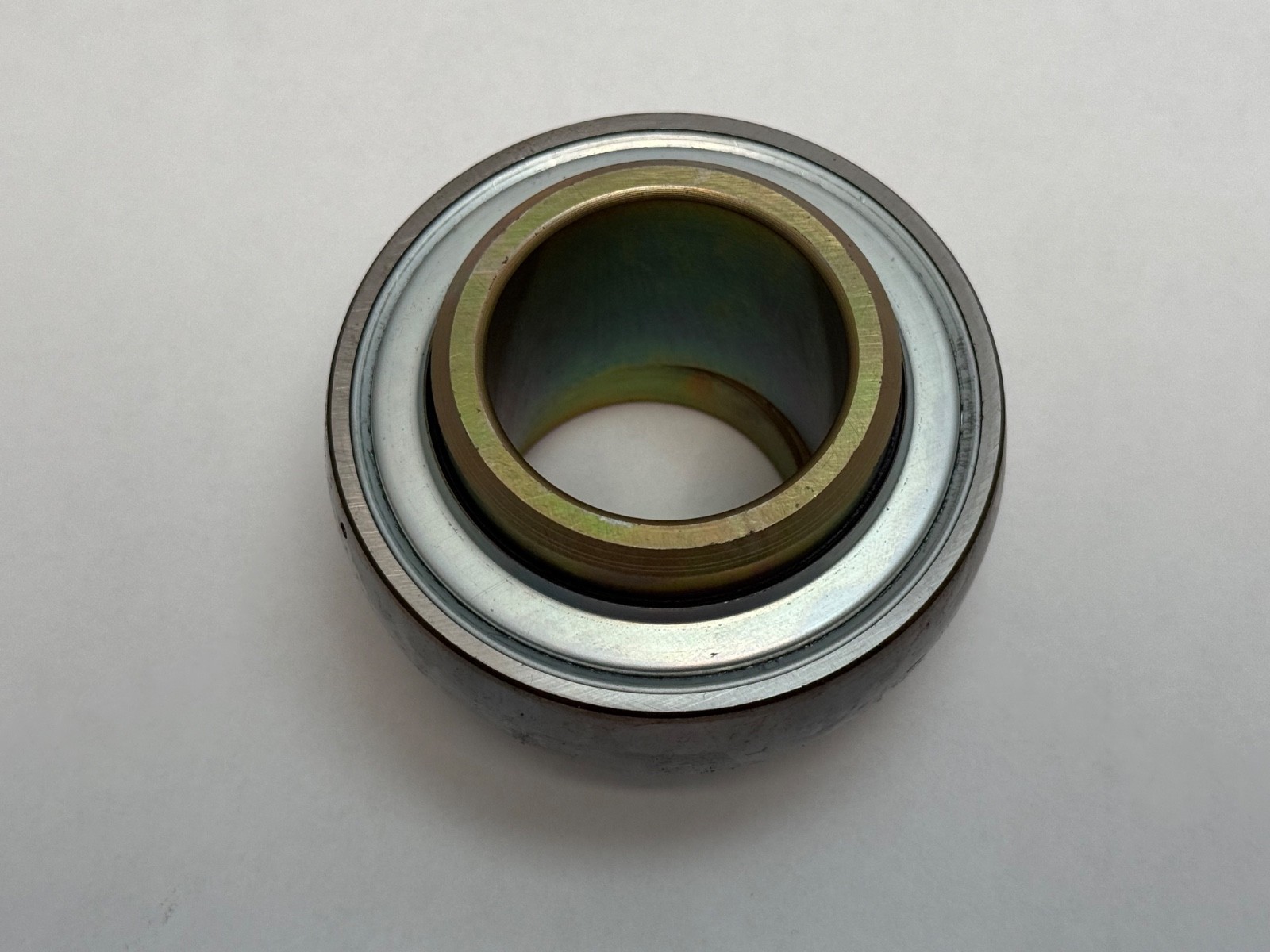

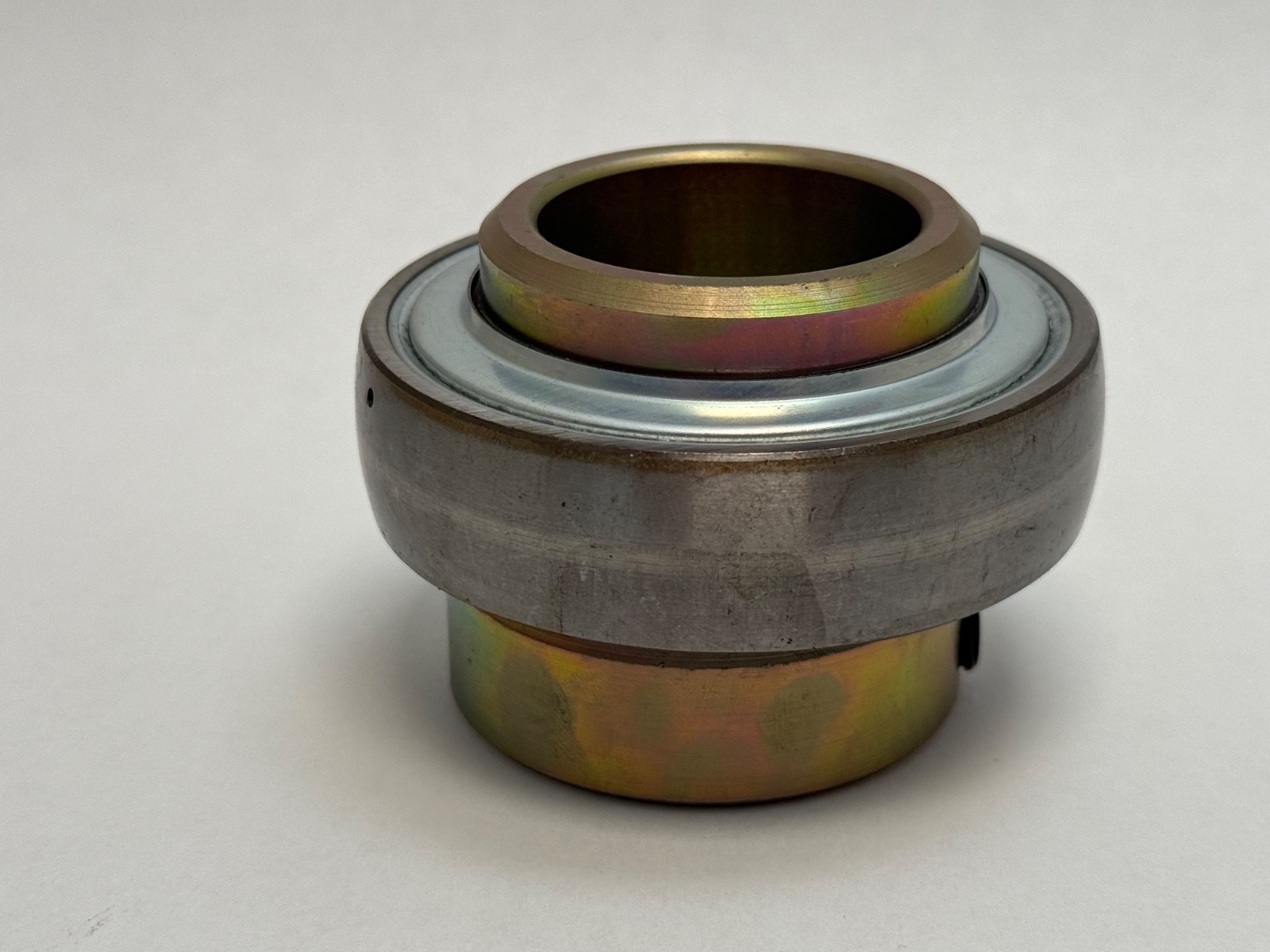

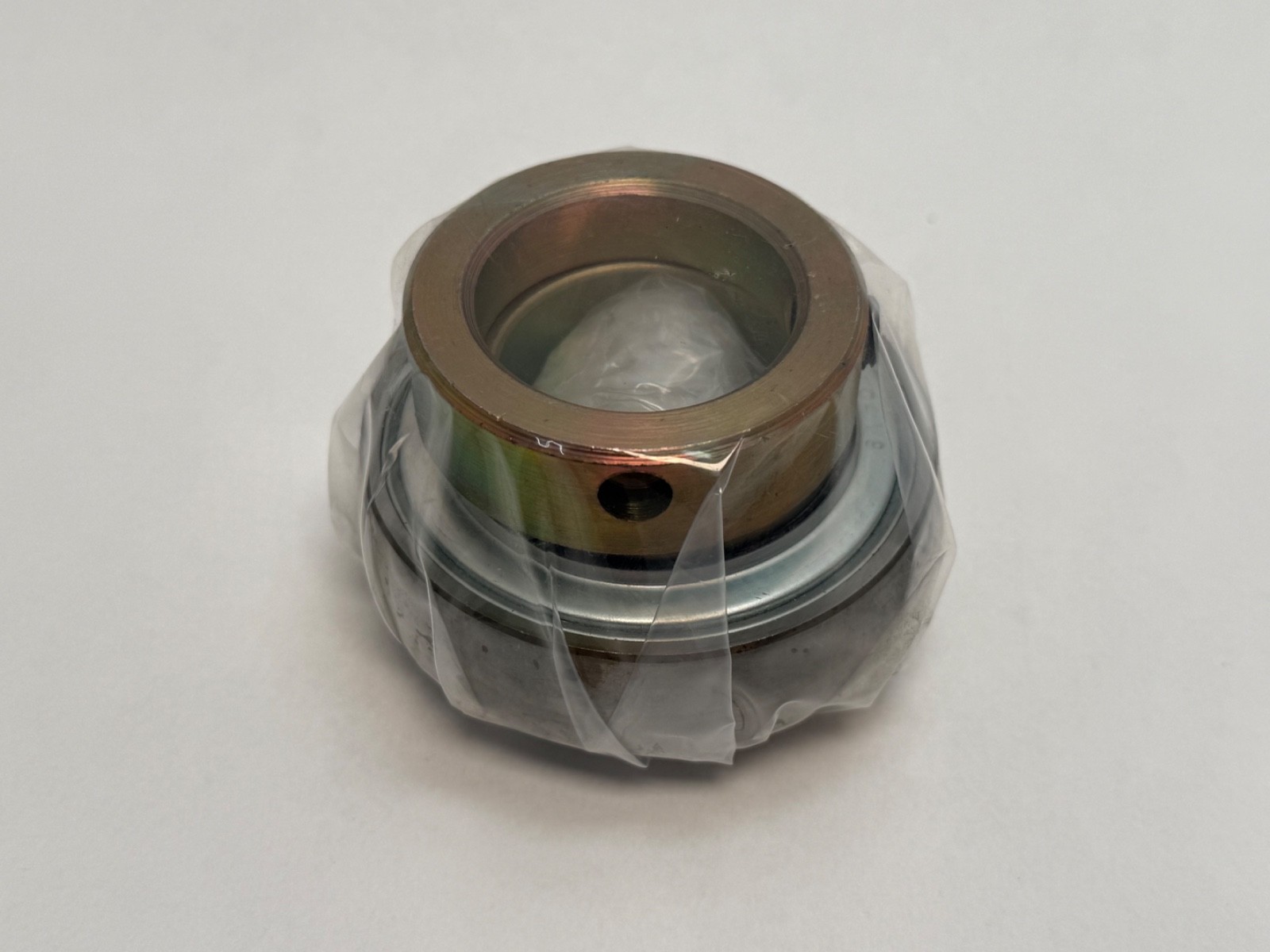

INA radial insert ball bearing, 40 mm bore x 80 mm OD, spherical self-aligning outer ring, wide inner ring with locking collar, sealed both sides. German-made new old stock.
List Price
$67.09
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Radial Insert Ball Bearing – 40 mm Bore, 90 mm OD, Steel Aligning Ring, Eccentric Locking Collar, Sealed Both Sides$65.01
Radial Insert Ball Bearing – 70 mm Bore, 125 mm OD, Cylindrical Outer Ring, Eccentric Locking Collar$124.47
Radial Insert Ball Bearing – 100 mm Bore, 215 mm OD, Eccentric Locking Collar, Sealed Both Sides$755.01
RHP 1020-20G Self-Lube Insert Bearing Set Screw 20x47x31 mm 1020 20G$14.02| MFR / Brand | INA |
|---|---|
| MPN | GE40KRRB-AS2/V-C4-V9 |
| Model | GE40KRRB-AS2/V |
| Bearing Type | Insert Bearing |
| ID | 40 mm |
| OD | 80 mm |
| Relubrication | Relubricatable (AS2/V provision) |
|---|---|
| Base Number | GE40-KRR-B |
| Industry Terms | insert bearing; radial insert ball bearing; bearing insert; locking collar bearing; grub screw bearing; self-aligning insert; wide inner ring bearing; housed unit insert; replacement insert |
| Common Misspellings | GE40 KRR B; GE40KRRB; GE-40-KRR-B; GE40KRR; INA GE40 KRRB; Schaffler GE40-KRR-B; GE40-KRB |
| Application Types | Agricultural machinery and implements; belt and roller conveyors; fan and blower drives; material handling equipment; grain handling; general shafting cut to length on site |
| Bore Shaft Size | 40 mm (1.5748 in) |
| Locking Method | Locking collar with grub screws on wide inner ring |
| Mpn Variants | GE40-KRR-B-AS2/V; GE40KRRB-AS2/V; GE40-KRR-B; GE40KRRB; GE40-KRR-B-AS2/V-C4-V9 |
| Compatible With Replaces | INA GE40-KRR-B family radial insert positions, 40 mm bore x 80 mm OD; must match the housing spherical seat as well as the bore |
| Additional Attributes | Bore: 40 mm; Outside diameter: 80 mm; Static load rating: 19,800 N (19.8 kN); Outer ring: spherical, self-aligning within the housing seat; Inner ring: wide, extends past outer ring both sides, carries locking collar grub screws; Shaft fit: clamps directly onto a plain shaft - no shoulder, retaining ring or interference fit needed; Sealing: seals both sides (RR); Relubrication: AS2/V provision; WIDTH UNRESOLVED - located sources give 56.3 mm and 42.90 mm without labelling which is the total inner-ring width and which is the outer-ring width; measure to confirm; Additional unconfirmed suffixes on the ERP title: C4-V9; Country of manufacture: Germany; Not located: dynamic load rating, limiting speed, weight |
| Design Units | Metric |
| Part Number | GE40-KRR-B-AS2/V |
| Cross Reference 1 | INA GE40-KRR-B (base designation) |
|---|---|
| Cross Reference 2 | GE40KRRB-AS2/V |
| Cross Reference 3 | INA GE40-XL-KRR-B (current XL-generation designation, same size) |
The INA GE40-KRR-B-AS2/V is a radial insert ball bearing with a 40 mm bore and 80 mm outside diameter, designed to drop into a housed unit rather than a plain bore. Made in Germany, new old stock.
The KRR designation covers the locking-collar insert with seals on both sides, and the AS2/V suffix denotes the relubrication provision.
Insert bearings like this have a spherical outer ring that self-aligns inside the housing, and a wide inner ring that extends past the outer ring on both sides carrying grub screws in a locking collar — so the bearing clamps directly onto a plain, undersized shaft with no shoulder, retaining ring or interference fit required. That is why they dominate agricultural machinery, conveyors and fan drives where shafts are cut to length on site rather than machined to bearing tolerances.
Static load rating: 19,800 N
Because insert bearings must match the housing’s spherical seat, confirm the housing series as well as the bore before ordering.
$31.59
5 in stock
$14.61
6 in stock
$38.83
1 in stock
$32.08
1 in stock
$481.31
2 in stock
$31.59
5 in stock
