INAGE35KRRBRadial Insert Ball Bearing – 35 mm Bore, 72 mm OD, Spherical Outer Ring, Eccentric Locking Collar

Name: Radial Insert Ball Bearing – 35 mm Bore, 72 mm OD, Spherical Outer Ring, Eccentric Locking Collar
Brand: INA
SKU: AF2B5#NEPZWR
Price: 67.13 USD
Availability: InStock

Condition: New – Open box

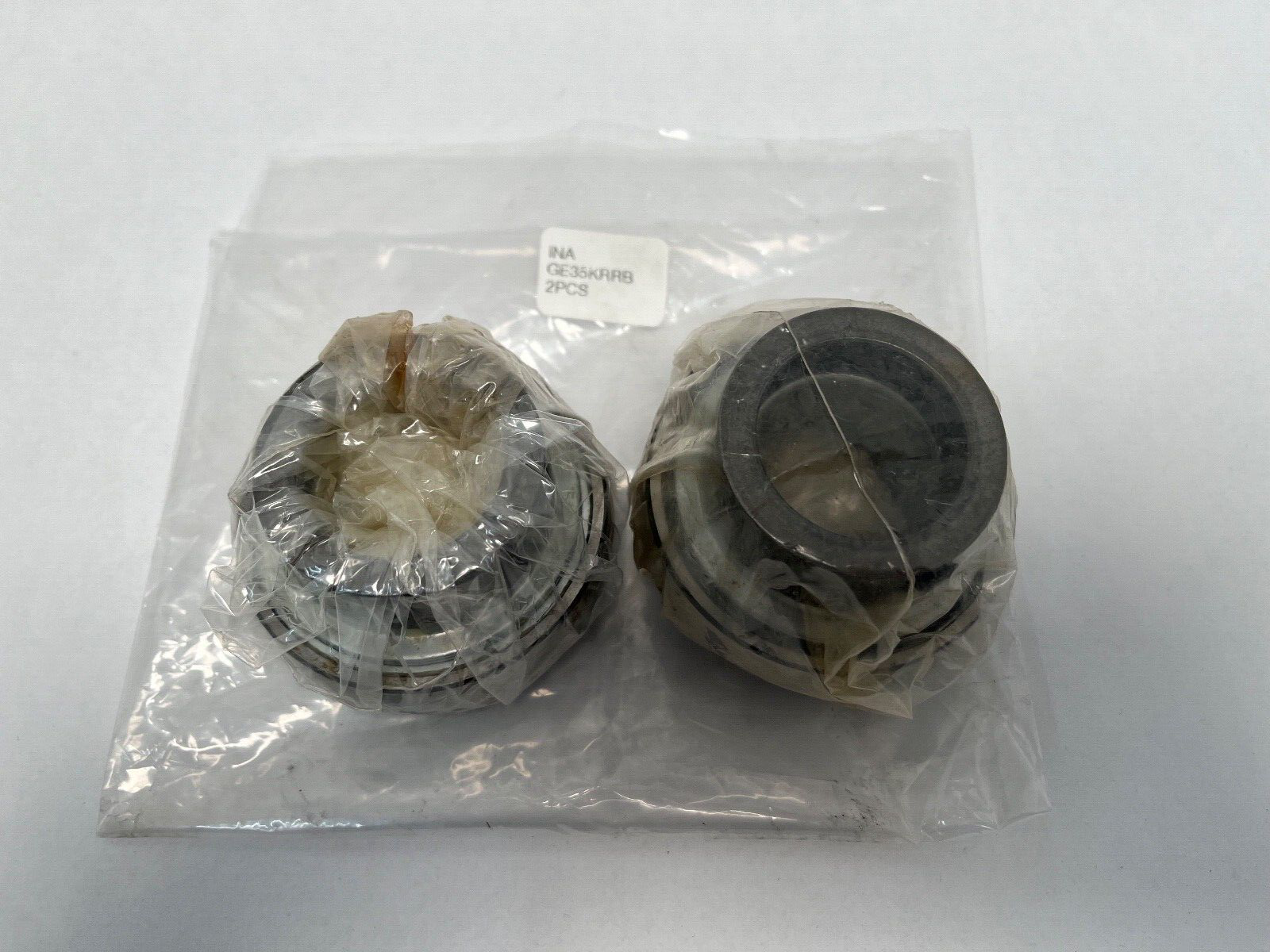

Condition Note: Made In Germany, New Old Stock, Grease Stained

Availability:

1 in stock

Categories: Bearings, Insert Bearing

Radial insert ball bearing, 35 x 72 mm, spherical outer ring, eccentric locking collar, R seals both sides, 25.5 kN dynamic, 51.1 mm total width.

Same day shipment

List Price

$67.13

1 in stock

Also Available From:

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	INA
MPN	GE35KRRB
Model	GE 25 K RR B
Bearing Type	Insert Bearing, R seal on both sides, zinc-plated covers with NBR lip
ID	35 mm
OD	72 mm
Width	37.7 mm

Technical Specifications

Series	GE..KRRB
Condition	New – Open box
Lubricant	Grease
Material	Bearing Steel
Base Number	GE35
Industry Terms	Radial insert ball bearing, insert bearing, bearing insert, spherical OD insert, eccentric collar insert, self-aligning insert bearing, replacement insert
Common Misspellings	GE35KRB, GE35KRRD, GE-35-KRRB, GE35 KRB, INA GE35KRRB, Ina GE35 KRR B
Application Types	Combine and baler shafts, agricultural implement drives, conveyor idlers, fan and blower shafts, replacement insert for pillow blocks and flange units on a 72 mm spherical seat
Total Width	51.1 mm (with eccentric locking collar)
Condition Note	Made In Germany, New Old Stock, Grease Stained
Overall Width	37.6 mm
Number Of Flanges	N/A
Bore Shaft Size	35 mm
Locking Method	Eccentric locking collar
Relubrication	Regreasable
Mpn Variants	GE35KRRB, GE35-KRR-B, GE 35 KRRB, GE35-XL-KRR-B, GE35KRR, GE35-KRRB, GE35 KRR B
Additional Attributes	INA GE35KRRB radial insert ball bearing, current designation GE35-XL-KRR-B. Bore 35 mm straight, OD 72 mm, width 37.6 mm, total width with locking collar 51.1 mm. Spherical outer ring, eccentric locking collar secured by grub screw. R seals both sides, zinc-plated covers with NBR lip, stamped steel cage. Dynamic 25.5 kN / 5,730 lbf, static 15.3 kN / 3,440 lbf, ABEC 1 / P0, CN clearance, -20 to 120 C. Grease lubricated, regreasable. Weight 1.45 lbs. HS 8482.10.50. Interchange: SKF YEL 207, EX207, Timken and Fafnir GE35KRRB.
Min Temp	-20 °C (-4 °F)
Cage Type	Stamped
Dynamic Load Rating	25.5 kN (5,730 lbf)
Static Load Rating	15.3 kN (3,440 lbf)
Precision Rating	ABEC 1 / P0
Rolling Elements	Balls
Max Temp	120 °C (248 °F)
Item Weight	1.45 lbs
Cage Material	Steel
Number Of Rows	1
Bore Type	Straight
Internal Clearance	CN
Duty Type	Medium duty
Locking Device	Eccentric locking collar
Insert Outer Ring	Spherical
Relubrication Feature	Regreasable
Harmonization Code	8482.10.50
Design Units	Metric
Bearing Material	Bearing steel
Part Number	GE35KRRB

Cross-References

Cross Reference 1	Timken GE35KRRB
Cross Reference 2	Fafnir GE35KRRB
Cross Reference 3	SKF YEL 207-2F
Cross Reference 4	SKF YEL 207

Seller Part Number: AF2B5#NEPZWR

Product Description

What this part is

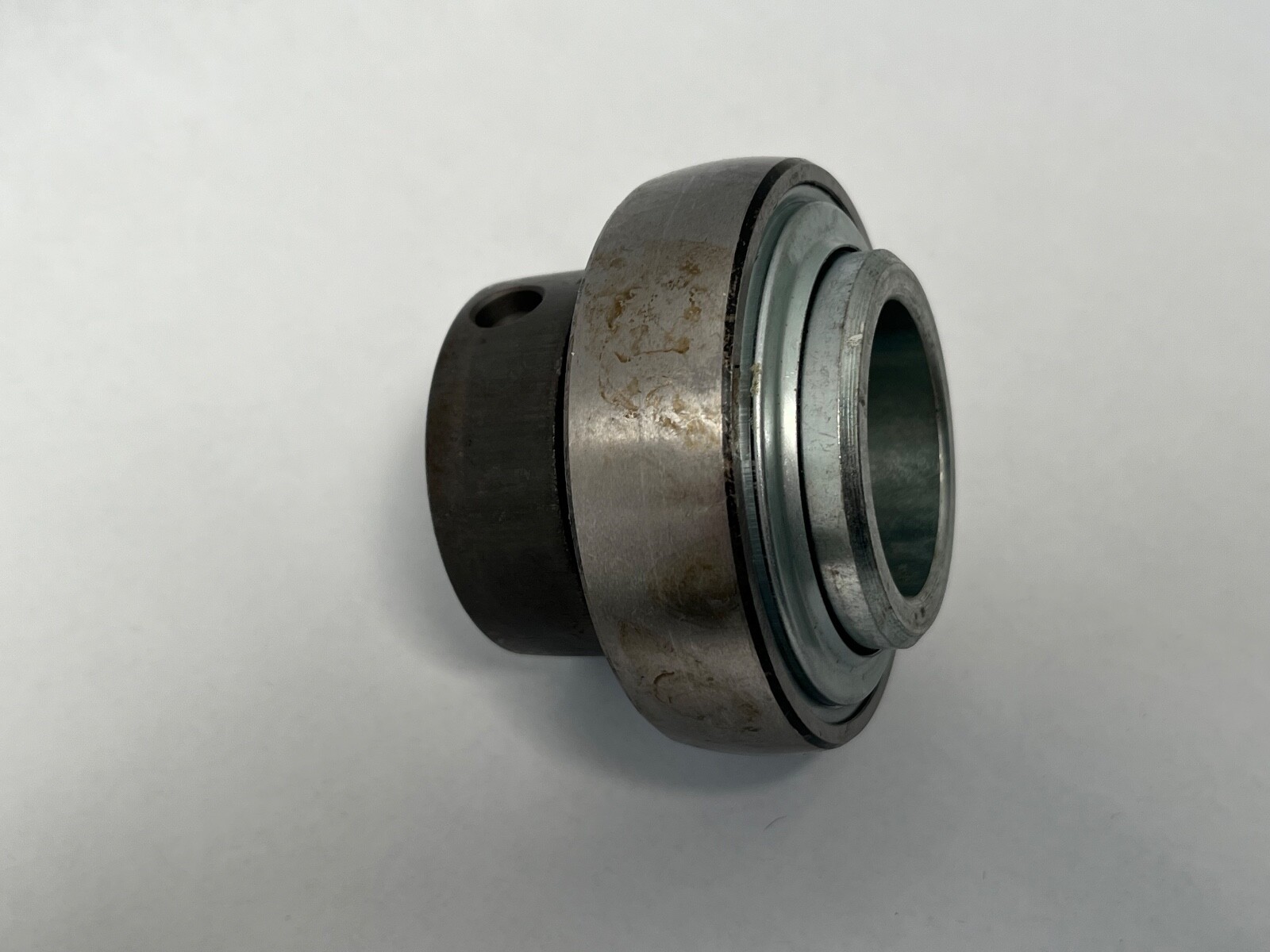

INA GE35KRRB, a radial insert ball bearing with a spherical outer ring and an eccentric locking collar. Series: GE..KRR-B. Current Schaeffler designation: GE35-XL-KRR-B. Bore: 35 mm. Outside Diameter: 72 mm. Overall Width: 37.6 mm. Total Width With Locking Collar: 51.1 mm. Insert Outer Ring: Spherical. Locking Method: Eccentric locking collar. Number Of Rows: 1. Rolling Elements: Balls. Bore Type: Straight. Country of Origin: Germany.

Decoding the designation

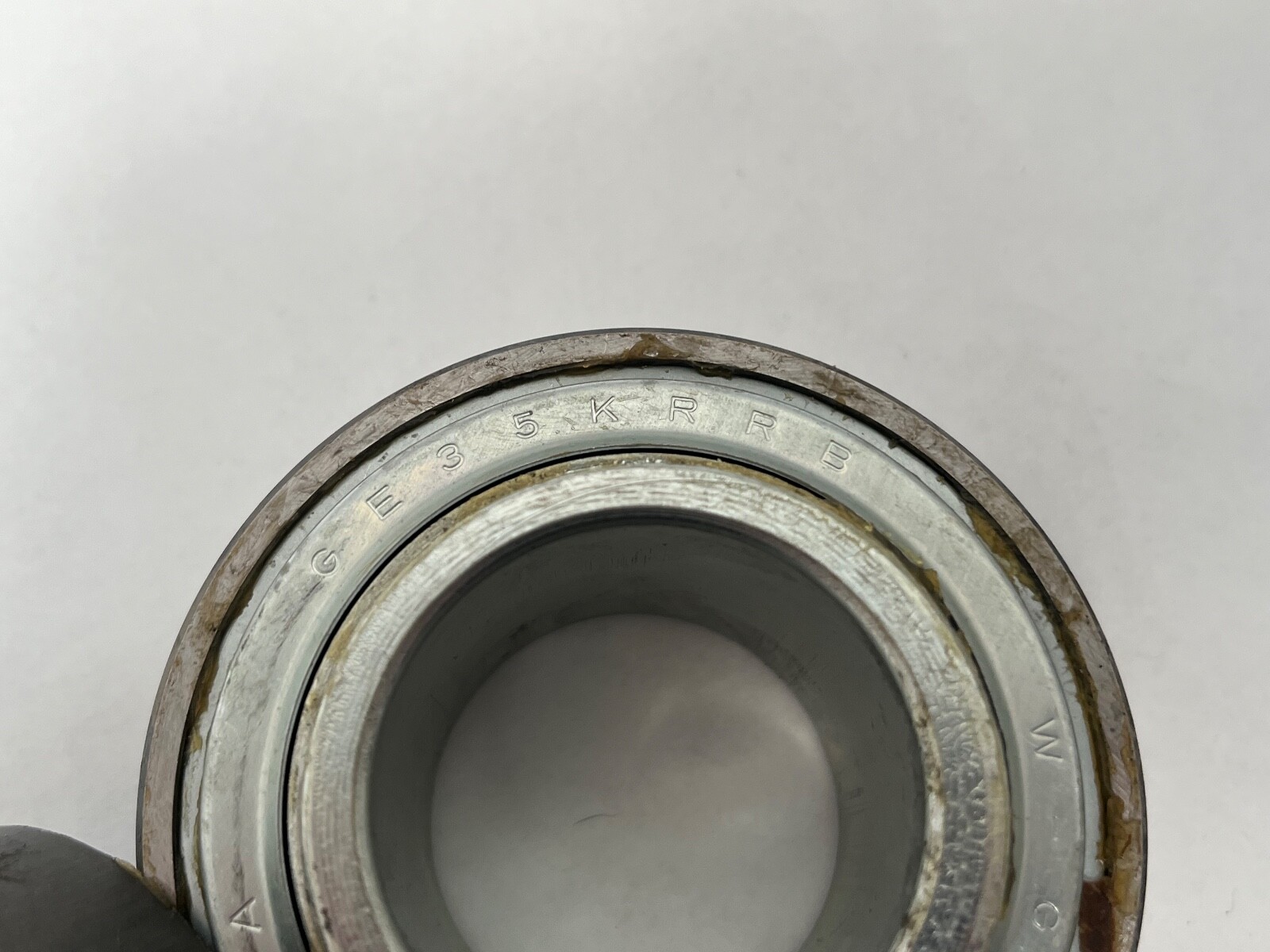

GE: radial insert ball bearing with an extended inner ring and a spherical outer ring. 35: bore in millimetres. K: location by eccentric locking collar. RR: seals on both sides. B: series execution. XL: Schaeffler’s current-generation marker on the same part, so GE35-KRR-B and GE35-XL-KRR-B are the same bearing under old and new naming.

Envelope and load ratings

Bore: 35 mm. Outside Diameter: 72 mm. Overall Width: 37.6 mm. Total Width With Locking Collar: 51.1 mm. Dynamic Load Rating: 25.5 kN (5,730 lbf). Static Load Rating: 15.3 kN (3,440 lbf). Precision Rating: ABEC 1 / P0. Internal Clearance: CN. Item Weight: 1.45 lbs. Minimum Temperature: -20 °C (-4 °F). Maximum Temperature: 120 °C (248 °F). Harmonization Code: 8482.10.50.

Spherical outer ring

Insert Outer Ring: Spherical. The convex spherical outer ring seats in a matching concave housing bore, so the bearing aligns itself to the shaft as the housing is bolted down. That is what lets the same insert drop into a pillow block, a two-bolt flange, a four-bolt flange or a take-up frame from any maker that machines the standard 72 mm spherical seat.

Eccentric collar locking

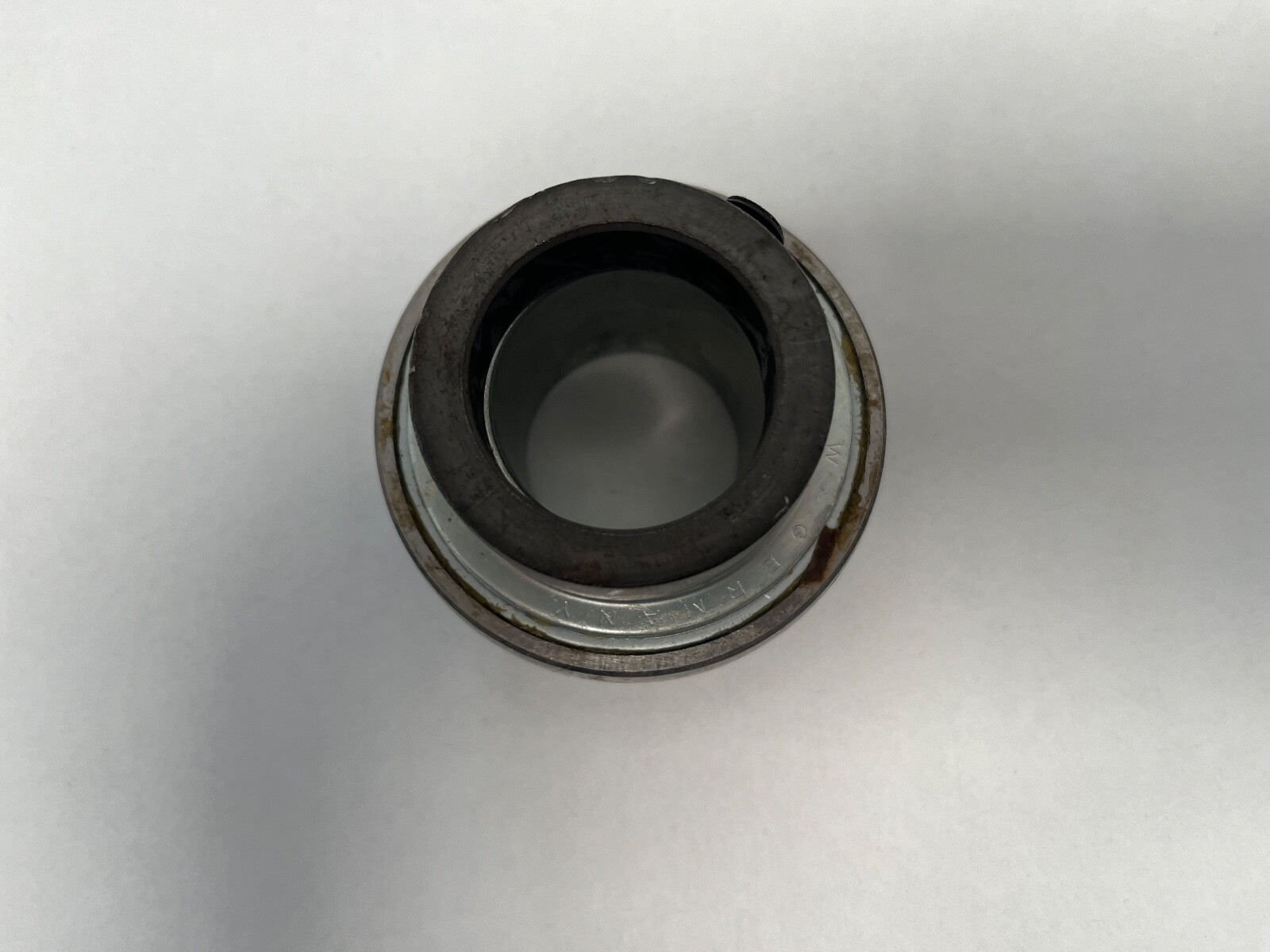

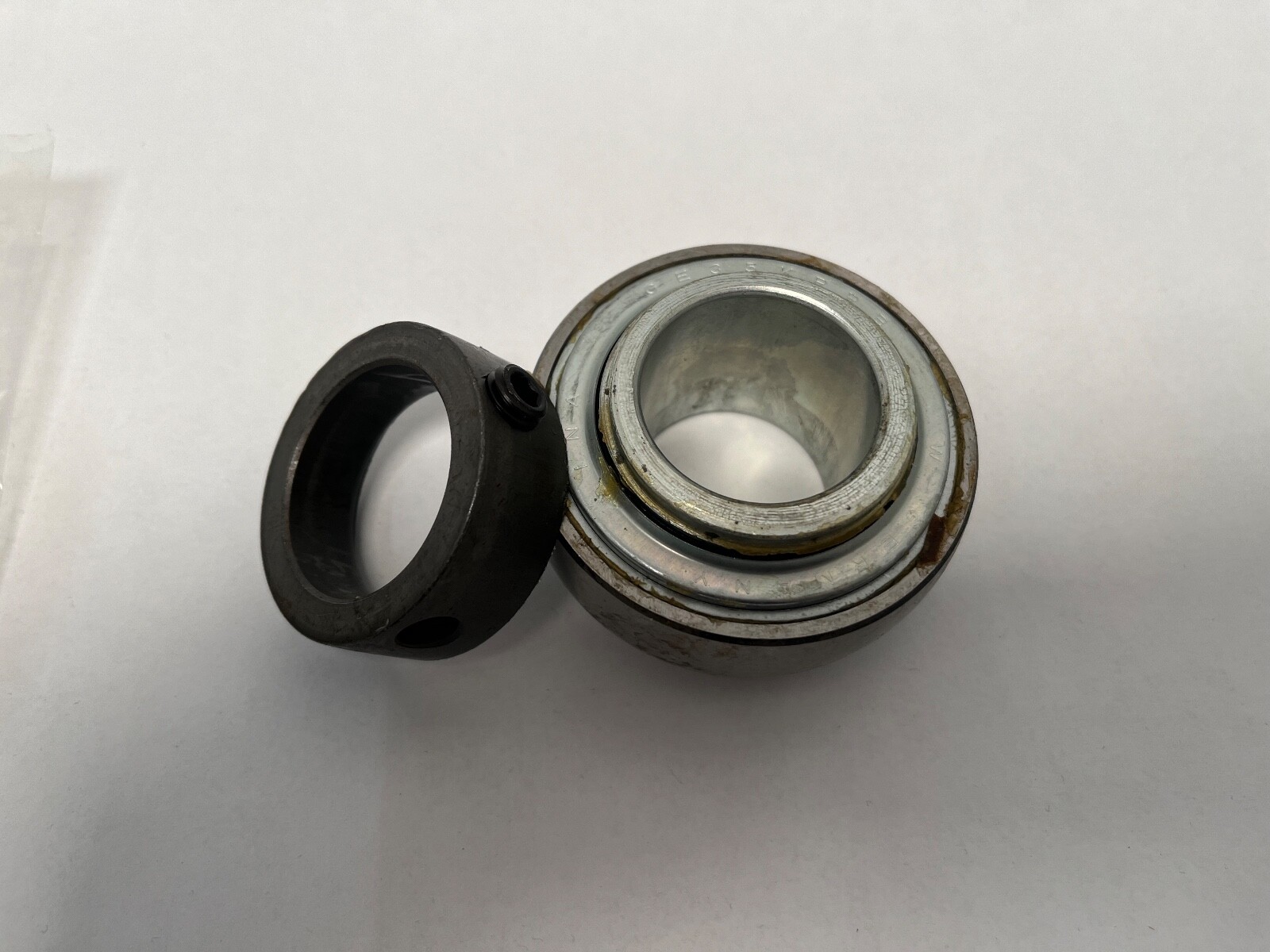

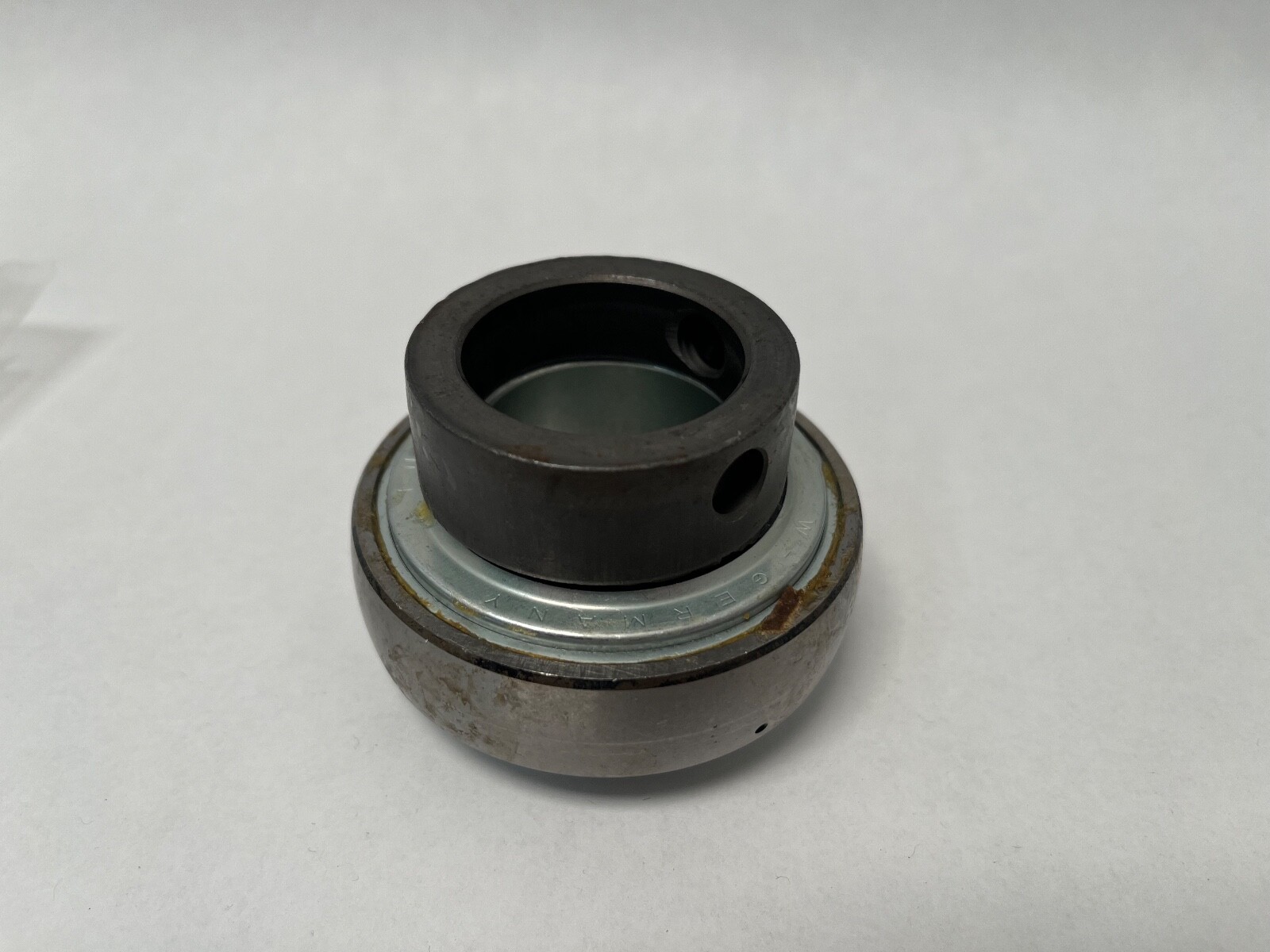

Locking Method: Eccentric locking collar. The collar counterbore is offset from its bore, so the collar cams against the extended inner ring and grips the shaft around its full circumference. The collar is driven in the direction of shaft rotation and held by a grub screw. Compared with setscrew locking, the grip is distributed rather than point-loaded, so the shaft is not dimpled and shaft-to-bore concentricity is closer.

Seals and lubrication

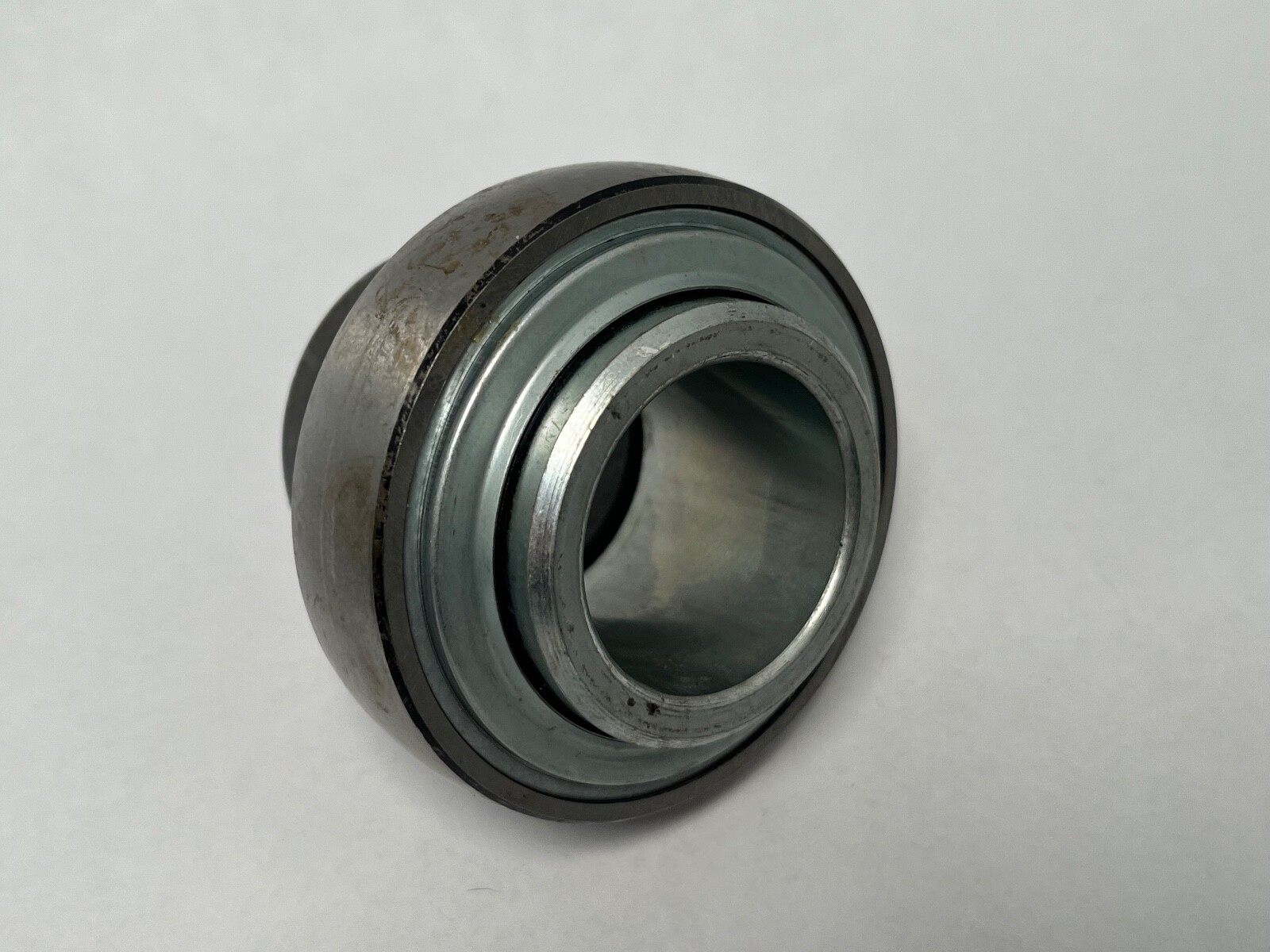

Seal Type: R seal on both sides. Seal Construction: Zinc-plated inner and outer covers with an NBR seal lip. Cage Type: Stamped. Cage Material: Steel. Lubricant: Grease. Relubrication: Regreasable. The R seal is a contact lip running in a pressed steel shield, which is the standard agricultural and conveyor sealing package on this series — it holds grease against a washdown and keeps chaff and dust off the raceway.

Quantity and configuration

Unit Quantity: 1 Pc. One insert bearing complete with its eccentric locking collar.

Interchange guidance

Cross-Reference 1: Timken GE35KRRB. Cross-Reference 2: Fafnir GE35KRRB. Cross-Reference 3: SKF YEL 207-2F. Cross-Reference 4: SKF YEL 207. Cross-Reference 5: EX207. Searchable forms of the designation: GE35KRRB, GE35-KRR-B, GE 35 KRRB, GE35-XL-KRR-B, GE35KRR, GE35-KRRB.
