Super-precision angular contact ball bearing, 70 x 110 x 20 mm, 15° contact angle, medium preload, P4A. SKF D design, universally matchable single bearing.
List Price
$313.40
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7014 CDGC/P4A |
| Model | 7014-CD-P4A-DGC |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 110 mm |
| Width | 20 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Lubricant | Oil/Grease |
| Preload | Medium (paired back-to-back or face-to-face) |
| Mpn Variants | 7014 CDGC/P4A, 7014-CDGC/P4A, 7014CDGCP4A, 7014CDP4ADGC, 7014-CD-P4A-DGC |
| Precision Class | ABEC 7 / P4A |
| Dynamic Load Rating | 52,000 N |
| Static Load Rating | 45,500 N |
| Rolling Elements | Ball |
| Item Weight | 0.585 kg (1.29 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 12,000 rpm grease; 19,000 rpm oil-air |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universally matchable (back-to-back, face-to-face or tandem) |
| Cross Reference 1 | FAG B7014-C-T-P4S-UH |
|---|---|
| Cross Reference 2 | NSK 7014CTYNSUHP4 |
| Cross Reference 3 | Fafnir 2MM9114WI CR SUH |

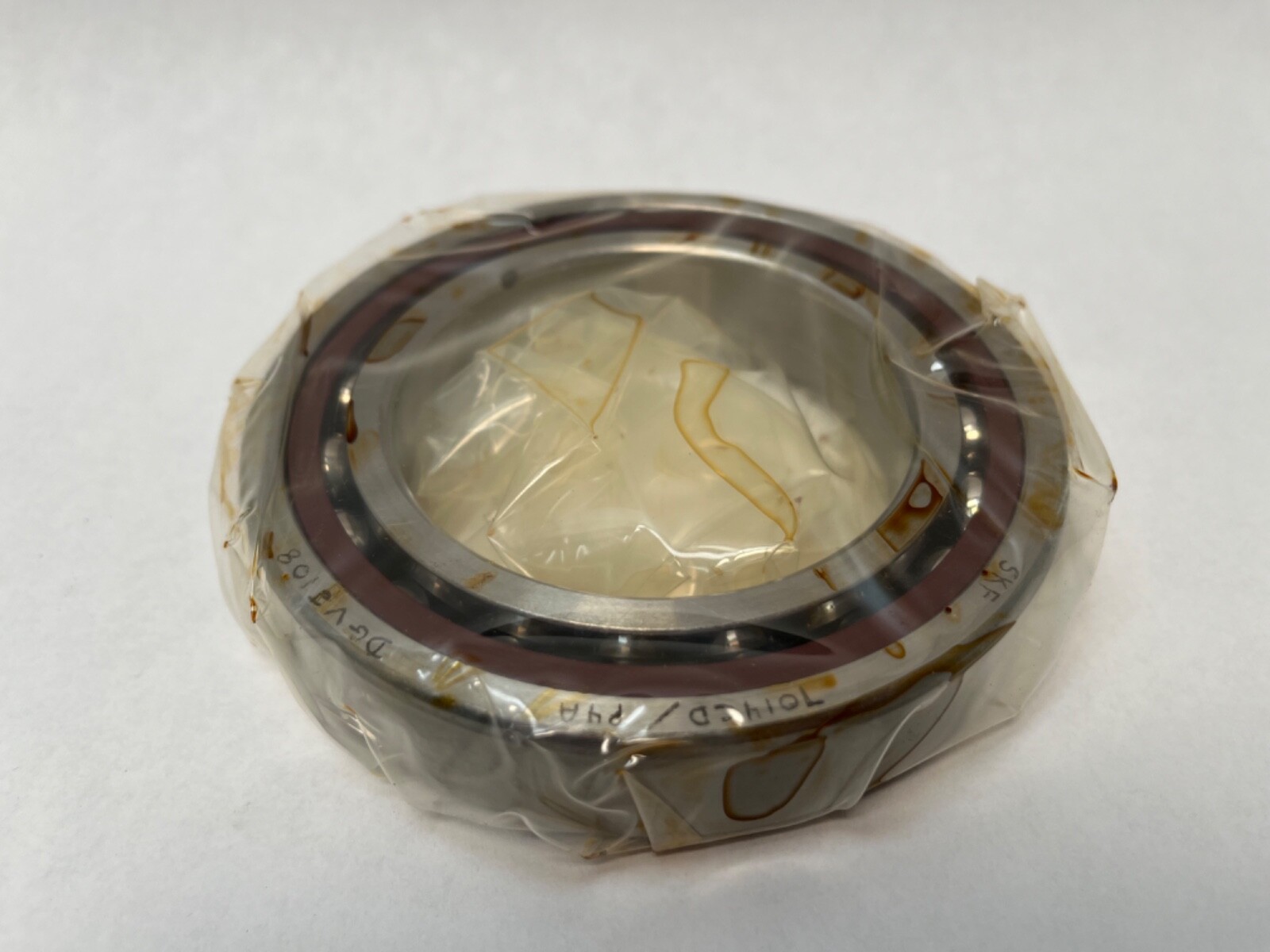

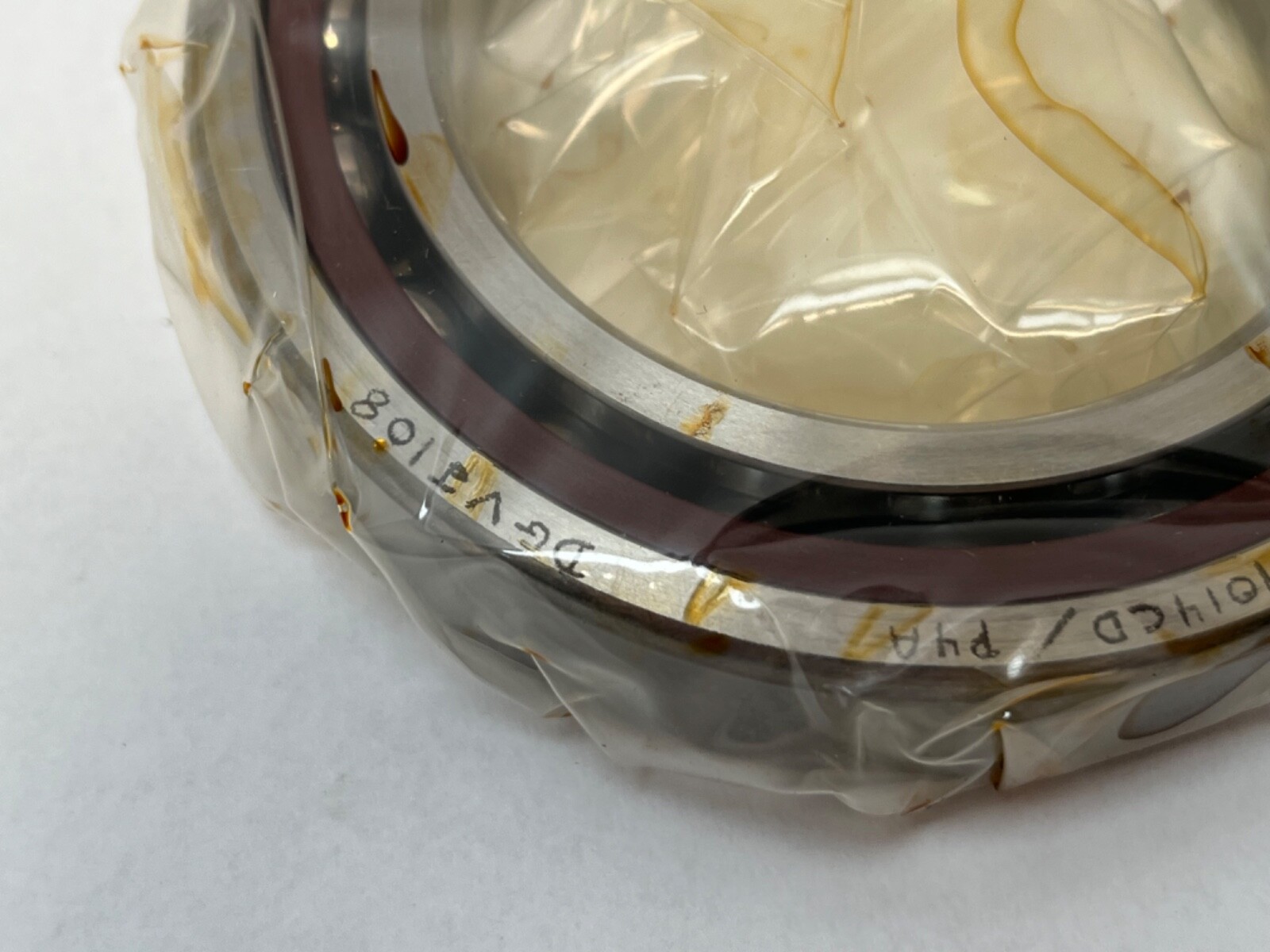

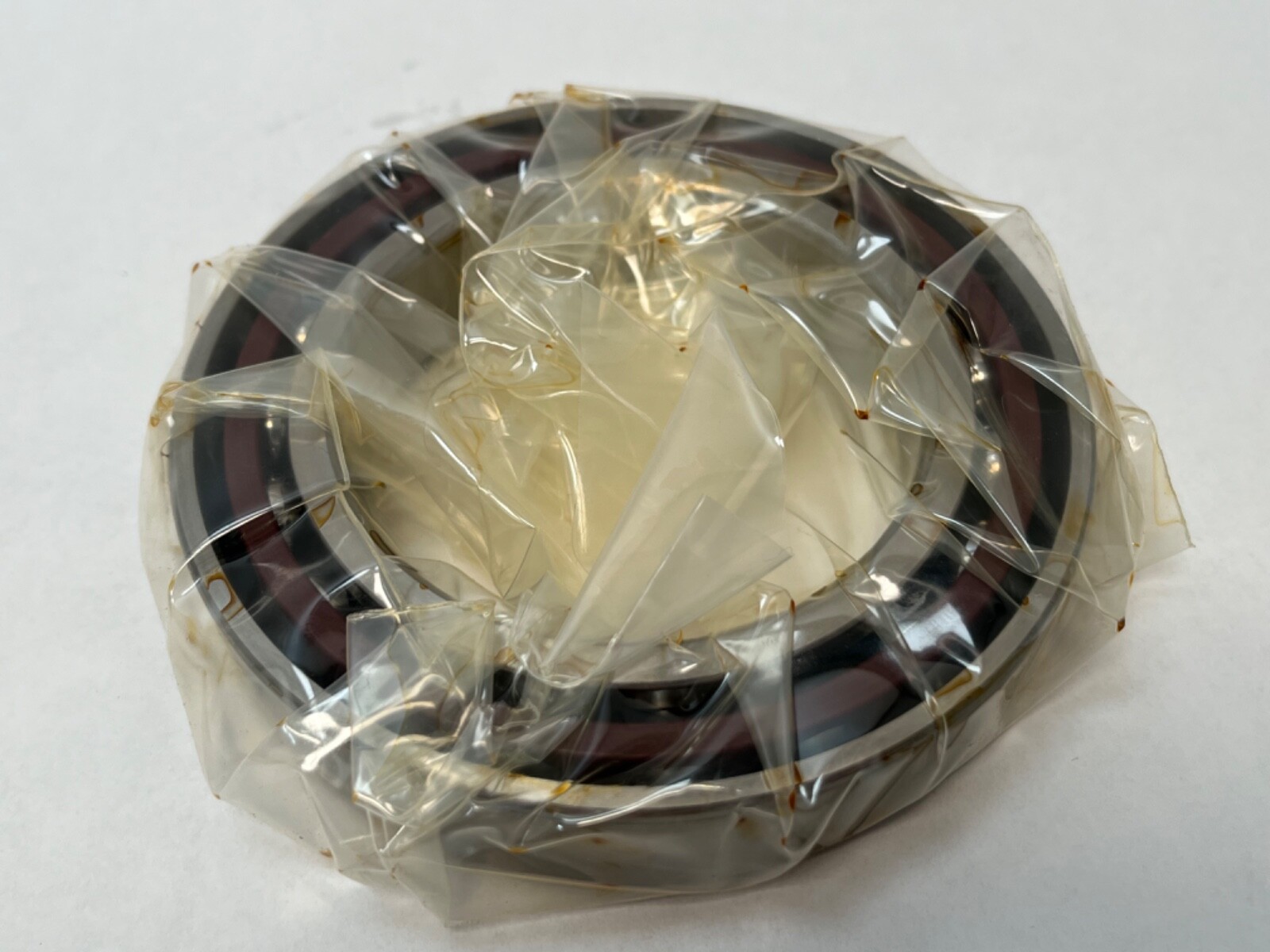

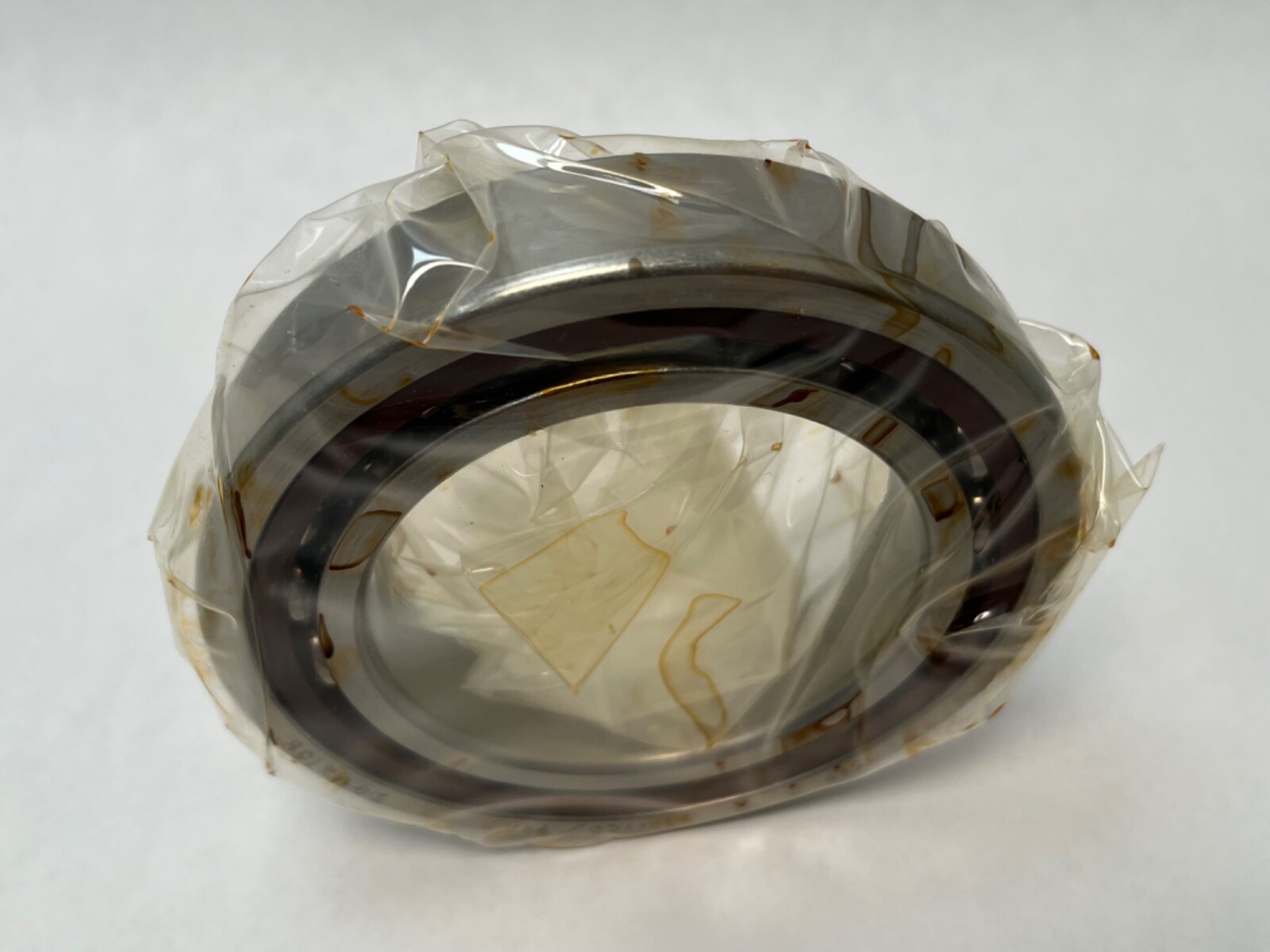

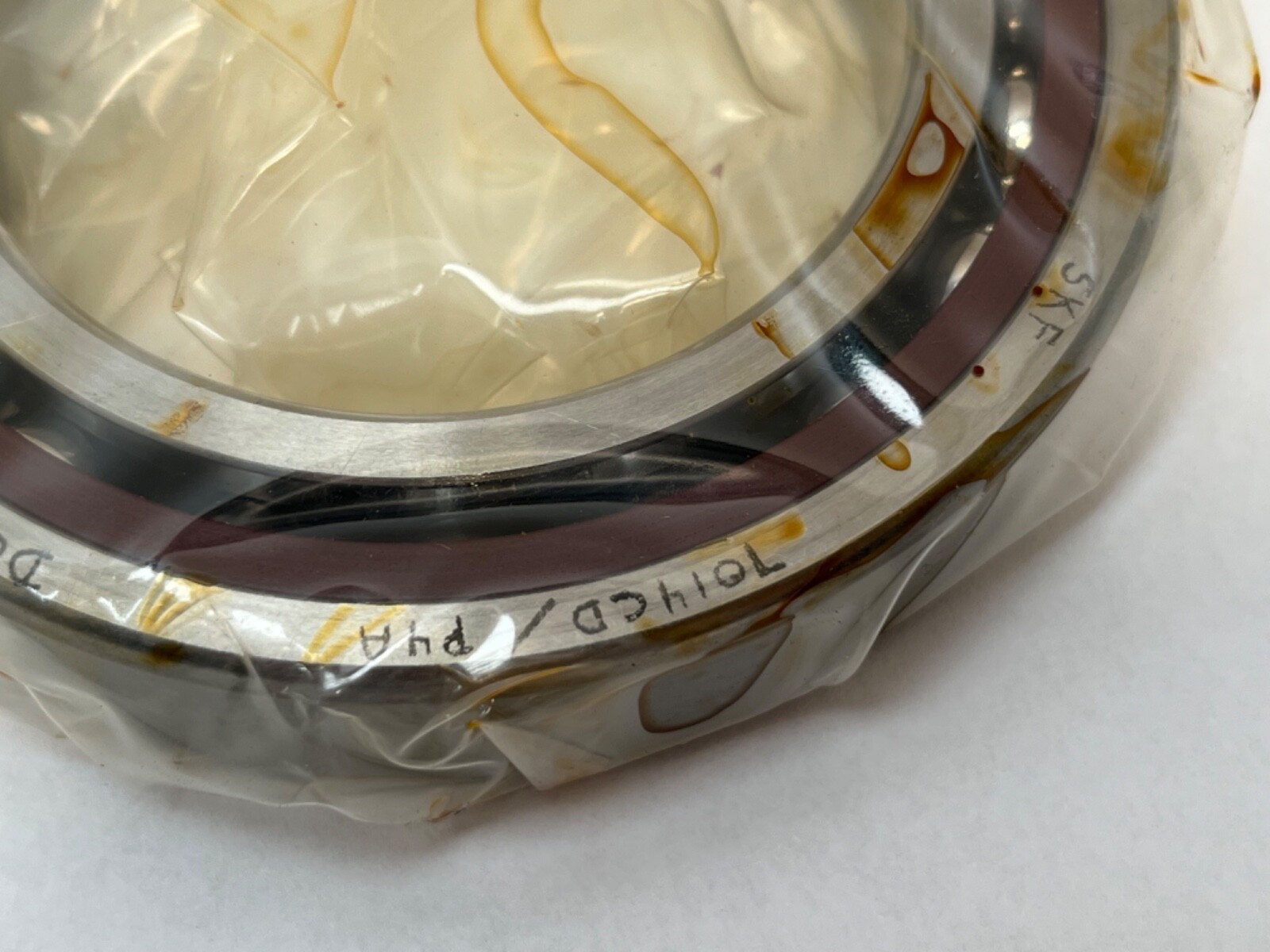

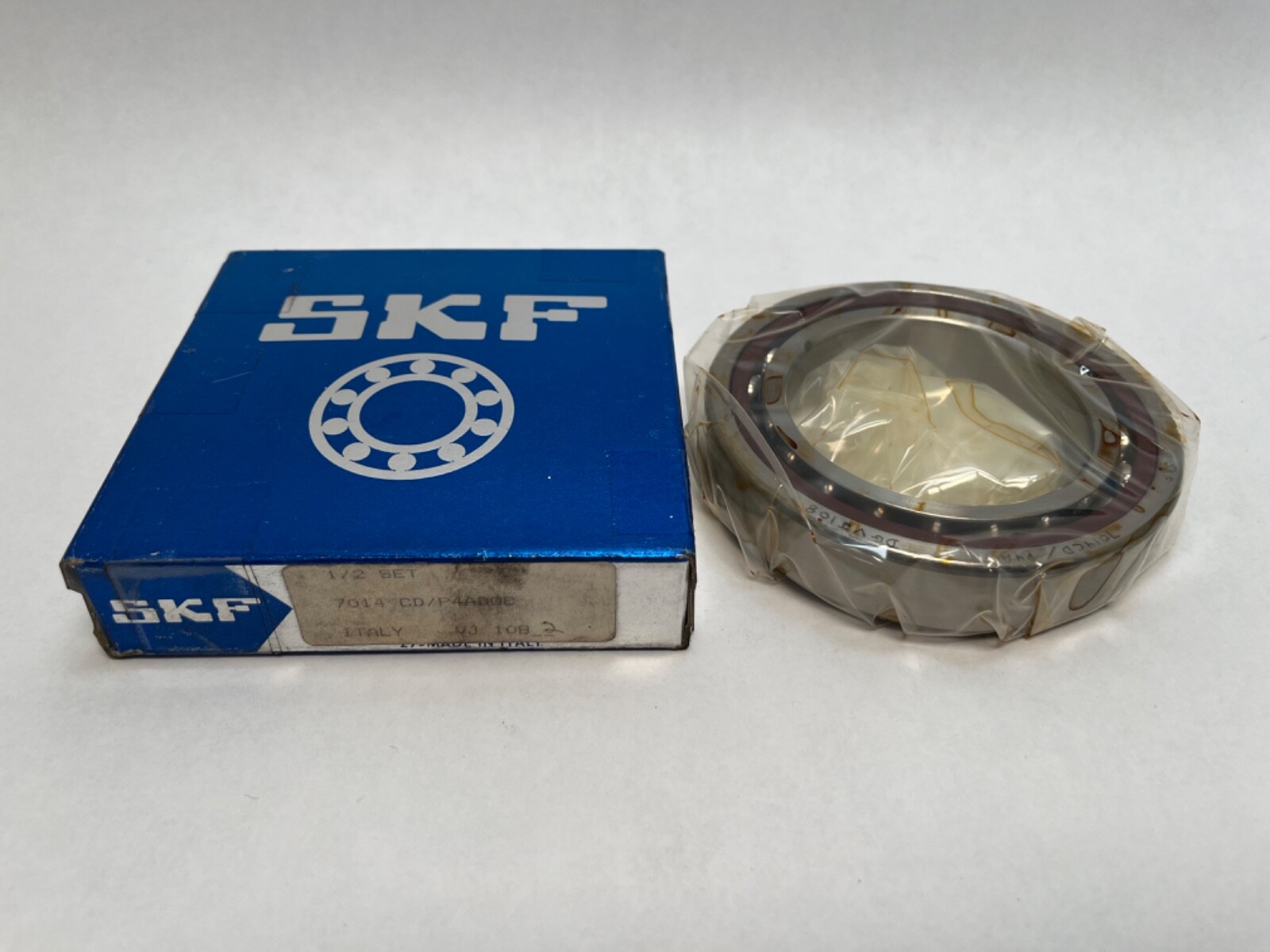

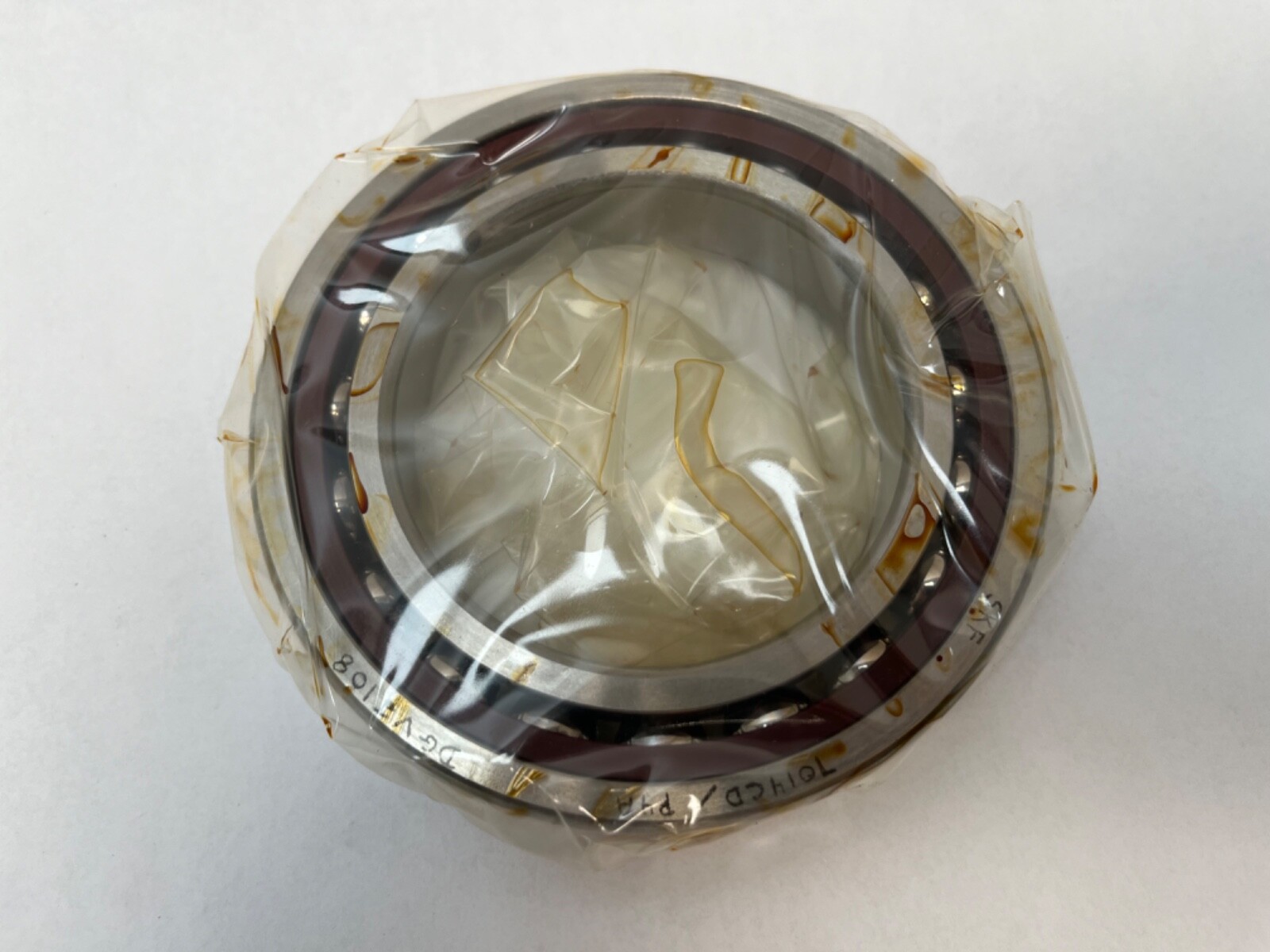

SKF 7014 CDGC/P4A super-precision, high-capacity D design single row angular contact ball bearing, universally matchable for back-to-back, face-to-face or tandem sets. Bore Diameter: 70 mm. Outside Diameter: 110 mm. Width: 20 mm. Contact Angle: 15°. Item Weight: 0.585 kg (1.29 lb).
7014 — ISO 70 light series, 70 mm bore.
CD — 15° contact angle, SKF high-capacity D internal design.
GC — universally matchable single bearing, medium preload.
P4A — SKF tolerance class: ISO P4 dimensional accuracy with P2 running accuracy.
Dynamic Load Rating: 52,000 N. Static Load Rating: 45,500 N. Attainable Speed: 12,000 rpm grease; 19,000 rpm oil-air (single bearing, before the matched-set reduction factor). Preload: Medium, when paired back-to-back or face-to-face. Axial Stiffness: 156 N/µm (pair, back-to-back). Precision Class: ABEC 7 / P4A. Ball Diameter: 12.7 mm. Number of Balls: 19.
Shaft Abutment Diameter (da min): 76 mm. Housing Abutment Diameter (Da max): 104 mm. Fillet Radius (ra max): 1 mm. Chamfer (r1,2 min): 1.1 mm. Oil Nozzle Position (dn): 85 mm. Reference Grease Quantity: 8.1 cm³.
Unit Quantity: 1 Pc. Mounting Arrangement: universally matchable, back-to-back, face-to-face or tandem.
15° contact angle and P4-level precision: FAG B7014-C-T-P4S-UH, NSK 7014CTYNSUHP4, Fafnir 2MM9114WI CR SUH.
