Hybrid ceramic super-precision angular contact ball bearing, 110 x 170 x 28 mm, 15° contact angle, phenolic cage, single universal light preload.
List Price
$578.99

1 in stock
On the Shelf & Ready to Ship
Ships same day by 6pm ET

No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MMV9122HXCRSUL |
| GTIN | 087796232914 |
| Model | 2MMV9122 HX CR SUL |
| Bearing Type | Hybrid ceramic super-precision angular contact ball bearing, Open |
| ID | 110 mm |
| OD | 170 mm (6.6929 in) |
| Width | 28 mm |
| Material | Silicon nitride ceramic / bearing steel |
|---|---|
| Base Number | 9122 |
| Industry Terms | Hybrid ceramic spindle bearing; silicon nitride ball bearing; super precision angular contact; machine tool spindle bearing; ABEC 7 hybrid bearing |
| Common Misspellings | Fafner; Faffnir; Fafnier; Hytbrid Ceramic; 2MMV 9122 HX; 2MM9122HXCRSUL; silicone nitride |
| Application Types | High-speed machine tool spindles; grinding spindles; motorised spindles; high-speed rotary tables; precision test rigs |
| Overall Width | 28 mm (1.1024 in) |
| Bore Shaft Size | 110 mm (4.3307 in) |
| Mpn Variants | 2MMV9122HXCRSUL; 2MMV9122HX CR SUL; 2MM-V-9122-HX-CR-SUL; 2MMV9122HXCR-SUL; 2MMV9122HX; 2MM9122WIHXCRSUL |
| Precision Class | P4S (ABEC 7 body, ABEC 9 running) |
| Series | 9100 (ISO 7000 light series) |
| Rolling Elements | Silicon nitride ceramic balls |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without snap ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Preload | Light |
| Part Number | 2MMV9122HXCRSUL |
| Additional Attributes | Hybrid ceramic (silicon nitride balls); universally ground single bearing; light preload; 9100 series |
| Cross Reference 1 | SKF 7022 CD/HC/P4A - class P4A, hybrid ceramic |
|---|---|
| Cross Reference 2 | FAG HCB7022-C-T-P2-UL - class P2, hybrid ceramic |
| Cross Reference 3 | Fafnir 2MM9122WI CR SUL - steel balls |
| Cross Reference 4 | Fafnir 3MM9122WI CR SUL - 25 deg angle |

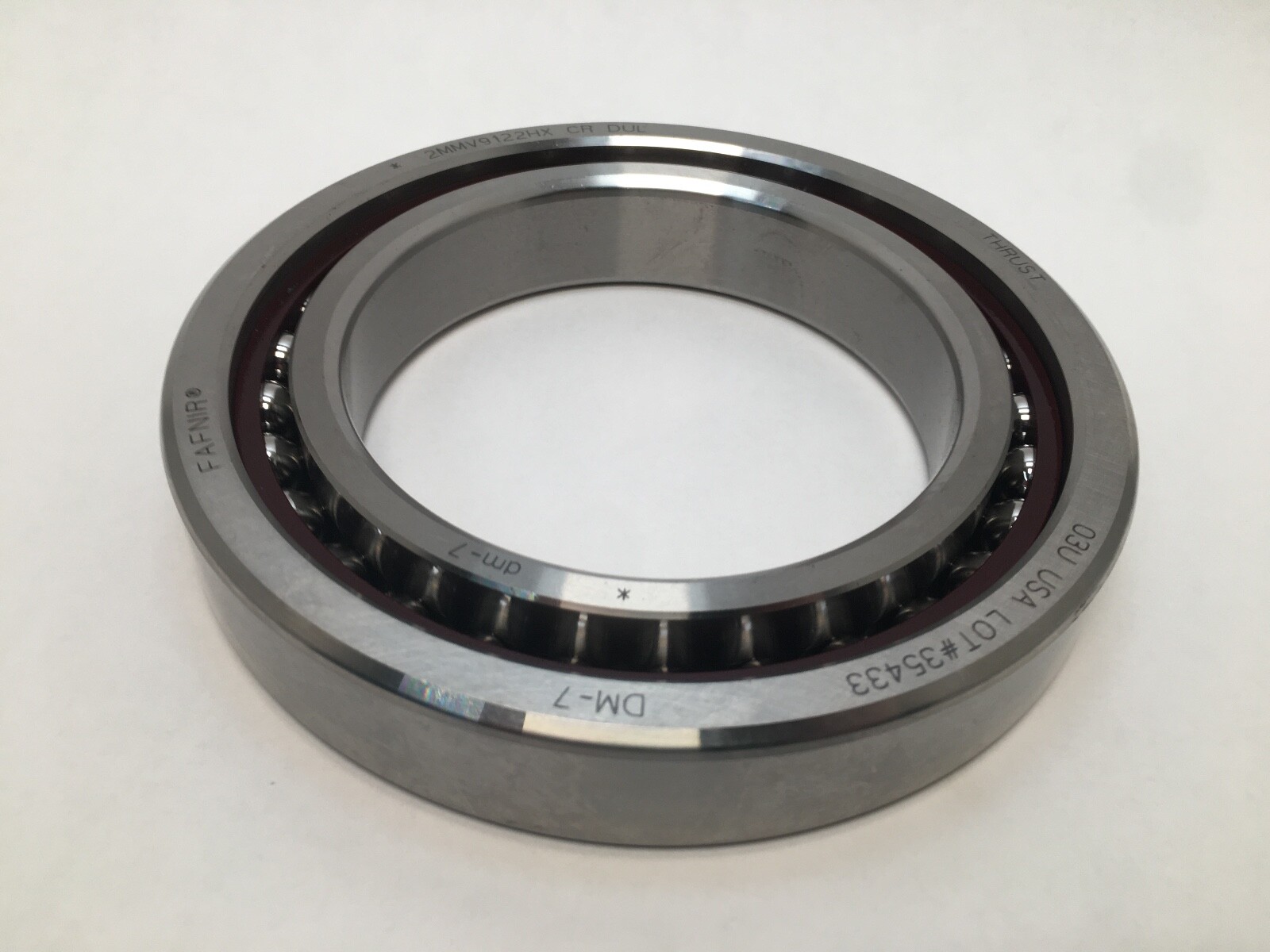

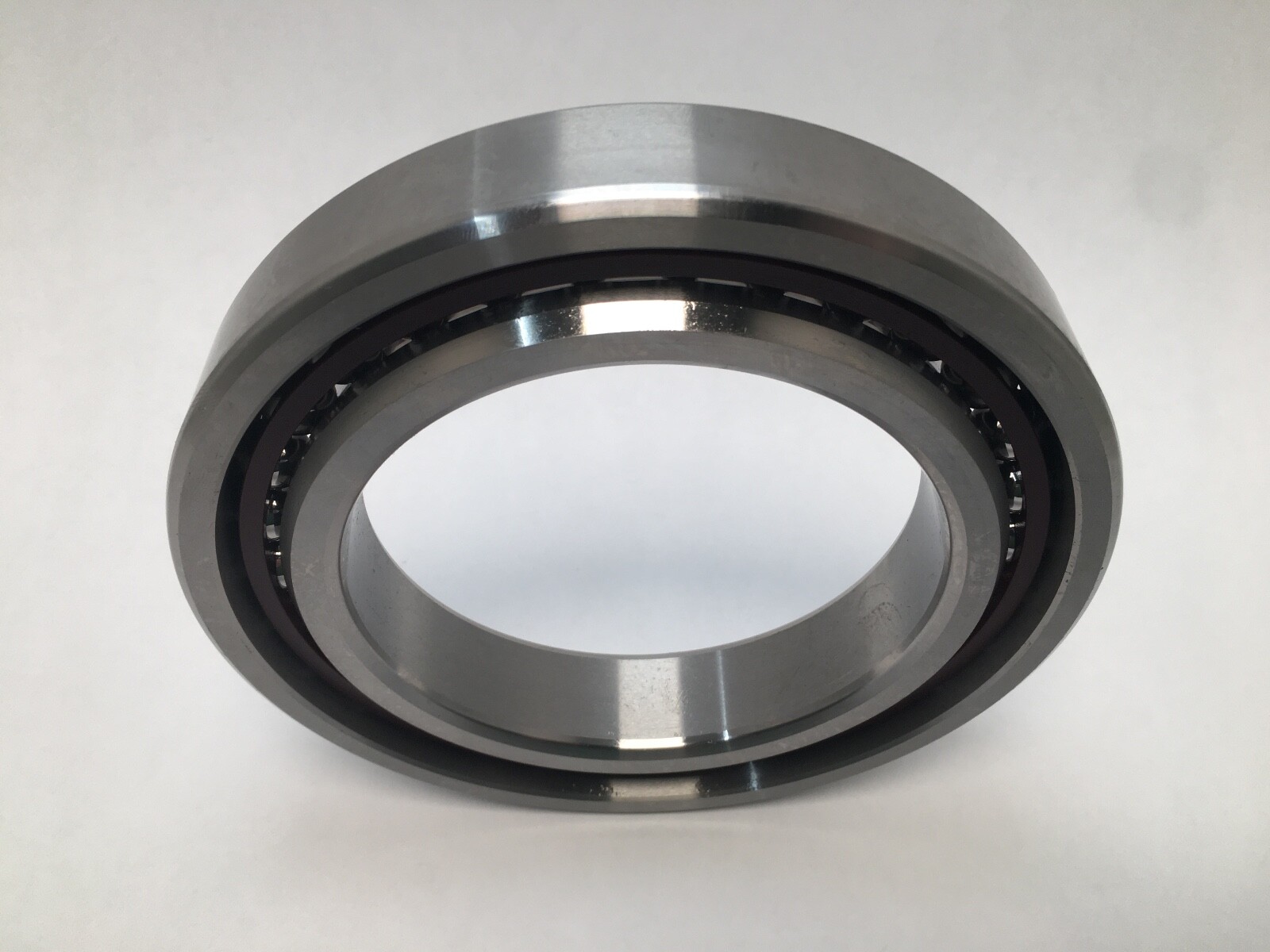

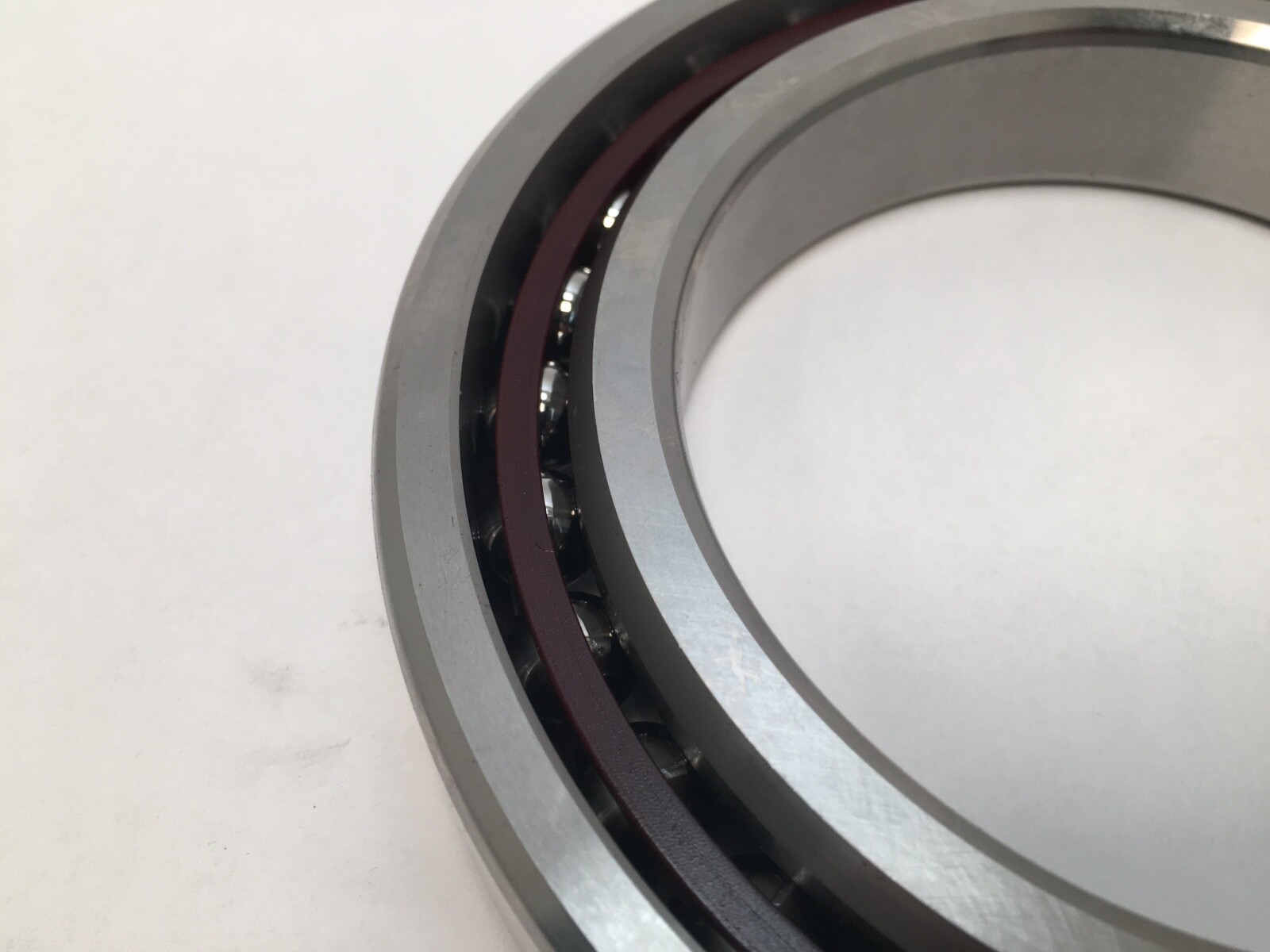

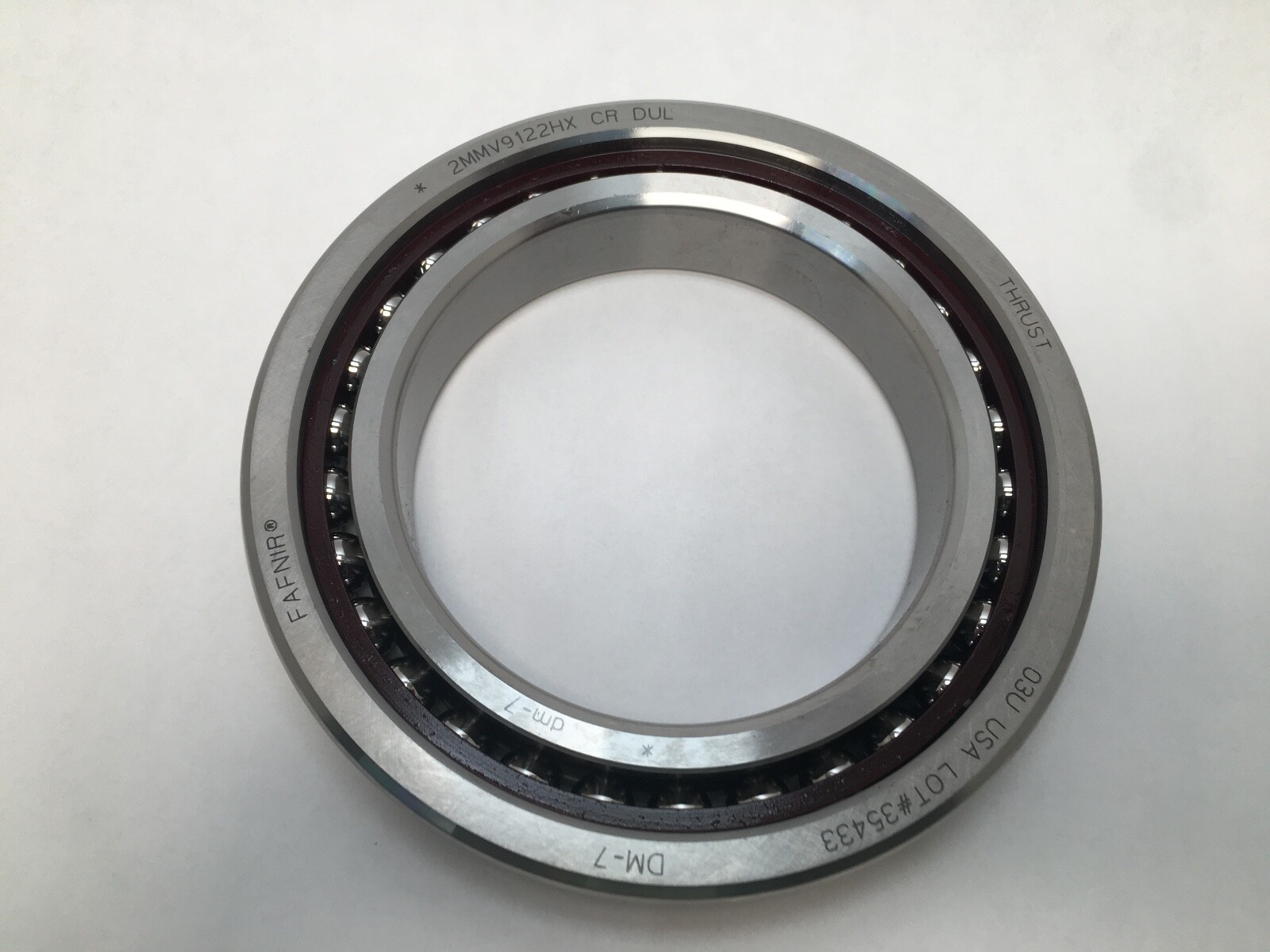

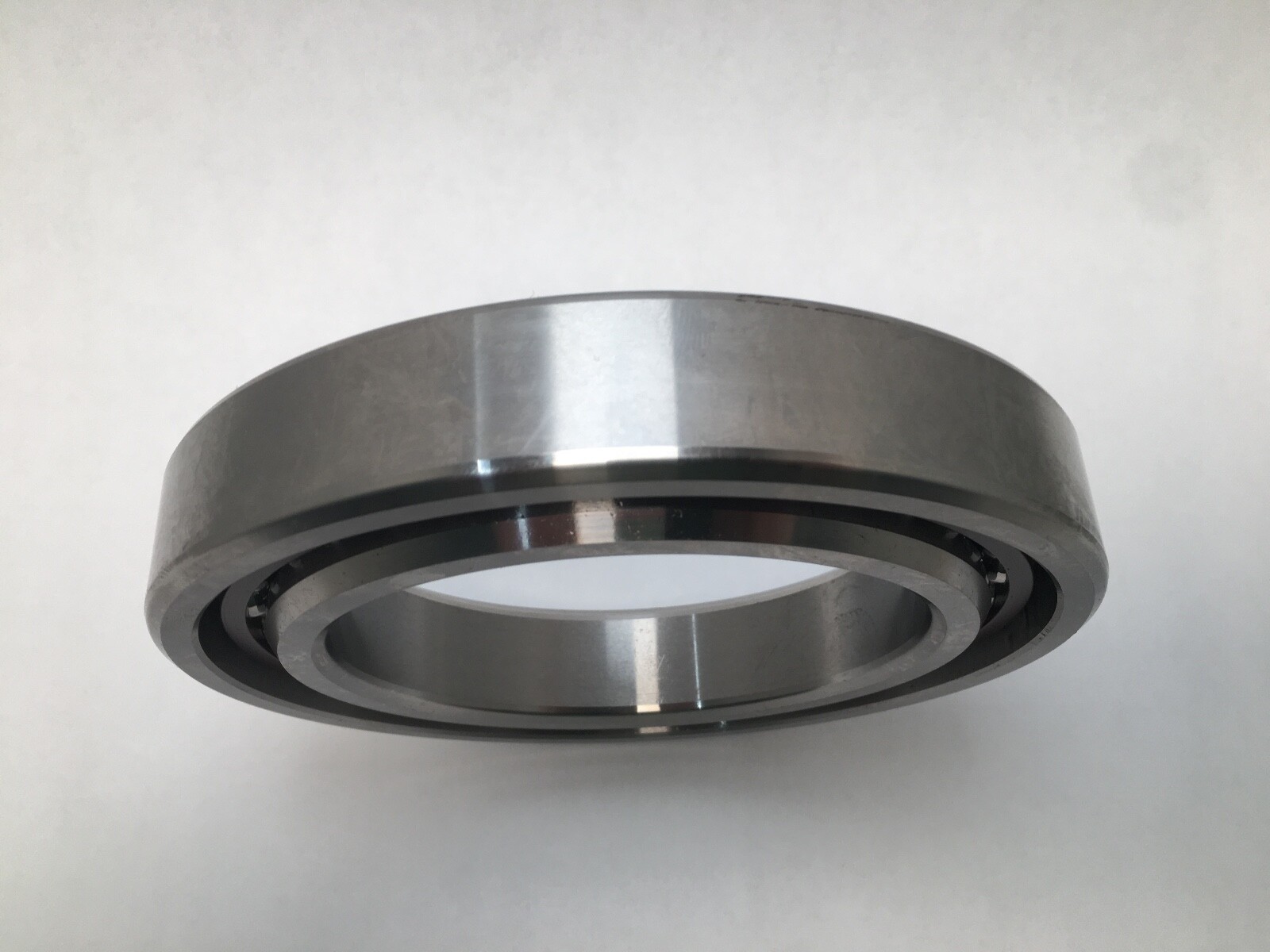

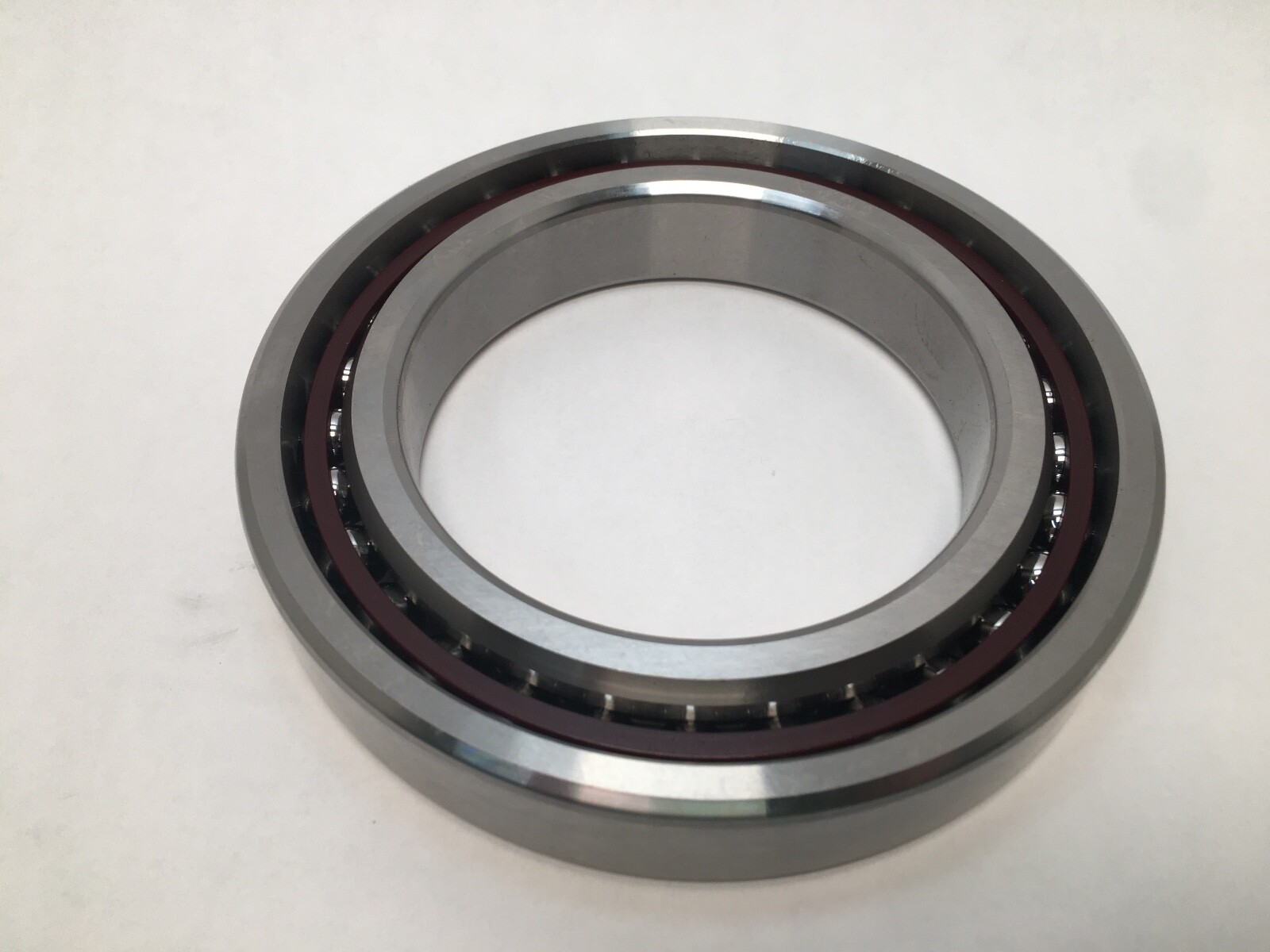

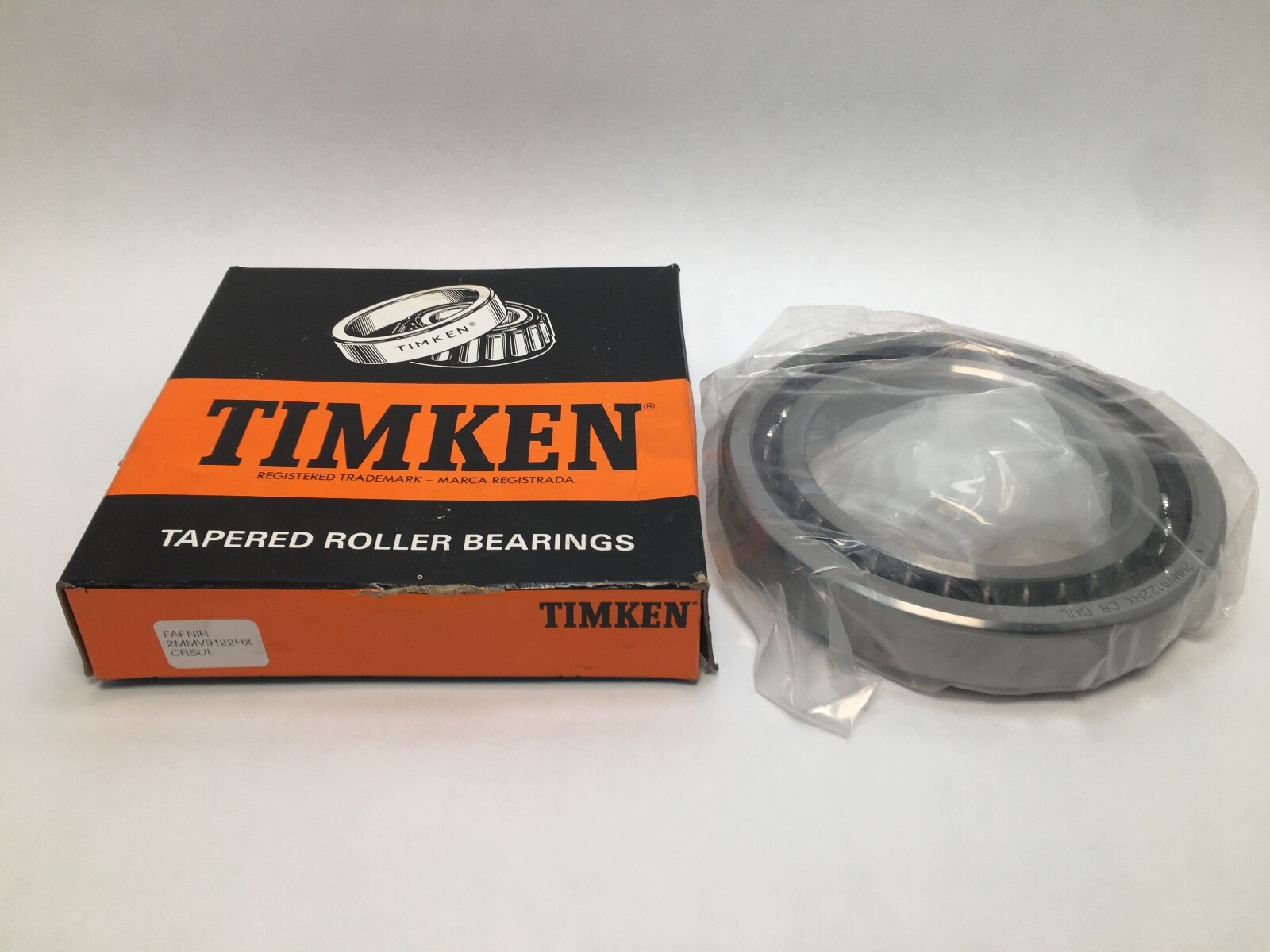

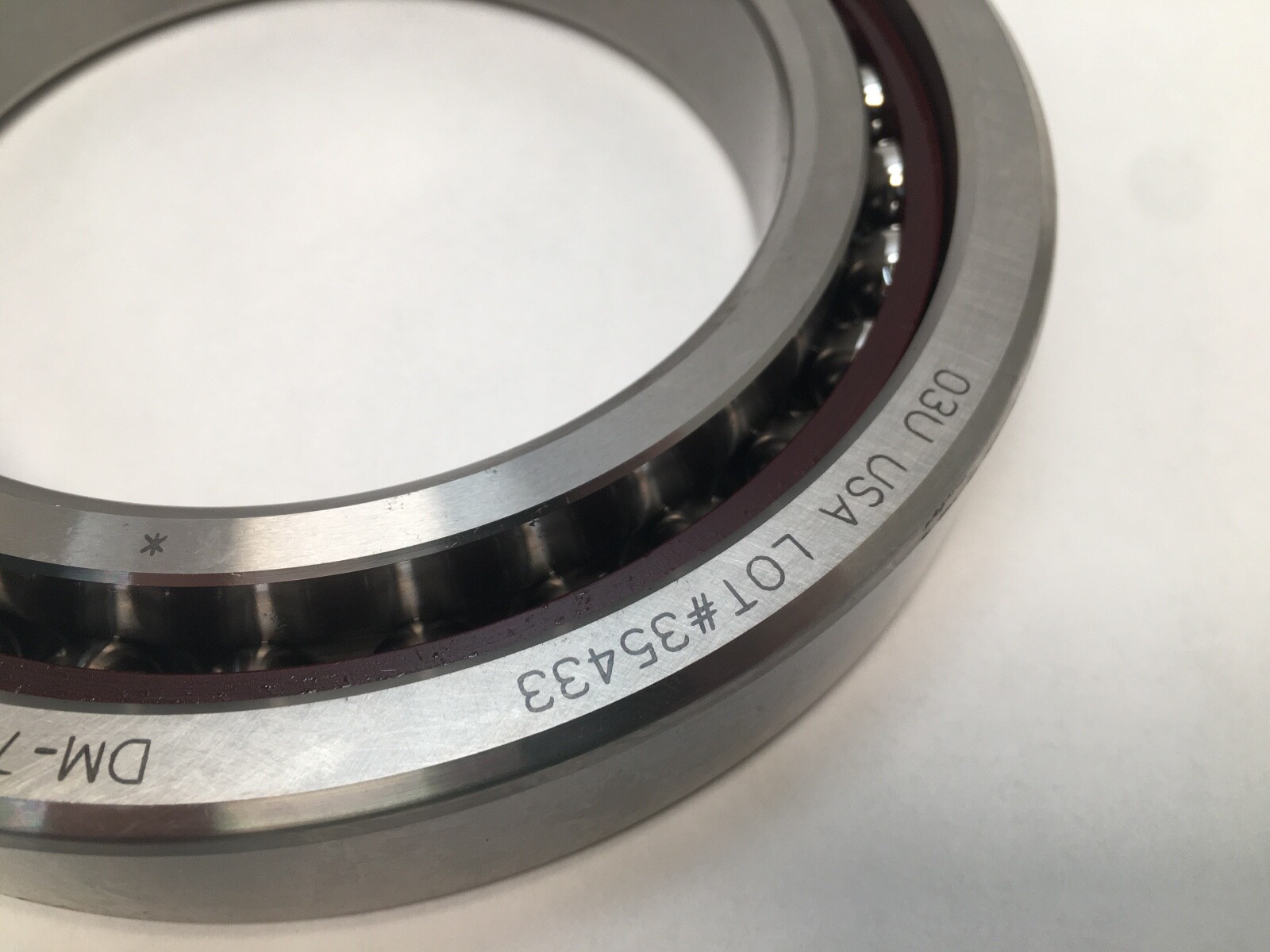

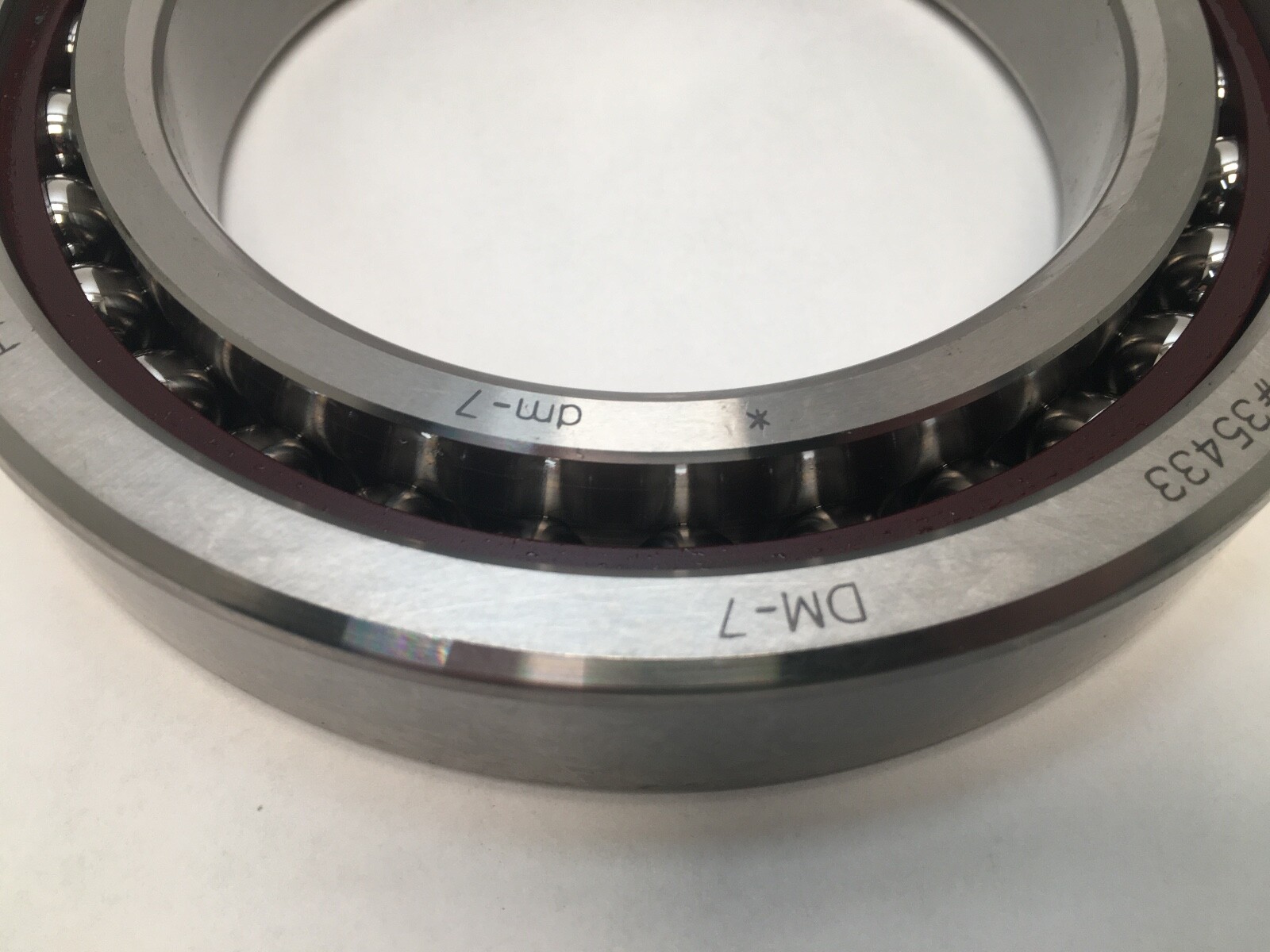

Fafnir (Timken) 2MMV9122HXCRSUL hybrid ceramic super-precision angular contact ball bearing for machine tool spindles. Silicon nitride ceramic balls on bearing steel rings, phenolic cage, open on both faces. Single bearing, universally ground, light preload. Unit Quantity: 1 Pc.

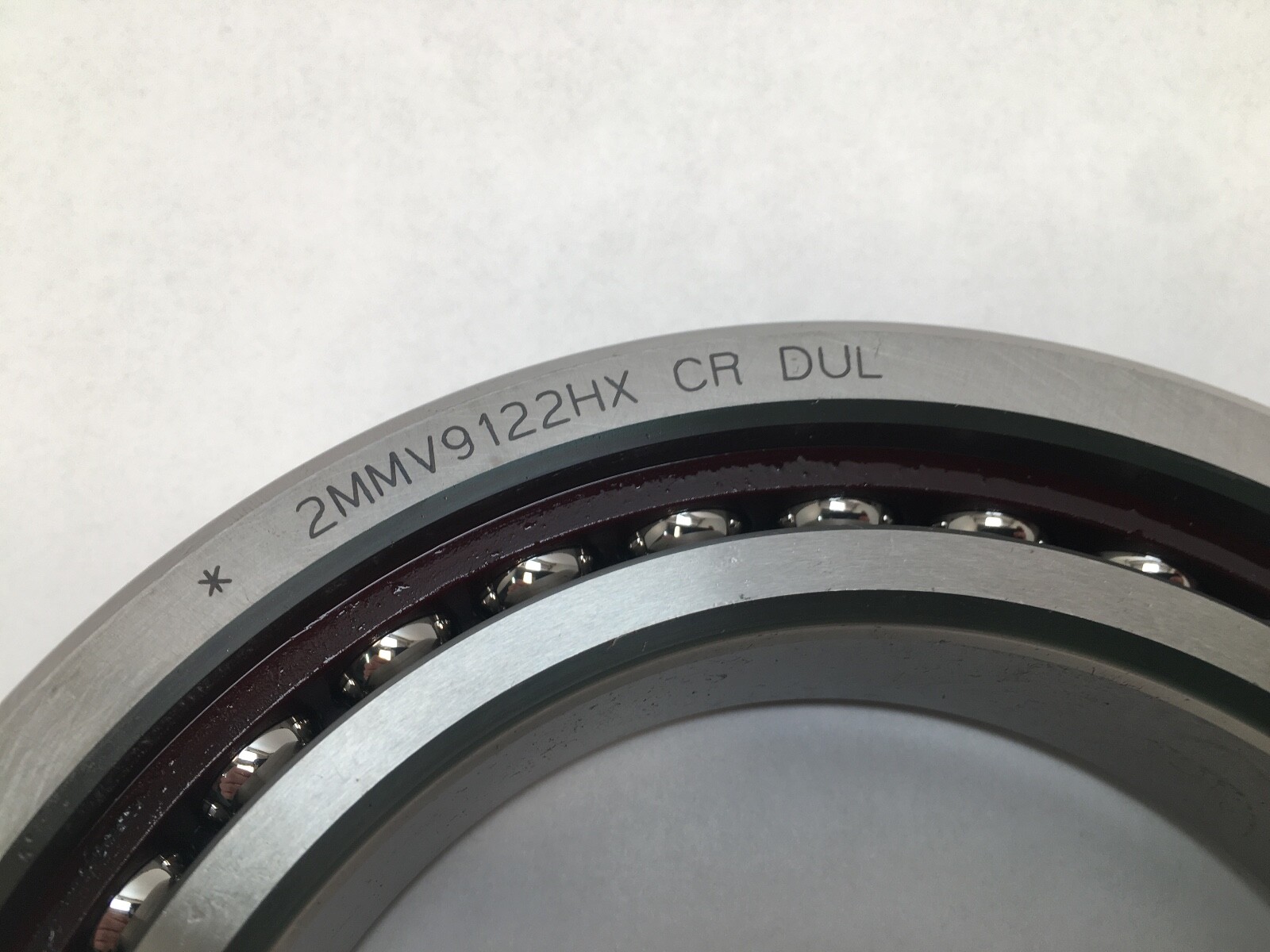

2MM — 15° contact angle, Fafnir super-precision series.
V — with MM, class P4S: ABEC 9 running accuracy on an ABEC 7 / P4 body.
9122 — size code, ISO 7022 envelope (9100 series = ISO 70xx), 110 x 170 x 28 mm.
HX — hybrid ceramic build, silicon nitride balls.
CR — phenolic cage.
SUL — single bearing, universally ground, light preload.
Bore Diameter: 110 mm. Outside Diameter: 170 mm. Overall Width: 28 mm. Contact Angle: 15°. Precision Class: P4S. Preload: Light. Cage Material: Phenolic. Rolling Elements: Silicon nitride ceramic balls. Closure Type: Open. Number Of Rows: 1. Series: 9100 (ISO 70xx). GTIN: 087796232914.
Envelope: 110 x 170 x 28 mm (4.3307 x 6.6929 x 1.1024 in). Straight bore. Universal grinding allows single use or stacking with further SUL bearings of the same number.
ISO base number 7022. Cross-references: SKF 7022 CD/HC/P4A (class P4A, hybrid ceramic); FAG HCB7022-C-T-P2-UL (class P2, hybrid ceramic); Fafnir 2MM9122WI CR SUL (steel balls); Fafnir 3MM9122WI CR SUL (25° contact angle).
110 mm bore, 170 mm outside diameter and 28 mm width, the ISO 7022 envelope.
15° contact angle from the 2MM prefix, and class P4S from MMV: ABEC 9 running accuracy on an ABEC 7 body.
HX is the hybrid ceramic build with silicon nitride balls, CR is the phenolic cage, and SUL is a single universally ground bearing with light preload.
